Secura QMT35 User manual

QMT 35
INSTRUCTION MANUAL
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call. We’re ready to help!
800-359-5520 • P: [phone] • UK: 0800 056 2853 • AUS: [phone]

2
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Before getting started, let’s make sure this mount is perfect for you!
No — Perfect!
Yes — This mount is NOT compatible. Call to find a compatible mount:
8800-359-5520 • P: [phone] • UK: 0800 056 2853 • AUS: [phone]
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service.

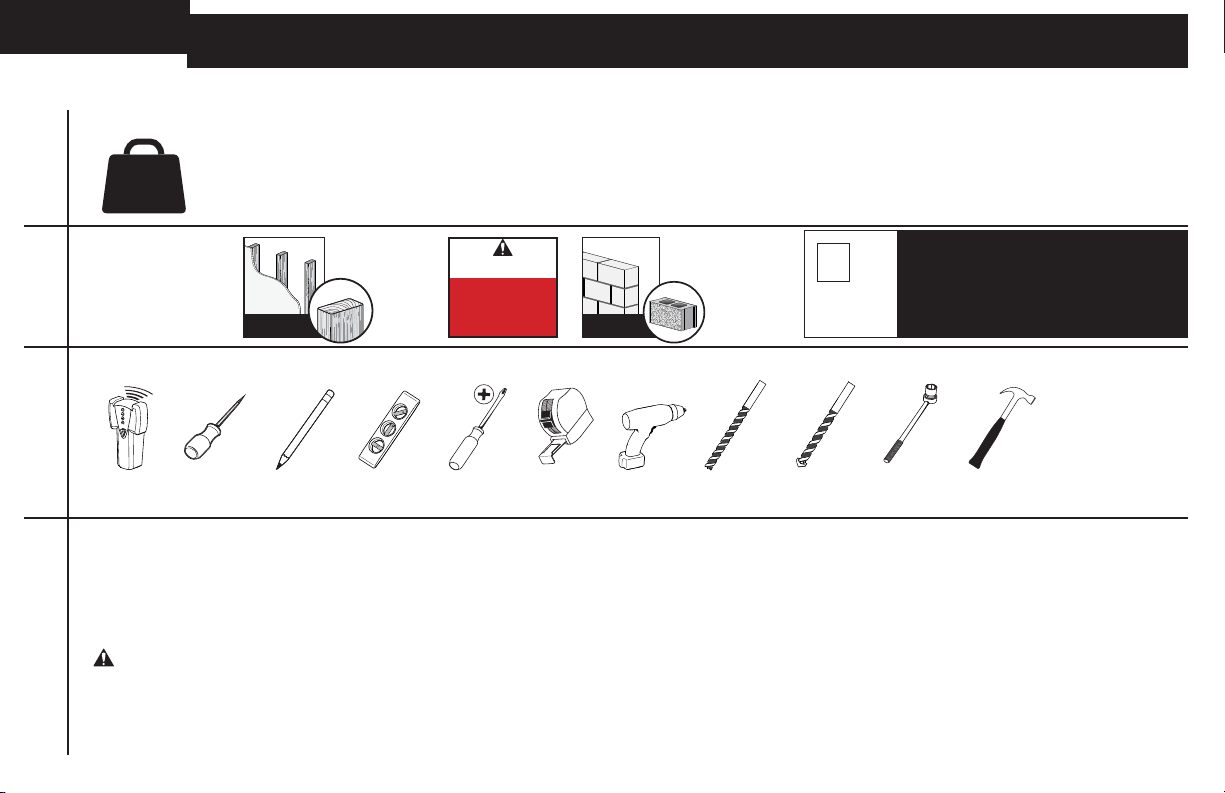

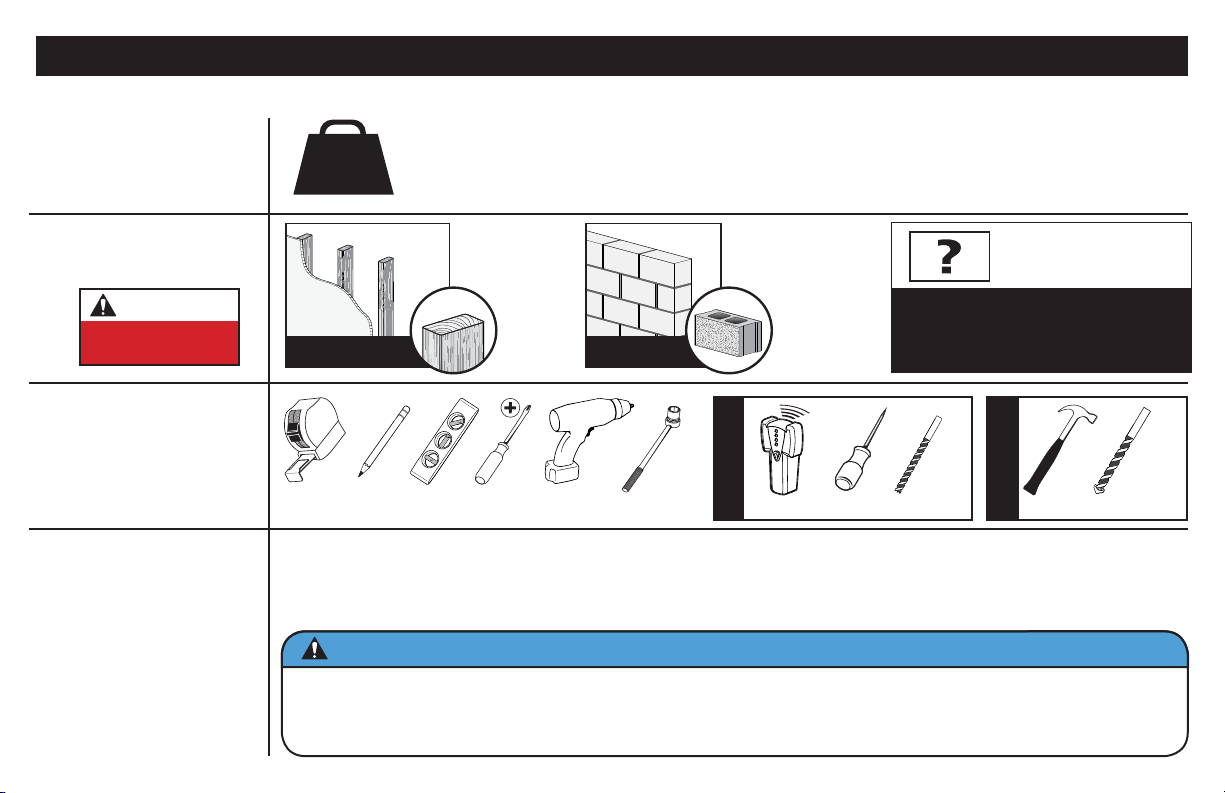

Do you have
all the tools
needed?
1
2
3
4
What is your
wall made of?
50 lbs.
(22.6 kg)
Ready to begin?
Does your TV
(including accessories)
weigh more than
50 lbs. (22.6 kg)?
CAUTION:
DO NOT install
into drywall alone
Drywall with
wood studs?
Perfect!

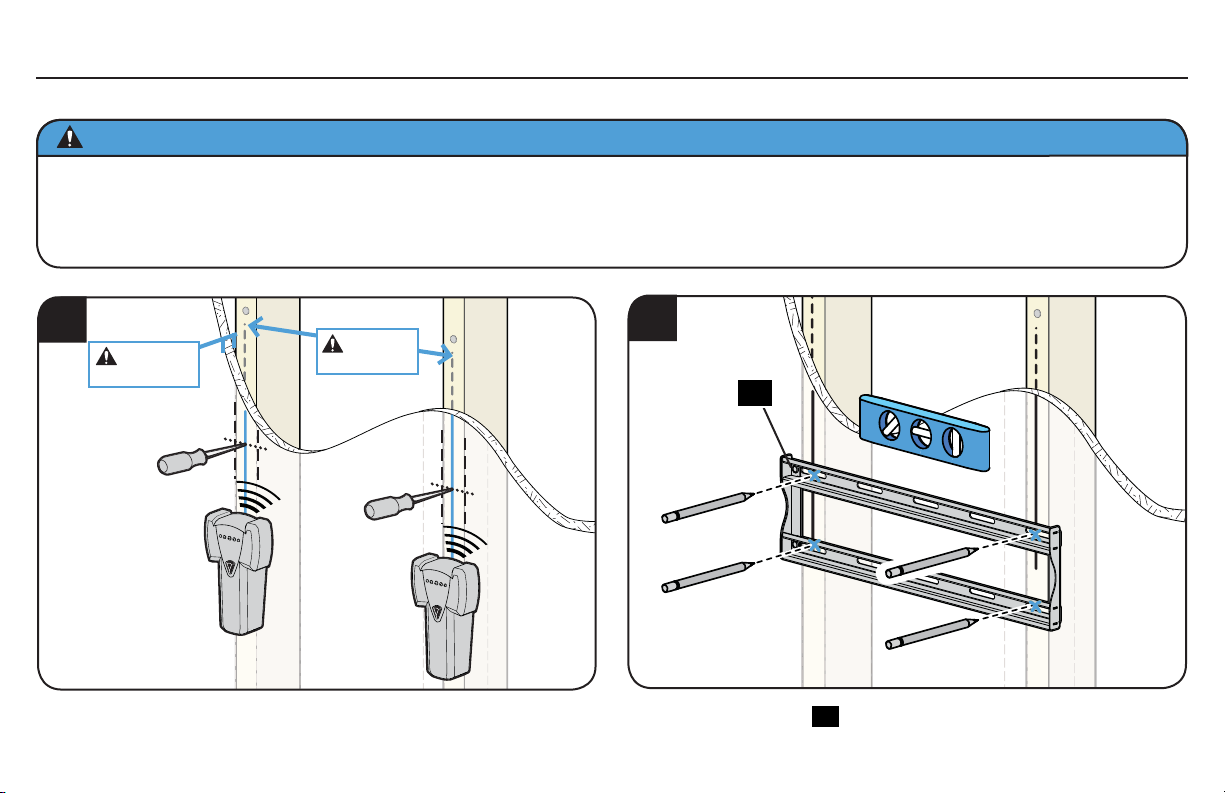

Wood Stud Install

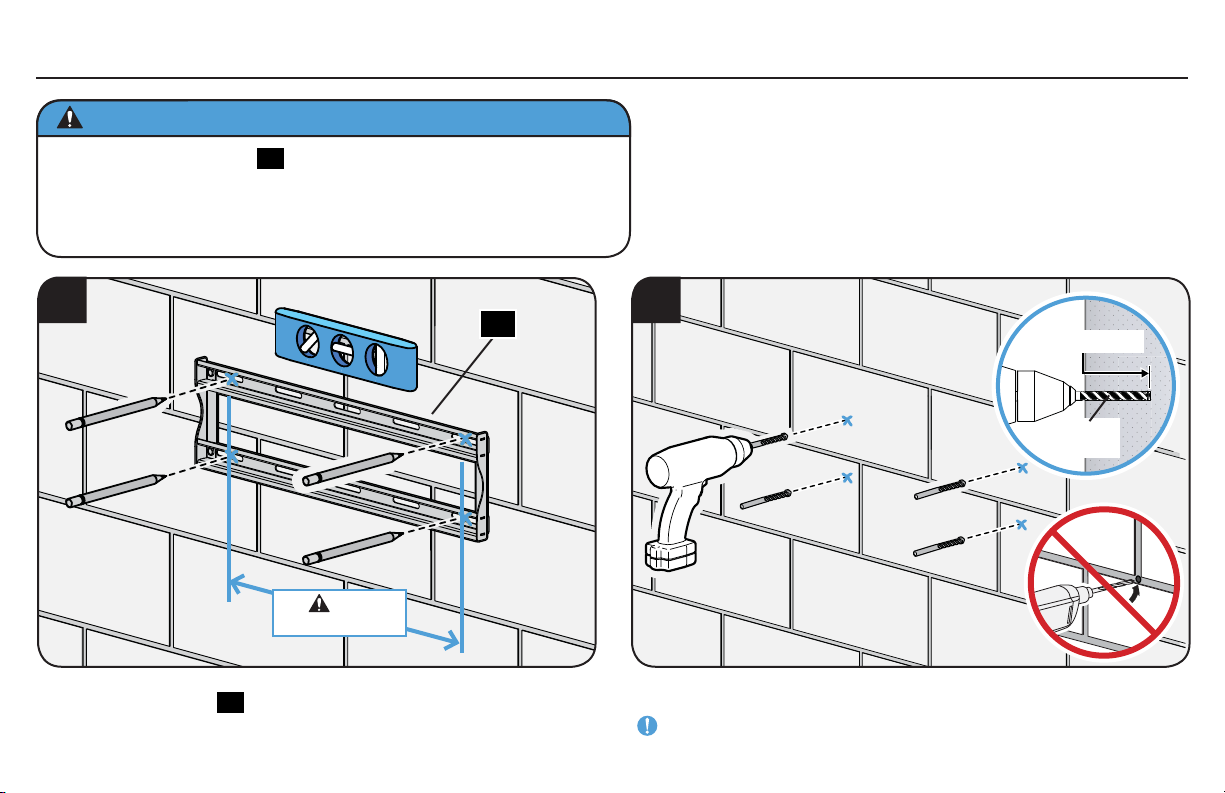

Concrete Install
Awl
Pencil Level Stud Finder Screwdriver
Tape
Measure
1/8 in.
(3 mm)
Wood
Drill Bit
Electric
Drill Hammer
7/16 in.
(11 mm)
Socket
Wrench Drill Bit
3/8 in.
(10 mm)
Concrete
CAUTION: Avoid potential personal injury or property damage!
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Unsure?
Solid concrete or
concrete block?
Perfect!
Call Customer Service:
• 800-359-5520 • P: [phone]
• UK: 0800 056 2853
• AUS: [phone]

3

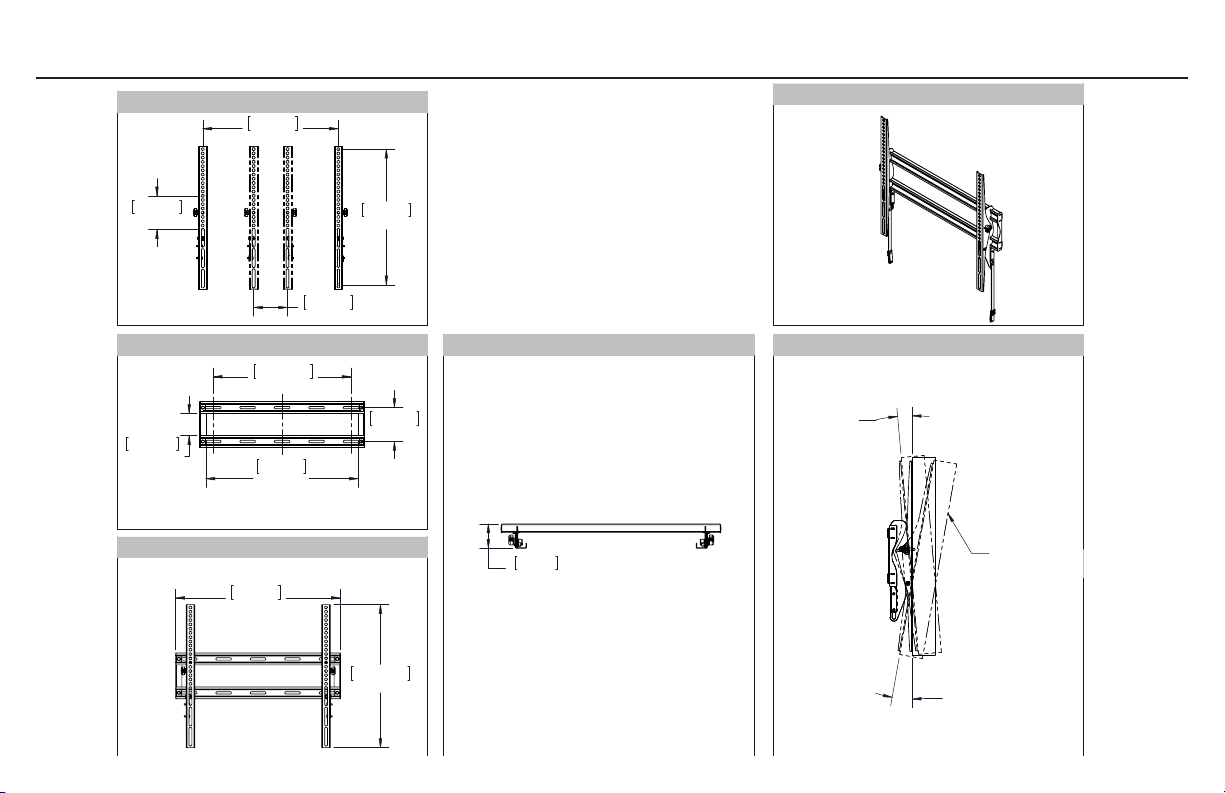

Dimensions
486mm
19.13in
421.4mm
16.59in
54mm
2.12in
100mm
3.94in
400mm
15.75in
100mm
3.94in
400mm
15.75in
100mm
3.94in
65.4mm
2.57in
OPENING
449mm
17.68in
OPENING
406.4mm
16.00in
SIMULATED
32" TV
5deg
10deg
TV INTERFACE
WALL PLATE

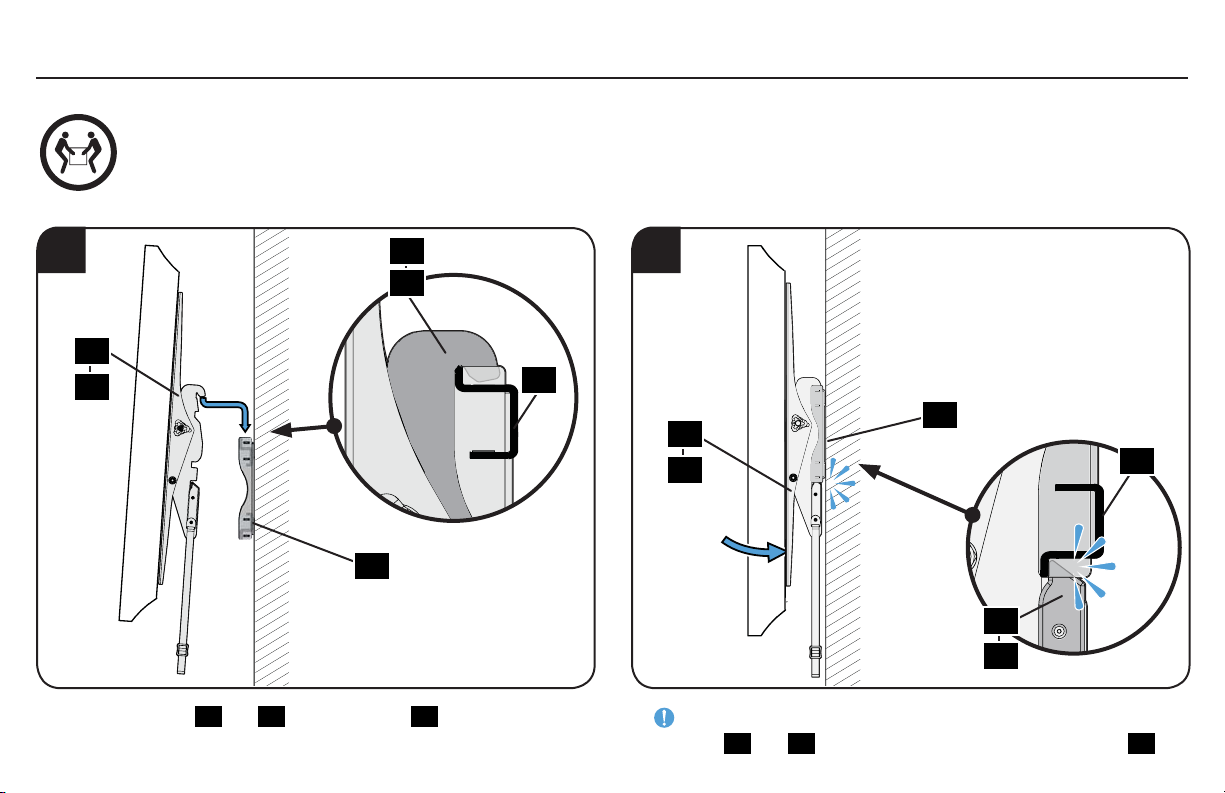

FULLY ASSEMBLED MOUNT
3-D
TOP VIEW - RETRACTED
SIDE VIEW - TILT RANGE

4
M8 x 16mm M8 x 35mm
22mm
M6 x 12mm M6 x 35mm
M6/M8M4
M8 x 20mm
M4 x 12mm M4 x 35mm
TV Brackets
01 02
x1 x1
Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
Never use damaged parts!

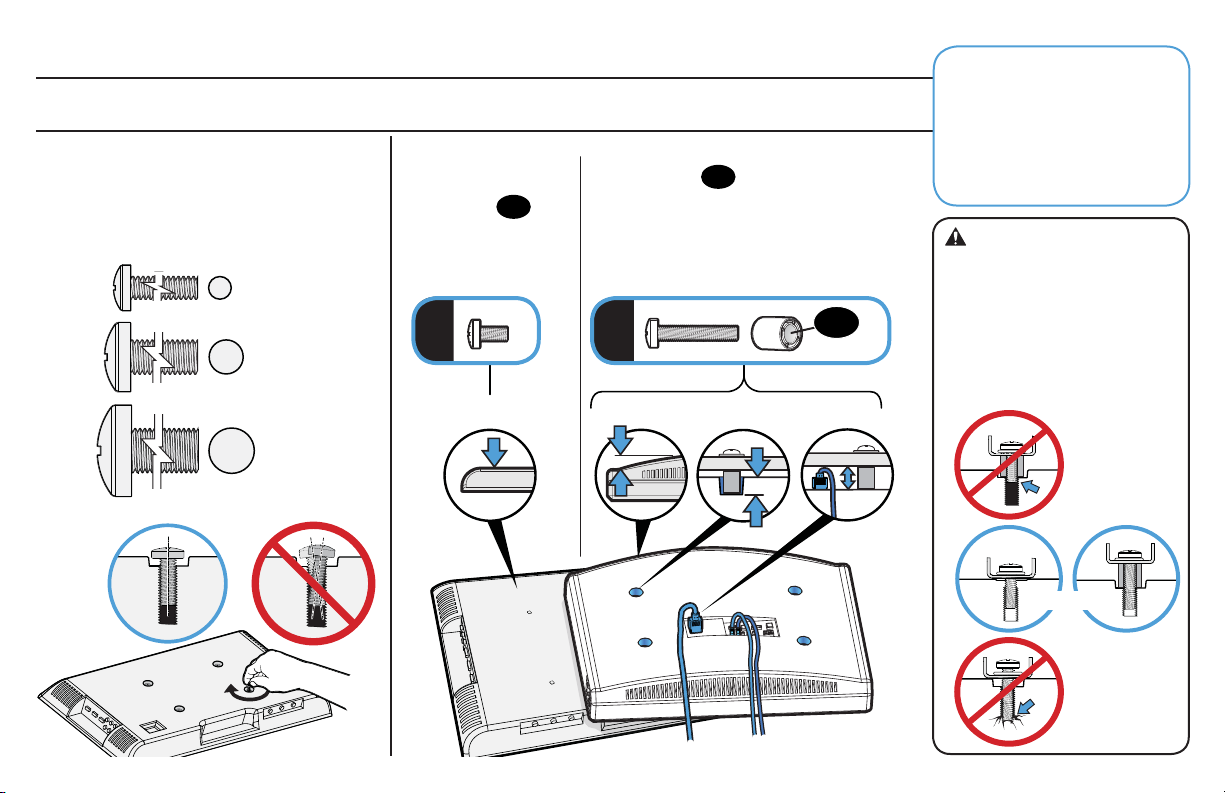

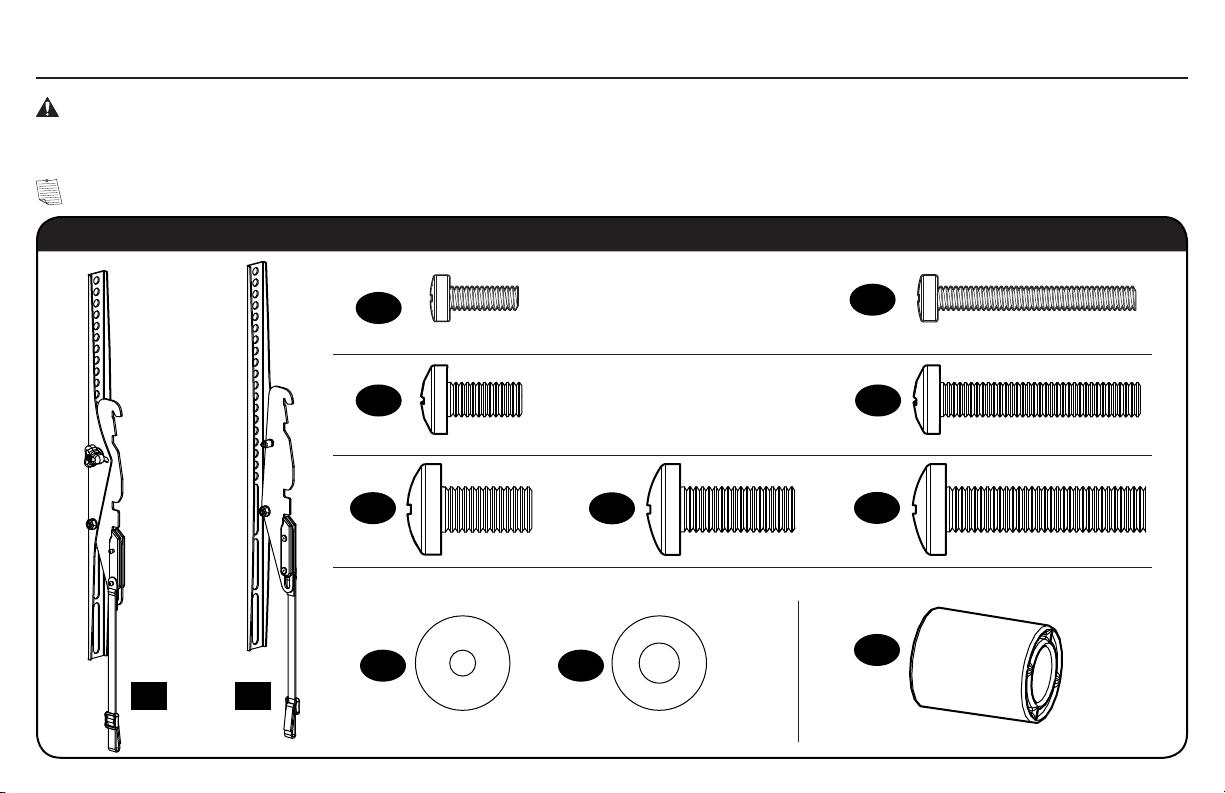

Parts and Hardware for STEP 1
NOTE: Not all hardware included will be used.
03
04 08
05
07
06 09
10 11 12
x4
x4 x4
x4
x4
x4 x4
x4
TV Screws
x4 x4
Washers Spacers

5
1/4 in.
1/4 x 2¾ in.
13 x1

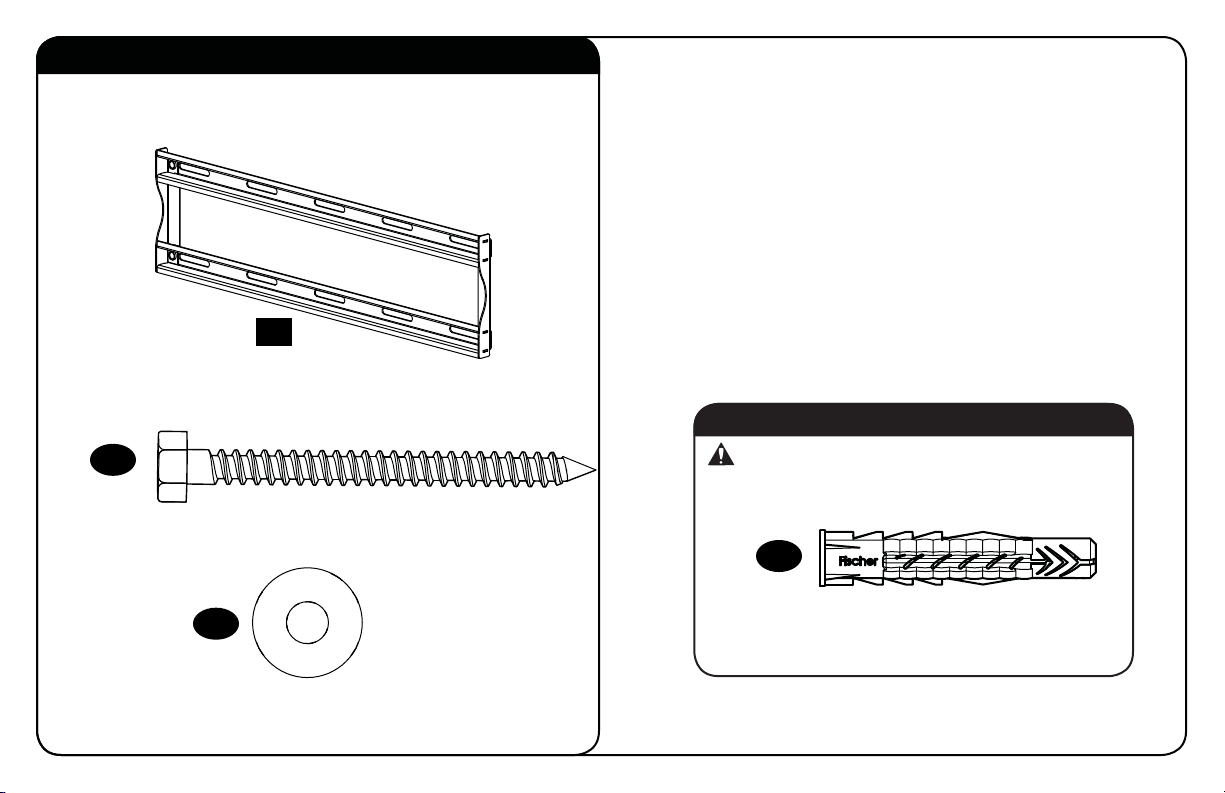

Parts and Hardware for STEP 2

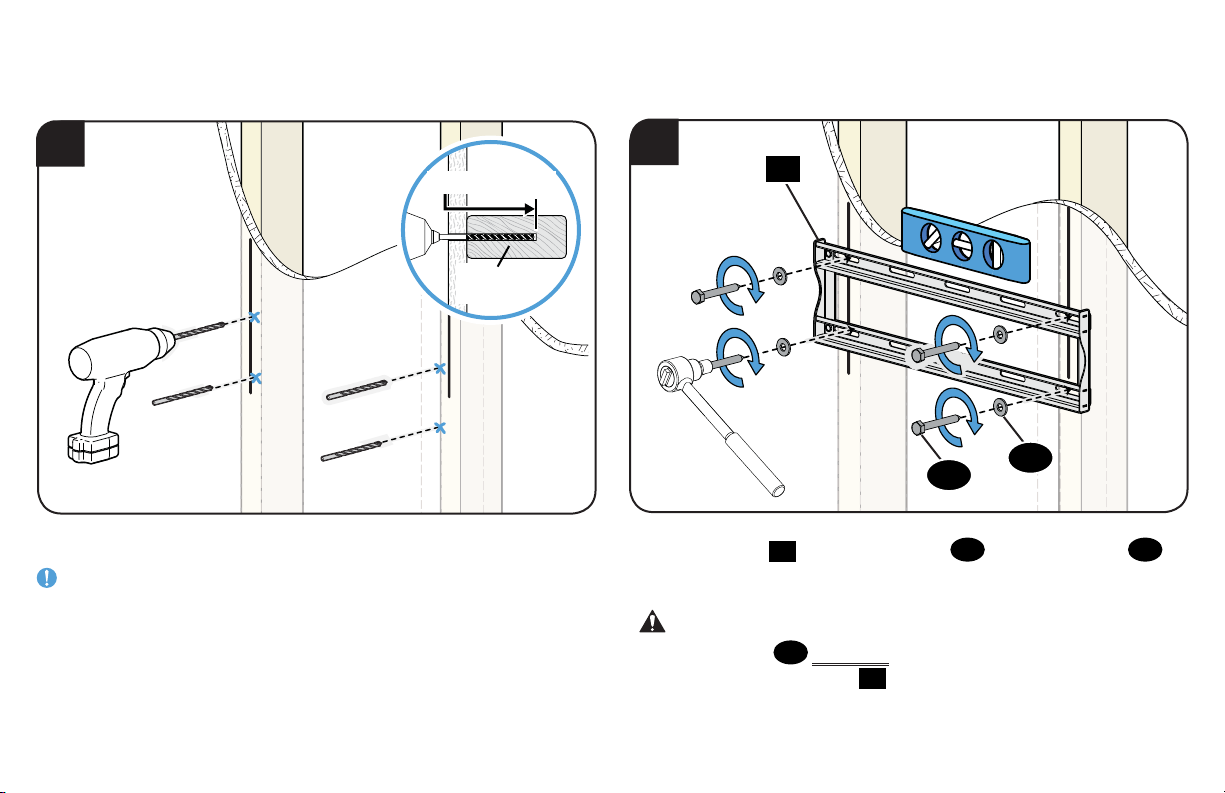

Lag Bolts
Wall Plate
15
x4
Washers
14
x4
16
x4

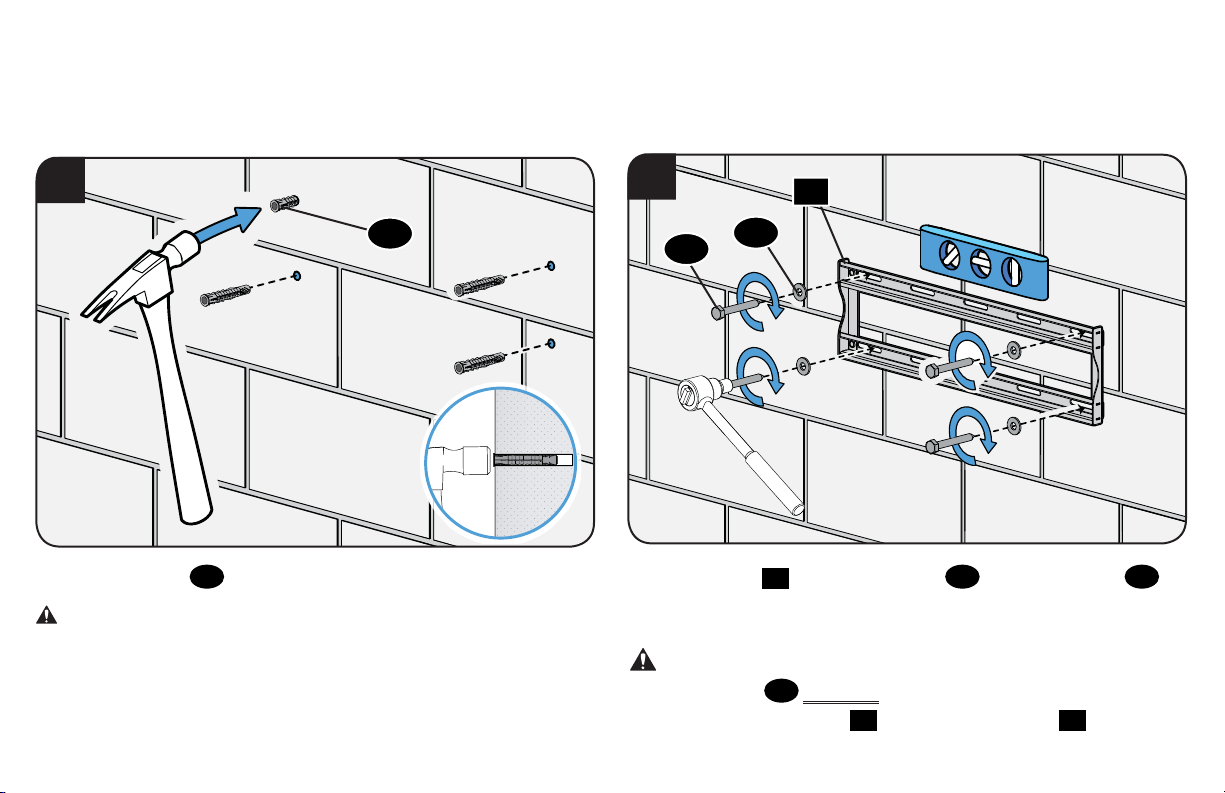

Concrete Anchors
For concrete installations ONLY
CAUTION: Do not use in drywall or wood
Fischer UX10 x 60R
