Seiko 5D22 User manual

Cal. 5D22, 5D44
INSTRUCTIONS (P. 3)
BEDIENUNGSANLEITUNG (S. 23)
INSTRUCTIONS (P. 43)
ISTRUZIONI (P. 63)
INSTRUCCIONES (P. 83)
INSTRUÇÕES (P. 103)
(123 )
1_KINETIC 5D22 5D44_E.indd 1 07.8.22 1:13:29 PM

2
You are now the proud owner of a SEIKO KINETIC
®
Cal. 5D22/5D44. For best results, please
read the instructions in this booklet carefully before using your SEIKO KINETIC
®
. Please keep
this manual handy for ready reference.
Sie sind jetzt stolzer Besitzer einer SEIKO KINETIC®Kal. 5D22/5D44. Lesen Sie diese
Bedienungsanleitung vor der Verwendung Ihrer SEIKO KINETIC®aufmerksam durch, um die
optimale Nutzung dieser Uhr zu gewährleisten. Heben Sie diese Bedienungsanleitung gut auf,
um jederzeit wieder nachlesen zu können.
Vous voici l’heureux propriétaire d’une montre SEIKO KINETIC®Cal. 5D22/5D44. Pour en obtenir
de bonnes performances, veuillez lire attentivement les explications de ce mode d’emploi avant d’
utiliser votre montre SEIKO KINETIC®. Conservez ce mode d’emploi pour toute référence ultérieure.
Grazie di aver acquistato questo orologio SEIKO KINETIC® Cal. 5D22/5D44. Per ottenerne i migliori
risultati leggere attentamente le istruzioni di questo libretto prima di passare all'uso dell'orologio
stesso. Tenere poi il manuale a portata di mano, per ogni eventuale futura, ulteriore consultazione.
Usted es ahora un orgulloso propietario de un Reloj SEIKO KINETIC®Cal. 5D22/5D44. Para los
mejores resultados, por favor lea las instruciones de este librito cuidadosamente antes de utilizar
su Reloj SEIKO KINETIC®. Le rogamos que guarde este conveniente manual para pronta referencia.
Você pode sentir-se orgulhoso de ter adquirido um SEIKO KINETIC®Cal. 5D22/5D44. Para obter
dele os resultados máximos, solicitamos-lhe que, antes de usar o seu SEIKO KINETIC®, leia
atentamente as instruções contidas neste opúsculo. E guarde este manual para referências futuras.
1_KINETIC 5D22 5D44_E.indd 2 07.8.22 1:13:30 PM

English
3
IFor the care of your watch, see "TO PRESERVE THE QUALITY OF YOUR
WATCH" in the attached Worldwide Guarantee and Instruction Booklet.
CONTENTS
Page
FEATURES................................................................................................................................................... 4
DISPLAY AND BUTTON OPERATION ......................................................................................................... 5
CROWN WITH DRIVING WHEEL................................................................................................................ 7
HOW TO CHARGE AND START THE WATCH............................................................................................. 8
HOW TO READ THE DIRECT DRIVE INDICATOR ...................................................................................... 10
TIME/CALENDAR SETTING. ....................................................................................................................... 17
IMPROPER FUNCTION ............................................................................................................................... 19
AUTOMATIC HAND ALIGNMENT............................................................................................................... 20
POWER SOURCE (KINETIC E.S.U.) ............................................................................................................ 21
SPECIFICATIONS ........................................................................................................................................ 22
1_KINETIC 5D22 5D44_E.indd 3 07.8.22 1:13:30 PM

English
4
❖THE KINETIC E.S.U. is an abbreviation for KINETIC ELECTRICITY STORAGE UNIT,
which is the name of the power source employed in the KINETIC movements.
FEATURES
Unlike the conventional quartz watch powered by the button-type battery, the
KINETIC is an analog quartz watch equipped with an Automatic Generating
System, the unique technology developed by SEIKO, which generates electrical
energy to power the watch by utilizing the movement of the arm or wrist, and
stores it in the KINETIC ELECTRICITY STORAGE UNIT (KINETIC E.S.U.) The watch
is equipped with a direct drive indicator that constantly displays how long the
watch will keep operating. The direct drive indicator also dynamically displays
the electric power generation status while charging the watch.
CAUTION
●The movement of your arm while the watch is worn generates electrical
energy to power the watch. Even if the watch is worn on your arm, it will
not be charged while your arm is not in motion.
●It is recommended that the watch be worn on your wrist daily for at least
10 hours.
●If you do not wear the watch for more than the continuous operating time
that it displays, charge the watch as necessary so as not to stop operation
of the watch until the next time you wear it. Refer to “How to charge and
start the watch” for further details.
1_KINETIC 5D22 5D44_E.indd 4 07.8.22 1:13:31 PM

English
5

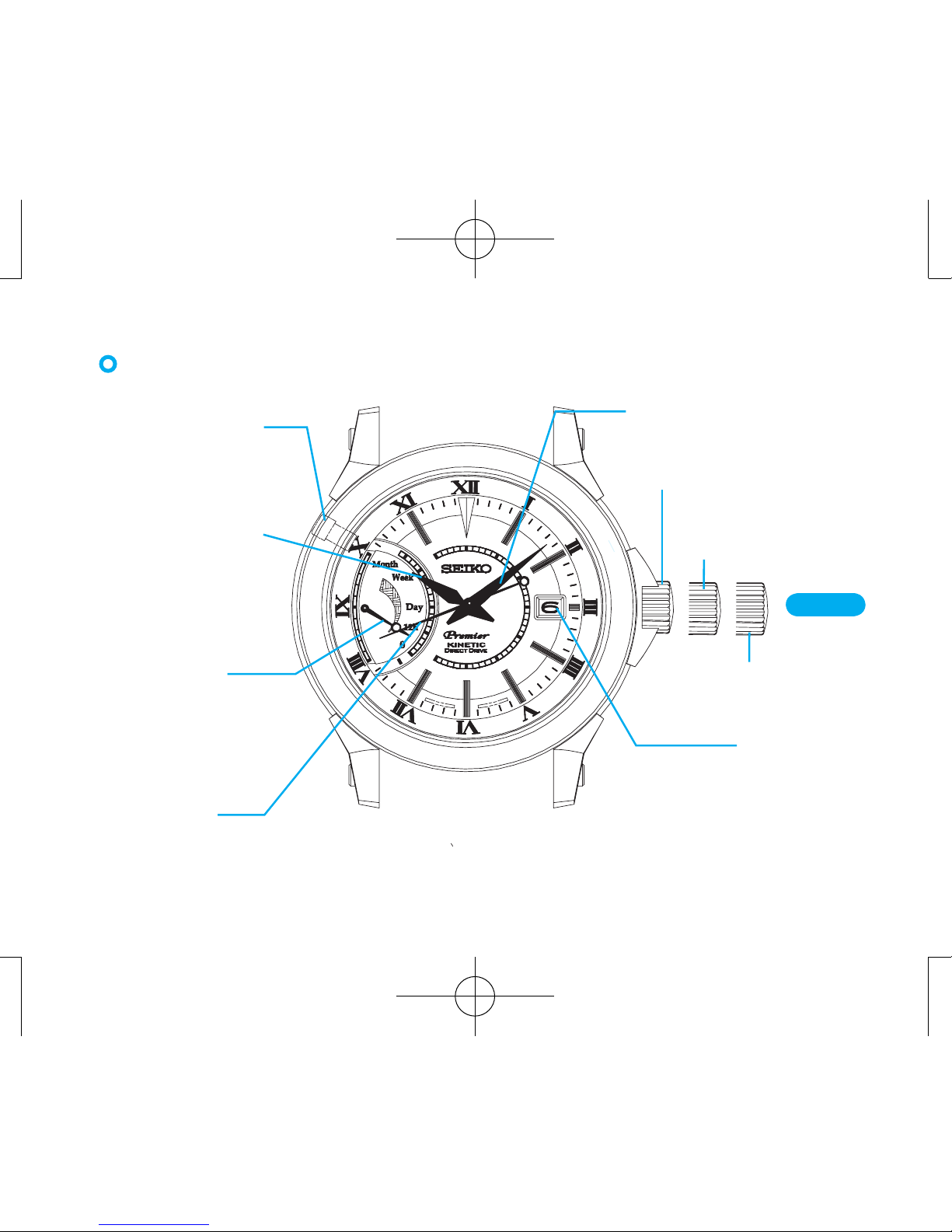

DISPLAY AND BUTTON OPERATION
First click position: Date
and day setting
Second click position:
Time setting
Hour hand
Direct drive indicator hand
(for indicating amount of
power reserved, power
generation status and
amount of generated
power)
Date
Day hand (retrograde day indicator)
Minute hand
❖The position of the date window and day hand may differ depending on the model.
Normal position: Electric power
generation by manual winding
Second hand
Button (only used for
special operations)
● CAL. 5D44
CROWN
1_KINETIC 5D22 5D44_E.indd 5 07.8.22 1:13:38 PM

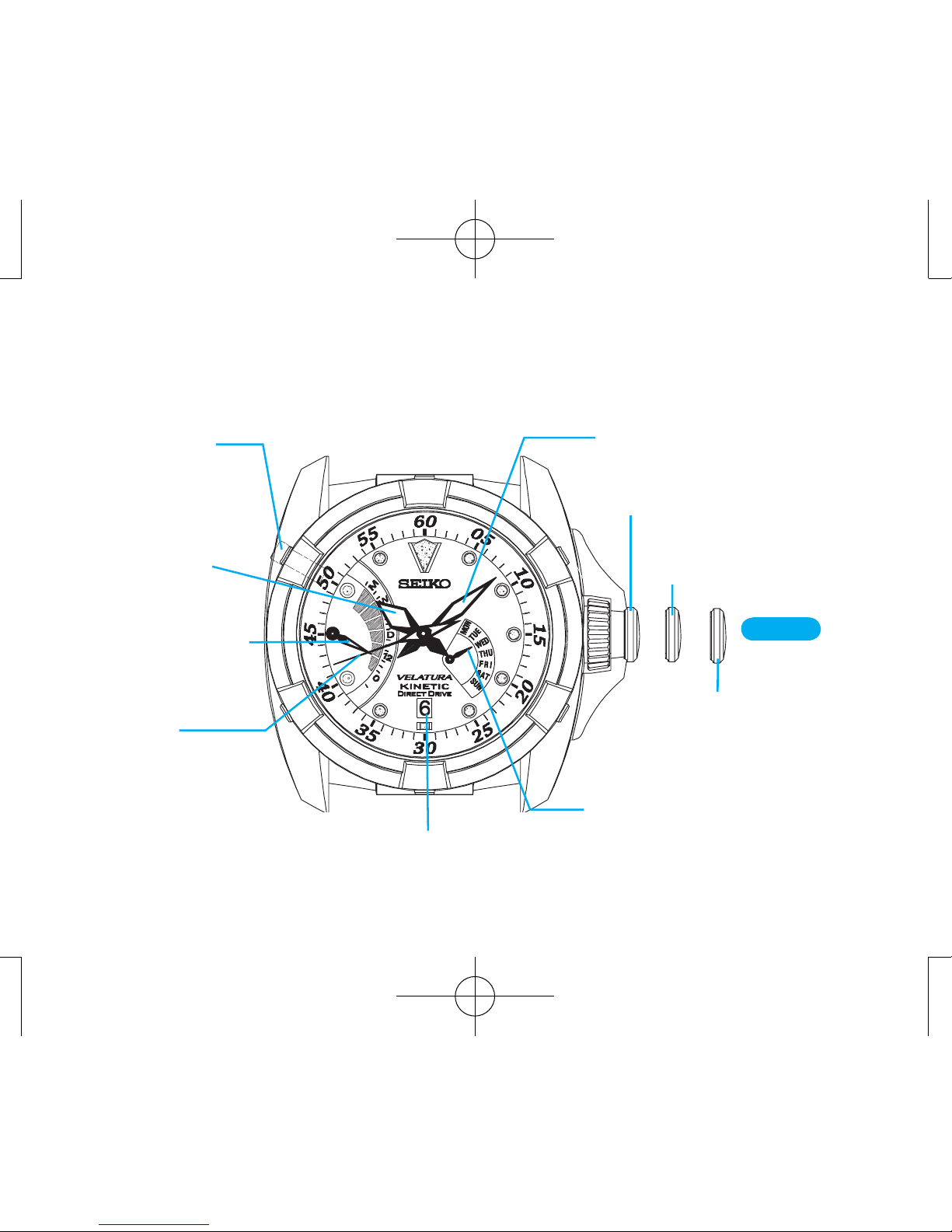

English
6
First click position: Date
setting
Second click position:
Time setting
Hour hand
Direct drive indicator
hand (for indicating
amount of power
reserved, power
generation status and
amount of generated
power)
Date
Minute hand
Normal position: Electric power
generation by manual winding
Second hand
Button (only used for
special operations)
● CAL. 5D22
CROWN
❖The position of the date window may differ depending on the model.
1_KINETIC 5D22 5D44_E.indd 6 07.8.22 1:14:00 PM

English
7
uSome models may have a crown with a special structure as illustrated
below. Refer to the following instructions when operating this type of
crown, as it should be operated in a different way from that of ordinary
ones.
CROWN WITH DRIVING WHEEL
To pull out the crown, pull out the A portion (crown).
To turn the crown, turn the B portion (driving wheel).
Normal position First click position Second click position
Driving wheel
Crown
AB
A
B
1_KINETIC 5D22 5D44_E.indd 7 07.8.22 1:14:01 PM

English
8
HOW TO CHARGE AND START THE WATCH
1. Turn the crown clockwise repeatedly to charge
the watch.
2. After electric power generation by turning the
crown continues for a certain period, the direct
drive indicator hand moves to point at scale
marking 0 and the second hand starts moving.
Make sure to stop turning the crown to check it.
✽The manual winding mechanism for generating the
electric power functions when the crown is turned
clockwise. The watch can also be charged when the
crown is turned in a reciprocating motion.
✽When the watch is completely stopped, the direct
drive indicator hand points at scale marking 1 under
the 0 position (standby position).
✽If the second hand does not move even though the
crown is turned, turn the crown more quickly.
✽If the watch has been left untouched for several years,
the second hand starts moving in 2-second intervals
after the crown is turned. This is not a malfunction.
Charge the watch by turning the crown until the direct
drive indicator hand moves from the standby position to
the 0 position. It may take approximately 5 to 6 minutes.
1_KINETIC 5D22 5D44_E.indd 8 07.8.22 1:14:03 PM

English
9
✽The direct drive indicator hand moves up and down to display the electric power generation
status.
✽When you stop turning the crown, the indicator hand displays the amount of power generat-
ed by the current manual winding for approximately 4 seconds, and then the hand returns to
display the total amount of power reserve. Charge the watch until the indicator hand points
at the second marking above "0"(approximately 6 hours of power reserve).
✽This watch will keep on operating for approximately 1 month (30 days) if it is fully charged.
However, it is not necessary to charge the watch fully, as it is charged automatically while it
is worn on your wrist.
✽Refer to "How to read the direct drive indicator” for further details.
3. Continue to turn the crown to sufficiently charge the watch.
Power generation
status display
Generated power
amount display Power reserve display
1_KINETIC 5D22 5D44_E.indd 9 07.8.22 1:14:06 PM

English
10
HOW TO READ THE DIRECT DRIVE INDICATOR
The direct drive indicator can be used to check the following:
(1) Power reserve amount (continuous operating time)
(2) Real-time power generation status and newly generated amount of power
while charging the watch
“M+1” position
Power reserve/
generated power scale
Standby position
Scale marking
1_KINETIC 5D22 5D44_E.indd 10 07.8.22 1:14:07 PM

English
11
✽The power reserve indicator provides an approximate time that the watch keeps operating
without needing to be charged.
✽If the direct drive indicator hand moves to the 0 position, the watch will stop operating within
3 hours. When the watch stops, the indicator hand moves to the standby position to show
that the watch stops operating due to a power shortage.
✽If the crown is turned after the watch is fully charged, the indicator points at the “M+1” posi-
tion.
■POWER RESERVE INDICATOR
●The watch checks power reserved in the KINETIC E.S.U and displays how
long the watch will keep operating in 18 steps (0 - M scale marking).
●The continuous operating time until approximately one month (30 days)
can be displayed.
■REAL-TIME POWER INDICATOR
●While turning the crown to charge the watch, the watch checks a newly
generated amount of power and displays it in 19 steps (0 - “M+1” scale
marking).
●A maximum 6 hours of generated power can be displayed.
✽The real-time power indicator provides an approximate amount of power generated through
current power generation.
✽After power generation by turning the crown is completed, the indicator hand will display the
amount of newly generated power for approximately 4 seconds, and then the indicator hand
will move to display the total amount of power reserve.
1_KINETIC 5D22 5D44_E.indd 11 07.8.22 1:14:07 PM

English
12
Scale
marking
Standby
position
01234567891011
Indication on
dial
0 12
(12 h)
D
(Day)
Power
reserve
amount
The watch
stops
operating.
0 3 H 6 H 9 H 12 H 15 H 18 H 21 H 1 D 2 D 3 D 4 D
Amount of
generated
power
0 20
Min.
40
Min.
1 H 1 H
20
Min.
1 H
40
Min.
2 H 2 H
20
Min.
2 H
40
Min.
3 H 3 H
20
Min.
3 H
40
Min.
H : Hour
D : Day
W : Week
* The minimum amount
of power reserve and
generated power is
described in the table.
Scale
marking
12 13 14 15 16 17 18
Indication on
dial
0 W
(Week)
12 M
(Month)
Power
reserve
amount
5 D 6 D 1 W 2 W 3 W 30 D
Amount of
generated
power
4 H 4 H
20
Min.
4 H
40
Min.
5 H 5 H
20
Min.
5 H
40
Min.
6 H
■SCALE TABLE OF POWER RESERVE AMOUNT AND GENERATED
POWER AMOUNT
1_KINETIC 5D22 5D44_E.indd 12 07.8.22 1:14:07 PM

English
13
Ex.) How to read the scale table of power reserve and generated power.
Scale marking Power reserve
3 Not shorter than 9 hours
and not longer than 12
hours
9 Not shorter than 2 days
and not longer than 3 days
17 30 days
Scale marking Generated power
3 1 hour or more
9 3 hour or more
18 6 hour or more
1_KINETIC 5D22 5D44_E.indd 13 07.8.22 1:14:07 PM

English
14

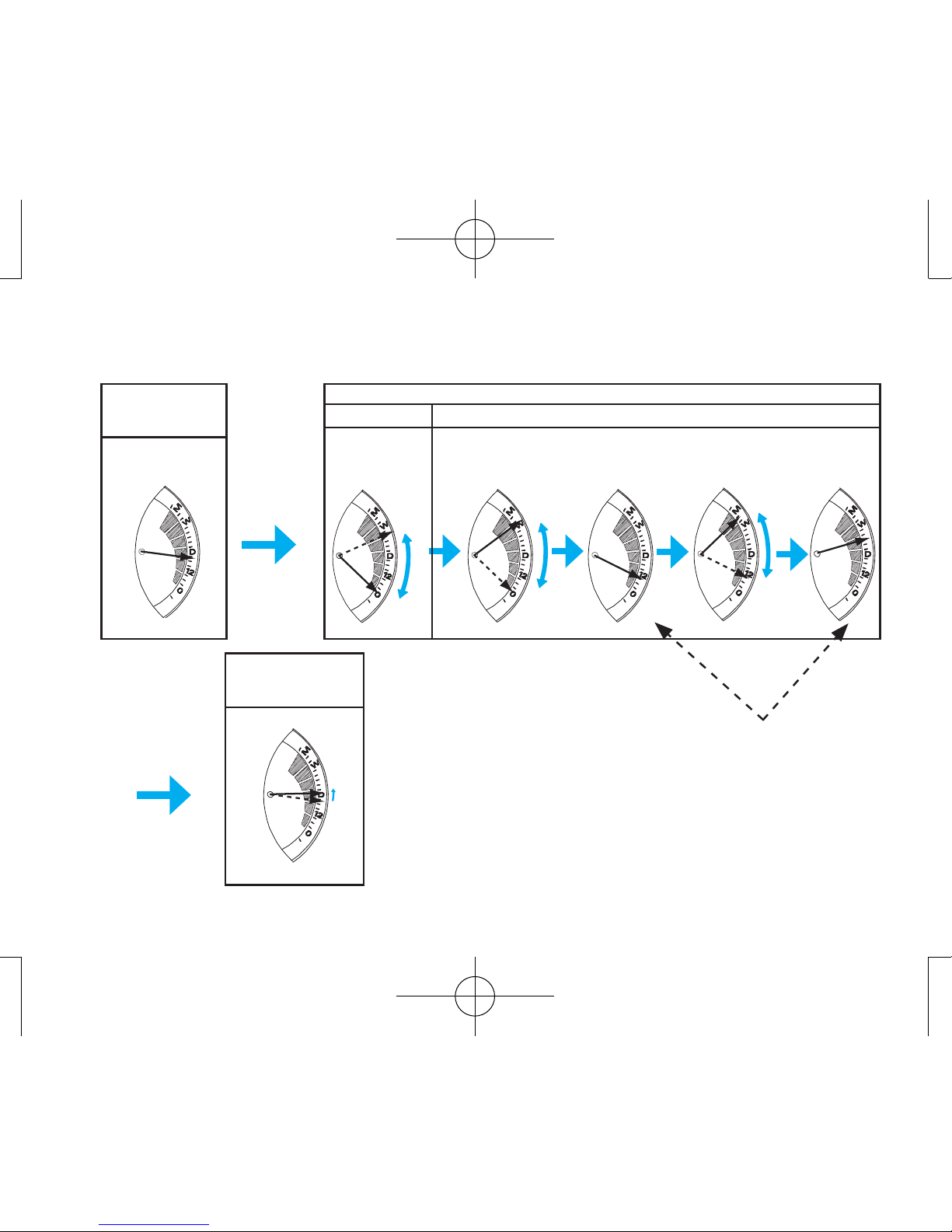

■HOW TO READ THE DIRECT DRIVE INDICATOR WHILE CHARGING
THE WATCH
1. Turn the crown clockwise. After approximately 1 second, the direct drive
indicator hand starts moving.
2. Continue to turn the crown. The indicator hand moves upward and
downward according to the power generation status. When fur ther
continuing to turn the crown, the point where the indicator hand starts
moving goes up as the amount of generated power increases. If you
temporarily stop turning the crown, the indicator hand goes down
to display the accumulated power generated by the current power
generation.
3. Stop turning the crown. The direct drive indicator hand returns to display
the total amount of power reserve after approximately 4 seconds.
✽After the crown is turned repeatedly, the indicator hand will stop at the maximum scale value
(“M+1” position).
If the crown is turned after the indicator hand stops at the “M+1” position, the watch continues to accumulate
power reserve, but stops displaying the power generation status. If you want to display the power generation
status, stop turning the crown, and after the indicator hand returns to display the power reserve, start turning the
crown again.
✽If turning the crown more quickly and in long strokes so that the indicator hand makes large
movement, the generated power increases efficiently.
✽Depending on intervals between turning the crown, the indicator hand may not move. This
is not a malfunction.
✽The watch is equipped with a system to prevent overcharge. Even if the crown is turned
when the indicator hand points at the maximum scale value of power reserve, no malfunction
1_KINETIC 5D22 5D44_E.indd 14 07.8.22 1:14:07 PM

English
15
will result.
✽The watch can be charged if it is swung from side to side, however, it may take time until it
displays the power generation status.
✽Even if the watch is worn on the wrist after it is charged fully (power reserve of 30 days),
and then it is left untouched, the watch will not operate for more than 30 days after it is worn
again.
✽When you take off the watch and leave it untouched, look at the indicator to check if the
watch continues to operate until you wear the watch the next time, and turn the crown to
charge the watch as necessary (make sure to store extra power so as not to stop operation of
the watch).
1_KINETIC 5D22 5D44_E.indd 15 07.8.22 1:14:07 PM

English
16
<Display and movement flow of the direct drive indicator hand while charging
the watch>
Power reserve
display
Power generation status and generated power display
Power reserve
display
Initial status In-progress
A. While turning the
crown
B. When temporarily
stopping turning the
crown
After
approximately
4 seconds
since stopping
turning the
crown
After
approximately
1 second since
starting to turn
the crown
A B
✽The power reserve indicator hand
points at a scale marking between 0
and ”M+1” according to power gen-
eration status.
✽The point where the indicator
hand starts moving goes up as
generated power increases.
1_KINETIC 5D22 5D44_E.indd 16 07.8.22 1:14:10 PM

English
17
MON
TUE
WED
THU
FRI
SAT
SUN
1. Pull out the crown to second click
when the second hand is at the 12
o’clock position.
2. Turn the crown to set the time.
✽ When setting the hour hand, check that
AM/PM is correctly set. The watch is de-
signed so that the calendar changes once
in 24 hours.
Turn the hand past the 12 o'clock marker to deter-
mine whether the watch is set for the A.M. or P.M.
period. If the calendar changes, the time is set for
the A.M. period. If the calendar does not change,
the time is set for the P.M. period.
✽ When setting the minute hand, advance it 4
to 5 minutes ahead of the desired time and
then turn it back to the exact minute.
3. Pu sh the c r own bac k in to the
normal position in a c cordance
with a time signal.
TIME/CALENDAR SETTING
1_KINETIC 5D22 5D44_E.indd 17 07.8.22 1:14:17 PM

English
18
MON
TUE
WED
THU
FRI
SAT
SUN
1. Pull out the crown to first click.
2. Turn the crown counterclockwise
until the current date appears.
3. Turn the crown clockwise to set
the day hand to point at the correct
day of the week.
✽Do not set the date and day of the week
between 9:00 p.m. and 3:00 a.m. Other
wise, it may not change properly.
✽
It is necessary to adjust the date and day
of the week on the first day after a 30-day
month and February.
4. Pu sh the crow n ba c k in to the
normal position.
■HOW TO SET THE DATE AND DAY (DAY SETTING ONLY FOR 5D44)
1_KINETIC 5D22 5D44_E.indd 18 07.8.22 1:14:23 PM

English
19
1. Pull out the crown to the second click.
2. Press the button for 2 seconds or more using a sharp-pointed tool (e.g.
ball point pen).
3. Push the crown back into the normal position.
✽The indicator hand will point at the 0 position, and the watch resumes its normal
operation.
IMPROPER FUNCTION
When the watch stops operating even though it displays the remainder of the
power reserve, follow the instructions below to reset the built-in IC.
■HOW TO RESET THE BUILT-IN IC
1_KINETIC 5D22 5D44_E.indd 19 07.8.22 1:14:30 PM

English
20
✽If the indicator hand points at under the 0 position, sufficiently charge the watch.
Refer to “How to charge and start the watch”.
✽By conducting this operation, the indicator hand moves to the 0 position even
though it displayed that there was remaining power reserve; however, this is not a
malfunction.
✽If the watch does not resume normal operation even after resetting the built-in IC,
consult the retailer from whom the watch was purchased.
4. Turn the crown to charge the watch at least until the indicator hand points
at the second marking above "0"(approximately 6 hours of power reserve).
And then set the time, date, and day of the week.
AUTOMATIC HAND ALIGNMENT
The position of the indicator hand may move out of alignment in rare cases. The
watch automatically corrects the position of the indicator hand once every 24
hours. While correcting the hand position, the indicator hand moves abnormally,
however, this is not a malfunction. After automatic hand alignment is performed,
the indicator hand will return to display power reserve amount.
<About the movement of the indicator hand during automatic hand alignment>
When automatic hand alignment starts, the indicator hand moves to the area under
the 0 position and vibrates, and then points at the 0 position. After automatic
hand alignment is completed, the indicator hand returns to display power reserve
amount.
1_KINETIC 5D22 5D44_E.indd 20 07.8.22 1:14:30 PM
