Seiko Map Meter Instruction and safety manual

3
English
English
2
CONTENTS
Page
MAP METER/MILE MARKER FUNCTION ............................................... 4
PRECAUTIONS ON USING THE WATCH WITH THE MAP METER/MILE
MARKER FUNCTION ............................................................................... 8
ROTATING COMPASS BEZEL ................................................................. 9
PRECAUTIONS ON USING THE COMPASS BEZEL ................................ 11
ENGLISH
You are now the proud owner of a SEIKO Watch with the “Map meter/Mile Marker Function and
Rotating Compass Bezel”. For best results, please read the instructions in this booklet carefully
before using your SEIKO Watch. Please keep this manual handy for ready reference.
Sie sind jetzt stolzer Besitzer einer SEIKO-Uhr mit der Funktion „Landkarten-Messvorrichtung (Kilometer/
Meilen) und Drehbarer Kompassring“. Lesen Sie diese Bedienungsanleitung vor der Verwendung
Ihrer SEIKO-Uhr aufmerksam durch, um ihre optimale Nutzung zu gewährleisten. Heben Sie diese
Bedienungsanleitung gut auf, um jederzeit wieder nachlesen zu können.
Vous voici l'heureux propriétaire d'une montre SEIKO, dotée des fonctions "Curvimètre (km/mile)" et
"Bague de boussole rotative". Pour obtenir d'excellents résultats de votre montre SEIKO, veuillez au
préalable lire attentivement cette brochure que vous garderez ensuite à portée de main pour la
consulter éventuellement.
Grazie di aver acquistato questo orologio SEIKO con “Funzione di misurazione della distanza sulle
mappe in kilometri o miglia, e bussola a calotta rotante”. Per ottenere i migliori risultati da questo
orologio leggere attentamente le istruzioni contenute in questo libretto prima di passare all’uso
dell’orologio stesso. Conservare poi il manuale a portata di mano per ogni eventuale futura consultazione.
Usted es ahora el propietario orgulloso de un Reloj SEIKO con la Función del “Marcador de Mapa/
Marcador de Millas y Luneta de Compás Giratorio”. Para los mejores resultados, por favor, lea
cuidadosamente las instrucciones de este panfleto antes utilizar su Reloj SEIKO. Por favor, guarde este
manual a mano para futura referencia.
Você poderá sentir-se orgulhoso de possuir um Relógio SEIKO munido da “Função de medidor de
mapas/Marcador de Milhas e de um Bisel de Bússola Rotativo”. Para obter os máximos resultados do
seu Relógio SEIKO, leia cuidadosamente as instruções contidas neste opúsculo antes de o usar .
Guarde este manual junto de si para consultas rápidas.
MAPMETERE 05.4.8, 5:02 PMPage 2-3 AdobePageMaker6.5J/PPC

5
English
English
4
● Models with the map meter function have a dial ring with a 1:50000-map meter scale
with kilometer readout.
● Models with the mile marker function have a dial ring with a 1:62500-mile marker scale
with mile readout.
MAP
1. Unlock the driving wheel by turning the guard clockwise until it stops.
2. Turn the driving wheel gently so that “0 mile” on the dial ring aligns with “ ” at
the 9 o’clock position on the dial.
3. Place the map on a flat surface. Put the driving wheel aslant on your starting point.
With the dial of the watch facing up and the driving wheel in the 9 o’clock position,
trace the route slowly with the driving wheel so that the driving wheel rotates
counter clockwise.
4. Read the scale on the dial ring to which the “ ” on the dial points. (Refer to “How
to read the map meter/mile marker scale.”)
5. After all the measurements are completed, lock the driving wheel by turning the
guard counterclockwise until it stops.
[How to use the map meter/mile marker function]
2
4
0
2
5
5
2
8
5
W
Driving wheel
Forward
▲
▲
N
W
E
S
345
330
300
285
255
240
210
195
165
150
120
105
75
60
30
15
30
N
W
E
S
345
330
300
285
255
240
210
195
165
150
120
105
75
60
15
MAP METER/MILE MARKER FUNCTION
The map meter/mile marker function measures the real distance of a route on a map by
tracing the route with the wheel that drives the dial ring.
Dial ring
Lock
(counter-clockwise)
Guard for driving wheel
[Driving wheel unlocked]
Unlock
(clockwise)
Driving wheel
(Map Meter/Mile marker scale)
MAPMETER/MILEMARKERFUNCTIONANDROTATING
COMPASS BEZEL
MAPMETERE 05.4.8, 5:02 PMPage 4-5 AdobePageMaker6.5J/PPC

7
English
English
6
●When using a map on a scale other than the above:
Divide the scale of the map by the scale of the watch (62,500). Multiply this by the
distance indicated by ” “ on the mile marker scale.
Ex.1) If the map used is drawn on a scale of 1/24,000 and “ “ points to “2”
on the mile marker scale, the real distance of the route traced is:
(24,000 / 62,500) x 2 = 0.77 miles
Ex.2) If the map used is drawn on a scale of 1/150,000 and “ “ points to “6”
on the mile marker scale, the real distance of the route traced is:
(150,000 / 62,500) x 6 = 14.4 miles
MAP METER
3
2
2020
1616
114
This watch is designed to measure the real distance
by using a map of a scale 1/50,000 with kilometer
readout.
●When using a map on a scale of 1/50,000:
The figure on the scale indicated by “ ” on the
dial corresponds to the real distance of the route
traced by the driving wheel.
Ex.) If “ ” points to “2” on the map meter scale,
the real distance of the route traced is
“2 km.”
●When using a map on a scale other than the above:
Divide the scale of the map by the scale of the watch (50,000). Multiply this by the
distance indicated by ” “ on the map meter scale.
Ex.1) If the map used is drawn on a scale of 1/20,000 and “ “ points to “2” on the
map marker scale, the real distance of the route traced is:
(20,000 / 50,000) x 2 = 0.8 km
Ex.2) If the map used is drawn on a scale of 1/150,000 and “ “ points to “6” on the
map marker scale, the real distance of the route traced is:
(150,000 / 50,000) x 6 = 18 km
▲
▲
▲
▲
▲
[How to read the map meter scale (For a model with the map meter function)]
This watch is designed to measure the real distance
by using a map of a scale 1/62,500 with mile readout.
●When using a map on a scale of 1/62,500:
The figure on the scale indicated by “ ” on the dial
corresponds to the real distance of the route
traced by the driving wheel.
Ex.) If “ ” points to “2” on the mile marker
scale, the real distance of the route traced is
“2 miles.”
2
20
16
114
1
▲
▲
▲
▲
▲

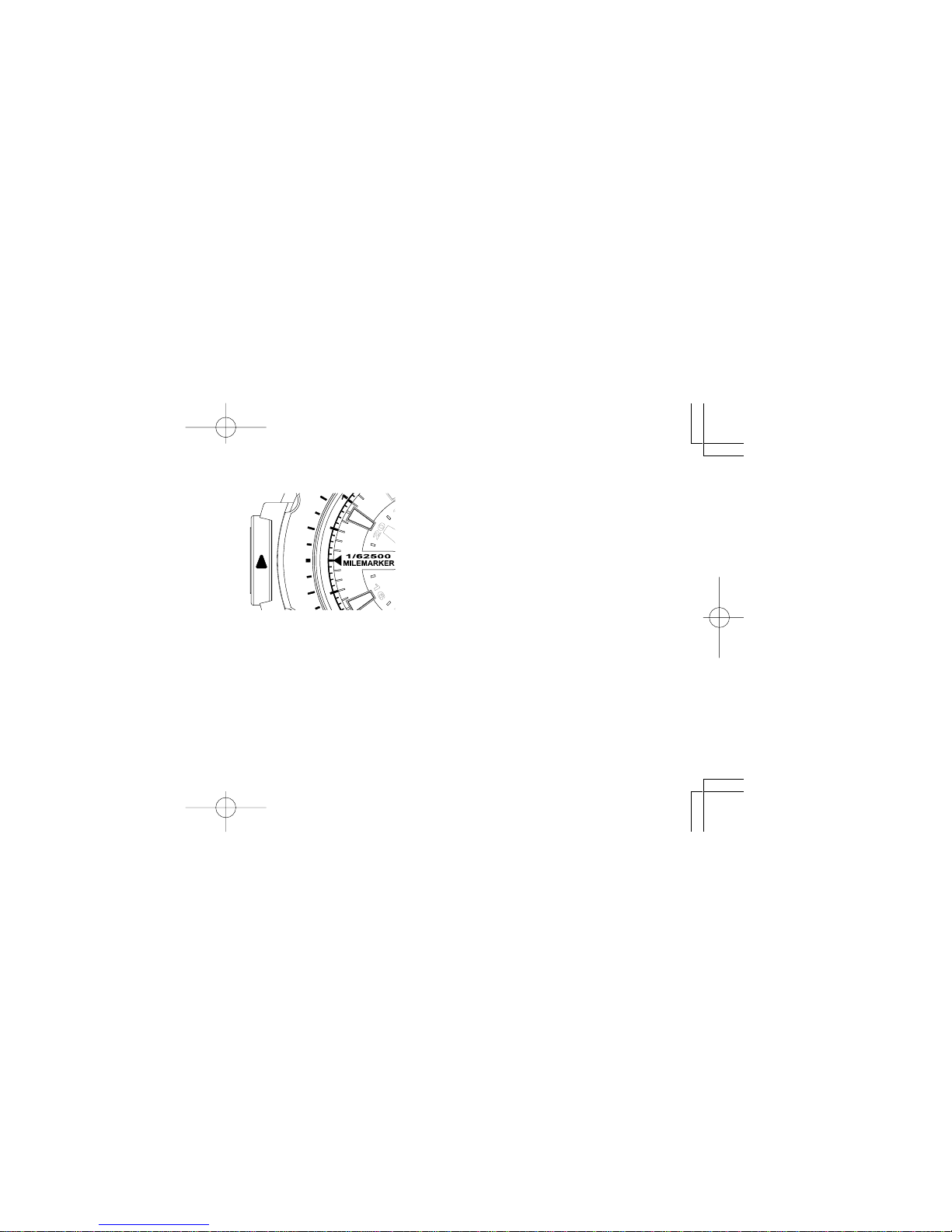

[How to read the mile marker scale (For a model with the mile marker function)]
MAPMETERE 05.4.8, 5:02 PMPage 6-7 AdobePageMaker6.5J/PPC

9
English
English
8
30
N
W
E
S
345
330
300
285
255
240
210
195
165
150
120
105
75
60
15
Compass bezel North
South
Sun
24-Hour hand

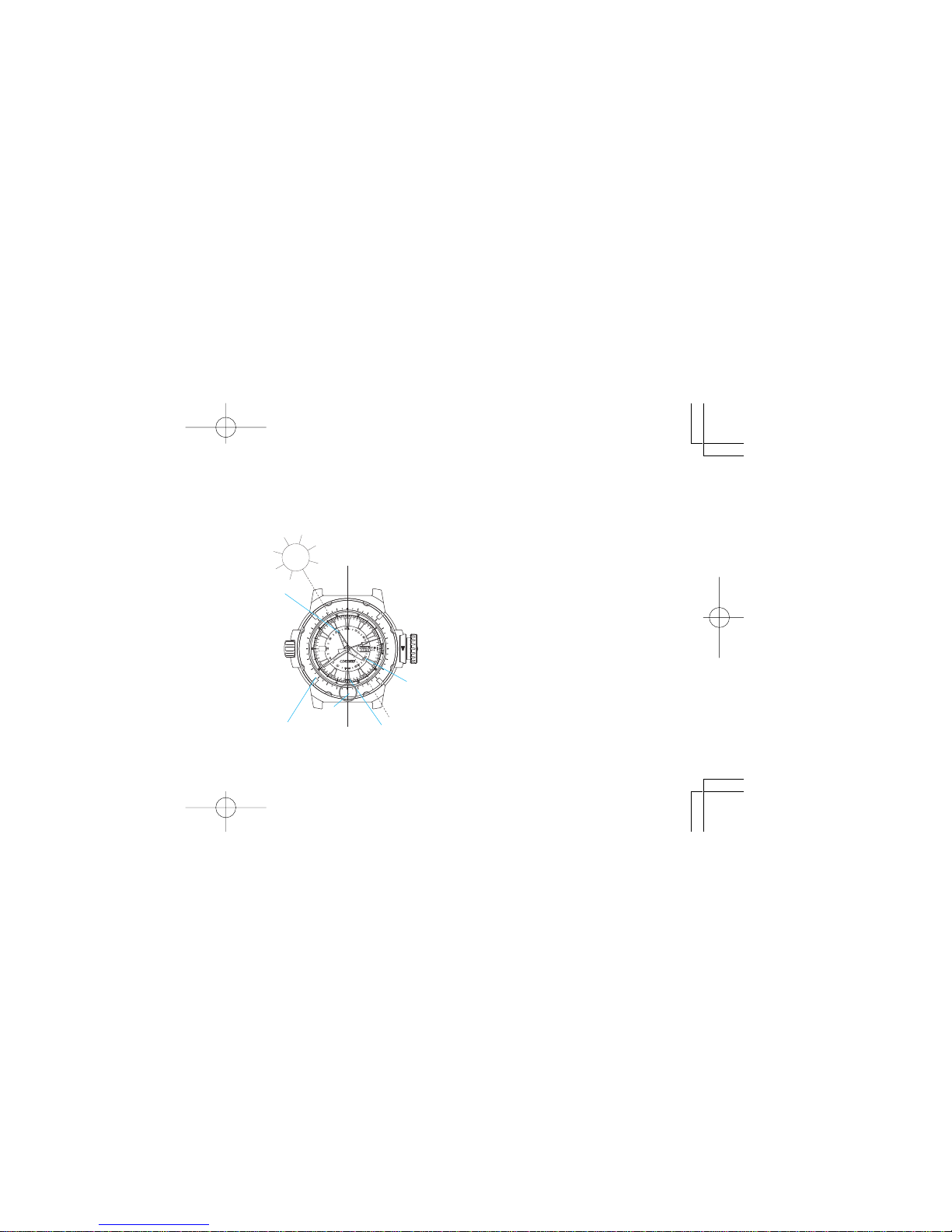

ROTATING COMPASS BEZEL
[In the Northern Hemisphere]
1. Set “N” on the rotating compass bezel
to the 12 o’clock position. The direction
marks on the bezel are set as follows;
3 o’clock position: E (East)
6 o’clock position: S (South)
9 o’clock position: W (West)
2. While keeping the dial level, point the
24-hour hand in the direction of the sun.
The direction marks indicate the corre-
sponding directions.
How to use the compass bezel
12 o’clock position
“N”
Hour hand
PRECAUTIONS ON USING THE WATCH WITH THE MAP METER/MILE MARKER
FUNCTION
●When measuring the distance, trace the route on the map slowly and securely with
the driving wheel, taking care not to apply undue force onto the driving wheel.
However, if you press the driving wheel down onto the map too lightly, the wheel
may slip off from the route.
●Do not use the map meter/mile marker function in sandy or dusty places.
●Your watch is designed to withstand up to 20 bar, however, do not use the map
meter/mile marker function in water, as this may damage the driving wheel. When
wearing the watch in water, therefore, make sure that the driving wheel is securely
locked.
●In order to prevent putting a burden on the stem, keep the driving wheel locked while
wearing the watch in normal use.
●The accuracy of indication of distance obtained by the map meter/mile marker
function may be affected by the conditions where the measurement is made.
Therefore, the indication should only be used as an approximate guide.
●When handling the watch, exercise caution with the serrated edge of the driving
wheel, which is sharp and could potentially cause injuries. In order to prevent
potential injury from the serrated edge of the driving wheel, keep the driving wheel
locked while wearing the watch during normal use.
(using the 24-hour hand to indicate directions)
MAPMETERE 05.4.8, 5:02 PMPage 8-9 AdobePageMaker6.5J/PPC

11
English
English
10
PRECAUTIONS ON USING THE COMPASS BEZEL
●Please use the compass in places where the sun is visible or its location is known.
●Before using the compass, it is necessary to set the 24-hour hand to the current time
of your area.
●The compass is so designed to provide only a rough indication of directions, and
should not be used where accuracy is critical.
●If daylight saving time (summer time) is in effect in your area, be sure to set your
watch one hour behind the current time before using the rotating compass bezel.
2
3
8
9
N
W
E
S
345
330
300
285
255
240
210
195
165
150
120
105
75
60
15
30
[In the Southern Hemisphere]
1. Set “ N ” on the rotating compass
bezel to the 24-hour hand.
2. While keeping the dial level, point
the 12 o’clock position in the direc-
tion of the sun. The direction marks
indicate the corresponding direc-
tions.
Compass bezel North
South
12 o’clock position
Sun
24-Hour hand
Hour hand
“N”
