Sena ACS 10 User manual

USER’S GUIDE
ENGLISHVersion 1.0.0
For Arai Quantic Helmet

1. ABOUT THE ACS10 5
1.1 Product Features 5
1.2 Product Details 6
1.3 Package Contents 7
2. INSTALLING THE HEADSET ON YOUR HELMET 8
2.1 Installing the Headset 8
3. GETTING STARTED 11
3.1 Downloadable Sena Software 11
3.1.1 Sena Utility App 11
3.1.2 Sena Device Manager 11
3.1.3 Firmware Upgrades 11
3.2 Charging 12
3.3 Legend 12
3.4 Powering On and Off 12
3.5 Checking the Battery Level 13
3.6 Volume Adjustment 13
4. PAIRING THE HEADSET WITH
OTHER BLUETOOTH DEVICES 14
4.1 Phone Pairing 14
4.1.1 Initially Pairing the ACS10 14
4.1.2 Pairing When the ACS10 is Turned Off 15
4.1.3 Pairing When the ACS10 is Turned On 15
4.2 Second Mobile Phone Pairing - Second Mobile
Phone, GPS, and SR10 16
4.3 GPS Pairing 16
TABLE OF CONTENTS

TABLE OF CONTENTS CONTINUED
4.4 Advanced Selective Pairing: Hands-Free or
A2DP Stereo 17
4.4.1 Phone Selective Pairing - Hands-Free Profile 17
4.4.2 Media Selective Pairing - A2DP Profile 17
5. MOBILE PHONE USAGE 19
5.1 Making and Answering Calls 19
5.2 Speed Dialing 19
5.2.1 Assigning Speed Dial Presets 19
5.2.2 Using Speed Dial Presets 19
6. STEREO MUSIC 21
6.1 Bluetooth Stereo Music 21
6.2 Music Sharing 21
7. BLUETOOTH INTERCOM 22
7.1 Intercom Pairing 22
7.1.1 Using the Smart Intercom Pairing (SIP) 22
7.1.2 Using the Button 23
7.2 Last-Come, First-Served 24
7.3 Two-Way Intercom 25
7.4 Multi-Way Intercom 26
7.4.1 Starting a Three-Way Intercom Conference 26
7.4.2 Starting a Four-Way Intercom Conference 27
7.4.3 Ending Multi-Way Intercom 27
7.5 Three-Way Conference Phone Call with
Intercom Users 28
7.6 Group Intercom 29

TABLE OF CONTENTS CONTINUED
8. UNIVERSAL INTERCOM 30
8.1 Universal Intercom Pairing 30
8.2 Two-Way Universal Intercom 30
8.3 Multi-Way Universal Intercom 31
8.3.1 Three-Way Universal Intercom 31
8.3.2 Four-Way Universal Intercom 32
9. FUNCTION PRIORITY 33
10. CONFIGURATION SETTING 34
10.1 Headset Configuration Menu 34
10.1.1 Delete All Pairings 35
10.1.2 Remote Control Pairing 35
10.2 Software Configuration Setting 35
10.2.1 Unit Language 36
10.2.2 Audio Equalizer (Default: Off) 36
10.2.3 Audio Source Priority (Default: Intercom) 36
10.2.4 VOX Phone (Default: Enable) 36
10.2.5 VOX Intercom (Default: Disable) 37
10.2.6 HD Voice (Default: Enable) 37
10.2.7 HD Intercom (Default: Enable) 37
10.2.8 Voice Prompts (Default: Enable) 38
10.2.9 Sidetone (Default: Disable) 38
10.2.10 Advanced Noise Control™ (Default: Enable) 38
10.2.11 Audio Multitasking™ (Default: Disable) 38
10.2.12 Background Volume (Default: Level 5) 39
11. TROUBLESHOOTING 40
11.1 Fault Reset 40
11.2 Factory Reset 40

ACS10 Motorcycle Bluetooth®Communication System | 5
1. ABOUT THE ACS10
1.1 Product Features
Bluetooth®4.1
Four-Way Intercom
Intercom up to 1.6 km (1.0 mi)*
Audio Multitasking™
Advanced Noise Control™
* in open terrain
CHAPTER

ACS10 Motorcycle Bluetooth®Communication System | 6
1 ABOUT THE ACS10
1.2 Product Details
Main Unit
Antenna
Microphone Connector
Speakers Connectors
(–) Button
(+) Button
Center Button
Pinhole Fault Reset Button
Status LED
DC Power Charging &
Firmware Upgrade Port

ACS10 Motorcycle Bluetooth®Communication System | 7
1 ABOUT THE ACS10
1.3 Package Contents
ACS10 Speakers
Adhesive Tapes for the Control Unit Wired Microphone
Hook and Loop Fasteners
for the Main Unit
Hook and Loop Fastener
for Wired Microphone
USB Power & Data Cable Hook and Loop Fasteners
for Speakers

ACS10 Motorcycle Bluetooth®Communication System | 8
2. INSTALLING THE HEADSET ON YOUR
HELMET
2.1 Installing the Headset
• The ACS10 is compatible with Arai Quantic Helmet.

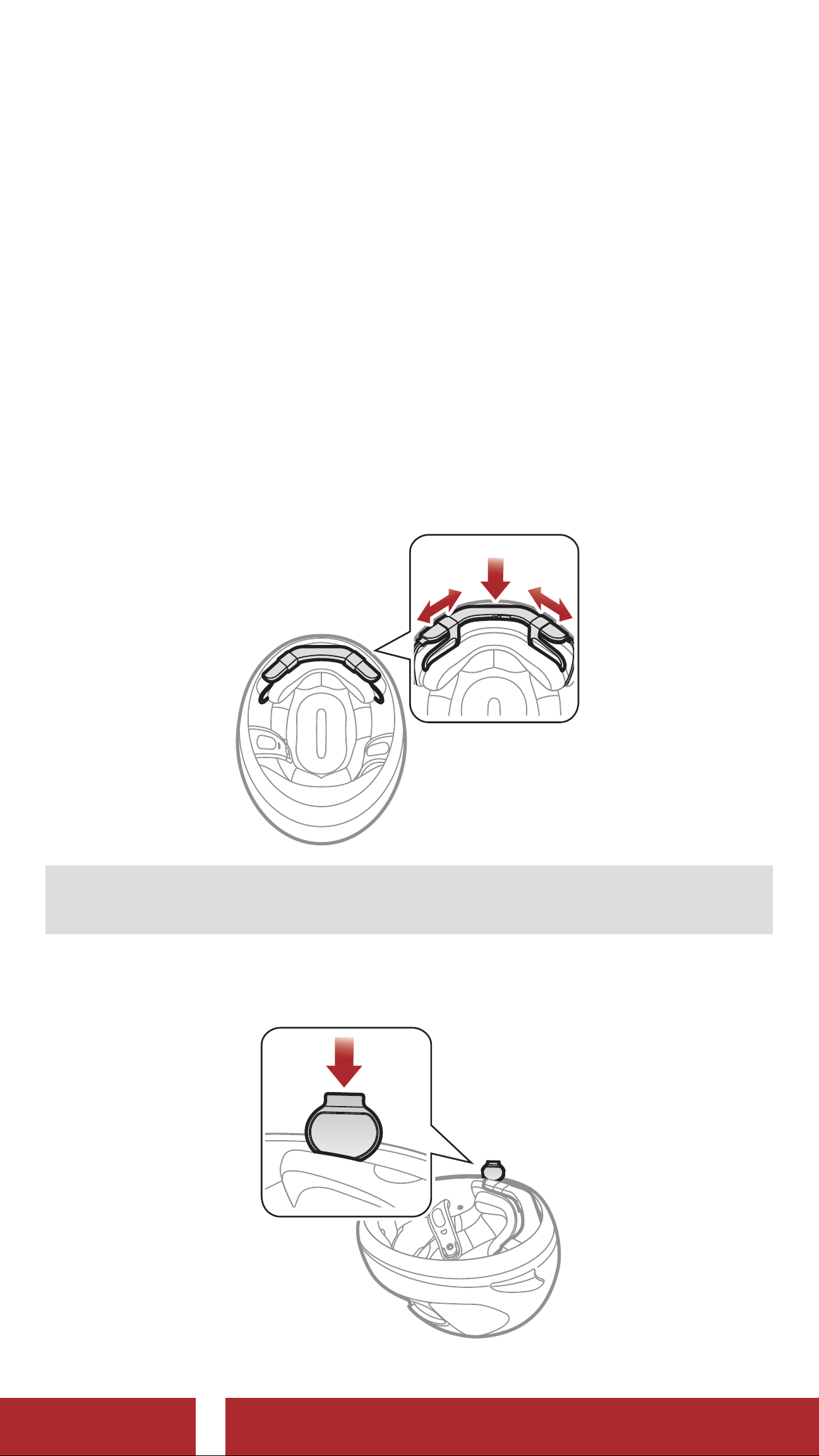

1. Before you install the ACS10, remove the cheek pads and the
neckroll.
2. Insert the ACS10 between the external shell and the inner shell.
Align its snap holders with the rear snaps, then click them through
the snap holders.
Note: You can utilize hook and fasteners for the main unit to tightly
hold the main unit to the helmet.
3. Slide in the antenna between the external shell and the rear left
inner shell.
CHAPTER

ACS10 Motorcycle Bluetooth®Communication System | 9
2 INSTALLING THE HEADSET ON YOUR HELMET
4. Peel off the cover of the adhesive tape of the headset buttons and
attach it to the helmet.
5. Peel off the cover of the adhesive tape of the hook and loop
fastener for microphone and attach it on the inside of the helmet’s
chin guard.
6. Attach the wired microphone on the hook and loop fastener and
insert the microphone cable into the microphone connector.
7. Align the arrows on the main unit and microphone cables and insert
the microphone cable into the microphone connector.

ACS10 Motorcycle Bluetooth®Communication System | 10
2 INSTALLING THE HEADSET ON YOUR HELMET
8. Remove the cover of the cheek pad, and attach the loop fastener
for speakers on the corner of the ear pocket.
1
2
9. Attach the speaker and put the cover back on. Go through the same
process for the other cheek pad.
10. Align the arrows on the main unit and speaker cables and insert
speaker cables into each speaker connector.
11. Reinstall the cheek pads and the neckroll.
