Senco PalletPro50 User manual

NFDPALPRO - Issued: May 20, 2008
Replaces NFD84P4L4M4R4S 8/17/07
© 2008 by Senco Products, Inc.
Operating Instructions
Instrucciones de Operacion
Mode d’Emploi
Questions? Comments?
call SENCO’S toll-free Action-line: 1-800-543-4596
or e-mail: [e-mail] www.senco.com
Warnings for the safe use of this tool are included in this manual.
Los avisos para el uso seguro de esta herramienta están incluidos
en este manual.
Les consignes pour l’utilisation en toute sécurité de cet outil se
trouvent dans ce manuel.
Pallet Pro
PalletPro50
PalletPro57
PalletPro70
PalletPro83
PalletPro90
PalletPro100
PalletPro130
Senco Products Inc.
8485 Broadwell Road
Cincinnati, Ohio 45244

2
TABLE OF
CONTENTS
Tool Use 2
Maintenance 5
Options 5
Troubleshooting 6
Specications 7
Accessories 10
TABLA DE
MATERIAS
Uso de la
Herramienta 2
Mantenimiento 5
Opciones 5
Identicación
de Fallas 6
Especicaciones 7
Accesorios 10
TABLE DES
MATIERÈS
Utilisation de l’outil 2
Entretien 5
Options 5
Dépannage 6
Spécications 7
Accessoires 10
English Español Français

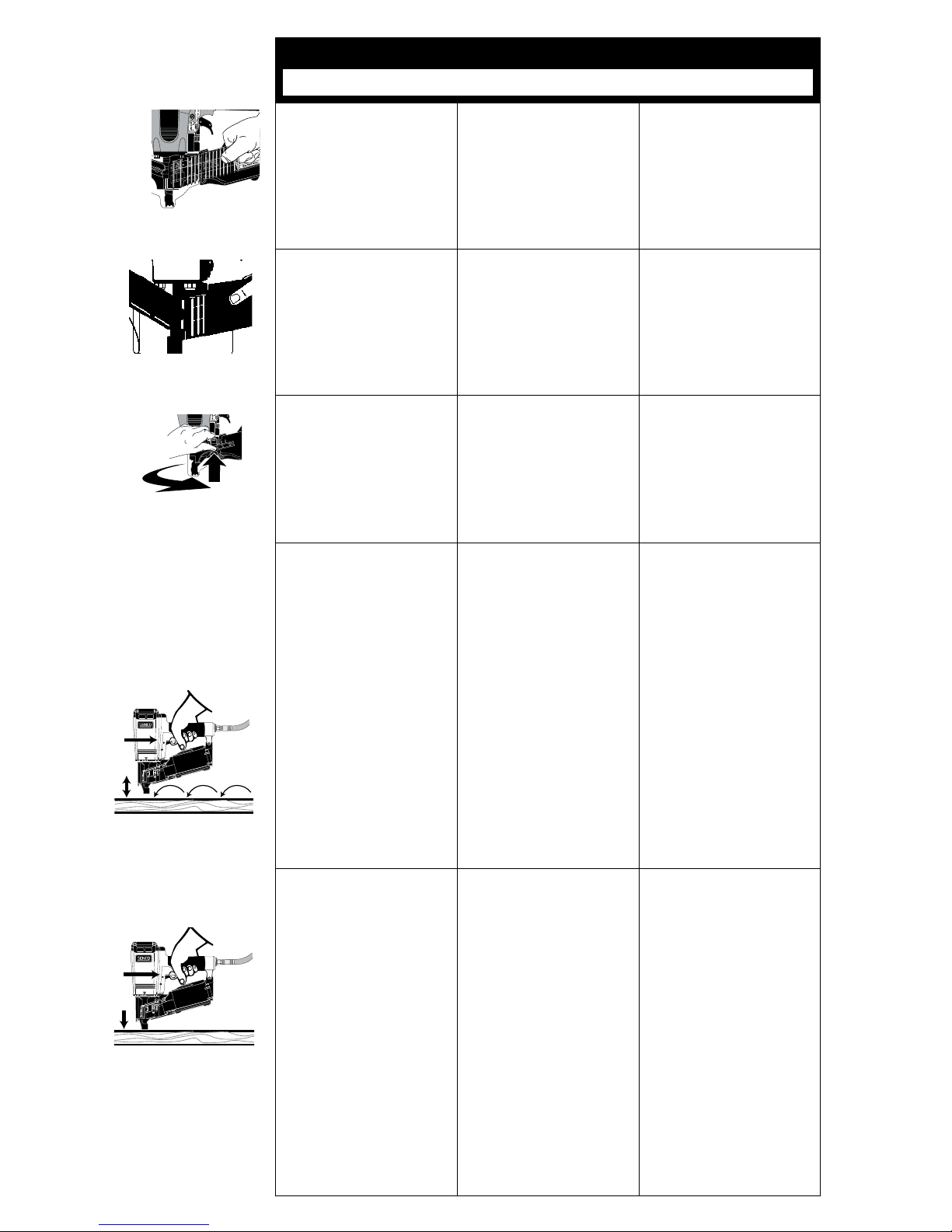

English Español Français
Tool Use Uso de la Herramienta
Utilisation de l’Outil
 Lift and shift nail disk to accept
different length nails. NOTE:
Reference points on magazine
coincide with nail lengths.
 Levante y rote el disco de clavos
para que acepte clavos de
diferentes longitudes. NOTA: Se
encuentran puntos de referencia
en la parte acuñada del carga-
dor de acuerdo a las longitudes
de los clavos.
 Soulever et tourner le disque à
clous pour accepter les clous de
différente dimensions. NOTE:
Les points de repère sur le
magasin correspondent à la
longueur des clous.
To Adjust Magazine
Squeeze the gate latch and lift
open gate. Open Magazine.
Para Ajustar el Cargador
Oprima el pasador de la puerta
y levantela abriendola. Abra el
cargador.
Pour régler le magasin
Appuyer sur le verrou de porte
et ouvrir le volet de magasin.
EMPLOYER’S
RESPONSIBILITIES
Employer must enforce
compliance with the
safety warnings and
all other instructions
which accompany this
tool as shipped from the
manufacturer.
Keep this manual avail-
able for use by all people
assigned to the use of this
tool.
For personal safety and
proper operation of this
tool, read and understand
all of these instructions
carefully.
RESPONSABILIDADES DEL
EMPLEADOR
El empleador debe hacer
cumplir las advertencias de
seguridad y todas las otras
instrucciones que acompañan
a esta herramienta como se la
despacha desde el fabricante.
Mantenga este manual dispo-
nible para que lo usen todas
las personas destinadas a ha-
cer uso de esta herramienta.
Por razones de seguridad per-
sonal y la adecuada operación
de esta herramienta, lea y
comprenda todas estas in-
strucciones cuidadosamente.
RESPONSABILITÉS DE
L’EMPLOYEUR
L’employeur doit faire ap-
pliquer les consignes de
sécurité et toutes les autres
instructions qui accompag-
nent cet outil tel qu’il est
livré par son constructeur.
Ayez ce manuel à la dispo-
sition de toutes les
personnes chargées
d’utiliser cet outil.
Pour assurer la sécu-
rité personnelle et le bon
emploi de cet outil, lisez et
assimilez soigneusement
toutes ces instructions.
 Read and understand “SAFETY
INSTRUCTIONS” manual
shipped with this tool before
using tool.
 Antes de usar la herramienta lea
y comprenda el manual “INS-
TRUCCIONES DE SEGURI-
DAD” despachado con ella.
 Lisez et assimilez le manuel
“INSTRUCTIONS DE SÉCU-
RITÉ” livré avec cet outil avant
de l’utiliser.

3
English Español Français
Tool Use Uso de la Herramienta
Utilisation de l’Outil
Insertrstnailintodrivertrack
with second nail into the feeder
pawl.
Inserte el primer clavo en el riel
con el segundo clavo dentro del
trinquetedealimentación.
Insérer la deuxième clou dans le
poussoir d’alimentation.
 Close magazine cover and gate.
Make sure gate is fully latched.
 Cierre la cubierta del cargador
y la puerta. Asegurese que la
puerta este completamente
cerrada.
 Fermer le volet de magasin et la
porte. S’assurer que la porte est
bien verrouillée.
1
2
Las herramientas con gatillo
de accion doble pueden ser
disparadas de dos maneras:
a)Oprima el seguro contra la
superciedetrabajoyaprieteel
gatillo...Disparo de gatillo.
b)Para impulsar un clavo,
oprima el disparador y deprima
el elemento de seguridad contra
lasuperciedetrabajo.Cada
vez que deprima el elemento de
seguridadcontralasupercie
detrabajo,impulsaráunclavo.
Estemododeoperaciónde
“disparo inferior” o “por rebote”
es el preferido cuando se desea
altaproductividadyrápida
colocacióndelclavo.
Les appareils équipés de
déclenchement “au touché / par
gâchette” peuvent être utilisés
de 2 façons différentes :
a)Déclenchement par “gâchette”:
Appliquer le palpeur de sécurité
de l’appareil à l’endroit désiré et
activer la gâchette.
b)Pour planter un clou, tirez sur
la détente et poussez l’élément
de sécurité contre la surface
de travail. Chaque fois que
l’élément de sécurité est poussé
contre la surface de travail un
clou est planté. Le mode de
fonctionnement en “tir continu”
est préférable si vous désirez
placer des attaches rapidement
avec forte productivité.
With a “Contact-Actuation" (Dual-
Action) trigger, nails can be
driven two ways:
a) Position workpiece contact
(safety element) against work
surface and pull trigger...“Trigger
Fire.”
b) Pull trigger and push work-
piece contact against work
surface for operation each time
the workpiece contact is pushed
against the work surface. This
“bottom-re”modeofoperation
is preferred when high speed,
rapid fastener placement is
desired.
2
1
Las herramientas con “Ga-
tillo Restringido” solamente se
pueden disparar con el gatillo.
Primero apriete el elemento de
seguridadcontralasuperciede
trabajoydespuéstiredelgatillo.
Ésta característica es útil cuando
serequiereprecisiónenlacolo-
cacióndelossujetadores.
Lea el “Recordatorio de Seguri-
dadySatisfaccióndelCliente”
(CSSR)enlascajasdesujeta-
dores y de las herramientas para
informaciónsobreseguridad
de los Gatillos Restringido y de
AcciónDual.Bajociertascondi-
ciones, el Gatillo Restringido
puede reducir la posibilidad de
heridas a su persona o a otros
quetrabajenconusted.
 With a “Sequential" (Restrictive)
trigger, nails can only be driven
one way. First depress workpiece
contact (safety element) against
work surface then pull trigger.
This feature is helpful when
precise fastener placement is
required.
Read the “Customer Satisfaction
and Safety Reminder” (CSSR)
in the tool and fastener boxes
for safety information regarding
the Dual Action and Restrictive
triggers. Under certain condi-
tions, the Restrictive trigger may
reducethepossibilityofinjury
to you or to others working with
you.
Avec une gachette “restrictive”,
les clous ne peuvent être tirés
que dans une seule direction.
Appuyer d’abord le palpeur de
sécurité sur la surface de travail,
puis tirer sur la gachette. Cette
fonction est utile pour un place-
mentprécisdeprojectiles.
Lire le “Rappel de Sécurité et
Satisfaction du Client” (CSSR)
danslesboitesàoutilsetxa-
tions pour les informations de
sécurité concernant les Détentes
à Double Action et à Restriction.
Dans certaines circonstances, la
Détente à Restriction peut rédu-
ire la possibilité de se blesser ou
de blesser d’autres personnes.
 Place the nail coil in the maga-
zine.
 Ponga el rollo de clavos in el
cargador
 Placer le rouleau de clous dans
le magasin

4
English Español Français
Tool Use Uso de la Herramienta
Utilisation de l’Outil
 Extract bent nail from rear of
guide body.
 Extraiga el clavo doblado des-
deatrásdelcuerpoguía.
 Extirper le mauvais clou par
l’arriéré du front.
 Press down on the gate latch and
lift open gate.
 Presionehaciaabajoelpestillo
delapuertadealimentación
ydejeabiertalapuertade
alimentación.
 Appuyer sur le verrou du volet
de la chambre d’alimentation
et soulever pour ouvrir.
 Shouldanailjamoccur,discon-
nect air supply.
 Sise produce un atascamiento
de un clavo, desconecte el
suministro de aire.
 Au cas ou il se produirait un
coinçage de clous, coupez
l’alimentation en air.
 Thedeectorcanberotated
to change the direction of the
exhaust air.
 Eldeectorpuederotarsepara
cambiarladireccióndelaire
expedidoporelmoe.
 Ledéecteurpeutêtreorienté
différemment pour changer la
direction de l’échappement d’air.

5
Español Français
Options Opciones Options
SINGLE SEQUENTIAL
TRIGGER— This feature is
helpful when precise fastener
placement is required.
GATILLO RESTRINGIDO– Esta
característica sirve de ayuda
cuando se requiere una
colocacióndelsujetadorprecisa.
DECLÉNCHEMENT
PAR GACHETTE– Cette
caractéristique s’avère utile
quand un placement de
projectilespréciss’impose.
English
English Español Français
Maintenance Mantenimiento
Entretien
 Squirt Senco pneumatic oil (5 to
10 drops) into the air inlet twice
daily. (Depending on frequency of
tool use.) Other oils may damage
O-rings and other tool parts.
 ApliqueaceiteneumáticoSenco
en la entrada de aire dos veces
al día. (Dependiendo en la
frecuencia de uso 5 A 10 Gotas.)
Otros aceites pueden dañar los
anillos en “O” y otras piezas de la
herramienta.
 Avec une burette, placer 5 à 10
gouttes d’huile pneumatique
dans l’arrivée d’air deux fois
parjour.(Dépenddel'intensité
del'utilisationdel'appareil.)
D’autres huiles pourraient en-
dommagerlesjointstoriqueset
d’autres pièces de l’outil.
 All screws should be kept tight.
Loose screws result in unsafe
operation and parts breakage.
 Todos los tornillos tienen que
mantenerse apretados. Los
tornillos sueltos pueden producir
unaoperaciónnoseguray
quebraduras de partes.
 Wipe tool clean daily and inspect
forwear.Usenon-ammable
cleaning solutions only if nec-
essary – DO NOT SOAK.
CAUTION: Such solutions may
damage O-rings and other tool
parts.
 Nettoyezl’outilchaquejourà
l’aide d’un chiffon et inspectez-
le pour déceler une éventuelle
usure. Utilisez uniquement des
solvantsnoninammables
en cas de nécessité – NE LE
FAITES PAS TREMPER!
Attention : De tels produits
peuventendommagerlesjoints
et d’autres pièces de l’appareil.
 With tool disconnected, make
daily inspection to assure free
movement of workpiece contact
(safety element) and trigger. Do
not use tool if safety element or
trigger sticks or binds.
 Con la herramienta desconec-
tada, haga inspecciones diarias
para asegurar el movimiento
libre del seguro y del gatillo. No
use la herramienta si el seguro o
el gatillo se atoran.
Solamente si es necesario use
soluciones para limpieza no
amablés-NOLAREMOJE.
Precaución: Tales soluciones
pueden dañar los empaques y
otras partes de la herramienta.
 Toutes les vis doivent être
maintenues serrées à fond.
Les vis desserrées entraî-
nent un manque de sûreté du
fonctionnement et la rupture de
pièces.
 L’outil étant séparé de
l’alimentation en air, effectuez
uneinspectionjournalièrepour
assurer le libre mouvement du
palpeur de sécurité et de la
détente. N’utilisez pas l’outil si le
palpeur de sécurité ou la détente
colle ou se coince.
 Read and understand “SAFETY
INSTRUCTIONS” manual
shipped with this tool before
using tool.
 Antes de usar la herramienta lea
y comprenda el manual “INS-
TRUCCIONES DE SEGURI-
DAD” despachado con ella.
 Lisez et assimilez le manuel
“INSTRUCTIONS DE SÉCU-
RITÉ” livré avec cet outil avant
de l’utiliser.

6
WARNING
Repairs other than those described
here should be performed only by
trained,qualiedpersonnel.Contact
SENCO for information at
1-800-543-4596.
ALERTA
Las reparaciones, fuera de aquellas
descritas aquí, deben de ser lleva-
das a cabo solamente por personal
entrenadoycalicado.Póngase
en contacto con SENCO para
información
1-800-543-4596.
AVERTISSEMENT
Les réparations autres que celles
décrites ici doivent être réalisées
uniquement par du personnel
qualiéayantreçulaformation
appropriée. Pour toute information,
prenez contact avec SENCO par té-
léphone en appelant Le Distributeur
agréé.
English Español Français
Troubleshooting
Identicación de Fallas Dépannage
SYMPTOM
Air leak near top of tool / Sluggish
operation
SOLUTION
Verify air supply / tighten screws or
install Parts Kit A.
SYMPTOM
Air leak near bottom of tool /Poor
return.
SOLUTION
Clean tool / tighten screws or install
Parts Kit A.
SYMPTOM
SOLUTION
Contact SENCO.
Other problems.
 Read and understand “SAFETY
INSTRUCTIONS” manual
shipped with this tool before
using tool.
 Antes de usar la herramienta lea
y comprenda el manual “INS-
TRUCCIONES DE SEGURIDAD”
despachado con ella.
 Lisez et assimilez le manuel
“INSTRUCTIONS DE SÉCU-
RITÉ” livré avec cet outil avant
de l’utiliser.
A
A
Repair
Kit A
PalletPro50 YK0772
PalletPro57 YK0446
PalletPro70 YK0447
PalletPro90 YK0774
PalletPro100 YK0777
PalletPro130 YK0778
SYMPTÔME
Fuite d’air près du sommet
de l’outil / fonctionnement lent.
SOLUTION
Serrezlesvisàfond/vériez
l’alimentation en air ou remplacez
les pièces portant la lettre “A”.
SYMPTÔME
Fuite d’air près de la base
de l’outil / retour inadéquat.
SOLUTION
Serrez les vis à fond / nettoyez l’outil
ou remplacez les pièces portant la
lettre “A”
SYMPTÔME
Autres problèmes.
SOLUTION
Prenez contact avec SENCO.
SÍNTOMA
El aire se escapa cerca de la parte
superiordelaherramienta/Operación
lenta.
SOLUCIÓN
Aprietelostornillos/Veriqueel
suministro de aire o instale el
JuegodePartesA(PartsKitA).
SÍNTOMA
El aire se fuga cerca de la parte infe-
rior de la herramienta / Mal retorno.
SOLUCIÓN
Apriete los tornillos / Limpié la herra-
mientaoinstaleelJuegodePartes
A (Parts Kit A).
SÍNTOMA
Otros problemas.
SOLUCIÓN
PóngaseencontactoconSENCO.

7
2,1mm
SE
PalletPro 57
English Español Français
Specifications Especificaciones Specifications
.092”
ED
1 3/4”
1 1/2”
1 1/4”
1 3/4”
2,3mm
.082”
SC
2,1mm
2”
1 3/4”
1 1/2”
.082” .099” .099”
2,5mm 2,5mm
*2 1/4”
2”
*2 1/4”
2”
*2 1/4”
2”
BK EL
.092”
ED
2,3mm
1 7/8”
.092”
2,3mm
2”
2 1/4”
2”
EL
*SOFT WOOD ONLY
.099”
2,5mm
2 1/4”
2”
BL
PalletPro 50
PalletPro 70

8
English Español Français
Specifications Especificaciones Specifications
.113”
GD
2 1/2”
2,8mm
.099”
.113”
2,5mm
2,8mm
*2 1/2”
2 3/8”
*3”
2 3/4”
*2 3/8”
2”
BK
GL
.120”
HD
3mm
3”
.120”
3mm
3 1/4”
3”
*HL
*SOFT WOOD ONLY
.092”
2,3mm
2 1/4”
2”
EL
.099”
2,5mm
2 1/4”
2”
BL
2”
.131”
KD
3.3mm
3”
2 1/4”
2”
2 1/2”
3 1/4”
PalletPro 83 / 90
PalletPro 83
PalletPro 90
.131”
KD
3.3mm
3”
2 1/2”
3 1/4”
3 1/2”

9
English Español Français
Specifications Especificaciones Specifications
.099”
2,5mm
*2 1/4”
PalletPro 100
.148”
3.8mm
4”
.120”
3mm
3”
PalletPro 130
.148”
3.8mm
5 1/8”
MIN. MAX. MIN. MAX.

10
70-120psi
5.8 scfm
3/8in. NPT
3
8.4 lbs.
ø.090 = 300
ø.130 = 225
1 1/2- 3 1/4in.
.090 - .130
14 1/4in.
13 3/8in.
5 3/16 in.
PAL83
4,9–8,4 bar
164,22 liter
3/8in. NPT
3
3,8 kg
ø2,3mm = 300
ø3,3mm = 225
38 mm–83 mm
2,3 - 3,3 mm
364,7mm
341 mm
132 mm
English
TECHNICAL SPECIFICATIONS
English
TECHNICAL SPECIFICATIONS
Min to max operating pressure
Air Consumption (60 cycles per minute)
Air Inlet
Maximum Speed (cycles per second)
Weight
Nails per Magazine Capacity
Nail Lengths
Nail Shank
Tool size: Height
Tool size: Length
Tool size: Width: Main Body
PAL90
4,9 - 8,4 bar
192,84 liter
3/8in. NPT
2
3.5 kg
200-300
38 - 90 mm
2,5 - 3,8 mm
370mm
385 mm
145 mm
70-120psi
6.81 scfm
3/8in. NPT
2
7.7lbs.
200 - 300
(CAPACITY VARIES
WITH WIRE DIA.)
1 1/2in. - 3 1/2in.
.099 - .148
15 in.
15 1/8in.
5 5/8in.
Min to max operating pressure
Air Consumption (60 cycles per minute)
Air Inlet
Maximum Speed (cycles per second)
Weight
Nails per Magazine Capacity
Nail Lengths
Nail Shank
Tool size: Height
Tool size: Length
Tool size: Width: Main Body
PAL57
70-120psi
3.07scfm
3/8in. NPT
3
5.8 lbs.
ø.083 = 350
ø.090 = 300
1 in. - 2 1/4in.
.083 - .090
11 1/4in.
11 7/8in.
5 1/4in.
PAL70
4,9 - 8,4 bar
86,94 liter
3/8in. NPT
3
2,67kg
ø2,1mm = 350
ø2,3mm = 300
25-57mm
2,1 - 2,3 mm
286 mm
302 mm
133 mm
4,9 - 8,4 bar
135,54 liter
3/8in. NPT
3
3,62 kg
ø2,3mm = 300
ø2,9mm = 250
45-70mm
2,3 - 2,9 mm
317mm
339 mm
129 mm
70-120psi
4.78scfm
3/8in. NPT
3
7.9lbs.
ø.090 = 300
ø.113 = 250
1 3/4in. - 2 3/4in.
.090 - .113
12 1/2in.
13 1/4in.
5 in.
PAL50
70-120psi
2.94 scfm
3/8in. NPT
3
4.3 lbs.
350-400
1 1/4in. - 2 in.
.083
11 1/4in.
12 in.
5 in.
4,9 - 8,4 bar
83,16 liter
3/8in. NPT
3
1,93 kg
350-400
32 -50mm
2,1 mm
285 mm
305 mm
128 mm
70-120psi
2.94 scfm
3/8in. NPT
3
4.3 lbs.
350-400
1 1/4in. - 2 in.
.083
11 1/4in.
12 in.
5 in.
PAL57
70-120psi
3.07scfm
3/8in. NPT
3
5.8 lbs.
ø.083 = 350
ø.090 = 300
1 in. - 2 1/4in.
.083 - .090
11 1/4in.
11 7/8in.
5 1/4in.
PAL70
4,9 - 8,4 bar
86.94 liter
3/8in. NPT
3
2,67kg
ø2,1mm = 350
ø2,3mm = 300
25-57mm
2,1 - 2,3 mm
286 mm
302 mm
133 mm
4,9 - 8,4 bar
135.54 liter
3/8in. NPT
3
3,62 kg
ø2,3mm = 300
ø2,9mm = 250
45-70mm
2,3 - 2,9 mm
317mm
339 mm
129 mm
70-120psi
4.78scfm
3/8in. NPT
3
7.9lbs.
ø.090 = 300
ø.113 = 250
1 3/4in. - 2 3/4in.
.090 - .113
12 1/2in.
13 1/4in.
5 in.
PAL90
PAL50
4,9 - 8,4 bar
83.16 liter
3/8in. NPT
3
1.93 kg
350-400
32 -50mm
2,1 mm
285 mm
305 mm
128 mm
4,9 - 8,4 bar
192.84 liter
3/8in. NPT
2
3.5 kg
200-300
38 - 90 mm
2,5 - 3,8 mm
370mm
385 mm
145 mm
70-120psi
6.81 scfm
3/8in. NPT
2
7.7lbs.
200 - 300
(CAPACITY VARIES
WITH WIRE DIA.)
1 1/2in. - 3 1/2in.
.099 - .148
15 in.
15 1/8in.
5 5/8in.
PAL100
4,9 - 8,4 bar
322,80 liter
3/8in. NPT
2
5,24 kg
225-300
55 - 100 mm
2,5 - 3,8 mm
338 mm
418 mm
153 mm
70-120psi
11.40 scfm
3/8in. NPT
2
11.5 lbs.
225-300
2 1/4in. - 4 in.
.099 - .148
13 1/4in.
16 1/2in.
6 in.
PAL130
4,9 - 8,4 bar
322,80 liter
3/8in. NPT
2
5,8 kg
120-225
75-130mm
3,05 - 3,8 mm
338 mm
479mm
154 mm
70-120psi
11.40 scfm
3/8in. NPT
2
12.7lbs.
120-225
3 in. - 5 1/8in.
.120 - .148
13 1/4 in.
18 7/8in.
6 in.
70-120psi
5.8 scfm
3/8in. NPT
3
8.4 lbs.
ø.090 = 300
ø.130 = 225
1 1/2- 3 1/4in.
.090 - .130
14 1/4in.
13 3/8in.
5 3/16 in.
PAL83
4,9–8,4 bar
164,22 liter
3/8in. NPT
3
3,8 kg
ø2,3mm = 300
ø3,3mm = 225
38 mm–83 mm
2,3 - 3,3 mm
364,7mm
341 mm
132 mm
Presióndeoperaciónmínimaymáxima
Consumo de aire (60 ciclos por minuto)
Entrada de aire
Velocidadmáxima(ciclosporsegundo)
Peso
Capacidad de clavos por cargador
Longitudes de los clavos
Mango del clavo
Tamaño de la herramienta: Altura
Tamaño de la herramienta: Longitud
Tamaño de la herramienta: Ancho (Cuerpo)
Español
ESPECIFICACIONES TECNICAS
Presióndeoperaciónmínimaymáxima
Consumo de aire (60 ciclos por minuto)
Entrada de aire
Velocidadmáxima(ciclosporsegundo)
Peso
Capacidad de clavos por cargador
Longitudes de los clavos
Mango del clavo
Tamaño de la herramienta: Altura
Tamaño de la herramienta: Longitud
Tamaño de la herramienta: Ancho (Cuerpo)
Español
ESPECIFICACIONES TECNICAS
PAL100
4,9 - 8,4 bar
322,80 liter
3/8in. NPT
2
5,24 kg
225-300
55 - 100 mm
2,5 - 3,8 mm
338 mm
418 mm
153 mm
70-120psi
11.40 scfm
3/8in. NPT
2
11.5 lbs.
225-300
2 1/4in. - 4 in.
.099 - .148
13 1/4in.
16 1/2in.
6 in.
PAL130
4,9 - 8,4 bar
322,80 liter
3/8in. NPT
2
5,8 kg
120-225
75-130mm
3,05 - 3,8 mm
338 mm
479mm
154 mm
70-120psi
11.40 scfm
3/8in. NPT
2
12.7lbs.
120-225
3 in. - 5 1/8in.
.120 - .148
13 1/4 in.
18 7/8in.
6 in.

SENCO offers a full line of accesso-
ries for your SENCO tools, including:
 Air Compressors
 Hose
 Couplers
 Fittings
 Safety Glasses
 Pressure Gauges
 Lubricants
 Regulators
 Filters
For more information or a complete
illustrated catalogue of SENCO
accessories, ask your representative
for #MK336.
SENCO ofrece una línea completa
de Accesorios para sus herramien-
tas SENCO, incluyendo:
 Compresores de Aire
 Manguera
 Conectores Rapidos
 Conectores
 AnteojosDeSeguridad
 Manometros
 Lubricantes
 Reguladores
 Filtros
Paramasinformacionóunpour
recevoir un catalogo completo ilus-
trado de los Accesorios SENCO,
pregunte a su representante pour
el numero MK336.
SENCO offre une gamme étendue
d’accessoires pour vos outils
SENCO y compris :
 Compresseurs
 Tuyauterieexible
 Raccords
 Lunettes de sécurité
 Manomètres
 Lubriants
 Régulateurs
 Filtres
Pour plus d’informations ou pour
recevoir un catalogue détaillé des
accessoires proposés par SENCO,
prenez contact avec votre
représentant SENCO (référence
catalogue : #MK336).
English Español Français
Accessories Accesorios Accessoires
70-120psi
2.94 scfm
3/8in. NPT
3
4.3 lbs.
350-400
1 1/4in. - 2 in.
.083
11 1/4in.
12 in.
5 in.
PAL57
70-120psi
3.07scfm
3/8in. NPT
3
5.8 lbs.
ø.083 = 350
ø.090 = 300
1 in. - 2 1/4in.
.083 - .090
11 1/4in.
11 7/8in.
5 1/4in.
PAL70
4,9 - 8,4 bar
86.94 liter
3/8in. NPT
3
2,67kg
ø2,1mm = 350
ø2,3mm = 300
25-57mm
2,1 - 2,3 mm
286 mm
302 mm
133 mm
4,9 - 8,4 bar
135.54 liter
3/8in. NPT
3
3,62 kg
ø2,3mm = 300
ø2,9mm = 250
45-70mm
2,3 - 2,9 mm
317mm
339 mm
129 mm
70-120psi
4.78scfm
3/8in. NPT
3
7.9lbs.
ø.090 = 300
ø.113 = 250
1 3/4in. - 2 3/4in.
.090 - .113
12 1/2in.
13 1/4in.
5 in.
PAL90
PAL50
4,9 - 8,4 bar
83.16 liter
3/8in. NPT
3
1.93 kg
350-400
32 -50mm
2,1 mm
285 mm
305 mm
128 mm
4,9 - 8,4 bar
192.84 liter
3/8in. NPT
2
3.5 kg
200-300
38 - 90 mm
2,5 - 3,8 mm
370mm
385 mm
145 mm
70-120psi
6.81 scfm
3/8in. NPT
2
7.7lbs.
200 - 300
(CAPACITY VARIES
WITH WIRE DIA.)
1 1/2in. - 3 1/2in.
.099 - .148
15 in.
15 1/8in.
5 5/8in.
70-120psi
5.8 scfm
3/8in. NPT
3
8.4 lbs.
ø.090 = 300
ø.130 = 225
1 1/2- 3 1/4in.
.090 - .130
14 1/4in.
13 3/8in.
5 3/16 in.
PAL83
4,9–8,4 bar
164,22 liter
3/8in. NPT
3
3,8 kg
ø2,3mm = 300
ø3,3mm = 225
38 mm–83 mm
2,3 - 3,3 mm
364,7mm
341 mm
132 mm
Pression de travail min. et max.
Consommation d’air (60 cycles par minute)
Prise d’air
Vitesse maximum (cycles par seconde)
Poids
Capacité de clous par magasin
Dimensions des clous: longueur
Dimensions des clous: diamètre
Dimensions de l’outil: hauteur
Dimensions de l’outil: longueur
Dimensions de l’outil: largeur: corps de l’appareil
Français
SPECIFICATIONS TECHNIQUES
Pression de travail min. et max.
Consommation d’air (60 cycles par minute)
Prise d’air
Vitesse maximum (cycles par seconde)
Poids
Capacité de clous par magasin
Dimensions des clous: longueur
Dimensions des clous: diamètre
Dimensions de l’outil: hauteur
Dimensions de l’outil: longueur
Dimensions de l’outil: largeur: corps de l’appareil
Français
SPECIFICATIONS TECHNIQUES
PAL100
4,9 - 8,4 bar
322,80 liter
3/8in. NPT
2
5,24 kg
225-300
55 - 100 mm
2,5 - 3,8 mm
338 mm
418 mm
153 mm
70-120psi
11.40 scfm
3/8in. NPT
2
11.5 lbs.
225-300
2 1/4in. - 4 in.
.099 - .148
13 1/4in.
16 1/2in.
6 in.
PAL130
4,9 - 8,4 bar
322,80 liter
3/8in. NPT
2
5,8 kg
120-225
75-130mm
3,05 - 3,8 mm
338 mm
479mm
154 mm
70-120psi
11.40 scfm
3/8in. NPT
2
12.7lbs.
120-225
3 in. - 5 1/8in.
.120 - .148
13 1/4 in.
18 7/8in.
6 in.
11

Limited Warranty
SENCO® Pneumatic, DuraSpin®, Cordless Tools
& Compressors
Senco Products, Inc. (“SENCO”) designs and constructs its products using the highest standards of material and workmanship. SENCO
warrants to the original retail purchaser that the following products will be free from defects in material or workmanship for the warranty
period specified below:
SENCO® XP Series-Red Cap SENCO PRO Series SENCO Compressors SENCO PC1194
Flooring Jack
Five years One year One year One year
SENCO® XP Series-Black Cap SENCO DuraSpin® SENCO Cordless Hand Nailers
Two Years One year Two years One Year
SENCO FP502 SENCO Reconditioned Products Gas Cordless
Two Years One Year Two Years
During the warranty period (which begins on the purchase date), SENCO will repair or replace, at SENCO’s option and expense, any product or part that
is defective in materials or workmanship after examination by a SENCO Authorized Warranty Service Center, subject to the exceptions, exclusions and
limitations described below. Any replacement product or part will carry a warranty for the balance of the warranty period applicable to the replaced
product or part. A DATED SALES RECEIPT OR PROOF OF PURCHASE FROM THE ORIGINAL RETAIL PURCHASER IS REQUIRED TO MAKE A
WARRANTY CLAIM. Product registration can be accomplished through on-line Product Registration at www.senco.com or by completing and returning
the postage paid product registration form included with your Operator’s manual/parts chart information, found inside the product carton. To make a
warranty claim, you must return the product, with proper receipt/proof of purchase and return transportation charges prepaid, to a SENCO Authorized
Warranty Service Center. A list of SENCO Authorized Warranty Service Centers can be found at www.senco.com or by calling 1-800-543-4596 toll free.
SENCO will perform its obligations under this warranty, within a reasonable time after approval of the warranty claim.
Wheelbarrow Compressors:
1. Subject to the exceptions, exclusions and limitations described below, SENCO warrants that the compressor pump will be free from defects in
materials and workmanship for two years after the purchase date.
2. Defective parts of the compressor pump not subject to normal wear and tear will be repaired or replaced, at SENCO's option, during the two
year warranty period. If SENCO determines that repair or replacement is not feasible, SENCO will refund the purchase price less reasonable
depreciation based on actual use.
SENCO Cordless:
1. Subject to the exceptions, exclusions and limitations described below, SENCO warrants that the SENCO Cordless tool will be free from
defects in materials and workmanship for two years after the purchase date.
2. Subject to the exceptions, exclusions and limitations described below, SENCO warrants that the batteries and chargers used with SENCO
Cordless tools will be free from defects in material and workmanship for one year after the purchase date.
WARRANTY EXCLUSIONS
The following warranty exclusions apply:
1. Normal wear parts are not covered under this warranty. Normal wear parts include, for example, isolators, drive belts, air filters, rubber o-rings,
seals, driver blades, piston stops, piston/driver assembly, and fuel stems.
2. This warranty does not cover parts damaged due to normal wear, misapplication, misuse, accidents, operation at other than recommended
speeds or voltage (electric units only), improper storage, or damage resulting during shipping.
3. Products used in production/industrial applications as defined by SENCO are excluded from this warranty.
4. Labor charges or loss or damage resulting from improper operation, maintenance or repairs are not covered by this warranty.
5. SENCO does not warrant the Wheelbarrow Compressor Engine/Motor, but the Compressor Engine/Motor may be covered under a warranty
offered by its manufacturer.
GENERAL WARRANTY CONDITIONS
This warranty will be honored, only if:
A. Clean, dry, regulated compressed air has been used, at air pressure not exceeding the maximum indicated on the tool casting;
B. No evidence of abuse, abnormal conditions, accident, neglect, misuse or improper modifications or storage of the product; and
C. No Deviation from operating instructions, specifications, and maintenance schedules exists (read Operator Manual for use, specifications, and
maintenance instructions).
THIS WARRANTY IS THE ONLY WARRANTY ON THE PRODUCT, AND SENCO DISCLAIMS ALL OTHER WARRANTIES. ANY IMPLIED
WARRANTIES WILL BE LIMITED IN DURATION TO THE APPLICABLE WARRANTY PERIOD SPECIFIED ABOVE. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. YOUR REMEDIES ARE
SOLELY AND EXCLUSIVELY AS STATED ABOVE. SENCO SHALL IN NO EVENT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT,
OR SPECIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. IN NO EVENT, WHETHER AS A RESULT OF A BREACH OF
CONTRACT, WARRANTY, TORT (INCLUDING NEGLIGENCE) OR OTHERWISE, SHALL SENCO’S LIABILITY EXCEED THE PRICE OF THE
PRODUCT WHICH HAS GIVEN RISE TO THE CLAIM OR LIABILITY. ANY LIABILITY CONNECTED WITH THE USE OF THIS PRODUCT SHALL
TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD SPECIFIED ABOVE. NO EMPLOYEE OR REPRESENTATIVE OF SENCO OR
ANY DISTRIBUTOR OR DEALER IS AUTHORIZED TO MAKE ANY CHANGE OR MODIFICATION TO THIS WARRANTY.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
REPLACEMENT OF TOOL DUE TO NATURAL DISASTER
SENCO will replace any tool destroyed by an Act of God such as flood, earthquake, hurricane or other disaster resulting only from the forces of nature.
Such a claim will be honored provided that such original retail purchaser had previously submitted a completed warranty registration card for the tool,
and then submits proof of ownership and an acceptable statement describing such Act of God documented by an insurance carrier, police department,
or other official governmental source. To obtain instructions for filing a claim call 1-800-543-4596.
CUSTOMER SATISFACTION
One hundred percent customer satisfaction is our #1 goal. If for any reason the product does not perform to the original purchaser’s satisfaction, it can
be returned to the place of purchase within thirty days with dated sales receipt for a full refund of the purchase price.
©2006, 2007, 2008 by SENCO PRODUCTS, INC.
CINCINNATI, OHIO 45244-1611 USA
www.senco.com
051208
