SAFETY INFORMATION
SGM fixtures are intended for professional use only. They are not suitable for household use.
Les fixtures SGM sont impropre à l’usage domestique. Uniquement à usage professionnel.
This product must be installed in accordance with the applicable installation code by a person
familiar with the construction and operation of the product and the hazards involved.
Ce produit doit être installé selon le code d’installation pertinent, par une personne qui connaît
bien le produit et son fonctionnement ainsi que les risques inhérent.
DANGER! RISK OF ELECTRIC SHOCK DO NOT OPEN THE DEVICE!
• Always power off/unplug the fixture before removing covers or dismantling the product.
• Ensure that the mains power is cut off when wiring the device to the AC mains supply.
• Ensure that the device is electrically connected to earth (ground).
• Do not apply power if the device or mains cable is in any way damaged.
• Do not immerse the fixture in water or liquid.
WARNING! TAKE MEASURES TO PREVENT BURNS AND FIRE!
• Install in a location that prevents accidental contact with the device.
• Install only in a well-ventilated space.
• Install at least 0.3 m (12 in.) away from objects to be illuminated.
• Install only in accordance with applicable building codes.
• Ensure a minimum clearance of 0.3 m (12 in.) around the cooling fans
• Do not paint, cover, or modify the device, and do not filter or mask the light.
• Keep all flammable materials well away from the device.
ALLOW THE DEVICE TO COOL FOR 15 MINUTES AFTER OPERATION BEFORE TOUCHING IT
CAUTION: EXTERIOR SURFACE TEMPERATURE AFTER 5 MIN. OPERATION = 42°C 108°F.
STEADY STATE = 48°C 118°F.
WARNING! TAKE MEASURES TO PREVENT PERSONAL INJURY. DO NOT
LOOK DIRECTLY AT THE LIGHT SOURCE FROM CLOSE RANGE.
• Take precautions when working at height to prevent injury due to falls.
• For Permanent Outdoor Installations (POI), ensure that the fixture is securely fastened to
a load-bearing surface with suitable corrosion-resistant hardware.
• For a temporary installation with clamps, ensure that the quarter-turn fasteners are
turned fully and secured with a suitable safety cable. The standard safety wire cable must
be approved for a safe working load (SWL) of 10 times the weight of the fixture, made of
a grade AISI 316 steel, and it must have a minimum gauge of 4 mm.
• For elevated installations, secure the fixture with suitable safety cables, and always com-
ply with relevant load dimensioning, safety standards, and requirements.
WARNING! READ THE FOLLOWING SAFETY PRECAUTIONS CAREFULLY BE-
FORE UNPACKING, INSTALLING, POWERING OR OPERATING THE DEVICE.

7Product Version 1.0 | Revision F | Released 2023-02-20
BEFORE INSTALLING THIS PRODUCT
Please visit the SGM official website at www.sgmlight.com for the latest version of this user
manual/ safety information leaflet. Due to continuous improvements, the instructions may
change without notice. SGM always recommends the latest available firmware version from
www.sgmlight.com.
EXTERNAL CLEANING AND VISUAL INSPECTION OF THE FIXTURE
All users of SGM luminaires should regularly clean those parts of the luminaire directly exposed
to the elements, such as the external housing and front lenses. Additionally, all owners of SGM
luminaires must periodically check the external housing of the luminaire for structural breaks,
components in bad shape, cracked lenses, or loose screws. To ensure proper operation, but also
to prevent the risk of potential accidents, do not use the luminaire if the lens, housing, or power
cables are damaged. If parts of the luminaire appear to be missing, cease use immediately and
contact SGM support.
WIRING AND CONDUIT/ CONTAINMENT
SGM luminaires supplied with power and data cable leads are not intended for installation in
permanently installed conduit or containment. When installing luminaires in a permanent in-
stallation, ensure cable leads are installed as a service loop to an appropriately rated junction
box using suitable cable strain reliefs / glands. All installed luminaires must be securely mount-
ed and service loop appropriately protected for installation location. All electrical wiring and
connections should be completed by a qualified electrician.
SAFETY PRECAUTIONS
When using electrical equipment, basic safety precautions should always be followed including
the following:
• Do not mount near gas or electric heaters.
• Permanently installed equipment should be mounted in locations and at heights where
it will not readily be subjected to tampering by unauthorized personnel.
• The use of accessory equipment not recommended by the manufacturer may cause an
unsafe condition.
• Do not use this equipment for other than intended use.
• Refer service to qualified personnel or authorized service centers.
• Do not look directly into the beam for long periods of time, when the fixture is on.
• The luminaire shall, under no circumstance, be covered with insulating material of any
kind.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

8Product Version 1.0 | Revision F | Released 2023-02-20
INSTALLATION STANDARD FIXTURE
Illustrations might vary from received products. This is subject to change without notice.
IDENTIFICATION AND TERMINOLOGY
A
A:
Q-7: 1000 RGB + 1000 White LEDs
B:
Q-7W: 1000 White LEDs
B:
Q-7 Tilt lock
C:
Cooling fans
D:
DMX in and out
E:
Wireless antenna socket (POI n/a)
F:
RFID Antenna (POI n/a)
G:
OLED Display (POI n/a)
H:
Control panel (POI n/a)
I:
GORE-TEX membrane
J:
Power connection
K:
Holes for Omega bracket / M-10 screws (x4)
L:
Safety wire attachment point
BC
H
K
F
G
E
I
J
D
L
B

9Product Version 1.0 | Revision F | Released 2023-02-20
UNPACKING
Unpack the device and inspect it to ensure that it has not been damaged during transport.
The fixture is shipped with:
• 2 x Omega brackets with 1/4-turn fasteners (standard only).
• 1 x Mounting bracket with fasteners (standard only).
• 1 x Omni / CRMX™ Antenna (standard only).
• Safety information leaflet.
APPLICATION CONSIDERATIONS
The standard fixture is IP65-rated and is designed for both indoor and outdoor events. This means that it is protected
from:
• Dust, to the degree that dust cannot enter the fixture in sufficient quantities as to interfere with its operation.
• Lower pressure water jets from any direction.
When using standard fixtures outdoors or in wet locations, ensure that:
• The DMX connection out of the last fixture in a chain is properly sealed, in accordance with the ingress protec-
tion (IP) requirements.
• The DMX out of the last fixture is terminated with a 120 Ohm resistor between pin 2 and 3 (as per RS485 stand-
ards).
When selecting a location for the device, ensure that:
• It is situated away from public thoroughfares and protected from contact with people.
• It has adequate ventilation.
• It is not immersed or submerged in water.
TRANSPORT HANDLING
Always use the supplied packaging or suitable flight case for transportation and storage. Never carry the fixture by
connected cables or wires.
The fixture may be installed in any orientation, on the ceiling or on a
wall surface.
When installed horizontally with a downward beam-angle, water or dirt
can potentially pool in the fan wells. Under normal operation the mois-
ture will evaporate.
In locations with high rainfall, consider locating the fixture under cover
or an overhang, or modify the position and orientation of the fixture to
minimize pooling.
All SGM fixtures have locking points in the base for installation and rig-
ging. In both standard and POI fixtures, the distance between the
points from center to center is always 106 mm. Standard versions in-
clude 1/4 turn fasteners to mount SGM omega brackets. POI versions
come with M-10 captive nuts for M-10 screws.
Always use the supplied omega bracket to rig a standard fixture. Lock
the bracket with the 1/4-turn fasteners.
PLEASE NOTE! 14TURN FASTENERS ARE ONLY LOCKED WHEN TURNED FULLY CLOCKWISE. DEPENDING ON
THE STRUCTURE, PLEASE USE APPROPRIATE AND SECURE METHODS FOR MOUNTING THE OMEGA BRACKETS.
RIGGING
106 mm
[ 4,2in ]
Ø 18 mm
[ 0,7in ]
Figure 1: Locking points

10 Product Version 1.0 | Revision F | Released 2023-02-20
RIGGING PROCESS USING SGM OMEGA BRACKETS
Start the standard rigging process by blocking the low-
er working area, and make sure the work is performed
from a stable platform.
1. Check that the clamp/bracket is undamaged.
Supporting structure should be capable of
bearing at least 10 times the weight of all in-
stalled fixtures, lamps, cables etc.
2. Bolt a clamp or bracket securely to the omega
bracket with a M12 bolt (min. grade 8.8) and a
lock nut. For longer term installations, choose
outdoor rated hardware.
3. Align the omega bracket with the fixture base.
For standard Omega Bracket, insert the fasten-
ers into the fixture base bracket, and turn both
levers a full 1/4 turn clockwise to lock. When us-
ing the POI Omega Bracket, insert the included
M-10 screws through the bracket holes and
tighten them with a M-10 key until they are fully
attached to the base.
Figure 2: Dimensions for base locking points
WARNING! ALWAYS USE MIN. 2 OMEGA BRACKETS WHEN RIGGING THE FIXTURE.
Figure 3 : Installing the Q-7
4.Hang the fixture on a truss or other structure. Tighten the clamp/bracket.
5. Verify that there are no combustible materials, cables, or surfaces to be illuminated within 0.3 m (12 in.) of the
fixture.
6. Check that there is no risk of the head/yoke colliding with other fixtures or structures.

11 Product Version 1.0 | Revision F | Released 2023-02-20
Fasten a safety wire (not shown) between the load-bearing support
structure and the safety wire attachment point on the device.
• The safety cable (not included in the package) must:
• Bear at least 10 times the weight of the device (SWL).
• Have a minimum gauge of 4 mm.
• Have a maximum length (free fall) = 30 cm (12 in.).

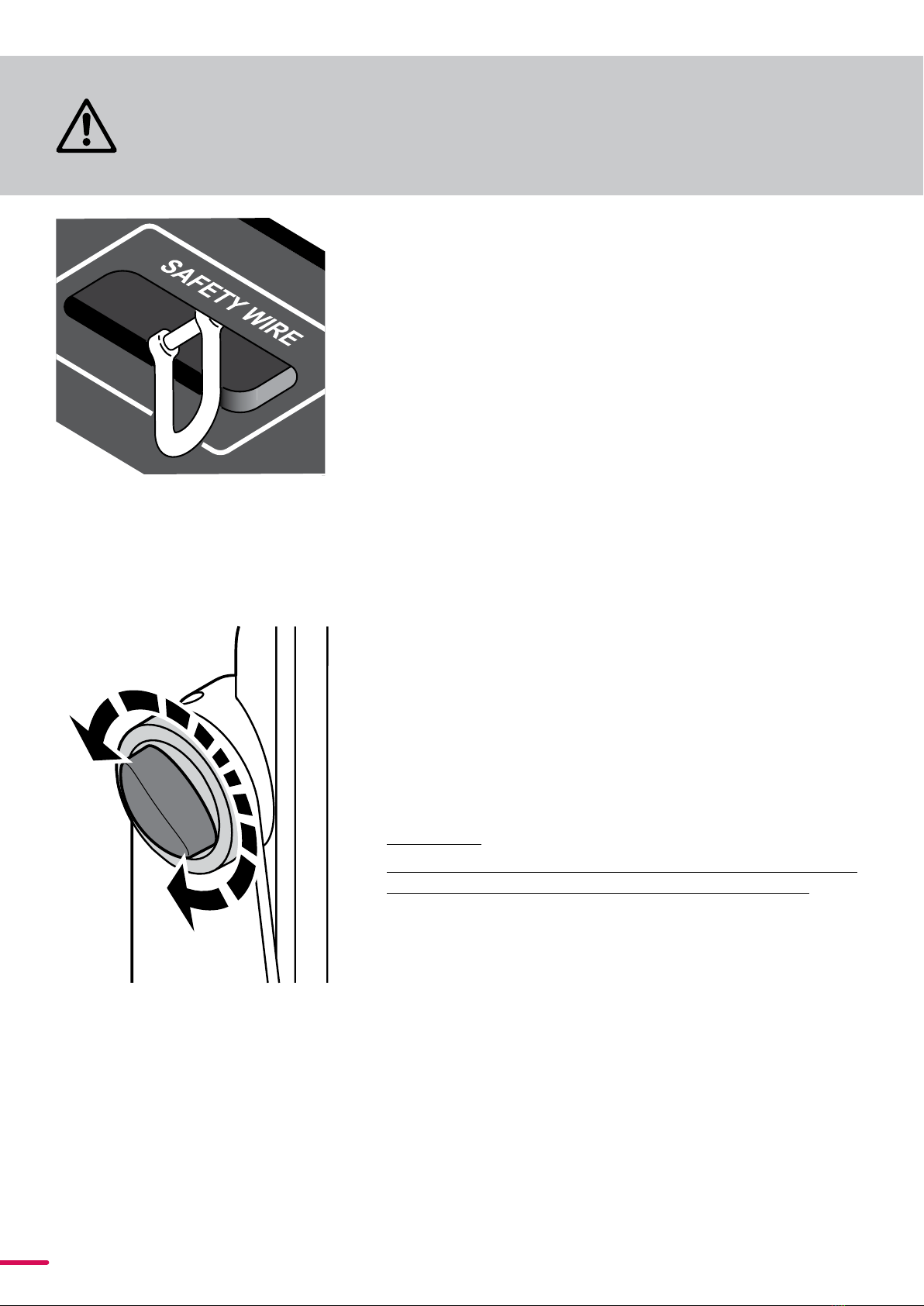

Figure 4: Safety wire attachment point
The fixture head can pivot through 190 .
To adjust the tilt angle in standard versions:
• Loosen the two tilt wing-screws (one on each side) by turning
them counter-clockwise.
• Tilt the fixture to the angle desired and hold it.
• Lock the position by re-tightening both tilt lock screws clock-
wise.
CAUTION!
ALWAYS LEAVE A FIXTURE TO COOL OFF FOR 15 MIN
UTES AFTER OPERATION BEFORE HANDLING.
Figure 5: Standard tilt lock
TILT LOCK
POWER REQUIREMENTS
The fixture can operate on any 208–240 V, 50/60 Hz AC mains power supply, and draws a maximum of 465 W.
Connect the fixture to AC power by installing a power connector to the bare end side of the supplied power cable.
Connect the powercon twist-lock connector side to the fixture. The fixture must be grounded/earthed and be able to
be isolated from AC power. The AC power supply must incorporate a fuse or circuit breaker for fault protection.
WARNING! ALWAYS SECURE AN ELEVATED FIXTURE WITH A SAFETY WIRE.
ALWAYS USE A SAFETY WIRE OF A GRADE AISI 316 STEEL. MAKE SURE THE
SLACK OF THE SAFETY WIRE IS AT A MINIMUM. NEVER USE THE YOKE/HAN-
DLE FOR SECONDARY ATTACHMENT.

12 Product Version 1.0 | Revision F | Released 2023-02-20
CONNECTING POWER
The power cable color coding is given in figure 6:
• Connect the black wire to live
• Connect the white wire to neutral (or phase 2 on 208V
supplies)
• Connect the green/yellow wire to ground (earth)
For a temporary outdoor installation the mains cable must be fitted with a grounded connector intended for exterior
use.
For permanent installations, a qualified electrician must wire the mains cable directly to a suitable branch circuit and
as per local code. The junction’s ingress protection (IP) rating must be suitable for the location. Always use a junction
box with a proper IP class suitable for the environment.
After connecting the fixture to power, run the on-board test by selecting the option “TEST→ SELFTEST” in the menu,
to ensure that the fixture and each LED are functioning correctly. (POI versions are tested through RDM.)
PLEASE NOTE! THE PROTECTIVE CAPS MUST BE SECURELY MOUNTED ON ANY UNUSED CONNECTORS, IN OR
DER TO MAINTAIN INGRESS PROTECTION IP RATING.
CAUTION!
DO NOT CONNECT THE FIXTURE TO AN ELECTRICAL DIMMER SYSTEM, AS DOING SO MAY
CAUSE DAMAGE
CONNECTING DATA
The fixture is controllable using a DMX control device, and it can be connected using either a DMX cable, or via the
fixture’s built-in CRMX wireless receiver system (POI only).
When using a cabled DMX system, connect the DMX-In cable to the input connector and DMX-Out cable to the out-
put, both on the rear of the fixture’s base (chassis mounted male and female 5-pin XLR plugs). For outdoor installa-
tions, use only IP-rated XLR connectors suitable for outdoor use. Terminate the DMX out cable of the last fixture in the
data link with a 120 ohm DMX termination.
Note that SGM fixtures provide a passive DMX Thru signal as DMX Out, instead of an active output signal.
PLEASE NOTE! FOR POI VERSIONS, PLEASE REFER TO “INSTALLATION POI FIXTURE”
ENABLING THE WIRELESS CONE ANTENNA RECEIVER POI N.A.
Color
Black
White
green/yellow
Conductor
live
neutral
ground (earth)
Symbol
or
L
N
Wire
(L2)
Figure 6: Connecting AC Power
The wireless cone antenna is factory mounted and is recom-
mended for short-range wireless operation. For long range
wireless operation, the CRMX™ wireless receiver is recom-
mended (see below).
Before you enable the wireless cone antenna, ensure that
there is no DMX cable connected to the fixture.
Go to SETTINGS → WIRELESS DMX → ENABLE in the menu to
enable wireless DMX, and to SETTINGS → WIRELESS DMX→
WIRELESS LED STATUS to confirm that a data connection has
been established. The wireless cone antenna operates at a fre-
quency of 2.4 GHz, so ensure that the DMX transmitter is con-
figured to operate in this range.
The cone antenna has to be connected to the fixture when us-
ing cabled DMX connection, or when CRMXTM antenna isn’t
connected, to maintain IP rating.
Figure 7 :Cone antenna

13 Product Version 1.0 | Revision F | Released 2023-02-20
ATTACHING THE CRMX™ WIRELESS ANTENNA
The CRMX™ wireless receiver antenna is an included accessory and is recommended for long-range wireless opera-
tion.
Before connecting the wireless receiver, ensure that there is no DMX cable connected to the fixture. For long-range
operation, replace the factory default cone antenna with the supplied wireless CRMX™ antenna to the connector on
the back of the fixture.
Go to SETTINGS → WIRELESS DMX → ENABLE menu to activate wireless DMX, and to SETTINGS → WIRELESS DMX →
WIRELESS LED STATUS” to confirm that a data connection has been established.
CRMX™ operates at a frequency of 2.4 GHz, so ensure that the DMX transmitter is configured to operate in this range.

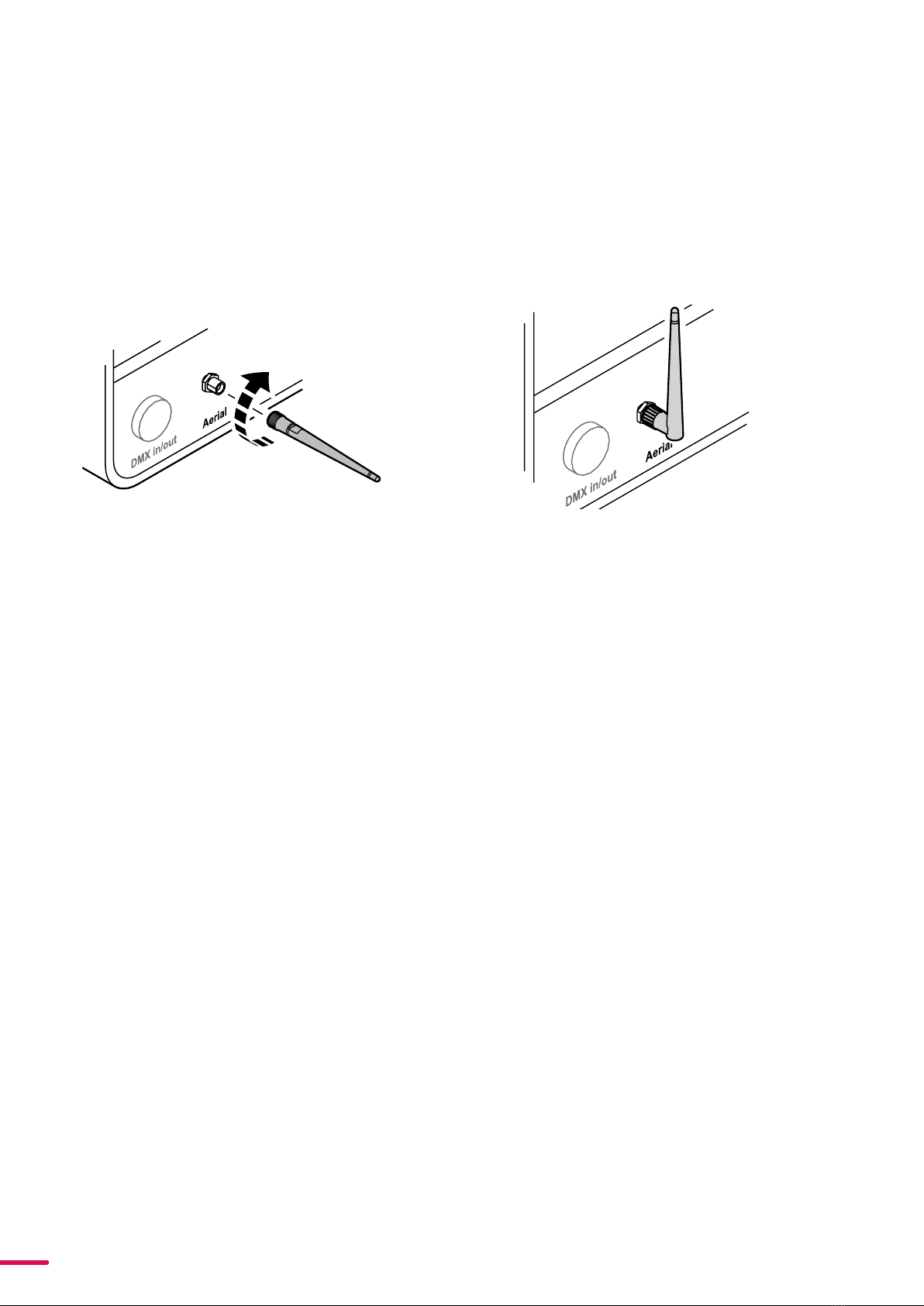

Figure 8: CRMXTM Wireless receiver Figure 9: CRMXTM Wireless receiver
CONNECTING A WIRELESS TRANSMITTER
The fixture is designed to look for wireless transmitters in ‘connect’ state when this option is not yet enabled. The fix-
ture comes tested for wireless functionality from the factory, therefore the beginning of the pairing process is discon-
nect from the factory wireless DMX transceiver.
To connect the fixture to a wireless transmitter:
1. Log off the currently paired wireless transmitter. Go to SETTINGS → WIRELESS DMX → LOG OFF in the menu.
Fixture confirms logged off.
2. Press the connect button on the wireless transmitter.
3. Confirm that the fixture has paired with the wireless transmitter.
PLEASE NOTE! FOR POI VERSIONS, REFER TO “"WIRELESS DATA CONNECTION" ON PAGE 18” .
SIGNAL PRIORITY
The fixture can be paired to an active wireless transmitter simultaneously when connected to a cabled DMX. The fix-
ture will prioritize cabled DMX over wireless DMX.
The active input type is displayed under the wireless signal strength indicator. The signal strength can be also checked
via RDM data by using an external RDM device.
PLEASE NOTE! IN POI VERSION WITH WIRELESS, THE DMX SIGNAL STRENGTH IS CHECKED THROUGH RDM.

14 Product Version 1.0 | Revision F | Released 2023-02-20
INSTALLATION POI FIXTURE
IDENTIFICATION AND TERMINOLOGY
Illustrations might vary from received products. This is subject to change without notice.
A:
Q-7: 1000 RGB + 1000 White LEDs
B:
Q-7W: 1000 White LEDs
B:
Q-7 POI Tilt lock
C:
Cooling fans
D:
DMX in and out
E:
F:
G:
H:
I:
Power connection

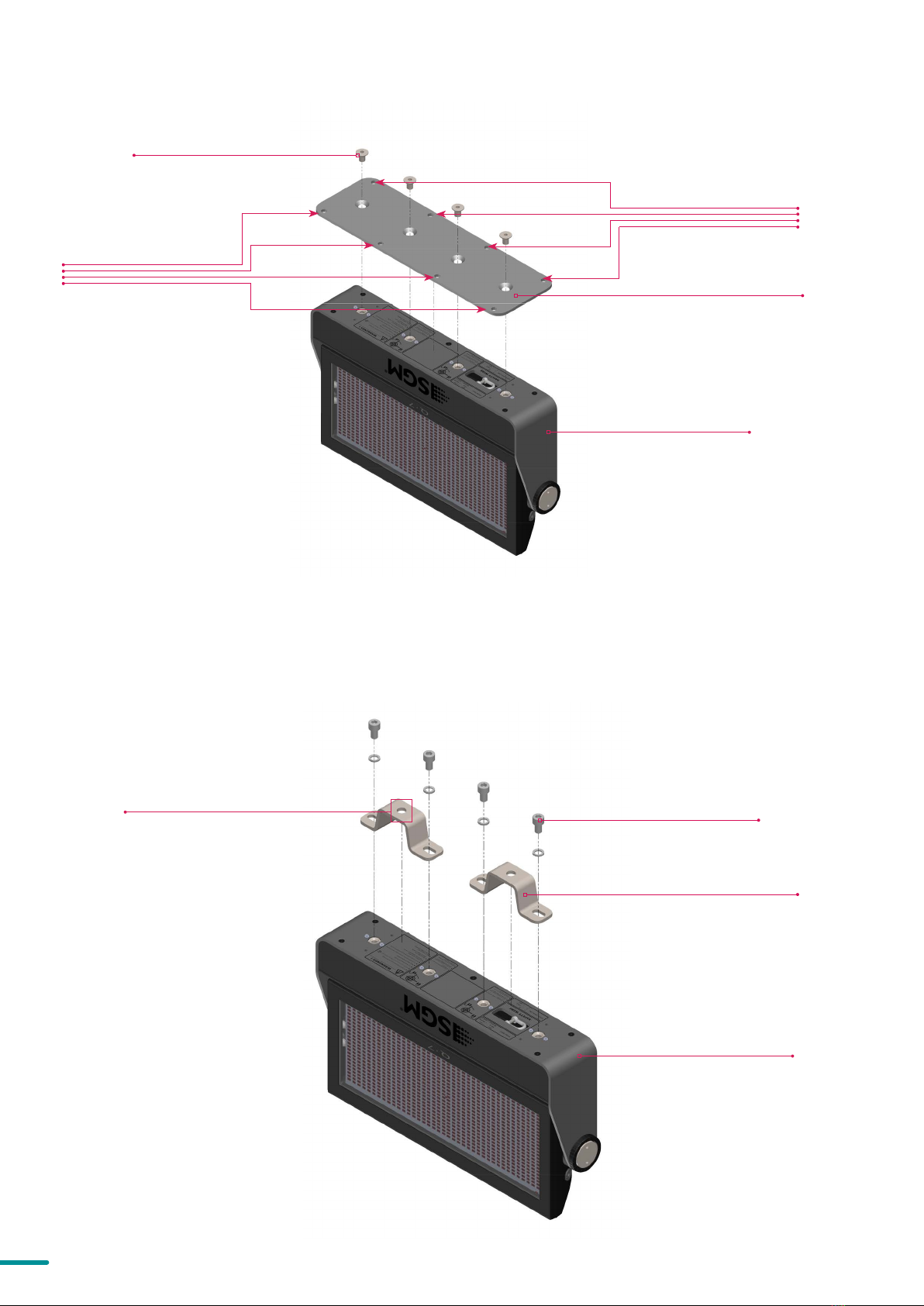

Holes for Omega bracket / M-10 screws (x4)
Safety wire attachment point
LED indicator (POI only)
I
A
BC
G
E
F
D
H
B
GORE-TEX membrane

15 Product Version 1.0 | Revision F | Released 2023-02-20
PLEASE NOTE! POI FIXTURES SHOULD BE PRESET WITH ANY CUSTOM PROGRAMMING BEFORE INSTALLA-
TION.
ALTHOUGH MOST FUNCTIONS ARE POSSIBLE TO BE SET VIA RDM ONCE MOUNTED IN POSITION, IT IS EASIER
TO DO CONFIGURATION AND ANY TROUBLESHOOTING BEFORE MOUNTING IS COMPLETE.
UNPACKING
Unpack the device and inspect it to ensure that it has not been damaged during transport.
Thefixture is shipped with:
• 1 x Spanner with magnet (POI only).
• 4 x M-10 screws (POI Only).
• Safety information leaflet.
APPLICATION CONSIDERATIONS
The POI fixture is IP66-rated and designed for use in outdoor installations. This means that it is protected from:
• Dust, to the degree that dust cannot enter the device in sufficient quantities as to interfere with its operation.
• High pressure water jets from any direction.
CONNECTING TEMPORARY POWER
Connect to AC power using the supplied 8mm cable (the larger of the two permanently wired cables). The fixture
must be grounded/earthed. The AC power supply must incorporate a fuse or circuit breaker for fault protection. For
temporary programming, a plug or terminals can be used.
The power cable color coding is shown to the left:
• Connect the black wire to live
• Connect the white wire to neutral
• Connect the green/yellow wire to ground (earth)
Figure 10: Connecting AC Power
The fixture must be grounded/
earthed and be able to be isolated
from AC power. The AC power
supply must incorporate a fuse or
curcuit breaker for fault protection.
Color
Black
White
green/yellow
Conductor
live
neutral
ground (earth)
Symbol
or
L
N
Wire

16 Product Version 1.0 | Revision F | Released 2023-02-20
Figure 12: Connecting data to USB up-loader cable for POI fix-
tures

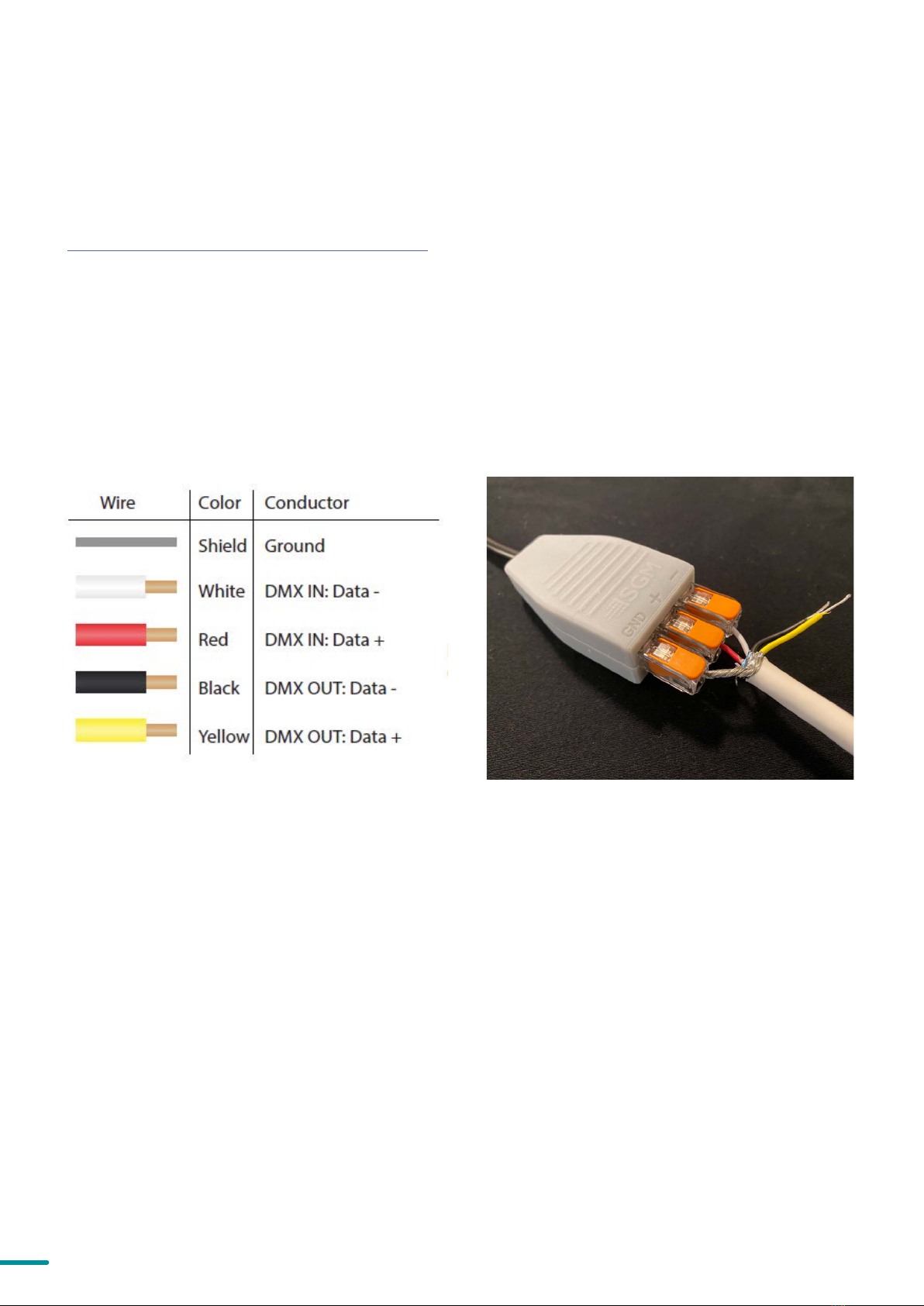

Figure11: Data wiring guide for setup
CONNECTING TEMPORARY SIGNAL
The fixture is compatible with DMX512 (ANSI E1.11 – 2008) only. It can be connected using either the SGM POI up-load-
er cable, or via the fixture’s built-in CRMX wireless receiver system.
STEP 1: Download and install the SGM RDM Addressing tool.
< https://sgmlight.com/products/rdm-addressing-tool >
STEP 2: Connect the bare end data cable to the POI Up-loader cable for POI fixtures.
STEP 3: Connect the USB up-loader cable for POI fixtures to a computer with a USB Type-A port.
Step 5 Disconnect up-loader cable from computer, then disconnect up-loader cable from fixture.
Repeat Steps 2-5 for more fixtures. Multiple fixtures can be addressed and configured. Contact your SGM representa-
tive for more information on multiple fixture addressing.
PLEASE NOTE! AT A MINIMUM, ALL FIXTURES WILL NEED TO BE GIVEN A DMX ADDRESS AND DMX PERSONALI
TY IN ORDER TO PATCH AND PROGRAM ON A CONTROLLER. REFER TO MANUALS FOR MORE DETAILS.

17 Product Version 1.0 | Revision F | Released 2023-02-20
SETTINGS AND FIXTURE DEFAULTS
All configuration of POI fixtures is done through the SGM Addressing Tool. The SGM Addressing Tool is a windows
based program designed to allow the user to configure the fixture through the RDM protocol. All settings on a stan-
dard fixture are available on a POI fixture. But on POI, these settings are changed through the Addressing Tool.
STEP 1: Launch SGM RDM Addressing Tool. Click Full Discovery and look for the green light to illuminate on the fixture.
If the green light does not appear, cycle power or refer to troubleshooting.
STEP 2: Select the standard settings tab and enter a DMX address and a personality/mode of operation. These modes
must match the control mode in the controller which will control the fixture. Look for the LED indicator to blink to
confirm setting change. DMX modes for POI and Std versions are identical. Refer to CONFIGURING THE DEVICE later
in this manual for specifics for more information on fixture functions. Visit www.sgmlight.com to see all DMX charts
available under the respective product, or upon request via [email protected].
STEP 3: If necessary for the application, click advanced settings to set the fan mode, dimming curve, calibration or to
reset to factory defaults.
STEP 4: Disconnect POI Uploader cable.
Repeat as required for multiple fixtures.
Figure 13: SGM Addressing tool
Factory Defaults are as follows:
• DMX address = 1
• Dimming curve = Gamma corrected
• DMX mode = Default mode (6 channel CTC)
• Startup mode = DMX
• Display saver = Display dim
• Flip display = Disable
• Fan mode = Standard
• Refresh rate = Dimming optimized
• Master slave = Slave
• White calibrated = Calibrated
• RDM device label set to = Fixture type name
• Internal programs = Cleared
PLEASE NOTE! REMOTE DEVICE MANAGEMENT RDM REQUIRES A CORRECTLY INSTALLED AND TERMINATED
DMX CABLE.
When setting addresses through RDM and using USB dongles, it may be necessary to disable “USB selective sus-
pend”
to ensure a proper voltage to the DMX link. If any lag or trouble occurs when addressing, decrease the cable
length range to <12 m. and only address one fixture at a time.

18 Product Version 1.0 | Revision F | Released 2023-02-20

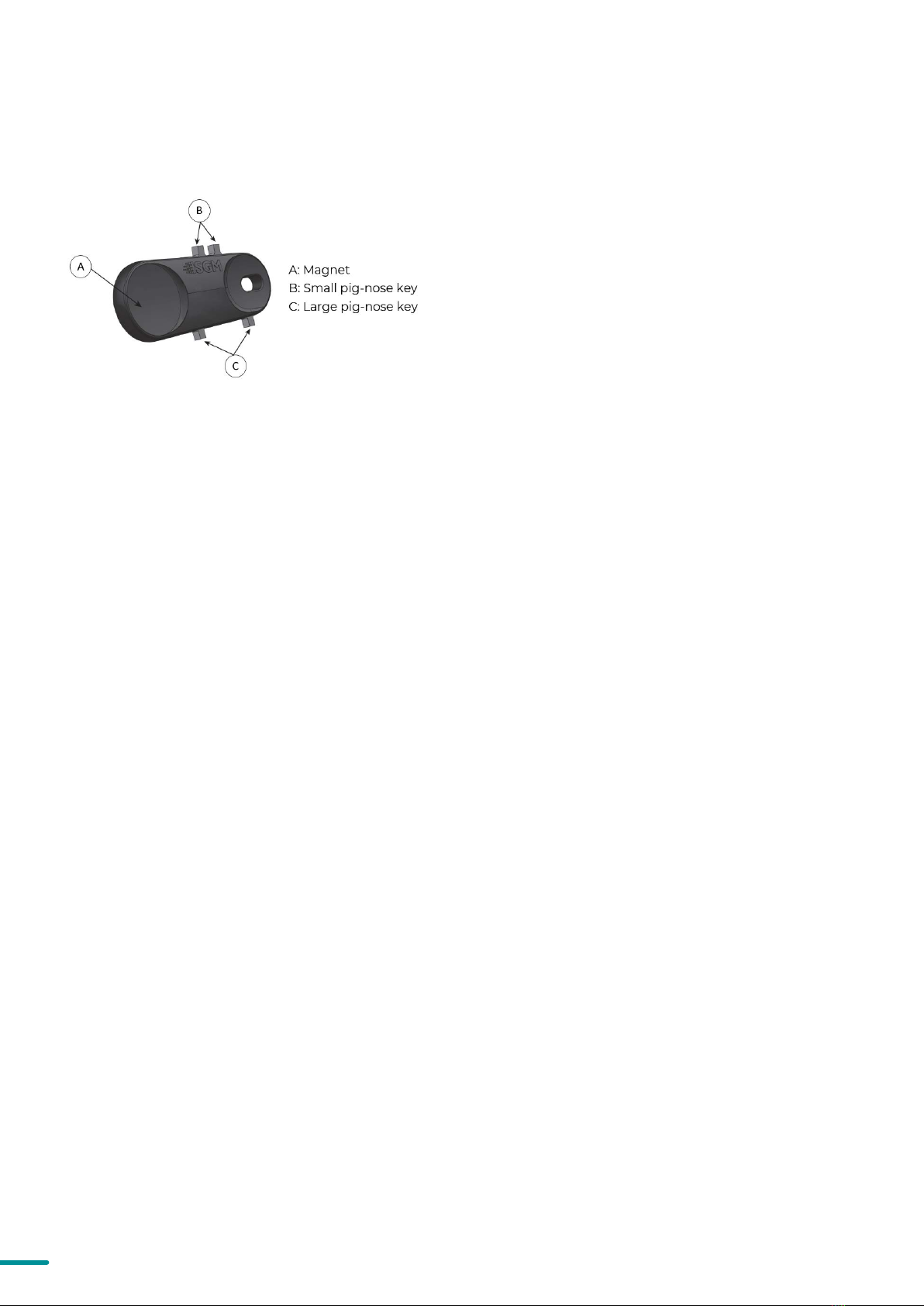

Figure 14: POI Spanner
LED INDICATOR BEHAVIOUR
The fixture displays the status of connections, setting and errors through the LED indicator. It can have different colors
and three possible stages: static, flashing, or off.
Once configuration is complete, temporary power and data can be disconnected.
• The LED indicator is located next to the DMX input cable, and shows the current status of the fixture.
• The LED indicator has two different colors and three possible stages: static, flashing, or off.
• Static green: fixture is powered and receiving DMX signal.
• Flashing green: fixture is powered on without receiving DMX signal.
• Static/flashing red: an error message is stored; review via the SGM RDM Addressing Tool, reboot the fixture, or
contact SGM support for diagnostic help.
• Off: fixture is off or indicator LED is set to auto dimming (set via RDM).
In POI fixtures with wireless, it is necessary to pair the
fixture with a new transmitter (by default, the fixture is
linked to the SGM factory transmitter during the test-
ing and QA process).
In order to do so, make sure the fixture is powered on
before taking the following steps:
WIRELESS DATA CONNECTION
STEP 1: Using a SGM magnetic spanner tool, place the magnet close to the LED indicator, and wait for 3 seconds. The
LED indicator will blink orange for 1-2 seconds, before switching to static green again. The fixture can now be paired
to a new transmitter.
STEP 2: Select “connect” or “link” on a wireless DMX transmitter. The transmitter and the internal SGM receiver should
now be linked together.
Repeat the process to link the fixture to another transmitter.
To disconnect the fixture from the currently paired wireless transmitter, hold the magnet for 3 seconds over the LED
indicator. The LED indicator will blink orange for 1-2 seconds, switching later to green again. The fixture is now logged
off.

19 Product Version 1.0 | Revision F | Released 2023-02-20
MOUNTING
All SGM POI fixtures have M10 size attachment points to mount the supplied brackets or directly to a structure.
The POI wash fixture may be installed in any orientation and it might take up to two brackets per fixture. Depending
on the structure, please use appropriate and secure methods for mounting the Omega brackets.
Figure 15: POI base with dimensions
Flat bracket Omega bracket
Wall mount bracket
Universal bracket
BRACKETS
There are four bracket choices available from SGM:

20 Product Version 1.0 | Revision F | Released 2023-02-20
FLAT BRACKET ATTACHMENT
OMEGA BRACKET ATTACHMENT
M10 Countersunk Bolts
Flat Bracket
8mm or smaller screw
or bolt to structure
8mm or smaller screw
or bolt to structure
Fixture
13mm / 0.5in hole diameter
for attachment point
M10 Stainless Steel Bolts
POI Omega Bracket
Fixture
