Owner’s Manual
Berken
11’ x 13’ Pavilion
Model Number: BK/PAV-1113
Note: This gazebo is designed to be used as a permanent fixture.
Scan For Video
Assembly Instructions!

2of24

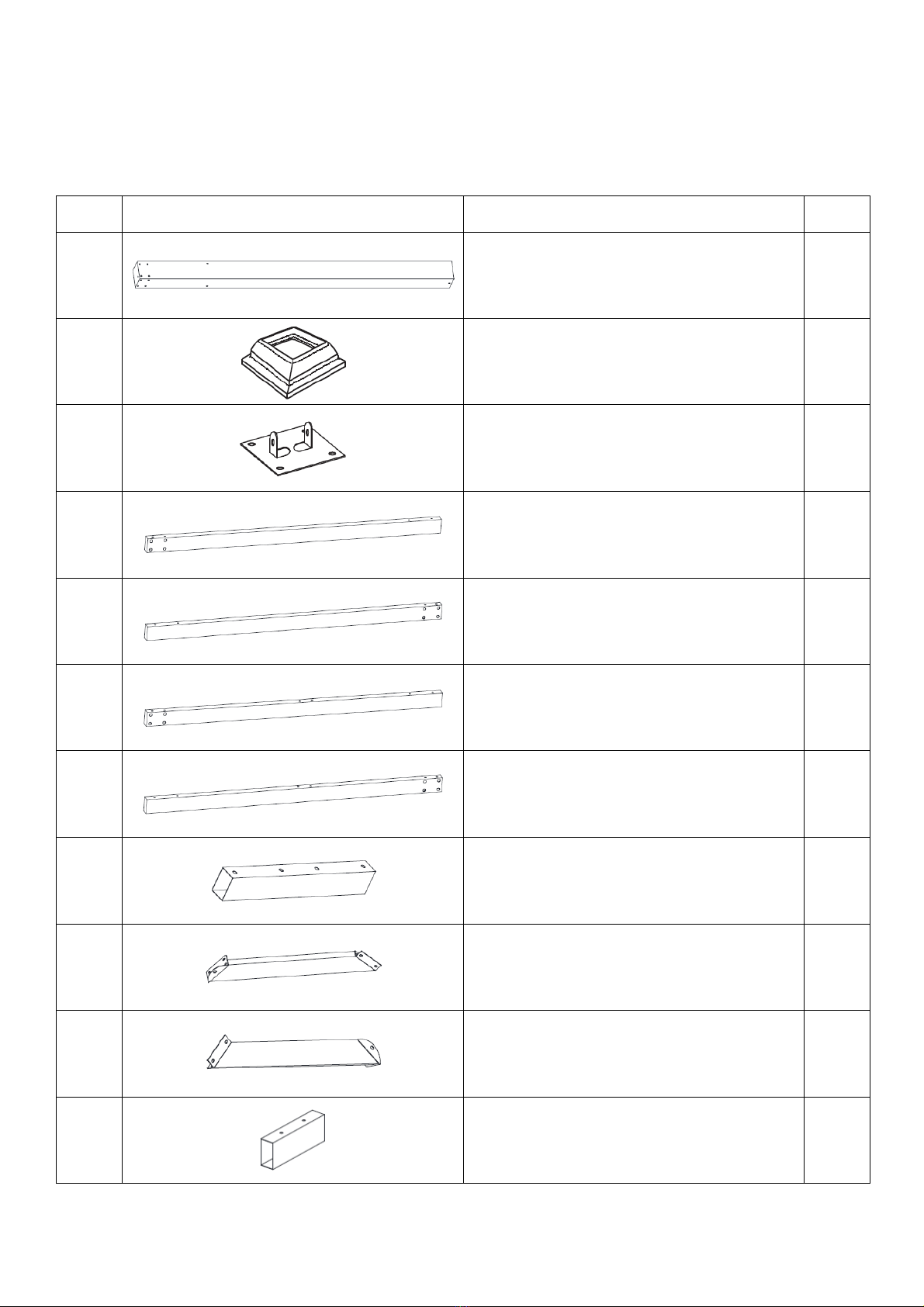

Parts List
Berken 11’ x 13’ Pavilion
Letter
Illustration
Description
Qty.
A
Corner Post
4
B
Base Cover
4
C
Base Plate
4
D1
Left Lentil
2
D2
Right Lentil
2
D3
Left Lentil
2
D4
Right Lentil
2
E
Cross Beam Connector
4
F1
Lintel Corner Support Bar
4
F2
Lintel Corner Support Bar
4
G
Cross Beam Guard
2

3of24
Letter
Illustration
Description
Qty.
H
Top Bean Guard
2
I1
Roof Support Beam
2
I2
Roof Support Beam
2
I3
Roof Support Beam
6
J1
Vertical Brace
2
J2
Connector
3
K
Top Support Bar
3
L1
Right Support Bar
2
L2
Left Support Bar
2
M
U-Shape Connector
6
N1
L-Shape Connector
2
N2
L-Shape Connector
2

4of24
Letter
Illustration
Description
Qty.
O
Corner Lintel Cover
4
P1
Roof Support
24
P2
Roof Support
4
P3
Roof Support
4
Q1
Top Beam
1
Q2
Top Beam
1
Q3
Top Beam Connector
2
R1
Edge Banding
2
R2
Edge Banding
2
R3
Edge Banding Guard
4
R4
Edge Banding Guard
2
S1
Top Panel Cover
2

5of24
Letter
Illustration
Description
Qty.
S2
Top Panel Cover
1
T1
Roof Panel
2
T2
Roof Panel
8
T3
Roof Panel
2
AA
M6 x 15mm Bolt with Steel Washer
204
BB
M6 x 15mm Bolt
36
CC
M6 x 25mm Bolt with Plastic Washer
14
DD
M6 x 35mm Bolt with Flat Washer & Nut
72
EE
M6 x 40mm Bolt with Plastic Washer
6
FF
M6 x 55mm Bolt with Flat Washer & Nut
4
GG
M6 x 70mm Bolt with Flat Washer & Nut
4
HH
Spacer
14

6of24
Letter
Illustration
Description
Qty.
II
M6 Hex Wrench
2
JJ
Ground Stake
16

7of24
Assembly Instructions
Berken 11’ x 13’ Pavilion
Note: For video instructions please visit:
https://shadenshelters.com/11x13-berken-pavilion
Important:
⚫Read all the instructions before assembly. Failure to do so may result in faulty assembly and
potential injury.
⚫Before assembling the product, remove all protective materials, hardware kit(s), and identify all
parts packed in the carton are present. (Note: If any part is missing or damaged, do not attempt to
assemble). Contact Shade N’ Shelters Customer Support. See page 24.
⚫Assemble on a stable level surface to avoid damage to gazebo and possible injury.
⚫Two people are required to assemble this product.
⚫Gazebo dimensions are measured from roof corner to roof corner.
WARNING: DO NOT TIGHTEN BOLTS UNTIL NOTED AFTER EACH STEP!
Step 1: Insert the Post (A) into the Base Cover (B), then connect the Base Plate (C) to the Post (A) using
Bolts (AA). Repeat for all Corner Posts and Base Plates. Tighten all Bolts. See Figure 1.
Figure 1

8of24

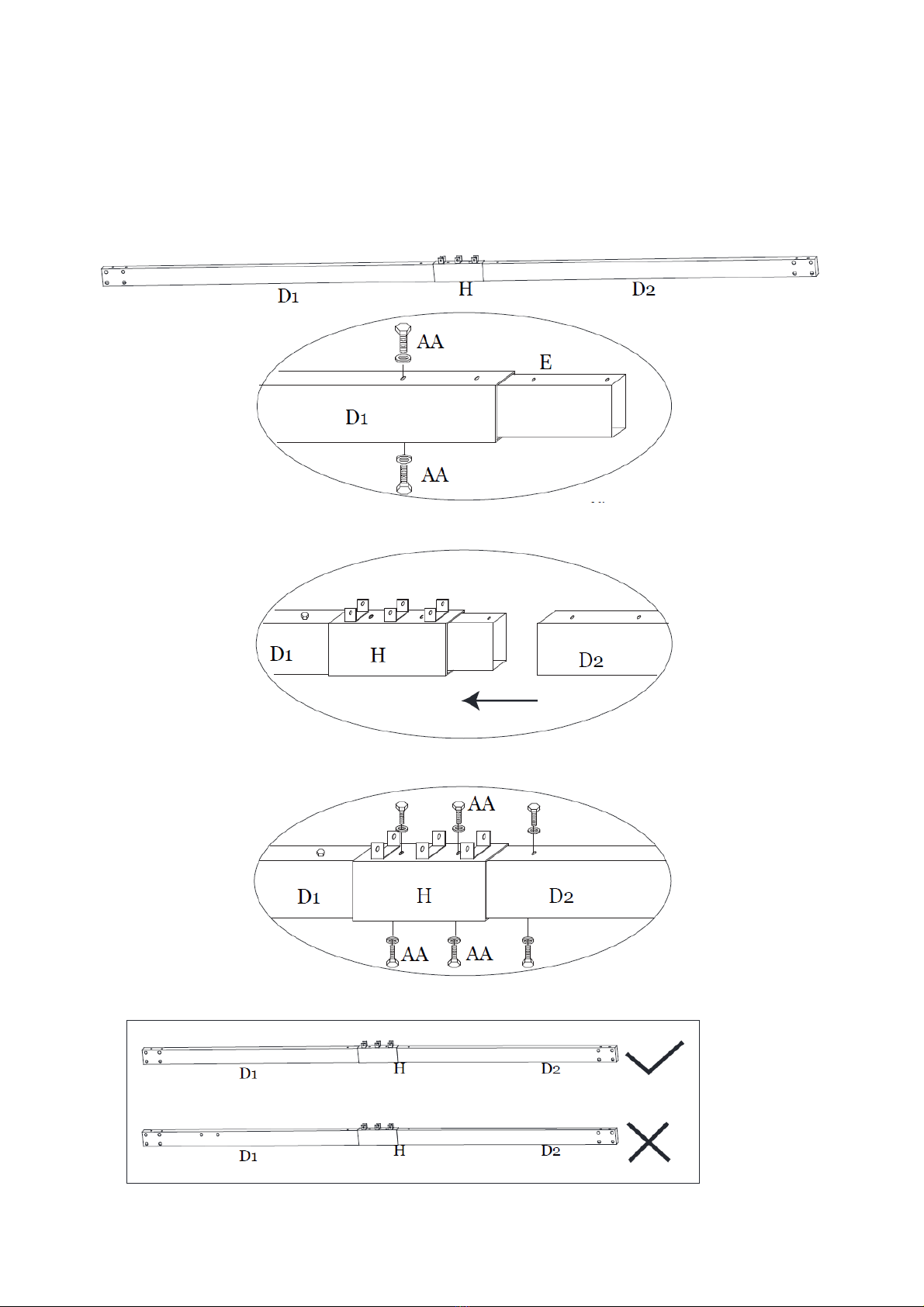

Step 2A: Insert the Cross Beam Connector (E) into the Left Lintel (D1), attach using Bolts (AA).
See Figure 2-1
Step 2B: Insert Left Lintel (D1) and Cross Beam Connector (E) into Cross Beam Guard (H). See Figure 2-2
Note: Make sure the holes with the inserts on Cross Beam Guard (H) are facing to the inside.
Step 2C: Attach the Right Lintel (D2) to Cross Beam Connector (E) with Bolts (AA). Tighten all Bolts. See
Figure 2-3.
Step 2D: Repeat Step 2A to Step 2C for remaining Lintels (D1 and D2). Tighten all Bolts. See Figure 2-4
Figure 2-1
Figure 2-2
Figure 2-3
Figure 2-4

9of24
Step 3A: Insert the Cross Beam Connector (E) into the Left Lintel (D3), attach using Bolts (AA). See Figure
3-1.
Step 3B: Insert Left Lintel (D3) and Cross Beam Connector (E) into Cross Beam Guard (G). See Figure 3-2.
Insert the Right Lintel (D4) into Cross Beam Connector (G) See Figure 3-2.
Step 3C: Attach Right Lintel (D4) to Cross Beam Connector (E) using Bolts (AA). Attach the U-Connector
(M) to the top of Cross Beam Connector (G) using Bolts (AA). Tighten All Bolts. See Figure 3-3.
Step 3D: Attach U-Connector (M) to Left and Right Lintels (D3 and D4) using Bolts (AA). Tighten all Bolts.
See Figure 3-4.
Step 3E: Repeat Step 3A to Step 3D for remaining Lintels (D3 and D4). Tighten all Bolts. See Figure 3-5.
Figure 3-1 Figure 3-2
Figure 3-3 Figure 3-4
Figure 3-5

10 of24

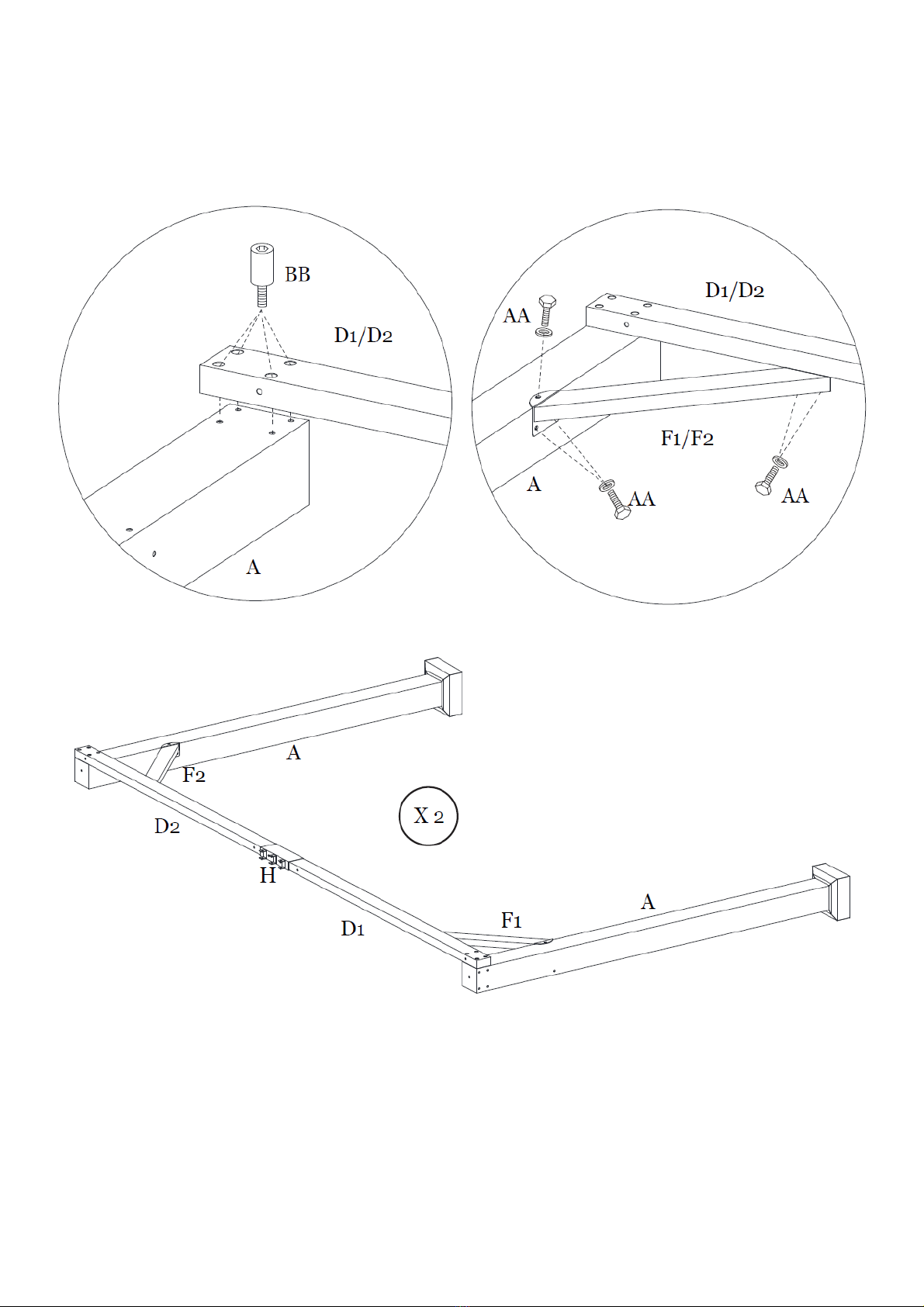

Step 4A: Attach assembled Lintels (D1 and D2) to Corner Post (A) using Bolts (BB). See Figure 4-1.
Step 4B: Attach Lintel Corner Support Bar (F1) to Left Lintel (D1) and Corner Post (A). Attach Lintel Corner
Support Bar (F2) to Right Lintel (D2) and Corner Post (A). See Figure 4-2.
Step 4C: Repeat for all Corner Posts and Lintels. Tighten all Bolts. See Figure 4-3.
Figure 4-1 Figure 4-2
Figure 4-3

11 of24
Step 5A: Attach assembled Lintels (D3 & D4) to Corner Post (A) using Bolts (BB). See Figure 5-1.
Step 5B: Attach Lintel Corner Support Bar (F1) to Left Lintel (D3) and Corner Post (A). Attach Lintel Corner
Support Bar (F2) to Right Lintel (D4) and Corner Post (A). See Figure 5-2.
Step 5C: Repeat for all Corner Posts and Lintels. Tighten all Bolts. See Figure 5-3.
Step 5D: Attach Corner Lintel Cover (O) to Left and Right Lintels (D4, D1 & D3, and D2) using Bolts (AA).
Tighten all Bolts. See Figure 5-3.
Step 5E: Attach the L-Connector (N1) to Corner Post (A) using Bolt (BB) and Bolts (AA). Attach L-Connector
(N2) to Corer Post (A) using Bolt (BB) and Bolts (AA). Tighten all Bolts. See Figure 5-5
Note: Use L-Connector (N1) where Right Lintel (D1) and Left Lintel (D4) meet. Use L-Connector
(N2) where Left Lintel (D2) and Right Lintel (D3) meet. See Figure 5-3
Figure 5-2
Figure 5-1
Figure 5-4
Figure 5-5
Figure 5-3

12 of24

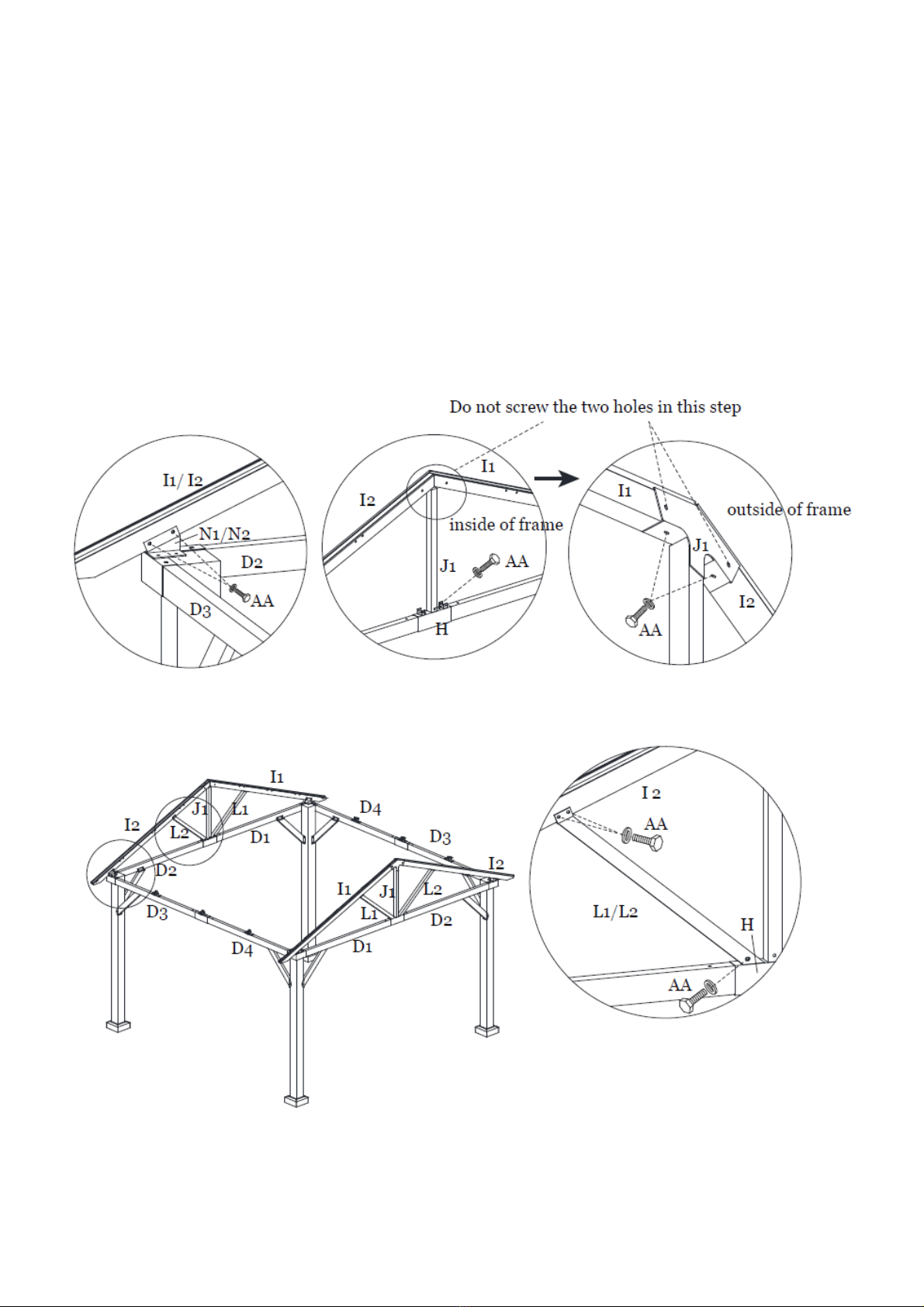

Step 6A: Attach the Roof Side Support Beam (I2) to L-Connector (N2) using Bolts (AA). Attach the Roof
Side Support Beam (I1) to L-Connector (N1) using Bolts (AA). Tighten all Bolts. See Figure 6-1.
Step 6B: Attach the Vertical Brace (J1) to the Cross Beam Guard (H) using Bolts (AA). Tighten all Bolts.
See Figure 6-2.
Note: The Vertical Brace (J1) will go around the Brackets that stick up on the Top Beam Guard
(H).
Step 6C: Attach Left Support Bar (L2) to Cross Beam Guard (H) and to Roof Support Beam (I2) using Bolts
(AA). Attach Right Support Bar (L1) to Cross Beam Guard (H) and to Roof Support Beam (I1).
Using Bolts (AA). See Figure 6-3.
Note: The Left and Right Support Bar (L2 and L1) will go around the Brackets that stick up on the
Top Beam Guard (H).
Step 6D: Repeat for remaining Support Bars (L2 and L1). Tighten all Bolts. See Figure 6.4
Figure 6-1
Figure 6-2
Figure 6-3
Figure 6-4

13 of24

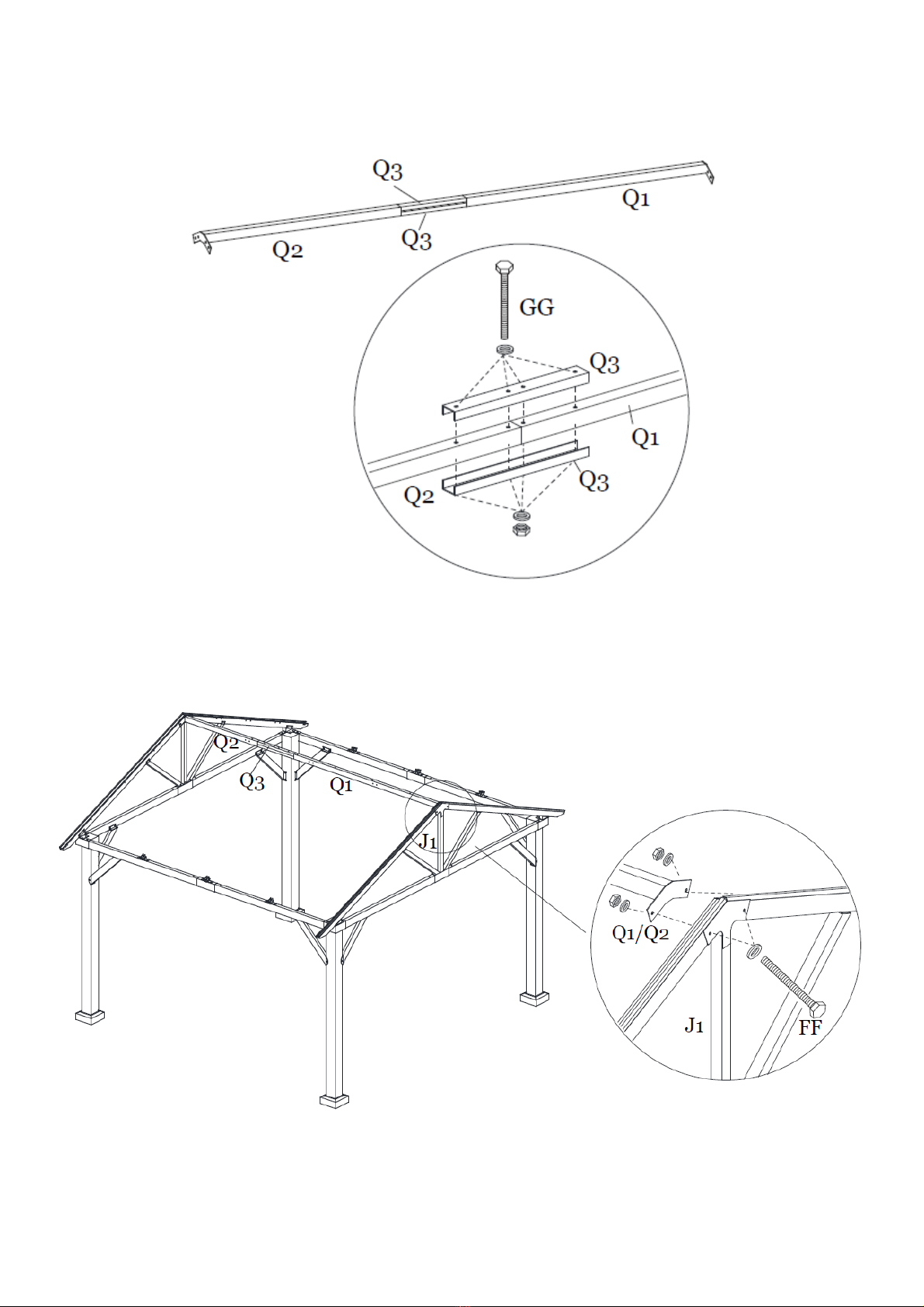

Step 7: Attach Top Beam Connector (Q3) to the top and bottom of Top Beam (Q1 & Q2) using Bolts (GG).
Tighten all Bolts. See Figure 7.
Figure 7
Step 8: Attach the assembled Top Beam (Q1 and Q2) to the Vertical Brace (J1) using Bolts (FF). Tighten
all Bolts. See Figure 8.
Figure 8

14 of24
Step 9A: Attach Roof Support Beam (I3) to U-Connector (M) using Bolts (DD). See Figure 9-1.
Step 9B: Attach Roof Support Beam (I3) to Top Beam (Q1 & Q2) using Bolts (AA). See Figure 9-2.
Step 9C: Repeat for remaining Roof Support Beams (I3). Tighten all Bolts. See Figure 9-3.
Figure 9-1 Figure 9-2
Figure 9-3

15 of24
Step 10A: Attach the Connector (J2) to the bottom of Top Beam (Q1 and Q2) using Bolts (AA).
See Figure 10-1.
Step 10B: Attach the Top Support Bar (K) to the Roof Support Beam (I3) using Bolts (DD). Attach the
Connector (J2) to the Top Support Bar (K) using Bolts (AA). See Figure 10-2.
Step 10C: Repeat for remaining Connectors (J2) and Top Support Bars (K). Tighten all Bolts.
See Figure 10-3.
Figure 10-1 Figure 10-2
Figure 10-3

16 of24
Step 11A: Attach the Roof Support (P1) to Roof Support Beam (I1 and I2) using Bolts (AA). See Figure 11-1.
Step 11B: Attach the Roof Support (P1) to Roof Support Beam I3 using Bolts (DD). See Figure 11-2.
Step 11C: Repeat for remaining Roof Supports (P1). Tighten all Bolts. See Figure 11-3.
Figure 11-1 Figure 11-2
Figure 11-3

17 of24
Step 12A: Attach the Roof Support (P2) to the Roof Support Beam (I1 and I2) using Bolts (AA).
See Figure 12-1.
Step 12B: Attach the Roof Support (P3) to the Roof Support Beams (I3) using Bolts (DD). See Figure 12-2.
Step 12C: Repeat for remaining Roof Supports (P2 and P3). Tighten all Bolts. See Figure 12-3.
Note: Make sure the holes on Roof Supports (P2 and P3) are facing up.
Figure 12-1 Figure 12-2
Figure 12-3

18 of24
Note: Install the Roof Panels left to right. The right panel must overlap the left panel. Each Bolt (CC) must
be attached to a Spacer (HH) on the top of the Roof Supports (P2 and P3).

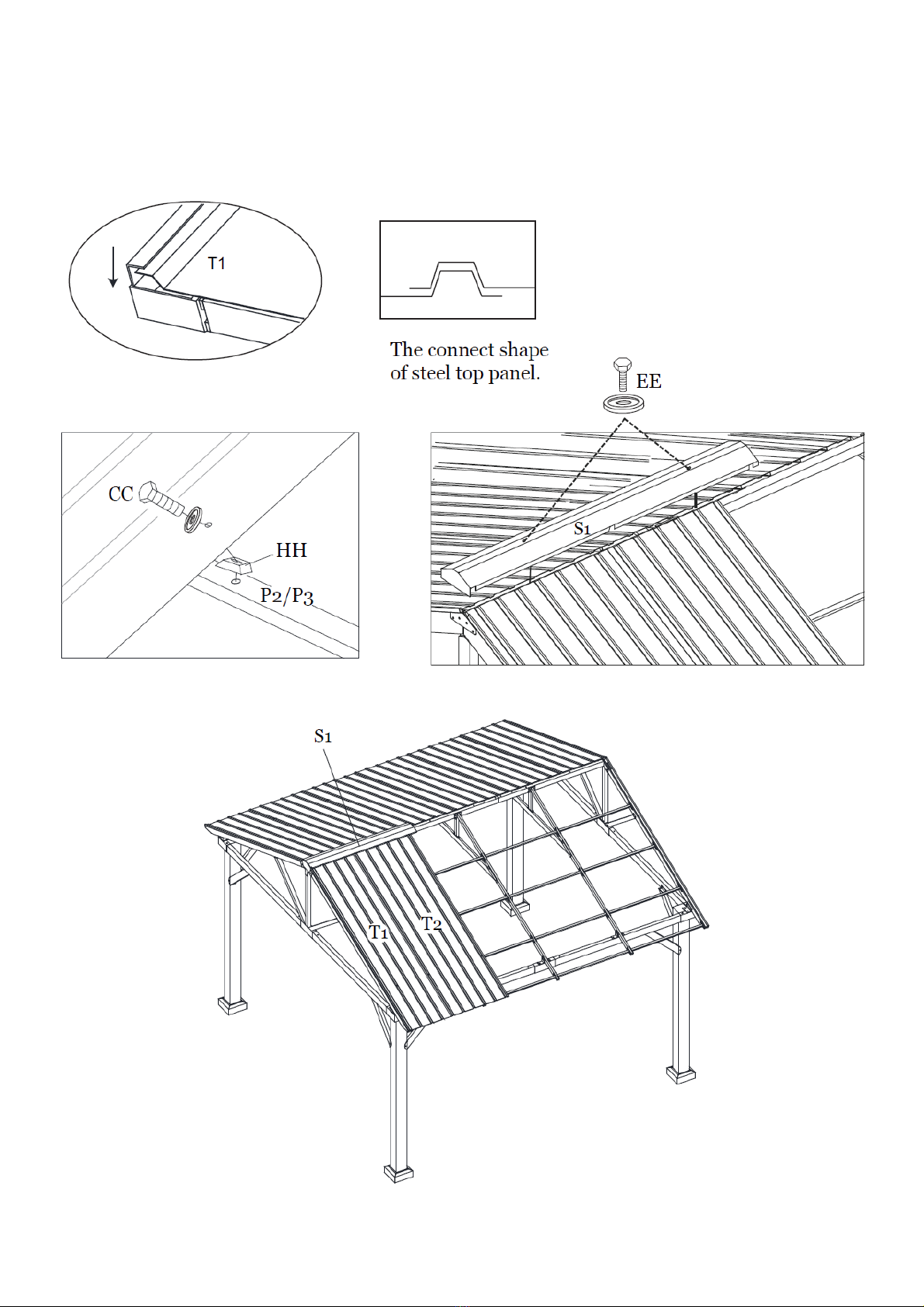

Step 13A: Attach the Roof Panel (T1) to the Roof Support (P2) using Bolts (CC) and Spacers (HH). Hand
Tighten Only. See Figure 13-3.
Note: Roof Panel (T1) must go under the Roof Support Beam (I1). See Figure 13-2.
Step 13B: Attach the Roof Panel (T2) to the Roof Support (P2 and P3) using Bolts (CC) and Spacers (HH).
Note: Roof Panel (T2) must overlap Panel (T1). Repeat installation and overlapping for the
remaining Roof Panels (T2, T2, T2, and T3). Tighten all Bolts. See Figure 13-1.
Note: When assembling the last Roof Panel (T3) it must go under the Roof Support Beam (I2).
Figure 13-1
Figure 13-2 Figure 13-3

19 of24
Note: Roof Panel (T1) must go under the Roof Support Beams (I1). See Figure 13-2.
Step 14A: Attach the Roof Panel (T1) to the Roof Support (P2) using Bolts (CC) and Spacers (HH). Hand
Tighten Only. See Figure 14-2.
Note: Roof Panel (T2) must overlap Panel (T1).
Step 14B: Attach the Top Panel Cover (S1) to the Top Beam (Q2) using Bolts (EE). See Figure 14-3
Figure 14-2 Figure 14-3
Figure 14-1

20 of24
Step 15A: Attach the Roof Panel (T2) to the Roof Support (P2 and P3) using Bolts (CC) and Spacers (HH).
Hand Tighten Only. See Figure 15-1 and Figure 15-3.
Note: Overlapping the Panels still applies.
Step 15B: Attach the Top Panel Cover (S2) to the Top Beam (Q2 and Q1) using Bolts (EE). See Figure 15-2
and Figure 15-3.
Figure 15-1 Figure 15-2
Figure 15-3
