Sharp Plasmacluster FP-J80M User manual

FP-J80M
FP-J60M
AIR PURIFIER
OPERATION MANUAL
* The number in this technology mark indicates an
approximate number of ions supplied into air of 1
cm3, which is measured around the center of a room
applicable oor area (at 1.2 m height above the oor)
when the product is placed close to a wall at the MED
mode setting.
“Plasmacluster” and “Device of a cluster of grapes” are
trademarks of Sharp Corporation.
FP-J80M_J60M.indd 1 2018/09/07 10:23:40

2
A unique Combination of Air Treatment Technologies
Triple Filteration System + Plasmacluster
High Density Plasmacluster 25000
The higher the PCI density is, the more effective PCI has.
Triple Filteration System
TRAP DUST
Pre- lter traps dust larger than approx 240 micron particles.
DECREASES ODORS
Deodorizing  lter absorbs many common household odors.
REDUCES TINY DUST, POLLEN & MOLD
HEPA  lter traps 99.97% of particles as small as 0.3 microns.
Unique Airfl ow
Powerful air suction and unique air ow quickly and ef ciently collect dust and other particles.
Faster air ow at a 20º angle collects dust at
lower levels in the room for more effective
cleaning.
Plasmacluster can remove static electricity
and can thus prevent dust from attaching to
walls and other surfaces.
Plasmacluster
By emitting a balance of positive and negative ions, Plasmacluster air treatment is a natural process.
PM2.5 Monitor
• Inform by lighting PM2.5 monitor when Sensitive Dust sensor detects microscopic dust.
• Display the value of PM2.5 in 3 digits.
Plasmacluster Ion Spot Mode
• Recommended when odor and germs adhering to sofa and curtains are concerned.
• Emits highdensity Plasmacluster Ions only in the forward directions.
FP-J80M_J60M.indd 2 2018/09/07 10:23:41

3
The air purier draws in room air through
the air intake, circulates it through a Pre-
Filter, a Deodorizing Filter and a HEPA
Filter inside the main unit, and then
discharges it through the air outlet. The
HEPA Filter can remove 99.97% of dust
particles as small as 0.3 microns that pass
through the lter and also helps absorb
odors.The Deodorizing Filter gradually
absorbs odors as they pass through the
lter.
Some odors absorbed by the lters will break down over time, causing additional odors.
Depending on usage conditions, and especially if the main unit is used in environments
signicantly more severe than a normal household, these odors may become noticeable sooner
than expected. If these odors persist, replace the lters. (page 13)
NOTE
• The air purier is designed to remove air-suspended dust and the odors.
The air purier is not designed to remove harmful gases such as carbon monoxide contained in cigarette smoke.
The air purier may not completely remove an odor if the source of the odor is still present.
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ........4
PART NAMES ..........................................6
PREPARATION........................................8
OPERATION
START/STOP........................................9
AUTO MODE ........................................9
HAZE MODE.........................................9
PLASMACLUSTER ION SPOT MODE
.......9
SELECTING MODE..............................9
ON TIMER.............................................10
OFF TIMER...........................................10
SELECTING DISPLAY..........................10
PLASMACLUSTER ION ON/OFF.........10
CHILD LOCK.........................................10

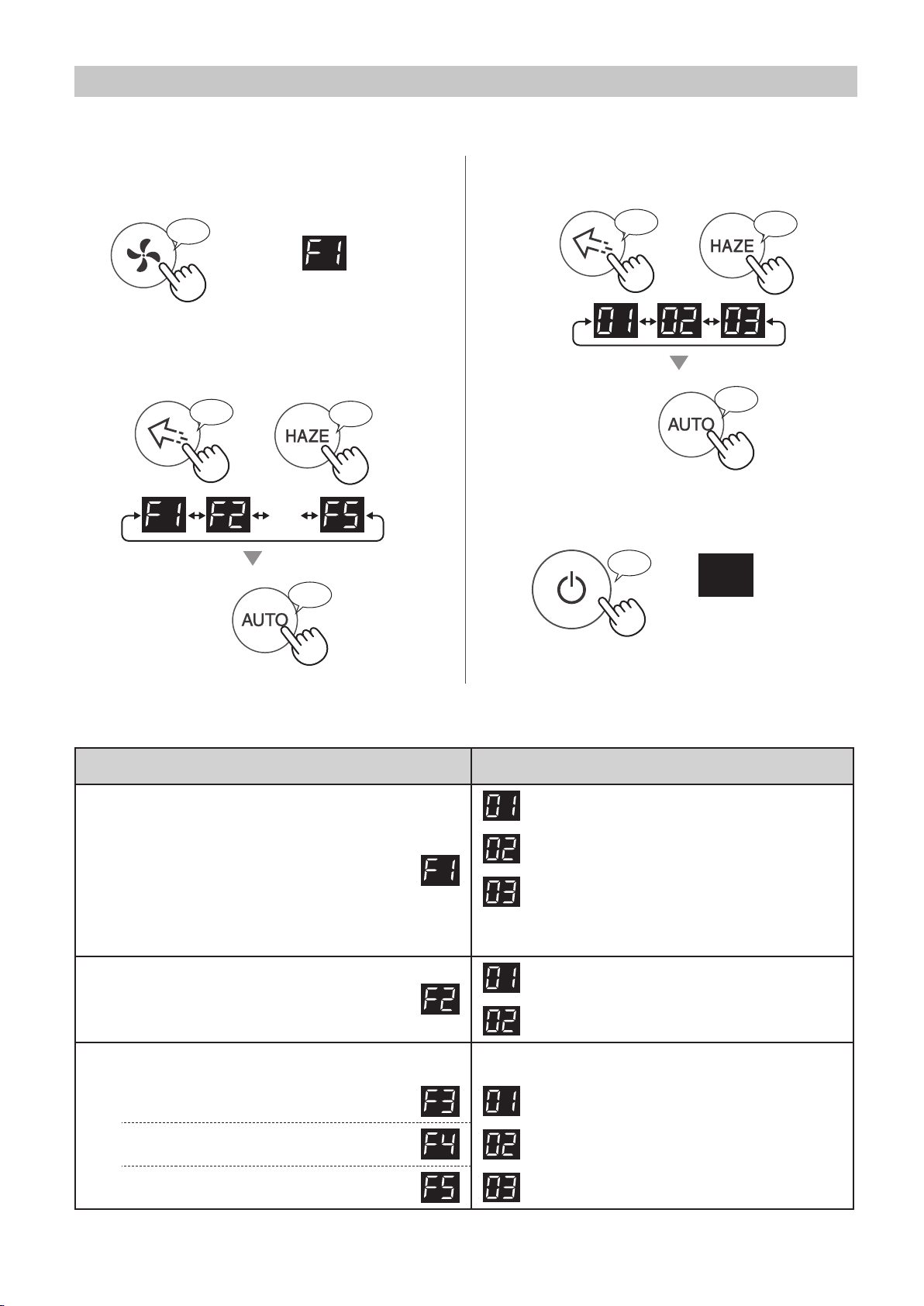

HOW TO CHANGE VARIOUS SETTING.........
11
Light Control / Auto Restart / Adjusting Senser
Sensitivity (Light / Dust(sensitive) / Odor)
CARE AND MAINTENANCE
MAIN UNIT / BACK PANEL ..................12
HEPA FILTER / DEODORIZING FILTER
......12
PLASMACLUSTER ION GENERATING UNIT
..12

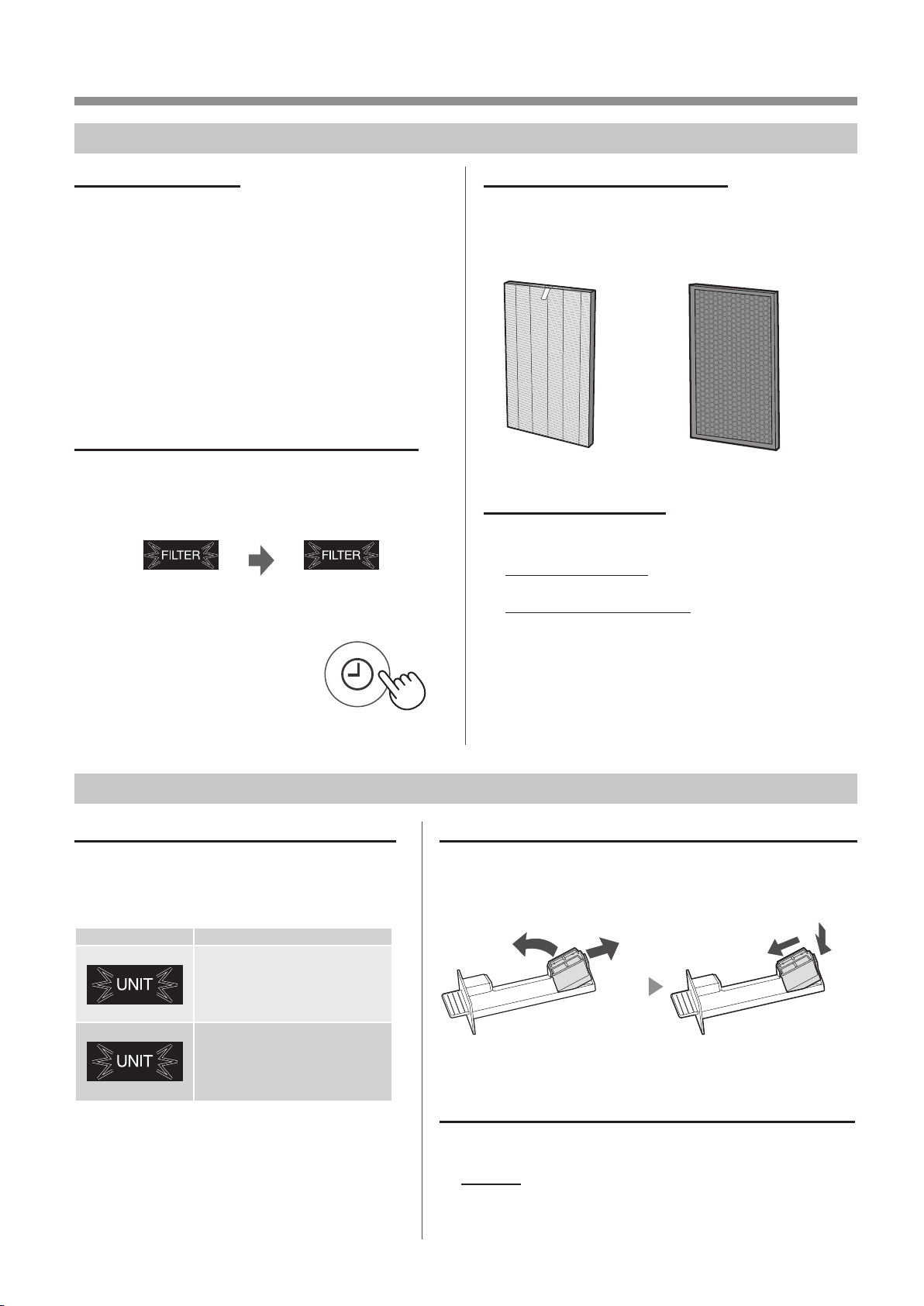

REPLACEMENT
HEPA FILTER / DEODORIZING FILTER
......13
PLASMACLUSTER ION GENERATING UNIT
..13

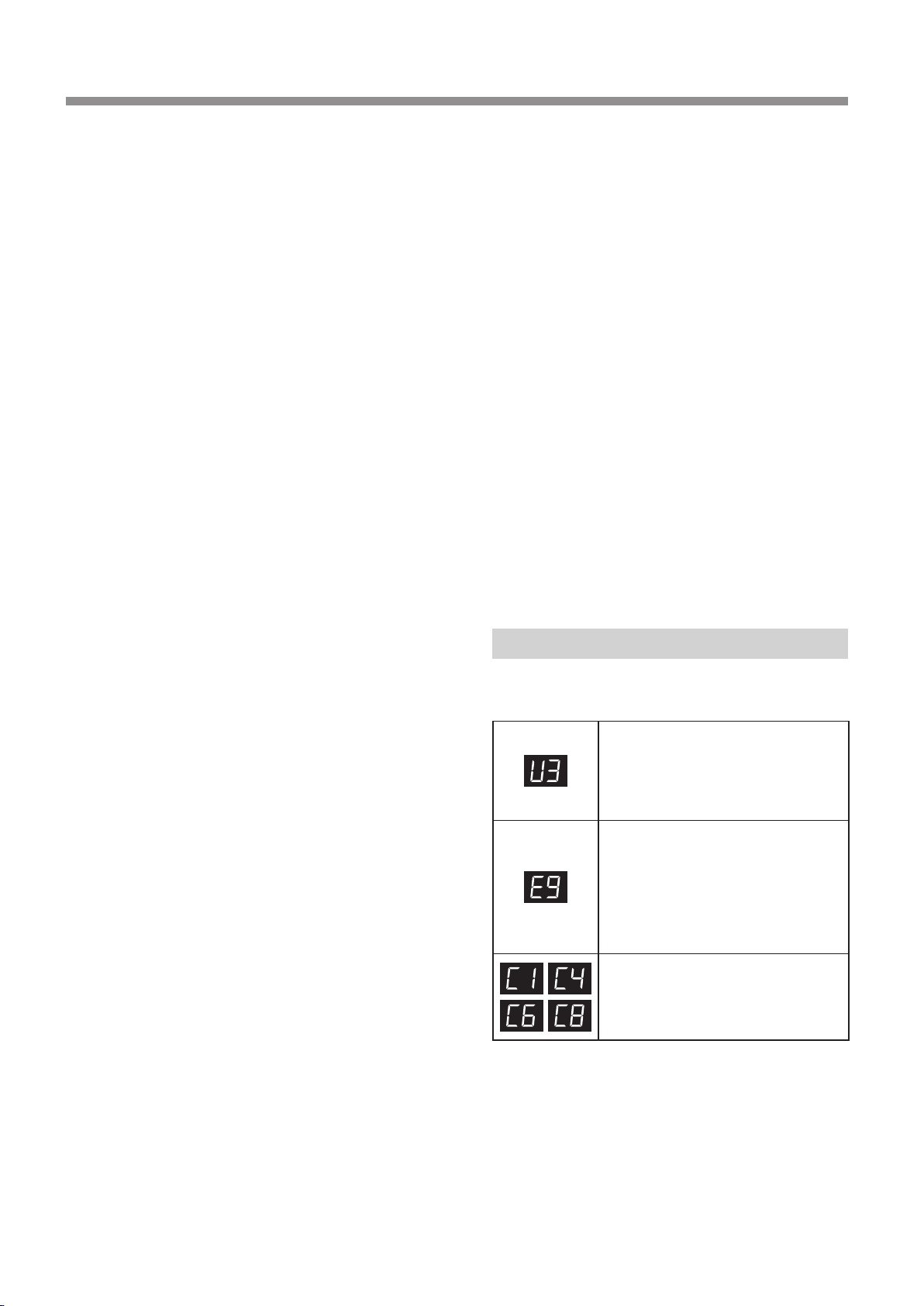

TROUBLESHOOTING.............................14
SPECIFICATIONS....................................15

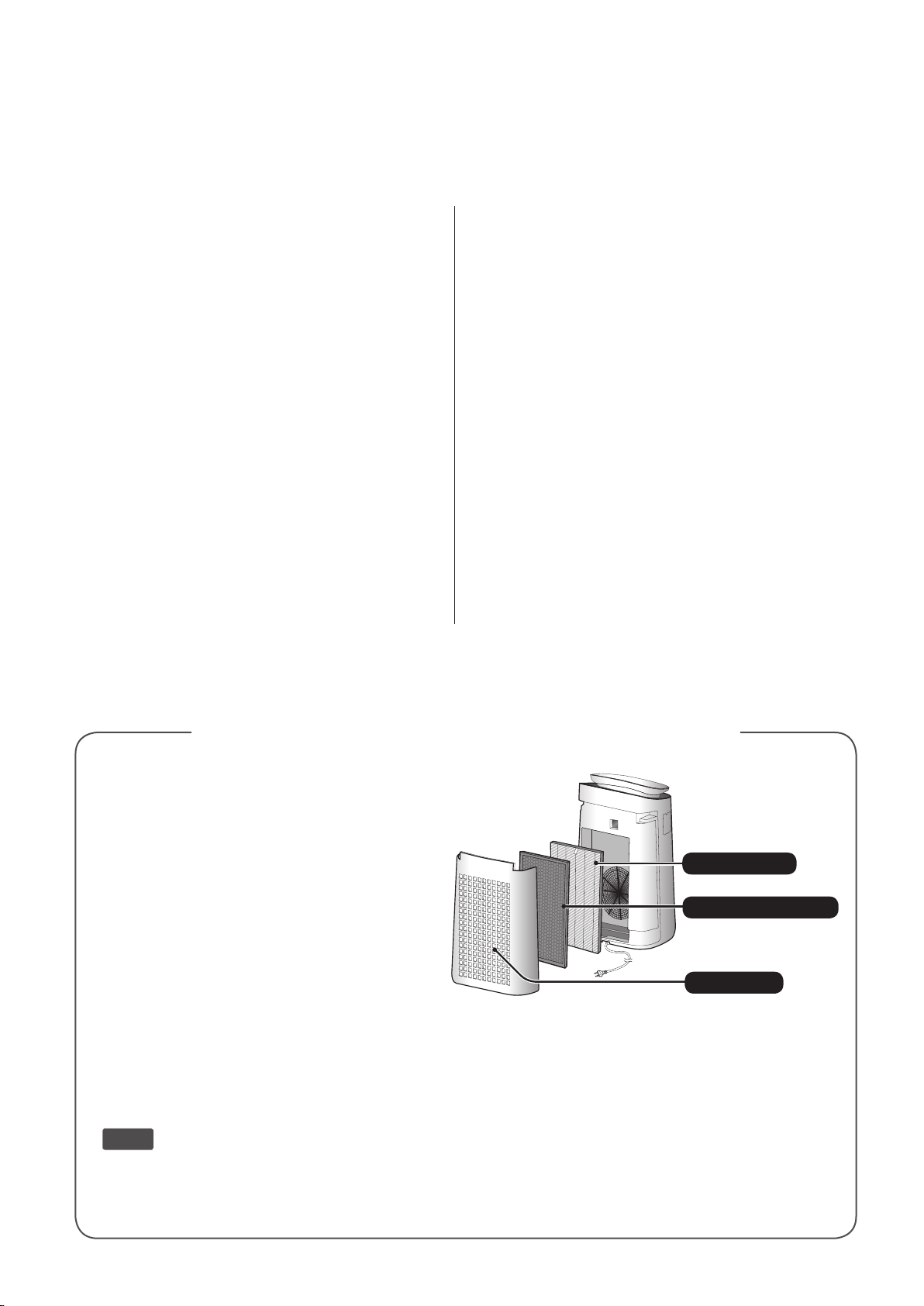

Thank you for purchasing this SHARP Air Purier.
Please read this manual carefully before using the product.
This manual should be kept in a safe place for handy reference.
Please read before operating your new Air Purier
Pre-Filter
Deodorizing Filter
HEPA Filter
FP-J80M_J60M.indd 3 2018/09/07 10:23:42

4
IMPORTANT SAFETY INSTRUCTIONS
Always follow basic safety precautions
when using electrical appliances,
including the following:
WARNING – Always observe the
following to reduce the risk of electrical
shock, re, or injury:
• Read all instructions before using the
main unit.
• Use only a 220-240 volt outlet.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to
ensure they do not play with the
appliance.
• If the power cord is damaged, it must
be replaced by the manufacturer, its
service agent, a Sharp authorized
Service Center or similarly qualied
persons in order to avoid a hazard.
Contact the nearest Service Center
for any problems, adjustments, or
repairs.
• Be sure to remove the power plug,
before performing maintenance, when
removing and attaching and replacing
the lter and when not using for a
long time. Failure to do so can cause
a short circuit resulting in electrical
shock or re.
• Do not use the main unit if the power
cord or plug is damaged or if the
connection to the wall outlet is loose.
• Periodically remove dust from the plug.
• Do not insert ngers or foreign objects
into the air intake or air outlet.
• When removing the power plug, always
hold the plug and never pull on the cord.
Failure to do so can cause a short circuit
resulting in electrical shock or re.
• Be careful not to damage the power
cord, it may cause electric shock, excess
heat or res.
• Do not remove the plug when your hands
are wet.
• Do not place the main unit near or on
hot objects, such as stoves or heaters,
or where it may come into contact with
steam.
• Do not operate the main unit in rooms
where aerosol insecticides are present.
Do not operate the main unit in rooms
where there is oily residue, incense,
sparks from lit cigarettes, or chemical
fumes in the air. Do not operate the main
unit in places where it may get wet, such
as a bathroom.
• Be cautious when cleaning the main unit.
Strong corrosive cleansers can damage
the exterior.
• Do not expose the main unit to water.
Doing so can cause a short circuit or
electrical shock.
NOTE – What to do if the main unit
interferes with radio or TV reception
If the air purier interferes with radio or
television reception, try one or more of the
following measures:
• Adjust or reposition the receiving
antenna.
• Increase the distance between the main
unit and the radio or TV.
• Connect the equipment into an outlet on
a circuit different from that of the radio or
TV receiver.
• Consult the dealer or a qualied radio or
TV technician.
FP-J80M_J60M.indd 4 2018/09/07 10:23:42

5
CAUTIONS CONCERNING
OPERATION
• Do not block the air intake or air outlet.
• Always operate the main unit in an
upright position.
• Do not move the main unit when it is in
operation.
• When moving the main unit, use the
handles on both sides.
• If the main unit is on easily damaged
ooring, an uneven surface, or thick-
piled carpet, lift it up when moving.
• Do not operate the main unit without the
lters properly installed.
• Do not wash and reuse the HEPA lter
and the Deodorizing lter.
Doing so will not improve lter
performance and can also cause electric
shock or operating malfunctions.
• Clean the exterior with a soft cloth only.
Do not use volatile uids or detergents.
The main unit surface may be damaged
or cracked with Benzine, paint thinner
or polishing powder. In addition, the
sensors may malfunction as a result.
• Keep the main unit away from water.
• Do not scrub the Back Panel hard during
its maintenance.
INSTALLATION GUIDELINES
• Avoid locations where the sensors are
exposed to direct wind.
Doing so can cause the main unit to
malfunction.
• Avoid locations where furniture, fabrics,
or other objects can come in contact with
the main unit and interfere with the intake
and outtake of air.
• Avoid locations where the main unit
is exposed to condensation or drastic
changes in temperature. Appropriate
room temperature is between 0 – 35 ºC.
• Place the main unit on a level and stable
surface with sufcient air circulation.
When placed on heavy carpet, the main
unit may vibrate slightly.
• Avoid locations that generate grease or
oily smoke.
Doing so can cause the main unit
exterior to crack and the sensors to
malfunction.
• The dust collecting ability of the main
unit is effective even when the main unit
is as close to 3 cm from the wall,the
surrounding walls and oor may get dirty.
Please place the main unit at a distance
from the wall.
The wall directly behind the air outlet
may become dirty over time. When using
the main unit for an extended period of
time at the same location, periodically
clean the walls adjacent to it.
FILTER GUIDELINES
• Follow the instructions in this manual for
proper lter care and maintenance.
(page 12)
FP-J80M_J60M.indd 5 2018/09/07 10:23:42

6

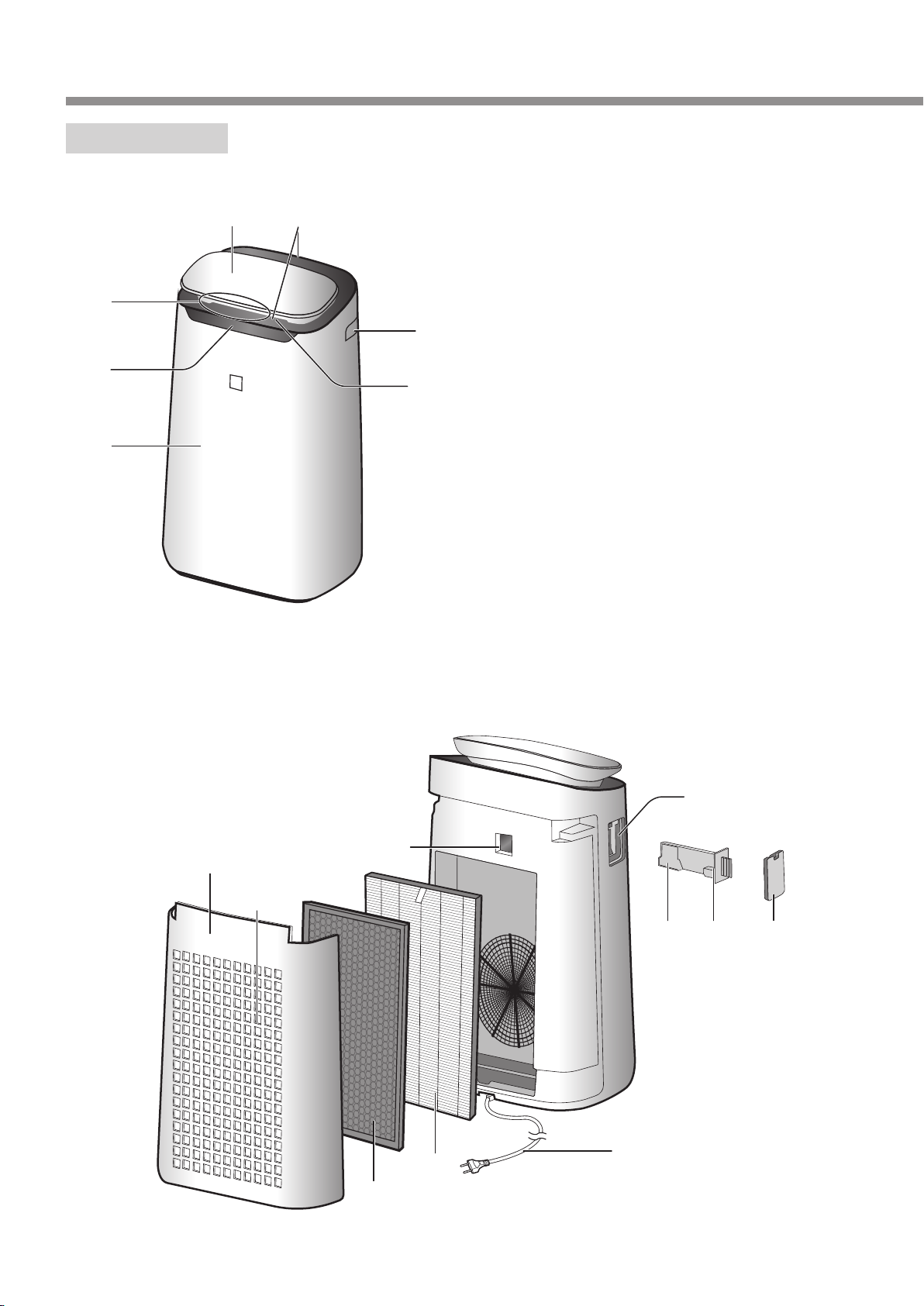

PART NAMES
MAIN UNIT
(FRONT)
(BACK)
1. Operation Panel
2. Air Outlet (Front/Back)
3. Cleanliness Monitor
4. Front Display
5. Main Unit
6. Handle (2 Locations)
7. Front Louver
8. Back Panel (Pre-Filter)
9. Air Inlet
10. Deodorizing Filter
11. HEPA Filter
12. Sensor (Internal) / Sensor Filter
Odor / Dust(sensitive)
13. Plasmacluster Ion Generating Unit
14. Unit Holder
15. Unit Cover
16. Unit Cleaning Brush
17. Power Cord, Plug
11
13
10
8
9
1514
12
16
17
1 2
3
4
5
6
7
FP-J80M_J60M.indd 6 2018/09/07 10:23:42

7
1. Power ON/OFF Button
2. AUTO Button, Indicator Light
3. HAZE Button, Indicator Light
4. Plasmacluster Ion SPOT Button,
Indicator Light
5. MODE Button, Indicator Light
6. Timer Button
(Press 3 sec.) FILTER RESET Button
7. DISPLAY Button
(Press 3 sec.) CHILD-LOCK Button
8. Child-Lock Indicator Light
9. Light Sensor
10. HAZE/PM2.5 Monitor
Indicates the Dust(sensitive) Sensor detects
microscopic dust.
TURN OFF Orange Red
Clean Impure
11. Dust Monitor
Indicates the Dust(sensitive) Sensor detects usual
dust.
TURN OFF Orange Red
Clean Impure
FRONT DISPLAY
OPERATION PANEL Press the button with " " to start.
12. Odor Monitor
Indicates the Odor Sensor detects odors.
TURN OFF Orange Red
Clean Impure
13. Unit Replacement Indicator Light
14. Filter Replacement Indicator Light
15. ON Timer Indicator Light
16. OFF Timer Indicator Light
17. Plasmacluster Ion Light
18. DISPLAY
• PM2.5 Monitor
PM2.5 10μg/m3 to 499μg/m3 is displayed.
500μg/m3
or more
9μg/m3
or less
• Wattage Monitor
Indicates wattage by current operation.
• Timer Monitor
Indicates setting time or remaining time of ON/OFF timer.
19. Cleanliness Monitor
Indicates the air purity of the room in5 levels with color changes.
Blue Yellow Red
Clean Impure
1234567
8
9
17 18161514
19
13121110
FP-J80M_J60M.indd 7 2018/09/07 10:23:44

8
1. Remove the Back Panel.
2. Remove the plastic bag from the each lter.
3. Install the lters in the correct order as shown.
4. Install the Back Panel.
NOTE
• When replacing the lter, making a memo of the start of use date is recommended.
FILTER INSTALLATION
PREPARATION Always be sure to remove the power plug
from the wall outlet.
HEPA Filter
Deodorizing Filter
Tag
Back Panel
HEPA Filter
Deodorizing Filter
Click
FP-J80M_J60M.indd 8 2018/09/07 10:23:46

9
PLASMACLUSTER ION
SPOT MODE
START/STOP
AUTO MODE
HAZE MODE
SELECTING MODE
SLEEP :
The main unit will operate quietly, and the fan
speed is automatically switched depending on
the amount of impurities in the air.
The Front Display and Cleanliness Monitor go
off automatically.
POLLEN :
The DUST SENSOR sensitivity is automatically
increased and quickly detects impurities such
as dust and pollen and clean the air powerfully.
START STOP
OPERATION
♪
♪
♪
The fan speed is automatically controlled
depending on the 3 detection. (Dust(sensitive) /
Odor / Light)
♪
NOTE
• Front Display, Cleanliness Monitor automatically
switch ON and OFF based on room brightness.
(When light control is set to "Auto". (page 11))
Use this mode when you want to remove adhering
odor, germs, and other substances from cloths,
sofas and curtains.
Adjust Front Louver manually.
NOTE
• Emits highdensity Plasmacluster Ions only in the
forward direction.
• Discharges stronger air for 8 hours. When the
operation nishes, the main unit will return to its
prior operation mode.
• The Plasmacluster Ion can not be turned “OFF”.
Operates at HIGH fan speed for 60 minutes and
then alternates between Low and High level for 20
minutes each.
NOTE
• The Plasmacluster Ion can not be turned “OFF”.
10 minutes: Max High fan level
50 minutes: High fan level
20 minutes: Low fan level
20 minutes: High fan level
♪
♪
♪
♪
♪♪
POLLEN
SLEEP
LOW
MED
MAX
♪
♪
♪
♪
♪
♪
♪
♪
FP-J80M_J60M.indd 9 2018/09/07 10:23:51

10
CHILD LOCK
PLASMACLUSTER ION ON/OFF
The operation of the operation panel will be locked.
When the Plasmacluster function is ON, the
Plasmacluster Ion light is on. (page 5)
(with the Main Unit ON)
(with the Main Unit ON)
more 3 sec.
♪
more 3 sec.
♪♪
ON
ON
CANCELLATION
OFF
SELECTING DISPLAY
Select the length of time you want.
The Main Unit automatically starts once the
selected time is passes.
* Time can be set in from 10 minutes to 24 hours
through the designated application.
Select the length of time you want.
The Main Unit automatically stops once the selected
time is reached.
* Time can be set in from 10 minutes to 24 hours
through the designated application.
ON TIMER
OFF TIMER
(with the Main Unit OFF)
(with the Main Unit ON)
Front Display
Front Display
……
♪ ♪ ♪ ♪ ♪♪
1hour 2hour 3hour 12hour Cancellation
……
♪ ♪ ♪ ♪ ♪♪
1hour 2hour 3hour 12hour Cancellation
♪
♪
♪
♪
♪♪
Wattage
PM2.5 Level
more 3 sec.
♪♪
more 3 sec.
♪
FP-J80M_J60M.indd 10 2018/09/07 10:23:55

11
1. Turn the Main Unit power OFF.
2.
more 3 sec.
♪
3. Select "Function number".
Reverse Forward
or
････
Set ♪
HOW TO CHANGE VARIOUS SETTINGS
You can change the functions in the table "Type of setting" below.
Function Setting
Light Control
You can select the brightness of the Front Display
and Cleanliness Monitor.
Turn off *
Darker
Auto (default)
Light automatically switches ON or OFF based on
room brightness.
Room is bright : light is ON
Room is dark : light is OFF
Auto Restart
If the Main Unit is unplugged or if there is a power
failure, the Main Unit will resume operation with
the previous settings after power is restored.
Cancellation
ON (default)
Adjusting Sensor Sensitivity (F3-F5)
Light Sensor Low
Dust(sensitive) Sensor Standard (default)
Odor Sensor High
* When set to “Turn off”, the “Darker” light illuminates for 8 seconds after operation starts and then the light turns off.
♪♪
4. Select "Setting number".
Reverse Forward
or
Set ♪
5. Press Power ON/OFF Button to
nish the setting.
♪～
Turn off
♪♪
FP-J80M_J60M.indd 11 2018/09/07 10:24:04

12
1.
Remove the unit cover,
and pull out the unit
holder.
2.
Remove dusts from the
electrode section.
3.
Insert the unit holder in
the Main Unit, and
install the unit cover.
CAUTION
• Do not clean with anything other than the unit cleaning brush. Doing so could lead to failures in the unit.
• A bent electrode could be cut off and dropped during the cleaning process, but it will not change the performance.
• Do not touch the electrode directly. Doing so could lead to pain/itching.
• Do not transform the electrode section. Doing so can damage it.
• Do not touch the connection terminals. Doing so can damage them.
NOTE How to clean hard to remove dirt.
Back Panel
1. Add a small amount of neutral detergent
to water and soak for about 10 minutes.
CAUTION
Do not apply excessive pressure when
scrubbing the back panel.
2.Rinse off the neutral detergent with clean water.
3. Completely dry the  lter in a wellventilated area.
Sensor Filter
1. Remove the Back Panel.
2. Remove the sensor  lter.
3. If the sensor  lter is very dirty, wash it
with water and dry it thoroughly.
Plasmacluster Ion Generating Unit (electrode section)
HEPA FILTER / DEODORIZING FILTER
Wipe with a dry, soft cloth
Remove the dust gently with a cleaning
tool such as a vacuum cleaner.
MAIN UNIT / BACK PANEL
CARE AND MAINTENANCE
Remove the dust on the  lters. CAUTION Do not wash the  lters. Do not expose to sunlight.
(Otherwise these  lters may lose ef cacy.)
HEPA FILTER
Maintain only the tagged
surface. Do not clean up the
opposite surface.
The  lter is fragile, so be
careful not to apply too
much pressure.
DEODORIZING FILTER
Both surfaces can be
maintained.
The  lter may be broken if
being too much power is
applied on it, so please
handle it with care.
Some odors absorbed by the  lters will break down over time, causing additional odors. Depending on usage conditions,
and especially if the Main Unit is used in environments signi cantly more severe than a normal household, these odors may
become noticeable sooner than expected.
Replace the  lter in those cases or if dust is unable to be removed after maintenance.
Tag
Sensor
Filter
Unit Cleaning Brush
Electrode Around the base
Before cleaning After
cleaning
Back Panel
(Pre Filter)
FP-J80M_J60M.indd 12 2018/09/07 10:24:07

13
LIFE OF FILTERS
Filter life varies depending on the room environment,
usage conditions, and location of the Main Unit.
Lifespan of HEPA lter and Deodorizing lter and
replacement suggestions are based on purifying a room in
which 5 cigarettes are smoked per day and the Main Unit's
dust collection and deodorizing performance has declined
to half the level of a new lter.
We recommend replacing the lter more frequently if the
Main Unit is used in conditions signicantly more severe
(PM2.5 etc.,) than a normal household.
•HEPA Filter About 2 years after opening
•Deodorizing Filter About 2 years after opening
FILTER REPLACEMENT INDICATOR
When the lter replacement is needed soon, the lter
indicator lamp start blinking. the blinking speed becomes
faster once the timing comes.
Filter life varies depend on the operation mode.
Flashing slowly Flashing fast
Replace the Filter according to
the instructions provided with the
replacement lter.
After performing replacement,
reset the Filter Replacement
Indicator.
Replacement Filter Model
Consult your dealer when purchasing a replacement
lter.
HEPA Filter(1 unit) Deodorizing Filter(1 unit)
FZ-J80HFE FZ-J80DFE
Disposing of lters
Dispose of used lters according to local laws and
regulations.
HEPA Filter material:
• Polypropylene • Polyethylene
Deodorizing Filter material:
• Polypropylene • Polyester
• Activated carbon
HEPA FILTER / DEODORIZING FILTER
UNIT REPLACEMENT INDICATOR
When the total operation time exceeds 17,500
hours, the Unit Replacement indicator will ash
to indicate that the Plasmacluster Ion Generating
Unit needs replacement.
Operating time
17,500 hours
Flash slowly
Replace the Plasmacluster
Ion Generating Unit
19,000 hours
Flash quickly
Stop the emission of the
Plasmacluster ions.
* The replacement time is not related to the selected
operation mode.
Plasmacluster Ion Generating Unit
REPLACEMENT
RESET
more 3 sec.
Replacement Plasmacluster Ion Generating Unit Model
Consult your dealer when purchasing a replacement
Plasmacluster Ion Generating Unit.
IZ-C90ME
②
①
①
②
Disposing of Plasmacluster Ion Generating Unit
Dispose of used Plasmacluster Ion Generating Unit
according to local laws and regulations.
material:
• Polystyrene terephthalate
• electronic parts
Remove the claw of unit holder( ①),
and remove the Plasmacluster Ion
Generating Unit( ②).
FP-J80M_J60M.indd 13 2018/09/07 10:24:10

14
TROUBLESHOOTING
Odor and smoke persists.
• Check the lters. If they appear to be extremely
dirty, clean or replace them.
The Cleanliness Monitor is blue
even when the air is not clean.
• The air may have been dirty when the main unit
was plugged in. Unplug the main unit, wait one
minute, and then plug the main unit in again.
The Cleanliness Monitor light is
red even when the air is clean.
• Dirty or clogged dust(sensitive) sensor openings
interfere with sensor operation. Gently clean the
sensor lter or the back panel.
The Main Unit makes a clicking or
ticking sound.
• The main unit may make clicking or ticking
sounds when it is generating ions.
Air discharged from the Main Unit
has an odor.
• Check to see if the lters are extremely dirty.
• Clean or replace the lters.
The Main Unit does not operate
when cigarette smoke is in the air.
• Make sure the Main Unit is installed in a location
in which the sensors can detect cigarette smoke.
• Check to see if the dust(sensitive) sensor
openings are blocked or clogged. If they are
blocked or clogged, clean the sensor lter or the
back panel.
The FILTER Replacement Indicator
Light is on.
• Whenever after performing replacing the lters,
connect the power cord to an outlet and then
press the Filter Reset Button. (page 13)
The Front Display is turned off.
• When Light control is set to "Auto", the light
automatically turns off when the room is dark.
Moreover, when Light control is set to "Turn off",
the light is always off. If you do not want the light
to be off, set Light control to the "Darker" setting.
(page 11)
The Cleanliness Monitor changes
color frequently.
• The Cleanliness Monitor automatically changes
color when the dust(sensitive) sensor and odor
sensor detect impurities. If you are concerned
about the change, you can change sensor
sensitivity. (page 11)
The Main Unit’s Display does not
match weather report.
• Outdoor and indoor as well as the home
environment (the volume of trafc nearby, number
of stories in home, etc.) may cause a reading
different than those data.
• There is a difference in the level within the same
room.
ERROR DISPLAY
If error occurs repeatedly, contact the Sharp
Service Center.
• The concentration of
Plasmacluster ion is descending.
⇒Maintain the Plasmacluster
Ion Generating Unit (electrode
section).
• Is the the Plasmacluster Ion
Generating Unit inserted
properly?
⇒Pull out the the Plasmacluster
Ion Generating Unit and insert it
to the end again, and then carry
out the operation again.
• Unplug the Main Unit, wait one
minute, and then plug the Main
Unit in again.
FP-J80M_J60M.indd 14 2018/09/07 10:24:12

15
SPECIFICATIONS
*1 • The recommended room size is appropriate for operating the main unit of maximum fan speed.
• The recommended room size is an area in which a given amount of dust particles can be removed in 30 minutes.
*2 • Room size in which approximately 25000 ions per cubic centimeter can be measured in the center of the room when the main unit is
placed next to a wall, is running at MED mode settings, and is at a height of approximately 1.2 meters from the oor.
Standby Power
When the main unit’s power plug is inserted in a wall outlet it consumes standby power in order to operate electrical
circuits. To conserve energy, unplug the power cord when the main unit is not in use.
Model FP-J80M FP-J60M
Power supply 220-240 V 50-60 Hz
Fan Speed Adjustment MAX MED LOW MAX MED LOW
Fan Speed (m3/hour) 480 288 60 396 222 60
Noise Level (dBA) 47 45 15 43 40 15
Rated Power (W) 48 28 4.0 38 18 3.6
Standby Power(W) 1.3 1.2
Recommended Room Size (m2) *1~ 62 ~ 48
High density Plasmacluster ion
recommended room size (m2) *2~ 35 ~ 26
Cord Length (m) 2.0
Dimensions (mm) 416 (W) × 291 (D) × 728 (H)
Weight (kg) 10.6 10.0
FP-J80M_J60M.indd 15 2018/09/07 10:24:12

SHARP CORPORATION
OSAKA, JAPAN
Printed in Thailand
TINS-B175KKRZ 18J- ①
FP-J80M_J60M.indd 16 2018/09/07 10:24:12
