Sharp ER-A460 Owner's manual

PROGRAMMING MANUAL
CODE: 00ZERA460VPME
ELECTRONIC
CASH REGISTER
MODEL ER-A460
MODEL ER-A470
(For "V" version)
SRV KEY : LKGIM7113RCZZ
PRINTER : DP-730
CHAPTER 1. SERVICE (SRV) MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
CHAPTER 2. PROGRAM (PGM2/PGM1) MODE . . . . . . . . . . . . . . . . . . . . . . .14
CHAPTER 3. OP X/Z, X1/Z1, X2/Z2 MODE . . . . . . . . . . . . . . . . . . . . . . . . . . .41
The ER-A460/A470 has the Easy Programming function which allows the user to
program easily.
This function is not described in this manual.
Please refer to the ER-A460/A470 EASY PROGRAMMING INSTRUCTION MANUAL of
an accessory for the product.
CONTENTS
SHARP CORPORATION This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
ER-A460
ER-A470

CHAPTER 1. SERVICE (SRV) MODE
The SRV key is used for operating in the SRV mode.
1. SRV. reset (Program Loop Reset)
Used to return the machine back to its operational state after a lock-
up has occurred.
Procedure
•Method 1
1) Turn off the AC switch.
2) Set the mode switch to (SRV′) position.
3) Turn on the AC switch.
4) Turn to (SRV) position from (SRV′) position.
•Method 2
1) Set the mode switch to PGM2 position.
2) Turn off the AC switch.
3) While holding down JOURNAL FEED key and RECEIPT FEED
key, turn on the AC switch.
Note: When disassembling and reassembling always power up
using method 1 only. Method 2 will not reset the CKDC6.
Note: SRV programming job#926-B must be set to "4" to allow PGM
program loop reset.
PRG. RESET ***
2. Master reset (All memory clear)
There are two possible methods to perform a master reset.
•MRS-1
Used to clear all memory contents and return machine back to its
initial settings. return keyboard back to default. for default keyboard
layout.
Procedure
1) Turn off the AC switch.
2) Set the MODE switch to the (SRV′) position.
3) Turn on the AC switch.
4) While holding down JOURNAL FEED key, turn to (SRV) position
from (SRV′) position.
•MRS-2
Used to clear all memory and keyboard contents.
This reset returns all programming back to defaults. The keyboard
must be entered by hand.
This reset is used if an application needs different keyboard layout
other than that supplied by a normal MRS-1.
Procedure
1) Turn off the AC switch.
2) Set the MODE switch to the (SRV′) position.
3) Turn on the AC switch.
4) While holding down JOURNAL FEED key and RECEIPT FEED
key, turn to (SRV) position from (SRV′) position.
5) Key position assignment:
*After the execution of MRS-2, only the RECEIPT FEED and
JOURNAL FEED keys can remain effective on key assignment.
Any key can be assigned on any key position on the main key-
board.

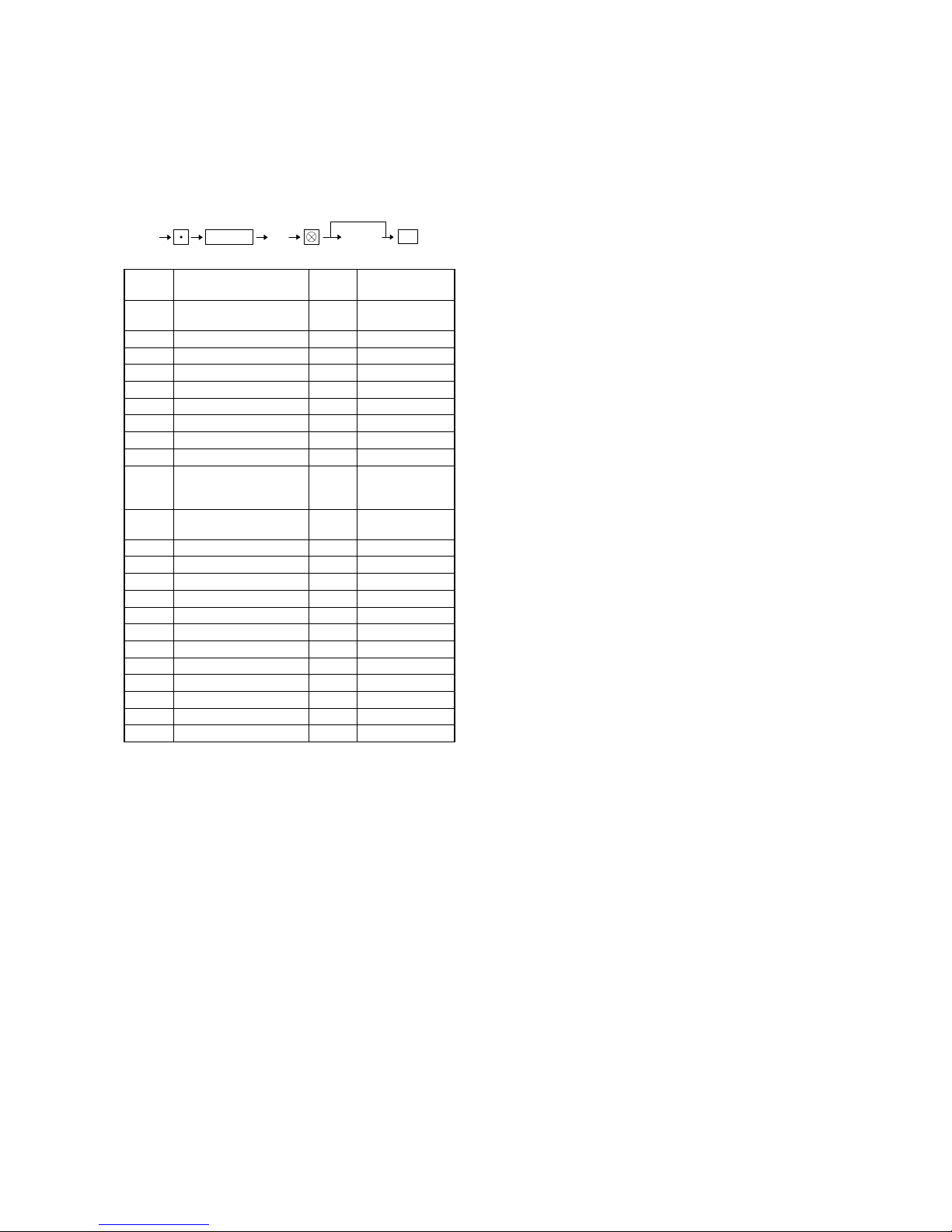

[key setup procedure]
MASTER RESET ***
NOTES:
*1: When the 0 key is pressed, the key of the key number on
display is disabled.
*2: Push the key on the position to be assigned. With this, the key
of the key number on display is assigned to that key position.
Key number Key name Key number Key name
1 Numeric key "0" 9 Numeric key "8"
2 Numeric key "1" 10 Numeric key "9"
3 Numeric key "2" 11 Numeric key "00"
4 Numeric key "3" 13 Decimal point key
5 Numeric key "4" 14 CL key
6 Numeric key "5" 15 ⊗key
7 Numeric key "6" 16 ST key
8 Numeric key "7" 17 TL key
3. Reading of the SRV mode program
List of program reports
JOB# Report name
900 SRV-mode program full item report (not incl. keyboard
layout)
950 Keyboard layout report (on keys other than dept. keys
and direct PLU keys)
951 Keyboard layout report (on dept. keys and direct PLU
keys)
970 SRV file programming report
MRS-2 executed Key position set Free key
Disable
Free key setup
complete.
*2
*1
0
0
– 1 –

[JOB# 900]
All parameters contained for the SRV mode as listed
Key operation.
900 →&→3
STAMP Stamp
01/01/00 0:00 Date/Time
000000 #0001  Machine No./Consecutive No.
#900 Job code
901# 0102
902# 0000 Contents of the SRV-mode
programming
903# 4000
904# 0000
905# 0100
906# 0001
The contents of the programming
are printed only on the journal
individual formats shown at left.
(No header is printed.)
907# 0014
908# 0000
909# 0000
910# 0004
911# 0000
912# 1141
913# 0002
914# 0100
915# 1020
916# 1000
917# 0000
918# 0000
919# 0000
920# 0000
921# 0000
922# 0000
923# 0000
924# 0000
925# 0000
926# 0000
927# 0000
928# 0000
929# 0000
980# 0000
930# z1 0000 Z1 reset counter
933# z1 0000 Hourly Z1 reset counter
934# z1 0000 PLU Z1/Z2 reset counter
935# z1 0000 Cashier Z1/Z2 reset counter
937# z2 0000 Z2 reset counter
939# z2 0000 Daily net Z2 reset counter
942#
G T 2 *00000000000.00 GT2
943#
G T 3 *00000000000.00 GT3
944# 0000 PGM2 mode secret code
945# 0000 Assignment Of RS232 channel
946# 0000 Assignment Of RS232 channel
948# 00 Training cashier No.
949# training Training mode title
[JOB# 950]
The Key layout report is printed in SRV mode
Key operation
950 →&→3
STAMP Stamp
01/01/00 0:02 Date/Time
000000 #0004 Machine No./Consecutive No.
#950 Job code
001 0 key 015 Key No./Key label/Location No.
002 1 key 016
003 2 key 024
004 3 key 032
005 4 key 017
006 5 key 025
007 6 key 033
008 7 key 018
009 8 key 026
010 9 key 034
011 00 key 023
012 000key 031
Key operation
951 →&→3
STAMP Stamp
01/01/00 0:02 Date/Time
000000 #0005 Machine No./Consecutive No.
#951 Job code
001 üüé 055 Key No./key label/Location No.
002 üüâ 056
003 üüä 057
004 üüà 058
005 üüå 059
006 üüç 060
007 üüê 061
008 üüë 062
009 üüè 063
010 üéü 064
011 üéé 065
012 üéâ 066
013 üéä 067
014 üéà 068
015 üéå 069
016 üéç 070
017 üéê 071
018 üéë 072
– 2 –

[JOB#970]
Files on the memory are listed.
Key operation
970 →&→3
STAMP Stamp
01/01/00 0:03 Date/Time
000000 #0007  Machine No./Consecutive No.
#970 Job code
*001* 00018 /00018 File table No./No. of records
*002* 00018 /00018 /No. of used records
*003* 00018 /00018
*005* 00018 /00018
*006* 00018 /00018
*007* 00200 /00020
*008* 00200 /00020
*009* 00200 /00020
*012* 00200 /00020
*014* 00005 /00000
*015* 00005 /00000
*016* 00069 /00069
*017* 00069 /00069
*018* 00069 /00069
*019* 00004 /00004
*020* 00004 /00004
*021* 00004 /00004
*022* 00045 004/00045 File table No./No. of records/No. of blocks/No. of used records
*023* 00045 004/00045
*024* 00045 004/00045
*025* 00045 /00045
*026* 00045 /00045
*027* 00045 /00045
*028* 00045 /00045
*029* 00049 /00049
*030* 00049 /00049
*031* 00032 /00000
*032* 00032 /00000
*033* 00070 /00070
1dbf80 File memory start address
1dff68 Empty memory start address
1dffff Memory end address
[JOB#990]
Reading the Contents of the SRV-Mode Programming for SSP
Key operation
990 →&→3
STAMP Stamp
01/01/00 0:03 Date/Time
000000 #0006  Machine No./Consecutive No.
#990 Job code
ssp era460v - 001
001 001 SSP No.
002 001
003 001
004 001
005 001
006 001
007 001
check sum error
– 3 –

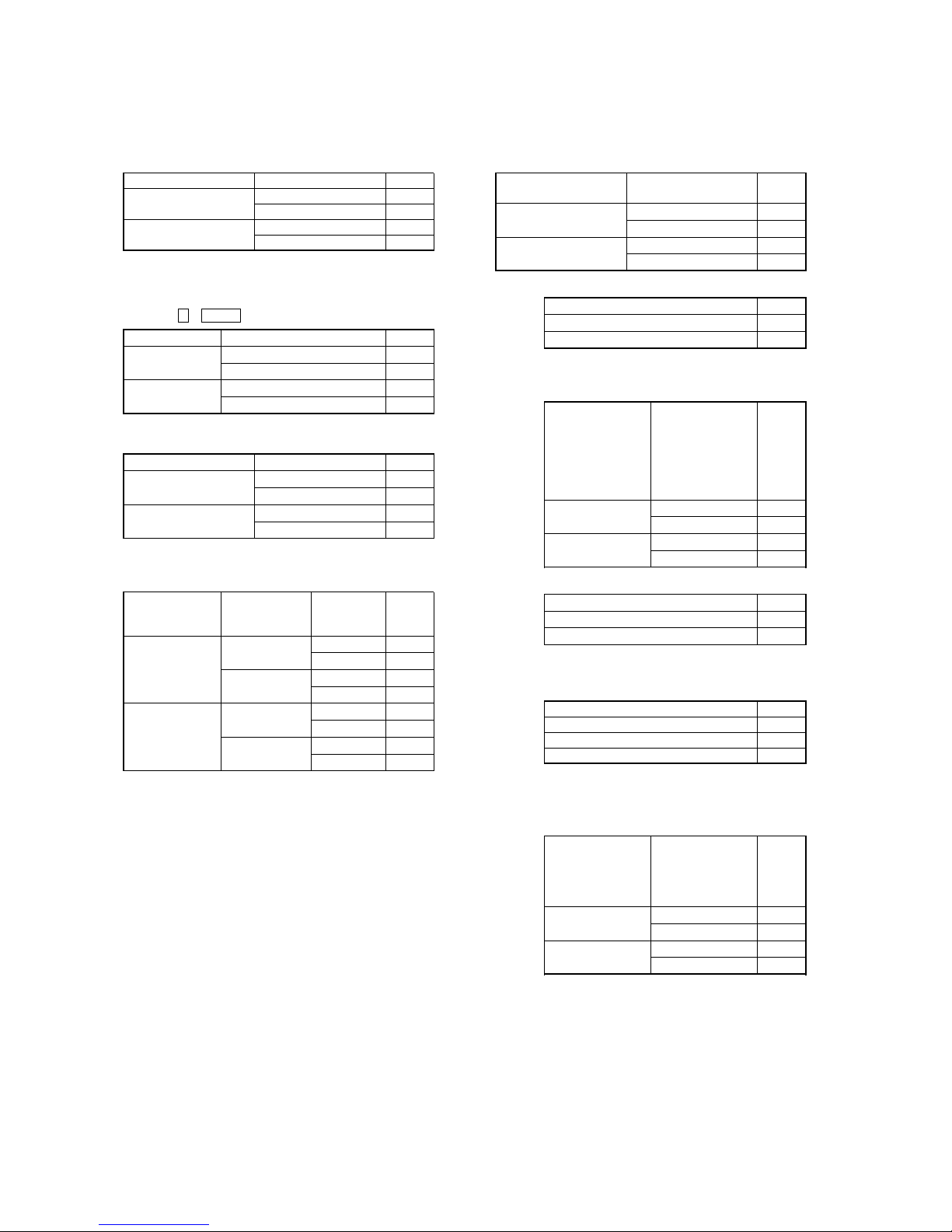

4. Service mode programming
The following are the key operation required for programming.
Details of [A][B][C][D] will be discussed at each item description.
★mark is MRS setting.
[JOB #901]:MRS=0102
#901-A: Not used (Fixed at "0")
#901-B: Tax system
1. TAX system 901-B
Auto TAX 1~3 0
Auto VAT 1~3 1 ★
Manual VAT 1~3 2
Manual VAT 1 3
Manual TAX 1~3 4
Swiss TAX 5
#901-C: 1. Rounding system
1. Rounding system 901-C
Normal 0 ★
SWEDEN 1
DENMARK 4
#901-D: 1. TAB setting
1. TAB setting 901-D
0.0
0.0 1
0.00 2 ★
0.000 3
[JOB#902] NOT USED MRS=0000
[JOB#903] MRS=4000
#903-A: 1. IR communication baud rate
1. Baud rate (bps) 903-A
2400 2
4800 3
9600 4 ★
19200 5
38400 6
57600 7
115200 8
*The communication speed with the ER-02FD is 19200
bps.
#903-B, C, D: Not used (Fixed at "000")
[JOB#904] MRS=0000
#904-A: 1. Printing of date
1. Printing of date 904-A ★
Yes 0
No 4
#904-B: 1. Printing of consecutive No.
1. Printing of consecutive No. 904-B ★
Yes 0
No 4
#904-C, D: Not used (Fixed at "00")
[JOB#905] MRS=0100
#905-A: Not used (Fixed at "0")
#905-B: 1. Tax printing when taxable subtotal is zero.
2. Tax printing when tax is zero.
1. Taxable subtotal is
zero 2. Tax is zero 905-B
Skip Print 0
Skip 1 ★
Print Print 4
Skip 5
#905-C: 1. Printing of rounding amount in receipt. (For Australia)
2. Printing format for split pricing entry.
1. Printing of rounding
amount in receipt 2. Printing format for split pricing entry 905-C
No Normal format 0 ★
Australia format 1
Yes Normal format 2
Australia format 3
#905-D : Not used (Fixed at "0")
[JOB#906] MRS=0001
#906-A: 1. Print Dept. and PLU number on receipt.
2. Entry which makes the PLU stock counter negative
1. Print Dept. and PLU
number on receipt. 2. Entry which makes the PLU stock
counter negative 906-A
No
Allowed unconditionally 0 ★
Operation allowed
despite ERROR
message 1
Inhibited 2
Yes
Allowed unconditionally 4
Operation allowed
despite ERROR
message 5
Inhibited 6
XXX
TL
(Job#)
[A] [B] [C] [D]
Numeric entry
4 digits max
0
– 4 –

#906-B: 1. Bottle return function
2. Hash department setting
1. Bottle return function 2. Hash department
setting 906-B
Disable Disable 0 ★
Enable 2
Enable Disable 4
Enable 6
#906-C: 1. Split pricing counting
2. Multiplication entry
1. Split pricing counting 2. Multiplication entry 906-C
Quantity
Multiplication 0 ★
Successive
multiplication 1
Split pricing 2
Package
Multiplication 4
Successive
multiplication 5
Split pricing 6
#906-D: 1. Presetting consecutive No.
2. Fractional quantity
1. Presetting
consecutive No. 2. Fractional quantity 906-D
Yes No 0
Yes (3 digit decimal
place) 1★
No No 2
Yes (3 digit decimal
place) 3
[JOB#907] MRS=0014
#907-A, B: Not used (Fixed at "00")
#907-C: 1. In case of all cashier CCD and individual cashier CCD,
X1 report before CCD entry
2. Locking of REG mode entry after individual cashier re-
setting
3. Minus department and PLU
1. In case of
all cashier
CCD and
individual
cashier
CCD, X1
report
before CCD
entry
2. Locking of
REG mode
entry after
individual
cashier
resetting
3. Minus
department
and PLU
907-C
Disable No Disable 0
Enable 1 ★
Yes Disable 2
Enable 3
Enable No Disable 4
Enable 5
Yes Disable 6
Enable 7
#907-D: 1. Z-counter print for PLU, Hourly, Cashier, Daily net
2. CCD compulsory
1. Z-counter print 2. CCD compulsory 907-D
Yes Non compulsory 0
For individual cashier 1
For all cashier 2
No Non compulsory 4 ★
For individual cashier 5
For all cashier 6
[JOB#908] MRS=0000
#908-A: GT print on Z report
GT1 (NET) GT2 (+) GT3 (–) 908-A
Print Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip Print Print 4
Skip 5
Skip Print 6
Skip 7
#908-B: GT print on X report
GT1 (NET) GT2 (+) GT3 (–) 908-B
Skip Skip Skip 0 ★
Print 1
Print Skip 2
Print 3
Print Skip Skip 4
Print 5
Print Skip 6
Print 7
#908-C: 1. Add void-mode transaction data to hourly total report
2. X1/Z1 report in X2/Z2 mode
3. Resetting of consecutive number in Z1 resetting
1. Add
void-mode
transaction
to hourly
total report
2. X1/Z1 report
in X2/Z2
mode
3. Resetting of
consecutive
No.in Z1
resetting 908-C
No Enable No 0 ★
Yes 1
Disable No 2
Yes 3
Yes Enable No 4
Yes 5
Disable No 6
Yes 7
#908-D:
1. Printing X/Z report Journal only/Receipt & Journal (Except the
individual cashier report)
2. Z1 resetting, resets GT Enable/Disable
1. Printing X/Z report 2. GT resetting at Z1 908-D
Receipt & Journal Disable 0 ★
Enable 1
Journal Disable 4
Enable 5
– 5 –

[JOB#909] MRS=0000
#909-A: 1. Printing of training GT on the X report
2. Printing of training GT on the Z report
1. Printing of training
GT on the X report 2. Printing of training GT on the Z report 909-A
Skip Print 0 ★
Skip 1
Print Print 2
Skip 3
#909-B: 1. Printing of data on PLU resetting report
2. All Z1 resetting in X1/Z1 mode
1. Printing of data on
PLU resetting report 2. All Z1 resetting in X1/Z1 mode 909-B
Print Enable 0 ★
Disable 2
Skip Enable 4
Disable 6
#909-C: 1. Printing of data in void-mode totalizer and manager void
totalizer on Z2 report
2. Printing of data in void-mode totalizer and manager void
totalizer on Z1 report
1. Void-mode totalizer
on Z2 printing 2. Void-mode totalizer on Z1 printing 909-C
Print Print 0 ★
Skip 2
Skip Print 4
Skip 6
#909-D: Not used (Fixed at "0")
[JOB#910] MRS=0004
#910-A: 1.Over laped cashier function
2. Over laped cashier function 910-A
No 0 ★
Yes 1
#910-B: 1. Auto cashier sign off at the end of each transaction
1. Auto cashier sign off at the end of
each transaction 910-B
No (After cashier Z1 only) 0 ★
Yes (Everytime) 1
#910-C: Not used (Fixed at "0")
#910-D: 1. Cashier system
1. Cashier system 910-D
1 hole 1
Cashier code entry 4 ★
[JOB#911] MRS=0000
#911-A: 1. Fraction treatment
1. Fraction treatment 911-A
Round off 0 ★
Round up 1
Round down 2
#911-B, C, D: Not used (Fixed at "000")
[JOB#912] MRS=1141
#912-A: 1. Date print format
Date format 912-A
Month/Day/Year 0
Day/Month/Year 1 ★
Year/Month/Day 2
#912-B: 1. Time system
1. Time system 912-B
12H 0
24H 1 ★
#912-C: 1. After transaction receipt format
2. Copy receipt
3. Footer print control
1. After
transaction
receipt
2. Copy
receipt 3. Footer print control 912-C
Total only
No
All receipt 0
On selected function
keys at the time of
finalization 1
Yes
All receipt 2
On selected function
keys at the time of
finalization 3
Detail
No
All receipt 4 ★
On selected function
keys at the time of
finalization 5
Yes
All receipt 6
On selected function
keys at the time of
finalization 7
#912-D: 1. Logo message control
1. Logo/stamp message control 912-D
3-line header instead of a stamp 0
Stamp only 1 ★
Stamp and 3-line footer 2
6-line header instead of a stamp 3
3-line header + 3-line footer 5

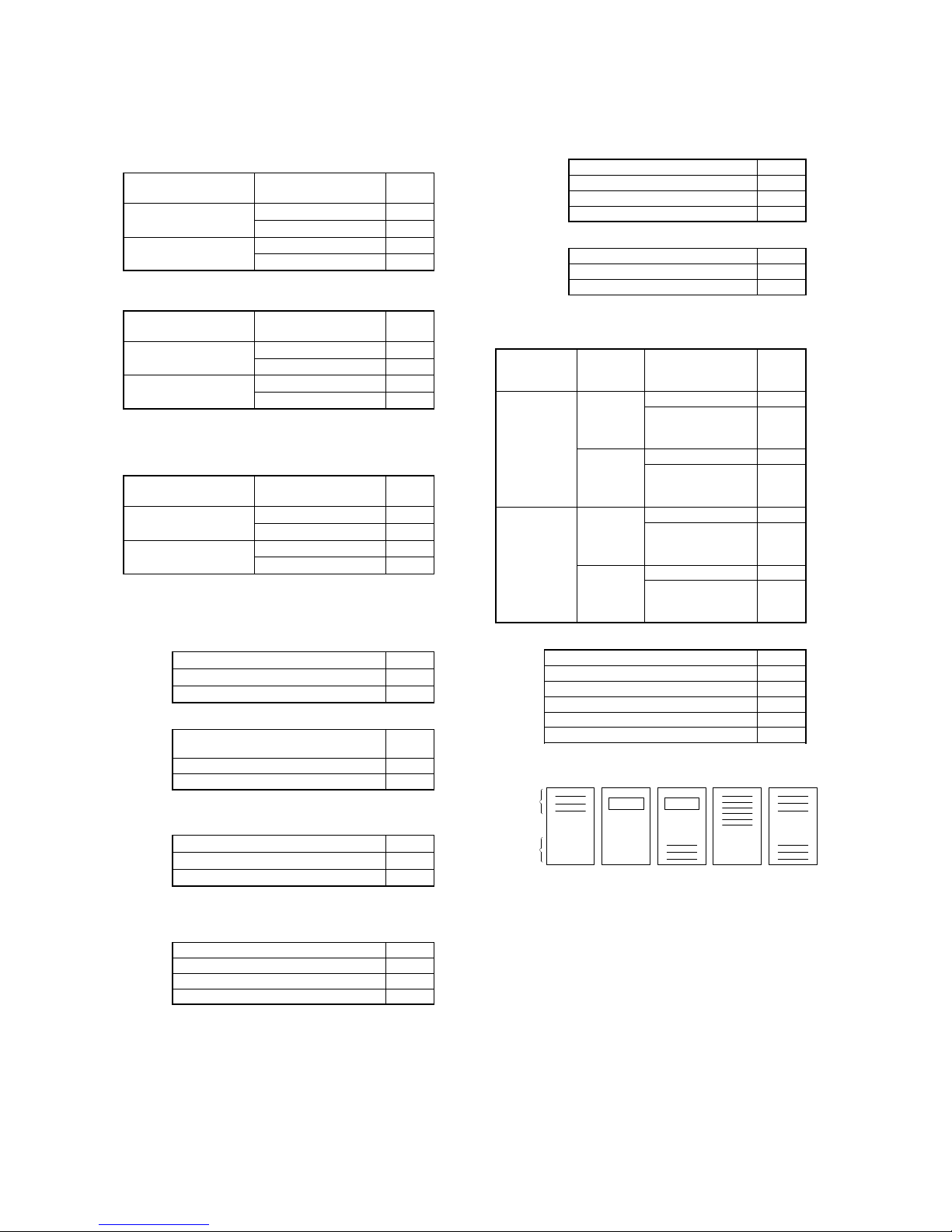

(Logo/stamp message format)
Header
Footer
Type : 0 532
STAMPSTAMP
1
– 6 –

[JOB#913] MRS = 0002
#913-A: 1. VP format on Receipt/Journal
2. Content of TOTAL VP amount
1. VP format 2. VP amount 913-A
Date & amount Total amount 0 ★
Tendered amount 1
Machine# & amount Total amount 2
Tendered amount 3
#913-B: 1. Printing of [ST]
2. Escape the compulsion of VP
NOTE: Must turn to MGR mode and depress
•• , PRINT keys to escape validation
1. ST Print 3. Escape the compulsion of VP 913-B
No Disable 0 ★
Enable 1
Yes Disable 4
Enable 5
#913-C: 1. Buzzer off 2sec. after lock error.
2. Buffered keyboard
1. Error beep 2. Buffered keyboard 913-C
2-sec. off Yes 0 ★
No 1
Constant Yes 2
No 3
#913-D: 1. Drawer closing compulsory
2. Error mode
3. Key catch sound
1. Drawer
closing
compulsory
2. Error mode 3. Key catch
sound 913-D
Non-compulsory All lock error Enable 0
Disable 1
Miss operation
(One shot error) Enable 2 ★
Disable 3
Compulsory All lock error Enable 4
Disable 5
Miss operation
(One shot error) Enable 6
Disable 7
[JOB#914] MRS = 0100
#914-A: 1. Receipt issuing at no-sale
2. [NS] key separation from [TL] key for no sale function
1. Receipt issuing at
no-sale 2. [NS] key separation 914-A
Enable Yes 0 ★
No 2
Disable Yes 4
No 6
#914-B: 1. No-sale after NON ADD code entry
1. No-sale after # entry 914-B
Disable 0
Enable 1 ★
#914-C 1. Action to be taken when the machine is locked by the
Receipt/Journal paper near end check
2. Void mode
1. Action to be
taken when the
machine is
locked by the
Receipt/Journal
paper near end
check
2. Void mode
914-C
Unlocked by CL
key Enable 0 ★
Disable 2
Enforcing of paper
roll replacement Enable 4
Disable 6
#914-D: 1. CHECK CASHING Enable/Disable
1. CHECK CASHING 914-D
Disable 0 ★
Enable 2
[JOB#915] MRS = 1020
#915-A: 1. Amount symbol
1. Amount symbol 915-A
" $ " 0
" *"1★
" " 2
#915-B: Not used (Fixed at "0")
#915-C: 1. Paper near end check
2. ST (–), ST (%) as many times needed/operation only
once
1. Paper near end
check 1. ST (–), ST (%) as many times
needed/
operation only
once
915-C
Yes Unlimited 0
Once only 2 ★
No Unlimited 4
Once only 6
#915-D: Not used (Fixed at "0")
– 7 –

[JOB#916] MRS = 1000
#916-A: 1. Print format when text and amount overlaps each other
REG mode
1. Print format when text and amount
overlaps each other REG mode 916-A
Truncate text 0
2 line print 1 ★
#916-B: 1. Finalization by charge (credit) when ST t0
1. Finalization by (credit) when SBTL t0 916-B
Disable 0 ★
Enable 4
#916-C: 1. Negative merchandise subtotal
2. Subtotal entry compulsory before tendering
3. Subtotal entry before direct non-tendering finalization
1. Negative
merchan-
dise
subtotal
2. Subtotal
entry
compulsory
before
tendering
3 .Subtotal
entry before
direct
non-tendering
finalization
916-C
Allow Noncompulsory Non-compulsory 0 ★
Compulsory 1
Compulsory Non-compulsory 2
Compulsory 3
Disallow Non-compulsory Non-compulsory 4
Compulsory 5
Compulsory Non-compulsory 6
Compulsory 7
#916-D: 1. Coupon PLU printing on X/Z report
2. Net sales subtotal (NET1) printing on X/Z report
3. CHECK change total printing on X/Z report
1. Print coupon
PLU’s on
general report
2. Print net
sales SBTL
(NET1) on
general report
3. Print CHK
CHANGE on
general report 916-D
Print Print Print 0 ★
Skip 1
Skip Print 2
Skip 3
Skip Print Print 4
Skip 5
Skip Print 6
Skip 7
[JOB#917] NOT USED: MRS = 0000
[JOB#918] MRS = 0000
#918-A: 1. Printing of text of a tied PLU in set PLU
2. Dirrect non-tendering finalization after previous tender
entry
1. Printing of text of a tied
PLU in promo PLU 2. Dirrect non-tendering finalization after
previous tender entry 918-A
Yes Disable 0 ★
Enable 2
No Disable 4
Enable 6
#918-B: Not used (Fixed at "0")
#918-C: 1. Printing Z1/Z2 counter in Z reports
1. Printing Z1/Z2 counter in Z reports 918-C
Print 0 ★
Skip 4
#918-D: Not used (Fixed at "0")
[JOB#919] MRS = 0000
#919-A, B: Not used (Fixed at "00")
#919-C: 1. Amount printing when PLU unit price is 0
1. Amount printing when PLU unit price is 0 919-C
No 0 ★
Yes 1
919-D: 1. Conversion ST printing of native ST
1. Conversion SBTL print of native SBTL 919-D
Yes 0 ★
No 4
[JOB#920] NOT USED MSR = 0000
[JOB#921] NOT USED MRS = 0000
[JOB#922] NOT USED MRS = 0000
[JOB#923] NOT USED MRS = 0000
[JOB#924] NOT USED MRS = 0000
[JOB#925] NOT USED MRS = 0000
[JOB#926] MRS = 0000
#926-A: Not used (Fixed at "0")
#926-B: 1. Program reset at PGM 2 mode
1. Program reset at PGM2 mode 926-B
Disable 0 ★
Enable 4
#926-C, D: Not used (Fixed at "00")
– 8 –

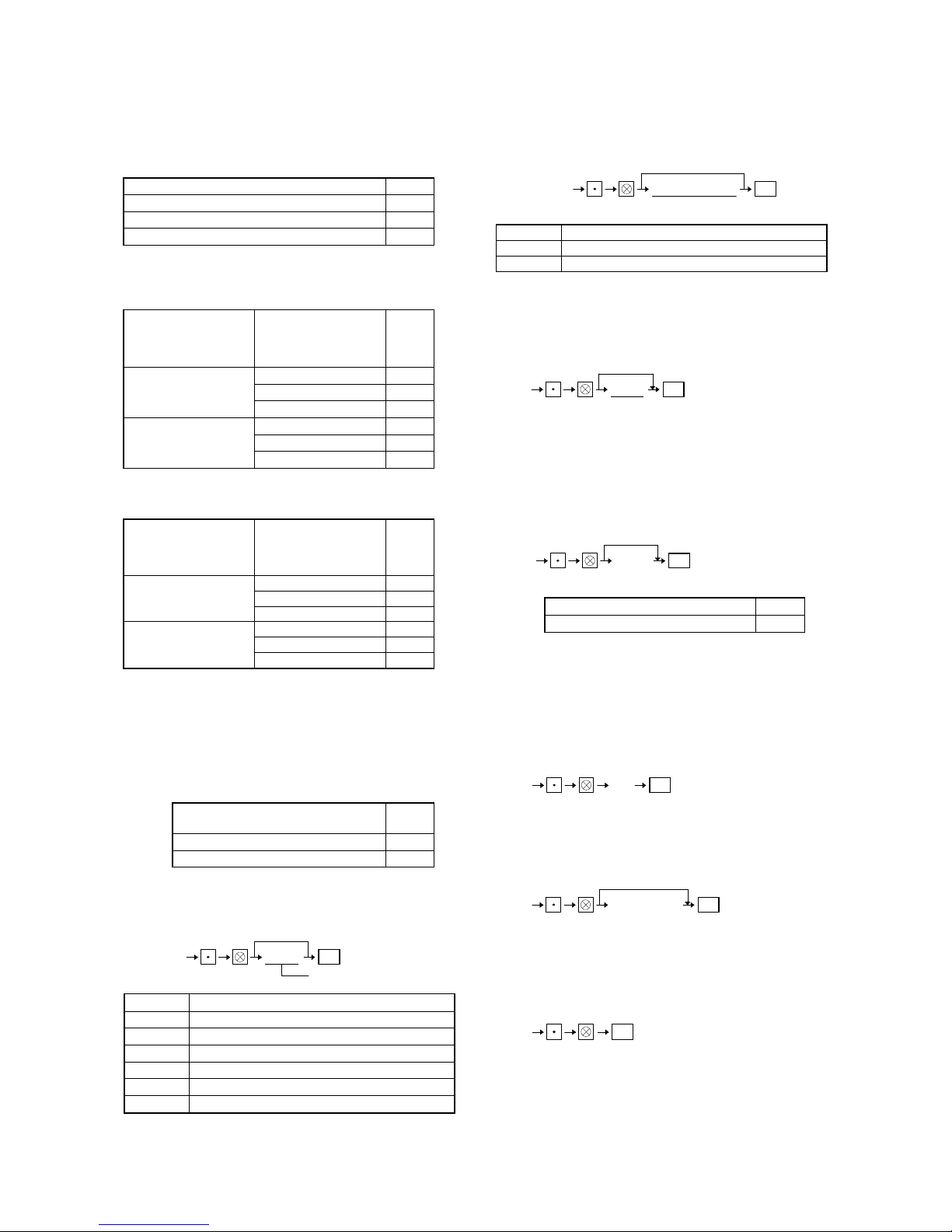

[JOB#927] MRS = 0000
#927-A: 1. Rounding up of the units digit of amount
#927-B: 1. Rounding down of the units digit of amount
1. Rounding the units digit of amount 927-AB
Common destination 00 ★
Netherland/Switzerland 82
Norway 54
#927-C: 1. Difference memory (Difference between before-
rounding and after-rounding)
2. Limit on the least sighificant digit in entering the amount
on item
1. Difference memory 2. Limit on the least
sighificant digit in
entering the amount
on item
927-C
No Arbitary 0 ★
0 only 1
0 and 5 only 2
Yes Arbitary 4
0 only 5
0 and 5 only 6
#927-D: 1. Application of rounding
2. Limit on the least significant digit in entering the amount
of payment
1. Application of rounding 2. Limit on the least
significant digit in
entering the amount
of payment
927-D
Item & Payment Arbitary 0 ★
0 only 1
0 and 5 only 2
Payment Arbitary 4
0 only 5
0 and 5 only 6
[JOB#928] NOT USED: MRS = 0000
[JOB#929] NOT USED: MRS = 0000
[JOB#980] MRS = 0000
#918-A, B, C: Not used (Fixed at "000")
#980-D: 1. Language selection of guidance message
1. Language selection of guidance
message 910-D
English 0 ★
German 1
[JOB#930∼939] MRS = 0000
RESET REPORT COUNTER
JOB # Function
930 Z1 report counter
933 Hourly Z1 report counter
934 PLU Z1/Z2 report counter
935 Cashier Z1/Z2 report counter
937 Z2 report counter
939 31 day daily net Z2 report counter
[JOB#942, 943] MRS = 0000000000000
GT COUNTER PRESETTING
JOB # Function
942 GT2 (Positive GT)
943 GT3 (Negative GT)
Note: GT1 is obtained by calculation
Equation: GT1=GT2-GT3
[JOB#944] MRS = 0000
PGM1/2 secret code presetting
NOTE: When the secret code "0" is programmed, the secret code
entry is be inhibited.
[JOB#945] MRS = 0000
The assignment of RS232 channel by each devices
*For use, the option control ROM (ER-A46R1) and the RS232 I/F
(ER-A5RS) are required.
#945-A: 1. Channel No. for online
1. Channel No. for online 945-A
Channel No. 0 to 7
#945-B, C, D: Not used (Fixed at "000")
*0 = No connect
1 to 7 = Channel number
[JOB#946] NOT USED: MRS = 0000
[JOB#948] MRS = 000000
PROGRAMMING OF TRAINING CASHIER NO.
[JOB#949] MRS = "TRAINING"
THE TRAINING MODE’S TITLE
Characters can be entered by using alphabetic keys or numeric keys.
Please refer to section 3.
[JOB#989]
RESETTING OF ALL COUNTER AND TOTALIZER
Job# ABCD
Initial value of Z countr
"0000"
TL
Job# 0000000000000
13 digits
0
TL
944 XXXX
4 digits
0
TL
Job# ABCD
0
TL
948
XX TL
XX: Cashier No.
949
Character Key
(8chra.)
Space
TL
989
TL
– 9 –

[JOB#950] MRS = STANDARD KEY LAYOUT
Free key layout (Except for department keys and direct PLU keys.)
[JOB#951] MRS = STANDARD KEY LAYOUT
Free key layout (department keys and direct PLU keys)
•Programming of the keys to be dept keys or direct PLU keys on
the keyboard.
•Key No. is assigned to each key which is supposed to be dept.
Key or direct PLU key by depressing the key after entering the key
No.
•Those keys programmed by this job No. will be dept. keys if dept.
code is assigned, and will be direct PLU keys if PLU code is
assigned in the PGM2 mode.

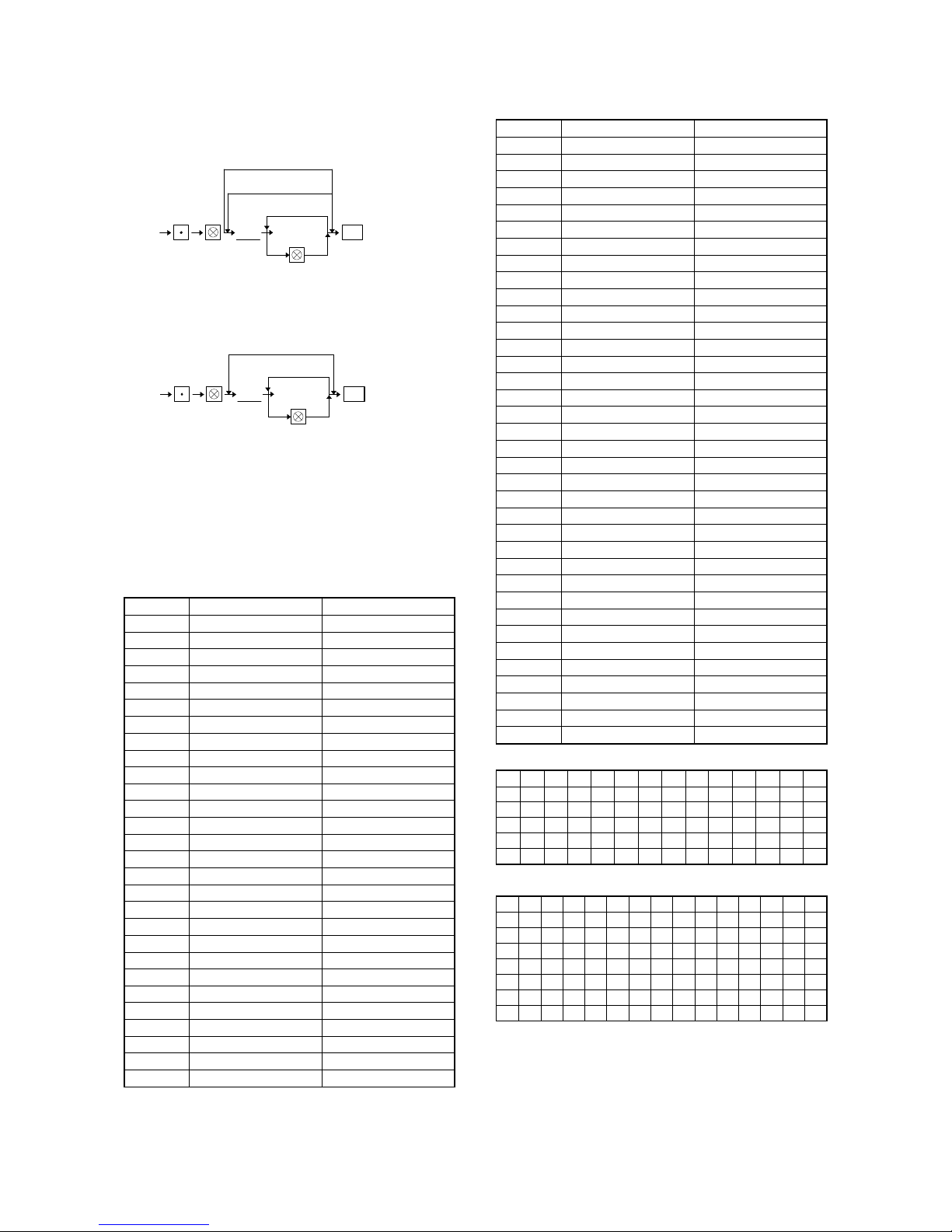

FUNCTION KEY LIST
Key No. KEY KEY TEXT
1 0 KEY 0 KEY
2 1 KEY 1 KEY
3 2 KEY 2 KEY
4 3 KEY 3 KEY
5 4 KEY 4 KEY
6 5 KEY 5 KEY
7 6 KEY 6 KEY
8 7 KEY 7 KEY
9 8 KEY 8 KEY
10 9 KEY 9 KEY
11 00 KEY 00 KEY
12 000 KEY 000KEY
13 DECIMAL POINT . KEY
14 CLEAR CLEAR
15 ⊗✕
16 ST SBTL
17 TL TOTAL
18 # #
19 NO SALE NS
20 PLU PLU
21 G. C. COPY GCCOPY
22 Level1 L1
23 Level2 L2
24 Level3 L3
25 PRINT VP
26 RCPT RCPT
27 VOID VOID
28 REFUND RFND
Key No. KEY KEY TEXT
29 %1 %1
30 %2 %2
31 %3 %3
32 %4 %4
33 (–)1 (–)1
34 (–)2 (–)2
35 (–)3 (–)3
36 (–)4 (–)4
37 VAT VAT
38 AUTO AUTO
39 AUTO2 AUTO2
40 AUTO3 AUTO3
41 AUTO4 AUTO4
42 AUTO5 AUTO5
43 CASH2 CA2
44 CHECK1 CHECK1
45 CHECK2 CHECK2
46 CHECK3 CHECK3
47 CHECK4 CHECK4
48 CR1 CR1
49 CR2 CR2
50 CR3 CR3
51 CR4 CR4
52 CONV1 EX1
53 CONV2 EX2
54 CONV3 EX3
55 CONV4 EX4
59 RA RA
60 RA2 RA2
61 PO PO
62 PO2 PO2
63 1⁄21⁄2KEY
64 AMT AMT
65 VAT SHIFT VAT SF
66 CASHIER NO. CASH#
67 DIFFER ST DIF ST
ER-A460 KEY POSITION
R J 16 22 28 34 40 46 52 58 64 70 76 82
5 10152127333945515763697581
4 9 14 20 26 32 38 44 50 56 62 68 74 80
3 8 13 19 25 31 37 43 49 55 61 67 73 79
2 7 12 18 24 30 36 42 48 54 60 66 72 78
1 6 11 17 23 29 35 41 47 53 59 65 71 77
ER-A470 KEY POSITION
R J 22 30 38 46 54 62 70 78 86 94 102 110 118
7 1421293745536169778593101109117
6 1320283644526068768492100108116
5 121927354351596775839199107115
4 111826344250586674829098106114
3 101725334149576573818997105113
2 9 16 24 32 40 48 56 64 72 80 88 96 104 112
1 8 15 23 31 39 47 55 63 71 79 87 95 103 111
950 Free key
Key number automatic
increment
Key number manual
increment
Initial setting
XXX
Key No.
To inhibit
TL
951 Free keyXXX
Key No.
Key number automatic
increment
Key number manual increment
To inhibit
TL
– 10 –

[JOB#971]
SRV FILE PROGRAMMING. (File creation deletion and change of
record count or block count)
Key operation
•Normal file
Group
No. File name Type *File table No. (Create/Erase)
1 Dept. 101, 02, 03, 05,
37, 40, 42
2 Dept Text (8chra.) 0 03
3 Dept Text (12chra.) 0 04
4 PLU 1 07, 08, 09, 12
5 PLU Text (8chra.) 0 09
6 PLU Text (12chra.) 0 10
7 PLU stock 0 11
8 Link PLU 1 14
9 Set PLU 1 15
10 Cashier 119, 20, 21, 22, 23, 24, 34, 37,
38, 39
11 Cashier Dept 037, 38, 40, 41,
42, 43
12 Hourly 1 29, 30
13 Daily net 1 31, 32
14 Reg. buffer 1 33, 34
15 Overlapped cashier 0 34
16 Message Text 0 35
17 Guidance Text 0 36
18 Term Dept. 0 06
19 Term PLU 0 13
20 Term Transaction 0 18
21 Term Cashier 0 24
22 Term Cashier Dept 0 39
23 All of term file 0 06, 13, 18, 24, 39
Type = 0 ; Create/Erase only
Type = 1 ; Create/Erase and Increase/decrease the number of
Records or blocks.
* : The files which are created or erased by the entry of group
No.
971
@/FOR abc
File group No.
delete
XXXXX
Number of records
TL
– 11 –

File table
Table
No. File name RECORD BLOCK Label size Data size
MRS Max. #1 MRS Max. #2
1 Dept. Preset 18 50 1 1 1 6
2 Price 18 50 (1) 1 1 0 3
3 Text (8chra.) 18 50 (1) 1 1 0 8
4 Text (12chara.) 0 50 (1) 0 1 0 12
5 Daily 18 50 (1) 1 1 0 9
6 Term 18 50 (1) 1 1 0 9
7 PLU Preset 200 *** 11 3 6
8 Price 200 *** (7) 1 1 0 3
9 Text (8chra.) 200 *** (7) 1 1 0 8
10 Text (12chra.) 0 *** (7) 0 1 0 12
11 Stock 0 *** (7) 0 1 0 4
12 Daily 200 *** (7) 1 1 0 9
13 Term 0 *** (7) 0 1 0 9
14 Link PLU 5 *** 11 315
15 Set PLU 5 *** 11 330
16 Transaction Label 69 69 1 1 2 0
17 Daily 69 69 (16) 1 1 0 8
18 Term 69 69 (16) 1 1 0 8
19 Cashier Preset 4 15 1 1 1 3
20 Flag 4 15 (19) 1 1 0 2
21 Text 4 15 (19) 1 1 0 8
22 Cashier transaction Label 45 45 4 15 (19) 2 0
23 Daily 45 45 (22) 4 15 (19) 0 8
24 Term 45 45 (22) 4 15 (19) 0 8
25 Reset Csr trns. Label 45 45 1 1 2 0
26 Daily 45 45 (25) 1 1 0 8
27 Total cashier (Buffer) Label 45 45 1 1 2 0
28 Total 45 45 (27) 1 1 0 8
29 Hourly Label 49 49 1 1 1 0
30 Daily 49 49 (29) 1 1 0 8
31 Daily net Label 32 32 1 1 3 0
32 Total 32 32 (30) 1 1 0 8
33 Reg. buffer 70 255 1 1 0 36
34 Over lapped Csr 0 255 0 15 (19) 0 36
35 Message Text 0 87 0 1 2 12
36 Guidance Text 0 132 0 1 2 12
37 Csr trns. Dept Label 0 50 0 15 (19) 1 0
38 Daily 0 50 (37) 0 15 (19) 0 9
39 Term 0 50 (37) 0 15 (19) 0 9
40 Reset Csr Dept trns. Label 0 50 0 1 1 0
41 Daily 0 50 (40) 0 1 0 9
42 Total Csr (Buffer) Dept Label 0 50 0 1 1 0
43 Total 0 50 (41) 0 1 0 9
(#1) : Same as the number of record of table no. N
(#2) : Same as the number of block of table no. N
– 12 –

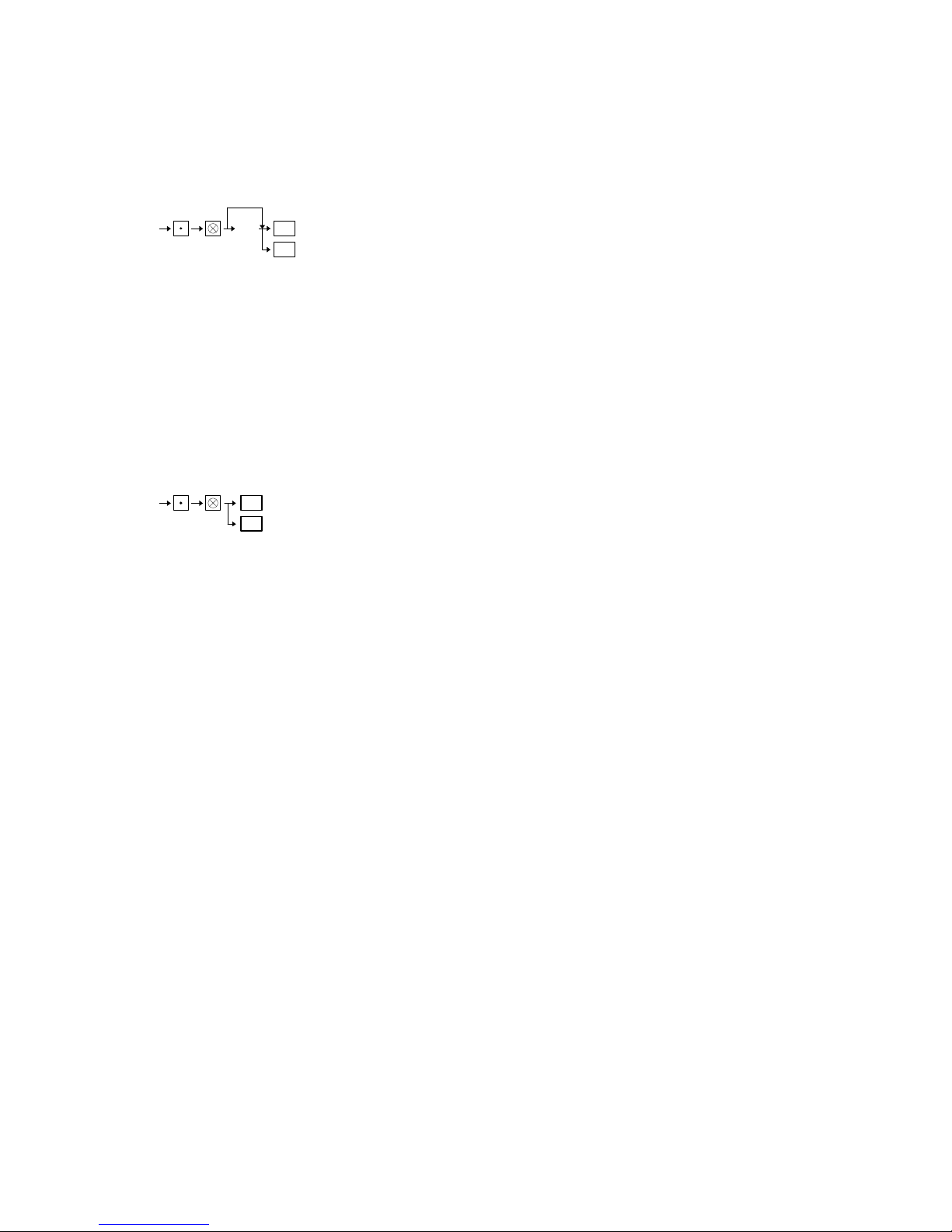

[JOB#996, 998] IR data send/receive
(ECR↔ECR, ECR↔ER-02FD)
[JOB#996] IR data send
X : SSP = 0
•Send to ECR (IrDA) : IrDA
(Enable baud-rate : 115200bps,
57600bps, 38400bps,
19200bps, 9600bps,
4800bps, 2400bps)
•Send to ER-02FD + CE-IR2 (CE-IR4) : ASK
(Enable baud-rate : 19200bps)
•Send to ECR (ASK) : ASK
(Enable baud-rate : 57600bps, 38400bps,
19200bps, 9600bps,
4800bps, 2400bps)
[JOB#998] IR data receive
•Receive from ECR (IrDA) : IrDA
(Enable baud-rate : 11500bps, 57600bps,
38400bps, 19200bps,
9600bps, 4800bps,
2400bps)
•Receive from ER-02FD + CE-IR2 (CE-IR4) : ASK
(Enable baud-rate : 19200bps)
•Receive from ECR (ASK) : ASK
(Enable baud-rate : 57600bps, 38400bps,
19200bps, 9600bps,
4800bps, 2400bps)
996
All data
X
Send to ECR(IrDA)
Send to ER-02FD or ECR(ASK)
ST
TL
998
Receive from ECR(IrDA)
Receive from ER-02FD or ECR(ASK)
ST
TL
– 13 –

CHAPTER 2. PROGRAM
(PGM2/PGM1) MODE
1.Reading of the PGM mode program

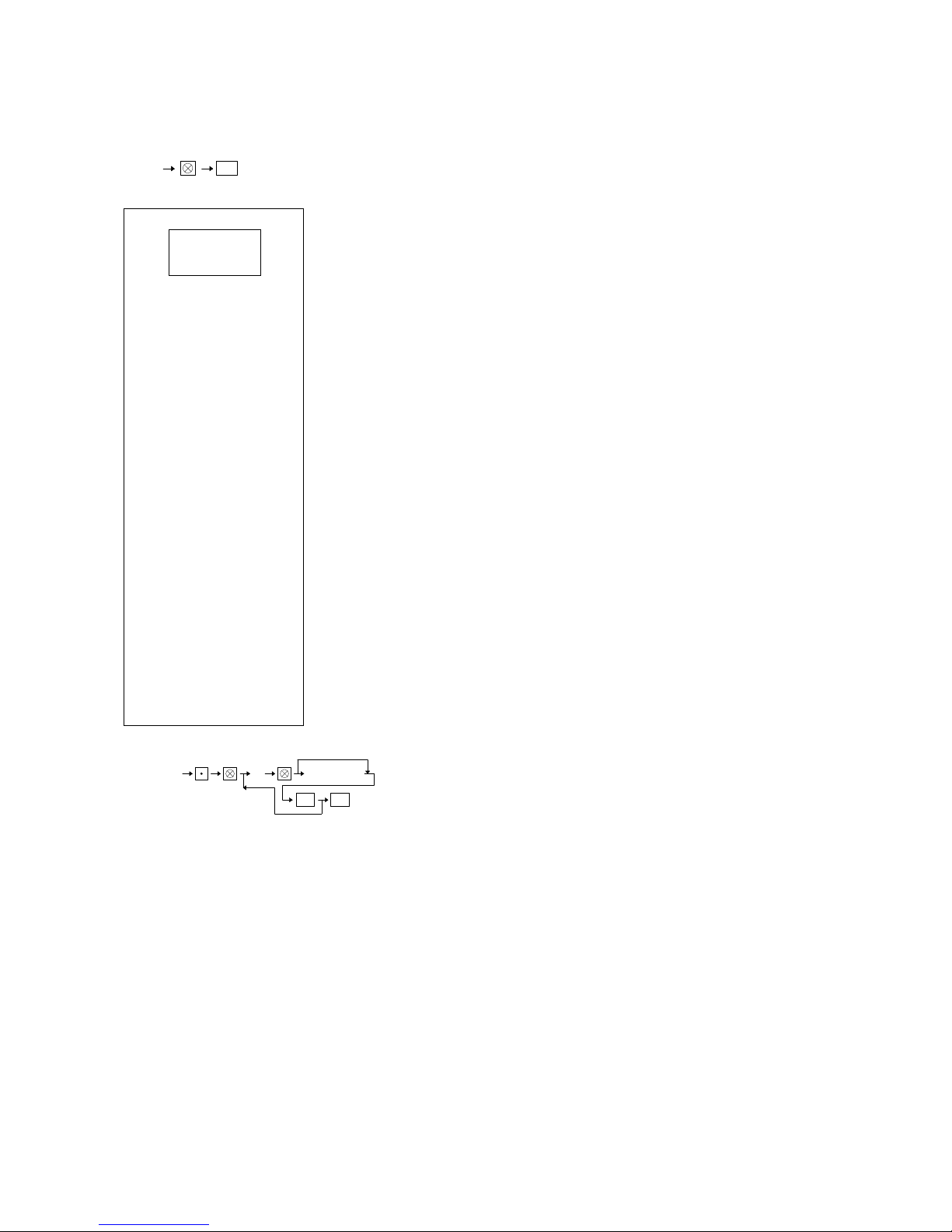

[JOB#1100]: DEPT reading
Key operation
STAMP Stamp
01/01/00 0:04
000000 #0009 
#1100*PGMâ* Job Code/Mode title
01-10 Start No. – End No.
D 01 0.00 Dept. code/Taxable/Sign, Price
dpt.ü é g01 Text/Group No.
0000001 col17 Program (*1) Commission Group/HALO
D 02 0.00
dpt.ü â g01
0000001 col17
D 03 0.00
dpt.ü ä g01
0000001 col17
D 04 0.00
dpt.ü à g01
0000001 col17
D 05 0.00
dpt.ü å g01
0000001 col17
D 06 0.00
dpt.ü ç g01
0000001 col17
D 07 0.00
dpt.ü ê g01
0000001 col17
D 08 0.00
dpt.ü ë g01
0000001 col17
D 09 0.00
dpt.ü è g01
(*1) PROGRAM: ABCDEFG
A: Printing on the cashier report Yes/No 1/0
B: Item vp compulsory/noncompulsory 1/0
C: (Not used) 0
D: (Not used) 0
E: SIF/SICS/Normal 2/1/0
F: (Not used) 0
G: Amount entry type
Open and preset/preset/open/inhibited 3/2/1/0
[JOB#1200]: PLU reading
Key operation
STAMP Stamp
01/01/00 0:05
000000 #0011 
#1200*PGMâ* Job Code/Mode title
000001-000005 Start No. – End No.
P 000001(ü é ) /00 PLU code (Dept code)/(*1)/Baseq’ty
0.00 Taxable/Sign,Price
pl000001 co Text/CommissionGroup
002 Program (*2)/Stock
P 000002(ü é ) /00
0.00
pl000002 co
002
P 000003(ü é ) /00
0.00
pl000003 co
002
P 000004(ü é ) /00
0.00
pl000004 co
002
(*1) NORMAL. LINK PLU. SET MENU
: NORMAL
: L LINK PLU
: S SET MENU
(*2) PROGRAM: ABC
A: (Not used) 0
B: (Not used) 0
C: Amount entry type
Open and preset/preset/open /inhibited = 3/2/1/0
(PLU) (Sub-dept)
1100
XX
Start No. XX End No.
Single item
All
TL
1200 XXXX
Start No. End No.
Single item
XXXX
All
TL
– 14 –

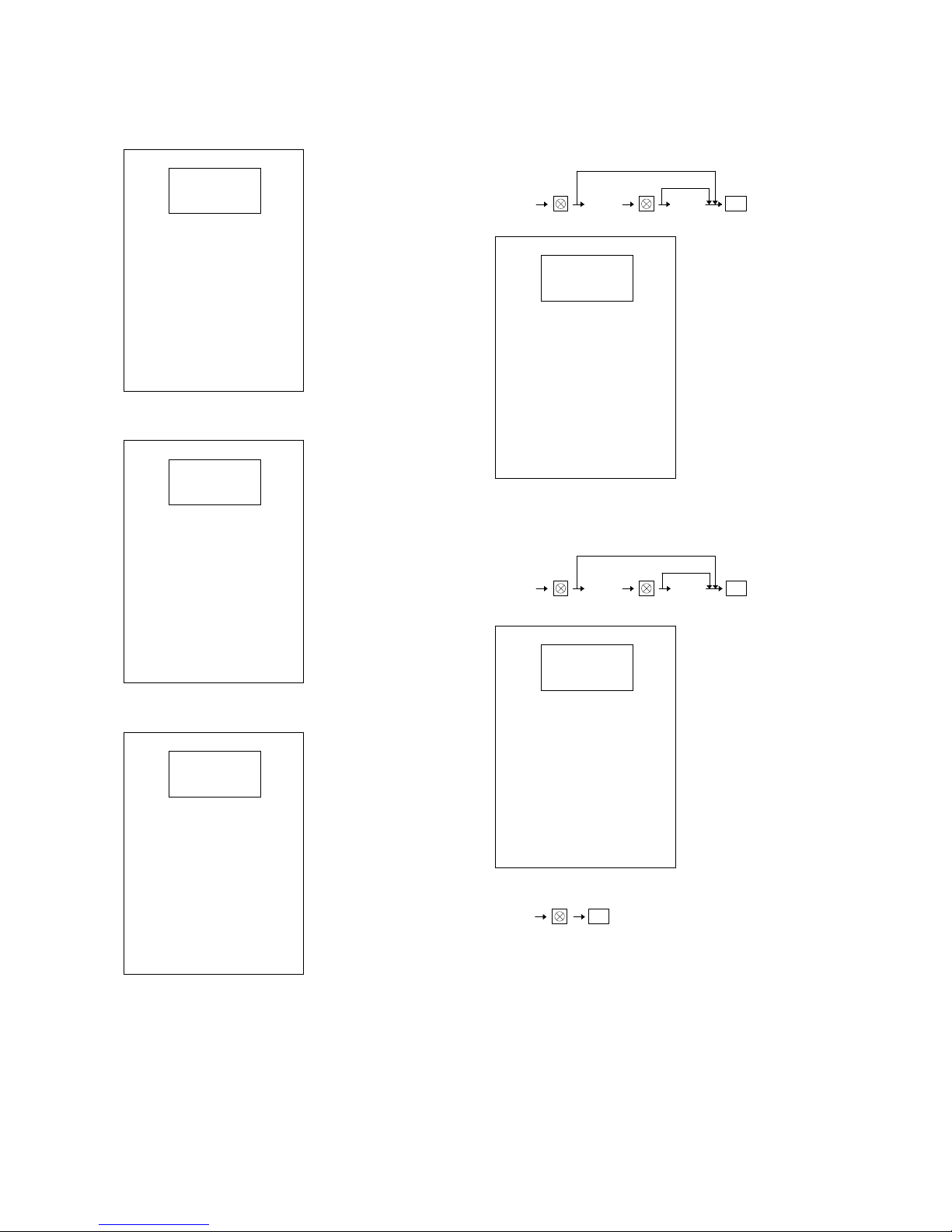

[JOB#1220]: STOCK ADD PRESET
STAMP Stamp
01/01/00 0:06
000000 #0005 
#1220*PGMâ* Job Code/Mode title
P 000001 1000.000 Old stock
10.000 (Input stock)
s 1010.000 New stock
[JOB#1221]: STOCK SUB PRESET
STAMP Stamp
01/01/00 0:06
000000 #0005 
#1221*PGMé* Job code/Mode title
P 000001 1000.000 Old stock
-10.000 (Input stock)
s 990.000 New stock
[JOB#1222]: STOCK INVENTORY PRESET
STAMP Stamp
01/01/00 0:06
000000 #0005 
#1222*PGMé* Job code/Mode title
P 000001 1000.000 Old stock
500.000 (New stock) - (Old stock)
s 15000.000 New stock (Input stock)
[JOB#2220]: LINK PLU PRESET OR READING
Key operation
STAMP Stamp
01/01/00 0:06
000000 #0010 
#2220*PGMâ* Job code/Mode title
000001-999999 Start No. – End No.
P 000002 L p000011 PLU code/Link PLU code (Max 5)
p000012 /Link PLU code
[JOB#2221]: SET MENU PRESET OR READING
Key operation
STAMP Stamp
01/01/00 0:06
000000 #0011 
#2221*PGMâ* Job code/Mode title
000001-999999 Start No. – End No.
P 000001 S p000002 PLU code/Set PLU code (Max. 10)
p000003 /Set PLU code
[JOB#1300]: FUNCTION PRESET READING
Key operation
2220
Start No. End No.
Single item
XXXXXX
XXXXXX
All
TL
2221
Start No.
XXXXXX
All
End No.
Single item
XXXXXX
TL
1300
TL
– 15 –

STAMP Stamp
01/01/00 0:06
000000 #0015 
#1300*PGMâ* Job code/Mode title
F001[~]é Function No./Text
S -0.00 Sign, Rate
l17 HALO
F002[~]â
S -0.00
l17
F005‰é
S -0.00% Rate
l100.00%
F006‰â
S -0.00% Rate
l100.00%
F 009 set plu-
F 011 tax1 st
F 012 tax2 st
F 013 tax3 st
F 015 vat 1
F 016 vat 2
F 017 vat 3
F019NETé
F020NETâ
F 021 cp plu
F 022 refund
F 023 \
F 024 ¡ mode
F 025 mgr ¿
F 026 sbtl ¿
F 029 vat sft
F 030 tax dele
F 031 vp cnt
F 032 no sale HALO
F 033 g.c. cnt
F 036 ***ra l18
F 038 ***po l18
F 041 C ash l18
00000000000 (*1) PGM
F 043 check l18
00000000000
F 047 credit1 l18
00000000000
F 048 credit2 l18
00000000000
F 051 exch1
0.0000
F 058 ****cid
9999999.99
F 060 ca/ch id
F 061 chk/cg
999999.99
F 062 guest
F 063 com.sal1
0.00%
F 064 com.sal2
0.00%
F 065 com.sal3
0.00%
F 066 non com.
F 067 order tl
F 068 paid tl
F 069 dom.cur1
F 073 *ch id
F 074 *dept tl
F 075 dept(-)
F 080 net 1
F 081 net 2
F 082 net 3
F 084 subtotal
F 085 mdse st
F 086 ***total
F 087 change
F 088 due
F 089 items
F 090 plu st
F091COPY
F 092 g.c copy
F 093 ave.
F 094 G roup01
F 095 G r0up02
F 096 G roup03
F 097 G roup04
F 098 G roup05
F 099 G roup06
F 100 G roup07
F 101 G roup08
F 102 G roup09
F106O~P
F 107 com.amt1
F 108 com.amt2
F 109 com.amt3
F 110 ccm.ttl
F111DEPT
F 112 group
F113 PLU
F 114 stock
F 115 trans.
F 116 tl-id
F 117 sales
F 118 cashier
F 119 hourly
F 120 daily
F 121 set plu
F 122 ttl tax
F123NET
F 124 zero sal
F 125 category
(*1) PGM: ABCDEFGHIJK
A: EFT function compulsory/noncompulsory 1/0
B: Footer print Yes/No 1/0
C: Non-add code entry compulsory/noncompulsory 1/0
D: Change due Disable/Enable 1/0
E: VP compulsory/noncompulsory 1/0
F: (Not used) 0
G: (Not used) 0
H: (Not used) 0
I: (Not used) 0
J: Drawer opening No/Yes 1/0
K: Entry of amount tenderd
compulsory/noncompulsory
compulsory/inhibit (Cash, check) 1/0 (CR1 to 8) 1/0
– 16 –

[JOB#2600]: READING OF OTHER
Key operation
STAMP Stamp
01/01/00 0:08
000000 #0017 
#2600*PGMâ* Job code/Mode title
#2615 10 SLIP/VP
#2616 (*1) Optional feature
01 00000000
02 00000000
03 00000000
04 00000000
05 00000000
06 00000000
07 00000000
08 00000000
09 00000000
10 00000000
11 00000000
12 00000000
13 00000000
#2617 000 Till timer
#2619 0 00 (*3) Hourly report
#2620 Stack report 1
#2630 0000 Secret code PGM1
#2631 0000 X1/Z1
#2632 0000 X2/Z2
(*1) Optional feature: ABCDEFGH
MRS = 00000000
x: 1 MRS = 00000000
A: OP X/Z report Disable/Enable 1/0
B: PO operation in REG mode Disable/Enable 1/0
C: (Not used) 0
D: "RFND" key entry in REG mode Disable/Enable 1/0
E: Direct void function in REG mode Disable/Enable 1/0
F: Indirect void in REG mode Disable/Enable 1/0
G: Subtotal void in REG mode Disable/Enable 1/0
H: Refund VP Compulsory/Non compulsory 1/0
x: 2 MRS = 00000000
A: The first last item void Disable/Enable 1/0
B: PLU level shift system Manual/Auto 1/0
C: PLU level shift system MGR/MGR & REG 1/0
D: Printing of the number of purchases Yes/No 1/0
E: Time print No/Yes 1/0
F: Journal select/Full print 1/0
G: Item VP Disable/Enable 1/0
H: (–) VP Compulsory/Non compulsory 1/0
x: 3 MRS = 00000000
A: (Not used) 0
B: (Not used) 0
C: Zero skip in Cashier report No/Yes 1/0
D: Zero skip in Transaction report No/Yes 1/0
E: Zero skip in DEPT. report No/Yes 1/0
F: Zero skip in PLU report No/Yes 1/0
G: Zero skip in hourly report No/Yes 1/0
H: Zero skip in Daily net report No/Yes 1/0
x: 4 MRS = 00000000
A: (Not used) 0
B: (Not used) 0
C: Vat/Tax amount printing on R/J No/Yes 1/0
D: Taxable amount printing on R/J No/Yes 1/0
E: Net amount printing on R/J No/Yes 1/0
F: (Not used) 0
G: (Not used) 0
H: When PLU level system is "Auto" (x: 2 B = 0),
PLU level returns to level 1 by one receipt/by one item. 1/0
x: 5 MRS = 00000000
A: (Not used) 0
B: (Not used) 0
C: (Not used) 0
D: VAT shift system By shift key/by cashier 1/0
E: (Not used) 0
F: (Not used) 0
G: (Not used) 0
H: (Not used) 0
x: 6 (Not used) MRS = 00000000
x: 7 (Not used) MRS = 00000000
x: 8 (Not used) MRS = 00000000
x: 9 (Not used) MRS = 00000000
x: 10 (Not used) MRS = 00000000
x: 11 (Not used) MRS = 00000000
x: 12 (Not used) MRS = 00000000
x: 13 MRS = 00000000
A: Credit totalizer update if RA/PO finalized
by Credit key Yes/No 1/0
B: Separater line in report Separater line/1 line 1/0
C: (Not used) 0
D: (Not used) 0
E: (Not used) 0
F: (Not used) 0
G: (Not used) 0
H: (Not used) 0
(*2) Hourly report : a bc
a: Hourly report format by 15 minutes/by 30 minutes 1/0
bc:start hour 00 to 23
2600
TL
2616 X ABCDEFGH
0
ST TL
– 17 –

[JOB#2640]: READING OF TEXT PROGRAMMING
Key operation
STAMP Stamp
01/01/00 0:08
000000 #0019 
#2640*PGMâ* Job code/Mode title
#2641
01 entry error Message text
02 misoperation
03 no record
04 paper empty
05 secret code
06
07 memory full
08
09
10 out of stock
11 sbtl compul.
12 tend compul.
13
14
15
16
17
18
19
20
21
22 cashier err.
23 entry err ca
24
25
26
27
28
29
30
31 # compulsory
32 not assigned
33 not change
34 over limit.
35 inh. open pr
36 inh. unit pr
37 not non-tend
38
39 p off in vp
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67 buffer full
68
69
70
71
72 eft error
73 eft break
74
75
76 close drawer
77
78
79
80
81 entr secret#
82 send
83 receive
84 send ok
85 receive ok
86 com. error
87 data error
88 time out
89 cancel
#2644
001 dept price Guidance
002 dept func.
003 dept taxable
004 dept halo
005 dept text
006 dept com.grp
007 dept group
008 dept drctkey
009 plu asg.dept
010 plu price
011 plu base qty
012 plu stck add
013 plu stck sub
014 plu stck ovw
015 plu function
016 plu taxable
017 plu text
018 plu com.grp
019 plu drct key
020 link plu
2640
TL
– 18 –

021 set plu
022 plu code rng
023 plu func rng
024 plu stts rng
025 plu com rng
026 rate prgram
027 misc key pgm
028 fnc key halo
029 mdiakey halo
030 % halo
031 func text
032 misc key pgm
033 misc key pgm
034 mdia key pgm
035 mdiakey halo
036 csr code pgm
037 csr name pgm
038 csr pgm
039 date program
040 time program
041 mchn no. pgm
042 cc no. pgm
043 logotext pgm
044 vp count
045 opt feature
046 drawer alarm
047 hourlyreport
048 stack report
049 secret(pgm1)
050 secret(x1z1)
051 secret(x2z2)
052 messge text
053 guid text
054 tax rate
055 price
056 enter dept#
057 sign (-)
058 sign (+)
059 taxable1:yes
060 taxable1:no
061 taxable2:yes
062 taxable2:no
063 taxable3:yes
064 taxable3:no
065 vat:yes
066 vat:no
067 prt csr:yes
068 prt csr:no
069 vp compl:yes
070 vp compl:no
071 sif
072 sics
073 normal
074 delete
075 open&prest
076 preset
077 open
078 inhibited
079 halo(exp.)
080 halo(amount)
081 halo(rate)
082 com.grp
083 group
084 base q’ty
085 stock(add)
086 stock(sub)
087 stock(over)
088 rate
089 item
090 st
091 eft cmpl
092 eft noncmpl
093 footer :yes
094 footer :no
095 # cmpl
096 # noncmpl
097 due disable
098 due enable
099 drw open:yes
100 drw open:no
101 tnd cmpl:yes
102 tnd cmpl:no
103 tnd inh.
104 enter plu#
105 ent.csr code
106 ent.csr no
107 ent.drw#
108 g.c copy yes
109 g.c copy no
110 vat sft stat
111 vat sft not
112 ent.dept#
113 ent.key#
114 ent.func#
115 ent.pos.code
116 enter tax no
117 ent.tax rate
118 lower tax
119 enter msg no
120 enter gid no
121 (fixed data)
122 entercoookey
‘123 data send
124 data rcv.
125 org’zer rcv.
126 onl t.no.
127 onl modem
128 onl baudrate
129 onl code
130 onl timer
– 19 –
