Sharp Z-50 User manual

i.
CONT Nast

In some areas, the POWER switch positions are marked “I” and “ (’) ”
on the copier instead of ON and OFF.
The symbol “ (')”” denotes the copier is not completely de-energized
but in a standby condition at this POWER switch position.
If your copier is so marked, please read “I” for ON and “ (') ” for OFF.
NOTE: For a complete electrical disconnection, pull out the mains plug.

Welcome to the world of compact copying on the Z-50 Copier.
The SHARP Z-50 has been designed for greater copying versa-
tility while occupying a minimum amount of space and featuring
intuitive operating ease. Special features include:
@ Auto-repeat and auto-clear,
@ Two-way paper feed,
@ Automatic exposure control,
@ Colour copying,
@ Quick warm-up.
To get full use of all Copier features, be sure to familiarize your-
self with this Manual and the Copier. For quick reference during
Copier use, keep the Manual in a handy location.
@ UNPACKING 64) feast eativnry ended isan ae oe 2
@ A WORD ON COPIER INSTALLATION ............. 3
SCAUTIONS Staal te ee 3
OSELUP pc tne ctGads iasiaietw meena ew 4
@ MAKING COPIES oe optic enhata eee modlantackis 6.
@ SPECIAL PAPERS (MANUAL BY-PASS FEED) ....... 8
@ TWO-SIDED COPYING ..........0.0 0.000 e ee ees 9
@ COLOUR COPYING: 420.05 dnadidareersyeuded 10
@ [BR LOADING COPY PAPER................000. 11
@ 9A, MISFEED REMOVAL ..............2-.00005. 12
@ 3 DEVELOPER CARTRIDGE REPLACEMENT ..... 13
@ @ DRUM CARTRIDGE REPLACEMENT.......... 14
@ USER MAINTENANCE ............00000000- vee» 18
@ COPIER TROUBLE? ............. 0000 c eee eee 16
@ MOVING INSTRUCTIONS ...............000.008. 18
@ SPECIFICATIONS ss cac id show outlet ae nee ones 19

Remove
the
contents
in
the
following
order.
Operation Manual
Paper Cassette
Power Cord
-
“Save the carton and
packing materials. They
should be used to re-
pack and protect the
copier if it must be
shipped for servicing or
in case you move.

INSTALLATION
2
Improper installation may damage the copier. Please note the fol-
lowing during initial installation and whenever the copier is moved.
1. Be sure to use the rated power supply and to ground the
copier.
2. Do not plug the copier into an outlet used by other appliances.
3. Do not install your copier in areas that are:
@ damp, humid, or very dusty,
® exposed to direct sunlight,
® poorly ventilated,
@ subject to extreme temperature or humidity changes, eg. near
an air conditioner or heater.
4. Place the copier on a firm, level surface.
1. Do not touch the photoconductive drum. Scratches or
smudges on the drum will cause dirty copies.
2.
The
fusing
area
is
hot.
Exercise
care
when
inspecting
this
area.

Buttons
Upper haif
release button
. Remove the copier from the bag, remove
the tape holding the document cover
and exit tray.
. Press the buttons on both sides of the
copier and open the front cover.
If the drum cartridge is factory installed, skip
steps 3 through 6 and proceed to step 7.
. Slide the document cover left and press
the upper half release button to open the
copier.
. Remove the cover from the drum
cartridge.
5. Slide the drum cartridge into place.
. Close the upper half, making sure it
latches.
- Remove the developer cartridge from
the bag and shake it horizontally four or
five times.
- Remove the cover from the developer
cartridge.
Save the developer cartridge cover. It should
be used to seal the developer cartridge if the
copier must be shipped for servicing or in
case you move. (See page 18.)

9. Slide the developer cartridge in until it
locks in place.
10. Close the front cover.
11. Remove the paper cassette from the
bag.
12. Fan the copy paper and insert it into the
cassette. (Maximum: 100 sheets)
See LOADING COPY PAPER, page 11.
13. Insert the cassette into the copier.
14. Swing the exit tray down.
15. Plug the power cord into the copier and
then into the nearest outlet.
16. Turn the power on.
® Wait about two minutes for the READY
indicator to fight. Copying is now possible.

@ Open the document cover.
@ Place the original in the upper right cor-
ner, and close the document cover.
© Select the number of copies desired.
@ lf amistake is made, press the clear key to
clear the entry or hold the copy quantity key
down. The maximum number of copies is 19.
@ ‘‘0” will make a single copy.
COPY QUANTITY CLEAR
@ Compensate for light or dark originals.
® Normally set to AUTO EXPOSURE.
® Set to DARK to darken the copy.
®@ Set to LIGHT to lighten the copy.
© Press the print key when the green light
indicates that the copier is ready.
@ Press the clear key to stop copying.
The 2-50 enters the power save mode and the
READY indicator starts blinking approximately 90
sec, after the last copy is made. Copying is pos-
sible in the power save mode, but the first copy
may take a few seconds longer than usual.

Void area
Approx. 10mm (3/8"’)

(MANUAL BY-PASS FEED)
The manual feed by-pass is used to feed OHP films, labels, tracing paper, and other
special purpose papers. For best results, use only Sharp recommended supplies.
The maximum copy size is A4 (8-1/2” x 11”). The minimum copy size is 55 x 91
mm (2” x 3-1/2”).
1. Set the original face down on the docu-
ment glass, and close the document
cover.
2. Set the by-pass guide to the width of the
copy paper.
3. Insert a single sheet of copy paper into
the manual feed by-pass.
@ The paper will be fed automatically and the
copy made.
If copies are difficult to remove from the exit tray
when copying on a business card or other small
card, pull out the card tray to remove the copy.
Card tray

~
Fwo-sided
copies
can
also
be
made
on
the
Z-50
by
using
the
manual
feed
by-pass.
1. Place the first original (e.g. B) on the
document glass and make a copy.
@ The first copy can be made with paper from
a cassette or the manual feed by-pass.
2. Replace original B with originai C.
@ Make sure the first and second originals are
oriented the same way on the document
glass.
3. Turn the first copy (B) over, and feed it
into the manual feed by-pass.
@
Remove
each
two-sided
copy
promptly.
Do
not
let
copies
stack
up.

Colour
developer
cartridges
(sold
separately)
can
be
installed
to
copy
one
colour
at
a
time.
Multiple
colours
can
be
copied
on
the
same
page
by
changing
the
colour
developer
cartridges
and
recopying
on
the
same
copy
paper.
To order colour developer cartridges, use the part codes given below.
Black — (ZT-50DC1)
Red (ZT-50DC2)
Blue (ZT-50DC3)
Brown (ZT-50DC4)
Green (ZT-50DC5)
. Install the desired colour developer
cartridge.
See DEVELOPER CARTRIDGE REPLACE-
MENT, page 13.
. Set the original, the number of copies,
and press the print key.
3. Change the colour developer cartridge.
4. Feed the copy face up from the manual
feed by-pass to copy a second colour.
. Repeat steps 2 to 4 for all additional
colours.

appears
in
the
copy
quantity
display
when
the
paper
cassette
is
empty
or
when
the
paper
has
not
been
fed
all
the
way
in.
Check
the
cassette.
1. Push the pressure plate until it locks in
position.
2. Adjust the paper guides on the cassette
to the copy paper width and length.
3. Fan the copy paper and insert it into the
cassette.
Make sure the edges go under the corner
hooks.
@ The cassette holds a maximum of 100 sheets.
4. Insert the cassette into the copier.

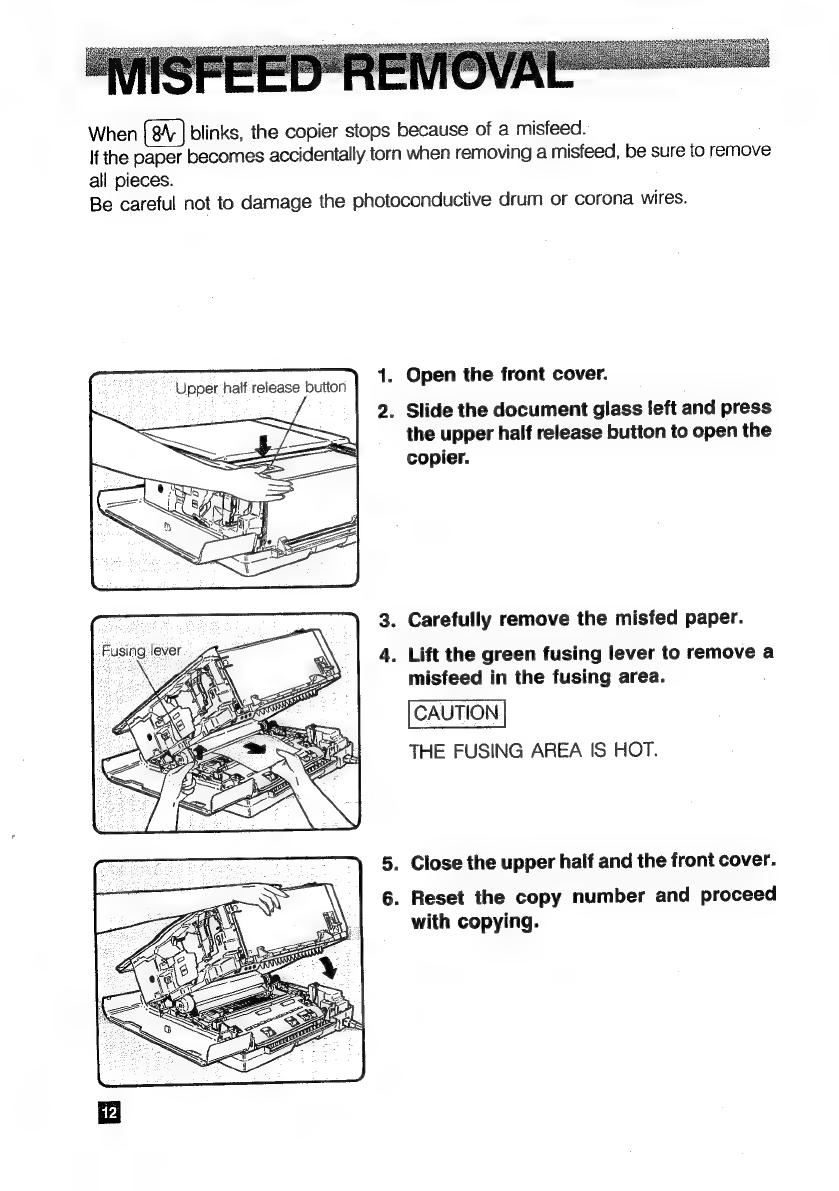

When
blinks,
the
copier
stops
because
of
a
misfeed.
If
the
paper
becomes
accidentally
torn
when
removing
a
misfeed,
be
sure
to
remove
all pieces.
Be
careful
not
to
damage
the
photoconductive
drum
or
corona
wires.
Upper half release button
. Open the front cover.
.
Slide
the
document
glass
left
and
press
the
upper
half
release
button
to
open
the
copier.
Carefully
remove
the
misfed
paper.
. Lift the green fusing lever to remove a
misfeed in the fusing area.
THE FUSING AREA IS HOT.
5.
Close
the
upper
half
and
the
front
cover.
6.
Reset
the
copy
number
and
proceed
with copying.

EVE
REPLACEMENT
—
blinks
when
the
developer
cartridge
is
empty
of
toner.
The
copier
stops
after
the
copy
run
in
progress
has
been
completed.
The
service
life
of
the
developer
cartridge
is
estimated
to
be
3,000
copies
of
aver-
age
letter
type
originals.
If
originals
having
pictures
or
other
large
dark
areas
are
copied,
the
developer
life
will
be
reduced
accordingly.
To replace the developer cartridge, follow the directions below.
. Open the front cover.
. Press down on the catch and pull out the
developer cartridge.
. Shake the new developer cartridge
horizontally four or five times and
remove the cover.
. Slide the new developer cartridge or the
desired colour developer cartridge in un-
til it locks in place.
. Close the front cover.
After installing the new developer cartridge, —
wait approximately two minutes for the
READY indicator to light up.

REPLACEMENT
(©
Jlights
up
after
approximately
8,000
copies
have
been
made.
This
indicates
that
it
is
time
to
change
the
drum
cartridge.
After
making
approximately
1,000
more
copies,
the
copier
will
stop.
Be
sure
you
have
a
new
drum
cartridge
ready
for
replacement.
7.
. Open the front cover.
. Press down on the catch and puil out the
developer cartridge.
. Press the upper half release button to
open the copier.
. Pull out the drum cartridge.
. Remove the cover from the new drum
cartridge.
Slide the new drum cartridge in place.
Replace the developer cartridge, close
the upper half so it latches and then
close the front cover.

Proper care is essential to clean,
regularly clean your Z-50 copier.
sharp
copies.
Be
sure
to
take
a
few
minutes
to
SS. Soe So elt DAES ER
Stains on the glass or cover will also be
copied. Wipe the glass and cover with a
soft, clean cloth. If necessary, dampen the
cloth with water or a glass cleaner.
Do not use thinner, benzene, or other vola-
tile cleaning agents.
c
1.
nied patie
Open the front cover.
2. Slide the built-in charge corona/fiber
optics cleaner in and out a few times as
shown in the figure.
' ae .
1. Open the front cover and the upper half.
2. Wipe the corona with the supplied coro-
na cleaner as shown in the figure.
3. Replace the corona cleaner and close
the copier.

@ Copier plugged in?
@ Power switch ON?
_@ Any trouble indicators on?
--@ls there paper in the cassette? See p. 11.
Blank copies -
@\s the original placed face down on
- the document glass?
-@
Adjust
the
EXPOSURE
control.
See
p.
6.
es
the
document
glass
or
cover__|_,coe
p.
15
dirty?
Le
_
@Clean
the
se
char
and
transfe
See
p.
15
“nas
and
fiber
optics.

e Is the copy paper properly loaded
_ in the cassette and the guides ad- —
_~ justed to the paper size? . . s
“@ Is the copy paper damp? Use only -
dry, flat copy paper. :
‘@Were “special papers” fed from the -
cassette? 2g
_ Images rub off the copy easily.
-@\s'the copy paper too heavy?
~ @ Is there a misfeed in the fusing area?
« @ls the copy paper: damp? :
@ Please contact your authorized Sharp Service
Kt Centre immediately if the problem persists after
checking the above.
The copier will not function if either of these codes
appears on the copy quantity display.
In either case, service by your authorized Sharp
Service Centre is required.

1. Open the copier and remove the de-
veloper cartridge.
@ Replace the cover to the developer cartridge.
2. Remove the paper cassette.
3. Close the copier and tape the exit tray
and document cover.
4. Pack the copier by reversing the UN-
PACKING instructions on page 2.
