Sharp AR-151 User manual

MODEL
AR-151
•GETTING STARTED
•MAKING COPIES
•SPECIAL FUNCTIONS
•SUPPLIES AND
USER MAINTENANCE
•COPIER TROUBLE?
•APPENDIX
•OPTIONAL EQUIPMENT
3
12
19
22
26
33
36
DIGITAL LASER COPIER
OPERATION MANUAL
Page
00cover-1.p65 2/11/00, 15:541
Downloaded from: http://www.usersmanualguide.com/

VAROITUS!
LAITTEEN KÄYTTÄMINEN
MUULLA KUIN TÄSSÄ
KÄYTTÖOHJEESSA MAINITULLA
TAVALLA SAATTAA ALTISTAA
KÄYTTÄJÄN
TURVALLISUUSLUOKAN 1
YLITTÄVÄLLE
NÄKYMÄTTÖMÄLLE
LASERSÄTEILYLLE.
VARNING
OM APPARATEN ANVÄNDS PÅ
ANNAT SÄTT ÄN I DENNA
BRUKSANVISNING
SPECIFICERATS, KAN
ANVÄNDAREN UTSÄTTAS FÖR
OSYNLIG LASERSTRÅLNING,
SOM ÖVERSKRIDER GRÄNSEN
FÖR LASERKLASS 1.
CLASS 1 LASER PRODUCT
LASER KLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
Caution
This product contains a low power laser device.
To ensure continued safety do not remove any
cover or attempt to gain access to the inside
of the product. Refer all servicing to qualified
personnel.
00cover-2.p65 2/11/00, 15:541
Downloaded from: http://www.usersmanualguide.com/

1
CONTENTS
1GETTING STARTED
INTRODUCTION 3
CAUTIONS 4
MAIN FEATURES 5
PART NAMES 6
OPERATION PANEL 7
COPIER INSTALLATION 8
CAUTIONS ON HANDLING 9
LOADING COPY PAPER 10
2MAKING COPIES
NORMAL COPYING 12
– Setting a large original 14
EXPOSURE ADJUSTMENT/PHOTO COPYING 14
REDUCTION/ENLARGEMENT/ZOOM 15
BYPASS FEED (including special paper) 16
TWO-SIDED COPYING 17
3SPECIAL FUNCTIONS
DESCRIPTION OF SPECIAL FUNCTIONS 19
TONER SAVE MODE 19
USER PROGRAMS (power save modes, auto clear time,
stream feeding mode) 20
–Setting the power save modes and auto clear time 20
DISPLAYING TOTAL NUMBER OF COPIES 21
4SUPPLIES AND USER MAINTENANCE
TONER CARTRIDGE REPLACEMENT 22
–Toner cartridge life 24
USER MAINTENANCE 24
–Cabinet 24
–Original table and original cover 24
–Transfer charger 25
–When copier is not in use 25
00con.p65 2/11/00, 15:541
Downloaded from: http://www.usersmanualguide.com/

2
5COPIER TROUBLE?
MISFEED REMOVAL 26
–A Misfeed in the paper feed area 27
–B Misfeed in the fusing area 27
–C Misfeed in the transport area 28
DEVELOPER REQUIRED 29
MAINTENANCE REQUIRED 29
TROUBLESHOOTING 30
STATUS INDICATORS 31
AUTOMATIC EXPOSURE ADJUSTMENT 32
6APPENDIX
SPECIFICATIONS 33
SUPPLIES 34
–Types and sizes of copy paper 34
7OPTIONAL EQUIPMENT
SYSTEM CONFIGURATION 36
SINGLE PASS FEEDER (AR-SP3) 37
–Part names 37
–Specifications 37
–Using the SPF 37
–Stream feeding mode 38
–Misfeed in the SPF 38
250-SHEET PAPER FEED UNIT (AR-DE9) 40
–Part names 40
–Loading copy paper 40
–Misfeed removal 40
–Specifications 41
INDEX
CONTENTS
00con.p65 2/11/00, 15:552
Downloaded from: http://www.usersmanualguide.com/

3
1
Getting started
GETTING STARTED
This chapter provides basic information for using the copier.
INTRODUCTION
This copier has been designed to provide intuitive operating ease while requiring a minimum
amount of space. To get full use of all copier features, be sure to familiarise yourself with this
manual and the copier.
For quick reference during copier use, keep this manual in a handy location.
This copier can be used as a laser printer and as a facsimile machine by installing
optional components.However, this manual describes only the copier features.
For description of the printer features and facsimile features, see the separate
manuals.
Conventions used in this manual
In this manual, the following icons are used to provide the user with information pertinent to the
use of the copier.
Warns the user that injury to the user or damage to the copier may result if the
contents of the warning are not properly followed.
Cautions the user that damage to the copier or one of its components may
result if the contents of the caution are not properly followed.
Notes provide information relevant to the copier regarding specifications,
functions, performance, operation and such, that may be useful to the user.
Indicates a letter displayed in the display.
AB series (metric) and inch series references
When references are made to paper sizes and weights, the inch series values are quoted in
brackets.
For example:
Page 34 --------------------- 52 to 130 g/m2(14 lbs. to 34.5 lbs.)
Page 35 --------------------- A4 (8-1/2" x 11")
01C-1.p65 2/11/00, 15:553
Downloaded from: http://www.usersmanualguide.com/

4
1
Getting started
CAUTIONS
Follow the cautions below when using this copier.
●The fusing area is hot. Exercise care in this area when removing misfed paper.
●Do not look directly at the light source. Doing so may damage your eyes.
●Do not switch the copier rapidly on and off. After turning the copier off, wait 10
to 15 seconds before turning it back on.
●Copier power must be turned off before installing any supplies.
●Place the copier on a firm, level surface.
●Do not install the copier in a humid or dusty location.
●When the copier is not used for a long time, for example, for consecutive
holidays, turn the power switch off and remove the power cord from the outlet.
●When moving the copier, be sure to turn the power switch off and remove the
power cord from the outlet.
●Do not cover the copier with a dust cover, cloth or plastic film while the power
is on. Doing so may prevent heat radiation, damaging the copier.
●Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Cautions on laser
Wave length 770 nm - 795 nm
Pulse times 11.82 µs/7 mm
Output power 0.17 mW ± 0.01 mW
01C-1.p65 6/11/00, 16:184
Downloaded from: http://www.usersmanualguide.com/

5
1
Getting started
MAIN FEATURES
High-speed laser copying
●Since warm-up time is zero, copying can be started immediately after the power switch is
turned on.
●First-copy time is only 9.6 seconds (normal mode).
●Copying speed is 15 copies/min., which adapts to business use, allowing improvement
of working efficiency.
High-quality digital image
●High-quality image copying at 600 dpi can be performed.
●In addition to the automatic exposure mode, the manual exposure can be adjusted in five
steps.
●The photo mode copying function allows clear copying of delicate halftone original images
such as monochrome photos and colour photos.
Substantial copying functions
●Zoom copying from 50% to 200% in 1% increments can be performed.
●Continuous copying of maximum 99 sheets can also be performed.
●Toner save mode reduces toner consumption by approximately 10%.
●User programs allow setting/modification of functions for customer’s needs.
Scan once/ Print many
●The copier is equipped with a 1-page memory buffer. This memory allows the
copier to scan an original once only and make up to 99 copies. This feature allows for
improved workflow, reduced operating noise from the copier and reduced wear and tear
on the scanning mechanism.This feature provides for a higher reliability.
Optional features
●An optional single pass feeder (SPF) allows automatic document feeding of up to 30
sheets.
●The copier can be used as a laser printer by installing an optional printer expansion kit.
●This copier can be used as a facsimile machine by installing an optional facsimile expansion
kit.
●An optional 250-sheet paper feed unit can be installed to allow a total capacity of 500
sheets with two paper trays.
Some options may not be available in some countries.
Environmentally friendly design
●Paper output tray is housed in the copier for space saving.
●Preheat and auto power shut-off modes are provided to reduce power consumption in
standby mode.
01C-1.p65 2/11/00, 15:555
Downloaded from: http://www.usersmanualguide.com/

6
1
Getting started
PART NAMES
Toner cartridge lock release
lever
Toner cartridge
Transfer charger
Paper feed roller
Fusing unit
release lever Charger cleaner
Original table
Operation
panel
Paper tray
Front cover Side cover
open button
Original cover
Side cover
Power cord socket
Power switch Handle
Handle Cover for optional
printer interface
*A printer expansion
kit is optional.
Bypass tray guides
Bypass tray
Paper output
tray
Paper output tray
extension
Photoconductive drum
01C-1_AR151EX.p65 14/11/00, 11:196
Downloaded from: http://www.usersmanualguide.com/

7
1
Getting started
OPERATION PANEL
Exposure mode selector key and indicators
Use to sequentially select the exposure modes:
AUTO, MANUAL or PHOTO. Selected mode is
shown by a lit indicator. (p. 15)
Light and dark keys and exposure
indicators
Use to adjust the MANUAL or PHOTO exposure
level. Selected exposure level is shown by a lit
indicator. (p.15)
Use to start and terminate user program
setting. (p. 20)
Alarm indicators
: Developer replacement required
indicator (p. 29)
: Misfeed indicator (p. 26)
: Toner cartridge replacement required
indicator (p. 22)
: Maintenance indicator (p. 29)
SPF indicator (p. 38)
SPF misfeed indicator (p. 38)
Copy ratio selector key and copy ratio
indicators
Use to sequentially select preset reduction/
enlargement copy ratios.
Selected copy ratio is shown by a lit indicator.
(p. 16)
Zoom indicator (p. 16)
Copy ratio display (%) key (p. 15)
Display
Displays the specified copy quantity, zoom copy
ratio, user program code, and error code.
ON LINE indicator
Lights up when the machine is used as a
printer. To use the copier as a printer, an
optional printer expansion kit is needed.
Inch system
ON LINE key
Changes between the on-line and off-line
modes when the PCL expansion kit has been
installed and a PCL printer is used.
Changes modes from the off-line to on-line
when the GDI expansion kit has been installed
and a GDI printer is used.
DATA indicator
Indicates that the printer is receiving or
processing print data. To use the copier as a
printer, an optional PCL expansion kit is
needed.
Power save indicator
Lights up when the copier is in a power save
mode. (p. 19)
Tray select key
Use to select a paper feed station (paper tray
or bypass tray). (p. 17)
Paper feed location indicators
Light up to show the selected paper feed
station.
Zoom keys
Use to select any reduction or enlargement
copy ratio from 50 to 200% in 1% increments.
(p. 15)
Copy quantity keys
●Use to select the desired copy quantity (1 to
99). (p. 15)
●Use to make user program entries.
(p. 20)
Clear key
●Press to clear the display, or press during a
copy run to terminate copying. (p. 13)
●Press and hold down during standby to
display the total number of copies made to
date. (p. 21)
Print key and ready indicator
●Copying is possible when the indicator is on.
●Use to set a user program.
01C-1.p65 2/11/00, 15:557
Downloaded from: http://www.usersmanualguide.com/

8
1
Getting started
COPIER INSTALLATION
Improper installation may damage the copier.Please note the following during initial installation
and whenever the copier is moved.
If the copier is moved from a cool place to a warm place, condensation may
form inside the copier. Operation in this condition will cause poor copy quality
and malfunctions. Leave the copier at room temperature for at least 2 hours
before use.
Do not install your copier in areas that are:
●damp, humid, or very dusty
●exposed to direct sunlight
●poorly ventilated
●subject to extreme temperature or humidity
changes, e.g., near an air conditioner or
heater.
The copier should be installed near an accessible power outlet
for easy connection.
Be sure to connect the power cord only to a power outlet that
meets the specified voltage and current requirements.
Also make certain the outlet is properly grounded.
Connect the copier to a power outlet which is not used for other
electric appliances.If a lighting fixture is connected to the same
outlet, the light may flicker.
01C-1.p65 2/11/00, 15:558
Downloaded from: http://www.usersmanualguide.com/

9
1
Getting started
20 cm (8")
20 cm (8")
10 cm
(4") 10 cm
(4")
COPIER INSTALLATION
Be sure to allow the required space
around the machine for servicing and
proper ventilation.
CAUTIONS ON HANDLING
Be careful in handling the copier as follows to maintain the performance of this copier.
Do not drop the copier, subject it to shock
or strike it against any object.
Store spare toner cartridges in a cool dry place without removing from the
package before use.
If they are exposed to direct sunlight or excessive heat, poor copies may result.
Do not touch the photoconductive drum (green portion).
Scratches or smudges on the drum will cause dirty copies.
01C-1.p65 6/11/00, 16:179
Downloaded from: http://www.usersmanualguide.com/

10
1
Getting started
LOADING COPY PAPER
Raise the handle of the paper tray and pull the paper tray out until it stops.
Adjust the paper guides on the paper tray to the copy paper width and length.
Squeeze the lever of paper guide and slide the guide to match with the width of the
paper.
Move paper guide to the appropriate slot as marked on the tray.
Paper guide Paper guide
Fan the copy paper and insert it into the tray. Make sure the edges go under the corner
hooks.
Do not load paper above the maximum height line ( ). Exceeding the line
will cause a paper misfeed.
01C-1.p65 2/11/00, 15:5510
Downloaded from: http://www.usersmanualguide.com/

11
1
Getting started
LOADING COPY PAPER
Gently push the paper tray back into the copier.
After loading copy paper, to cancel the blinking “P” without restarting copying,
press the clear ( ) key. The “P” in the display will go out and the ready ( )
indicator will light up.
01C-1.p65 2/11/00, 15:5511
Downloaded from: http://www.usersmanualguide.com/

12
2
Making copies
MAKING COPIES
This chapter describes basic copying functions and some other copying functions using the
bypass tray.
NORMAL COPYING
Ensure that paper of the desired size is set in the paper tray. See page 10, LOADING
COPY PAPER. When copying onto paper larger than A4 (8-1/2" x 11") size, pull out
the paper output tray extension.
Turn the power switch on.
The ready ( ) indicator will light up.
●The copier will enter a power save mode once the set time has elapsed
without any copier operation after the last copy of a run is made or power is
turned on.
The settings of the power save modes can be modified. See page 20, USER
PROGRAMS.
●The copier will return to the initial settings a preset amount of time after the
last copy is made.The preset amount of time (auto clear time) can be changed.
See page 20, USER PROGRAMS.
01C-2.p65 2/11/00, 15:5512
Downloaded from: http://www.usersmanualguide.com/

13
2
Making copies
NORMAL COPYING
Tens digit Units digit
Open the original cover.
Place the original face down on the original table. Align it with the original scale and
the centring ( ) mark.
mark
Original scale
Gently close the original cover. When copying a book or an original which has been
folded or a crumpled original, press down the original cover lightly. If the original
cover is not securely closed, the copies may be striped or blurred.
A book, an original which has been
folded, or a crumpled original
Set the number of copies using the two copy quantity ( , ) keys.
●Press the clear ( ) key to clear an entry if a mistake is made.
●A single copy can be made with the initial setting, i.e., when “0” is displayed.
●Press the right copy quantity key to set the units
digit from 0 to 9. This key will not change the
tens digit.
●Press the left copy quantity key to set the tens
digit from 1 to 9.
01C-2.p65 2/11/00, 15:5513
Downloaded from: http://www.usersmanualguide.com/

14
2
Making copies

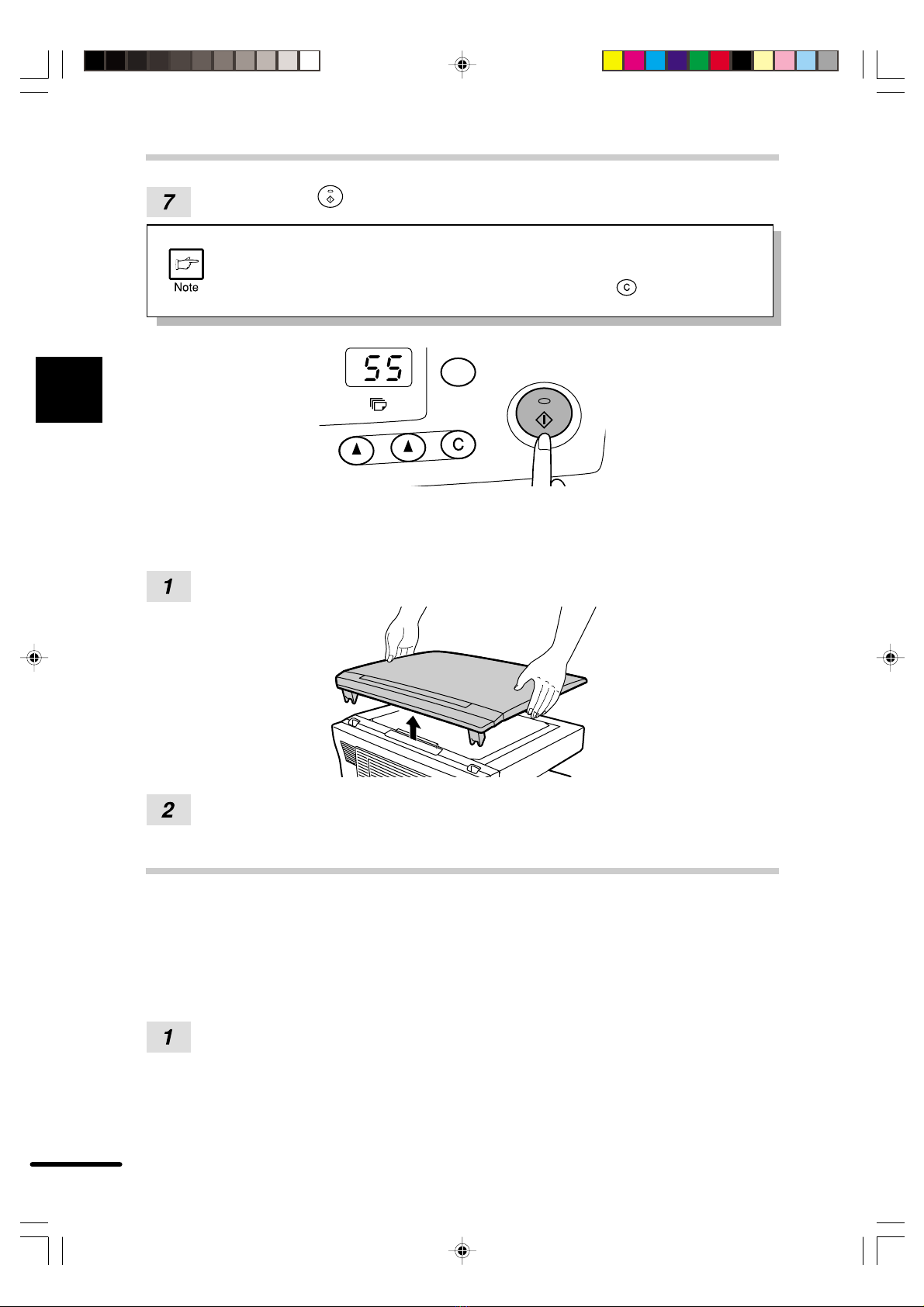

Press the print ( ) key.
●To display the number of copies made in a continuous run, press the left
copy quantity key.
●To stop copying in the middle of a run, press the clear ( ) key. Copying will
stop and the number in the display will be reset to “0”.
Setting a large original
The original cover can be removed to allow copying of bulky objects.
Simply lift the original cover straight up.
To reattach the original cover, reverse the above procedure.
EXPOSURE ADJUSTMENT/PHOTO COPYING
Copy density adjustment is not required for most originals in the automatic exposure mode. To
adjust the copy density manually or to copy photographs, the exposure level can be adjusted
in five steps manually.
Set the original and check the copy paper size.
NORMAL COPYING
01C-2_AR151EX.p65 16/11/00, 19:2014
Downloaded from: http://www.usersmanualguide.com/

15
2
Making copies
Press the exposure mode selector key to select the manual ( ) mode or photo ( )
mode.
Use the light ( ) and dark ( ) keys to adjust the exposure level.
If exposure level 2 is selected, the two left-handmost indicators for that level will light
up simultaneously. Also, if level 4 is selected, the two right-handmost indicators for
that level will light up simultaneously.
Set the number of copies using the copy quantity ( , ) keys and press the print
() key.
REDUCTION/ENLARGEMENT/ZOOM
Three preset reduction ratios and two enlargement ratios can be selected.The zoom function
enables copy ratio selection from 50% to 200% in 1% increments.
Set the original and check the copy paper size.
Use the copy ratio selector key and/or zoom ( , ) keys to select the desired copy
ratio.
●To verify a zoom setting without changing the zoom ratio, press and hold
down the copy ratio display (%) key. When the key is released, the display
will return to the copy quantity display.
●To reset the ratio to 100%, press the copy ratio selector key repeatedly until
the 100% indicator lights up.
EXPOSURE ADJUSTMENT/PHOTO COPYING
01C-2.p65 2/11/00, 15:5615
Downloaded from: http://www.usersmanualguide.com/

16
2
Making copies
Preset reduction and enlargement ratios
are: 50%, 70%, 81%, 141%, and 200%
(50%, 64%, 78%, 129%, and 200%)
When a zoom ( or ) key is pressed,
the ZOOM indicator will light up and the
zoom ratio will be displayed in the
display.
To decrease or increase the zoom ratio rapidly, press and hold down the or
key. However, the value will stop at the preset reduction or enlargement
ratios. To move beyond these ratios, release the key and then press and hold
it down again.
Set the number of copies using the copy quantity ( , ) keys and press the print
() key.
BYPASS FEED (including special paper)
The bypass tray automatically feeds up to 50 sheets of standard copy paper and also feeds
special papers such as transparency film and labels one sheet at a time. Copy paper measuring
from A6 to A4 (3-1/2" x 5-1/2" to 8-1/2" x 14") and in the weight range of 52 to 130 g/m2(14 to
34.5 lbs.) can be used in this tray. (For paper weighing from 52 to 130 g/m2(28 to 34.5 lbs.), A4
(8-1/2" x 11") is the maximum size.)
Place the original face down on the original table. Align it with the original scale and
close the original cover.
The original image must be smaller than the paper or media for copying.
If the original image is bigger than the paper or media, this may cause smudges
on the edges of the copies.
Open the bypass tray and extend the tray.
REDUCTION/ENLARGEMENT/ZOOM
To select a preset copy ratio: To select a zoom ratio:
01C-2.p65 2/11/00, 15:5616
Downloaded from: http://www.usersmanualguide.com/

17
2
Making copies

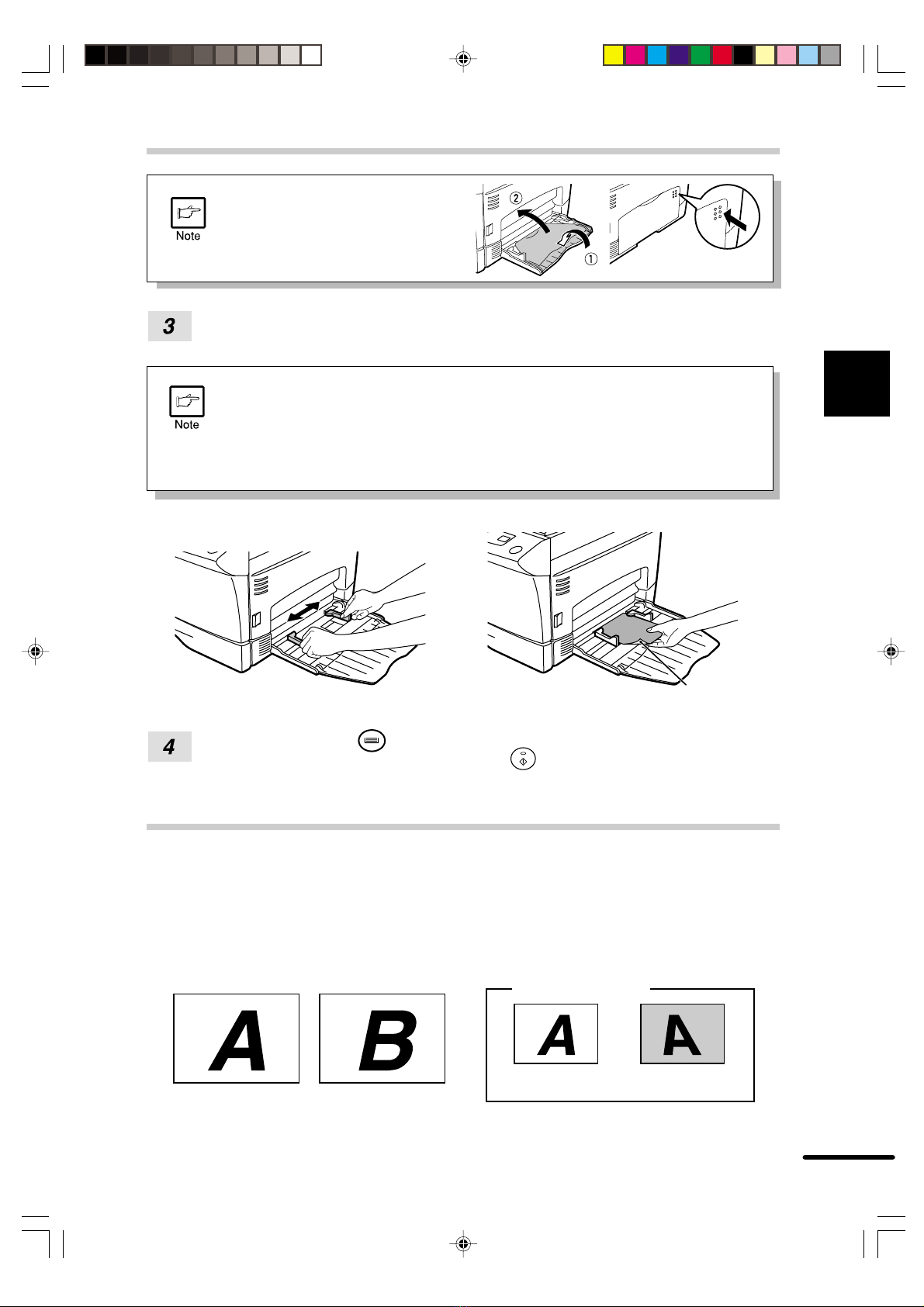

To close the bypass tray, perform
step1 and then step 2 in the
illustration and push the round
projections at the right of the tray
until the tray clicks into place.
Set the paper guides to the copy paper width. Insert the copy paper (print face down)
all the way into the bypass tray.
●Paper must be fed narrow side into the feed slot.
●Transparency film, labels, and other special purpose papers must be fed
individually.
●When copying onto transparency film, remove each copy promptly. Do not
let copies stack up.
●When loading an envelope, make sure that it is straight and flat.
Print face
Press the tray select ( ) key to select the bypass tray. Set the number of copies if
using standard copy paper. Press the print ( ) key.
TWO-SIDED COPYING
Two-sided copying can be made on this copier using the bypass tray.
Example: The following two originals will be copied onto two sides of copy paper.
Face up
First original Second original
Face up or face down
Face down
BYPASS FEED
01C-2.p65 2/11/00, 15:5617
Downloaded from: http://www.usersmanualguide.com/

18
2
Making copies

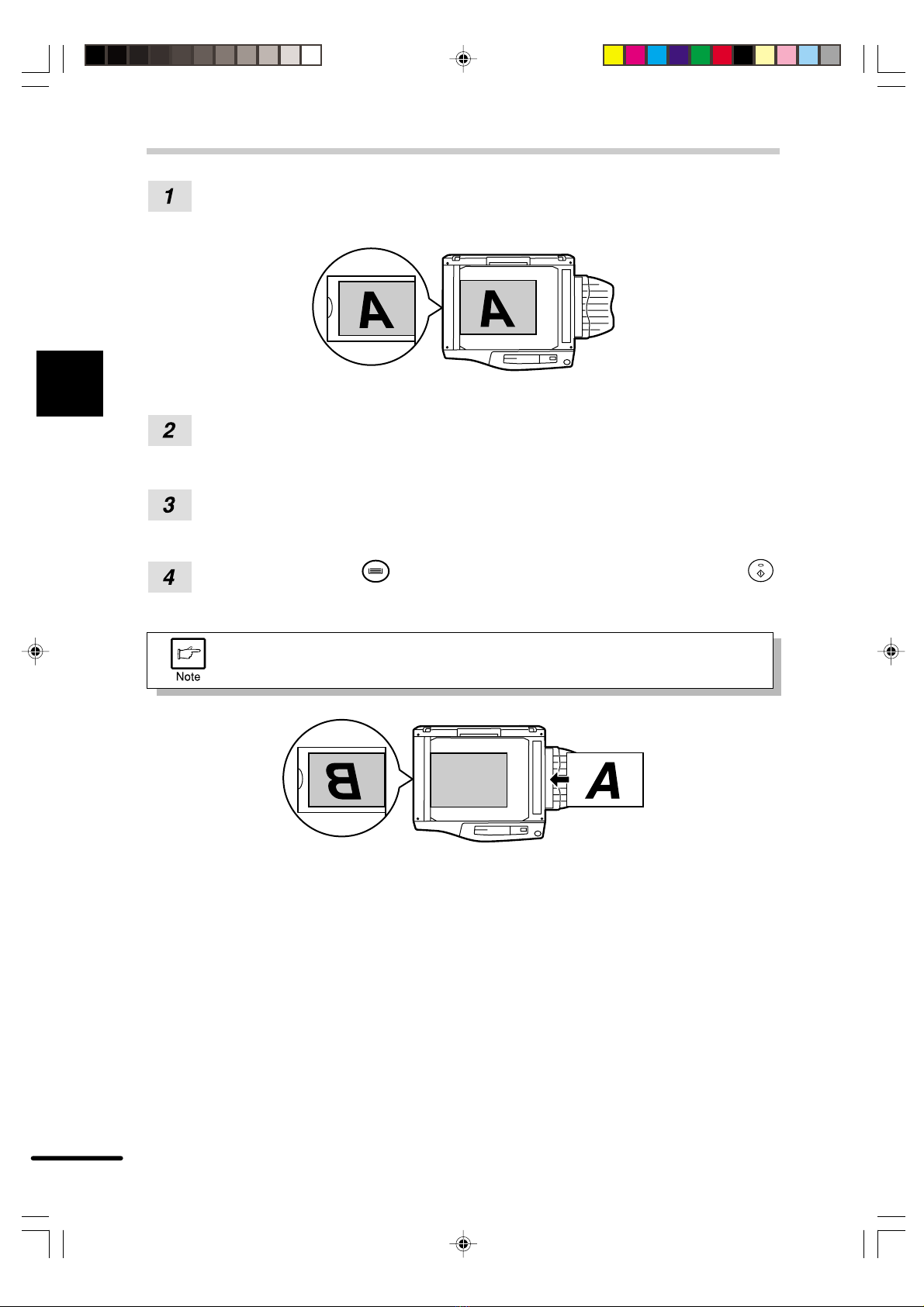

Place the first original on the original table and make a copy.
The first copy can be made using either the paper tray or the bypass tray.
Replace the first original with the second original on the original table and close the
original cover. Make sure that the first and second originals are oriented in the same
way on the original table.
For tablet binding, turn the first copy over left to right as shown below. For booklet
binding, turn the first copy over top to bottom (not shown). Feed the first copy into the
bypass tray.
Press the tray select ( ) key to select the bypass tray and press the print ( )
key.
Be sure to feed the copy paper one sheet at a time.
B
TWO-SIDED COPYING
01C-2.p65 2/11/00, 15:5618
Downloaded from: http://www.usersmanualguide.com/
