Sharp DW-E16FA User manual

CONTENTS PAGE
Model
AIR PURIFYING DEHUMIDIFIER
OPERATION MANUAL
DW-E16FA
E - 2
E - 3
E - 4
E - 8
E - 10
E - 10
E - 10
E - 11
E - 12
E - 12
E - 13
E - 14
E - 14
E - 15
E - 16
E - 17
E - 18
E - 18
E - 19
E - 19
E - 20
E - 20
E - 21
E - 22
E - 22
E - 24
E - 25
E - 25
E - 26
E - 27
E - 28
＊The number in this technology mark refers to the
approximate quantity of ions per cm3of air released from
the dehumidifier equipped with a high-concentration
Plasmacluster ion generating unit which was measured at
the center point (1.2 meter height above the floor) of high
concentration Plasmacluster 7,000 applicable floor area
room (temperature 20°C, humidity 50%) when the
dehumidifier was placed against the wall and runs in air
purifying mode with HIGH air flow.
Do not use the product for business purpose.
Device of this mark is a trademark of Sharp Corporation.
Plasmacluster is a registered trademark or a
trademark of Sharp Corporation.
Thank you for purchasing this SHARP product.
Please read this Operation Manual carefully for proper usage.
Please be sure to read “SAFETY PRECAUTIONS” before use.
Keep this manual properly for future reference.
GETTING STARTED HOW TO USE CARE AND
MAINTENANCE WHEN NECESSARY
FEATURES
FAQs
SAFETY PRECAUTIONS

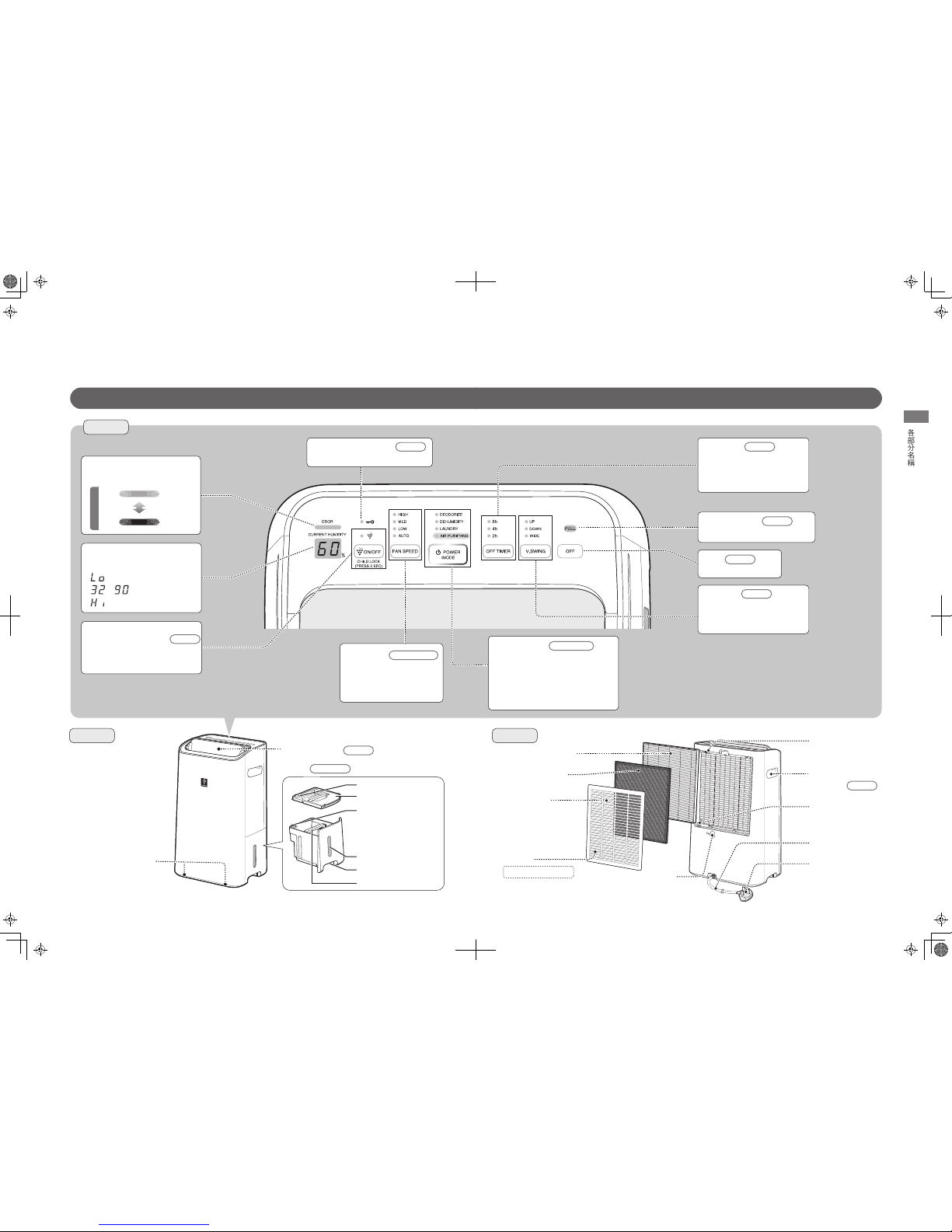

PARTS NAME
WHAT YOU NEED TO KNOW
●DEHUMIDIFICATION MECHANISM
●ABOUT DEHUMIDIFICATION
●AUTO OFF FUNCTION
BEFORE USE
●WHEN USING FOR THE FIRST TIME
●INSTALLATION LOCATION ●WHEN MOVING
HOW TO OPERATE
●LAUNDRY DRYING
●DEHUMIDIFYING
●DEODORIZING
●AIR PURIFYING ●STOP
EASY-TO-USE FUNCTIONS
●VERTICAL SWING LOUVER ●OFF TIMER
●PLASMACLUSTER ION ON/OFF ( )
●CHILD LOCK ●NOTIFICATION SOUND OFF
HOW TO DRAIN
●WATER TANK
●CONTINUOUS DRAINAGE
CARE AND MAINTENANCE
●WHAT YOU NEED TO KNOW
●REAR PANEL ●WATER TANK
●FOR HEAVY DUST /
WHEN ODOR IS A CONCERN
●WHEN NOT USING FOR A LONG PERIOD
OF TIME
FILTER REPLACEMENT
SPECIFICATIONS
TROUBLESHOOTING
AIR PURIFYING DEHUMIDIFIER OPERATION MANUAL
DW-E16FA
＊
High - Density 7,000

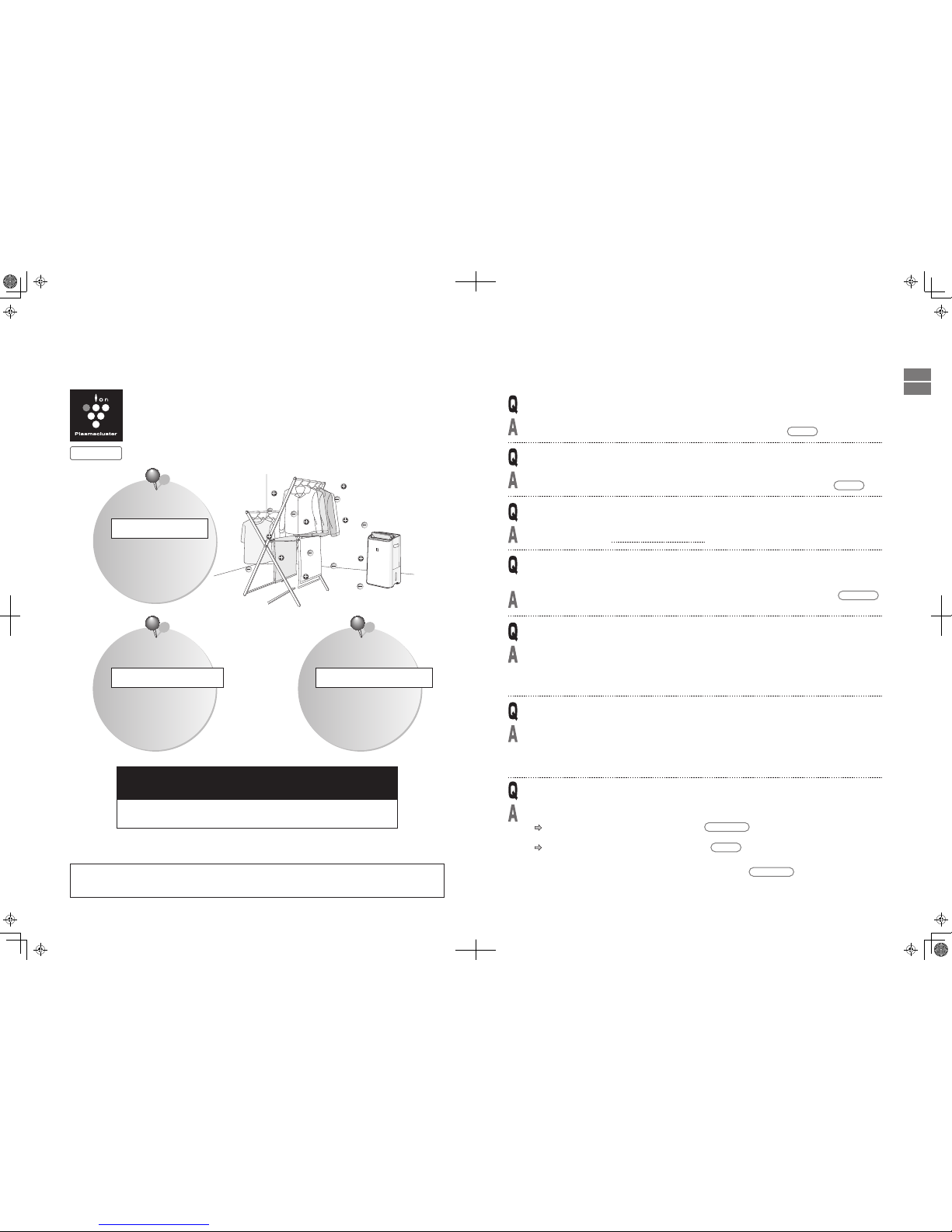

FEATURES FAQs
E - 2
＊
LAUNDRY DRYING
● PM2.5 is a collective name for fine particles less than 2.5μm in diameter.
● It is not confirmed whether the dehumidifier can remove small particles less than 0.1μm in diameter.
It cannot remove all harmful substances in the air, either.
● The effect is achieved in a confined space of 32m3instead of an actually used space.
PM2.5 Removal Efficiency of the Plasmacluster Dehumidifier (DW-E16FA)
Collects 99% of 0.1-2.5μm※3particles
New particles coming from outdoors due to ventilation are not taken into consideration.
HEPA filter ※1+Deodorizing Active
Carbon filter
Dehumidification capacity: 8.8 L/day
※ 2
Capable of continuous drainage with a 3.0L tank.
E - 3
A powerful Dehumidifier with a High Concentration of
Plasmacluster Ions, a high performance HEPA filter
※1
,
and a deodorizing active carbon filter for Room Air Purifying,
Laundry Deodorizing, Quick Drying, and Dehumidifying.
High - Density 7,000
Wide angle automatic swing
louvers for evenly drying
Deodorize room-dried
laundry with a high
concentration
Plasmacluster ions.
Collect dust, pollen and
unpleasant odor during laundry
drying and dehumidifying.
※1 The filter collects 99.97% or above of 0.3μm
(micrometer) particles
Adjust the dehumidification amount
for proper humidity level according to
the room temperature.
※2 The dehumidification level per day while the
room temperature is kept at 26.7℃and relative
humidity at 60%. (Dehumidifying (HIGH))
AIR PURIFYING DEHUMIDIFYING
※3 Test method: JEMA (HD-128); Judgment criteria: It takes less than 90 minutes to remove 99% of
small particles of 0.1-2.5μm in a confined space of 32m3.
(A value converted to a test space of 32m3)
* The number in this technology mark refers to the approximate quantity of ions per cm3of air released from the dehumidifier equipped
with a high-concentration Plasmacluster ion generating unit which was measured at the center point (1.2 meter height above the floor)
of high concentration Plasmacluster 7,000 applicable floor area room (temperature 20°C, humidity 50%) when the dehumidifier was
placed against the wall and runs in air purifying mode with HIGH air flow.
FEATURES / FAQs
■ Please read “TROUBLESHOOTING” for further details.
The sound seems too loud?
There is a sound at the start of operation/during operation/when the unit stops.
This is the sound of compressor operation or refrigerant (coolant) circulation.
The water does not accumulate in the tank. Is the unit dehumidifying?
When the temperature is high, or when the temperature or humidity is low, air flow mode will operate,
and the unit will not dehumidify. The water will not be collected in the tank during this time.
Will the room get warm?
When using functions such as laundry drying or dehumidifying, warm air will be coming out from
the front air outlet, and when used in an enclosed room, the room temperature will go up.
I would like to continuously operate the unit in dehumidifying mode.
Is continuous drainage possible?
Continuous drainage is possible by using a commercially available hose (inner diameter 15mm).
The CURRENT HUMIDITY display seems wrong?
The air flow seems to get stronger on its own?
Even if the laundry drying, dehumidifying or air purifying (Auto) operation is set,
the air flow will increase automatically during the following situations:
●When the room temperature is 30°C or above...in order to lower the internal temperature.
●When the room temperature is 15°C or lower...(Air flow only) in order to prevent frost forming inside.
●When the "odor sensor" detects dirt in the room air...in order to remove dirt in the room air.
Why is there odor coming out from the air outlet?
●If the unit is used where there is strong odor of smoking or barbecue for a long time, the odor might
adhere to the filter.
Sometimes, it is necessary to replace the filter.
●When the unit has been used for a long time, odor and dirt might adhere to the inside.
Please regularly clean the unit and dry its inside.
E -29
E -11, 21
E -28
E -22~23
E -28~31
The CURRENT HUMIDITY display is only for reference. (The value will not necessarily be the same
with other devices.)
When the humidity suddenly changes immediately after the laundry drying mode starts, the display
might be different from the actual humidity. When the humidity is 31% or lower, the display will
show [Lo]; and 91% or above will show [Hi].
E -22

E - 4
●Be sure to shut the unit down and remove its power plug.
(The inner fan is rotating at high speed and may cause injury.)
WARNING
CAUTION
Power Plug, Power Cord
E - 5

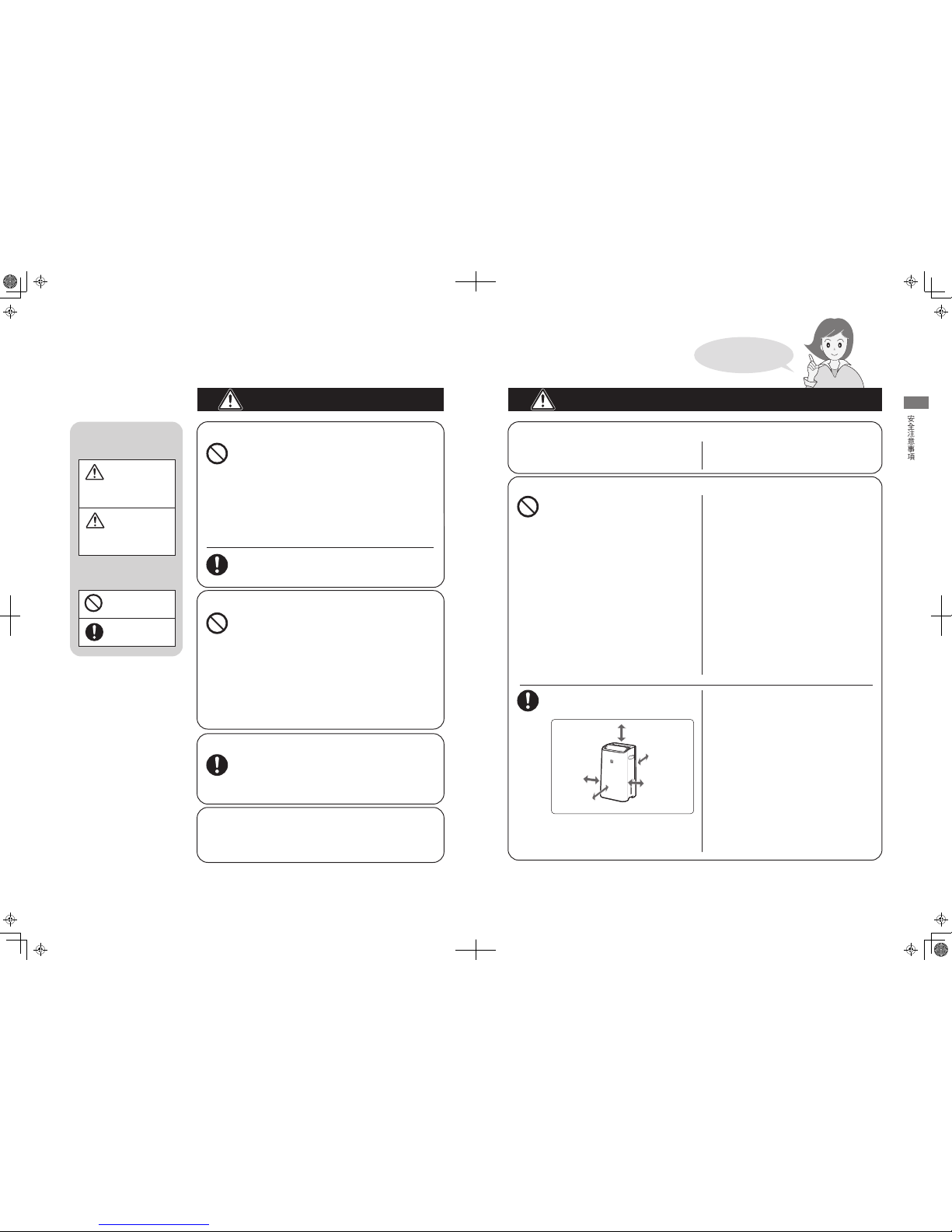

SAFETY PRECAUTIONS
To prevent any possible injury to
persons or damage to property, be
sure to follow the basic safety
precautions, including the following:
WARNING
To prevent fire, electric shock or injury
■The degree of injury or
damage resulting from
incorrect use or operation
while ignoring the
indicated matters is
classified and explained
with the following symbols.
Indicates a potentially
hazardous situation
which, if not avoided,
could result in
serious injuries or
even death.
Indicates a potentially
hazardous situation
which, if not avoided,
could result in injury
to persons or damage
to property.
This symbol
indicates a
mandatory
action.
This symbol
indicates a
prohibited
action.
●Do not damage the power cord.
●Do not process, forcibly bend, pull by force,
twist or bind the power cord.
●Do not place heavy objects on the power
cord, or apply too much force to it.
●Do not damage the power cord while moving
the unit on its casters.
(Otherwise, fire or electric shock may be
caused.)
●Do not plug/unplug the power cord with wet
hands.
(Otherwise, electric shock may be caused.)
●Do not connect the unit from extension cord
or multiple wiring with other electronic
appliances.
(Otherwise, electric shock, fire or heat may be
caused.)
●Do not use other than the rated voltage
220-240V (50Hz).
●Do not operate or stop the unit by using the
power plug.
(Otherwise, electric shock or fire may be
caused.)
●Make sure there is no dust on the power plug
and insert it into the outlet completely.
Any dust around the power plug should be
wiped off with a dry cloth periodically.
(Accumulated dust may result in poor insulation
from humidity, etc., thereby causing fire or
electric shock.)
●Be sure to immediately shut down the product, remove its power plug and
contact the customer service center for repair.
(Otherwise, electric shock or fire may be caused.)
●For repairs, please consult the store where you purchased the product or
the nearest customer service center.
(An incomplete repair may cause electric shock, fire or injury.)
●If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
●The appliance shall be installed in accordance with national wiring
regulations.
●Do not put fingers or foreign objects (pin, needle, stick, etc.) into the air
outlet or air intake.
(The fan is rotating at high speed inside. Injury, electric shock and malfunction
may occur.)
●Do not make modifications. Disassembly, repairing, modifications shall
not be made by a person other than the service engineer.
(Otherwise, fire, electric shock or injury may be caused.)
●Do not place spray cans close to the main unit. Do not use flammable
hazardous materials (gasoline, thinner, etc.) near the main unit.
(Otherwise, ignition of fire, explosion may occur.)
●Do not directly apply air to human bodies for a long period of time.
(Otherwise, sickness or health problem may occur.)
●Do not place the unit near heating appliances.
(Otherwise, plastic parts will melt and fire ignition may occur.)
SAFETY PRECAUTIONS
In Case Of An Exception (e.g., burnt smell)
Before Maintenance
During Usage
■The precautions to be
observed are indicated
with the following symbols
and signs.

E - 6 E - 7
CAUTION
In order to prevent electric leakage and injury, and protect your household goods
Be sure to follow…
Upper 50cm or more
Front 50cm or more
Sides 20cm or more
Behind 20cm or more
●
Always hold the power plug when unplugging the unit.
(Otherwise, fire, electric shock, short circuit may be caused.)
●
If you are planning not to use the unit for a long time, unplug the power plug from
outlet for safety.
(Otherwise, electric shock, electric leakage or fire may be caused.)
●Always have plenty of room around the main unit.
(Poor ventilation may cause over-heating, fire, and malfunction.)
● Be sure to clean the product, floor and surroundings when using the
product in a same place for a long period of time.
● Before moving the main unit, always stop the operation and dispose the
water in the water tank.
● Operate the unit only on level, stable surfaces.
● Check for bent hose/falling height when conducting continuous drainage
and place the hose where it will securely drain.
● Keep the temperature around the hose above freezing point when using
the drainage hose.
(Inner water may leak in the room and dampen the furniture or may cause
electric shock/leakage, fire.)
● When operating the product together with a burning appliance, be sure
to open the window for ventilation. The product does not remove carbon
monoxide or other harmful substances.
(In case of insufficient ventilation, asphyxia might be caused due to insufficient
oxygen.)
● Do not drag the casters to change the direction of the main unit.
(Otherwise, floor surface or carpet may be damaged.)
● The appliance can be use by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand
the hazard
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
●
Do not put flammables or lit cigarettes or incenses near the air inlet.
(Otherwise, fire may be caused.)
●Do not wipe with benzene or thinner or apply insecticide.
(Otherwise, crack, electric shock or fire may be caused.)
●If fumigating insecticide is used indoors, its chemical composition will be
accumulated inside the unit that is not in operation. When it is discharged
from the air outlet, it will be harmful to health. After using insecticide,
please ventilate well before operation.
●Do not use the drained water for drinking or feeding.
(Otherwise, health problems may be caused.)
●
Do not use the unit in a tight enclosed space such as closet or in between furniture.
●Do not block the air outlet or air intake.
(Otherwise, air flow will be obstructed, resulting in overheating or ignition.)
●
Do not use on a high place such as on the table.
(When the main unit falls, injury may be caused.)
●Do not sit on or lean on to the product.
(Otherwise, injury, fault or damage may be caused from tumbling.)
●
Do not use the product in a place where it can easily get wet or in the bathroom.
● Do not wash the product directly with water.
●Do not place an object with water such as a vase on top of the main unit.
●
For indoor use only. Do not use the unit under direct sunlight or in any location
exposed to rain and wind.
●Do not leave the unit where oil or flammable gas may leak.
(Otherwise, electric shock, over-heating, electric leakage or fire may be caused.)
●Do not store or move with the main unit down on its side.
(Otherwise, equipment damage or malfunction such as water/electric leakage may be caused.)
●Do not expose the air from this product directly to heating appliances.
(Otherwise, incomplete combustion of heating may be caused.)
●Do not use for storage/special purpose for artworks or academic materials.
(Otherwise, quality degradation of stored materials may be caused.)
●
Do not use for long hours in a room with people.
Heat will generate during “laundry drying" and "dehumidifying".
Increased room temperature and dryness may cause health problems.
Look out when the following type of people is in the room.
(Baby, children, elderly, person who cannot operate this product.)
SAFETY PRECAUTIONS
Power Plug, Power Cord
During Usage
NOTE ●If there is a noise in TV/radio or radio clock does not display the correct time, move the
product away as far as possible.

E - 8 E - 9
Moves the product
left and right.
Louver (Air outlet)
Casters (four)
Front View
Water tank
MAIN UNIT AND CONTROL PANEL
Control Panel
Plasmacluster Ion indicator light (blue)
Lighting…Plasmacluster Ion is running
Plasmacluster Ion ON/OFF button
(Also used as a CHILD LOCK ON/OFF button)
FAN SPEED button
Changes the fan speed.
FAN SPEED indicator light (green)
Displays the fan speed in the current operation.
CHILD LOCK indicator light (green)
Lighting...Child Lock is enabled
E - 19 E - 14,15,17
Back View
Rear panel
(Pre-filter)
Active Carbon
Deodorizing filter
HEPA filter
OFF button
Stops the operation.
V.SWING button
Switches the vertical swing mode
of the louver.
V.SWING indicator light (green)
Displays the swing status.
OFF TIMER button
Sets the operation time for the OFF TIMER.
OFF TIMER indicator light (green)
Displays the set time for the OFF TIMER.
14
Tank FULL indicator light (red)
Blinking......The water tank is full
POWER/MODE indicator light (green)
Displays the operation status.
The AIR PURIFYING indicator light is turned on.
in all operation modes.
POWER/MODE button
Switches the operation mode.
Power cord
Continuous
drainage hole
(Rubber cap)
Power plug
Sensor (inside)
(Odor sensor)
Sensor (inside)
(Temperature and
humidity sensor)
Handle (both sides)
Air inlet
Do not block the air inlet.
PARTS NAME
PARTS NAME
E - 19
E - 20,24
E - 18
Drain outlet
Tank lid
Float
Do not take off the
expanded polystyrene.
(Otherwise, the sensor
does not detect filling of
the tank.)
Water level window
Tank knob
Tank handle
E - 20
E - 18
E - 17
E - 18
E - 14~17
E - 13
ODOR Indicator Light (green, orange, red)
Indicates the cleanness of the room by color.
Green:
Red:
Clean
(Lighting)
Dirty
(Lighting)
Room Air
CURRENT HUMIDITY display
Displays the current humidity (estimate).
－
31% or below
…………
…
…………
Current humidity (est.)
displayed in the unit of 1%.
91% or above

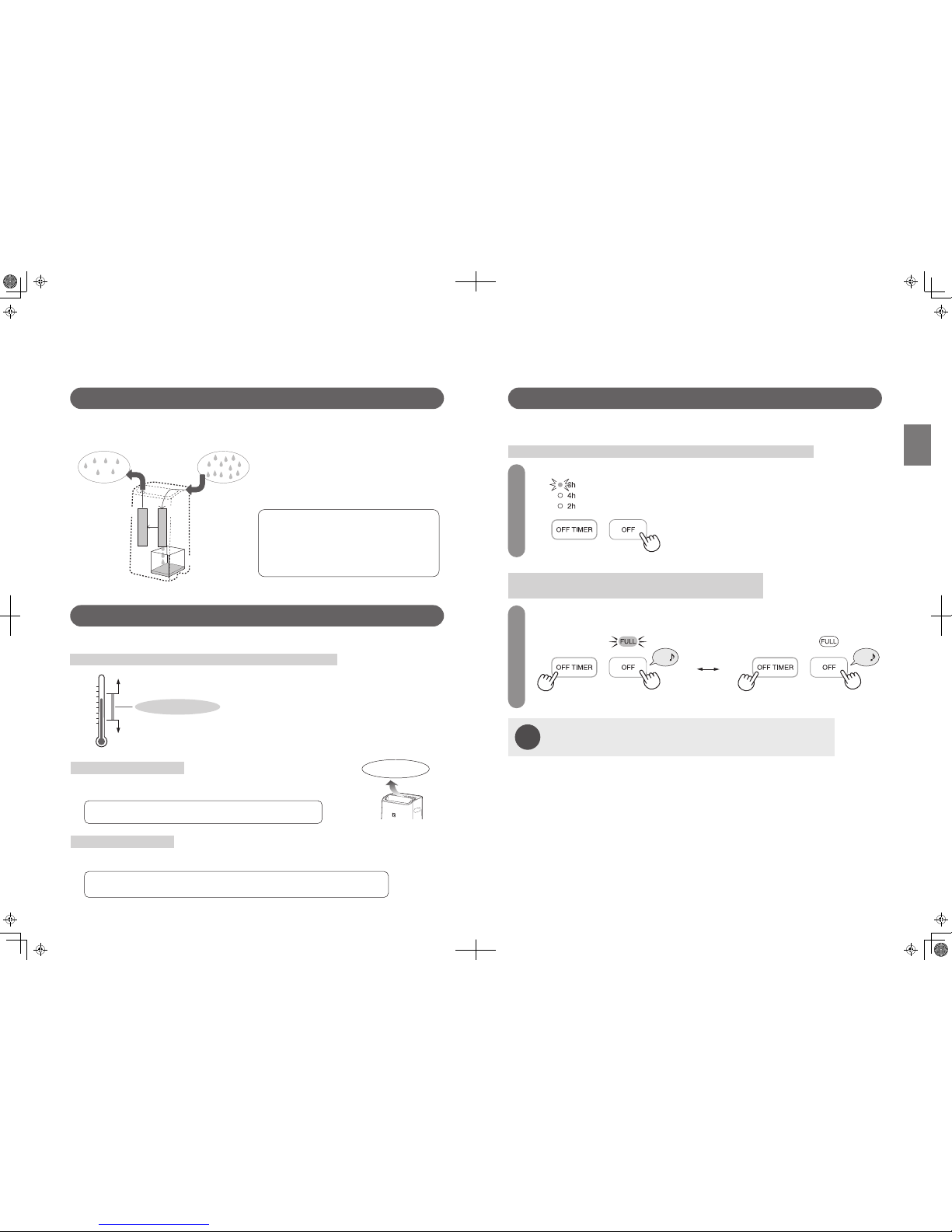

E - 10 E - 11
Dry air Damp air
● Once every 45 minutes, the compressor will stop and “HIGH” air flow mode will operate
(for about 12 minutes). The lower the room temperature, the longer the compressor stop time.
When the room temperature falls below 15°C, the unit will automatically start defrosting (Air flow mode) in order to
prevent frost from forming inside the main unit.
Air flow operation for
about 3 minutes
To protect the unit, the compressor will not operate for about 3 minutes
immediately after the unit is started in the following cases:
● Immediately after the power plug is inserted
● Immediately after laundry drying/dehumidifying operation is stopped
The main unit will be overloaded. Therefore, the protection device will activate and laundry drying and
dehumidifying operation will be stopped.
To prevent dehumidifying water from freezing, the protection device will activate and laundry drying and
dehumidifying operation will be stopped.
0
5
10
20
40
In a room at a temperature
from 3°C to 38°C
At the time of defrosting
At the time of re-operation
When the room temperature is lower than 3°C or higher than 38°C
In the following cases, the compressor will stop and will not dehumidify. The unit will switch to the air flow mode.
DEHUMIDIFICATION MECHANISM
ABOUT DEHUMIDIFICATION
Tank
AUTO OFF FUNCTION
To run the unit for more than 12 hours continuously,
or to drain water continuously, disable the Auto Off function.
The operation will stop automatically after 12 hours in case the unit has been forgotten to be turned off.
(A long beep will sound when the operation stops and the OFF TIMER "6" indicator light will blink)
Operation stopped
"To enable"
When the unit operates again after being stopped by the Auto Off function
●The Auto Off function is set when the power plug is plugged in.
●Once the power plug is pulled out, the Auto Off function will be reset.
NOTE
"To disable"
(LAUNDRY DRYING (HIGH/MED/LOW)/DEHUMIDIFYING)
WHAT YOU NEED TO KNOW
It is found that dew is formed on the surface of a cup holding cold water in the midsummer and water drop is
attached to window glass of a room with heat supply. This occurs when warm air with much moisture gets contact
with cold items. In accordance with the principle, wet air is used in a cooling machine to remove moisture.
Condenser
Cooling machine
1Damp air comes in from the air inlet.
2Vapor contained in air is cooled and becomes water drops,
which flow into the water tank.
3Air that has been cooled by the cooling machine is heated.
4Dry air comes out from the air outlet.
1
4
23
●It has no refrigeration capability, which is different from
an air conditioner.
As heat is generated in operation, the room temperature
might increase by 2°C-5°C, depending on the ambient
conditions (external temperature, room area, etc.).
●Humidity might not be kept at 55-60%, depending on
the ambient conditions.
Press the OFF button to
stop the indicator light
from blinking, and start
the operation again.
WHAT YOU NEED TO KNOW
DISABLE/ENABLERE-OPERATION
Press both for 3 seconds
Light off
Beep Beep
Press both for 3 seconds
On for 5 seconds
Beep

E - 12 E - 13
220V power
Rear panel
3
2
1
4
Install the rear
panel
1Insert the tab on the lower side
2Press the upper side
3Press the center
● There might be some water left in the water tank from the factory product inspection.
This is not a malfunction.
● Install the filter before inserting the power plug into the socket.
Active Carbon Deodorizing filter
HEPA filter
HEPA filter
Tag
Active Carbon Deodorizing filter
Active Carbon Deodorizing filter
Tag
WHEN USING FOR THE FIRST TIME
HEPA filter
Click
Lower tab (3 places)
2Press
3Press
1Insert
Only moves
transversely.
Handle (both sides)
INSTALLATION LOCATION
WHEN MOVING
Upper 50cm
or more
Front 50cm
or more
Rear 20cm
or more
Sides 20cm
or more
Operate it in a room at a temperature
from 3°C to 38°C.
●Thick carpet or futon is a very
unstable place.
Avoid places with direct sunlight.
Level, stable place
Hold the handle
to move
1
2
Caster
NOTE
BEFORE USE
Remove the
rear panel and
then the filters
Install the HEPA
filter first and then
the Active Carbon
Deodorizing filter
Stop the operation,
open the drain
outlet, and dispose
water in the tank.
Place it on a level, stable
place and insert the power
plug into the socket.
● There are two types of
filters in the unit.
●
Install the HEPA filter (the
thick one) while taking the
side with a tag as the front
side.
If it is installed reversely
inside out, the purifying
effect might not be
achieved.
●The Active Carbon
Deodorizing filter does
not distinguish between
inside and outside.
●
Pull out the tag of the
HEPA filter in front of the
Active Carbon
Deodorizing filter in order
to facilitate removal.
The side with a tag is
the front side
No difference between
inside and outside
SUPPLY
● May cause deformation or protection
device activation.
If there is a noise in TV/radio or
a radio clock does not display
the correct time, move the
product away as far as possible.
●Do not use in the following places. (Otherwise, malfunction might be caused.)
●With a lot of salt such as seaside area. ●With a lot of machine oil.
●With a lot of sulfide gas such as hot-spring area. ●With a lot of steam or oily smokes.
●Do not use any cosmetic products＊formulated with fluororesin or silicone near the main unit.
Plasmacluster ion may not generate if fluororesin or silicone gets into the main unit.
＊Hair care products (hair coating solution, hair mousse, hair treatment), cosmetic products, antiperspirant,
antistatic products, waterproof spray, waxing products, glass cleaner, chemical cloth, wax, etc.
●Bundle the power cord and hold
along with the handle to move.
Pulling on the power cord will
damage the power cord.
BEFORE USE
Take out the filters
(two types) from the
plastic bag
E -20
E - 10

HIGH
MED
LOW
AUTO

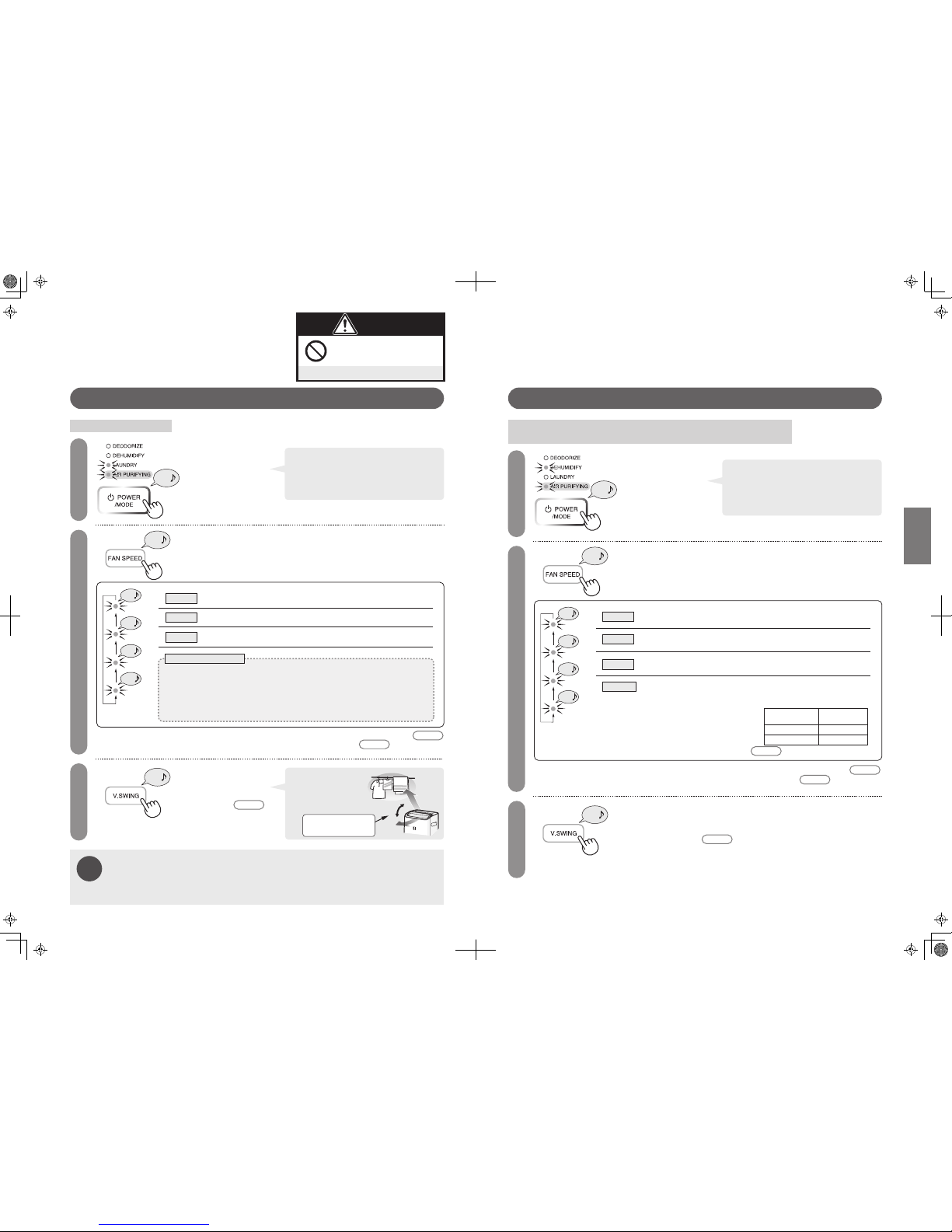

E - 14 E - 15
AUTO (Auto stop)
LOW
MED
Dry laundry with continuous operation of "LOW" fan speed※1 ※2.
Dehumidify quietly with continuous operation of "LOW" fan speed※1 ※2.
Dry laundry with continuous operation of "MED" fan speed※1 ※2.
Dehumidify with continuous operation of "MED" fan speed※1 ※2.
Dry laundry with continuous operation of "HIGH" fan speed※1.
HIGH
LOW
MED
HIGH Dehumidify with continuous operation of "HIGH" fan speed※1.
HIGH
MED
LOW
AUTO
Select your
desired louver
angle.
Select your desired fan speed.
Beep
Beep
Beep
3
2
1
Select
LAUNDRY.
LAUNDRY DRYING
When drying laundry
NOTE
Do not block the air
outlet with clothes, etc.
[Otherwise, over-heating, fire or malfunction may be caused]
NOTE
Beep
When you want to automatically dehumidify
Room
temperature
Appropriate
humidity
3°C-26°C
26°C-38°C
60%
55%
DEHUMIDIFYING
AUTO
Select your desired
louver angle.
Select your desired fan speed.
3
2
Beep
Beep
Beep
1
Select
DEHUMIDIFY.
When you want to dehumidify, prevent dew formation on the ceiling,
wall or window glass, or dry your tatami or closet.
HOW TO OPERATE
● “LAUNDRY” will operate immediately after the
power plug is plugged in.
●Unless the power plug is unplugged, the unit
will operate in the last mode that was selected.
●The AIR PURIFYING indicator light remains on.
● “LAUNDRY” will operate immediately after the
power plug is plugged in.
● Unless the power plug is unplugged, the unit
will operate in the last mode that was selected.
● The AIR PURIFYING indicator light remains on.
When you want to dry your laundry but with less power consumption
Dehumidifying operation (compressor operation) and Air Flow operation (compressor
stopped) will alternately repeat with “HIGH” fan speed and dry the laundry.
●The operation will automatically stop when the humidity level falls below 60% after
about 30 minutes of operation or when the unit has operated for about 3 hours.
(A long beep will sound when the operation stops and the Laundry indicator light will blink.
To operate again, press the OFF button)
※1 If the Auto Off function is not disabled, the operation will stop after 12 hours.
※2 The fan speed may increase with the room temperature.
※1 If the Auto Off function is not disabled, the operation will stop after 12 hours.
※2 The fan speed may increase with the room temperature.
● Make sure the air
blowing out from air
outlet is directly pointing
to your laundry.
● Stretch the wrinkles of wet laundry and dry in an airy place.
● Dry thick laundry in a well ventilated place.
● The drying time will be longer for a low temperature room, large room, and when the quantity of laundry is large.
Laundry drying operation may stop even the laundry has not been dried when the fan speed is set to "AUTO".
This is not a malfunction.
Conduct Auto operation again for more drying time.
The distance between air
outlet and laundry should
be 10cm or more.
Beep
Beep
Beep Beep
Beep
Beep
Beep
Beep Beep
With the "odor, temperature and humidity sensor", the unit will monitor the room
condition and automatically switch the fan speed
for continuous operation※1.
Adjust the dehumidification amount for proper
humidity level according to the room temperature.
When the room temperature is too low or too high,
it might not reach the appropriate humidity level.
E -18
E -3
E -11
E -28
HOW TO OPERATE
E -11
E -3
E -18

HIGH
MED
LOW
AUTO

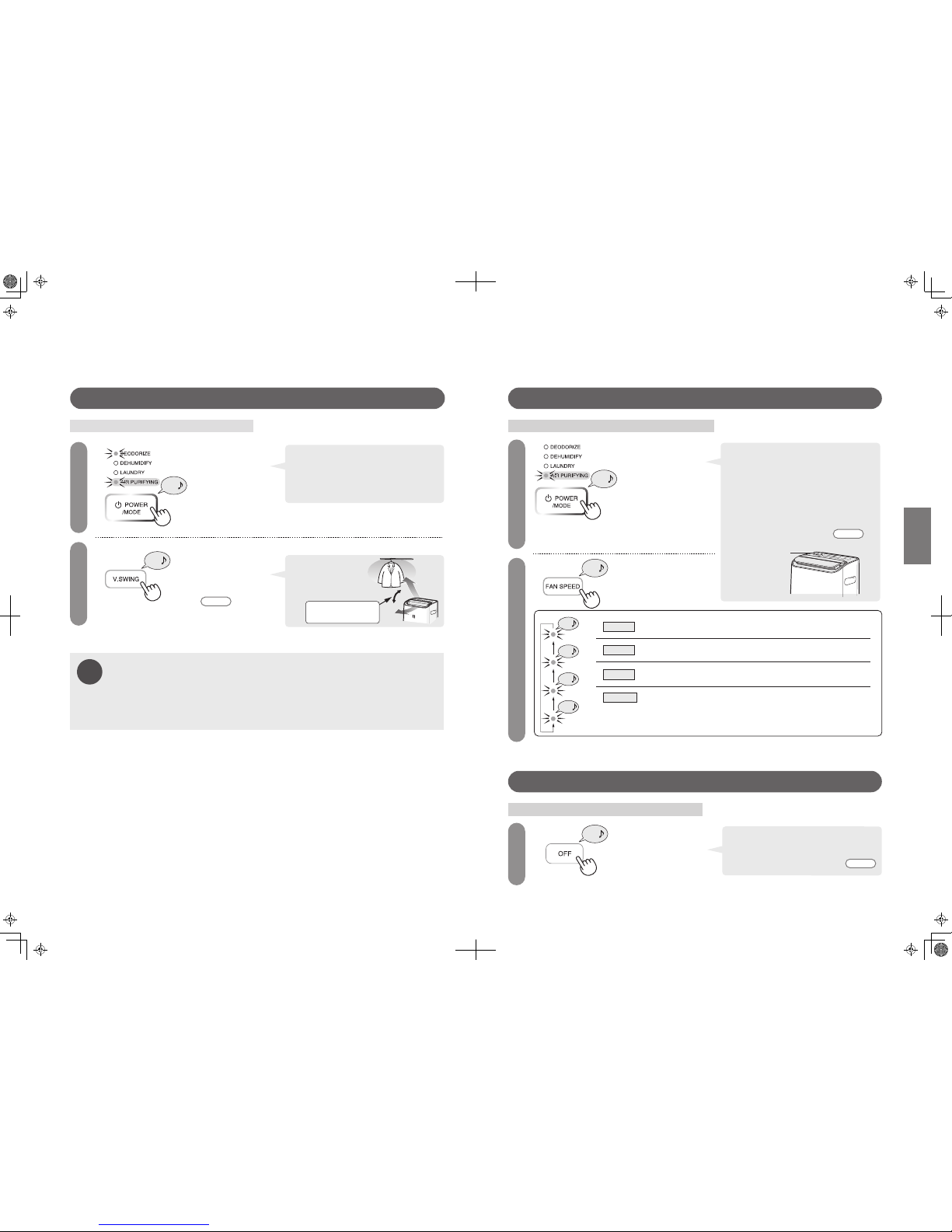

E - 17E - 16
Select your
desired
louver angle.
Select
DEODORIZE.
Beep
Long beep
Beep
Beep
Beep
2
1
When you want to deodorize your laundry
DEODORIZING
HOW TO OPERATE (Continued)
NOTE
Purifies the air in a room automatically
STOP
AIR PURIFYING
2
1
HOW TO OPERATE
Select AIR
PURIFYING.
Purifies the air in a room without dehumidifying
When you want to stop the operation halfway
1
ODOR
●“LAUNDRY” will operate immediately after the
power plug is plugged in.
●Unless the power plug is unplugged, the unit will
operate in the last mode that was selected.
●The AIR PURIFYING indicator light remains on.
●Make sure the air
blowing out from air
outlet is directly pointing
to your laundry.
Beep
Beep
Beep
Beep Beep
E -18 The distance between air
outlet and laundry should
be 10cm or more.
●Air flow only. The compressor does not work.
●The unit operates at "HIGH" fan speed. The fan speed cannot be selected.
●Smell removal efficiency may vary with the type and intensity of adhering smell and clothes material.
●The smell adhering to the part where the air flow does not point may not be removed.
●Plasmacluster Ion "OFF" cannot be selected.
(If Plasmacluster Ion "OFF" is set, it will automatically switch to "ON")
● The operation may work with a full tank. The Tank FULL indicator light will not blink during this time.
E - 22
●“LAUNDRY” will operate immediately after the
power plug is plugged in.
●Unless the power plug is unplugged, the unit
will operate in the last mode that was selected.
●The angle of the vertical swing louver cannot
be selected.
*The most suitable louver angle has been set
for air purifying.
●The ODOR indicator light indicates the
cleanness of the room by color.
Select your
desired fan speed.
Purifies the air with continuous operation of "LOW" fan speed.
Purifies the air with continuous operation of "MED" fan speed.
Purifies the air with continuous operation of "HIGH" fan speed.
With the "odor sensor", the unit will monitor the room condition and automatically switch
the fan speed for continuous operation.
●The indicator light will go off and louver will
shut automatically.
●Run the internal drying operation when
planning not to use for a long time.
LOW
MED
HIGH
AUTO
E - 8

UP
DOWN
WIDE
E - 18 E - 19
Select your
desired time.
1
When you want to change the louver angle
OFF TIMER
VERTICAL SWING LOUVER
1
Light off (cancel)
Light off (cancel)
During operation
During operation
"OFF"
"ON"
During operation
"To disable"
"To enable"
Operation stopped
"To disable"
"To enable (mute)"
Press for over 3 secondsPress for over 3 seconds
Beep
Beep
Beep
Beep Beep
Beep Beep
Beep
Beep Beep
Beep
●
Only the following operations can be
performed when the child lock is enabled:
During operation... Stop operation,
Disable the child
lock.
Stopped...Disable the child lock.
●The child lock will be disabled when
the power plug is unplugged.
Press both for over 3 seconds Press both for over 3 seconds
● “WIDE” repeats “UP” and ”DOWN” movements.
Horizontal louver (left)
Horizontal louver (right)
CHILD LOCK
To prevent incorrect operation by children
PLASMACLUSTER ION ON/OFF ( )
Turn the Plasmacluster ion on/off
NOTE
NOTIFICATION SOUND OFF (Tank full/End of OFF TIMER/End of Auto Off function)
When you go to bed at night or feel bothered by "Notification sound"
●This setting will be canceled once the power plug is unplugged and notification sound will sound.
NOTE
UP
DOWN
Beep
Beep
Beep
Beep Beep
Beep
Beep
Beep
Beep Beep
EASY-TO-USE FUNCTIONS
Select your desired
louver angle.
●Do not forcibly move the louver with hands.
(Otherwise, malfunction may be caused.)
●In the air purifying mode, the angle of the
vertical swing louver cannot be selected.
●To adjust the position, press the button and set
the louver at the desired position. Then the
indicator light turns off.
●Please adjust the horizontal louver leftward or
rightward to your desired angle manually.
Louver movement angle: Approx. 115°
(Reach of wind: Approx. 180°)
●You will hear a notification sound (Long beep)
once the preset time is reached and the
operation will stop.
●The OFF TIMER indicator light will change as
the operation time progresses.
●When the water tank becomes full during off
timer operation, the operation will stop but the
off timer counting will continue.
(You may continue the timer operation after draining.)
●To disable the off timer, press the OFF TIMER
button and turn the OFF TIMER indicator light
off (i.e. cancel it).
●In the laundry drying (AUTO) mode, the operation
may stop automatically after about 3 hours.
ON/OFF ENABLE/DISABLE
ENABLE/DISABLE
● Even if the Plasmacluster ion is “OFF”, if deodorizing operation is selected, the Plasmacluster ion will
automatically turn “ON”.
EASY-TO-USE FUNCTIONS

E - 20 E - 21
WATER TANK
Tank knob
Water tank
If the water tank becomes full (around 3.0L) during laundry drying or dehumidifying
operation, the operation will automatically stop
(Full tank stop device)
1
2
3
NOTE
Blinking
Beep
Beep_
Drain outlet
Drain outlet
CONTINUOUS DRAINAGE
Take the hose off from drain outlet and put the
rubber cap on.
Always have
the tip slanted
Do not bend
How to pipe the hose
Unplug the
power plug
5
4
3
2
1
NOTE
Rubber cap
10cm
or more
Hose
Drain outlet Continuous
drainage hole
HOW TO DRAIN
●When the water tank is installed back after draining, the Tank FULL
indicator light (red) will go off and operation will start again.
●During deodorizing or air purifying operation, the water tank works even if
it is full. The Tank FULL indicator light (red) will not blink during this time.
Take out the
water tank
Open the drain
outlet and
dispose water
Close the
drain outlet
and set the
water tank to
the main unit
●Pull out straight while holding
down the main unit.
●Gently pull out and carefully carry
without tilting or dropping so no
water will spill.
●Push in completely.
●Gently push in. (Rough handling
may cause malfunction.)
●Always stop the operation and dispose water before moving the main unit.
(Water in the tank may spill and damage household goods.)
●Clean the inside of water tank periodically (about once a week).
(Failing to clean for a long period of time may increase mold and bacteria which causes bad odor.)
If there is a place you can
drain nearby, continuous
drainage is possible.
Take off the
rubber cap on
the back side
Set the water
tank to the
main unit
Run the hose
through the
continuous drainage
hole on the back of
the main unit and
securely insert it
into the drain outlet
inside the main unit.
Take out the water
tank, and securely
insert the hose into
the drain outlet.
Commercial hose inner
diameter 15mm (outer
diameter up to 21mm)
●Push in completely.
●Push in gently.
(Rough handling may cause malfunction.)
●Do not use a wide-mouth hose.
(Otherwise, water may leak.)
●If the water tank is not set, dehumidifying
operation cannot be performed.
●This dehumidifier is intended for household use. When conducting Continuous Drainage, check for dirty
filters (once every two weeks) and clogging of drain hoses periodically.
●Place the drain hose where the temperature will not fall below zero. (When the water in the hose freezes,
the water inside the main unit may leak into the room and soak household goods.)
●Put a net over the hose tip to prevent from insects coming in.
●Auto Off function will operate after 12 hours for Continuous Drainage as well. To release the Auto Off
function, please read “To disable the Auto Off function” on .
HOW TO DRAIN
To stop continuous drainage and
restore the original position
Do not put the
hose tip into
the water
E - 11

E - 22 E - 23
[Otherwise, electric shock or injury may be caused]
WHAT YOU NEED TO KNOW
IMPORTANT NOTICES DURING CLEANING
INTERNAL DRYING
FILTER
Thinner/Benzine
Alcohol
Oven cleaner
Cleanser/Bleach
Housing and furniture
Synthetic detergent (Alkaline)
Spray cleanser
Steel wool
Set the off timer
in 2 hours.
Beep
21
Select
DEODORIZE.
After laundry drying or dehumidifying operation or when the product is not used for a long time
HEPA Filter
Active Carbon Deodorizing Filter
Gently vacuum
Gently clean the side with a tag
Gently vacuum
Never wash it with water.
(Otherwise, the performance of filter may be degraded)
Tag
NOTE
CARE AND
MAINTENANCE
The air purifying function collects dust and smell
composition in the whole room. When the
product is used where there is strong smell of
aromatic, aroma oil, cigarette or barbecue, the
smell will adhere to the filter.
It takes several weeks or several months for the
smell to be volatilized. It is recommended to use
the product together with ventilation of the room
where there is strong smell. It takes more time
to remove smell than dust.
If smell comes from the air outlet
or it is hard to remove smell,
please perform maintenance on
both HEPA filter and Active
Carbon Deodorizing filter.
After laundry drying or dehumidifying operation, water drops may adhere to the cooler inside the main unit.
Such water drops may cause mold and odor.
Do not use the following
items when cleaning the unit
or the filter.
(Otherwise, the surface may
be damaged or cracked.)
Benzine
Thinner
Lapping powder
Bleach
Abluent
Spraying detergent
Synthetic detergent
It catches pollen, allergens (faeces and dead bodies of mite), mold, dirt, dust, cigarette smoke
(particles) and pet hair.
Absorbs and decomposes various room odors, including cigarette smoke (odor), toilet odor, kitchen
waste odor and pet odor.
It may change color (gray, ocher) due to collecting fine dust or dirt in the room.
This is not a malfunction. Proper maintenance will lengthen service life of the HEPA filter.
As the Active Carbon Deodorizing filter absorbs a large quantity of smell composition, it gives out
smell sometimes. Proper maintenance will lengthen service life of the filter.
Put the product on a piece of
newspaper to avoid contaminating
its surrounding area.
Put the product on a piece of
newspaper to avoid contaminating
its surrounding area.
●Clean the side with a tag only.
Never clean its opposite side.
●Remove the dirt on the filter surface.
●As the filter may be damaged easily, do not apply too much
force.
●Both sides can be cleaned.
●The filter may be damaged easily if too much force is
applied on it, so be careful when handling it.
●Remove dirt from the filter where odor adheres.
●It cannot remove all harmful composition (e.g.carbon monoxide in cigarette) or smell
composition that continually volatilizes (e.g.construction material smell, and pet odor).
Never wash it with water or dry
it in the sun.
(Otherwise, the performance of filter may be degraded)
CARE AND MAINTENANCE
WARNING
We recommend periodical cleaning for
a long, clean and sanitary use! Diligent
maintenance is also necessary for
releasing of steady and high
concentration Plasmacluster ions.
Always turn the operation “OFF” and unplug
the power plug.

E - 24 E - 25

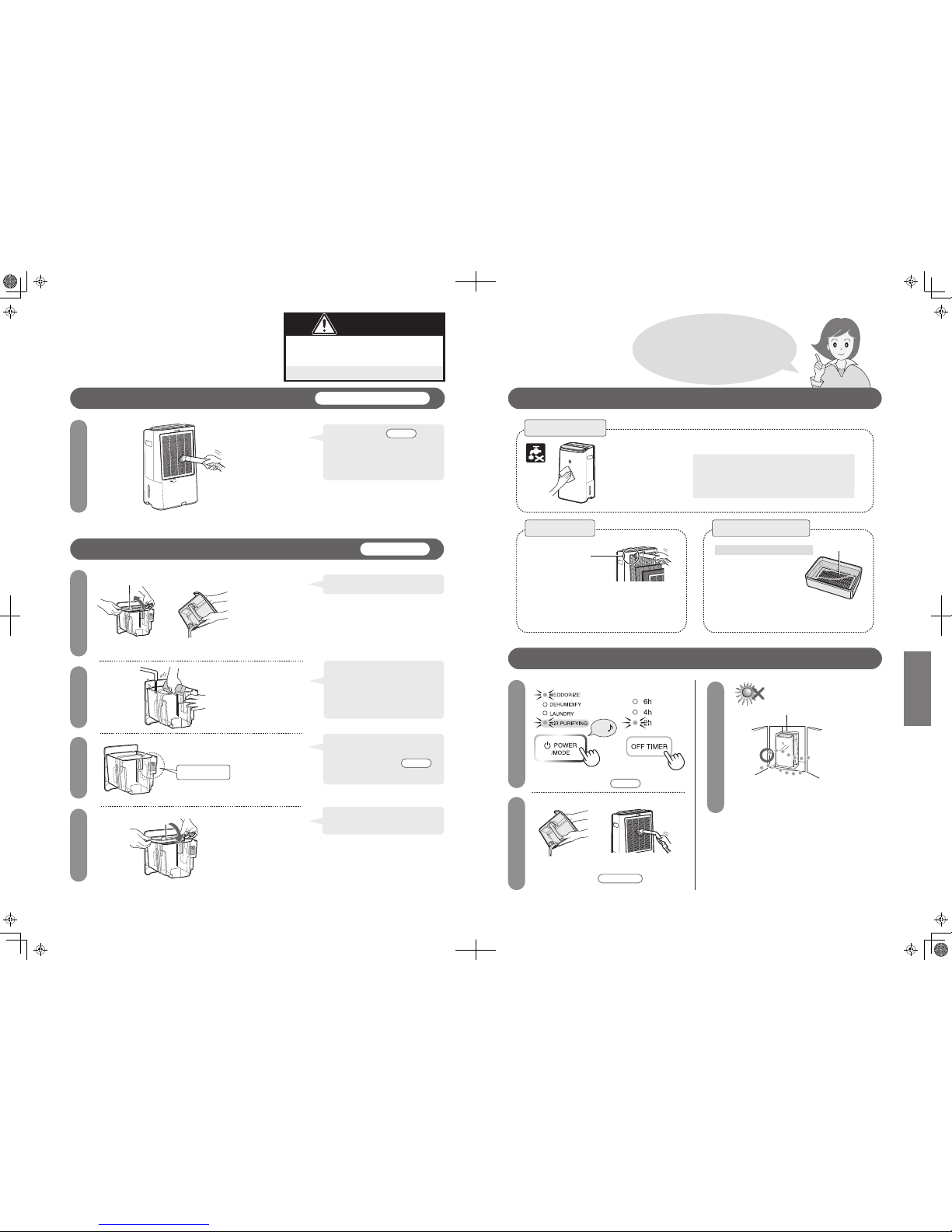

3
WATER TANK Once a week
REAR PANEL Once every two weeks
1
2
4
Tank lid
Tank lid
1
Check float
FOR HEAVY DUST / WHEN ODOR IS A CONCERN
MAIN UNIT
●Do not wash with water
Use a soft cloth
to wipe
3
2
1
WHEN NOT USING FOR A LONG PERIOD OF TIME
Plastic bag
(Back of main unit (inside))
Sensor
(odor sensor)
SENSOR
Soaking time: about 10 minutes
REAR PANEL
Rear panel
CARE AND
MAINTENANCE (Continued)
Remove the
dust with a
vacuum
cleaner
Dispose
water and
take the tank
lid off
Wash the
inside of the
tank
Dry the tank
with a soft cloth
Put the tank
lid on
●For heavy dust
●Do not apply too much force on
the filter.
(Otherwise, the filter may be
damaged.)
●Wash the tank with dishwashing
sponge.
●Use mild detergent (dishwashing
soap) with lukewarm water if
necessary.
●Check to see if the float is
securely attached.
●If the float comes off:
●Take care not to damage the float.
●Be sure to tightly close the tank
lid. (Otherwise, water may leak.)
●Remove the lid slowly from the corner.
●For heavy dust, soak a soft cloth in lukewarm
water (40°C or lower) or mild detergent to wipe
dirt off.
●Clean the casters, too.
1Soak and wash with
synthetic kitchen
detergent.
2Gently scrub with a
toothbrush and fully wash so that there
would not be detergent residual left.
3Dry in the shade.
1Remove the rear panel and the filters.
2Remove dirt on the sensor as shown in
the figure above with a cleaner.
3Install the rear panel back to the product.
Store in a dry place with
no direct sunlight
CARE AND MAINTENANCE
We recommend periodical cleaning for
a long, clean and sanitary use! Diligent
maintenance is also necessary for
releasing of steady and high
concentration Plasmacluster ions.
[Otherwise, electric shock or injury may be caused]
WARNING
Always turn the operation “OFF” and unplug
the power plug.
E - 25
E - 30
Conduct internal
drying operation
Dispose tank water and clean
the main unit
Vacuum
cleaner
E - 22~25
Beep
E - 22

Once every five years※
E - 26
E - 27
[Otherwise, electric shock or injury may be caused]
WARNING
NOTE
SPECIFICATIONS
FILTER
REPLACEMENT
Always stop the operation and
unplug the power plug before any
replacement.
Model: FZ-E16AHF
Model: FZ-E16ADF
HEPA Filter
Active Carbon Deodorizing Filter
The filter may give off odors in several weeks or
months and thus needs to be replaced, depending
on the specific conditions.
The filter may give off odors in several weeks or
months and thus needs to be replaced, depending
on the specific conditions.
※ The standard replacement cycle refers to the period
before the dust collection performance drops by 50%
assumed that five cigarettes are smoked a day.
(In accordance with JEM1467, assumed that ten
cigarettes are smoked a day, 2.5 years is the standard.)
※ The standard replacement cycle refers to the period before
the deodorization performance drops by 50% assumed
that five cigarettes are smoked a day.
(In accordance with JEM1467, assumed that ten
cigarettes are smoked a day, 2.5 years is the standard.)
● Put the removed filters on a piece of newspaper to avoid contaminating the surrounding area.
● Dispose of consumables in accordance with your local waste classification regulations.
● Consumables are charged even within the warranty period.
Material of the HEPA filter ……………...……...……...… Polypropylene, polyethylene
Material of the Active Carbon Deodorizing filter ……........…… Polypropylene, polyethylene, activated carbon
FILTER REPLACEMENT / SPECIFICATIONS
Once every five years※
Air Purifying Specifications
Filter Replacement
Lifetime※4
5 years
5 years
MED (M)
105m³/h
10W
35dB
LOW (L)
75m3/h
7W
27dB
HIGH (H)
240m³/h
38W
53dB
Filter Model
FZ-E16AHF
FZ-E16ADF
Filter Name
HEPA Filter
Active Carbon Deodorizing Filter
Applicable Floor Area
Fan Speed Mode
Air Flow Volume
Rated Power Consumption
Noise Level
Power Supply
Model
Dehumidifying Capacity※1
Power Consumption※2
Water Tank Capacity
Length of Power Cord
Dimensions
Weight
Dehumidification Area
DW-E16FA
220V-240V/50Hz
16L/day
8.8L/day
190W
0.45W
19-38m2
Approx. 3.0L
Approx. 2m
360mm(W) × 260mm(D) × 565mm(H)
About 12.2kg
30°C/80%RH
26.7°C/60%RH
26.7°C/60%RH
Standby Status※3
● Dehumidifying Area: according to standards of JEMA.
The service life of HEPA Filter & Active Carbon Deodorizing Filter is up to 5 years.※4
For details on how to maintain the filter, see the Operation Manual.
The service life of HEPA Filter & Active Carbon Deodorizing Filter is calculated according to the
following rule:
If the dust equivalent to that of five cigarettes is absorbed in a day, the filter needs to be
replaced when its dust collection capability is reduced by 50%.
(JEMA 1467) If the dust equivalent to that of 10 cigarettes is absorbed in a day, the maximum
service life of the filter is about 2.5 years.
Depend on the different working environments, the filter is recommended to replace within
several weeks or months because of heavy smells.
Note:
※4
E - 22~26
※1Dehumidifying Capacity: the amount of humidity that a dehumidifier removes from the air in a
day when room temperature and relative humidity are kept at 30°C/80%RH and 26.7°C/60%RH
respectively.
※2Power Consumption: the consumption value when fan speed reaches the highest.
※3
Standby Status: the power plug is pluged in the socket while the Power ON/Off button is set at "Off".
Dehumidifying Specifications
24m2

E - 28 E - 29
The room becomes hot
Problem Solution Reference
Page
—
—
—
—
E - 10
E - 10
E - 10
—
—
—
E - 24
E - 21
E - 14
The water leaks
Laundry does not dry
—
—
—
E - 3
E - 3
E - 3
E - 13
E - 24
—
E - 12
E - 22~25
E - 22~25
E - 22~25
E - 23
—
Please check one
more time before
calling for services.
TROUBLESHOOTING
The unit does not
dehumidify
Dehumidification
amount is low
(Water does not
accumulate in the tank)
The sound is too loud
Buzzing sounds are
heard from the air
outlet
Odors or smokes are
hard to remove
Odor comes out from
the air outlet
There is a sound at the start
of operation/during
operation/when the unit stops
● Warm air will come out from the air outlet during laundry drying
operation and dehumidifying operation, and if used in an enclosed
room, the room temperature will go up.
● The dehumidification level varies with the size, structure, temperature
and humidity level of the room. When room temperature or humidity
level is low, the dehumidification level will be low in general.
● Low humidity of less than 50% cannot be maintained.
● Air flow mode will operate during auto dehumidifying operation when
the room temperature or humidity level is low, and the unit will not
dehumidify.
● When the room temperature is below 3°C, air flow mode will operate
to prevent the water tank’s water from freezing, and the unit will not
dehumidify.
● When the room temperature is higher than 38°C, the protection
device will activate, the air flow mode will operate, and the unit will
not dehumidify. Additionally, if the humidity is high humidity, the
protection device will work even when the room temperature is
below 38°C.
● When the room temperature is 15°C or under, the unit automatically
defrosts by switching to air flow mode which makes water harder to
collect.
● Check to see if the unit runs in deodorizing operation.
Switch to laundry drying and dehumidifying operation.
● Check to see if the rear panel is clean.
Clean the rear panel.
● Check to see if the air outlet or air inlet is blocked.
Remove whatever blocks the port.
● The unit will sound loudly for the first few seconds upon power-on
when the room temperature is low. (This duration will vary with the
temperature.)
● Check to see if the dehumidifier is properly placed on the floor or if
the floor is unstable.
Use the unit at a level, stable place with free of vibration.
● Check to see if the rear panel is clogged.
Clean the rear panel.
● Check to see if the filters are enclosed in a plastic bag.
Take out the filters from the plastic bag.
● Check to see if the wind from the air outlet is weak.
Clean the dust and dirt off the following parts:
˙Rear panel
˙Sensor
˙Filters
● Check to see if the unit is used in a room with a strong odor. If the
unit is used where there is a strong odor caused by smoking or
barbecue, the filter may give off odors in several weeks or months
and thus needs to be replaced.
It is recommended to use the product together with ventilation
of the room.
● When the unit has been used for a long time, odor and dirt may
adhere to the inside.
Please regularly clean the unit and dry its inside.
● Check to see if the dirt on the filters becomes heavy.
Clean the filters, or replace them if you are bothered.
● When Plasmacluster ions are generated, a trace of ozone will be
generated, which gives off an odor from the air outlet. However, its
quantity is tiny and the health will not be harmed.
● Make sure you do not tilt, knock over or drop the main unit.
Use the unit at a level, stable place with free of vibration.
● Check to see if the hose is disconnected from the drain outlet of the
main unit during continuous drainage.
Install the hose by pushing it all the way in.
● Check to see if laundry drying (Auto) mode is operating.
The AUTO operation will stop automatically after a maximum of
3 hours.
Laundry may not be dried enough depending on the room
situation. Operate AUTO mode again or switch to the
CONTINUOUS laundry drying operation. (HIGH/MED/LOW)
● The room may be too big.
● The opening/closing of windows and doors may be too frequent.
●
Check to see if a humidifier or other devices that release steam is in use.
The humidity level
does not go down
During operation
Sound Smell
Problem Solution Reference
Page
● Buzzing sound...This is the operating sound of the compressor.
●
Whipping, howling sound...This is the sound of refrigerant (coolant) circulation.
● This is the sound of generating Plasmacluster ions, not a
malfunction. Sound volume varies with the working environment and
operation mode, but the efficiency is not affected.
TROUBLESHOOTING

E - 30 E - 31

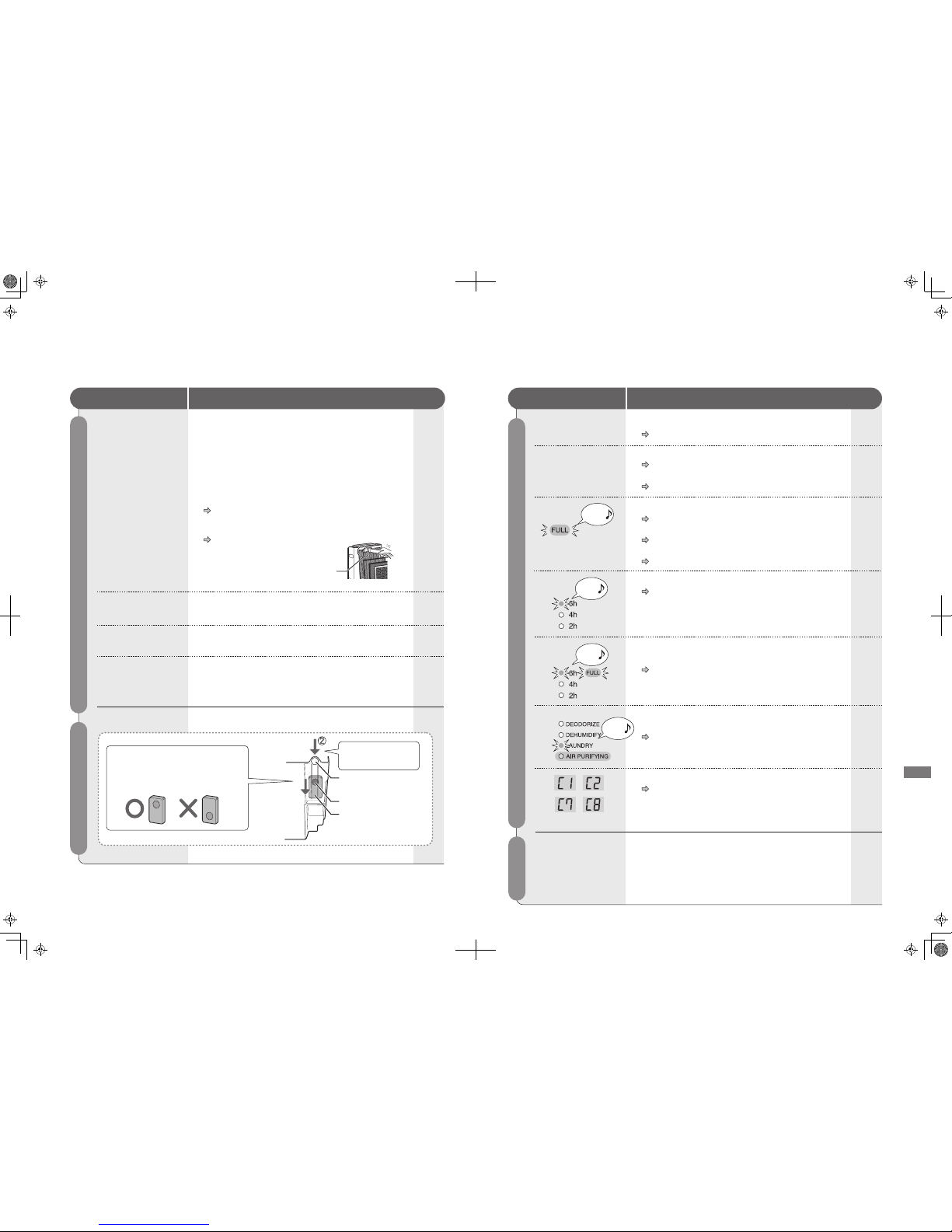

TROUBLESHOOTING (Continued)
—
—
E - 17
E - 25
—
—
—
Magnet
Float
Magnet: Facing up
Facing outside of tank
( (
(Back of the main unit)
Sensor
(inside)
Pin
E - 19
—
—
E - 20
E - 20
E - 30
E - 11
E - 11,20
E - 14
—
—
ODOR Indicator
Light does not
change its color
The operation stops
The unit cannot operate
Buttons do not work
The main unit falls down
(during dehumidifying or
laundry drying operation
or while water enters the
tank)
Other indicator
lights blinking
ODOR Indicator Light
does not turn green
ODOR Indicator Light
often switches
The AIR PURIFYING
indicator light does
not turn off
The float comes off
●After the operation starts, ODOR Indicator Light does not change its
color for the time being due to unsteady sensitivity of the sensor.
After a few minutes, sensitivity of the sensor becomes steady.
●If ODOR Indicator Light remains green, the air is fresh.
It is hard for the sensor to detect in some places. It is normal if
ODOR Indicator Light changes its color when cigarette smoke is
blown to the sensor.
●If the operation is started in a room with a strong odor, sensitivity of
the odor sensor may become blunt.
Please continue the air purifying operation (MED) for several
hours or 1 day.
●Dust may accumulate on the sensor.
Please remove the rear panel and
the filters and clean them with
a cleaner through the hole as
shown in the right figure.
Display Float
The unit falls down
The unit does not operate
Problem Solution Reference
Page Problem Solution Reference Page
●It may not turn green due to dirt comes from outdoors when the window
or the door is opened frequently or the room is of poor airtightness.
●The AIR PURIFYING indicator light cannot be turned off during
operation.
In all operation modes, air is purified through the HEPA filter and the
Active Carbon Deodorizing filter.
●It may respond to wind and temperature change caused by opening
and closing of the door frequently.
●Install the float by following the procedure below.
TROUBLESHOOTING
1Check the direction of float, and then
insert the float.
2Insert pin and
secure.
●Check the CHILD LOCK setting.
If locked, release the child lock.
●The operation has stopped with the Auto Off function.
Press the OFF button to stop the indicator light from blinking,
and start the operation again.
When using continuously, disable the Auto Off function.
●The water tank becomes full and the operation has stopped with the
Auto Off function.
Empty the water tank, press the OFF button to stop the
indicator light from blinking, and start the operation again.
●Laundry drying (Auto) operation has completed, and the operation
has stopped.
Press the OFF button to stop the indicator light from blinking, and
start the operation again.
●The unit may malfunction.
Please consult the store where you purchased the product or
SHARP authorized service center.
●When the main unit falls down while water enters the tank, pull out
the power plug and consult the store where you purchased the
product or SHARP authorized service center.
●Check the power plug.
If not inserted, insert the power plug into an outlet.
●Check to see if there is a power outage.
If there is a power outage, wait until the power is resumed.
●Check to see if the water tank is properly placed.
If not, place the water tank correctly.
●Check to see if the water tank is full.
If the tank is full, drain the water.
●Check to see if the float is properly placed.
If not, place the float properly.
Blinking (red)
Long beep
Long beep
Blinking
(green)
Blinking
(green)
Beep
Beep_
Long beep
Blinking
(red)
Blinking
(green)

特點
常見問題
安全注意事項
各部分名稱
請予以瞭解的事項
●除濕原理 ●關於除濕
●自動關機功能
使用前
●初次使用時
●安裝位置 ●移動時
操作方法
●乾衣除濕模式
●除濕模式
●衣物除臭模式
●空氣淨化模式 ●停止
方便的功能
●搖擺送風 ●定時關機
●PCI( )開/關
●兒童安全鎖 ●關閉提示音
排水方法
●儲水箱
●連續排水
保養
●請予以瞭解的事項
●背板(前置過濾網) ●儲水箱
●髒污嚴重或嗅到異味時
●長時間不使用時
更換過濾網
規格
故障時的檢查事項
目錄 頁數
型號
空氣淨化抽濕機
使用說明書
感謝您購買本產品。
請仔細閱讀本使用說明書，以便正確地使用本產品。
在使用之前，請務必仔細閱讀「安全注意事項」。
請妥善保存此說明書以便日後翻閱。
本產品請勿用於商業用途。
＊
C - 2
C - 3
C - 4
C - 6
C - 8
C - 8
C - 9
C - 10
C - 10
C - 11
C - 12
C - 12
C - 13
C - 14
C - 15
C - 16
C - 16
C - 17
C - 17
C - 18
C - 18
C - 19
C - 20
C - 20
C - 22
C - 23
C - 23
C - 24
C - 25
C - 26
介紹
如何使用
保養
必要時
本技術所採用的數字是根據把設有高濃度PCI離子產生器的抽濕
機放在牆角，在空氣淨化(強)模式下，在具有高濃度PCI 7000 適
用地面面積的房間(溫度 20℃，濕度 50%)的中央附近(距離地面
1.2 米)測出的每立方厘米空氣中Plasmacluster Ion的估計值。
＊
High - Density 7000
Device of this mark is a trademark of Sharp Corporation.
Plasmacluster is a registered trademark or a
trademark of Sharp Corporation.
MEMO
DW-E16FA

特點
以高濃度PCI直接消除
晾曬衣物所產生的異味，
為您提供清潔乾爽的衣物。
廣角自動搖擺送風
可均勻地幹衣
＊
乾衣除濕模式
空氣淨化功能
利用過濾網捕捉灰塵、花粉
及難聞異味
※1 過濾網可以去除 99.97% 以上
0.3μm(微米)的微塵粒子。
除濕功能
除濕能力為 每日 8.8 公升※2
儲水箱約為 3.0 公升/可連續排水
※2 在室溫 26.7℃、相對濕度60%時
每日的除濕量。(除濕(強)運作時)
● PM2.5 是指 2.5μm 以下的微粒狀物質。
● 本抽濕機是否夠能去除小於 0.1μm 的微粒狀物質，目前尚未得到證實。
另外，本抽濕機不能去除空氣中的全部有害物質。
● 此為在 32 立方米(約8 張榻榻米)的閉密空間中的效果，並非在實際使用空間中的結果。
※3 試驗方法：日本電機工業會自主基準(HD-128)判定基準：去除 0.1~2.5μm 的微粒狀物質方面，在 32 立方米(約8 張榻
榻米)的閉密空間中，在 90 分鐘內能去除 99%。
(換算為 32 立方米(大約 8張榻榻米)試驗空間的值。)
PCI空氣淨化抽濕機（DW-E16FA）可去除 PM2.5 微塵粒子
過濾 99% 0.1-2.5μm※3微塵粒子
因通風而從屋外進入的新粒子不包括在內
HEPA過濾網※1+活性碳除臭過濾網
常見問題
特點
\
常見問題
以高濃度PCI及高性能 HEPA 過濾網※1、活性碳除臭過
濾網淨化房間的空氣，同時為您洗滌的衣物提供乾燥、
除濕的環境。
High - Density 7000
C - 2 C - 3
■此外，詳細情形請參考「故障時的檢查事項」。
聲音很大?
開始運行、運行時或停止運行時聽到聲音。
壓縮機操作的聲音以及製冷劑循環發出的聲音。
儲水箱無水分積存，是否沒有進行除濕？
在高溫或溫度、濕度都比較低的時候，將自動轉為送風模式，而不進行除濕，
因此儲水箱中無水分積存。
房間會不會變暖?
連續啟動除濕模式 可連續排水嗎?
可採用市面銷售的排水管(內徑 15毫米)進行連續排水。
目前濕度顯示不正確?
濕度顯示為大致濕度。(未必一定與其他設備顯示相同的數值)
開始進行乾衣除濕時，濕度有機會產生巨大變化，可能與實際濕度產生差異。
另外，濕度低於31%時顯示為「Lo」，高於91%時則顯示為「Hi」。
風量無故變強?
即使設定為乾衣除濕、除濕、空氣淨化(自動)運作模式，在出現以下情況時，風量也會自動增強。
●室溫上升至大約 30℃以上時…為了降低主機內部的溫度
●室溫降低至大約 15℃以下時…為了防止主機內部結霜(只送風)
●「異味感測器」偵測到房間內的空氣污染較嚴重時，用以盡快淨化室內的空氣
為甚麼吹出口會散發出異味?
● 長時間在有香煙及烤肉等強烈氣味的環境中使用時，氣味會附著在過濾網上，因此有時會散發出異味。
過濾網有時需要更換。
● 長時間使用時，由於有氣味及污漬殘留在主機內部，故此有時會散發出異味。
請定期進行保養及內部除濕。
C -9、19
C -26~29
C -20~21
C -27
C -26
C -20
使用衣物乾燥、除濕運行時，由於前面的吹出口會吹出暖風，因此如在密閉的房間內操作時，
會導致房間溫度上升。
* 本技術所採用的數字是根據把設有高濃度PCI離子產生器的抽濕機放在牆角，在空氣淨化(強)模式下，在具有高濃度PCI 7000
適用地面面積的房間(溫度 20℃，濕度 50%)的中央附近(距離地面 1.2 米)測出的每立方厘米空氣中Plasmacluster Ion的估計值。
根據房間的溫度，自動調節除
濕量，以達到合適的濕度。

安全注意事項
警告
注意
警告 為預防火災、觸電、受傷
電源插頭及電源線
發生異常情況時(有燒焦異味等)
保養時
使用時
為預防對用戶或他人導致危害及
財產損失，特對應遵守的事項說
明如下。
■ 請根據以下標記，遵守其
表示的事項：
表示不允許做的
禁止事項。
表示必須要做的
強制事項。
表示有可能會導致死亡
或重傷。
表示有可能會導致受傷
或財物損失。
■ 若不遵守以下之安全事項
或錯誤操作本機，則可能
發生不同程度的危險：
注意 為預防漏電、受傷或財物損失
請務必遵守
電源插頭及電源線
與後方距離
大於20厘米
與上方距離
大於50厘米
與前方距離
大於50厘米
與左右距離
大於20厘米
● 請勿將可燃物體及已經點燃的香煙或香火等靠
近吸入口
(否則會導致起火)
● 請勿用苯或稀釋劑擦拭，或者噴灑殺蟲劑
(否則會產生裂紋或引致觸電及起火)
● 室內使用燻蒸型(出煙型)殺蟲劑時，請勿運作
本機
假如藥劑成份囤積在機器內部，其後再從吹出
口吹出，可能會對健康造成影響。使用殺蟲劑
後，必須在充分換氣之後才運作本機。
● 請勿飲用除濕水或將除濕水用於餵飼動物等
(否則可能會影響健康)
●
請勿在牆壁或家具間的狹窄空間使用本機
● 請勿在吹出口或過濾網上覆蓋布等物品
(通風不暢可能會導致發熱、起火)
● 請勿放置在桌上等高處使用
(主機墮下時，可能會導致受傷)
● 請勿坐在或倚靠在本產品上
(產品翻倒會導致故障、破裂及人身傷害)
● 請勿在易於被水濺濕的地方或浴室等使用本機
● 請勿用水直接淋洗本機
● 請勿在主機上放置花瓶等含水的容器
● 僅限室內使用。請勿放置在被陽光直射或有風
雨的地方使用
●
請勿放置在可能洩漏燃油或易燃氣體的地方
(否則可能會導致觸電、過熱、漏電、火災)
● 請勿使主機翻倒或從高處墮下
請勿在主機翻側時收藏或移動本機
(否則可能會導致容器破損、漏水、漏電等故障)
● 請勿將燃燒器具放置在吹出口或風能到達的地方
(否則可能會導致燃燒器具不完全燃燒)
●
請勿用於保存美術品、學術資料或其他特別用途
(否則可能會降低保存品品質)
● 「乾衣除濕模式」和「除濕模式」運作時，請勿
在有人的房間長時間使用本機
產生的熱量會使房間溫度上升，使房間變得乾
燥，可能會影響健康
下列人士使用本機時，請加以注意
(嬰幼兒、兒童、老人、無法自己操作本機的人士)
● 移動時，須停止操作，並把儲水箱中的水倒掉
● 在平坦及穩定的地方使用
● 連續排水時，避免水管彎折， 使水管順利排水
● 使用排水管時，須確保周圍的溫度不低於零度
(儲水箱的水流向室內並弄濕家具等，可能會
導致觸電、漏電、火災)
●
當與燃燒設備一起運行時，要稍稍打開窗戶，進
行通風
本產品並不能去除一氧化碳等有害物質。(通
風不充分時，會導致因氧氣不足而發生窒息)
●
請勿在榻榻米、易損傷的地板、高低不平的場
所、 長毛地毯等處拖動腳輪來改變主機的方向
(否則可能會導致地板及地毯表面受損)
安全注意事項
使用時
● 請勿使電源線破損
●
請勿對電源線進行任意更換、加工、強制彎曲、拉扯、扭曲、捆紮等
● 請勿對其承載重物或夾壓
● 移動時，請勿使腳輪輾壓電源插頭及電源線
(否則可能會導致電源線破損、火災、觸電)
● 請勿用潮濕的手插拔電源線(否則可能會導致觸電)
● 電源線應避免中途連接、使用延長線，還應避免與其他電器用品
共同使用一個插座(否則可能會導致觸電、發熱、火災)
● 不可使用額定電壓220-240V (50Hz)以外的電源
● 請勿以直接插入或拔出電源插頭來代替正常的主機開關
(否則可能會導致觸電或火災)
● 確認電源插頭上沒有積塵及沒有鬆動後，將其牢固地插入電源插
座，及應定期用乾布擦拭電源插頭上的灰塵
(積塵或接觸不良可能會導致觸電或火災)
● 請勿將手指或異物(針狀物、金屬絲、棒狀物)插入吹出口或吸入口
(由於風扇在機內部高速運行，一旦接觸可能會導致受傷，接觸
內部還可能會導致觸電、故障)
● 不可作任何改裝。禁止非維修技術人員進行分拆、改造或維修
(否則可能會導致火災、觸電、受傷)
● 請勿將噴霧器等罐子放在主機的附近。另外，請勿在主機附近使
用易燃的危險物品(汽油、稀釋劑)
(否則可能會導致起火、爆炸或火災)
● 請勿長時間被風直接吹著身體
(否則可能會導致身體不適、健康受損)
● 請勿把主機放在發熱器具的附近
(主機的樹脂部分熔化，可能會導致火災)
● 請立即停止操作，拔出電源插頭，並與聲寶維修服務中心聯絡
(否則可能會導致觸電或火災等)
● 需要維修時，請與聲寶維修服務中心聯絡
(如維修不妥善，可能會導致觸電、火災、受傷)
● 須停止操作，拔出電源插頭
(由於內部風扇正在高速運行，可能會導致受傷)
● 須緊握電源插頭拔出
(否則可能會導致火災、觸電、短路)
● 請在主機周圍預留一定的空間
(通風不暢可能會導致過熱、起火、故障、保
護裝置啟動)
● 長時間在同一地方使用時，須注意本機下方及
地板周圍等出現的污垢
須經常移動本產品，對地板等進行清掃
● 長時間不使用時，為安全起見，須將電源插頭
從插座中拔出
(否則可能會導致觸電、漏電、火災)
C - 4 C - 5

導風板(吹出口)
腳輪(4個)
可左右移動。
水位窗
儲水箱拉槽
儲水箱手柄
正面
儲水箱 C - 18、22
各部分名稱
主機和操作面板
操作面板
排水口
儲水箱蓋
異味感測器指示燈(綠、橙、紅)
用顏色告知您房間的污染程度
目前濕度顯示
顯示目前濕度(估計數值)
－
31%或以下
…………
…
…………
以1%為單位顯示
目前濕度
91%或以上
風速設換鍵
風量切換
風速指示燈(綠)
運作狀態風量顯示
兒童安全鎖指示燈(綠)
點亮……兒童安全鎖處於開啟狀態
請勿取出聚苯乙烯泡沫材料。
(否則無法檢測到儲水箱已滿)
浮子
綠色
紅色
房
間
內
空
氣
清潔
(點亮)
髒污
(點亮)
C -12、13、15
背面
背板
(前置過濾網)
活性碳除臭
過濾網
HEPA過濾網
停止鍵
停止操作
上下搖擺鍵
切換導風板上下搖擺模式
上下搖擺指示燈(綠)
顯示搖擺狀態
定時關機鍵
設定定時關機運作時間
定時關機指示燈(綠)
顯示定時關機設定時間
水滿指示燈(紅)
閃爍……儲水箱已滿
運行/模式指示燈(綠)
顯示運作狀態
空氣淨化指示燈(Air Purifying)在所有
運作模式下都會亮起
運行/模式鍵
切換運作模式
C -12∼15
電源線
連續排水孔
(塞頭)
電源插頭
感測器(內部)
(異味感測器)
感測器(內部)
(溫/濕度感測器)
手柄(左右兩側)
吸入口
請勿堵塞吸入口。
各部分名稱
PCI指示燈(藍)
點亮……PCI釋放中
PCI開/關鍵
(兼用作兒童安全鎖開/關鍵)
C - 6 C - 7
C - 11
C -16
C -16
C - 16
C - 17
C -17
C -15
C -18
