Sharp FO-4650 User manual

OPERATION MANUAL
FACSIMILE
MODEL
FO-4650
FO-4970
1. Installation
2. Sending Documents
3. Receiving Documents
4. Making Copies
5. Special Functions
6. Option Settings
7. Printing Reports and Lists
8. Maintenance
9. Troubleshooting
FO-4650/FO-4970 FACSIMILE

WARNING - FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable
protection against harmful interference in a residential installation.This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
ABOUT THE TELEPHONE CONSUMER PROTECTION ACT OF 1991
"The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a
computer or other electronic device to send any message via a telephone facsimile machine unless
such message clearly contains in a margin at the top or bottom of each transmitted page or on the
first page of the transmission the following information:
(1) The date and time of transmission.
(2) Identification of either the business, business entity or individual sending the message.
(3) Telephone number of either the sending machine, business, business entity or individual.
In order to program this information into your facsimile machine, please refer to the appropriate
instructions in the operation manual."
As an ENERGY STARpartner, SHARP has determined
that this product meets the ENERGY STARguidelines for
energy efficiency.
FCC1.fm Page 1 Tuesday, November 28, 2000 2:06 PM

1
Transmitting documents
Normal Dialing
Direct Keypad
Dialing
Rapid Key Dialing
Speed Dialing
Redialing REDIAL
START
Note: Steps which are optional are enclosed in a dotted frame:
QUICK REFERENCE GUIDE
RESOLUTION
Load
document
RESOLUTION
press SPEAKER Dial (press
numeric keys)
Wait for
reception tone
Load
document
RESOLUTION
Dial (press
numeric keys)
Load
document
RESOLUTION
START
Load
document
RESOLUTION
Press Rapid
Key
SPEED DIAL
Load
document
RESOLUTION
Enter Speed Dial number
(press numeric keys, - if less
than 3 digits, press START
to complete entry)
START
Wait for
reception tone
START
all-FO4700.book Page 1 Tuesday, November 28, 2000 2:07 PM

2
Transmisión de documentos
Marcación normal
Marcación directa
con el teclado
Marcación con
Teclas Rápidas
Marcación Veloz
Remarcación
REDIAL
START
Nota: El marco punteado significa que el procedimiento puede ser opcional:
GUIA DE CONSULTA RAPIDA
RESOLUTION
Colocar el
documento
RESOLUTION
pulse SPEAKER Marque (pulse
teclas numéricas)
Espere el tono
recepción
Colocar el
documento
RESOLUTION
Marque (pulse
teclas numéricas)
Colocar el
documento
RESOLUTION
Pulse la Tecla
Rápida
SPEED DIAL
Colocar el
documento
RESOLUTION
Introduzca el número de discado r
pido (presione las teclas numéricas,
si fueran menos de 3 digitos, para
completar el procedimiento presione
START
.)
START
Colocar el
documento
RESOLUTION
Espere el tono
recepción
START
START
all-FO4700.book Page 2 Tuesday, November 28, 2000 2:07 PM

3
Introduction
Welcome, and thank you for choosing a Sharp facsimile machine! The
features and specifications of your new Sharp fax machine are shown
below.
Automatic dialing Rapid Key ialing: 48 numbers
Speed ialing:
FO-4650: 75 numbers
FO-4970: 100 numbers
Memory size* FO-4650: 1 MB (approx. 56 pages )
FO-4970: 2 MB (approx. 116 pages)
Modem speed FO-4650: 14,400 bps (max.)
FO-4970: 33,600 bps (max.)
Automatic fallback to lower speeds.
ransmission time* FO-4650: Approx. 6 seconds
FO-4970: Approx. 2 seconds
oner cartridge yield
(4% page coverage, letter
paper)
Initial starter cartridge (included with fax
machine): Approx. 3000 pages
Replacement cartridge (FO-47ND):
Approx. 6000 pages
Drum cartridge yield Initial starter cartridge (included with fax
machine): 20,000 pages (ave.)
Replacement cartridge (FO-47DR): 20,000
pages (ave.)
Resolution Horizontal: 203 pels/inch (8 pels/mm)
Vertical:
Standard: 98 lines/inch (3.85 lines/mm)
Fine /Halftone:
196 lines/inch (7.7 lines/mm)
Super fine: 391 lines/inch (15.4 lines mm)
*Based on ITU-T Test Chart #1 at standard resolution in Sharp special mode,
excluding time for protocol signals (i.e., ITU-T phase C time only).
all-FO4700.book Page 3 Tuesday, November 28, 2000 2:07 PM

4
Automatic document
feeder
Letter paper (20 lb): Max. 50 pages
Legal paper: Max. 20 pages
(Note: 11” x 17” paper must be loaded one
page at a time.)
Paper capacity 250 sheets (500-sheet cassette available as
option)
Compression scheme MMR, MR, MH, Sharp (H2)
(FO-4970: Also supports JBIG)
Halftone (grayscale) 64 levels
Applicable telephone line Public switched telephone network
Compatibility ITU-T (CCITT) G3 mode
Printing resolution Horizontal: 406 lines/inch (16 lines/mm)
Ver tic al: 391 lines/inch (15.4 lines/mm)
Input document size Automatic feeding:
Width: 5.8 to 10.1" (148 to 256 mm)
Length: 5.0 to 14.3" (128 to 364 mm)
Manual feeding:
Width: 5.8 to 11.0" (148 to 279 mm)
Length: 5.0 to 17.0" (128 to 432 mm)
Effective Scanning width 8.3" (210 mm) max.
Effective Printing width 8.0" (203 mm) max.
Reception modes Auto/Manual
Instascan speed 30 ppm (letter paper)
Full Dual Access Yes
Copy function Single/Multi/Sort (99 copies/page)
Power requirements 120 V AC, 60 Hz
Operating temperature 50 - 86°F (10 - 30°C)
Humidity 20 to 85% RH
all-FO4700.book Page 4 Tuesday, November 28, 2000 2:07 PM

5
Power consumption Standby: 10 W
Maximum: 580 W
Dimensions Width: 18.1" (460 mm)
epth: 15.2" (385 mm)
Height: 10.6" (270 mm)
Weight
Approx. 27.8 lbs. (12.6 kg)
As a part of our policy of continuous improvement, SHARP reserves the right to
make design and specification changes for product improvement without prior notice.
The performance specification figures indicated are nominal values of production
units. There may be some deviations from these values in individual units.
Important safety information
Be sure to save these instructions!
When using your facsimile equipment, basic safety precautions
should always be followed to reduce the risk of fire, electric shock and
injury to persons, including the following:
• CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger
telecommunication line cord.
• o not disassemble this machine or attempt any procedures not
described in this manual. Refer all servicing to qualified service per-
sonnel.
• This machine must only be connected to a 120 V, 60 Hz, grounded (3-
prong) outlet. Connecting it to any other kind of outlet will damage the
machine and invalidate the warranty.
• o not install or use the machine near water, or when you are wet. For
example, do not use the machine near a bath tub, wash bowl, kitchen
sink or laundry tub, in a wet basement, or near a swimming pool. Take
care not to spill any liquids on the machine.
all-FO4700.book Page 5 Tuesday, November 28, 2000 2:07 PM

6
• Use only the power cord provided with the facsimile machine. o not
use an AC extension cord.
• Unplug the machine from the telephone jack and then the power outlet
and consult a qualified service representative if any of the following
situations occur:
- Liquid has been spilled into the machine or the machine has been
exposed to rain or water.
- The machine produces odors, smoke, or unusual noises.
- The power cord is frayed or damaged.
- The machine has been dropped or the housing damaged.
• o not allow anything to rest on the power cord, and do not install the
machine where people may walk on the power cord.
• Never insert objects of any kind into slots or openings on the machine.
This could create a risk of fire or electric shock. If an object falls into
the machine that you cannot safely remove, unplug the machine and
consult a qualified service representative.
• o not place this machine on an unstable cart, stand or table. The
machine could be seriously damaged if it falls.
• Avoid using a telephone (other than a cordless type) during an electri-
cal storm. There may be a remote risk of electric shock from lightning.
• o not use a telephone to report a gas leak in the vicinity of the leak.
• The power outlet must be installed near the equipment and must be
easily accessible.
Important:
• This facsimile machine is not designed for use on a line which has call
waiting, call forwarding, or certain other special services offered by
your telephone company. If you attempt to use the fax machine in con-
junction with any of these services, you may experience errors during
transmission and reception of facsimile messages.
• This machine is not compatible with digital telephone systems.
all-FO4700.book Page 6 Tuesday, November 28, 2000 2:07 PM

7
Table of Contents
QUICK REFERENCE GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . 1
GUIA DE CONSULTA RAPIDA . . . . . . . . . . . . . . . . . . . . . . . . 2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Unpacking Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
A Look at the Operation Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing the Print Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Loading Printing Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Entering Your Name and Fax Number . . . . . . . . . . . . . . . . . . . . 28
Setting the Date and Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2. Sending Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Transmittable Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Loading the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Adjusting the Resolution and Contrast . . . . . . . . . . . . . . . . . . . . 38
Sending a Fax by Normal Dialing . . . . . . . . . . . . . . . . . . . . . . . . 40
Programming Auto-Dial Numbers . . . . . . . . . . . . . . . . . . . . . . . . 42
Sending a Fax by Automatic Dialing . . . . . . . . . . . . . . . . . . . . . . 48
Cover Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Batch Page Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
3. Receiving Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Using AUTO Reception Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Using MANUAL Reception Mode . . . . . . . . . . . . . . . . . . . . . . . . 64
Substitute Reception to Memory . . . . . . . . . . . . . . . . . . . . . . . . . 65
all-FO4700.book Page 7 Tuesday, November 28, 2000 2:07 PM

Table of Contents
8
4. Making Copies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
5. Special Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Broadcasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Confidential Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Relay Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Polling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Power Save Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Timer Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Batch Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Entering and Using Programs . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Duplex Scanning for Two-sided Documents . . . . . . . . . . . . . . . 131
Print Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Department Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Blocking Reception of Unwanted Faxes . . . . . . . . . . . . . . . . . . 138
Telephone Billing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Distinctive Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
6. Optional Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
7. Printing Lists and Reports . . . . . . . . . . . . . . . . . . . . . . . 154
8. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162
Cleaning the Scanning Glass and Rollers . . . . . . . . . . . . . . . . . 162
The Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Replacing the Verification Stamp. . . . . . . . . . . . . . . . . . . . . . . . 163
9. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Problems and Solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Messages and Signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
FCC Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
all-FO4700.book Page 8 Tuesday, November 28, 2000 2:07 PM

9
1. Installation
1. Installation

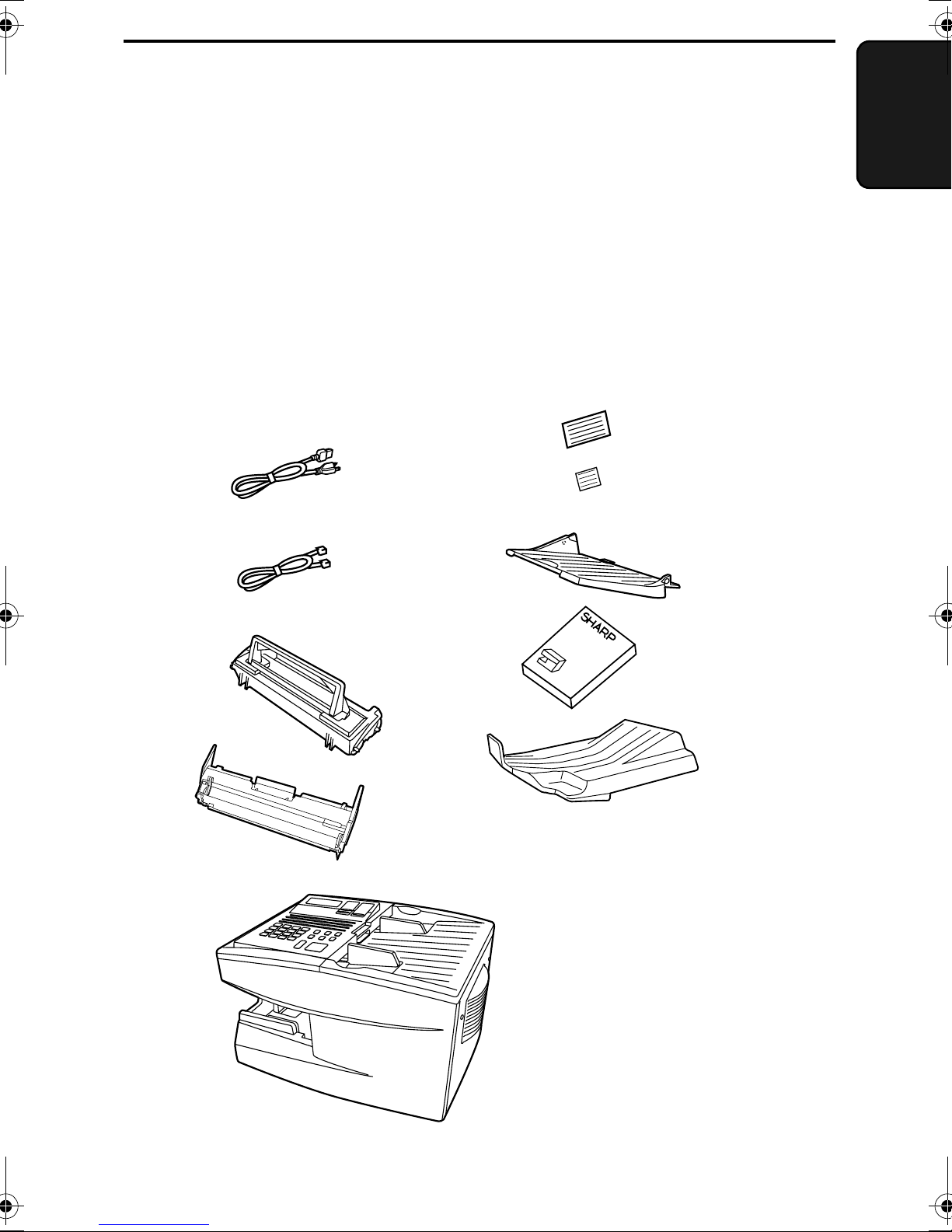

Unpacking Checklist
Before setting up, make sure you have all of the following items. If
any are missing, contact your dealer.
Telephone
line cord
Toner cartridge
Rapid Key
labels
Document
OUT tray
Operation
manual
Received
document tray
Power cord
Paper size
labels
Drum cartridge
all-FO4700.book Page 9 Tuesday, November 28, 2000 2:07 PM

A Look at the Operation Panel
10
RESOLUTION
STANDARD
FINE
SUPER FINE
HALF TONE
LINE IN USE
CHANGEOVER
POWER SAVE
STATUS CHECK
1
4 5 8 9 106 7
2 3
Display
This displays messages and prompts during operation and
programming.
LINE IN USE light
This lights when the fax machine is using the telephone line.
S A US CHECK light
This lights when a paper size error or paper jam occurs, or when the
print compartment cover is open. A message will appear in the display
to indicate the problem. (The indicator also lights steadily when the
received document tray is not properly installed.)
Service indicator
This lights when a problem occurs which must be fixed by a service
technician.
A Look at the Operation Panel
1
2
3
3
4
all-FO4700.book Page 10 Tuesday, November 28, 2000 2:07 PM

A Look at the Operation Panel
11
1. Installation
Paper out indicator
This lights when the fax machine is out of paper. If the machine has a
paper cassette, the indicator blinks when one of the paper sources
(tray or cassette) is out of paper, and lights steadily when all sources
are out of paper.
oner cartridge indicator
This blinks when the toner cartridge nears empty, and lights steadily
when the toner cartridge needs replacement.
Drum cartridge indicator
This blinks when the drum cartridge needs replacement.
CHANGEOVER key
Two types of information appear in the display: prompts related to
operations you are performing, and information about how the fax is
using the telephone line (transmitting, receiving, etc.). Press this key
to switch between the two types of information.
POWER SAVE key
Press this key to turn on Power Save Mode, or set the Power Save
Mode timer if TIMER has been selected with Option Setting 34
(Power Save Type).
RESOLU ION key
Press this key to adjust the resolution before sending or copying a
document.
5
6
6
7
7
8
8
9
9
10
all-FO4700.book Page 11 Tuesday, November 28, 2000 2:07 PM

A Look at the Operation Panel
12
CLEARSPSHIFTSPACE
A
I
Q
Y
B
J
R
Z
C
K
S
D
L
T
E
M
U
F
N
V
G
O
W
H
P
X
01
09
17
25
02
10
18
26
03
11
19
04
12
20
05
13
21
06
14
22
07
15
23
08
16
24
27 28 29 30 31 32
CLEARSPSHIFTSPACE
A
I
Q
Y
B
J
R
Z
C
K
S
D
L
T
E
M
U
F
N
V
G
O
W
H
P
X
33
41
CONTRAST
SEARCH DIAL
34
42
PAGE COUNTER
35
43
CONFIDENTIAL
36
44
TIMER
37
45
RELAY
38
46
39
47
MEM.STATUS
40
48
LIFE
DOWN UP
COVER SHEET
11
11 12
20 21 22 23 24 25 26
13 14 15 16 17 18 19
Rapid Dial Keys
Press one of these keys to dial a fax number automatically. (Note that
you must attach the Rapid Key labels.)
CON RAS key
Press this key to adjust the contrast before sending or copying a
document.
PAGE COUN ER key
Press this key to include a slash and the total number of pages after
each page number on the pages of a transmitted document.
CONFIDEN IAL key
Press this key to send or print out a confidential document.
IMER key
Press this key to set an operation to be performed automatically at a
later time.
15
13
12
11
14
Rapid Key
overlay down
Rapid Key
overlay up
all-FO4700.book Page 12 Tuesday, November 28, 2000 2:07 PM

A Look at the Operation Panel
13
1. Installation
RELAY key
Press this key to send a document to another Sharp fax machine and
have that machine in turn relay the document to one or more end
receiving machines.
LIFE key
Press this key, followed by 1, to check the total number of pages
printed by the fax machine.
MEM. S A US key
Press this key to check the status of documents waiting in memory for
transmission.
SEARCH DIAL key
Press this key to search through your auto dial fax numbers by name.
COVER SHEE key
Press this key to include a cover sheet when sending a fax.
SPACE key
Press this key to enter a space when programming a name.
SHIF key
Press this key to switch between upper and lower case letters when
programming a name.
SP key
Press this key to enter a symbol when programming a name.
CLEAR key
Press this key to clear a mistake when programming a name or fax
number.
Arrow keys
Press these keys to move the cursor forward or backward when
programming a name or fax number.
UP and DOWN keys
Press these keys to adjust the volume of the speaker when the
SPEAKER key has been pressed, or the volume of the ringer at all
other times.
25
24
23
17
18
19
20
21
22
26
16
all-FO4700.book Page 13 Tuesday, November 28, 2000 2:07 PM

A Look at the Operation Panel
14
123
456
789
0
ABC
GHI
DEF FUNCTION
COPY DOCUMENT DUPLEX SCAN
BROADCAST
STOP START
REPORT
SPEED DIAL
REDIAL
SPEAKER
JKL MNO
PRS TUV
OPER
WXY
PRIORITY
27 28 29 30
33 35 36 37 38 3934
31 32

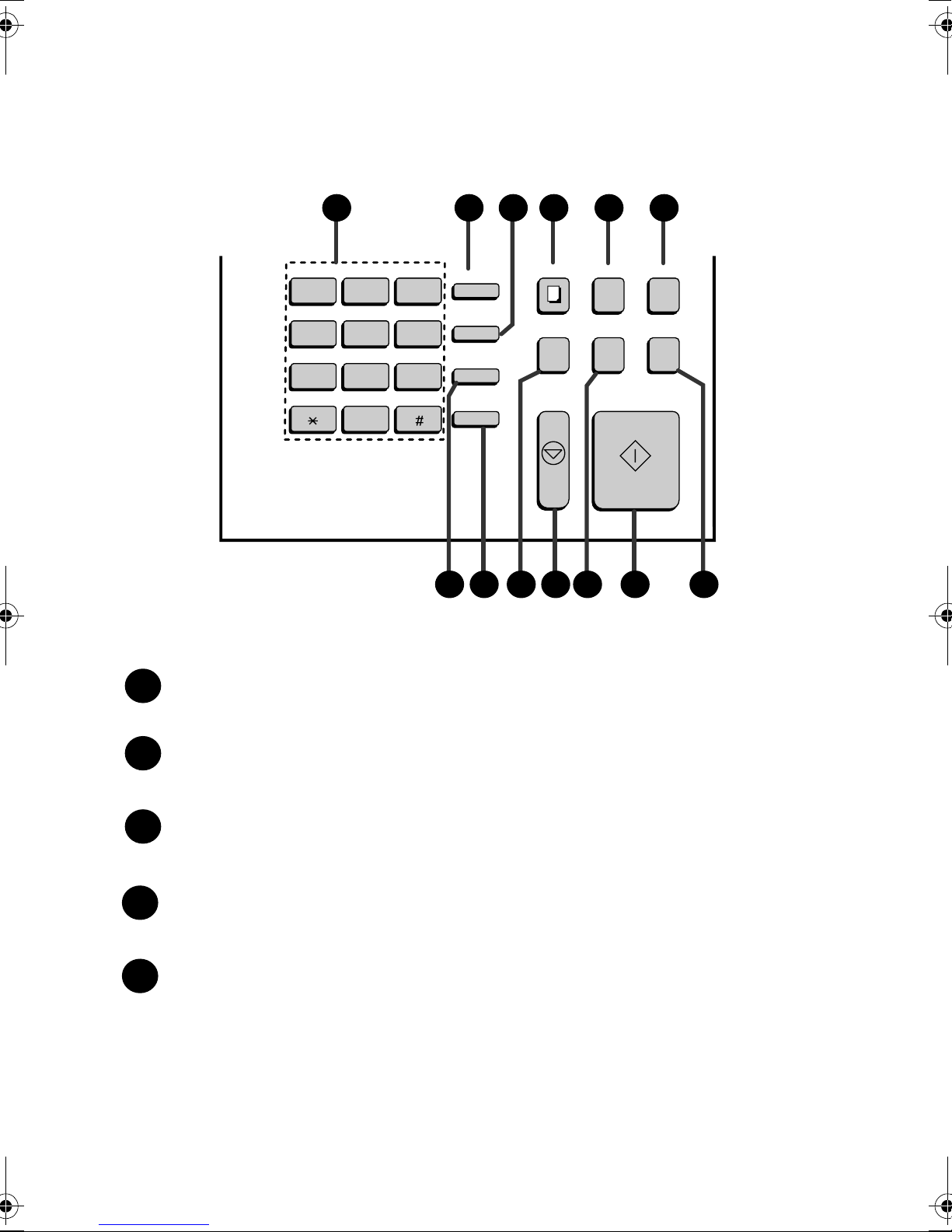

Dial keypad (numeric keys)
Use these keys to dial and program fax numbers.
FUNC ION key
Press this key to select various special functions.
SPEED DIAL key
Press this key to dial a Speed ial number.
COPY key
Press this key to make a copy of a document.
DOCUMEN key
Press this key to transmit a document without reading it first into
memory.
27
28
29
30
31
all-FO4700.book Page 14 Tuesday, November 28, 2000 2:07 PM

A Look at the Operation Panel
15
1. Installation
DUPLEX SCAN key
Press this key to transmit or copy a two-sided document.
REDIAL key
Press this key to automatically redial the last number dialed.
SPEAKER key
Press this key when transmitting a document by Normal ialing to
listen to the line and verify the response of the receiving fax machine.
BROADCAS key
Press this key to send a document to a group of receiving fax
machines.
S OP key
Press this key to cancel an operation before it is completed.
PRIORI Y key
Press this key when you need to transmit a document ahead of other
documents waiting in memory for transmission.
S AR key
Press this key to begin transmission when using Speed ialing, irect
Keypad ialing, or Normal ialing.
REPOR key
Press this key to print out a report on the most recently completed
transmission or reception.
39
37
36
35
33
32
34
38
all-FO4700.book Page 15 Tuesday, November 28, 2000 2:07 PM

Connections
16
Connections
Points to keep in mind when setting up
♦o not place the machine in direct sunlight.
♦o not place the machine near heaters or air conditioners.
♦Keep dust away from the machine.
♦Install the machine on a level surface.

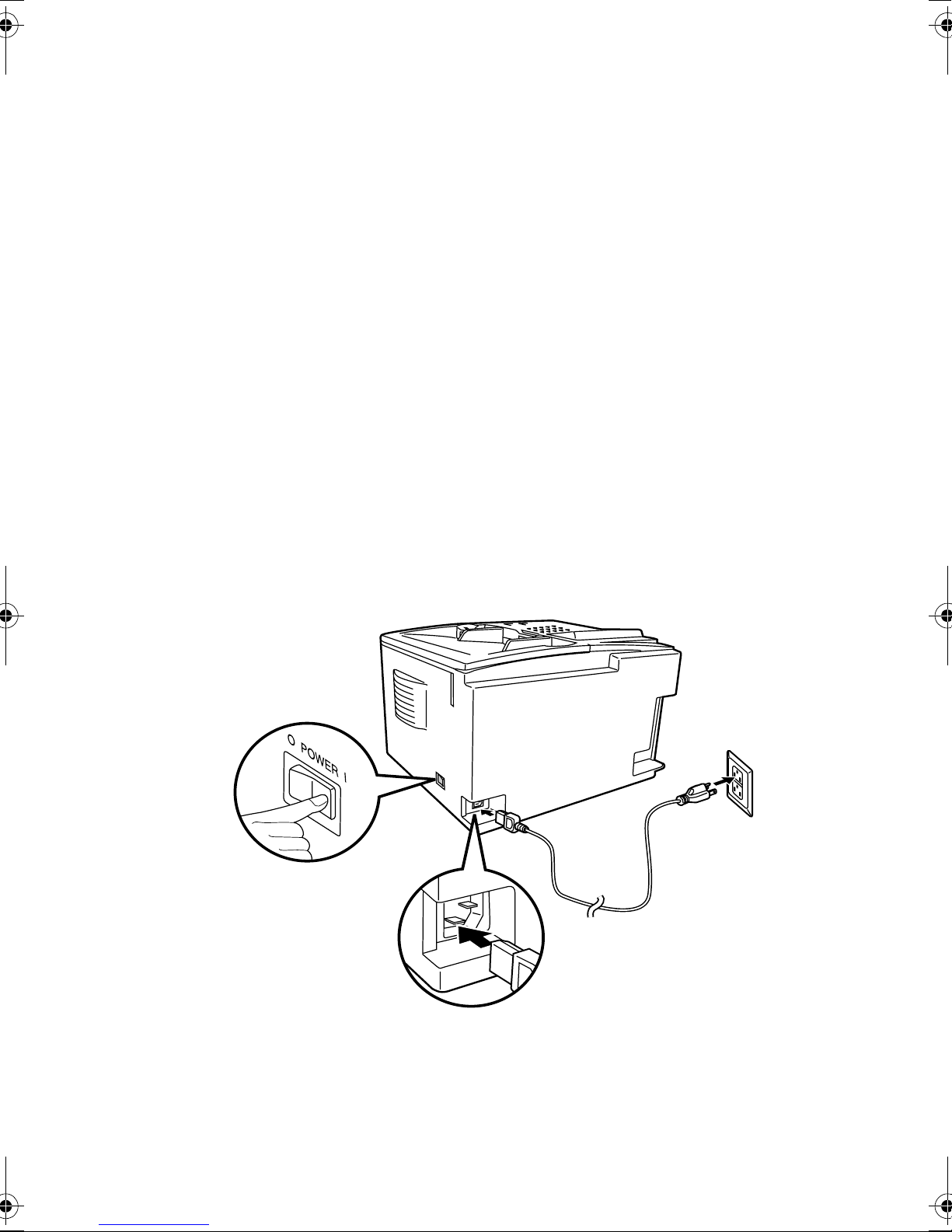

Connecting the power cord
Connect the female end of the power cord to the fax machine as
shown. Insert the male end into a 120 V, 60 Hz, grounded (3-prong)
AC outlet.
Note: If your area experiences a high incidence of lightning or power
surges, we recommend that you install surge protectors for the power and
telephone lines. Surge protectors can be purchased at most telephone spe-
cialty stores.
Press the power
switch to turn on
the power.
all-FO4700.book Page 16 Tuesday, November 28, 2000 2:07 PM

Connections
17
1. Installation

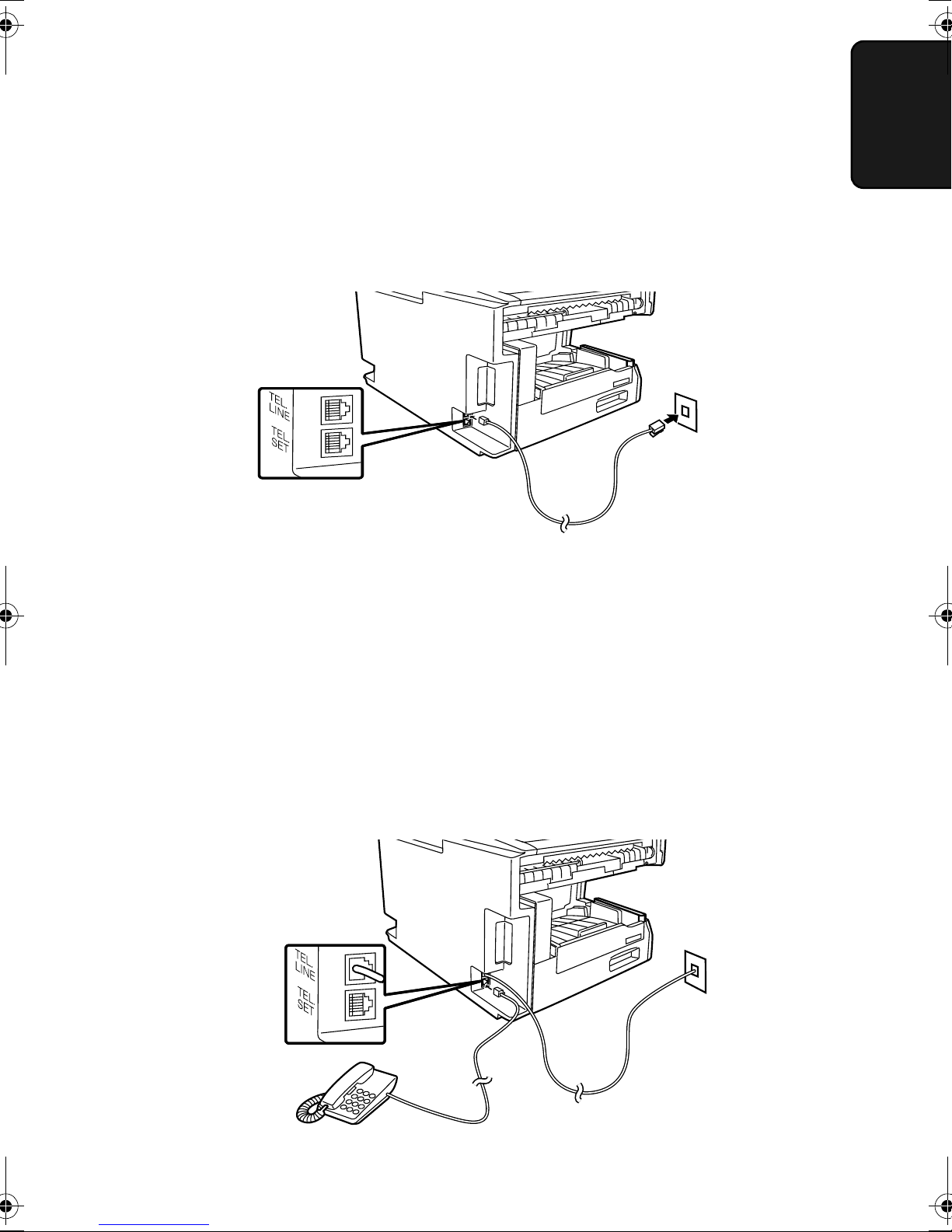

Connecting the telephone line cord
Insert one end of the line cord into the jack on the back of the machine
marked EL. LINE. Insert the other end into a standard (RJ11C)
single-line wall telephone jack.
Note: The fax machine is set for touch-tone dialing. If you are on a pulse
dial (rotary) line, you must set the fax machine for pulse dialing by
changing Option Setting 22. This procedure is described in Chapter 6,
Optional Settings.
Connecting a telephone (optional)
If desired, you can connect a telephone to the EL. SE jack on the
back of the machine.
all-FO4700.book Page 17 Tuesday, November 28, 2000 2:07 PM

Connections
18
Attaching the document OUT tray
Insert the protrusion on the right side of the machine into the hole in
the right side of the document OUT tray as shown, then bend the tray
slightly and insert so that the protrusion on the left side of the machine
goes into the hole on the left side of the document OUT tray.
Pull out the tray
extension.
Attaching the received document tray
Slide the received document tray into the machine as shown. When it
stops, lift the end slightly and push in so that the tray locks into place.
Important!
The received document tray must be attached for the fax machine to
operate properly.
Make sure the left edge of
the tray fits into the slot.
Attach the Automatic
Document Feeder label
to the top of the machine.
Automatic Document Feeder
LETTER : MAX 50 SHEETS
LEGAL : MAX 20SHEETS
all-FO4700.book Page 18 Tuesday, November 28, 2000 2:07 PM
