This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
Parts marked with “ “ are important for maintaining the safety of the set.
Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.
SHARP CORPORATION
LASER PRINTER
AR-M350
MODEL AR-M450
OPTIONS AR-EF1 / AR-M11 / AR-RK1
CODE : 00ZARM350/A1E
[ 1 ] PRODUCT OUTLINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
[ 2 ] CONFIGURATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1
[ 3 ] SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1
[ 4 ] CONSUMABLE PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1
[ 5 ] EXTERNAL VIEWS AND INTERNAL STRUCTURES . . . . . . . 5 - 1
[ 6 ] UNPACKING AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . 6 - 1
[ 7 ] DISASSEMBLY AND ASSEMBLY, MAINTENANCE . . . . . . . . . 7 - 1
[ 8 ] MACHINE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 1
[ 9 ] ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1
[10] SIMULATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 1
[11] TROUBLE CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 1
[12] ELECTRICAL SECTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 1
CONTENTS
     

CAUTION
Cautions on laser
Wavelength 785nm +10 nm
−15nm
Pulse times NorthAmerica:
35 cpm model: (4.1 µs ± 4.1 ns)/7 mm
45 cpm model: (5.7 µs ± 5.7 ns)/7 mm
Europe:
35 cpm model: (3.8 µs ± 3.8 ns)/7 mm
45 cpm model: (4.4 µs ± 4.4 ns)/7 mm
Outputpower 0.2 mW - 0.4 mW
At the production line, the output power of the scanner unit
isadjustedto0.4MILLIWATTPLUS 8 %andismaintained
constantbythe operation of theAutomaticPower Control (APC).
Caution
This product contains a low power laser device. To ensure
safety do not remove any cover or attempt to gain access
to the inside of the product. Refer all servicing to qualified
personnel.
CAUTION
VORSICHT
ADVARSEL
ADVERSEL
VARNING
VARO!
INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.
AVOID EXPOSURE TO BEAM.
Laserstrahl
UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET UND
SICHERHEITSVERRIEGELUNG ÜBERERÜCKT. NICHT DEM STRAHL AUSSETZEN.
USYNLIG LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE ER
UDE AF FUNKTION. UNDGÅ UDSAETTELSE FOR STRÅLNING.
USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG SIKKERHEDSLÅS BRYTES.
UNNGÅ EKSPONERING FOR STRÅLEN.
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRRAR ÄR
URKOPPLADE.STRÅLEN ÄR FARLIG. BETRAKTA EJ STRÅLEN.
AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTÖNT
LASERSÄTEILYLLE.ÄLÄ KATSO SÄTEESEEN.
CLASS 1
LASER PRODUCT
LASER KLASSE 1
ForEurope:
CLASS 1 LASER PRODUCT
LASER KLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN INTERLOCKS
DEFEATED. AVOID EXPOSURE
TO BEAM.
VORSICHT
UNSICHTBARE
LASERSTRAHLUNG WENN
ABDECKUNG GEÖFFNET UND
SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT.NICHT DEM
STRAHL AUSSETZEN.
ADVARSEL
USYNLIG LASERSTRÅLNING
VED ÅBNING, NÅR
SIKKERHEDSBRYDERE ER
UDE AF FUNKTION. UNDGÅ
UDSAETTELSE FOR
STRÅLNING.
VAROITUS!
LAITTEEN KÄYTTÄMINEN
MUULLA KUIN TÄSSÄ
KÄYTTÖOHJEESSA
MAINITULLA TAVALLA SAATTAA
ALTISTAA KÄYTTÄJÄN
TURVALLISUUSLUOKAN 1
YLITTÄVÄLLE
NÄKYMÄTTÖMÄLLE
LASERSÄTEILYLLE.
VARNING
OM APPARATEN ANVÄNDS PÅ
ANNAT SÄTT ÄN I DENNA
BRUKSANVISNING
SPECIFICERATS, KAN
ANVÄNDAREN UTSÄTTAS FÖR
OSYNLIG LASERSTRÅLNING,
SOM ÖVERSKRIDER GRÄNSEN
FÖR LASERKLASS 1.
ForNorthAmerica:
SAFETYPRECAUTIONS
This Digital Equipment is rated Class 1 and complies with 21 CFR 1040.10 and 1040.11 of the
CDRHstandards.This meansthatthe equipment doesnotproduce hazardous laserradiation.For
your safety, observe the precautions below.
●
Do not remove the cabinet, operation panel or any other covers.
●
The equipment's exterior covers contain several safety interlock switches. Do not bypass any
safety interlock by inserting wedges or other items into switch slots.
Caution
Use of controls or adjustments or performance of procedures other than those specified herein may result in
hazardousradiationexposure.
    

CONTENTS
[1] PRODUCT OUTLINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
[2] CONFIGURATION
1. System Configurations. . . . . . . . . . . . . . . . . . . . . . . . . .2-1
2. Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
3. List of combination of peripheral devices. . . . . . . . . . . .2-2
[3] SPECIFICATIONS
1. Basic Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
2. Specific Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
3. B/W Scanner Module (DSPF) . . . . . . . . . . . . . . . . . . . .3-5
4. Rack for Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
[4] CONSUMABLE PARTS
1. Supply system table. . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
2. Production number identification . . . . . . . . . . . . . . . . . .4-5
3. Environmental conditions. . . . . . . . . . . . . . . . . . . . . . . .4-5
[5] EXTERNAL VIEWS AND INTERNAL STRUCTURES
1. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
2. Operation Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
3. Touch Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
4. Cross sectional view . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
5. Switch, Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
6. PWB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7
7. Motor, Clutch, Solenoid . . . . . . . . . . . . . . . . . . . . . . . . .5-7
[6] UNPACKING AND INSTALLATION
1. Installing procedure flowchart . . . . . . . . . . . . . . . . . . . .6-1
2. Note for installation place. . . . . . . . . . . . . . . . . . . . . . . .6-2
3. Unpacking procedure. . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
4. Machine installing procedure . . . . . . . . . . . . . . . . . . . . .6-2
5. AR-EF1 / AR-RK1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6
6. Automatic developer adjustment . . . . . . . . . . . . . . . . . .6-8
7. Adjustment of distortion . . . . . . . . . . . . . . . . . . . . . . . . .6-8
8. AR-M11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9
[7] DISASSEMBLY AND ASSEMBLY, MAINTENANCE
1. Self print of set values. . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
2. Maintenance System Table. . . . . . . . . . . . . . . . . . . . . . 7-1
3. Disassembly and assembly . . . . . . . . . . . . . . . . . . . . . 7-4
[8] MACHINE OPERATION
1. Acceptable originals . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
2. Standard original setting orientation. . . . . . . . . . . . . . . 8-1
3. Automatic copy image rotation
- rotation copying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
4. Adjustment values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
5. Key operator program . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
[9] ADJUSTMENTS
1. Process section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
2. Engine section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
3. Scanner section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
[10] SIMULATIONS
1. Entering the simulation mode . . . . . . . . . . . . . . . . . . . . 10-1
2. Switching the simulation mode . . . . . . . . . . . . . . . . . . . 10-1
3. Canceling the simulation mode. . . . . . . . . . . . . . . . . . . 10-1
4. Simulation list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
5. Details of simulations . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
[11] TROUBLE CODES
1. Trouble codes list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
2. Details of trouble codes . . . . . . . . . . . . . . . . . . . . . . . . 11-2
3. Network communication error. . . . . . . . . . . . . . . . . . . . 11-10
4.Fatal / Non-Fatal Error Table . . . . . . . ... .......... .11-11
[12] ELECTRICAL SECTION
1. Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
2. Circuit Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2
      !"

AR-M350 PRODUCT OUTLINE 1-1
[1] PRODUCT OUTLINE
A. Scanner unit with duplex SPF (AR-EF1)
This unit is an option scanner unit for the laser printer AR-P350/P450/
M350/M450.
By installing this unit to the above laser printer (installation of the
AR-RK1 is also required), the printer can work as a digital multi-function
device with the following functions:
1) Copy function
2) Network scanner function
(The AR-NS2, network scanner kit, is required.)
3) Fax function (The AR-FX5, fax extending kit, is required.)
B. Multi-function controller (AR-M11)
This unitis a multi-function controller forthe laser printer AR-P350/P450.
When installing the AR-EF1 to the above laser printer, the printer
controller must be replaced with this multi-function controller.
C. Scanner rack (AR-RK1)
This rack is required when installing the scanner unit (AR-EF1) with
duplex DSPF to the laser printer AR-P350/P450/M350/M450.
To install this rack, the machine must be equipped with the large capacity
paper feed desk (AR-D13) or the 3 stage paper feed desk (AR-D14).
D. AR-M350/M450
This machine is a version ofthe AR-P350/P450, andis equipped with
the multi-function controller as standard equipments.
To install this model, the large capacity paper feed desk (AR-D13) or the
3 stage paper feed desk (AR-D14) is required.
* For the items which are not specified in this Service Manual,
refer to the AR-P350/P450 Service Manual.
      !"#$%

AR-M350 CONFIGURATION 2-1
[2] CONFIGURATION

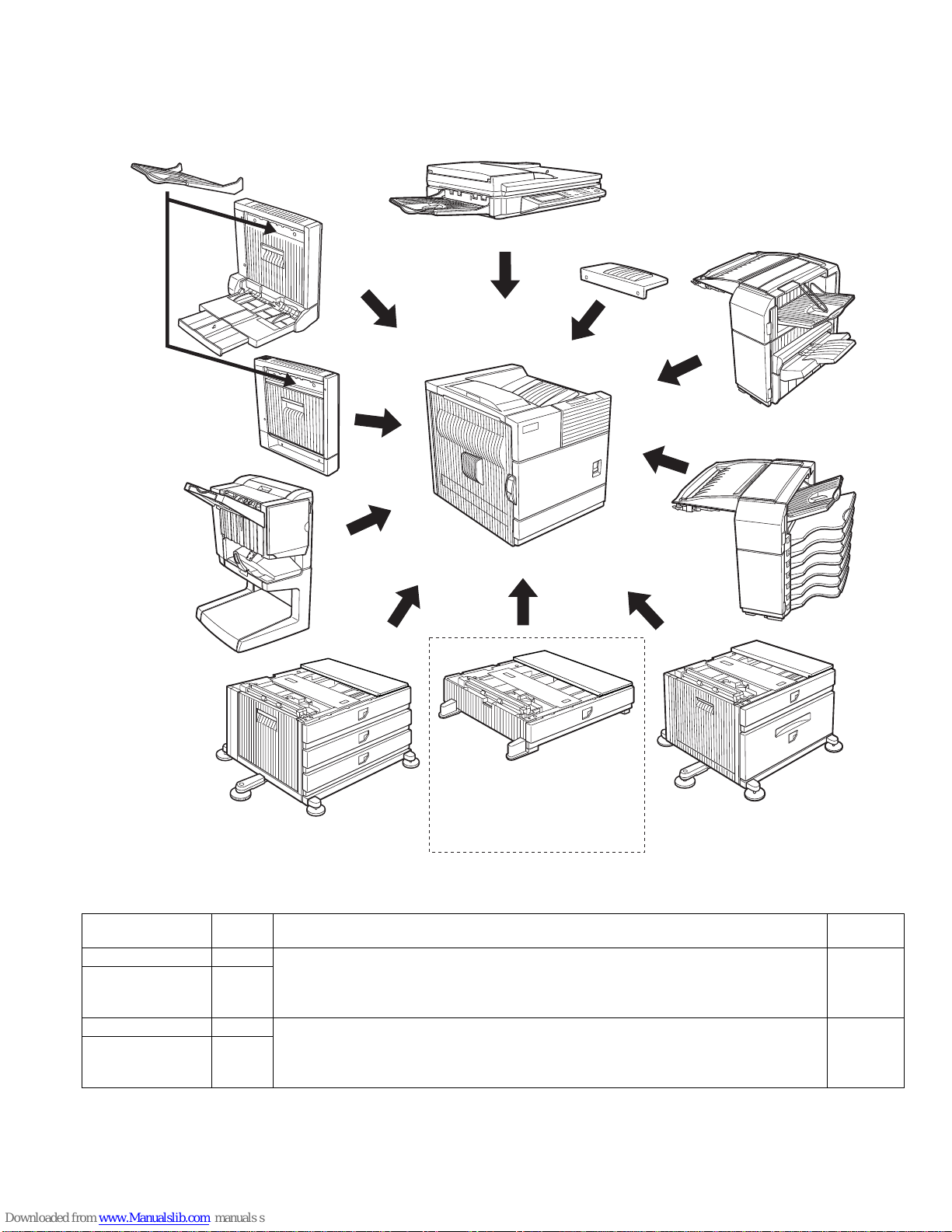

1.System Configurations
2. Standard
Category Model
Name Other options required for the installation/mounting. (Options must be ordered separately.) Remarks
Printer model (35ppm) AR-P350 •Multi Purpose Drawer (AR-MU1), or Stand/MPD&2000 Sheet Paper Drawer (AR-D13), or Three
paper drawer stand (AR-D14)
•Power Supply Unit (AR-DC1) is required for Stand/MPD&2000 Sheet Paper Drawer (AR-D13) and
Three paper drawer stand (AR-D14)
Printer model (45ppm) AR-P450
MFP model (35ppm)AR-M350•B/WScanner module/DSPF(AR-EF1) (Standard)
•ScannerRack(AR-RK1) (Standard)
•Stand/MPD&2000 sheet paper drawer (AR-D13) or Three paper drawer stand (AR-D14)
•Power supply unit (AR-DC1)
MFP model (45ppm) AR-M450
B/W scanner module/DSPF(AR-EF1)
Upper exit tray
extension
(AR-TE4)
Finisher
(AR-FN6)
Mail-bin stacker
(AR-MS1)
Stand/MPD & 2000 sheet
paper drawer
(AR-D13)
Multi purpose drawer
(AR-MU1)
Simultaneous installation
not allowed
Stand/3 x 500 sheet
paper drawer
(AR-D14)
Saddle stitch
finisher
(AR-FN7)
Duplex module
(AR-DU3)
Duplex
module/bypass
tray(AR-DU4)
Exit tray
(AR-TE3 or AR-DU4 Standard)
      !"#$%

AR-M350 CONFIGURATION 2-2

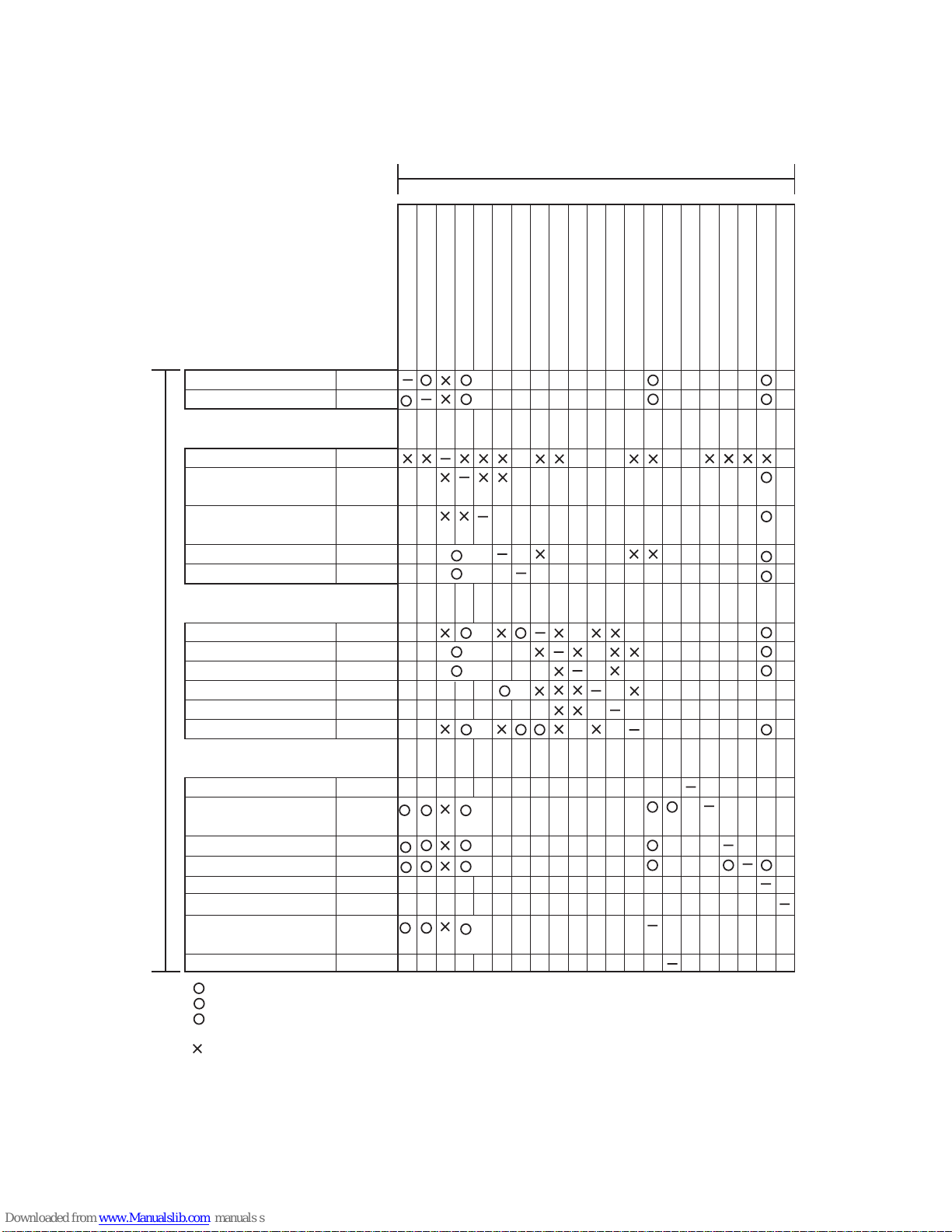

3. List of combination of peripheral devices
As shown in the table below, some other peripheral devices ( B ) may be needed for installation of a peripheral device ( A ) and some peripheral devices
cannot be installed together.
Related for scanner feature
Related for paper feed unit
B/W scanner module/DSPF AR-EF1
AR-RK1
AR-MU1
AR-D14
AR-D13
AR-DU4
AR-DU3
AR-FN7
AR-FN6
AR-MS1
AR-TE3
AR-TE4
AR-PN1
AR-PK1
AR-NS2
AR-FX5
AR-MM9
AR-DC1
AR-HD3
AR-M11
AR-NC5J
Scanner rack
Scanner rack
Multi purpose drawer
Stand/3 x 500 sheet
paper drawer
Stand/MPD & 2000 sheet
paper drawer
Saddle stitch finisher
Finisher
Mail-bin stacker
Exit tray
Punch unit
PS3 expansion kit
Facsimile expansion kit
Print server card
Hard disk drive
Power supply unit
Duplex module/bypass tray
Duplex module
Multi purpose drawer Stand/3 x 500 sheet paper drawer Stand/MPD & 2000 sheet Duplex module/bypass tray Duplex module
Upper exit tray extension
Multi-function controller
board
Fax memory (8 MB)
B/W scanner module/DSPF
Saddle stitch finisher Finisher Mail-bin stacker Exit tray Punch unit PS3 expansion kit Facsimile expansion kit Print server card Hard disk drive Power supply unit Upper exit tray extension
Multi-function controller board Fax memory (8 MB)
Network scanner
expansion kit
Network scanner expansion kit
*1*1
*1
*1*2
*2
*1
*1
*1
*1
*1
*1
*1
*1*1
*1
*1
*2
*1*1
*1*1
Output units
Related for extension of
functions and others
= Must be installed together.
= Any of the units must be installed together.
= Must be installed for installation of the stand/3 x 500 sheet paper drawer or
the stand/MPD & 2000 sheet paper drawer.
= Cannot be installed together.
= Standard
= AR-DU4 Standard
A
B
*3
*3
*4
*3
*3
*4
      !"#$%

AR-M350 SPECIFICATIONS 3-1
[3] SPECIFICATIONS
1. Basic Specification
A. Base Engine (AR-M350/M450)
(1) Form
(2) Engine speed
(3) Engine composition
(4) Engine resolution

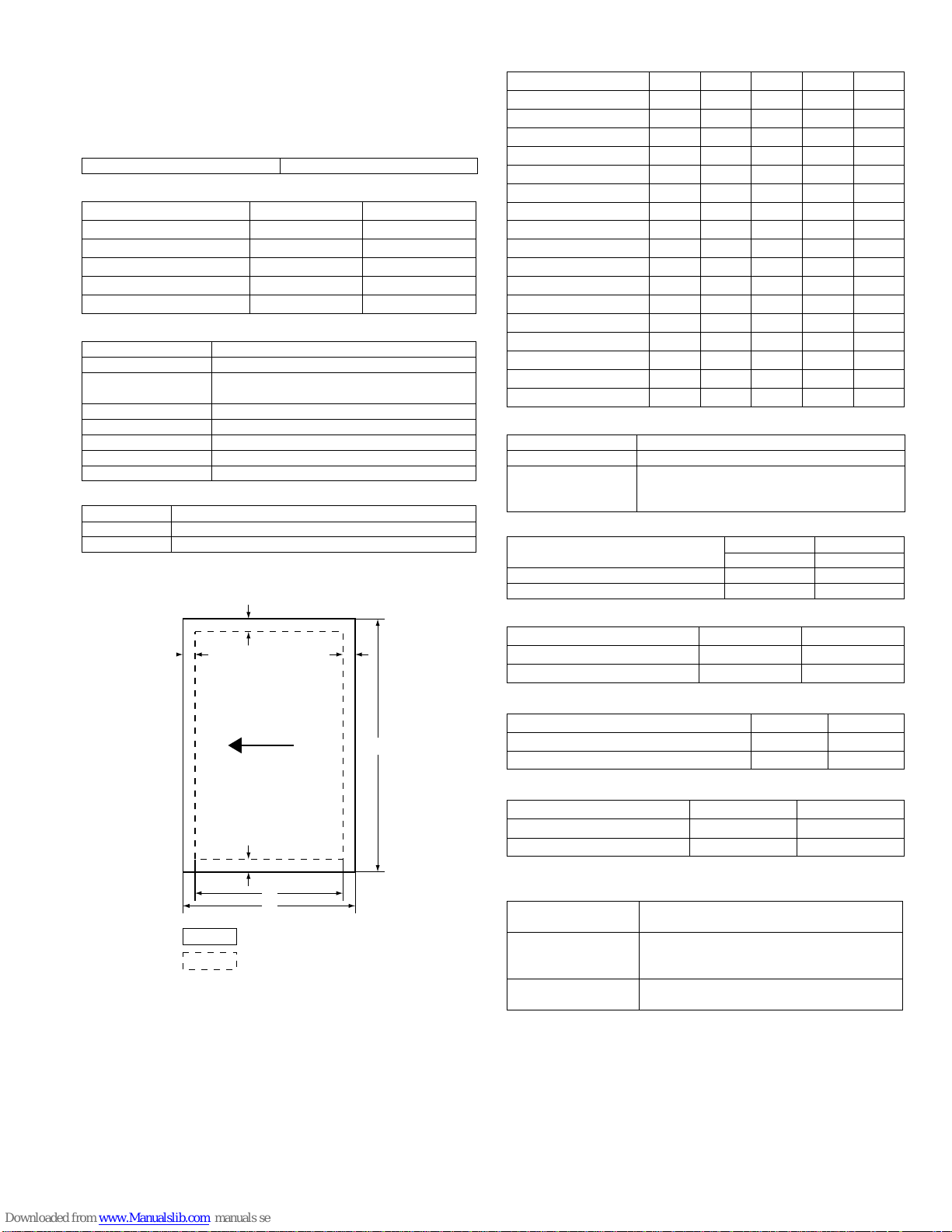

(5) Printable area
The print area of this product is shown below.
If a printer driver for Windows or Macintosh is used for printing, the
printable area will be smaller. The actual printable area depends on the
printer driver to be used.
(in mm)
(6) Warm-up
(7) Power source
(8) Power consumption
(9) Energy Star benchmark
(10) Noise
* Showing noise benchmark in each model as a whole system.
(11) Dimensions
*1: with B/W scanner module/DSPF, Scanner rack, Large capacity
paper feed desk, Power supply unit and Upper exit tray extension
AR-M350/AR-M450 Console type
Paper size AR-M350 AR-M450
A4, 8.5" x 11" 35ppm 45ppm
A5R/5.5" x 8.5"R 35ppm 45ppm
B5 35ppm 45ppm
B4/8.5" x 14 20ppm 22ppm
A3/11" x 17" 17ppm 20ppm
Photoconductor type OPC (diameter of photoconductor : ø30mm)
Record method Electrophotograph (laser)
Development method Dry-type dual-component magnetic brush
development
Charge method Charged saw-tooth method
Transfer method Transfer roller
Cleaning method Counter blade
Fusing method Heat roller
Used toner disposal Toner recycling system
Resolution Write :600dpi
Smoothing Write :1200dpi equivalent
Gradation Write :2 levels
C
C
E
E
B
D
A
Paper size
Printable area
Paper size A B C D E
A3 297 420 4 289 4
B4 257 364 4 242 4
A4 210 297 4 202 4
B5 182 257 4 168 4
A5 148 210 4 140 4
Japanese postcard 100 148 4 92 4
Ledger 279 432 4 271 4
Legal 216 356 4 208 4
Foolscap 216 330 4 208 4
Letter 216 279 4 208 4
Executive 184 267 4 183 4
Invoice 140 216 4 132 4
Com-10(envelope) 105 241 4 97 4
C5(envelope) 162 229 4 154 4
Monarch(envelope) 98 191 4 90 4
DL(envelope) 110 220 4 102 4
ISO B5(envelope) 176 250 4 168 4
Warm-up time less than 80 seconds
Pre-heat requirement Required
Jam recovery time Target: about 30 seconds
(Under standard condition of 60 seconds left
after side cover opening, polygon motor halt)
Voltage 100V system 200V system
100-127V 220-240V
Frequency 50/60Hz 50/60Hz
Power cord
AR-M350 AR-M450
Max. Power consump. 1350W 1350W
Average waiting mode 1200W 1200W
AR-M350 AR-M450
Low power mode 40W 75W
Transition time to Low power mode 60min 60min
AR-M350 AR-M450
At working less than 6.7B less than 6.7B
At waiting mode less than 4.8B less than 4.8B
External dimensions
(WxDxH) 428x552x469 (Only main unit) (mm) 16.9"x21.7"x18.5"
Occupied space
dimensions
(WxD)
963x685 (mm) *1
25.7"x22.3"
Weight Approx.39kg (Only main unit)
Approx.99kg *1
      !"#$%

AR-M350 SPECIFICATIONS 3-2
B. Document Feeding Equipment
(1) One-drawer tray (included in the base engine)
C. Output Equipment
(1) Face-down Exit Tray (included in the base engine)
2. Specific Function
A. Printer Function
(1) Platform
* For Macintosh OS, the AR-PK1 is required.
(2) Support OS
* For Macintosh OS, the AR-PK1 is required.
(3) PDL emulation
(4) Print Function
a. General
b. Paper input
c. Paper output
d. Graphic
Paper feed method One-drawer tray
Sizes to be fed A4, B5, 8.5" x 11"
Paper capacity 500 sheets (at 80g/m²)
Media available for
paper feeding Plain paper 60 - 105g/m², 16 - 28lbs
Paper type Plain, recycled, pre-printed, pre-punched,
color, letter head
Paper size switching To be switched by user
(paper size to be entered from the operation
panel).
Dehumidification
heater Not provided
Balance detection Provided (paper empty and 3 steps)
Default size setting 100V system 200V
system
8.5" x 11" A4
Mounting/demounting
of the tray Provided
Output position/
method Face-down output at the upper side of main unit
Output paper capacity 400 sheets (80g/m² sheet)
Output paper size A3, B4, A4, A4R, B5, B5R, A5R
11 " x 17", 8.5" x 14", 8.5" x 13", 8.5" x 11 ",
8.5" x 11 "R, 5.5" x 8.5"R
Executive, postal card, Monarch (98 x 191)
Com-10 (105 x 241), DL (110 x 220),
C5 (162 x 229), ISO B5 (176 x 250)
Spec of media for
paper output Tracing paper : 52 ~ 59g/m² / 14 ~ 15lbs Plain paper : 60 ~ 128g/m² / 16 ~ 34lbs
Index paper : 176g/m² / 47lbs
Cover paper : 205g/m² / 54 ~ 55lbs
Transparency firm
Remaining paper
detection Not provided
Exit tray full detection Provided
IBM PC/AT (Include compatible machine)
Macintosh (680x0), Power Macintosh, iMac, G3Macintosh
Custom PS Windows 95/98/Me
Windows NT 4.0
Windows 2000
Mac OS 7.6 to Mac OS 9
Custom
PCL5e/6(XL)
SPDL
Windows 95/98/Me
Windows NT 4.0
Windows 2000
PPD Windows 95/98/Me
Windows NT 4.0
Windows 2000
Mac OS 8.5.1 - Mac OS 9
PCL6 compatible, PCL5e compatible,
PostScript Level 2 compatible, PostScript 3 compatible
When an optional PS3 expansion kit is
installed
Function PCL5e/
PCL6 PS PPD (Windows) PPD (Macintosh)
Copies 1 - 999 1 - 999 1 - 999 1 - 999
Orientation Yes Yes Yes Yes
Duplex print Yes Yes Yes Yes
Saddle stitch Yes Yes No N/A
Binding edge Left/top/
right Left/top/ right Long/short Long/short
N-up 2/4/6/8 2/4/6/8 2/4*3*4 2/4/6/9/16
N-up direction Fixed Fixed Fixed Selectable
N-up border line Yes Yes Yes(always) Yes
When an optional PS3 expansion kit is
installed
Function PCL5e/
PCL6 PS PPD (Windows) PPD (Macintosh)
Paper size Yes Yes Yes Yes
Custom paper size 1 size 1 size 3 sizes*3*5 N/A
Source selection Yes Yes Yes Yes
Different first page Yes Yes N/A Yes
Transparency inserts Yes Yes N/A Yes
When an optional PS3 expansion kit is
installed
Function PCL5e/
PCL6 PS PPD (Windows) PPD (Macintosh)
Output tray selection Yes Yes Yes Yes
Mail bin Yes Yes Yes Yes
Staple Yes Yes Yes Yes
Offset Yes Yes Yes Yes
Punch Yes Yes Yes Yes
When an optional PS3 expansion kit
is installed
Function PCL5e/
PCL6 PS PPD (Windows) PPD (Macintosh)
Resolution 600/300
dpi 600 dpi 600 dpi 600 dpi
Halftone N/A Yes Yes N/A
Graphic mode Yes N/A N/A N/A
Smoothing Yes Yes Yes Yes
Toner save Yes Yes Yes Yes
Photo enhancement Yes*8 Yes N/A N/A
Negative image N/A Yes Yes Yes
Mirror image N/A Horizontal/
vertical Horizontal Yes
Zoom N/A N/A Yes Yes
Fit to page Yes Yes N/A N/A
 &     !"#$%

AR-M350 SPECIFICATIONS 3-3
e. Font
f. Others
* 1 In the models without a hard disk drive, an optional hard disk drive
must be installed .
* 2 Functions when peripheral devices are installed.
* 3 Not supported in the Windows NT 4.0 environment.
* 4 2/4/6/9/16 is supported in the Windows 2000 environment.
* 5 Only one size is supported in the Windows 2000 environment.
* 6 Only 35 fonts are supported in the Windows NT 4.0 environment.
* 7 This function is limited for PPD.
* 8 PCL6 only
(5) Compatibility
B. Expanded RAM
Installation of an expanded RAM will avoid the following status.
1) Time out error reduction
2) Spool time reduction
3) Avoidance of VM error / memory full
Use a commercially available RAM of the following specifications.
If a RAM which does not meet the specifications is installed, it may cause
a trouble such as that it is not recognized or its capacity is not correctly
recognized.
<Spesification>
<Operation-assured Memory> (As of March / 2001)
C. Scanner function
(1) Scanner function
(2) Support System
(3) Support Image
(4) Transmission Mode
When an optional PS3 expansion kit is
installed
Function PCL5e/
PCL6 PS PPD (Windows) PPD (Macintosh)
Resident font 45 fonts 136 fonts 136
fonts*6 35 fonts
Download font Bitmap
TrueType,
Graphic
Bitmap
Type1
TrueType
Bitmap
Type1
TrueType
N/A
When an optional PS3 expansion kit is
installed
Function PCL5e/
PCL6 PS PPD (Windows) PPD (Macintosh)
Watermark*7 Yes Yes Yes Yes
Overlay Yes Yes N/A N/A
Job retention*1 Yes Yes N/A Yes
Account control Yes Yes N/A Yes
Custom settings Yes Yes N/A N/A
Automatic
configuration*2 Yes Yes N/A Yes
Job end
notification Yes Yes N/A N/A
PCL 5e
compatibility Target for PCL5e is to be compatible with HP LaserJet 4000.
Small margin difference, rendering difference by
different font family, default and transfer function
difference are not to be included in the compatibility.
All the PJL commands are not necessarily included in
the compatibility.
PCL6
compatibility Target for PCL6 is to be compatible with HP LaserJet 4000.
Small margin difference, rendering difference by
different font family, default and transfer function
difference are not to be included in the compatibility.
All the PJL commands are not necessarily included in
the compatibility.
PostScript
Compatibility Roman PostScript is targeted to be compatible with Adobe PostScript as performed in HP LaserJet 4000.
Small margin difference, rendering difference by
different font family, default and transfer function
difference are not to be included in the compatibility.
DIMM TYPE 168pin 3.3V Unbuffered SDRAM DIMM Non-ECC
DIMM capacity 64MByte, 128MByte, 256MByte
CAS LATENCY CL=2
SDRAM CLOCK For PC100, PC133
SPD Supporting
Parity Not support
ECC Not support
Manufacture Capacity Model name RAM CHIP name Note
Kingston
Technology 128MB KVR133X64C3/ 128 HYB39S64800BT -7.5
128MB KVR133X64C3
-128 D456821G-A75 -9JF
256MB KVR133X64C3
-256 HY57V28820AT-H
Viking
Compornents 64MB VIK8641CL2 µPD456841G5 -A80-9JF
64MB VIK8641CL2 D456841G5-A80
-9JF
128MB VIK6642CL2 TC59SM708FT-80
128MB VIK6642CL2 D4564841G5-A80
-9JF
256MB VIK2642CL2 TC59SM708FT-80
Memory Card
Technology 64MB DM864VS65804X -7G GM72V66841XT75
128MB DM1665VS65804
X-7G HY57V64820HG
Scanner mode Scan to E-mail (Internet FAX)
Scan to Server (Client PC)
Embedded server SMTP server
FTP server
Protocol TCP/IP
Format TIFF, PDF, TIFF-F
Compression method Uncompressed, G3(1-dimension) *1, G4 *2
*1 G3 (1-dimension) = MH (Modified Huffman)
*2 G4 = MMR (Modified MR)
DSPF/OC
transmission switching O (Switching during the reading is not feasible)
      !"#$%

AR-M350 SPECIFICATIONS 3-4
(5) Image Process
(6) Original Memory
(7) Specified Destination
(8) Specified Multiple Destinations
O : Available
(9) Functions
D. Copy function
(1) Copy Speed
* Figures in reduction/enlargement are represented by those at the
ratio to show slowest speed
(2) First Copy Time
Conditions: A4 or 8.5"x11"P from front tray of PPC, without HDD and
with polygon motor running.
*1 During OC/high-speed mode
(3) Job Speed
*1 S S : A4 / 8.5" x 11"P original 5 sheets copy 5sets
*2 S D : A4 / 8.5" x 11"P original 10 sheets copy 5sets
*3 D D : A4 / 8.5" x 11"P original 5 sheets (10 pages) copy 5sets
Note:First copy time has been factored into calculation resulting in
reduced CPM.
(4) Continuous Copy
(5) Copy Ratio
(6) Exposure/Copy Quality Process
Half tone reproduction Equivalent to 256 levels
Exposure adjustment Light / Auto / Dark
Quality selection Half-tone ON/OFF
Resolution* Normal ( 200x200dpi )
Fine ( 300x300dpi )
Super fine ( 400x400dpi )
Ultra fine ( 600x600dpi )
Varies with the file type/transmission method
Standard Commonly use ERDH area of memory.
Memory expansion Special : As per ERDH memory
Specified destination Specifying by one-touch or group
One-touch* Max. 500 destinations
(in conjunction with the one-touch dial of FAX)
Max. 100 destinations can be registered
for FTP and Desktop.
Group* To be registered in one-touch
Program O
Specified destination Specifying by one-touch or group
No. of registration Max. 300 items
(in conjunction with those of FAX)
Sequential
broadcasting O ( E-mail only. It is not available for FTP/Desktop.)
Simultaneous FAX
transmission O (Specifying multiple destinations of FAX, E-mail or FTP and broadcasting by a single scan)
Transmitting
functions Rotating transmission O (to be matched with FAX specification)
Long length original
transmission X
Verification stamp function Option
Report/list
functions Transmit/receive record O Transmit/receive result O
Address/phone directory
list O
Group list O
ID/sender list O
Program list O
AR-M350 AR-M450
Actual Reduction Enlargement Actual Reduction Enlargement
A4,
8.5"x11" 35 35 35 45 45 45
A4R,
8.5"x11"R 25 25 25 30 30 30
A5R,
5.5"x8.5"R,
Invoice-R
35 35 35 45 45 45
B5 35 35 35 45 45 45
B5R,
Exective-R 25 25 25 30 30 30
B4,
8.5"x14" 20 20 20 22 22 22
A3,
11"x17" 17 17 17 20 20 20
Extra,
Envelope 17 17 17 20 20 20
Japan P/C In case of printing on post card, engine speed can vary with system
configuration,becausenext paper isfed aftermachinecompletelyoutput
previous page.
AR-M350 AR-M450
Document glass *1 Less than 5.3 seconds Less than 4.6 seconds
DSPF Less than 6.0 seconds Less than 5.3 seconds
AR-M350 AR-M450
S S *1 33 cpm (94%) 42 cpm (93%)
S D *2 32 cpm (91%) 40 cpm (88%)
D D *3 32 cpm (91%) 40 cpm (88%)
Max. multiple number 999 pages
Copy ratio AB series :
25%, 70%, 81%, 86%, 100%, 115%, 122%, 141%, 400%
Inch series :
25%, 64%, 77%, 100%, 121%, 129%, 400%
Zoom 25 - 400%
25 - 200% (Copy from DSPF)
Independent
scaling Not provided
Exposure mode Binary: Text(auto/manual), Text/photo, Photo
256 levels: Not provided
Manual steps 9 steps
Smoothing Standard
Toner save mode Standard
 '     !"#$%

AR-M350 SPECIFICATIONS 3-5
(7) Copy Function
O : Standard Function
X : Not provided
3. B/W Scanner Module (DSPF)
(1) Form
(2) Destination judgment
(3) Resolution / Gradation
(4) Document Glass
Function APS O
AMS O
Paper type select O
By type setting
Auto tray switching O
Rotation copy O
Electronic sort O
Rotation sort X
Reserved copy O
Prior tray setting X
Recall/register of program O
Proof copy X
Preheat function O
To be set up by key
operator
Auto power shut-off function O
To be set up by the key
operator program
Account control O
100 accounts
Communication support (RIC) O
Card counter support Only
provided the connector
Coin vendor support Only
provided the connector
Special
function Margin shift O Edge erase / Center erase O
Dual page copying O
Covers X
Transparency insert X
Centering X
Multi shot (N in 1) O (2 in 1 / 4 in 1)
Pamphlet copy O
2-sided copy orientation change O
Large capacity original mode 0 (Max. 140 pages)
B/W reverse X
Shading X
Mirror image X
Repeat X
Date stamp X
Stamp X
Page stamp X
Zaurus print X
Scanner (Document glass) / DSPF standard
Operation panel integral type
(common hardware for all the destinations)
When connected with a base engine, the type (Japan domestic 100V,
overseas 100V or overseas 200V systems) is detected and the settings
will accordingly be changed.
Reading
resolution
(dpi)
Copy mode
Magnification 25~99 100 101~200 201~400
OC 600x600 600x600 600x600 600x600
OC
(High speed): 600x600 600x300 600x600 600x600
DSPF/
SPF(standard) 600x300 600x300 600x600 -
DSPF/SPF
(high quality) 600x600 600x600 600x600 -
Input and
transmitting
resolution
(dpi)
FAX transmit mode
Selection mode Standard Fine Superfine Ultrafine
Input
resolution: OC
600x391.2 600x391.2 600x391.2 600x391.2
Input
resolution:
DSPF
600x300 600x300 600x300 600x300
Transmitting
resolution
203.2x97.8 203.2x195.6 203.2x391 406.4x391
Scanner mode
Selection mode Standard Fine Superfine Ultrafine
Input
resolution: OC
600x391.2 600x391.2 600x391.2 600x600
Input
resolution:
DSPF
600x300 600x300 600x300 600x300
Transmitting
resolution
200x200 300x300 400x400 600x600
Reading
level 256 tones
Exposure
lamp Electrodeless xenon lamp
Output level Binary
Reading
area 297x431.8(mm) 11.7"x17"
Original
alignment Left edge / Rear corner alignment
Original size
detection Provided (Standard size only)
Sizes to be
detected Automatic (one detection unit to be used with software modification by destination)
Inch-1
(Default at overseas
100V base engine)
11"x17", 8.5"x14", 8.5"x11",
8.5"x11"R, 5.5"x8.5"
Inch-2 11"x17", 8.5"x13", 8.5"x11",
8.5"x11"R, 5.5"x8.5"
AB-1(Default at Japan
domestic 100V /
overseas 200V base
engines)
A3, B4, A4, A4R, B5, B5R,
A5A3, B4, A4, A4R, A5
AB-2 A3, A4R, A5, 216x330 mm
 (     !"#$%

AR-M350 SPECIFICATIONS 3-6
(5) DSPF/SPF
(6) Power Source
(7) Dimensions
(8) Display device at scanner part
(9) Key
(10) Touch sense method
(11) Used character in the LCD
4. Rack for Scanner
(1) Dimensions
OR guide
display Rear left side (Print display) Original reference position " "
Left side OR guide
(Print display) (From the Interior side) [5-1/2]•[A5E]•[B5E]•[A4E/A5]•
[8.5"]•[B4/B5]•[11"]•[A3/A4]
Interior side OR guide
(Print display) (From the left side) [5-1/2]•[A5]•[B5]•[A4/A5E]•
[8-1/2]•[B5E]•[11"]•[A4E]•[13"]•
[14"]•[B4]•[A3]•[17"]
Interior side OR guide Book marks are at A4 and
8-1/2 positions.
The position available to attach the staple position guide
label when the optional finisher (desktop console type) is
equipped.
Type DSPF One-scan-dual-side scanning
method DSPF with OC integrated
Scan speed Standard mode 45 opm
High quality mode 22.5 opm
Original
alignment Center alignment
Original size A3, B4, A4, A4R, B5, B5R, A5, A5R11"x17", 8.5"x14",
8.5"x13", 8.5"x11", 8.5"x11"R,5.5"x8.5", 5.5"x8.5"R
(in Fax mode : long-length paper up to 800mm is
applicable)
Original
paper
weight
50~128g/m², 15~34lbs
Original
stack
capacity
Max. 50 sheets
(max. 30 sheets for A3, B4,11"x17",8.5"x14")
(When, however, exceeding 105g/m²
and A3, B4,11"x17",8.5"x14", max. 15 sheets)
or, Total thickness less than
6.5mm (at 50~80g/m², 15~21lbs)
5.0mm (at 80~128g/m², 21~34lbs)
Not
transportable
original type
Transparency film, secondary original paper,
tracing paper, carbon paper, thermal paper,
original with crumple/crimp/rip,
original with attachment/clipping,
original with many punch holes
(with 2 or 3 holes acceptable),
original preprinted with ink-ribbon.
Original size
detection Provided
Sizes to be
detected Automatic (one detection unit to be used with software modification by destination)
Inch-1
(Default at overseas
100V base engine)
11"x17", 8.5"x14", 8.5"x11",
8.5"x11"R, 5.5"x8.5"
Inch-2 11"x17", 8.5"x13", 8.5"x11",
8.5"x11"R, 5.5"x8.5"
AB-1(Default at
Japan domestic
100V / overseas
200V base engines)
A3, B4, A4, A4R, B5, B5R, A5, A3,
B4, A4, A4R, A5,
8.5"x11", 216x330 mm
AB-2 A3, B4, A4, A4R, A5,
B5, B5R, 216x330 mm, 8.5"x11"
Original tray
guide
display
Center of the tray
(inscribeddisplay) Original reference position " " Original face-down placement
indication " "
Original Guide
(inscribed display) (From Center) [B5E]•[A4E/A5]•[8.5"]•[B4/B5]•
[11"]•[A3/A4]
The position available to attach the staple position guide
label when the optional finisher (desktop console type) is
equipped.
Supplied from the main unit
External dimensions
(WxDxH) 808 x 619x180 mm
Occupied space
dimensions (WxD) 945 x 619 mm (When the tray is extended)
Weight Approx. 19.5 kg
Type Dot map LCD, touch panel
Display dot number 640 x 240 dots (dot pitch 0.24x0.24 mm)
LCD operating
dimension 153.5 x 57.5 mm
LCD back-light Fluorescent tube method
LCD brightness
adjustment Provided
Mode selection area Job status key
Printer mode key
(online display LED/data in-memory display LED)
Scan/Fax mode key
(busy display LED/data in-memory display LED)
Copy mode key
User definition key
Basic input area Start key
CA key
10-key
Clear key
* key
# key
Resistive film method
Dot 8 x 16 , 16 x 16 dots
Bold display O
Strength 60 kg
External dimensions
(WxDxH) 30 x 415 x 860 mm (Single goods)
Occupied space
dimensions (WxD) 575 x 415 mm (State of installation) (2pieces)
Weight Approx.5 kg (2pieces)
* For the items which are not specified in this Service Manual, refer to the AR-P350/P450 Service Manual.
 )     !"#$%

AR-M350 CONSUMABLE PARTS 4-1
[4] CONSUMABLE PARTS
1.Supply system table
A.USA
*1: For USA Government
Note1: Print on Master/individual carton:Toner/Developer in 2 languages (English/French), DR in 4 languages (English/French/German/Spanish).
Note2: Packed with machine: DR 50K/Developer UN/Process UN
Note3: The other maintenance parts which are not listed above are registered as service parts.
B.CANADA/Latin America
Note1: Print on Master/individual carton:Toner/Developer in 2 languages (English/French), DR in 4 languages (English/French/German/Spanish).
Note2: Packed with machine: DR 50K/Developer UN/Process UN
Note3: The other maintenance parts which are not listed above are registered as service parts.
NO Name Content Life Product name Remark
1 Toner CA(Black) Toner(Toner : Net Weight 814g) 27K AR-450NT
(*1 AR-450NT-J) *Life setup is based on A4 6%
2 Developer Developer(Developer : Net Weight 450g) 100K AR-450ND
3 Drum Drum x1 50K AR-450DR
4 50K maintenance kit Cleaner blade
Drum separation pawl
Screen grid
Toner reception seal
Side malt F
Side malt R
Charging plate
x1
x4
x1
x1
x1
x1
x1
50K AR-450KC1
5 100K maintenance kit Transfer roller
Discharging plate
Paper dust removing unit
DV blade
DV side seal F
DV side seal R
x1
x1
x1
x1
x1
x1
100K AR-450KA1
6 Upper heat roller kit Upper heat roller
Fusing separation pawl (Upper) x1 x4 200K AR-450UH
7 Lower heat roller kit Lower heat roller
Fusing separation pawl (Lower) x1 x2 200KAR-450LH
8 Cleaner blade Cleaner blade x10 50K(x10) AR-450CB AR-450CB=(AR-450BL)x10
9 Cleaning roller Cleaning roller
Bearing x10 x20 200K(x10) AR-450CR AR-450CR=(AR-450RC)x10
10 Staple cartridge Staple cartridge x3 3000x3 AR-SC1 Common with cartridge for AR-FN4 &
AR-FN6
11 Staple cartridge Staple cartridge x3 5000x3 AR-SC2 Common with cartridge for AR-FN7
NO Name Content Life Product name Remark
1 Toner CA(Black) Toner(Toner : Net Weight 814g) 27K AR-450NT *Life setup is based on A4 6%
2 Developer Developer(Developer : Net Weight 450g) 100K AR-450ND
3 Drum Drum x1 50K AR-450DR
4 50K PM kit Cleaner blade
Drum separation pawl
Screen grid
Toner reception seal
Side malt F
Side malt R
Charging plate
x1
x4
x1
x1
x1
x1
x1
50K AR-450KC
5 100K PM kit Transfer roller
Discharging plate
Paper dust removing unit
DV blade
DV side seal F
DV side seal R
x1
x1
x1
x1
x1
x1
100K AR-450KA
6 200K PM kit Upper heat roller
Lower heat roller
Fusing separation pawl (Upper )
Fusing separation pawl (Lower)
Cleaning roller
Bearing
x1
x1
x4
x2
x1
x2
200K AR-450KB
7 Staple cartridge Staple cartridge x3 3000x3 AR-SC1 Common with cartridge for AR-FN4 &
AR-FN6
8 Staple cartridge Staple cartridge x3 5000x3 AR-SC2 Common with cartridge for AR-FN7
    "# $%&'(

AR-M350 CONSUMABLE PARTS 4-2
C.Europe/Australia/New Zealand
Note1: Print on Master/individual carton:4 languages (English/French/German/Spanish).
Note2: Packed with machine: DR 50K/Developer UN/Process UN
Note3: The other maintenance parts which are not listed above are registered as service parts.
D.Middle East/ Africa
Note1: Print on Master/individual carton:4 languages (English/French/German/Spanish).
Note2: Packed with machine: DR 50K/Developer UN/Process UN
Note3: The other maintenance parts which are not listed above are registered as service parts.
NO Name Content Life Product name Remark
1 Toner CA(Black) Toner(Toner : Net Weight 814g) 27K AR-450T *Life setup is based on A4 6%
2 Developer Developer(Developer : Net Weight 450g) 100K AR-450DV
3 Drum Drum x1 50K AR-450DM
4 50K PM kit Cleaner blade
Drum separation pawl
Screen grid
Toner reception seal
Side malt F
Side malt R
Charging plate
x1
x4
x1
x1
x1
x1
x1
50K AR-450KC
5 100K PM kit Transfer roller
Discharging plate
Paper dust removing unit
DV blade
DV side seal F
DV side seal R
x1
x1
x1
x1
x1
x1
100K AR-450KA
6 200K PM kit Upper heat roller
Lower heat roller
Fusing separation pawl (Upper )
Fusing separation pawl (Lower)
Cleaning roller
Bearing
x1
x1
x4
x2
x1
x2
200K AR-450KB
7 Staple cartridge Staple cartridge x3 3000x3 AR-SC1 Common with cartridge for AR-FN4 &
AR-FN6
8 Staple cartridge Staple cartridge x3 5000x3 AR-SC2 Common with cartridge for AR-FN7
NO Name Content Life Product name Remark
1 Toner CA(Black) Toner(Toner : Net Weight 814g) 27K AR-450FT *Life setup is based on A4 6%
2 Developer Developer(Developer : Net Weight 450g) 100K AR-450SD
3 Drum Drum x1 50K AR-450DR
4 50K PM kit Cleaner blade
Drum separation pawl
Screen grid
Toner reception seal
Side malt F
Side malt R
Charging plate
x1
x4
x1
x1
x1
x1
x1
50K AR-450KC
5 100K PM kit Transfer roller
Discharging plate
Paper dust removing unit
DV blade
DV side seal F
DV side seal R
x1
x1
x1
x1
x1
x1
100K AR-450KA
6 200K PM kit Upper heat roller
Lower heat roller
Fusing separation pawl (Upper )
Fusing separation pawl (Lower)
Cleaning roller
Bearing
x1
x1
x4
x2
x1
x2
200K AR-450KB
7 Staple cartridge Staple cartridge x3 3000x3 AR-SC1 Common with cartridge for AR-FN4 &
AR-FN6
8 Staple cartridge Staple cartridge x3 5000x3 AR-SC2 Common with cartridge for AR-FN7
 )   "# $%&'(

AR-M350 CONSUMABLE PARTS 4-3
E.Israel/Russia/CIS/Philippines
Note1: Print on Master/individual carton:4 languages (English/French/German/Spanish).
Note2: Packed with machine: DR 50K/Developer UN/Process UN
Note3: The other maintenance parts which are not listed above are registered as service parts.
F.Asia
Note1: Print on Master/individual carton:4 languages (English/French/German/Spanish).
Note2: Packed with machine: DR 50K/Developer UN/Process UN
Note3: The other maintenance parts which are not listed above are registered as service parts.
NO Name Content Life Product name Remark
1 Toner CA(Black) Toner(Toner : Net Weight 814g) 27K AR-450FT *Life setup is based on A4 6%
2 Developer Developer(Developer : Net Weight 450g) 100K AR-450SD
3 Drum Drum x1 50K AR-450DR
4 50K PM kit Cleaner blade
Drum separation pawl
Screen grid
Toner reception seal
Side malt F
Side malt R
Charging plate
x1
x4
x1
x1
x1
x1
x1
50K AR-450KC
5 100K PM kit Transfer roller
Discharging plate
Paper dust removing unit
DV blade
DV side seal F
DV side seal R
x1
x1
x1
x1
x1
x1
100K AR-450KA
6 200K PM kit Upper heat roller
Lower heat roller
Fusing separation pawl (Upper )
Fusing separation pawl (Lower)
Cleaning roller
Bearing
x1
x1
x4
x2
x1
x2
200K AR-450KB
7 Staple cartridge Staple cartridge x3 3000x3 AR-SC1 Common with cartridge for AR-FN4 &
AR-FN6
8 Staple cartridge Staple cartridge x3 5000x3 AR-SC2 Common with cartridge for AR-FN7
NO Name Content Life Product name Remark
1 Toner CA(Black) Toner(Toner : Net Weight 814g) 27K AR-450ST *Life setup is based on A4 6%
2 Developer Developer(Developer : Net Weight 450g) 100K AR-450SD
3 Drum Drum x1 50K AR-450DR
4 50K PM kit Cleaner blade
Drum separation pawl
Screen grid
Toner reception seal
Side malt F
Side malt R
Charging plate
x1
x4
x1
x1
x1
x1
x1
50K AR-450KC
5 100K PM kit Transfer roller
Discharging plate
Paper dust removing unit
DV blade
DV side seal F
DV side seal R
x1
x1
x1
x1
x1
x1
100K AR-450KA
6 200K PM kit Upper heat roller
Lower heat roller
Fusing separation pawl (Upper )
Fusing separation pawl (Lower)
Cleaning roller
Bearing
x1
x1
x4
x2
x1
x2
200K AR-450KB
7 Staple cartridge Staple cartridge x3 3000x3 AR-SC1 Common with cartridge for AR-FN4 &
AR-FN6
8 Staple cartridge Staple cartridge x3 5000x3 AR-SC2 Common with cartridge for AR-FN7
 *   "# $%&'(

AR-M350 CONSUMABLE PARTS 4-4
G.Hong kong
Note1: Print on Master/individual carton:2 languages (English/Chinease).
Note2: Packed with machine: DR 50K/Developer UN/Process UN
Note3: The other maintenance parts which are not listed above are registered as service parts.
H.Taiwan
Note1: Print on Master/individual carton:4 languages (English/French/German/Spanish).
Note2: Packed with machine: DR 50K/Developer UN/Process UN
Note3: The other maintenance parts which are not listed above are registered as service parts.
NO Name Content Life Product name Remark
1 Toner CA(Black) Toner(Toner : Net Weight 814g) 27K AR-450ST-C *Life setup is based on A4 6%
2 Developer Developer(Developer : Net Weight 450g) 100K AR-450SD-C
3 Drum Drum x1 50K AR-450DR-C
4 50K PM kit Cleaner blade
Drum separation pawl
Screen grid
Toner reception seal
Side malt F
Side malt R
Charging plate
x1
x4
x1
x1
x1
x1
x1
50K AR-450KC
5 100K PM kit Transfer roller
Discharging plate
Paper dust removing unit
DV blade
DV side seal F
DV side seal R
x1
x1
x1
x1
x1
x1
100K AR-450KA
6 200K PM kit Upper heat roller
Lower heat roller
Fusing separation pawl (Upper )
Fusing separation pawl (Lower)
Cleaning roller
Bearing
x1
x1
x4
x2
x1
x2
200K AR-450KB
7 Staple cartridge Staple cartridge x3 3000x3 AR-SC1 Common with cartridge for AR-FN4 &
AR-FN6
8 Staple cartridge Staple cartridge x3 5000x3 AR-SC2 Common with cartridge for AR-FN7
NO Name Content Life Product name Remark
1 Toner CA(Black) Toner(Toner : Net Weight 814g) 27K AR-450FT-T *Life setup is based on A4 6%
2 Developer Developer(Developer : Net Weight 450g) 100K AR-450SD-C
3 Drum Drum x1 50K AR-450DR-C
4 50K PM kit Cleaner blade
Drum separation pawl
Screen grid
Toner reception seal
Side malt F
Side malt R
Charging plate
x1
x4
x1
x1
x1
x1
x1
50K AR-450KC
5 100K PM kit Transfer roller
Discharging plate
Paper dust removing unit
DV blade
DV side seal F
DV side seal R
x1
x1
x1
x1
x1
x1
100K AR-450KA
6 200K PM kit Upper heat roller
Lower heat roller
Fusing separation pawl (Upper )
Fusing separation pawl (Lower)
Cleaning roller
Bearing
x1
x1
x4
x2
x1
x2
200K AR-450KB
7 Staple cartridge Staple cartridge x3 3000x3 AR-SC1 Common with cartridge for AR-FN4 &
AR-FN6
8 Staple cartridge Staple cartridge x3 5000x3 AR-SC2 Common with cartridge for AR-FN7
    "# $%&'(

AR-M350 CONSUMABLE PARTS 4-5

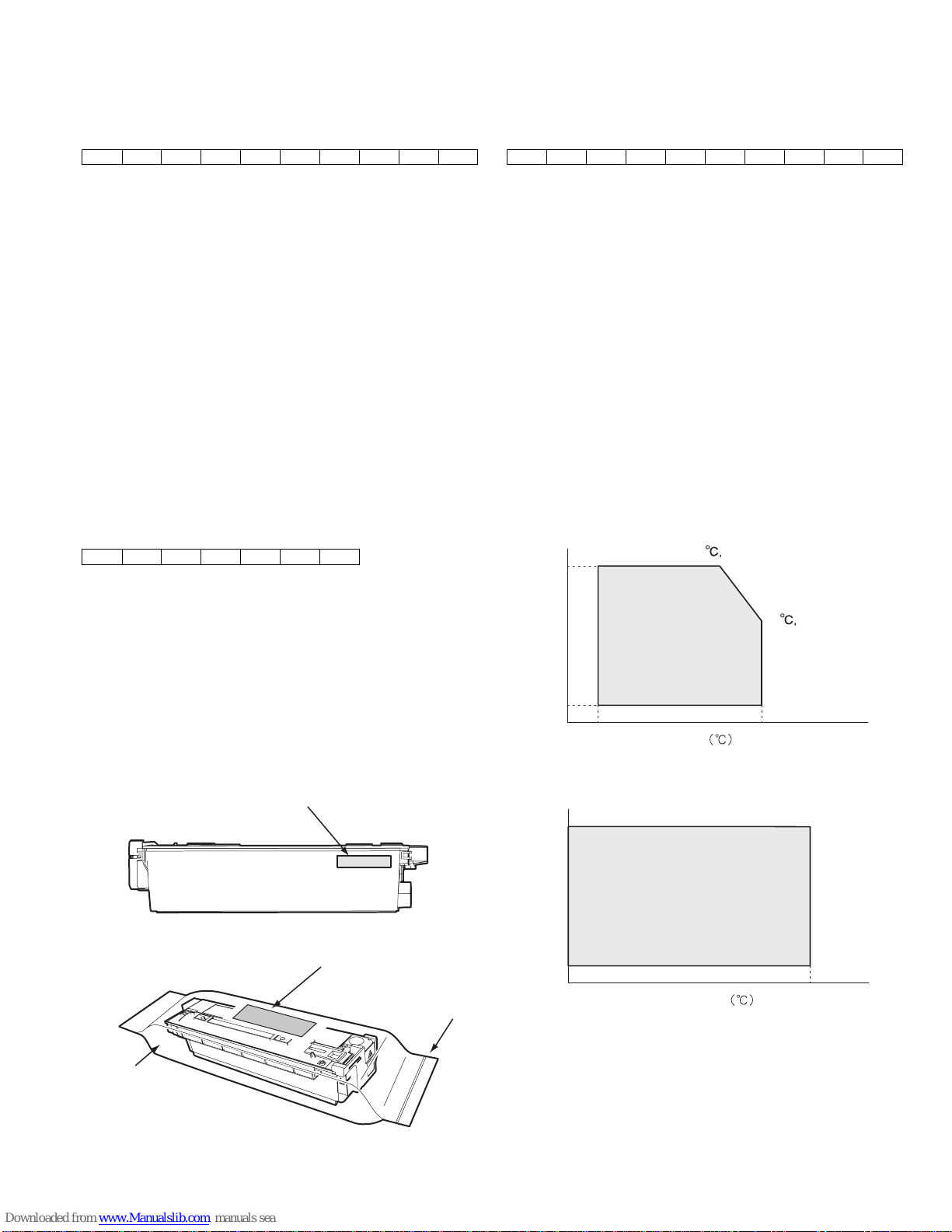

2.Production number identification
A. Drum cartridge
The lot number, printed on the front side flange, is composed of 10 digits,
each digit showing the following content:
B. Toner cartridge
The lot number is composed of 7 digitseach digitindicatesthe
following. The lot number shall be printed in the position shown below.
C. Developer cartridge
Thelotnumber iscomposed of 10 digits each digit indicates the
following. Thelotnumber is printedon the bag.
3. Environmental conditions
A. Operating conditions
B. Storage conditions
12345678910
1 Number
For this model, this digit is 2.
2Letter
Indicates the model conformity code. T for this model.
3 Number
Indicates the end digit of the production year.
4 Number or X, Y, Z
Indicates the production month.
X stands for October, Y November, and Z December.
5/6 Number
Indicates the production day on the month.
7 Number or X, Y, Z
Indicates the month of packing.
X stands for October, Y November, and Z December.
8/9 Number
Indicates the day of the month of packing.
10Letter
Indicates the production factory. "A" for Nara Plant.
1234567
1 Version number (A - sequentially revised)
2 Numeral figure
Indicates the end digit of the production year.
3Letter
Indicates the production factory. (B for SOCC)
4 Destination code
5,6 Numeral figures
Indicates the production day.
7 Numeral figure or X, Y, Z
Indicates the production month.
X stands for October, Y November, and Z December.
Lot No. Location
Lot No. Location
Aluminum bag
Heat seal
12345678910
1 Number
For this model, this digit is 2.
2Letter
Indicates the model conformity code. T for this model.
3 Number
Indicates the end digit of the production year.
4 Number or X, Y, Z
Indicates the production month.
X stands for October, Y November, and Z December.
5/6 Number
Indicates the production day on the month.
7 Number or X, Y, Z
Indicates the month of packing.
X stands for October, Y November, and Z December.
8/9 Number
Indicates the day of the month of packing.
10Letter
Indicates the production factory. "A" for Nara Plant.
Temperature
Humidity (%)
85
20
10 35
(Without dew condensation)
3085%
35 60%
Temperature
Humidity (%)
90
20
-10 40
(Without dew condensation)
 +   "# $%&'(

AR-M350 EXTERNAL VIEWS AND INTERNAL STRUCTURES 5-1
[5] EXTERNAL VIEWS AND INTERNAL STRUCTURES

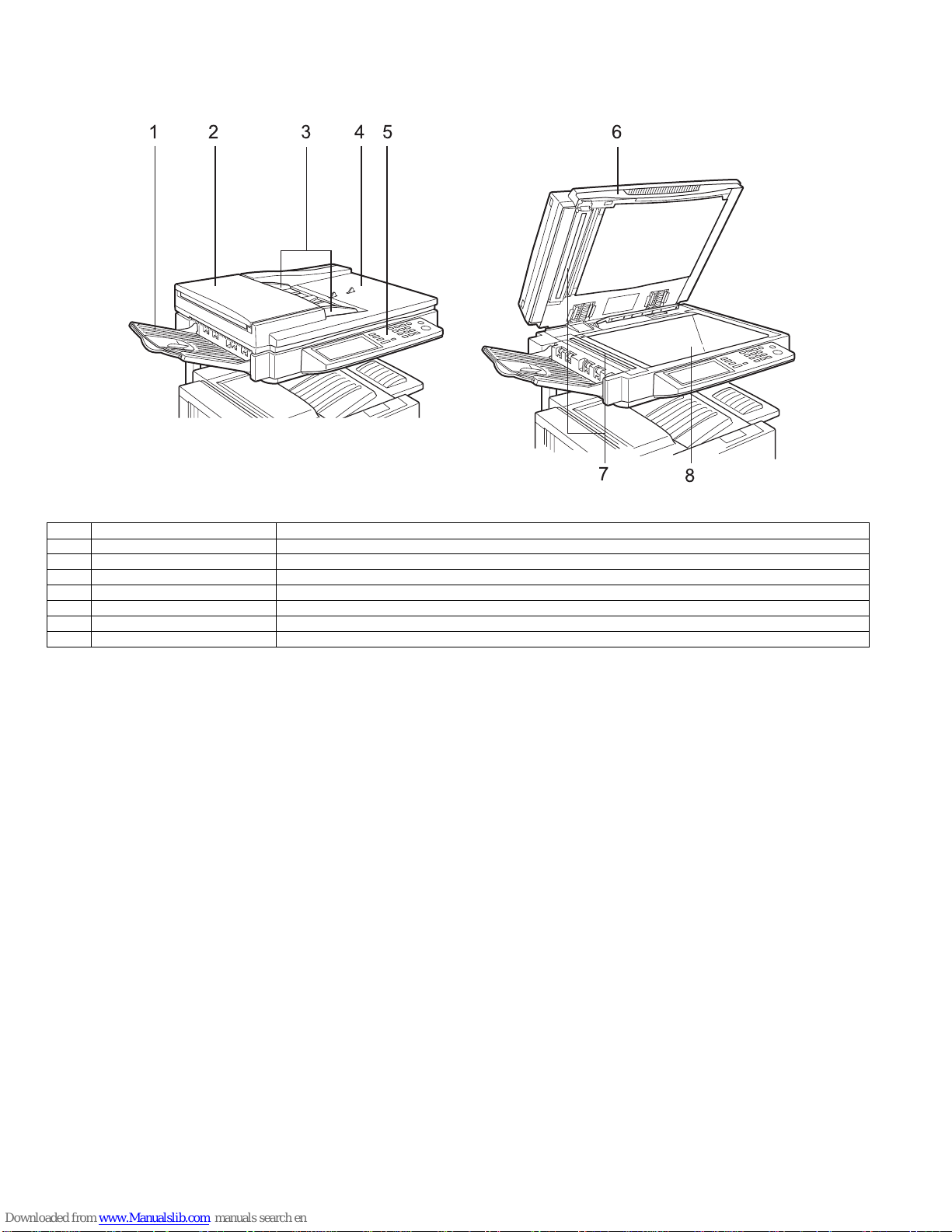

1. Appearance
1 DSPF exit area Scanned originals are deposited here.
2 Document feeding area cover Open to remove misfeed originals in this area.
3 Original guides Adjust to the size of the originals.
4 Document feeder tray Set the originals here for automatic feeding.
5 Operation panel Use for operation of copier, network scanner, and facsimile features and for printer configuration operations.
6 Document cover
7Document scanning windows Sheettype originals are scanned here.
8 Document glass All originals which cannot be copied from the document feeder tray must be copied here.
12 345 6
78
    ! "#$%&

AR-M350 EXTERNAL VIEWS AND INTERNAL STRUCTURES 5-2
2. Operation panel
When the printer is equipped with a scanner module, the operation panel on the main unit will become inoperative and the panel on the scanner module
must be used.
The operation panel on the printer engine side does not function.
1 Touch panel The machine status, messages and touch keys are displayed on the panel. The display will change to show
the status of print, copy, network scan or fax according to which of those modes is selected.
2 Mode select keys and indicators Use to switch the display mode of the touch panel.
3 [PRINT] key/
READY indicator/
DATA indicator
Press to enter the print mode.
•READY indicator
Print data can be received when this indicator is lit.
•DATA indicator
Lights up or blinks when print data is being received. Also lights up or blinks when printing is being
performed.
4 [IMAGE SEND] key/
LINE indicator/
DATA indicator
Press to enter the network scan/fax mode.
•LINE indicator
During sending or receiving FAX data or scan data, this lamp is lighted.
•DATA indicator
Lights up or blinks when FAX data is being received. Also lights up or blinks when printing is being
performed.
5 [COPY] key Press to select the copy mode and display the basic screen of the copy mode.
Even when the machine is busy in another mode, the basic copy mode screen will appear when the [COPY]
key is pressed.
If this key is pressed and held while the basic screen of the copy mode is displayed, the total output count
and the quantity of toner remaining (percentage) will be displayed.
6 [JOB STATUS] key Press to display the current job status.
7 [CUSTOM SETTINGS] key Use to adjust the contrast of the touch panel or to set key operator programs.
8 Numeric keys Use to enter number values for various settings.
9 [*] key ([ACC.#-C] key) If the auditing mode has been set, press this key to close an open account after finishing a copy, facsimile
scanning or network scanning job.
10 [#/P] key* Press to select the job memory mode.
11 [C] key* Press to clear a copy quantity entry.
If this key is pressed while the automatic document feeder is being used, any originals in progress will be
automatically output.
12 Start key* When the indicator is lit, copying, facsimile scanning and network scanning jobs can be started.
Press to start copying.
13 [CA] key* Press to clear all selected settings and return the machine to the initial settings for the currently selected
mode. Before starting a copy operation, press the [CA] key first.
12453
6 7 8 9 10 11 12 13
 '   ! "#$%&
