SHOR-LINE BLUE-LINE RLT User manual

A guide for:
Blue-Line Rotational Lift Table (RLT)
{Save This Guide For Future Reference}
PN: 006.3330.00
Updated: 4.25.2012
;
BLUE
-
LINE
pure innovation
To reduce the risk of injury, the user must read and understand this guide before installation of this product.
This product is for animal use only. We do not condone this product for other uses.

{2}
;
Introduction
Thank you for purchasing Shor-Line products. As a leader in animal care equipment, our commitment to you is
exactly the same as it was in 1927.
We hope this guide answers any questions you might have in regards to use, care or installation. If you can’t nd the
answers to your questions, have further questions or would like to purchase additional products, please contact us at
800.444.1579 or 913.281.1500. If in Europe phone [phone].
Consider keeping this guide in a safe and convenient place for future assistance.
IMPORTANT: DO NOT ATTEMPT TO DISASSEMBLE TABLE WITHOUT CONTACTING SHOR-LINE.

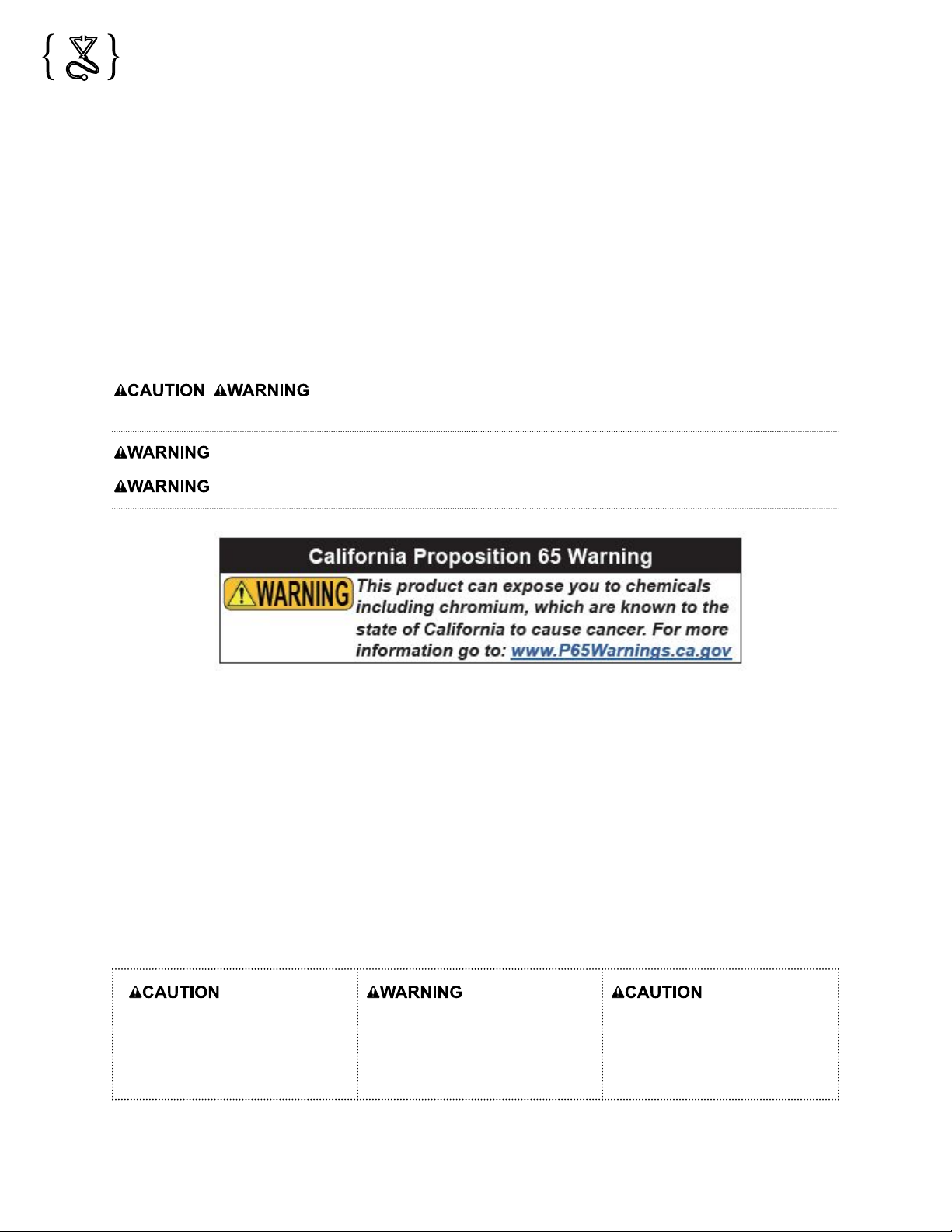

For your safety, please follow the instructions on these labels:
This product is for animal use only. We do not condone this product for other uses.
To reduce the risk of injury, the user must read and understand this guide before installation of this product.
Your Blue-Line Rotational Lift Table
(RLT) is heavy so precautions must be
taken. Use two or more people when
unpacking your shipment.
Shor-Line products are designed for
animal use only. Never allow a person
on or below your Blue-Line Rotational
Lift Table (RLT).
To insure the table functions properly,
follow all installations instructions.
Your Blue-Line Rotational Lift Table
(RLT) is shipped fully assembled.
Install table completely assembled.
{Shor-Line}
Schroer Manufacturing Company
511 Osage Ave.
Kansas City, Kansas 66105, USA
phone [phone] fax [phone]
email [email protected]
www.shor-line.com
{Shor-Line Limited}
Vale Business Park
Llandow,
Vale of Glamorgan CF71 7PF
United Kingdom
phone [phone] fax [phone]
email [email protected]
www.shor-line.co.uk

{3}
Shor-Line | 800.444.1579 | www.shor-line.com
;
{Contents}
Section 1: Unpacking & Inspecting Shipment
Unpacking & Inspecting Steps ...................................................................................................................4
Overall Dimensions of the Blue-Line RLT ..................................................................................................4
Features of the Blue-Line RLT ...................................................................................................................5
Section 2: Installation
Installation Options.....................................................................................................................................6
Option 1: Floor Mount ................................................................................................................................6
Option 2: Wall Mount..................................................................................................................................7
Option 3: Floor & Wall Mount .....................................................................................................................8
Section 3: Operation & Functionality - Blue-Line Rotational Lift Table without Scale
Before Use .................................................................................................................................................8
Turning the Table On and Off.....................................................................................................................9
Raising and Lowering the Table Top ..........................................................................................................9
Positioning the Table Top ...........................................................................................................................9
Section 4: Operation & Functionality - Blue-Line Rotational Lift Table with Scale
Before Use .................................................................................................................................................9
Turning the Table On and Off...................................................................................................................10
Raising and Lowering the Table Top ........................................................................................................10
Positioning the Table Top .........................................................................................................................10
Section 5: Optional Canine Scale
Refer to Scale Readout Supplement for Operation Instructions.
Section 6: Questions & Answers
Frequently Asked Questions ....................................................................................................................11
Section 7: Blue-Line Polyurethane Edge Care & Cleaning
Appearance & Life of the Polyurethane Edge..........................................................................................11
Polyurethane Edge Care & Cleaning Best Practices ...............................................................................11
Section 8: Stainless Steel Care & Cleaning
Quality & Life of Your Product ..................................................................................................................11
Care & Cleaning Best Practices...............................................................................................................12
Protecting Against Disease & Infection ....................................................................................................12
Section 9: Services, Terms & Conditions, Warranty
Terms & Conditions ..................................................................................................................................13
Order & Acceptance.................................................................................................................................13
Entire Agreement .....................................................................................................................................13
Terms Of Payment ...................................................................................................................................13
Prices & Quotes .......................................................................................................................................13
Taxes........................................................................................................................................................13
Deliveries .................................................................................................................................................13
Inspection.................................................................................................................................................13
Product Satisfaction .................................................................................................................................14
Limited Warranty ......................................................................................................................................14
Return Policy............................................................................................................................................15
Indemnity..................................................................................................................................................15
Unlawful Use............................................................................................................................................15
Regulations And Codes............................................................................................................................15
Seller's Remedies ....................................................................................................................................15
Miscellaneous ..........................................................................................................................................15
• Blue-Line Rotational Lift Table - Standard Blue Item # 903.3330.00
• Blue-Line Rotational Lift Table - Jade Item # 903.3330.01
• Blue-Line Rotational Lift Table - Taupe Gray Item # 903.3330.02
• Blue-Line Rotational Lift Table - Black Item # 903.3330.03
• Blue-Line Rotational Lift Table, with Scale - Standard Blue Item # 903.3331.00
• Blue-Line Rotational Lift Table, with Scale - Jade Item # 903.3331.01
• Blue-Line Rotational Lift Table, with Scale - Taupe Gray Item # 903.3331.02
• Blue-Line Rotational Lift Table, with Scale - Black Item # 903.3331.03

{4}
;
Section 1: Unpacking & Inspecting Shipment
{Unpacking & Inspecting Steps}
Step 1
Locate the Packing Slip that describes the parts and quantities shipped. Your Blue-Line Rotational Lift Table should
be carefully examined upon arrival for possible damage in shipment. If any damage is found, notify Shor-Line
immediately.
Step 2
Review Section 9: Shor-Line’s Services, Terms & Conditions, Warranty Information. For more information visit:
www.shor-line.com/warranty. Then click the Damages/Returns/Repairs link on the left.
Step 3
Remove the Table from the shipping carton by lifting from the oor base plate (do not lift on the table top). Due to the
weight of the table, we suggest having a hand truck, two-wheeler or furniture dolly to move the table.
Be sure that all parts are contained for your Rotational Lift Table.
Step 4
Check content for concealed damage.
If Concealed Damage:
Follow instructions within Section 9: Shor-Line’s Services, Terms & Conditions, Warranty Information. For more
information visit: www.shor-line.com/warranty. Then click the Damages/Returns/Repairs link on the left.
Call Shor-Line immediately so we can expedite replacements or repairs.
IMPORTANT: After fteen (15) calendar days of receipt of merchandise, this policy becomes void.

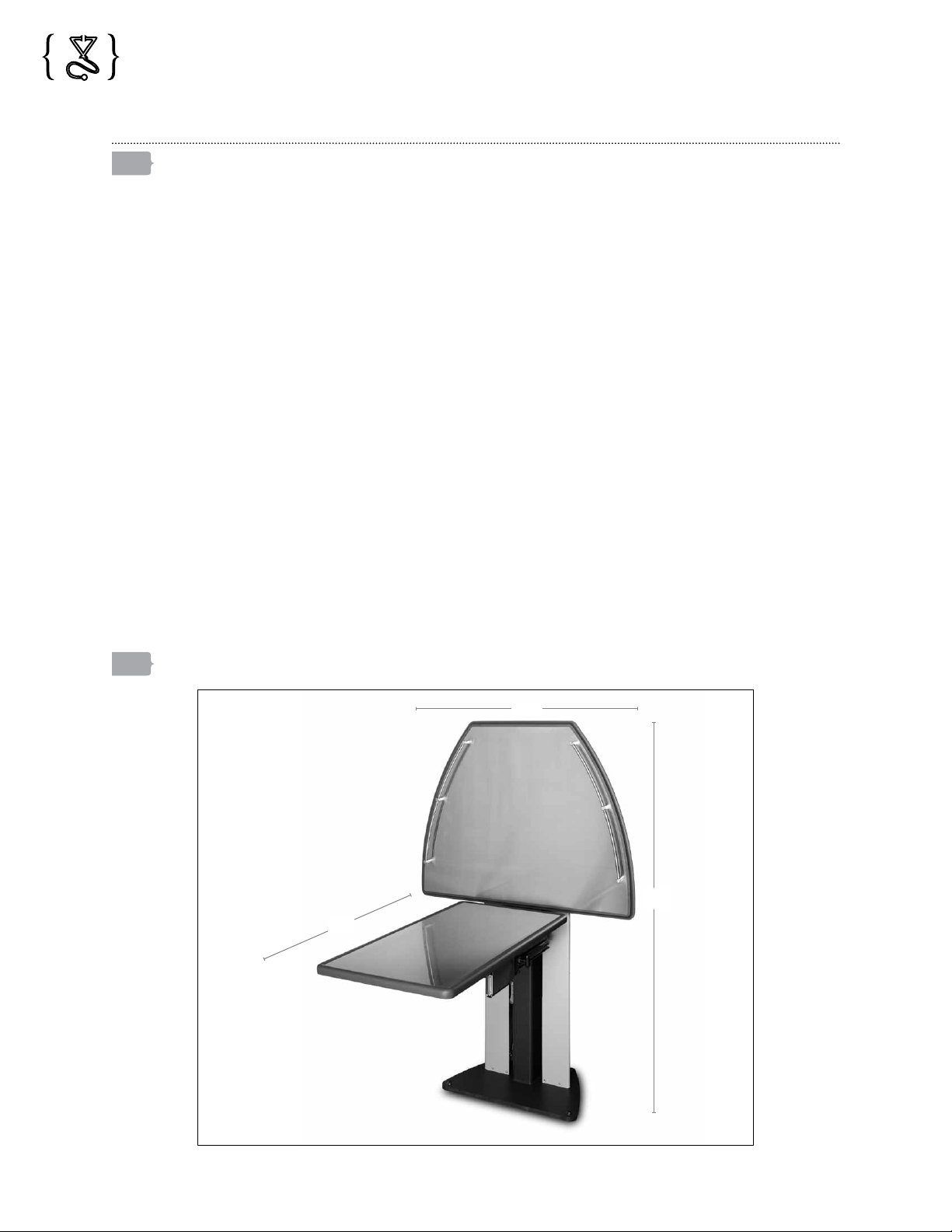

{Overall Dimensions of the Blue-Line RLT}
44"
82½"
56"

{5}
Shor-Line | 800.444.1579 | www.shor-line.com
;

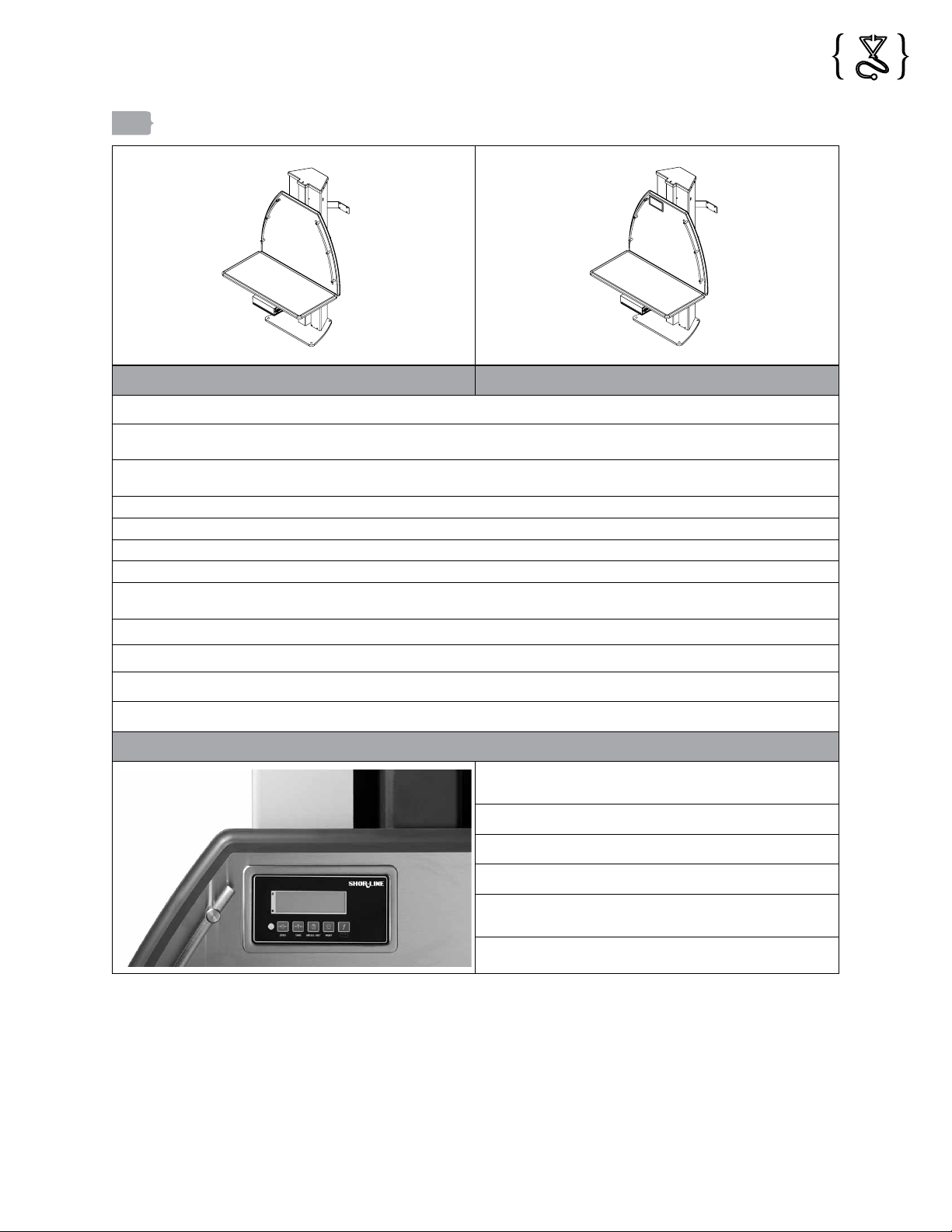

{Features of the Blue-Line RLT}
RLT Without Scale RLT With Scale
Table easily rotates and locks from a lateral to a peninsula mode.
Comes equipped with a safety spring loaded technology safety pan which will cease descending motion if table comes in contact
with obstacle.
Use either the wireless remote control (2 included), wireless foot control (1 included) or the UP/DOWN Manual Switch (located on
the column) to smoothly and quietly lift and lower your patients.
Stainless Steel Blue-Line Table Top is 44”l x 22”w x 1”h.
Blue-Line Table Top with radius corners and laminated polyurethane edging holds up to one liter of uid.
Powerful actuator lifts up to 300 lbs. from a minimum table height of 9½” to a maximum height of 47¾".
Heavy duty, low-prole base mounting plate keeps oor under the table surface unobstructed.
Table is easily mounted to any concrete surface of 4” or greater or any 2" x 4" reinforced wooden stud wall with 16" or 24" stud
centers.
On/Off key safety switch.
Stainless steel backboard with two, full height tie-down xtures.
120 volt, 15 amp operates an ultra quiet actuator and will raise or lower the table 1.25" per second.
Power outlet located on the rear of the backboard.
Scale Features
Accurate, reliable and repeatable weights in pounds and
kilograms.
Large, easy to see back lit LCD screen with 1⅛” high numbers.
Quick, on-screen weight calibration.
Optional locked or unlocked weighing functions.
Pounds and Kilograms do not display simultaneously. 300 lbs.
(136.4 kg ) capacity.
Operates on a AC adaptor.

{6}
;
Section 2: Installation
{Installation Options}
There are three (3) options recommended for installing your Rotational Lift Table (RLT).
• Option 1: Floor Mounted Rotational Lift Table
• Option 2: Wall Mounted Rotational Lift Table
• Option 3: Floor & Wall Mounted Rotational Lift Table
Your Rotational Lift Table requires a 15 amp dedicated service outlet with a ground. Please consult with
Shor-Line and your installation contractor to assure proper installation.
Your Rotational Lift Table is shipped fully assembled. Do not attempt to disassemble your Rotational Lift
Table without rst consulting with Shor-Line.
{Option 1: Floor Mount}
Concrete oors must be at least 4" thick.
Suggested Floor Mount Hardware
*NOTE: These items are not supplied.
Qty. Description
4 ½ -13 x 2" Long Wedge Anchors
1⅞" Concrete Drill Bit
4 ½ -13 x 3" Long BH Machine Screws with Washers
15/16" Hex Wrench
Step 1
Select a level location for your Rotational Lift Table.
Step 2
Position table in the desired location then using a black
marker, mark through the mounting holes in the bottom plate
to transfer the holes location to the concrete oor. (Fig. 2A)
Step 3
Move Rotational Lift Table away from desired location,
exposing transfer marks.
Step 4
Using a hammer drill with a ⅞" drill bit, drill (4) holes in the
concrete where the transfer marks were made. (Fig. 2B)
Step 5
Hammer ½ -13 x 2" Long Wedge Anchor in each drilled hole until
ush with the oor. (Fig. 2C)
Step 6
Move Rotational Lift Table back into position lining up the holes in
the bottom plate with the anchor wedges.
Fig. 2A
Fig. 2B
Fig. 2C

{7}
Shor-Line | 800.444.1579 | www.shor-line.com
;

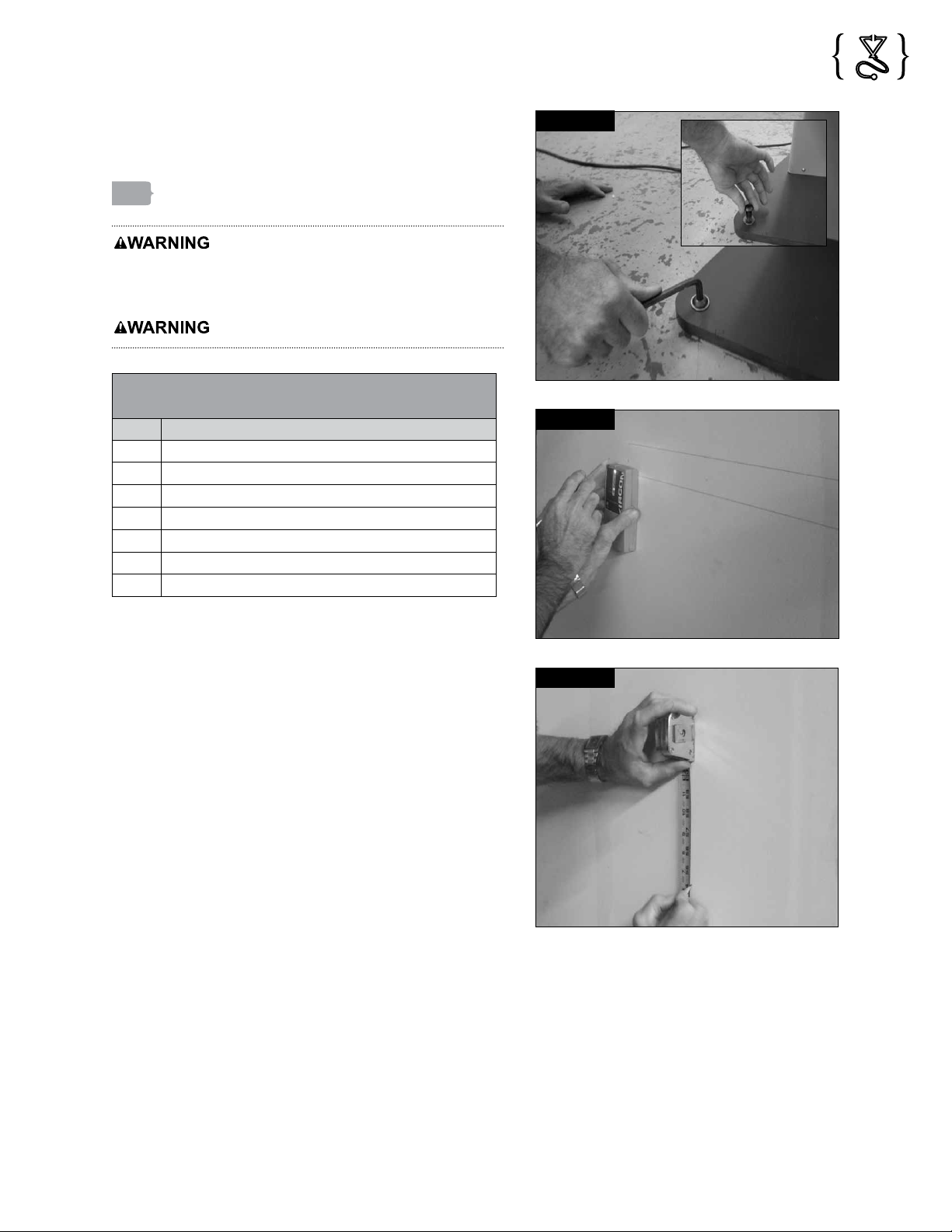

Step 7
Insert Button head screws with washers into each hole and
tighten each screw with the 5/16" Hex Wrench. (Fig. 2D)
{Option 2: Wall Mount}
Do not mount the Rotational Lift Table to walls
with metal studs unless sufcient wall reinforcement is installed by
a qualied mechanical contractor. For further information regarding
installation please contact Shor-Line.
Wood wall studs must be at least 2" x 4" or 2" x 6".
Suggested Wall Mount Hardware
*NOTE: These items are not supplied.
Qty. Description
1 Stud Locator
1 Tape Measure
1 Pencil
1 Carpenters Level
1Drill with ⅛" Drill Bit
4 3" Lag Screws
1Ratchet and 7/16" Socket
Step 1
Select location for your Rotational Lift Table with wooden studs
in the walls. (Fig. 2E)
Step 2
Have a qualied technician locate the wall studs using a stud
nder, place pencil marks locating two studs next each other
on wall. (Fig. 2E)
NOTE: The Rotational Lift Table has mounting holes for both
16" or 24" stud centers.
NOTE: If you prefer the RLT can be moved into place after
locating the studs and then the holes drilled using the holes
in the bracket as the guide. Otherwise continue to step 3.
Step 3
Measure from the oor up the wall 54¼" and 56¼", and place
marks using the pencil, taking care to line up the stud center
marks. (Fig. 2F)
Step 4
Using the Carpenters Level draw a vertical line 54¼" mark to the 56¼" mark. This will be a 2" line.
Step 5
Using the Carpenters Level draw two horizontal lines, 16" or 24" line (depending on your stud location in your wall),
from each of the marks.
Fig. 2D
Fig. 2E
Fig. 2F

{8}
;

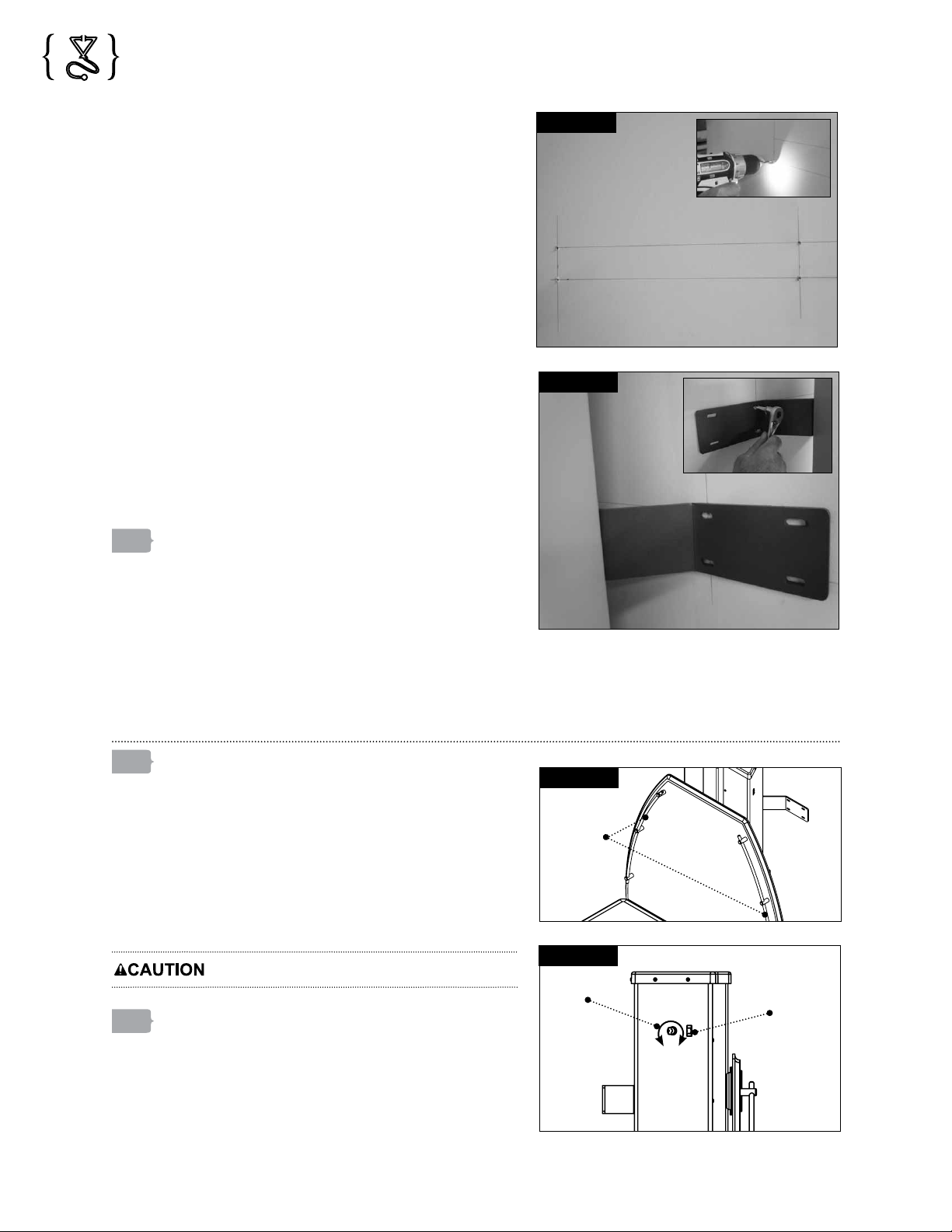

Step 6
When nished you should have a rectangle. (Fig. 2G)
Step 7
Using a drill with an ⅞" drill bit, drill (4) holes 2" deep in the
wall at the intersection of each line. (Fig. 2G)
Step 8
When complete you will have (4) holes that will be used to
mount the (RLT) Table. (Fig. 2G)
Step 9
Move the RLT into place making sure the bracket holes line
up with the holes that have been drilled into the wall. (Fig. 2H)
Step 10
Insert a 3" lag screw into each hole and tighten with the ratchet
and 7/16" socket.
Step 11
The pencil marks can then be wiped clean using household
cleaner.
{Option 3: Wall & Floor Mount}
The Wall Mount Rotational Lift Table is a combination of both
the oor and the wall mount. Attaching to the oor and the wall
is not necessary as long as the concrete oor is at least 4"
thick if using the oor mount and the walls are at least 2" x 4"
or 2" x 6" wooden studs if using the wall mount.
Section 3: Operation & Functionality -
Blue-Line Rotational Lift Table without Scale
{Before Use}
• Make sure that you have mounted your Rotational Lift Table
using one of the 3 options found in Section 2.
• Plug the table into a minimum 15 amp dedicated service
outlet with ground.
• Use the two tie downs to secure the animal to the table during
exam/surgery. (Fig. 3A)
NOTE: Your RLT comes equipped with an outlet located on the
back of the table.
Be sure to lock table top into position before use.

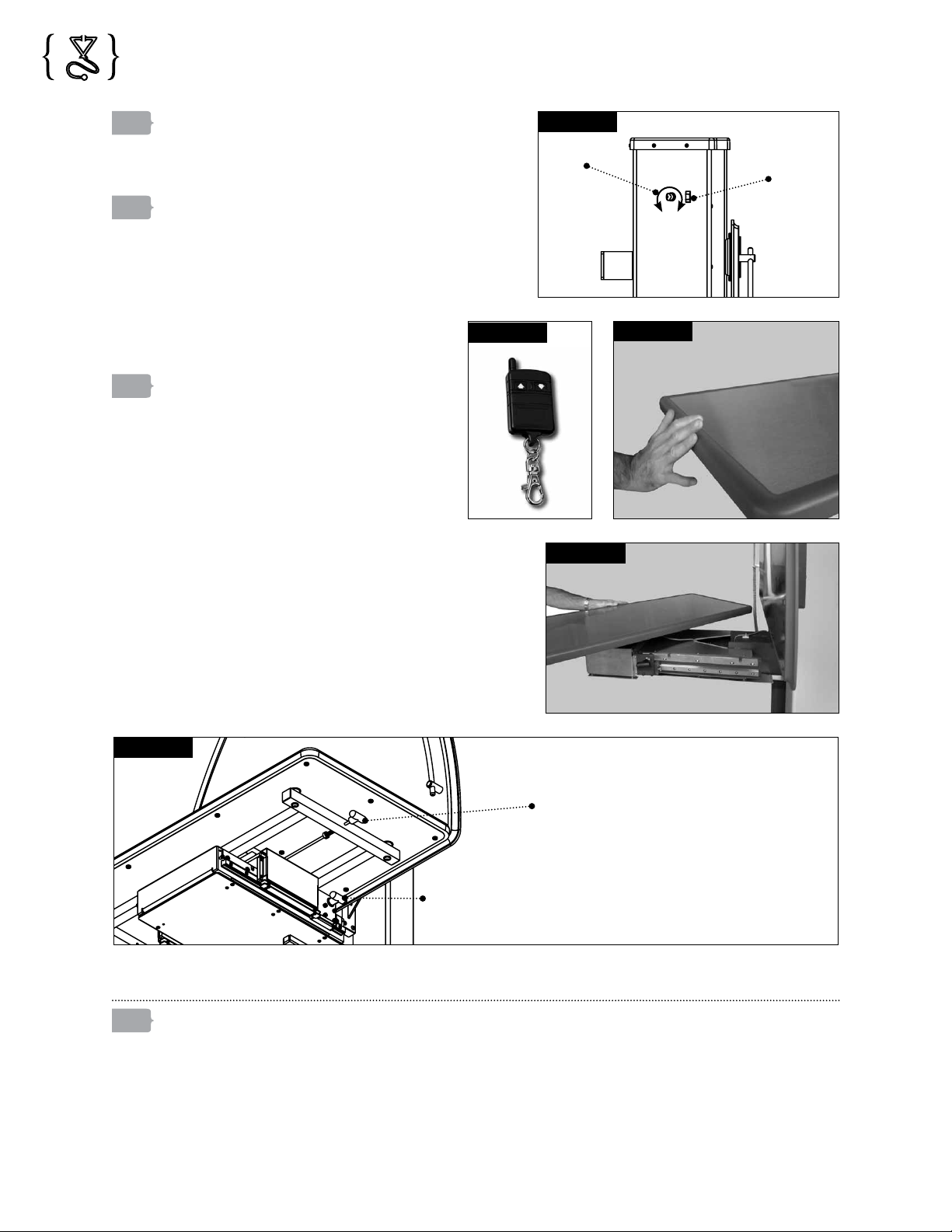

{Turning the Table On and Off}
Turn the key clockwise to turn the table on. Turn the key
counterclockwise, to turn the table off. (Fig. 3B)
Fig. 2G
Fig. 2H
Fig. 3B
On
Off
Tie Downs
Fig. 3A

{9}
Shor-Line | 800.444.1579 | www.shor-line.com
;
{Raising and Lowering the Table Top}
Step 1
Using the wireless control, push the upward arrow to
move the table to the upward position.
Step 2
The down arrow will allow you to lower the table. (Fig. 3C)
{Positioning the Table Top}
Step 1
To slide table pull the spring loaded knob on the underside of the
table while sliding the table out as far as possible. (Fig. 3F)
Step 2
Once the table top is pulled out to the furthest position, pull the
lever at the end of the table to unlock (Fig. 3F) and rotate table
from Peninsula to Lateral position. (Fig. 3E)
Step 3
Once the table top is in the desired position rmly push on the
end of the table to lock it into position. Once the table top is
locked into position it will be set tight against the backboard.
(Fig. 3D)
Section 4: Operation & Functionality -
Blue-Line Rotational Lift Table with Scale
{Before Use}
• Make sure that you have mounted your Rotational Lift Table
using one of the 3 options found in Section 2.
• Plug the table into a minimum 15 amp dedicated service
outlet with ground.
• Use the two tie downs to secure the animal to the table
during exam/surgery. (Fig. 4A)
NOTE: Your RLT comes equipped with an outlet located on the
back of the table.
Be sure to lock table top into position before use.
Fig. 3F
To slide table pull the spring loaded knob on the underside of the
table while sliding the table out as far as possible.
Once the table top is pulled out to the furthest
position, pull the lever at the end of the table
to unlock.
Fig. 3E
Fig. 3C Fig. 3D
Tie Downs
Fig. 4A

{10}
;
{Turning the Table On and Off}
Turn the key clockwise to turn the table on. Turn the key
counterclockwise, to turn the table off. (Fig. 4B)
{Raising and Lowering the Table Top}
Step 1
Using the wireless control, push the upward arrow to move the
table to the upward position.
Step 2
The down arrow will allow you to lower the table.
(Fig. 4C)
{Positioning the Table Top}
Step 1
To slide table pull the spring loaded knob on the
underside of the table while sliding the table out as far
as possible. (Fig. 4F)
Step 2
Once the table top is pulled out to the furthest position,
pull the lever at the end of the table to unlock (Fig. 4F) and
rotate table from Peninsula to Lateral position. (Fig. 4E)
Step 3
Once the table top is in the desired position rmly push on the
end of the table to lock it into position. Once the table top is
locked into position it will be set tight against the backboard.
(Fig. 4D)
Section 5: Optional Canine Scale
{Scale Readout Supplement}
Refer to the Scale Readout Supplement for Operation Instructions.
Fig. 4B
On
Off
Fig. 4F
To slide table pull the spring loaded knob on the underside of the
table while sliding the table out as far as possible.
Once the table top is pulled out to the furthest
position, pull the lever at the end of the table
to unlock.
Fig. 4E
Fig. 4C Fig. 4D
