Shure SLX Wireless System User manual

10
SLX
Working Range
Line of Sight
100 m (300 ft)
Note: Actual range depends on RF signal absorption,
reflection and interference.
Audio Frequency Response 45–15000 Hz
Note: Dependent on microphone type
Total Harmonic Distortion
Ref. ±38 kHz deviation with 1 kHz
tone
<0.5%, typical
Dynamic Range >100 dB, A-weighted
Operating Temperature Range -18°C (0°F) to +50°C (122°F)
Note: Battery characteristics may limit this range.
Transmitter Audio Polarity Positive pressure on microphone diaphragm (or
positive voltage applied to tip of WA302 phone plug)
produces positive voltage on pin 2 (with respect to
pin 3 of low-impedance output) and the tip of the high
impedance 1/4-inch output.

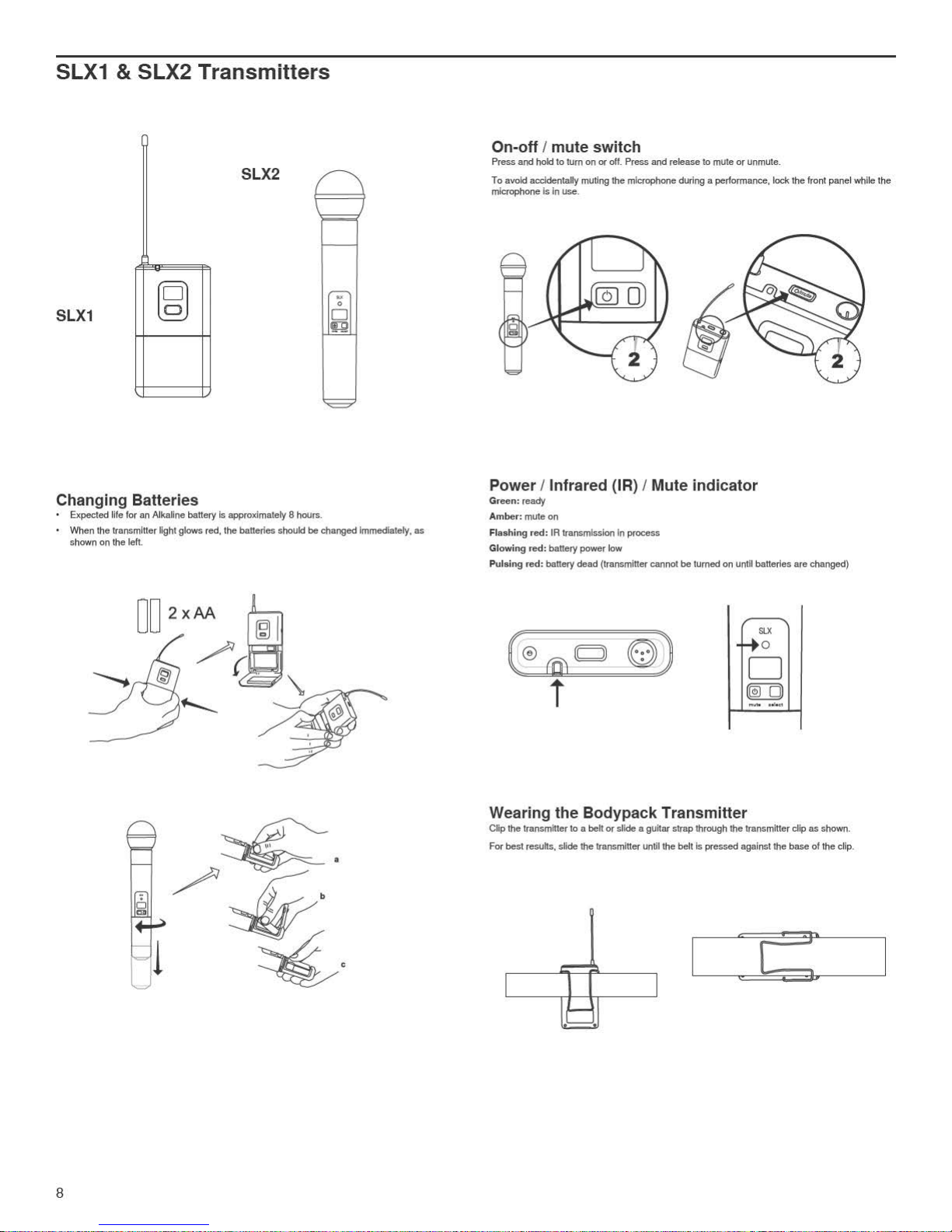

SLX1
Audio Input Level gain position
mic: −10dBVmaximum
0dB: +10dBVmaximum
–10dB: +20dBVmaximum
Gain Adjustment Range 30 dB
Input Impedance 1MΩ
RF Output Power 10–30 mW
varies by region
Pin Assignments
TA4M
1: ground (cable shield)
2: +5VBias
3: audio
4: Tied through active load
to ground (On instru-
ment adapter cable, pin
4 floats)
Dimensions 108mm x 64mm x 19mm (H x W x D)
Weight 81 g (3 oz.), without batteries
Housing galvanized steel
Power Requirements 2 "AA" size alkaline or rechargeable batteries
Battery Life up to 8 hours (alkaline)
SLX2
Maximum Input Level at –10 dB gain
setting: +2dBV
at 0 dB gain setting: –8dBV
Gain Adjustment Range 10 dB
RF Output Power 10–30 mW
varies by region
Dimensions 254mm X 51mm dia. (10 X 2in.)
Weight 290 g (10.2oz.) (without batteries)
Housing Molded PC/ABS handle and battery cup
Power Requirements 2 "AA" size alkaline or rechargeable batteries
Battery Life up to 8 hours (alkaline)

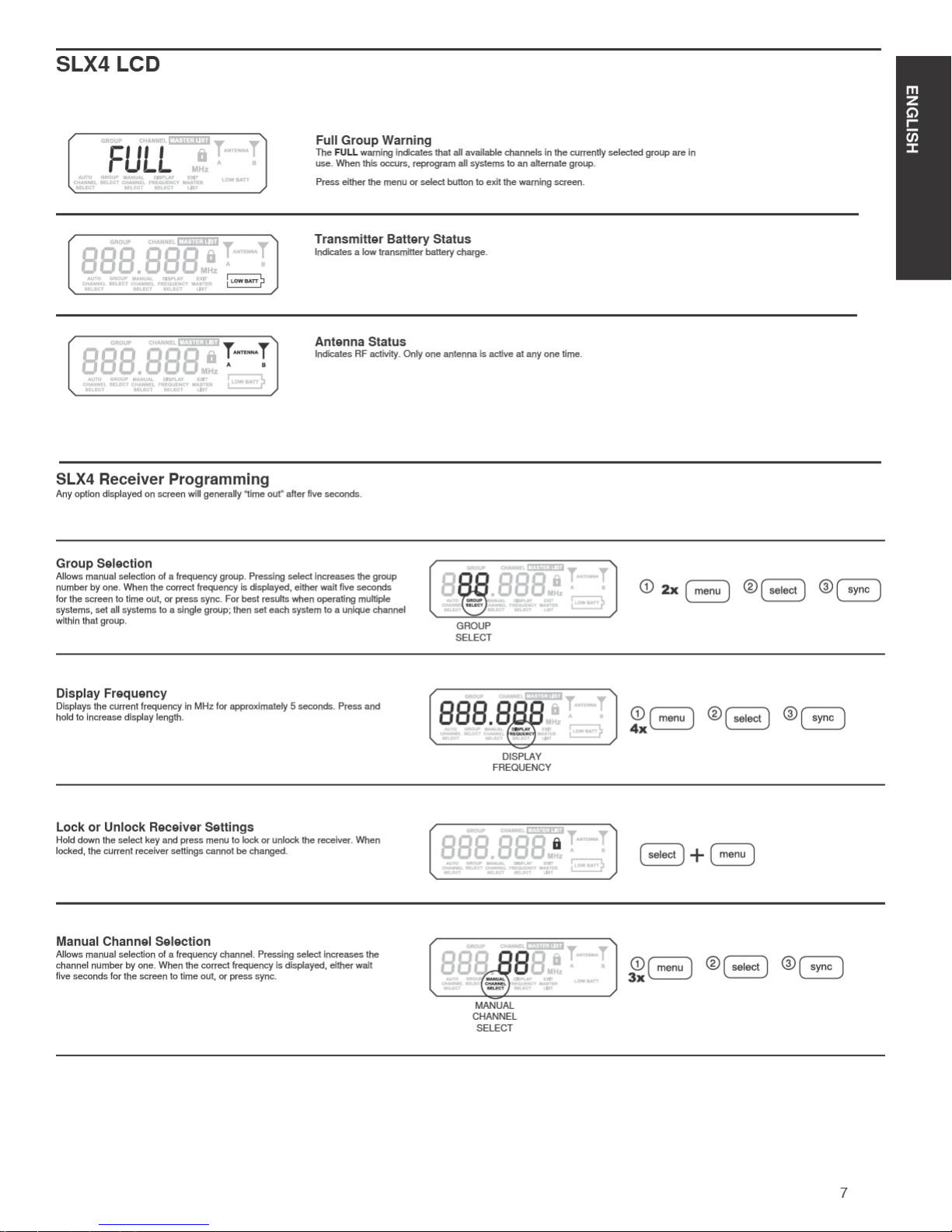

SLX4
Dimensions 42mm X 197mm X 134mm (H x W x D)
Weight 816 g (1 lb 13oz.)
Housing galvanized steel
Sensitivity -105 dBm for 12 dB SINAD, typical
Power Requirements 12–18VDC@150mA,suppliedbyexternal
power supply (tip positive)
Configuration Impedance balanced
Maximum Audio Output Level
Ref. ±38 kHz deviation with 1 kHz
tone
XLR connector: –13dBV(into600Ω
load)
6.35 mm (1/4")
connector: –2dBV(into3kΩload)
Impedance XLR connector: 200Ω
6.35 mm (1/4")
connector: 1kΩ
Pin Assignments XLR connector: 1=ground, 2=audio,
3=no audio
6.35 mm (1/4")
connector:
Tip=audio, Ring=no au-
dio, Sleeve=ground
Image Rejection >70 dB, typical
Volume Adjustment Range 0 dB to -25 dB
Frequency Range and Transmitter
Output Level
Band Range Output Power
G4 470 to 494 MHz 30 mW
G4E 470 to 494 MHz 30 mW
G5 494 to 518 MHz 30 mW
G5E 494 to 518 MHz 30 mW
G8 494 200 to 509 825 MHz 30 mW
H5 518 to 542 MHz 30 mW
J3 572 to 596 MHz 30 mW
L4 638 to 662 MHz 30 mW
L4E 638 to 662 MHz 30 mW
P4 702 to 726 MHz 30 mW
R13 794 to 806 MHz 20 mW
R5 800 to 820 MHz 20 mW
X4 925 to 932 MHz 10 mW
S6 838 to 865 MHz 10 mW
S10 823 to 832 MHz 10 mW
JB 806 to 810 MHz 10 mW
R19 794 to 806 MHz 10 mW
Q4 740 to 752 MHz 10 mW
K3E 606 to 630 MHz 10 mW
NOTE:
This Radio equipment is intended for use in musical professional entertainment
and similar applications.
This Radio apparatus may be capable of operating on some frequencies not
authorized in your region. Please contact your national authority to obtain infor-
mation on authorized frequencies and RF power levels for wireless microphone
products.

Antenna Combiners and Accessories
Antennas and receivers must be from the same band.
The supplied 1/4 wave antennas can be used when mounted directly to the UA844. If antennas
are remote mounted, 1/2 wave antennas must be used.
Antennas and cables are for use with UA844, and cannot be used with stand-alone SLX receivers
Passive Antenna/Splitter Combiner Kit
(recommended for 2 receivers) UA221
25’ Antenna Cable UA825
50’ Antenna Cable UA850
100’Antenna Cable UA100
1/2 Wave Antenna Remote Mount Kit UA505
UHF Antenna Power Distribution Amplifier
(recommended for 3 or more receivers)
U.S.A. UA844US
Europe UA844E
UK UA844UK
1/2 wave antenna
H5 Band UA820H
J3 Band UA820F
L4 Band UA820L
P4, Q4 Bands UA820B
R13, R5, S6, JB Bands UA820A
12
Accessories and Parts
Optional Accessories
Carrying Case WA610
Black Grille for BETA 58A RK323G
Black Grille for BETA 87A and BETA 87C RK324G
Replacement Parts
Microphone Stand Adapter (SLX2) WA371
Zipper Bag (SLX1) 26A13
Zipper Bag (SLX2) 26A14
Short Rack Bar 53A8611
Long Rack Bar 53A8612
Link Bar 53B8443
Antenna extension cables (2) 95A9023
Protective Bumpers (SLX4 Receiver) (4) 90A8977
ACAdapter(120VAC,60Hz) PS21
ACAdapter(220VAC,50Hz) PS21AR
ACAdapter(230VAC,50/60Hz,Europlug) PS21E
ACAdapter(230VAC,50/60Hz) PS21UK
ACAdapter(100VAC,50/60Hz) PS21J
SM58®Cartridge with Grille (SLX2/SM58) RPW112
SM86 Cartridge with Grille (SLX2/SM86) RPW114
BETA 58A®Cartridge with Grille (SLX2/BETA 58) RPW118
BETA 87A Cartridge with Grille (SLX2/BETA 87A) RPW120
BETA 87C Cartridge with Grille (SLX2/BETA 87C™) RPW122
Matte Silver Grille for SM58®(SLX2/SM58) RK143G
Matte Silver Grille for SM86 (SLX2/SM86) RPM226
Matte Silver Grille for BETA 58A®(SLX2/BETA 58) RK265G
Matte Silver Grille for BETA 87A (SLX2/BETA 87A) RK312
Matte Silver Grille for BETA 87C (SLX2/BETA 87C™) RK312
Belt Clip 44A8030
1/4-Wave Antenna (470 - 752 MHz) UA400B
1/4-Wave Antenna (774 - 952 MHz) UA400
CERTIFICATION
SLX1, SLX2, SLX4
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Meets requirements of EMC standards EN 300 422 Parts 1 and 2 and EN 301 489 Parts 1 and 9.
Meets essential requirements of European R&TTE Directive 99/5/EC, eligible to bear the CE mark.
SLX1, SLX2
Certified under FCC Part 74. (FCC ID: DD4SLX1, DD4SLX2). Certified by IC in Canada under
RSS-123 and RSS-102. (IC: 616A-SLX1, 616A-SLX1G5, 616A-SLX2, 616A-SLX2G5).
SLX4
Approved under the Declaration of Conformity (DoC) provision of FCC Part 15. Certified in
Canada by IC to RSS-123. (IC: 616A-SLX4, 616A-SLX4G5).
Operation of this device is subject to the following two conditions: (1) this device may not cause in-
terference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European
representatives. For contact information please visit www.shure.com
The CE Declaration of Conformity can be obtained from: www shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str.12,
75031 Eppingen, Germany
Phone: [phone]
Fax: [phone]
Email:[email protected]
LICENSING INFORMATION
Licensing: A ministerial license to operate this equipment may be required in certain areas.
Consult your national authority for possible requirements. Changes or modifications not expressly
approved by Shure Incorporated could void your authority to operate the equipment. Licensing of
Shure wireless microphone equipment is the user’s responsibility, and licensability depends on the
user’s classification and application, and on the selected frequency. Shure strongly urges the user
to contact the appropriate telecommunications authority concerning proper licensing, and before
choosing and ordering frequencies.
Information to the user
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Note: EMC conformance testing is based on the use of supplied and recommended cable types.
The use of other cable types may degrade EMC performance.
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
WARNING: Dispose of properly. Check with local vendor for proper disposal of used battery and
electronics.

40
EUROPEAN COUNTRY–GROUP MATRIX FREQUENCY BANDS
SLX H5 518-542 MHz, max. 30 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Länder-Kürzel Frequenzbereich
A, B, CH, CZ, D, E, EST 518–542 MHz *
F, GB, GR, H, I, IRL, L 518–542 MHz *
LT, M, NL, P, PL, SLO 518–542 MHz *
DK, FIN, N, S *
CY,LV,SK *
All other Countries *
SLX J3 572–596 MHz, max. 30 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Länder-Kürzel Frequenzbereich
A, B, CH, CZ, D, E, EST 572–596 MHz *
F, GB, GR, H, I, IRL, L 572–596 MHz *
LT, M, NL, P, PL, SLO 572–596 MHz *
DK, FIN, N, S *
CY,LV,SK *
All other countries *
P4 702–726 MHz, max. 30 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Länder-Kürzel Frequenzbereich
A, B, CH, CZ, D, E, EST 702–726 MHz *
F, GB, GR, H, I, IRL, L 702–726 MHz *
LT, M, NL, P, PL, SLO 702–726 MHz *
DK, FIN, N, S *
CY,LV,SK *
All other countries *
R5 800–820 MHz, max. 20 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Länder-Kürzel Frequenzbereich
B, CH, D, EST 800–820 MHz *
F, GB, GR, H, I, IRL, L 800–820 MHz *
FIN, LT, N, NL, P, PL, SLO 800–820 MHz *
CZ 815–820 MHz *
A,CY,DK,E,LV,M,S,SK *
All other countries *
S6 838–865 MHz, max. 10 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Länder-Kürzel Frequenzbereich
B, CH, D, EST 838–865 MHz *
GB, H, I, IRL, L 838–865 MHz *
LT, M, NL, P, PL, SLO 838–865 MHz *
A, CY, CZ, DK, E, F, F N *
GR,N,LV,S,SK *
All other countries *
SLX-G4E 470 - 494 MHz, max. 30 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, B, BG, CH, CY, CZ, D, EST 470 - 494 MHz *
F, GB, GR, H, I, IS, L, LT 470 - 494 MHz *
NL, P, PL, S, SK, SLO 470 - 494 MHz *
DK, FIN, M, N *
HR,E,IRL,LV,RO,TR *
all other countries *
SLX-G5E 494 - 518 MHz, max. 30 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, B, BG, CH, CY, CZ, D, EST 494 - 518 MHz *
F, GB, GR, H, I, IS, L, LT 494 - 518 MHz *
NL, P, PL, S, SK, SLO 494 - 518 MHz *
DK, FIN, M, N *
HR,E,IRL,LV,RO,TR *
all other countries *
SLX-L4/-L4E 638–662 MHz, max. 30 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese: Gamme di frequenza
Código de país: Gama de frequencias
Länder-Kürzel Frequenzbereich
A, BG, CH, CY, CZ, D, EST 638–662 MHz *
F, GB, GR, H, I, IS, LT 638–662 MHz *
P, PL, S, SK, SLO 638–662 MHz *
B, DK, E, FIN, HR, IRL, L *
LV,M,N,NL,RO,TR *
All other countries *

SLX S10 823-832 MHz, max. 10 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, CH, D, DK 823-832 MHz*
B, BG, CY, CZ *
E, EST, F, F N, GB, GR, H, HR *
I,IRL,IS,LV,L,LT,M,N,NL,P,PL *
S, SK, SLO, RO, TR *
all other countries *
41
SLX-K3E 606 - 630 MHz, max. 10 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, BG, CH, CY, CZ, D, EST 606 - 630 MHz *
F, GB, GR, H, I, IS, L, LT 606 - 630 MHz *
P, PL, S, SK, SLO 606 - 630 MHz *
B, DK, FIN, M, N, NL *
HR,E,IRL,LV,RO,TR *
all other countries *
EUROPEAN COUNTRY–GROUP MATRIX FREQUENCY BANDS
SLX-Q24 736 - 754 MHz, max. 30 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, B, BG, CH, CY, CZ, D, EST 736- 754 MHz *
F, GB, GR, H, I, IS, L, LT 736- 754 MHz *
NL, P, PL, S, SK, SLO 736- 754 MHz *
RO 736-743 MHz, 750-751 MHz *
DK,E,FIN,HR,IRL,LV,M,N,TR *
all other countries *

Frequency Ranges
H5: 518.000–542.000 MHz
GROUP 1 GROUP 2 GROUP 3 GROUP 4 GROUP 5 GROUP 6
1 518.400 519.250 518.200 519.775 519.100 518.425
2 521 500 520.500 519.675 522.500 521 225 520.400
3 523 575 522.225 520.800 524.200 522 550 523.425
4 525 050 524.725 522.450 525.600 524 575 525.475
5 527.425 526.350 523.750 526.700 526 900 527.775
6 529 200 527.550 526.200 528.250 530 500 531.675
7 532.450 530.800 528.325 529.500 531.750 533.800
8 533 650 532.575 532.225 533.100 533 300 536.250
9 535 275 534.950 534.525 535.425 534.400 537.550
10 537.775 536.425 536.575 537.450 535 800 539.200
11 539 500 538.500 539.600 538.775 537 500 540.325
12 540.750 541.600 541.575 540.900 540 225 541.800
Full Range - even distribu-
tionforeachTV-CH
Full Range - even distribu-
tionforeachTV-CH
Full Range - max. # of
frequencies for CH- 22
Full Range - max. # of
frequencies for CH- 23
Full Range - max. # of
frequencies for CH- 24
Full Range - max. # of
frequencies for CH- 25
J3: 572.000–596.000 MHz
GROUP 1 GROUP 2 GROUP 3 GROUP 4 GROUP 5 GROUP 6
1572.400 573 250 572 200 573.775 573.100 572.425
2575.500 574 500 573 675 576.500 575.225 574.400
3577.575 576 225 574 800 578.200 576.550 577.425
4579.050 578.725 576.450 579.600 578.575 579.475
5581.425 580 350 577.750 580.700 580.900 581.775
6583.200 581 550 580 200 582.250 584.500 585.675
7586.450 584 800 582 325 583.500 585.750 587.800
8587.650 586 575 586 225 587.100 587.300 590.250
9589.275 588 950 588 525 589.425 588.400 591.550
10 591.775 590.425 590 575 591.450 589.800 593.200
11 593.500 592 500 593 600 592.775 591.500 594.325
12 594.750 595 600 595 575 594.900 594.225 595.800
Full Range - even distribu-
tionforeachTV-CH
Full Range - even distribu-
tionforeachTV-CH
Full Range - max. # of
frequencies for CH- 31
Full Range - max. # of
frequencies for CH- 32
Full Range - max. # of
frequencies for CH- 33
Full Range - max. # of
frequencies for CH- 34
L4: 638.000–662.000 MHz
GROUP 1 GROUP 2 GROUP 3 GROUP 4 GROUP 5 GROUP 6
1638.400 639 250 638 200 639.775 639.100 638.425
2641 500 640 500 639 675 642.500 641.225 640.400
3643 575 642 225 640 800 644.200 642.550 643.425
4645 050 644.725 642.450 645.600 644.575 645.475
5647.425 646 350 643.750 646.700 646.900 647.775
6649 200 647 550 646 200 648.250 650.500 651.675
7652.450 650 800 648 325 649.500 651.750 653.800
8653 650 652 575 652 225 653.100 653.300 656.250
9655 275 654 950 654 525 655.425 654.400 657.550
10 657.775 656.425 656 575 657.450 655.800 659.200
11 659 500 658 500 659 600 658.775 657.500 660.325
12 660.750 661 600 661 575 660.900 660.225 661.800
Full Range - even distribu-
tionforeachTV-CH
Full Range - even distribu-
tionforeachTV-CH
Full Range - max. # of
frequencies for CH- 42
Full Range - max. # of
frequencies for CH- 43
Full Range - max. # of
frequencies for CH- 44
Full Range - max. # of
frequencies for CH- 45
42

P4: 702.000–726.000 MHz
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8
1702.200 703.750 703.650 702.750 703.750 702.100 704.775 702 300
2704.200 705 975 705.650 704 500 705.750 704 025 706.225 704 975
3707.200 707 200 708.650 705.750 708.250 705 500 710.500 706.775
4709.425 708 850 710.875 708 250 711.750 708 500 712.025 709.100
5711.000 710 950 712.450 711 250 714.500 710.100 714.225 710 300
6713.675 712.425 715.125 712 500 715.750 712 025 716.900 712 225
7715.575 714 325 717.025 715 250 718.750 713 500 718.500 714.775
8717.050 717 000 718.500 718.750 721.250 717 300 720.775 716.700
9719.150 718 575 720.600 721 250 722.500 725 300 725.300 724 000
10 720.800 720 800 722.250 723 250 724.250 725 900
11 722.025 723 800 723.475
12 724.250 725 800 725.700
Full Range -
max. # of
compatible
frequencies
Full Range -
max. # of
compatible
frequencies
Full Range -
max. # of
compatible
frequencies
France
preferred:
User Group A
France
preferred:
User Group A
France
preferred:
User Group B
France
preferred:
User Group B
France
preferred:
User Group C
Group 9 Group 10 Group 11 Group 12 Group 13 Group 14 Group 15 Group 16
1703.000 702 200 710.200 718 200 702.550 702.100 702.700 702 500
2706.025 703 300 711.300 719 300 705.600 704.700 704.700 705 500
3708.000 704.700 712.700 720.700 707.500 710 300 709.450 707 000
4710.300 705.800 713.800 721 800 709.000 712.400 711.500 712 200
5712.225 707 675 715.675 723 675 711.500 714 000 714.500 714.100
6716.000 708.775 716.775 715.100 716 500 716.550 716.400
7717.100 717.000 719.400 719.900 719 500
8719.000 720.000 721 300 722.000 722 200
9720.225 723.500 724.700
10 722.775 725.900 725.900
11 724.700
France preferred:
User Group C
OptimizedTV
channels:
TVch.50
702-710 MHz
OptimizedTV
channels:
TVch.51
710-718 MHz
OptimizedTV
channels:
TVch.52
718-724 MHz
Compatible
setup for use with
PSM400-P3
(P4 > P3)
Compatible
setup for use
with PSM400-P3
(P4 = P3)
Compatible
setup for use with
PSM400-HF
(P4 > HF)
Compatible setup
for use with
PSM400-HF
(P4 = HF)
R5: 800.100–819.900 MHz
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7
1801.250 801 225 800.950 800 525 801.475 800 600 800.650
2804.825 804 800 802.950 801 925 803.025 802 050 803.125
3806.975 806 950 804.325 803 650 805.800 804 275 804.450
4808.800 808.775 806.425 804 850 806.950 805.750 806.150
5810.325 810 300 808.050 807.400 809.125 806 850 807.250
6811.550 811 525 809.275 808 525 810.575 808 550 808.725
7813.175 813.150 810.800 810 275 811.725 809 875 810.950
8815.275 815 250 812.625 811 550 813.800 812 350 812.400
9816.650 816 625 814.775 813.775 813.450 813.500
10 818.650 818 625 818.350
11 819.750 819 800 819.775
Full Range - max. # of
comp. Frequencies &
FIN / NOR /DEN
Full Range - max. # of
comp. Frequencies &
FIN / NOR / DEN
Full Range - max. # of
comp. Frequencies &
FIN / NOR /DEN
Germany preferred:
User Group 4
800-814 MHz
Germany preferred:
User Group 4
800-814 MHz
Sweden preferred:
800-814 MHz
Sweden preferred:
800-814 MHz
Group 8 Group 9 Group 10 Group 11 Group 12 Group 13 Group 14
1806 000 806.025 801.400 800.900 801.200 803 850 806.150
2807.100 807.425 808 300 802.100 803.800 807 000 811.650
3808 500 808.525 816.400 806.200 805.900 809.700 814.400
4809 600 810.400 809.300 807.000 811 050 816.500
5811.475 811.500 814.100 809.200 813 900 817.450
6812 575 812.900 816.100 811.700 816 500 819.300
7813 975 814.000 817.200 817 600
8819.600 819 500
Netherlands
preferred:TVch.63
806-814 MHz
Netherlands
preferred:TVch.63
806-814 MHz
Compatible setup for
usewithEUT-TL-TV
(R5>TL-TV)
Compatible setup for
use with PSM400- MN
(R5 > MN)
Compatible setup for
use with PSM400-MN
(R5 = MN)
Compatible setup for
use with PSM200-R8
(R5 > R8)
Compatible setup for
use with PSM200-R8
(R5 = R8)
43

S6: 838.000–865.000 MHz
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8
1838 200 838.150 838 550 854 200 855.475 855 075 854.750 854.750
2841.450 839 375 839.775 855 300 857.425 857.775 855 850 855 850
3843 275 841 300 841.700 856.700 860 600 860.725 857 250 857 250
4846 225 842.475 842 875 857 800 858 350 858 350
5847 350 846.400 846 800 859 675 860 225 860 225
6850.125 848 025 848.425 860.775 861 325 861 325
7852 575 850 025 850.425
8854 575 852.475 852 875
9856 200 855 250 855 650
10 860.125 856 375 856.775
11 861 300 859 325 859.725
12 863 225 861.150 861 550
13 864.450 864.400 864 800
Full Range
- max. # of
compatible
frequencies
Full Range
- max. # of
compatible
frequencies
Full Rangemax.
# of compatible
frequencies
BEL / TUR
preferred:
opt.TVch 69
854-862 MHz
U K. preferred:
“CH69 Coordi-
nated” SET 1
U K.
preferred: “CH69
Coordinated”
SET 2 or SET 3
U K. preferred:
“Co-ordinated
frequencies”
INDOORS
U K. preferred:
“Co-ordinated
frequencies”
OUTDOORS
Group 9 Group 10 Group 11 Group 12 Group 13 Group 14 Group 15
1854.425 863.200 838.200 838.900 838.100 838.700 838.400
2855.525 864.500 839.900 842.600 841.100 842.800 840.600
3857.400 841.000 845.900 842.700 844.800 842.100
4858.500 842.375 847.500 847.000 846.300 844.700
5859.900 844.400 848.600 849.200 847.400 846.600
6861.000 846.100 850.100 850.400 849.200 848.100
7847.350 852.100 852.500 851.300 850.700
8849.400 853.300 854.100 851.850
9851.800 855.100 855.300 853.700
10 853.200 857.200
11 858.650
12 859.800
13 861.900
U K. preferred:
“Co-ordinated
frequencies”
OUTDOORS
European
harmonized
band: optimized
for 863 - 865
MHz
Compatible
setup for use
with EUT-TW-TZ
(S6 > TW-TZ)
Compatible
setup for use
withEUT-VR-VT
(S6>VR-VT)
Compatible
setup for use
with PSM400-
KE (S6 > KE)
Compatible
setup for use
with PSM400-
KE (S6 = KE)
Compatible
setup for use
with PSM200-
S5 (S6 > S5)
Q4: 740.000–752.000 MHz
Group 1 Group 2 Group 3 Group 4
1740.125 740.125 740.125 740.125
2741.500 741 950 741 225 740.800
3743.375 743 500 742 925 741.825
4744.600 745 675 744 325 743.075
5746.325 747.400 745.425 745.125
6748.500 748 625 746 875 746.575
7750.050 750 500 748 925 747.675
8751.875 751 875 750.175 749.075
9751 200 750.775
10 751 875 751.875
Full Range Full Range Full Range Full Range
44

G4: 470.000–494.000 MHz
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6
1471.150 470.125 470.275 476 275 482 275 488.275
2473.275 472.250 471.375 477 375 483 375 489.375
3474.825 473.800 472.775 478.775 484.775 490.775
4477.100 476.075 474.575 480 575 486 575 492.575
5479.800 478.775 475.750 481.750 487.750 493.750
6482.775 481.750 480.475 471.725 471 250 471.175
7483.875 482.850 484.550 473 325 474.100 473.950
8487.075 486.050 487.150 483 275 475 575 475.150
9489.625 488.600 489.100 487 500 480 675 481.475
10 491.000 489.975 490.225 489.725 489.475 483.475
11 492.625 491.600 491.725 491 225 491.725 484.725
12 493.825 492.800 492.950 492 350 493 550 486.700
Full G4 Spectrum Full G4 Spectrum Full Range, 5 fre-
quenciesinTV14
Full Range, 5 fre-
quenciesinTV15
Full Range, 5 fre-
quenciesinTV16
Full Range, 5 fre-
quenciesinTV17
G5: 494.000–518.000 MHz
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6
1495.150 494.125 494.275 500 275 506 275 512.275
2496.975 495.950 495.375 501 375 507 375 513.375
3499.275 498.250 496.775 502.775 508.775 514.775
4501.875 500.850 498.575 504 575 510 575 516.575
5503.800 502.775 499.750 505.750 511.750 517.750
6505.175 504.150 502.325 496.400 494.125 495.175
7507.450 506.425 504.475 498.700 495 250 497.075
8509.150 508.125 505.750 507.475 497 300 499.700
9510.300 509.275 508.550 509.750 501.150 501.675
10 511.875 510.850 510.800 511 650 502 575 503.050
11 514.000 512.975 515.200 513.100 515 650 505.525
12 517.150 516.125 516.500 517 075 516 900 510.625
Full G5 Spectrum Full G5 Spectrum Full Range, 5 fre-
quenciesinTV18
Full Range, 5 fre-
quenciesinTV19
Full Range, 5 fre-
quenciesinTV20
Full Range, 5 fre-
quenciesinTV21
JB: 806.000–810.000 MHz
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6
1806 250 806.375 806.125 806.500 806.125 806 250
2807 500 808.625 807.375 807.375 807.375 807 250
3809 625 809.750 809.500 808.625 808.375 808 500
4809.625 809.750 809 375
Full Range Full Range Full Range Full Range Full Range Full Range
R13: 794.000–806.000 MHz
Group 1 Group 2 Group 3 Group 4
1795.150 794.375 794.100 794 900
2796.850 795.600 795.300 796.100
3798.100 797.425 797.200 798 000
4800.750 799.725 798.550 799 350
5802.200 803.025 800.625 801.425
6805.350 804.475 802.150 802 950
7803.350 804.150
8804.925 805.725
Full Range Full Range Full Range Full Range
45

46
Channel
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7
Full Range
max. # of
compatible
frequencies
(option 1)
Full Range
max. # of
compatible
frequencies
(option 2)
Full Range
max. # of
compatible
frequencies
(option 3)
France
preferred:
User Group A
(option 1)
France
preferred:
User Group A
(option 2)
France
preferred:
User Group B
(option 1)
France
preferred:
User Group B
(option 2)
1470.750 470.125 470.250 471.250 470.750 470.500 472.025
2471.900 471.300 471.375 472.500 472.500 472.025 474.975
3473.550 473.250 472.875 474.500 475.250 474.975 477.300
4474.850 474.500 474.950 478.750 482.500 477.300 480.025
5477.350 477.100 476.475 483.750 483.750 480.025 481.500
6478.575 479.250 479.300 486.750 487.750 481.500 486.100
7480.550 480.400 480.850 490.500 489.250 486.100 488.775
8483.200 482.000 483.325 492.250 491.250 488.775 490.225
9484.375 484.400 484.600 490.225 492.500
10 486.825 485.900 486.175 493.700 493.700
11 488.550 487.975 488.050
12 489.650 490.350 489.475
13 492.125 492.075 492.275
14 493.400 493.375 493.425
G4E (470–494 MHz)
Channel
Group 8 Group 9 Group 10 Group 11 Group 12 Group 13 Group 14
France
preferred:
User Group C
(option 1)
France
preferred:
User Group C
(option 2)
EuropeanTV
channel 21
optimized
470 - 478 MHz
EuropeanTV
channel 22
optimized
478 - 486 MHz
EuropeanTV
channel 23
optimized
486 - 494 MHz
Compatible with
Group 13 of SLX
G5E
(extended group)
Compatible with
Group 14 of SLX
G5E
(extended group)
1471.000 470.300 470.200 478.200 486.200 471.125 471.550
2472.225 472.975 471.800 479.800 487.800 472.375 473.425
3474.025 474.775 472.900 480.900 488.900 474.425 476.925
4476.700 477.500 474.475 482.475 490.475 476.950 479.725
5478.300 482.775 476.375 484.375 492.375 479.125 481.750
6480.225 485.900 477.500 485.500 493.500 480.650 485.075
7485.900 487.000 486.200 487.600
8490.025 490.025 489.250 489.375
9492.000 492.000 491.150 490.750
10 493.100 493.500 493.575 492.850
Channel
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7
Full Range
max. # of
compatible
frequencies
(option 1)
Full Range
max. # of
compatible
frequencies
(option 2)
Full Range
max. # of
compatible
frequencies
(option 3)
France
preferred:
User Group A
(option 1)
France
preferred:
User Group A
(option 2)
France
preferred:
User Group B
(option 1)
France
preferred:
User Group B
(option 2)
1494.750 494.125 494.250 495.250 495.750 494.500 496.025
2495.900 495.300 495.375 496.500 497.750 496.775 498.975
3497.550 497.250 496.875 498.500 499.250 498.225 501.300
4498.850 498.500 498.950 502.750 504.500 500.900 504.025
5501.350 501.100 500.475 507.750 508.250 505.500 505.500
6502.575 503.250 503.300 510.750 510.750 508.500 510.100
7504.550 504.400 504.850 514.500 513.750 510.500 512.775
8507.200 506.000 507.325 516.250 515.500 512.025 514.225
9508.375 508.400 508.600 514.975 516.500
10 510.825 509.900 510.175 517.300 517.700
11 512.550 511.975 512.050
12 513.650 514.350 513.475
13 516.125 516.075 516.275
14 517.400 517.375 517.425
G5E (494-518 MHz)

47
G5E (494-518 MHz) Continuation
Channel
Group 8 Group 9 Group 10 Group 11 Group 12 Group 13 Group 14
France
preferred:
User Group C
(option 1)
France
preferred:
User Group C
(option 2)
EuropeanTV
channel 24
optimized
494 - 502 MHz
EuropeanTV
channel 25
optimized
502 - 510 MHz
EuropeanTV
channel 26
optimized
510 - 518 MHz
Compatible with
Group 13 of SLX
G4E
(extended group)
Compatible with
Group 14 of SLX
G4E
(extended group)
1495.000 494.300 494.200 502.200 510.200 496.450 495.875
2496.225 496.975 495.800 503.800 511.800 498.650 501.450
3498.025 500.700 496.900 504.900 512.900 502.050 502.975
4500.700 501.900 498.475 506.475 514.475 504.400 504.900
5502.300 506.025 500.375 508.375 516.375 505.775 507.650
6504.225 508.000 501.500 509.500 517.500 508.600 509.125
7509.900 509.100 511.850 511.475
8514.025 512.975 513.350 512.725
9516.000 514.775 515.625 514.450
10 517.100 516.000 517.250 515.650
K3E (606–630 MHz)
Channel
Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8
Full Range
max. # of
compatible
frequencies
(option 1)
Full Range
max. # of
compatible
frequencies
(option 2)
Full Range
max. # of
compatible
frequencies
(option 3)
Full Range
max. # of
compatible
frequencies,
Ch. 38 excl.
(option 1)
Full Range
max. # of
compatible
frequencies,
Ch. 38 excl.
(option 2)
U.K. preferred:
TVch.38
606-614 MHz
with 500 kHz
guard band
(option 1)
U.K. preferred:
TVch.38
606-614 MHz
with 500 kHz
guard band
(option 2)
U.K. preferred:
TVch.38
606-614 MHz
with 500 kHz
guard band
(option 3)
1606.750 606.125 606.250 614.550 614.850 606.525 606.575 606.625
2607.900 607.300 607.375 615.750 616.050 607.650 607.825 607.800
3609.550 609.250 608.875 617.550 617.575 609.075 609.675 609.700
4610.850 610.500 610.950 618.850 619.500 610.875 610.800 610.850
5613.350 613.100 612.475 621.025 620.750 611.975 612.350 612.300
6614.575 615.250 615.300 622.650 622.550 613.475 613.450 613.400
7616.550 616.400 616.850 623.775 624.950
8619.200 618.000 619.325 625.675 626.325
9620.375 620.400 620.600 626.825 628.050
10 622.825 621.900 622.175 628.325 629.450
11 624.550 623.975 624.050
12 625.650 626.350 625.475
13 628.125 628.075 628.275
14 629.400 629.375 629.425
Channel
Group 9 Group 10 Group 11 Group 12 Group 13 Group 14 Group 15 Group 16
U.K. preferred:
TVch.38
606-614 MHz
with 125 kHz
guard band
(option 1)
U.K. preferred:
TVch.38
606-614 MHz
with 125 kHz
guard band
(option 2)
U.K. preferred:
TVch.38
606-614 MHz
with 125 kHz
guard band
(option 3)
France
preferred:
User Group A
614 - 630 MHz
France
preferred:
User Group B
614 - 630 MHz
France
preferred:
User Group C
614 - 630 MHz
EuropeanTV
channel 39
optimized
614 - 622 MHz
EuropeanTV
channel 40
optimized
622 - 630 MHz
1606.200 606.350 606.675 615.250 616.775 615.000 614.200 622.200
2607.800 607.650 607.775 616.500 618.225 616.225 615.800 623.800
3608.900 609.750 609.175 619.750 620.500 618.775 616.900 624.900
4610.475 610.850 610.875 623.500 621.700 620.700 618.475 626.475
5612.375 612.425 612.050 626.500 625.500 621.900 620.375 628.375
6613.500 613.700 613.575 628.250 626.975 626.025 621.500 629.500
7628.900 628.000
8629.100
