ADX1M
Bodypack Transmitter
ADX1M Micro Bodypack Transmitter User Guide
Version: 10 (2020-A)

Shure Incorporated
2/22
Table of Contents
ADX1MBodypack Transmitter 3
WARNING 3
ADX1M Axient Digital Micro Bodypack Transmitter 3
Features 3
Included Components 4
Optional Accessories 4
ADX1M Transmitter Overview 4
Home Screen Display 5
Transmitter Controls 6
Locking the Interface 6
Shure Rechargeable Batteries 7
Checking Battery Info 7
Important Tips for Care and Storage of Shure Recharge
able Batteries 7
Battery Installation 8
ADX1M SB910M Battery Runtime 8
Menu Parameters 8
Tips for Editing Menu Parameters 9
Menu Map 9
Menu Parameter Descriptions 9
Radio Menu 9
Audio Menu 10
Utilities Menu 10
IR Sync 11
Setting the Frequency Manually 12
RF Mute 12
Safe Start 13
Wearing the Bodypack Transmitter 13
Input Overload 14
Matching Audio Levels with Mic Offset 14

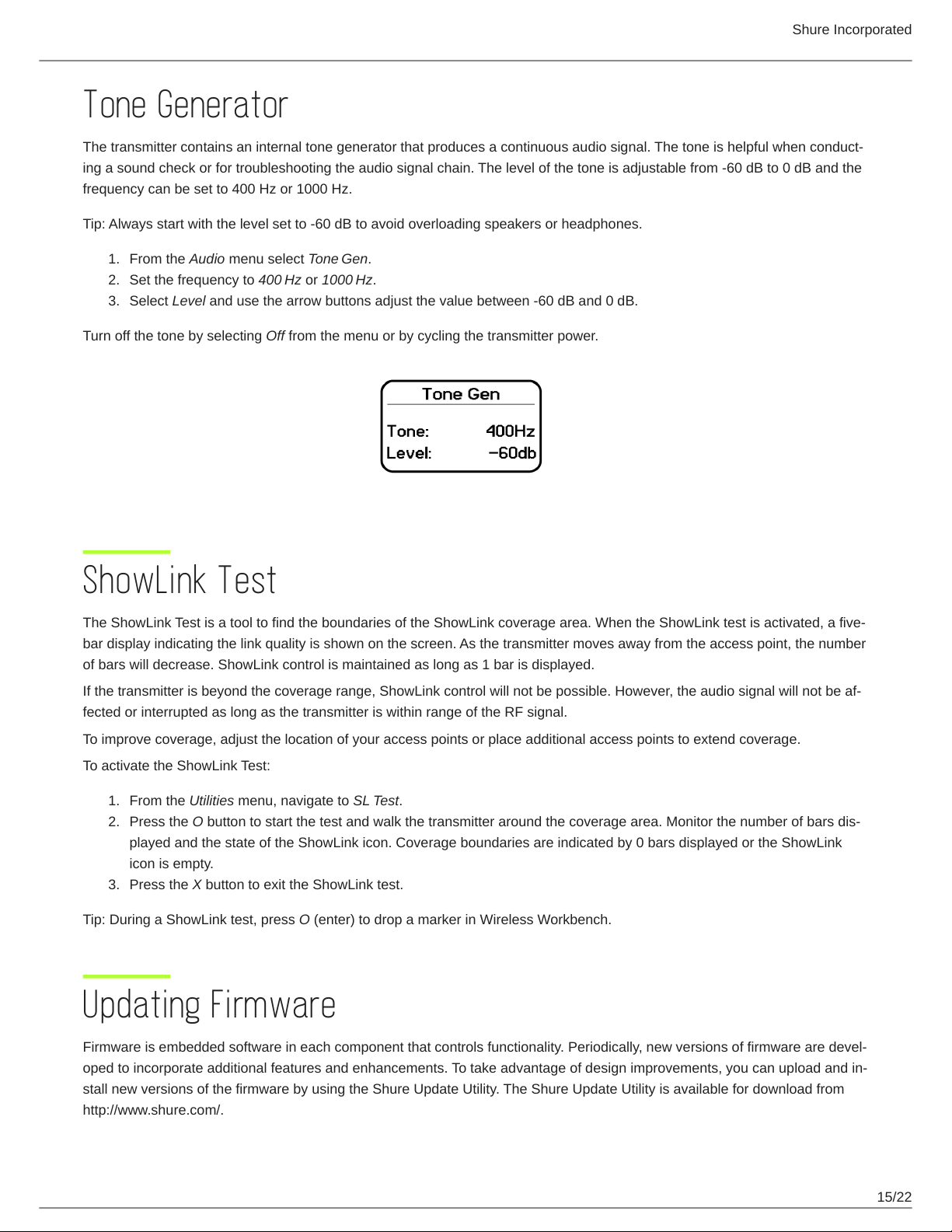

Tone Generator 14
ShowLink Test 15
Updating Firmware 15
Firmware Versioning 16
Updating the Transmitter 16
Specifications 16
Input Connector Diagram 18

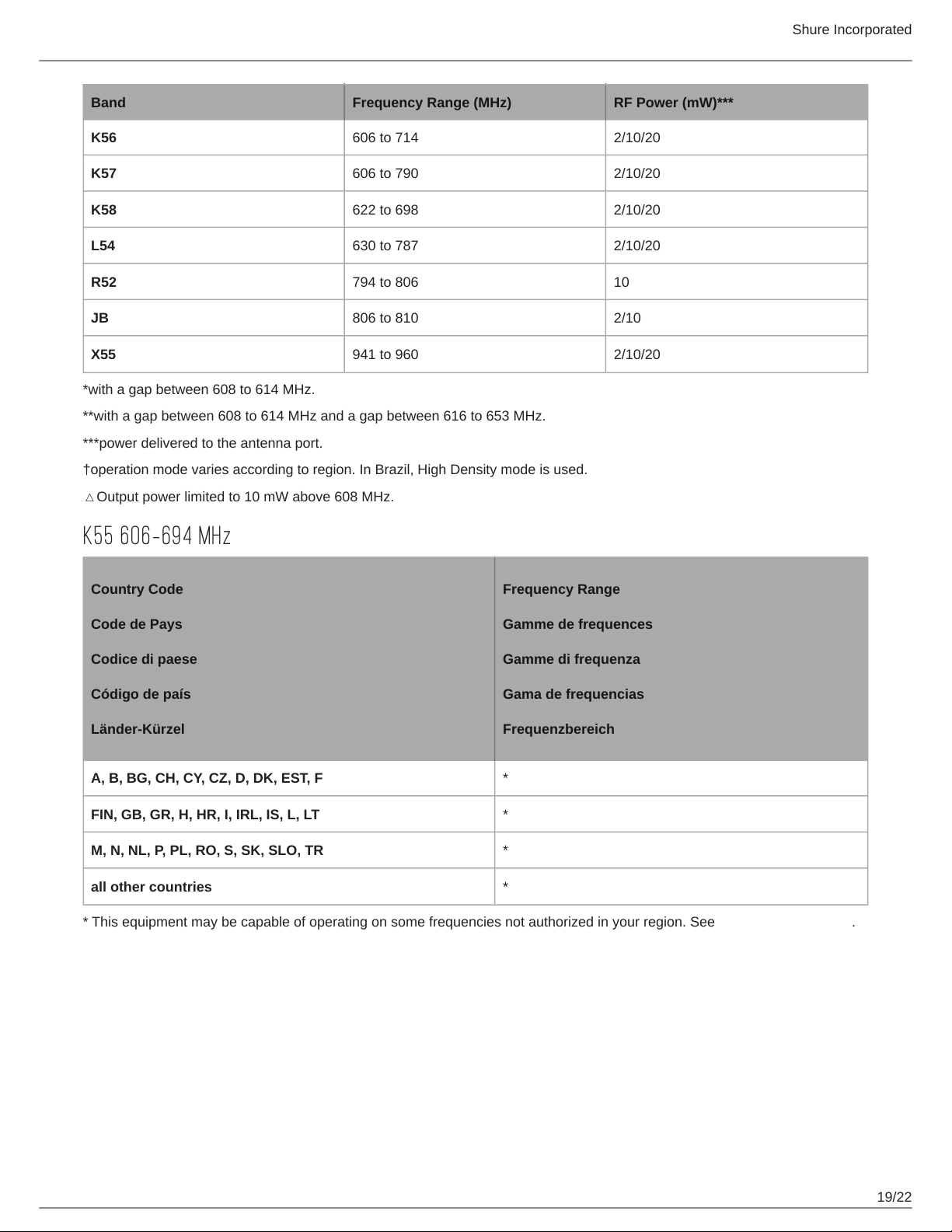

Frequency Bands and Transmitter RF Power 18
Australia Warning for Wireless 20
LICENSING INFORMATION 21
Certifications 21
Information to the user 21

Shure Incorporated
3/22
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
◦
◦
•
•
ADX1M
Bodypack Transmitter
WARNING
Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat
above 140°F (60°C), or incinerate.
Follow instructions from manufacturer
Only use Shure charger to recharge Shure rechargeable batteries
WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
Never put batteries in mouth. If swallowed, contact your physician or local poison control center
Do not short circuit; may cause burns or catch fire
Do not charge or use battery packs other than Shure rechargeable batteries
Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like
Note: Use only with the included power supply or a Shure-approved equivalent.
Please follow your regional recycling scheme for batteries, packaging, and electronic waste.
ADX1M Axient Digital Micro Bodypack Transmitter
ADX series transmitters deliver impeccable audio quality and RF performance, and are equipped with ShowLink remote con
trol for real-time parameter adjustments and interference avoidance. This transmitter features wideband tuning, High Density
(HD) mode, encryption, and advanced rechargeability. The contoured form factor and lightweight PEI plastic construction offer
both comfort and heat resistance. The membrane switches and LEMO connector protect against moisture, while the OLED dis
play provides excellent visibility in low-light environments.
Features
Performance
20 Hz to 20 kHz range with flat frequency response
Automatic input staging optimizes gain setting
Internal adaptive antenna optimizes signal when ADX1M is worn against the body
Diversity ShowLink-enabled for remote transmitter control and automatic interference avoidance
AES 256-bit encryption-enabled for secure transmission
>120 dB, A-weighted, System Gain @ +10
Digital output: >125dB, A-weighted (Dante, AES3, AES67)
100 meter (300 feet) line-of-sight operating range
Selectable modulation modes optimize performance for spectral efficiency
Standard – optimal coverage, low latency
High density – dramatic increase in max system channel count
Built-in tone generator and RF markers to facilitate walk-testing
Switchable power levels = 2/10/20 mW (region dependent)
®

Shure Incorporated
4/22
•
•
•
•
•
•
•
•

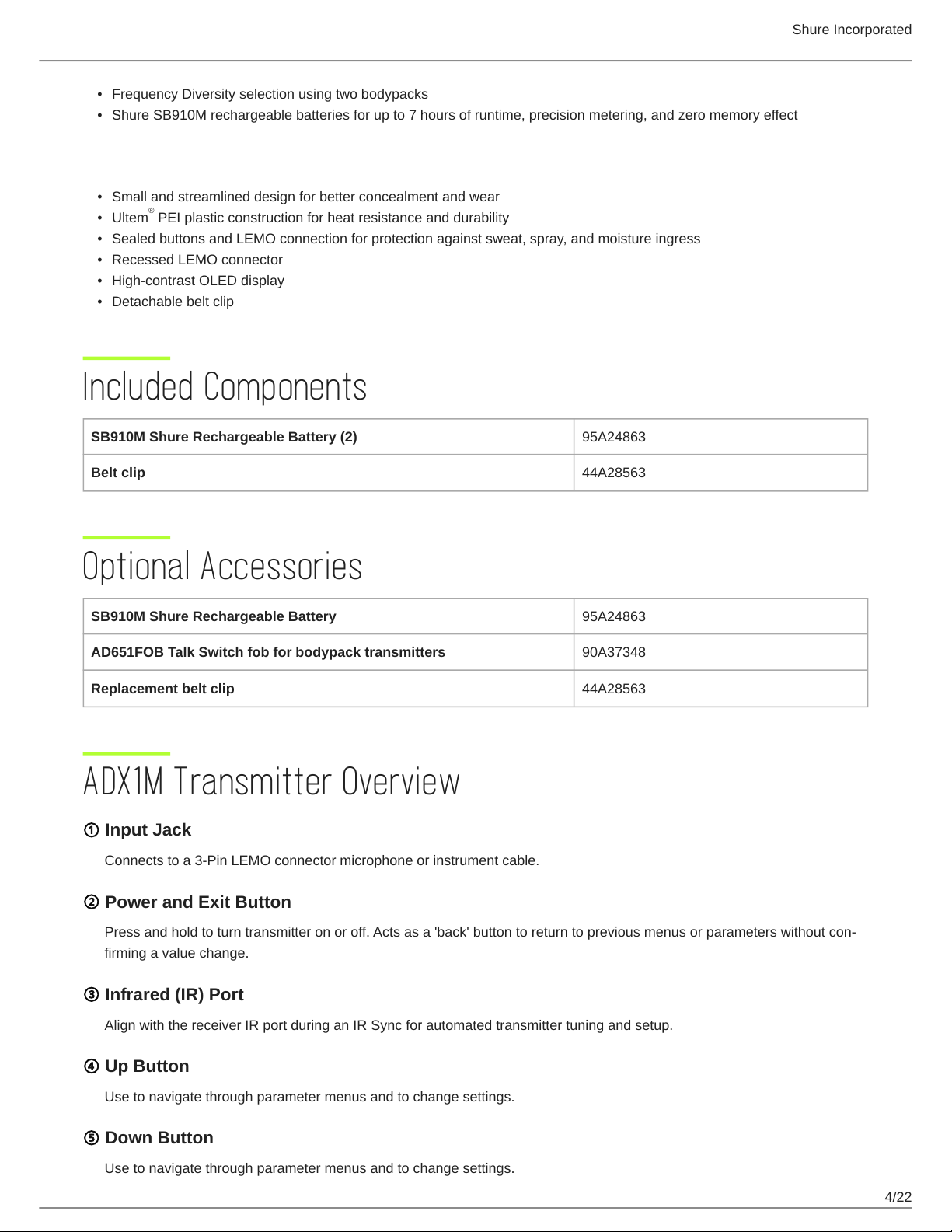

Frequency Diversity selection using two bodypacks
Shure SB910M rechargeable batteries for up to 7 hours of runtime, precision metering, and zero memory effect
Design
Small and streamlined design for better concealment and wear
Ultem PEI plastic construction for heat resistance and durability
Sealed buttons and LEMO connection for protection against sweat, spray, and moisture ingress
Recessed LEMO connector
High-contrast OLED display
Detachable belt clip
Included Components
SB910M Shure Rechargeable Battery (2) 95A24863
Belt clip 44A28563
Optional Accessories
SB910M Shure Rechargeable Battery 95A24863
AD651FOB Talk Switch fob for bodypack transmitters 90A37348
Replacement belt clip 44A28563
ADX1M Transmitter Overview
①Input Jack
Connects to a 3-Pin LEMO connector microphone or instrument cable.
②Power and Exit Button
Press and hold to turn transmitter on or off. Acts as a 'back' button to return to previous menus or parameters without con
firming a value change.
③Infrared (IR) Port
Align with the receiver IR port during an IR Sync for automated transmitter tuning and setup.
④Up Button
Use to navigate through parameter menus and to change settings.
⑤Down Button
Use to navigate through parameter menus and to change settings.
®

Shure Incorporated
5/22
◦
◦

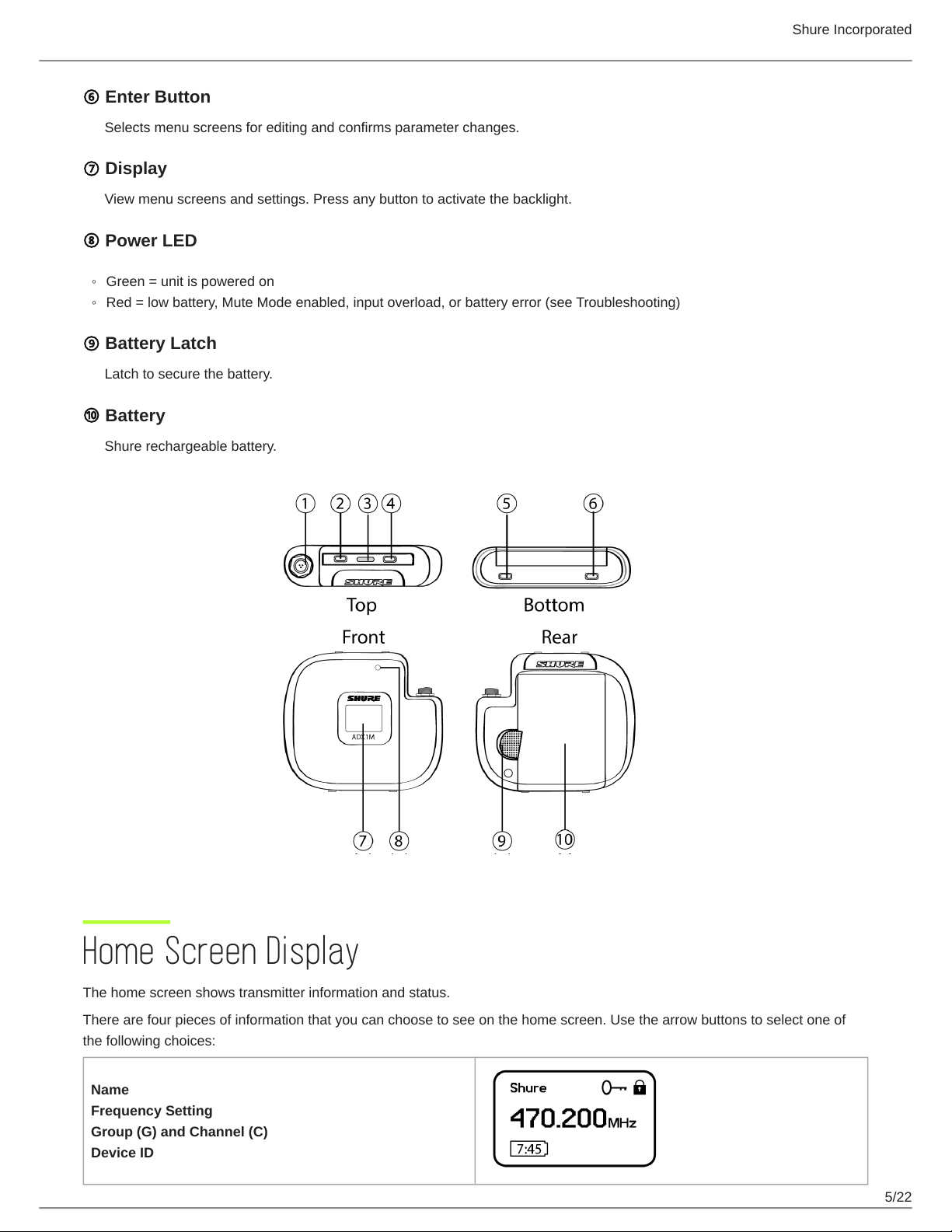

⑥Enter Button
Selects menu screens for editing and confirms parameter changes.
⑦Display
View menu screens and settings. Press any button to activate the backlight.
⑧Power LED
Green = unit is powered on
Red = low battery, Mute Mode enabled, input overload, or battery error (see Troubleshooting)
⑨Battery Latch
Latch to secure the battery.
⑩Battery
Shure rechargeable battery.
Home Screen Display
The home screen shows transmitter information and status.
There are four pieces of information that you can choose to see on the home screen. Use the arrow buttons to select one of
the following choices:
Name
Frequency Setting
Group (G) and Channel (C)
Device ID

Shure Incorporated
6/22
1.
◦

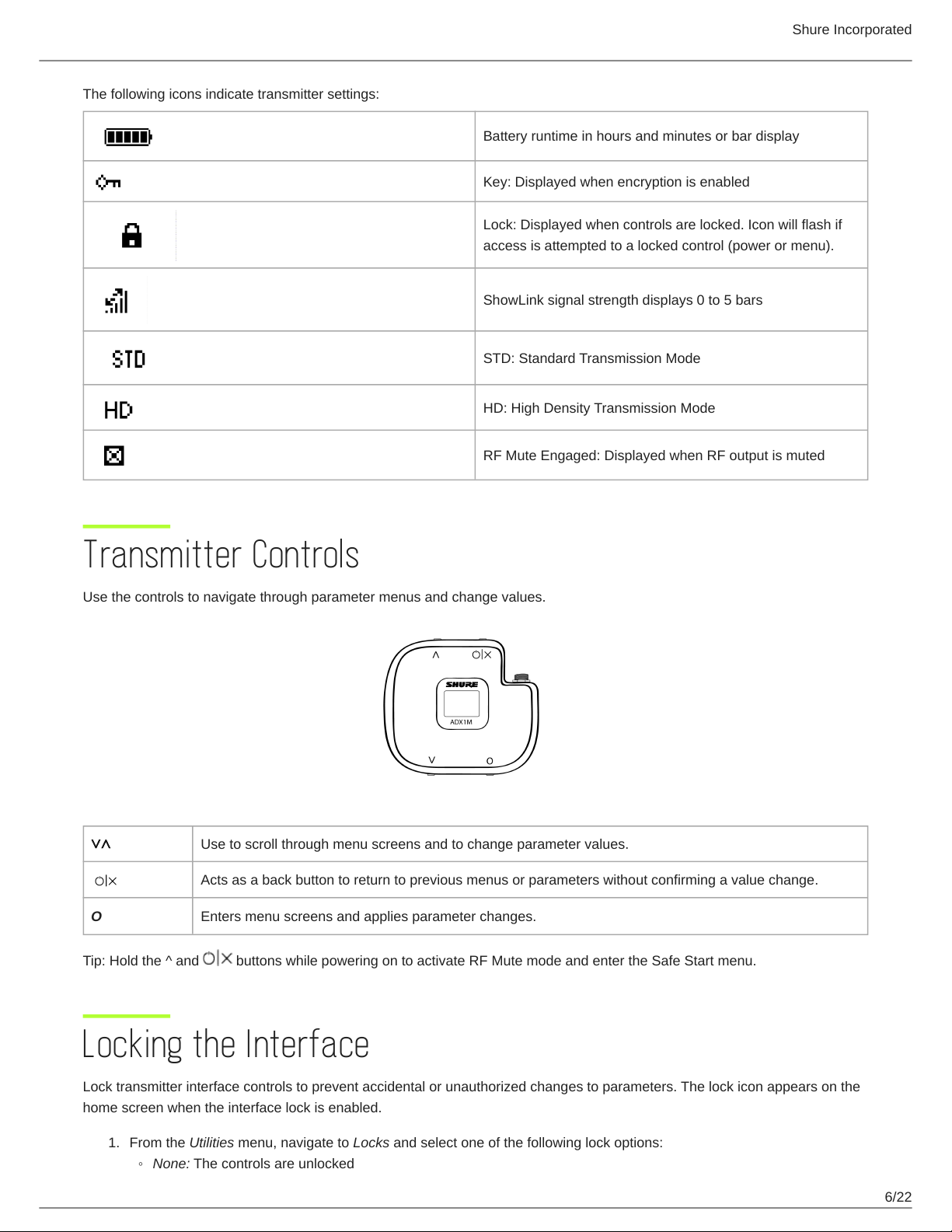

The following icons indicate transmitter settings:
Battery runtime in hours and minutes or bar display
Key: Displayed when encryption is enabled
Lock: Displayed when controls are locked. Icon will flash if
access is attempted to a locked control (power or menu).
ShowLink signal strength displays 0 to 5 bars
STD: Standard Transmission Mode
HD: High Density Transmission Mode
RF Mute Engaged: Displayed when RF output is muted
Transmitter Controls
Use the controls to navigate through parameter menus and change values.
∨∧ Use to scroll through menu screens and to change parameter values.
Acts as a back button to return to previous menus or parameters without confirming a value change.
OEnters menu screens and applies parameter changes.
Tip: Hold the ^and buttons while powering on to activate RF Mute mode and enter the Safe Start menu.
Locking the Interface
Lock transmitter interface controls to prevent accidental or unauthorized changes to parameters. The lock icon appears on the
home screen when the interface lock is enabled.
From the Utilities menu, navigate to Locks and select one of the following lock options:
None: The controls are unlocked

Shure Incorporated
7/22
◦
◦
◦
2.
•
•
•
•
•
•
•
•
•
Power: The power switch is locked
Menu: The menu parameters are locked
All: The power switch and menu parameters are locked
Press Oto save.
Tip: To quickly unlock a transmitter: Press Otwice, select None, and press O.
Shure Rechargeable Batteries
Shure lithium-ion batteries offer a rechargeable option for powering the transmitters. Batteries quickly charge to 50% capacity
in one hour and reach full charge within three hours.
The SB910M Shure rechargeable battery uses the SBC840M and the SBRC Shure chargers.
Caution: Only charge Shure rechargeable batteries with a Shure battery charger.
Checking Battery Info
When using a Shure rechargeable battery, the receiver and transmitter home screens display the number of hours and minutes
remaining.
Detailed information for the battery is displayed Battery menu of the transmitter: Utilities > Battery
Battery Life: Runtime reported in bar display and time (hours:minutes)
Charge: Percentage of charge capacity
Health: Percentage of current battery health
Cycle Count: Total of the number of charging cycles for the installed battery
Temperature: Battery temperature reported in Celsius and Fahrenheit
Important Tips for Care and Storage of Shure Rechargeable Batteries
Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime.
Always store batteries and transmitters at room temperature
Ideally, batteries should be charged to approximately 40% of capacity for long-term storage
Periodically clean the battery contacts with alcohol to maintain ideal contact
During storage, check batteries every 6 months and recharge to 40% of capacity as needed
For additional rechargeable battery information, visit www.shure.com.

Shure Incorporated
8/22
•
•
•
Battery Installation
Removing the Battery
①Pull back to disengage the battery latch.
②Slide the battery out of the transmitter.
Installing the Battery
①Slide the battery into the transmitter.
②Fully engage the latch to secure the battery
ADX1M SB910M Battery Runtime
Note: Higher RF power levels decrease battery runtime. Battery runtime varies with battery age and environmental conditions.
2 mW 10 mW 20 mW
6.5 to 8.5 hours 6.0 to 8.0 hours 5.0 to 6.0 hours
Menu Parameters
The Main menu organizes the available transmitter parameters into three sub-menus:
Radio
Audio
Utilities
Tip: Use the arrow buttons to scroll between the sub-menus.

Shure Incorporated
9/22
•
•
•
•
•
◦

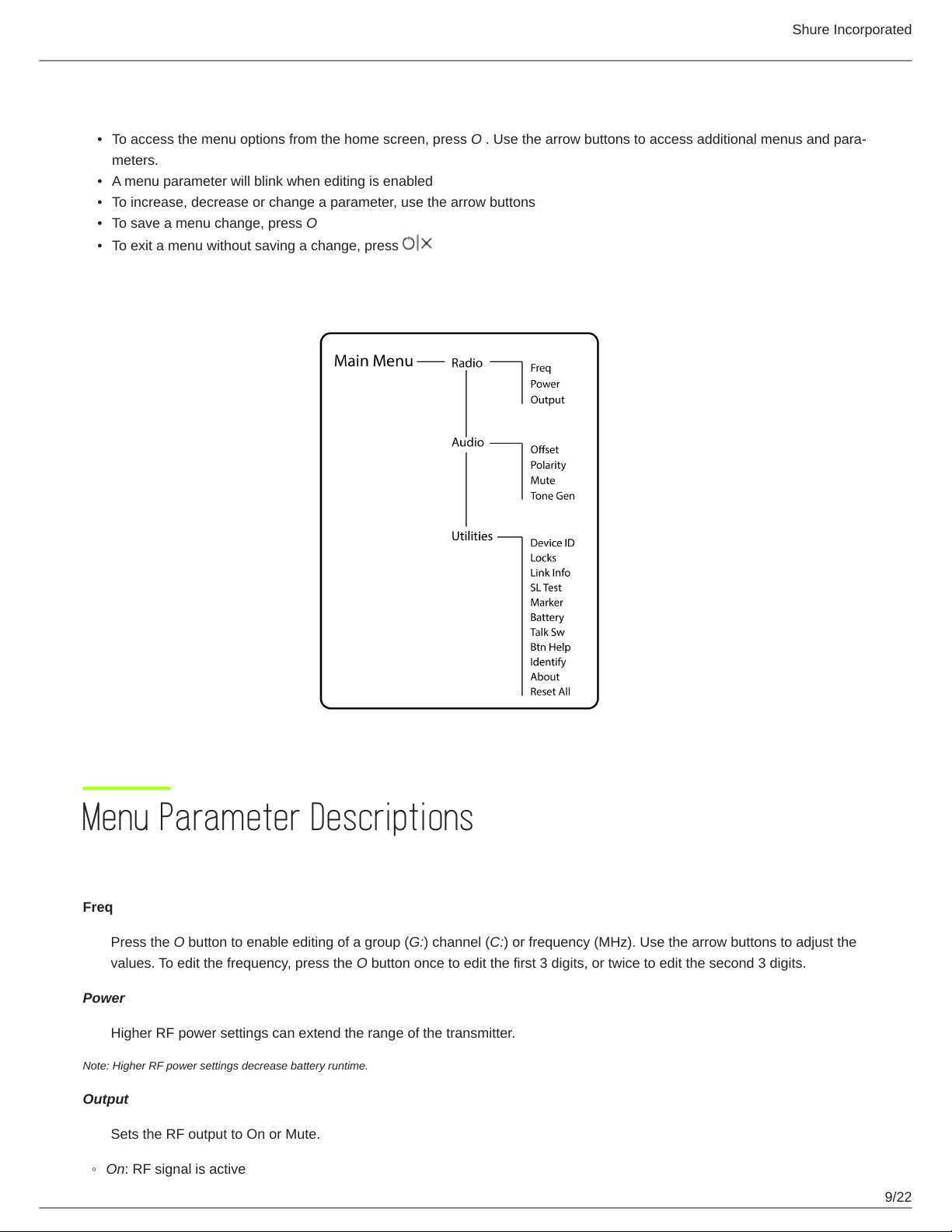

Tips for Editing Menu Parameters
To access the menu options from the home screen, press O . Use the arrow buttons to access additional menus and para
meters.
A menu parameter will blink when editing is enabled
To increase, decrease or change a parameter, use the arrow buttons
To save a menu change, press O
To exit a menu without saving a change, press
Menu Map
Menu Parameter Descriptions
Radio Menu
Freq
Press the Obutton to enable editing of a group (G:) channel (C:) or frequency (MHz). Use the arrow buttons to adjust the
values. To edit the frequency, press the Obutton once to edit the first 3 digits, or twice to edit the second 3 digits.
Power
Higher RF power settings can extend the range of the transmitter.
Note: Higher RF power settings decrease battery runtime.
Output
Sets the RF output to On or Mute.
On: RF signal is active

Shure Incorporated
10/22
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
Mute: RF signal is inactive
Audio Menu
Offset
Adjust Offset level to balance mic levels when using two transmitters or when assigning multiple transmitters to receiver
slots. Adjustment range: -12 dB to +21 dB.
Polarity
Selectable polarity assignment for audio input connector:
Pos: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output)
and the tip of the TRS output.
Neg: Positive pressure on microphone diaphragm produces negative voltage on pin 2 (with respect to pin 3 of XLR output)
and the tip of the TRS output.
Mute
When enabled, the power button is configured as a mute switch for the audio output. Press the power button to mute or
un-mute the audio. Exit mute mode to return the power button to its normal functionality.
Tone Gen
Transmitter will generate a continuous test tone:
Freq: The tone can be set to 400 Hz or 1000 Hz.
Level: Adjusts of the output level of the test tone.
Utilities Menu
Device ID
Assign a device ID of up to 9 letters or numbers.
Locks
Locks the transmitter controls and power button.
None: The controls are unlocked
Power: The power switch is locked
Menu: The menu parameters are locked
All: The power button and menu parameters are locked
Link Info
Displays the following information about the link between a transmitter and receiver:
Not Linked: The transmitter is not linked to a receiver
Linked: The transmitter is linked to a receiver. Select Unlink? to free the transmitter from the receiver link.
Unlinked: The transmitter is not linked to a receiver
SL Test
ShowLink test tool to measure the boundaries of ShowLink coverage.
Marker

Shure Incorporated
11/22
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
1.
2.
3.
4.
5.
When enabled, press the enter button to drop a marker in Wireless Workbench.
Battery
Displays battery information:
Battery Life: Runtime reported in bar display and time (hours:minutes)
Charge: Percentage of charge capacity
Health: Percentage of current battery health
Cycle Count: Total of the number of charging cycles for the installed battery
Temperature: Battery temperature reported in Celsius and Fahrenheit
Talk Sw
Press ENTER to add control from a talk switch. Press the button on the talk switch twice to complete the link.
Identify
When enabled, Identify flashes the transmitter icon in Wireless Workbench Inventory or Monitor tabs.
Btn Help
A graphic identifying each button appears when the device is turned on. Use the Btn Help menu to turn the graphic On or Off.
About
Displays the following transmitter information:
Model: Displays the model number
Band: Displays the tuning band of the transmitter
FW Version: Installed firmware
HW Version: Hardware version
Serial Num: Serial number
Reset All
Restores all transmitter parameters to factory settings.
IR Sync
Use IR Sync to form an audio channel between the transmitter and receiver.
Note: The receiver band must match the band of the transmitter.
Select a receiver channel.
Tune the channel to an available frequency using group scan or manually turn to an open frequency.
Power on the transmitter.
Press the SYNC button on the receiver.
Align the IR windows between the transmitter and the receiver so that the IR LED illuminates red. When complete,
Sync Success! appears. The transmitter and receiver are now tuned to the same frequency.

Shure Incorporated
12/22
1.
2.
3.
4.
Note:
Any change to the encryption status on the receiver (enabling/disabling encryption) requires a sync to send the settings to the
transmitter. New encryption keys for the transmitter and receiver channel are generated on every IR sync, so to request a new
key for a transmitter, perform an IR sync with the desired receiver channel.
Setting the Frequency Manually
The transmitter can be manually tuned to a specific group, channel, or frequency.
Navigate to the Radio menu and select Freq.
Scroll to select G: and C: to edit the group and channel, or select the frequency parameter (MHz). When editing the fre
quency, press Oonce to edit the first 3 digits, or twice to edit the last 3 digits.
Use the ∧∨ buttons to adjust the group, channel, or frequency.
Press Oto save, and then press Xwhen finished.
RF Mute
RF Mute prevents transmission of the audio by suppressing the RF signal, while allowing the transmitter to remain powered-on.
The home screen displays RF MUTED in this mode.

Shure Incorporated
13/22
1.
2.
◦
◦
3.
•
•
From the Radio menu, navigate to Output.
Choose one of the following options:
On: RF signal is active
Mute: RF signal is disabled
Press Oto save.
Turning the transmitter off and on, or replacing the battery will restore Output to On.
Safe Start
Power on in Safe Start mode to prevent interference with other devices. Hold the ^button while powering on your device until
the Safe Start menu appears.
Safe Start menu options:
RF: Mute or On
Locks: None, Pwr, Menu, All
Use the navigation buttons to make changes.
Tip: To exit the Safe Start menu, cycle the power or momentarily remove the battery.
Note: Previous settings for locks and RF will be retained when the transmitter is powered on in Safe Start.
Wearing the Bodypack Transmitter
Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown.
For best results, the belt should be pressed against the base of the clip.
Tip: The clip can removed and rotated 180 degrees to increase mounting options.

Shure Incorporated
14/22
1.
2.
3.
Input Overload
The OVERLOAD message is displayed when the audio input experiences a high-level input signal. Reduce the input signal or
move mic away from the source to remove the overload.
Matching Audio Levels with Mic Offset
When linking two or more transmitters to a receiver, there may be a difference in volume levels between microphones or instru
ments. If this occurs, use the Offset function to match the audio levels and eliminate audible volume differences between trans
mitters. If using a single transmitter, set Offset to 0 dB.
Turn on the first transmitter and perform a sound check to test the audio level. Turn off the transmitter when finished.
Turn on the second transmitter and perform a sound check to test the audio level. Repeat for any additional transmit
ters.
If there is an audible difference in the sound level between the transmitters, navigate to the Offset menu (Audio >
Offset) in the transmitter to increase or decrease the Offset in realtime to match the audio levels.

Shure Incorporated
15/22
1.
2.
3.
1.
2.
3.
Tone Generator
The transmitter contains an internal tone generator that produces a continuous audio signal. The tone is helpful when conduct
ing a sound check or for troubleshooting the audio signal chain. The level of the tone is adjustable from -60 dB to 0 dB and the
frequency can be set to 400 Hz or 1000 Hz.
Tip: Always start with the level set to -60 dB to avoid overloading speakers or headphones.
From the Audio menu select Tone Gen.
Set the frequency to 400 Hz or 1000 Hz.
Select Level and use the arrow buttons adjust the value between -60 dB and 0 dB.
Turn off the tone by selecting Off from the menu or by cycling the transmitter power.
ShowLink Test
The ShowLink Test is a tool to find the boundaries of the ShowLink coverage area. When the ShowLink test is activated, a five-
bar display indicating the link quality is shown on the screen. As the transmitter moves away from the access point, the number
of bars will decrease. ShowLink control is maintained as long as 1 bar is displayed.
If the transmitter is beyond the coverage range, ShowLink control will not be possible. However, the audio signal will not be af
fected or interrupted as long as the transmitter is within range of the RF signal.
To improve coverage, adjust the location of your access points or place additional access points to extend coverage.
To activate the ShowLink Test:
From the Utilities menu, navigate to SL Test.
Press the O button to start the test and walk the transmitter around the coverage area. Monitor the number of bars dis
played and the state of the ShowLink icon. Coverage boundaries are indicated by 0 bars displayed or the ShowLink
icon is empty.
Press the Xbutton to exit the ShowLink test.
Tip: During a ShowLink test, press O(enter) to drop a marker in Wireless Workbench.
Updating Firmware
Firmware is embedded software in each component that controls functionality. Periodically, new versions of firmware are devel
oped to incorporate additional features and enhancements. To take advantage of design improvements, you can upload and in
stall new versions of the firmware by using the Shure Update Utility. The Shure Update Utility is available for download from
http://www.shure.com/.

Shure Incorporated
16/22
1.
2.
3.
4.
Firmware Versioning
When performing an update, first download firmware to the receiver, and then update transmitters to the same firmware version
to ensure consistent operation.
The firmware numbering for Shure devices uses the following format: MAJOR.MINOR.PATCH (e.g., 1.2.14). At a minimum, all
devices on the network (including transmitters), must have the same MAJOR and MINOR firmware version numbers (e.g.,
1.2.x).
Updating the Transmitter
Download the firmware to the receiver.
Access the following menu from the receiver: Device Configuration > Tx Firmware Update.
Align the IR ports between the transmitter and the receiver. IR ports must be aligned for the entire download, which can
take 50 seconds or longer.
Tip: The red alignment LED will turn on when the alignment is correct.
Press ENTER on the receiver to begin the download to the transmitter. The receiver will display the progress of the up
date as a percentage.
Specifications
Mic Offset Range
-12 to 21 dB (in 1 dB steps)
Battery Type
Shure SB910M Rechargeable Li-Ion
Battery Runtime
@ 10mW
Shure SB910M up to 7 hours
Dimensions
60.4 mm x 68.0 mm x 18.0 mm (2.4 in. x 2.7 in. x 0.7in.) H x W x D
without clip
Weight
with battery 100 g (3.5 oz.),
without battery 68 g (2.4 oz.),
Housing
Plastic
Operating Temperature Range
-18°C (0°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.

Shure Incorporated
17/22
Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range.
Audio Input
Connector
Lemo Connector
Configuration
Unbalanced
Impedance
8.2 kΩ
Maximum Input Level
1 kHz at 1% THD
8.5 dBV (7.5 Vpp)
Preamplifier Equivalent Input Noise (EIN)
SystemGainSetting≥+20
-120 dBV, A-weighted, typical
RF Output
Antenna Type
Integrated Helical
Impedance
50 Ω
Occupied Bandwidth
<200 kHz
Channel-to-Channel Spacing
Standard Mode 350 kHz
High Density Mode 125 kHz
varies by region
Modulation Type
Shure Axient Digital Proprietary
Power
2 mW, 10 mW, 20 mW
See Frequency Range and Output Power table, varies by region

Shure Incorporated
18/22
ShowLink
Network Type
IEEE 802.15.4
Antenna Type
Zigbee Dual Conformal
Frequency Range
2.40 to 2.4835 GHz (24 Channels)
RF Output Power
10 dBm (ERP)
varies by region
Input Connector Diagram
LEMO
Frequency Bands and Transmitter RF Power
Band Frequency Range (MHz) RF Power (mW)***
G53 470 to 510 2/10/20
G54 479 to 565 2/10/20
G55† 470 to 636 2/10/20
G56 470 to 636 2/10/20
G57△470 to 616* 2/10/20
G62 510 to 530 2/10/20
H54 520 to 636 2/10/20
K53† 606 to 698 2/10/20
K54△606 to 663** 2/10/20
K55 606 to 694 2/10/20

Shure Incorporated
19/22
Band Frequency Range (MHz) RF Power (mW)***
K56 606 to 714 2/10/20
K57 606 to 790 2/10/20
K58 622 to 698 2/10/20
L54 630 to 787 2/10/20
R52 794 to 806 10
JB 806 to 810 2/10
X55 941 to 960 2/10/20
*with a gap between 608 to 614 MHz.
**with a gap between 608 to 614 MHz and a gap between 616 to 653 MHz.
***power delivered to the antenna port.
†operation mode varies according to region. In Brazil, High Density mode is used.
△Output power limited to 10 mW above 608 MHz.
K55 606-694 MHz
Country Code
Code de Pays
Codice di paese
Código de país
Länder-Kürzel
Frequency Range
Gamme de frequences
Gamme di frequenza
Gama de frequencias
Frequenzbereich
A, B, BG, CH, CY, CZ, D, DK, EST, F *
FIN, GB, GR, H, HR, I, IRL, IS, L, LT *
M, N, NL, P, PL, RO, S, SK, SLO, TR *
all other countries *
* This equipment may be capable of operating on some frequencies not authorized in your region. See Licensing Information.

Shure Incorporated
20/22
G56 470-636 MHz
Country Code
Code de Pays
Codice di paese
Código de país
Länder-Kürzel
Frequency Range
Gamme de frequences
Gamme di frequenza
Gama de frequencias
Frequenzbereich
A, B, BG, CH, CY, CZ, D, DK, EST, F *
FIN, GB, GR, H, HR, I, IRL, IS, L, LT *
M, N, NL, P, PL, RO, S, SK, SLO, TR *
all other countries *
* This equipment may be capable of operating on some frequencies not authorized in your region. See Licensing Information.
K57 606-790 MHz
Country Code
Code de Pays
Codice di paese
Código de país
Länder-Kürzel
Frequency Range
Gamme de frequences
Gamme di frequenza
Gama de frequencias
Frequenzbereich
A, B, BG, CH, CY, CZ, D, DK, EST, F *
FIN, GB, GR, H, HR, I, IRL, IS, L, LT *
M, N, NL, P, PL, RO, S, SK, SLO, TR *
all other countries *
* This equipment may be capable of operating on some frequencies not authorized in your region. See Licensing Information.
Australia Warning for Wireless
This device operates under an ACMA class licence and must comply with all the conditions of that licence including operating
frequencies. Before 31 December 2014, this device will comply if it is operated in the 520-820 MHz frequency band.
WARNING: After 31 December 2014, in order to comply, this device must not be operated in the 694-820 MHz band.
