Shuttle Spacewalker FE22 User manual

- 75 -
FE22
Intel 810 Family Based Main Board
User's Manual

Shuttle®SpacewalkerTM FE22
Intel based AGPset Mainboard
Manual Version 1.0
Copyright
Copyright©2000 by Shuttle®Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,
translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without
prior written permission from Shuttle®Inc.
Disclaimer
Shuttle®Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.
This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.
Trademarks
Spacewalker is a registered trademark of Shuttle Inc.
Intel, Pentium is a registered trademarks of Intel Corporation.
PC/ATX is a registered trademark of International Business Machines (IBM) Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice: Other brand and product names used herein are for identification
purposes only and may be trademarks of their respective owners.
M367

- 1 -
TABLE OF CONTENTS
WHAT’S IN THE MANUAL .....................................................................5
Quick Reference................................................................................................5
About This Manual ............................................................................................5
1 INTRODUCTION .................................................................................6
1.1 TO DIFFERENT USERS ..............................................................................6
First-TimeDIYSystemBuilder ..................................................................6
ExperiencedDIYUser ..............................................................................6
SystemIntegrator .....................................................................................6
1.2 ITEM CHECKLIST........................................................................................7
2 FEATURES..........................................................................................8
2.1 SPECIFICATIONS ........................................................................................8
3 HARDWARE INSTALLATION ...........................................................11
3.1 STEP-BY-STEP INSTALLATION ............................................................... 11
STEP1InstalltheCPU...........................................................................12
STEP 2 Set Jumpers..............................................................................13
STEP3InstallSDRAMSystemMemory .................................................13
STEP4InstallInternalPeripherals in SystemCase.................................14
STEP5MounttheMainboardontheComputerChassis ........................15
STEP6ConnectFront-PanelSwitches/LEDs/Speaker/Audio/USB........16
STEP 7 Connect IDE & Floppy Disk Drives............................................18
STEP8ConnectOther InternalPeripherals ............................................18
STEP9ConnectPowerSupply..............................................................19
STEP10InstallAdd-onCardsinExpansionSlots ..................................19
STEP11ConnectExternalPeripheralstoBack-Panel............................20
STEP 12 First Time System Boot Up......................................................22
STEP13InstallDriver&SoftwareComponents......................................23

- 2 -
3.2 JUMPER SETTINGS ..................................................................................24
JUMPER&CONNECTORGUIDE .........................................................25
Jumpers
Clear CMOS (J12) .................................................................................27
Boot-BlockProtection(J16)....................................................................27
Back-Panel Connectors
PS/2 Keyboard & PS/2 Mouse Connectors ............................................28
USB0/USB1PortConnectors.................................................................28
LANConnector.......................................................................................28
COM1Connector ...................................................................................28
VGAConnector......................................................................................29
DFP Port Connector...............................................................................29
Line-In ....................................................................................................29
Line-Out .................................................................................................29
Front-Panel Connectors
ATXPowerOn/OffSwitchConnector(PWON)........................................30
GreenLEDConnector(GLED)...............................................................30
PWR LED Connector (PWR LED)..........................................................30
HDD LED Connector (HDE LED)...........................................................31
HardwareResetConnector(RST) ..........................................................31
Speaker Connector (SPK)......................................................................31
Front-PanelUSBConnectorsHeader.....................................................31
Internal Peripherals Connectors
EnhancedIDEPortsandFloppyConnectors ..........................................32

- 3 -
Other Connectors
ATXPowerSupplyConnector(JWR1)....................................................33
Cooling Fan Connectors for CPU FAN (J66)...........................................33
AudioConnectorLine_Out(JP11) ..........................................................34
AudioConnectorLine/Mic_In(JP4) ........................................................34
AudioConnectorCD_In(JP6) ................................................................34
3.3 SYSTEM MEMORY CONFIGURATION ......................................................35
InstallMemory.........................................................................................35
UpgradeMemory ...................................................................................35
4 SOFTWARE UTILITY .......................................................................36
4.1 Mainboard CD Overview ..........................................................................36
4.2 Install Chipset System Driver ..................................................................37
4.3 Install AGP Device Software ....................................................................38
4.4 Install Audio Device Software..................................................................39
4.5 Install LAN Software.................................................................................40
InstallWIN98...........................................................................................40
InstallWIN2000.......................................................................................43
InstallWINNT ..........................................................................................47
4.6 View the User's Manual............................................................................49

- 4 -
5 BIOS SETUP.....................................................................................50
5.1 ENTER THE BIOS .....................................................................................50
5.2 THE MAIN MENU .......................................................................................51
STANDARD CMOS FEATURES ................................................................53
ADVANCED BIOS FEATURES..................................................................57
ADVANCED CHIPSET FEATURES...........................................................60
INTEGRATEDPERIPHERALS...................................................................63
POWERMANAGEMENTSETUP ..............................................................65
PNP/PCICONFIGURATION .......................................................................68
FREQUENCY/VOLTAGECONTROL..........................................................70
LOAD FAIL-SAFE DEFAULTS...................................................................71
LOADOPTIMIZEDDEFAULTS ..................................................................71
SET SUPERVISOR PASSWORD ..............................................................72
SET USER PASSWORD ...........................................................................72
SAVE & EXIT SETUP.................................................................................74
EXITWITHOUTSAVING.............................................................................74

- 5 -
Quick Reference
Hardware Installation >> Step-by-Step ................................................ Page 11
Jumper Settings >> A Closer Look ...................................................... Page 24
Software Utility >> How to Install ......................................................... Page 36
BIOS Setup >> How to Configure ........................................................ Page 50
About This Manual
For First-Time DIY System Builder......................................................... Page 6
For Experienced DIY User ...................................................................... Page 6
For System Integrator ............................................................................. Page 6
WHAT’S IN THE MANUAL

- 6 -
1INTRODUCTION
1.1 To Different Users
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience
successful, right from the start, we have designed the Chapter 3 Hardware
Installation section in a step-by-step fashion for all the first-time DIY system
builders. Prior to installation, we also suggest you to read the whole manual
carefullytogainacompleteunderstandingofyournewShuttleFE22 mainboard.
Experienced DIY User
Congratulate on your purchase of the Shuttle FE22 mainboard. You will find
that installing your new Shuttle FE22 mainboard is just easy. Bundled with an
arrayofonboardfunctions, the highly-integratedFE22mainboardprovidesyou
with a total solution to build the most stable and reliable system. Refer to sec-
tions3.2 Jumper Settings andChapter 4 Software Utility tofindouthowtoget
the best out of your new mainboard. Chapter 5 BIOS Setup also contains the
relevant information on how to tune up your system to achieve higher perfor-
mance.
System Integrator
You have wisely chosen Shuttle FE22 to construct your system. Shuttle FE22
incorporatesallthestate-of-the-arttechnologyof the 810EchipsetfromIntel. It
integrates the most advanced functions you can find to date in a compact
FlexATXboard. Refertosections3.2 Jumper Settings andChapter 4 Software
Utility foranin-depthviewofsystemconstruction.

- 7 -
1.2 Item Checklist
Check all items with you FE22 mainboard to make sure nothing is missing.
The complete package should include:
!One Shuttle FE22 Mainboard
!One ATA/66 Ribbon Cable
!One Floppy Ribbon Cable
!One FE22 User’s Manual
!OneShuttle Spacewalker Bundled CD-ROM containing:
"FE22 user’s manual on PDF format
"IntelINFdriver
"Intel 810E VGA driver
"Audio CODEC driver
"AwardFlashingUtility

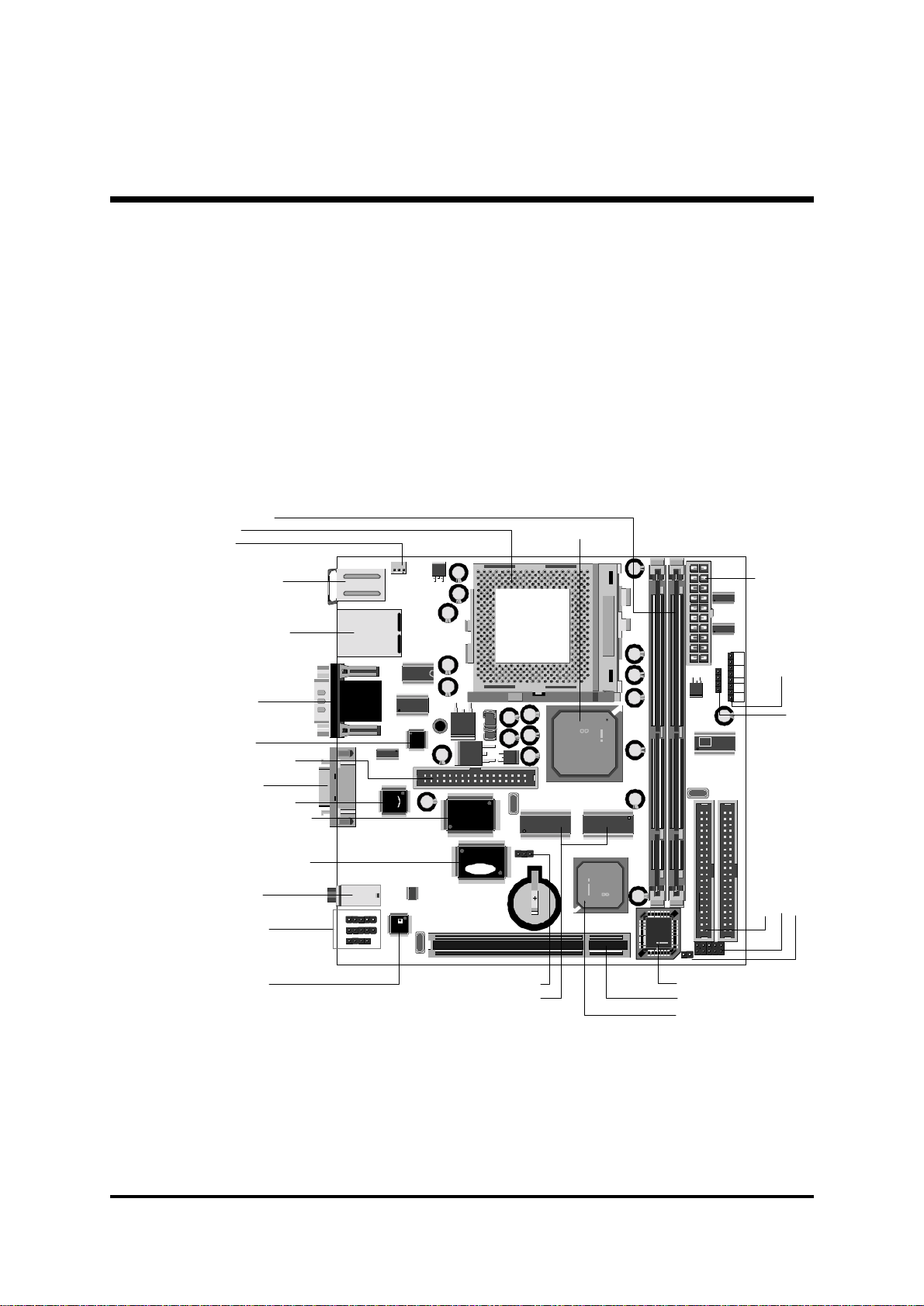

PG A370
J60
J
1
6
1
1
JP11 JP4 JP6
1
1
J66
1 1
J12
1
9
24
8
BF-7
3
9923 CA930220
ICS
1
1
1
IDE1
FLP1
IDE
0
J
WR1J4J5
KB USB
PCI1
MS
1JP12
1
0670B-400
KAG6
9913 Q004 JAPAN
CM D
GLEDPWR
LEDHDD LEDPWON
JP8
14.
3
1
8
B
O
L
Intel
N82802AB
Q608ES
U923031Q
‘9 6’98
intel Intel 810 FW82810E L930TC20
SL3MD INTEL ‘98
KOREA
MC
in te l FW
8
2
80
1AA
L9340983 SL3MA INTEL ‘
98
MALAY
M
C
AD1881A
JST0009
CC0951.4
RTL8139C
02175T1
009BTAIWAN
R
MC
SiliconImage
Sil154ct64
CB7146.OAAC
99520.0

- 8 -
FE22 mainboard is carefully designed for the demanding PC user who wants high perfor-
mance and maximum intelligent features in a compact package.
2.1 Specifications
!!
!!
!CPU Support
Support Intel Celeron processors: 300 ~ 500+ with 66 MHz FSB.
Intel Pentium III processors: 500 ~ 866+ with 100/133 MHz FSB.
!!
!!
!Chipset
Features Intel 82810E (GMCH) AGPset and 82801AA (ICH) Chipset.
Audio
Support AC'97 2.1 compliant (AD1881A) CODEC.
Onboard PanelLink
Sil 164, Supports up to 1280 x 1024x24bits flat panel displays.
Onboard USB Hub
CMD 670B, Supports 2 USB port.
Onboard Lan
Realtek 8139C
!!
!!
!Jumperless CPU Configuration
Auto-detectCPUvoltage
Soft-configureFSB
!!
!!
!Versatile Memory Support
Is equipped with two DIMM banks of PC100/PC133 compliant SDRAM to
provide up to 512MB of system memory.
!!
!!
!Integrated Graphics Controller
Onboard Intel 810E GMCH
3DHyperPipelinedArchitecture
Full2DAcceleration
Motion Video Acceleration
DigitalVideooutput
Display Cache interface
2FEATURES

- 9 -
!!
!!
!Display Cache
Support 4MB SDRAM.
!!
!!
!PCI Expansion Slot
Providesone32-bitPCIslot.
!!
!!
!I/O Interface
ProvidesavarietyofI/Ointerfaces:
"1 × Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, or 2.88MB
formatorfor5.25-inch FDD with 360K or 1.2MB format.
"1 × PS/2 mouse connector.
"1 × PS/2 Keyboard connector.
"2 × USB connector.
"1 × RJ45 LAN connector.
"1 × DB9 Serial connectors 16550 UART compatible.
"1 × DB15 VGA connector.
"1 × DFP connector.
"1 × Line-In connector.
"1 × Line-Out connector.
!!
!!
!USB Interface Onboard
"2 × USB connectors on back-panel and 10 pin header for USB connectors
onfront-panel.
!!
!!
!PCI Bus Master IDE Controller Onboard
TwoUltraDMA33/66BusMasterDual-channelIDEportsprovidesupport to a
maximum of four IDE devices (one Master and one Slave per channel). The
IDE Bus implements the data transfer speed up to 33/66 MB/sec and also sup-
ports Enhanced PIO Modes 0~4.
80-pin Cable Backward Compatible Legacy ATAPI Devices, ATAPI IDE CD-
ROM, CD-R, CD-RW, and LS-120 Supports.
!!
!!
!ATX Power Supply Connector
ATX power supply unit can be connect to the onboard 20-pin ATX power
connector,supportingSuspend and Soft-On/Off by dual-function power
button.

- 10 -
!!
!!
!Advanced Configuration and Power Interface
Features four power saving modes: Snoop, Suspend to RAM, Suspend to
Disk,andSoft-Off.ACPIprovidesmoreefficientEnergySavingsFeatures
controlled by your operating system that supports OS Direct Power Manage-
ment(OSPM)functionality.
!!
!!
!System BIOS
Provides licensed Award BIOS V6.0 PG on Intel Firmware Hub with 4 Mb
flash core (Intel 4Mb FWH) and supports Green PC, Desktop Management
Interface(DMI)and bundled with NCR SCSI BIOS.
!!
!!
!Flex ATX Form Factor
System board conforms to the Flex ATX specification.
Board dimension: 170mm × 170mm (7" x 7")
!!
!!
!Advanced Features
"Dual Function Power Button - The system can be in one of two states;
one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enterstheSoft-Offmode.
"Keyboard/Mouse Power-On - Thismainboardimplementsaspecial
jumper to enable a system power-on function by PS/2 keyboard or mouse.

- 11 -
3HARDWAREINSTALLATION
This section outlines how to install and configure your FE22 mainboard. Refer to the
followingmainboardlayouttohelpyouidentifyvariousjumpers, connectors, slots, and
ports. Then follow these steps to guide you through a quick and correct installation of
yoursystem.
3.1 Step-by-Step Installation
Accessories Of FE22
PGA370
J60
J16 1
1
JP11
JP4
JP6
1
1
J66
1
1
J12
1
9248BF-73
9923
CA930220
ICS
1
1
1
IDE1
FLP1
IDE0
JWR1J4J5
KB
USB
PCI1
MS
1JP12
1
0670B-400
K AG6 9913
Q004 JAPAN
CMD
GLED PWR
LED HDD
LED PWON
JP8
14.318BOL
Intel N82802AB Q608 ES U923031Q
‘96’98
intel
Intel 810
FW8281 0E
L930 TC20
SL3MD
INTEL ‘98
KOREA
MC
intel
FW8280 1AA
L934 0983
SL3MA
INTEL ‘98
MALAY
MC
AD1881A JS T 00 09 C C 095 1. 4
RTL8139C
02175T1
009B TAIWAN
R
MC
SiliconImage
Sil154ct64 C B 71 46 . O A A C 9 952 0.0
DFP Connector
Sil 164 LCD Controller
PS/2 Keyboard/Mouse
Connectors
USB/LAN Connectors
I/O Controller
COM1 &VGA
Connector
RTL8139C LAN Controller
Line-In/Line-Out
Connectors
82810E (GMCH)
CMD670 USB Controller
Pro
g
rammable FlashEEPROM
One PCISlot
82801AA (ICH)
Display Cache
Onboard Audio
Connector -
JP11/
JP4/JP6
Clear CMOS -
J12
Onboard CODEC
Front Panel Connector -
JP8
Front Panel (SPK &RST) Connector -
JP12
USB -
J60
Boot-Block Protection-
J16
Two DIMM Socket
Two IDE Connectors
One Floppy Connector
ATX Power Connector
Socket 370
CPUFAN

- 12 -
Step 1
Install the CPU:
1. Locate the CPU ZIF (Zero Insertion Force) socket on the upper-right
sector of your mainboard (between the back-panel connectors and the
DIMMmemorybanks).
2. Pull the CPU ZIF socket lever slightly sideways away from the socket
to unlock the lever, and then bring it to an upwardly vertical position.

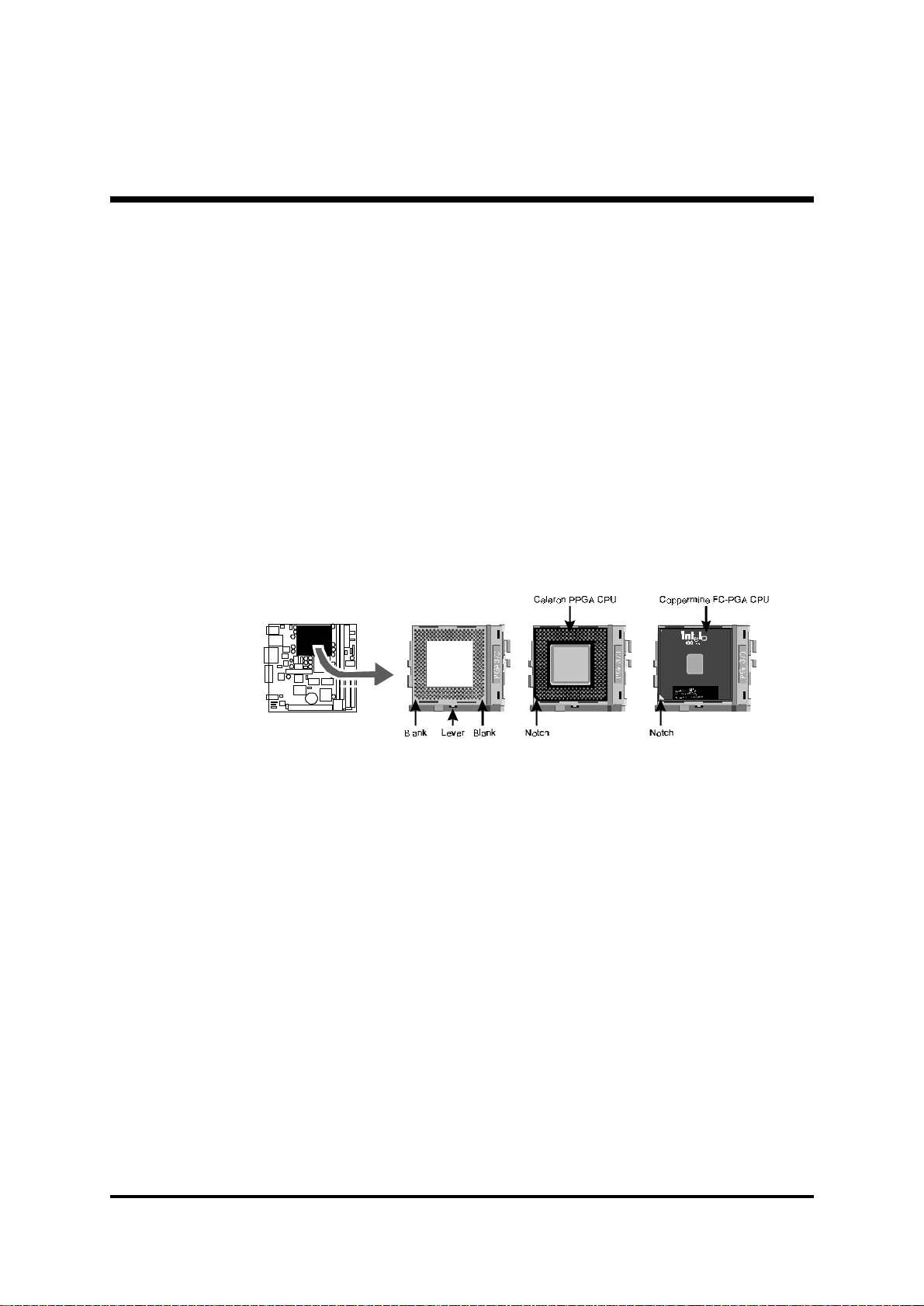

3. Place your PPGA/FC-PGA370 processor in the ZIF socket. Note that the
CPU’s edges have been purposely designed non-symmetrically to prevent
from insertingtheprocessorinthewrongdirection. Thefollowing diagram
dem onstrates the correct placement of the CPUintheZIFsocket. Youcan
seethat the two blunt-edged corners should face towards thesocket-lever.
4. Slightlypush the PPGA/FC-PGA370 processor intothe socket without
applying excessive force while making sure there is no gap between CPU
and socket. Then lower the socket-lever all the way down to its horizontal
position and lock it to secure the CPU in place.
5. The PPGA/FC-PGA370 processor requires a set of heatsink/fan to ensure
proper cooling of the processor. If heatsink/fan having not been already
mounted on your CPU, you must purchase the heatsink/fan separately
and have it installed. Plug the cable throught the heatsink/fan in the CPU
fan power connector located nearby. Note that there are several types of
CPU fan connectors. Normally, if your mainboard supports the hardware
monitoringfunction,a3-pinfanpower connector should allowyoursystem
to detect the CPU fan’s speed . The CPU fan can also run with a 2-pin fan
power connector, however, detection of CPU fan’s speed is not supported.
Another type of CPU fan may feature a large 4-pin fan power connector,
which does not support CPU fan's speed detection and must be directly
connectedto the system’s power supply unit. Please referto the following
diagram.

- 13 -
Step 2.
Set Jumpers
This mainboard is jumperless! The default jumper settings have been set for
the common usage standard of this mainboard. Therefore, you do not need
to reset the jumpers unless you require special adjustments as in any of the
followingcases:
1. Over-clock your CPU
2. Disable the onboard audio before installing an add-on sound card
3. Clear CMOS
Forfirst-time DIY system builders, we recommend thatyou do not change the
defaultjumpersettingsifyouarenottotallyfamiliarwithmainboardconfigu-
rationprocedures. Thefactory-setdefaultsettingsaretunedforoptimum
system performance. For the advanced users who wish to customize their
system,section 3.2 Jumper Settingswillprovidedetailedinformationonhow
to configure your mainboard manually.
Step 3.
Install SDRAM System Memory
Toinstall memory, insert SDRAM memory module(s) in anyone or two
DIMM bank(s). Note that SDRAM modules are directional and will not go in
theDIMMslotsunlessproperlyoriented. Afterthemoduleisfullyinserted
into the DIMM socket, lift the clips of both sides of the DIMM bank to lock
the module in place.

- 14 -
Step 4
Install Internal Peripherals in System Case
Before you install and connect the mainboard into your system case, we
recommendthatyoufirstassemblealltheinternal peripheral devices into the
computerhousing, including but not limited to thehard disk drive (IDE
/HDD),floppydiskdrive(FDD),CD-ROMdrive,andATXpowersupplyunit.
Thiswill greatly facilitate in making the connections tothe mainboard de-
scribedbelow.
ToinstallIDE&FDDdrives,followthisprocedure:
1. Set the required jumpers on board each device according to the
instructionsprovidedbythemanufacturer.(IDEdevices,HDD,and
CD-ROM have to set jumpers on Master or Slave mode depending
on your willing to install more than one device for each kind.)
2. Connect IDE cable and FDD cable to the back-panel of the internal
peripheral devices. Note that the cable should be oriented with its
colored stripe (usually in red or magenta) connected to pin#1 both on the
mainboard IDE or FDD connector and on the device as well.
3. Connect an available power cable through your system power supply unit
to the back-panel of each peripheral device. Note that the power cable
isdirectional and cannot fit in if not properlypositioned.

- 15 -
Step 5
Mount the Mainboard on the Computer Chassis
1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose a
correct mounting hole, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.
2. After deciding on the proper mounting holes, position the studs between
the frame of chassis and the mainboard. The studs are used to fix the
mainboard and to keep a certain distance between the system chassis
and the mainboard, in order to avoid any electrical short be twine the
board and the metal frame of chassis. (If your computer case is
alreadyequipped with mounting studs, you willneed to tighten screws to
attachthe mainboard.)
Note: In most computer housings, you will be able to find 4 or more
attachmentpointsto install mounting studs and fix the mainboard.
If there aren’t enough matching holes, then make sure to install at
least 3 mounting studs to ensure proper attachment of the
mainboard.

- 16 -
Step 6
Connect Front-Panel Switches/LEDs/Speaker/USB connectors
You can find there are several different cables already existing in the system
caseandoriginatingfromthecomputer’sfront-paneldevices(HDDLED,
Power LED, Reset Switch, PC Speaker or connectors for USB devices etc.)
These cables serve to connect the front-panel switches, LEDs, USB
connectors to the mainboard’s front-panel connectors group (JP8, JP12 and
J60),asshownbelow.
1. ATXSoftPowerOn/Off
2. Green_LED
3. Power_LED
1
- + + - +
GLED
PWR
LED HDD
LED PWON
JP8
1
- + + - +
GLED
PWR
LED HDD
LED PWON
JP8
1
- + + - +
GLED
PWR
LED HDD
LED PWON
JP8
1
- + + - +
GLED
PWR
LED HDD
LED PWON
JP8
1JP12
J60
1

- 17 -
4. HDD_LED
5. HardwareResetSwitch
6. PC Speaker
7. Front-PanelUSBHeader
1
- + + - +
GLED
PWR
LED HDD
LED PWON
JP8
SPK
RST
1JP12
SPK
RST
1JP12
USB3
USB2
GND GND
USB+ USB- VCC+
VCC
USB-
USB+
GND GND
2
110 9

- 18 -
Step 7
Connect IDE & Floppy Disk Drives
1. IDE cable connector
2. FDD cable connector
Step 8
Connect Other Internal Peripherals
1. Line-Out,Line/Mic-In,andCD-Inconnectors
1
1
IDE1 IDE0
1
FLP1
JP11 1
JP4 1
JP6 1
