Siamp VERSO BCM 350 Quick guide

VERSO 350
WALL HUNG SANITARYWARE
Download products information from www.siamp.com
22
I II
I = 142/147  245 mm
II = 16  100 mm
III = 400  500 mm
IV = < 185 mm
V = 1100  1300 mm
III
IV
VI
IV
97 mm
BCm VERSO 350
WALL mOUnTED VERSIOn
DESCRIPTIOn
◗ For installing wall hung standard, extented or compact pan
◗ Wall mounting frame bearing a 400kg load
◗ Steel tubes structure, 30x30x1,5mm, electro-welded and anti-
corrosion treated, epoxy paint guaranteed 25 years (withstands
200 hours in saline mist)
◗ Feet are made from one epoxy painted steel plate (100x30x8mm)
and one electro-welded epoxy painted steel tubes (25x25x3mm),
fixed to the floor by 2 plugs and 2 bichromated screw plugs
◗ Pan wall fixing thanks to 2 brackets held by 4 plugs and 4
bichromated screw plugs
◗ Fixed to the wall using 2 fixing brackets, held in place by 2 plugs
and 2 bichromated screw plugs.
◗ 6l. insulated Verso 350 cistern , from which components can
be withdrawn through command plate window
◗ Adjustable double flush flush valve, 3l./6l. factory preset.
◗ Adjustable noiseless float valve, 6l. factory preset. From April,
2010: water saving and silent float valve OD 95L as an option
◗ Mechanical or infra-red double or simple flush front commands,
see choice page 54
◗ Network water connection can be made on the inside or on the
outside of the cistern. Stop cock section can be 3/8" M or
1/2" F.
◗ Drainage accessories can be straight or 90° bent. Made from PVC
or PEHD. Available sections are 90mm., 100mm. and 110mm..
Bent pipe is fixed on the frame by simply clipping it. See choice
page 106
◗ Pan connection set:
- Drain straight pipe for connecting pan to bent pipe can be
made from PVC or PEHD. Diameter is 100mm..
- Supply straight pipe for connecting cistern to pan.
- Pan fixing accessories
See choice page 106
◗ Cladding reservation and protection accessories
1100 ~ 1300 mm
350 mm
325 ~ 525 mm
142/147 ~ 245 mm
180 / 230 mm
Packing Packing Palette
quantity
Nb M3Kg
BCM Verso 350 Carton 1 0,07 15,82 20
230 mm
SUPPLEmEnTS:
Command plates (see page 54)
Décofast (see page 103)
Meubleo (see page 104)
Accessories (see page 106)
Pan connexion set (see page 106)
| TIN |

GB
CISTERN FRAME
VERSO BCM 350
ASSEMBLY AND MAINTENANCE MANUAL

2

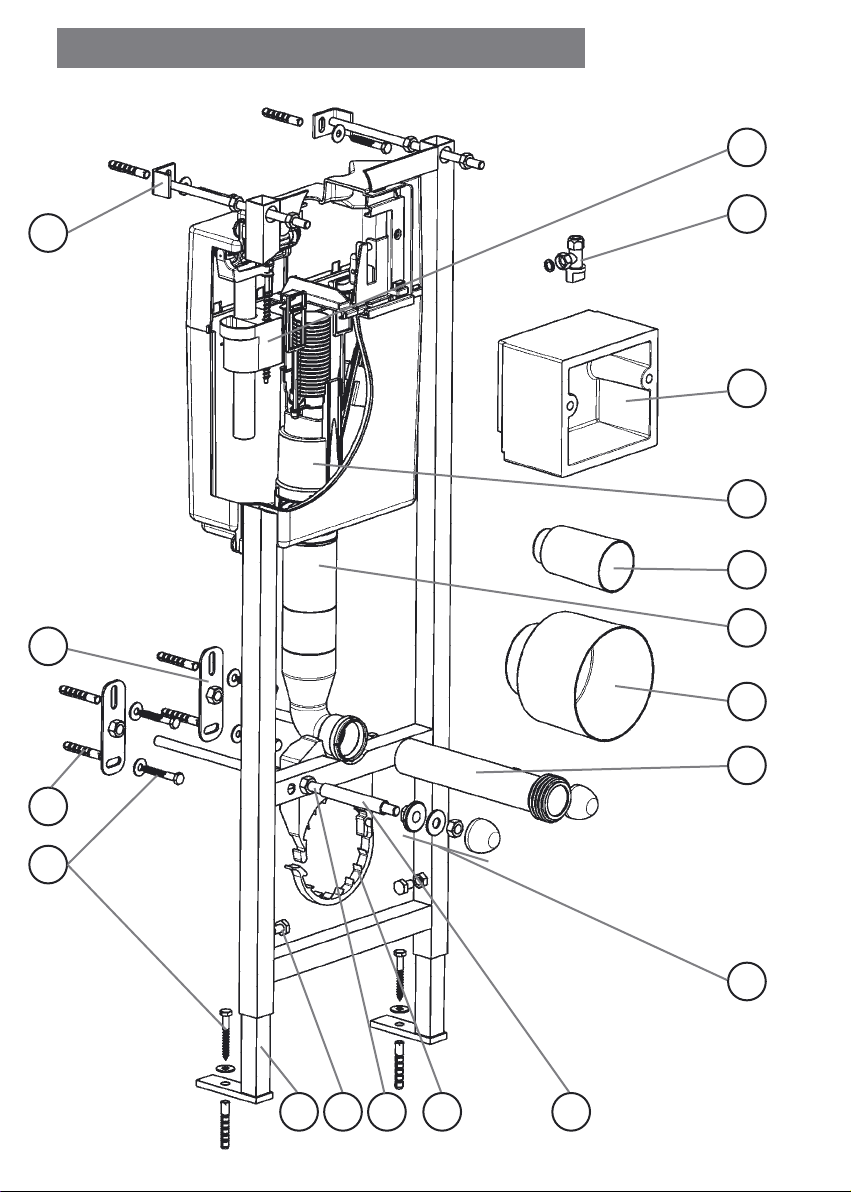

DESCRIPTION
a
c
d
e
h
i
jkmn
o
p
q
r
l
f
g
b

Control panel
3
Tools required:
• Set of wrenches from 8 to 19 mm
• Hack saw
• Electric drill + bit dia 10 mm
• Spirit level
• Pencil + ruler
• Tape measure
• Hammer
• Screw driver
ACCESSORIES
Drain kit
Float valve
Stopcock with fibre joint
Mechanism
PSE template
Supply bend
Supply bend cap
Toilet pipe cap
Supply sleeve
Bowl attaching kit
Flexible sheaths (x 2)
Pipe attaching collar
Toilet bowl attaching rods (x 2)
Setscrew (x 2)
Adjustable foot (x 2)
Screw plug (x 8)
Plug (x 8)
Toilet bowl stud attaching tab (x 2)
Attaching bracket (x 2)
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
White single volume plate Ref. 31 1830-10
Chrome double volume plate Ref. 31 1880-10
White double volume plate Ref. 31 1800-10
Chrome double volume plate Ref. 31 1850-10
Bent drain kit Ref. 92 4000-07
Straight drain kit Ref. 92 4010-07
Bent pipe
Plate
Chassis
Screws
(4)
Straight
pipe
Drain
sleeve
Drain
sleeve
Advice:
• Keep the product package during
installation: there is a cutting template
on the back
• Keep these instructions safety for any
maintenance operations.
 Read bowl and toilet seat instructions
before intalling the cistern frame.

4

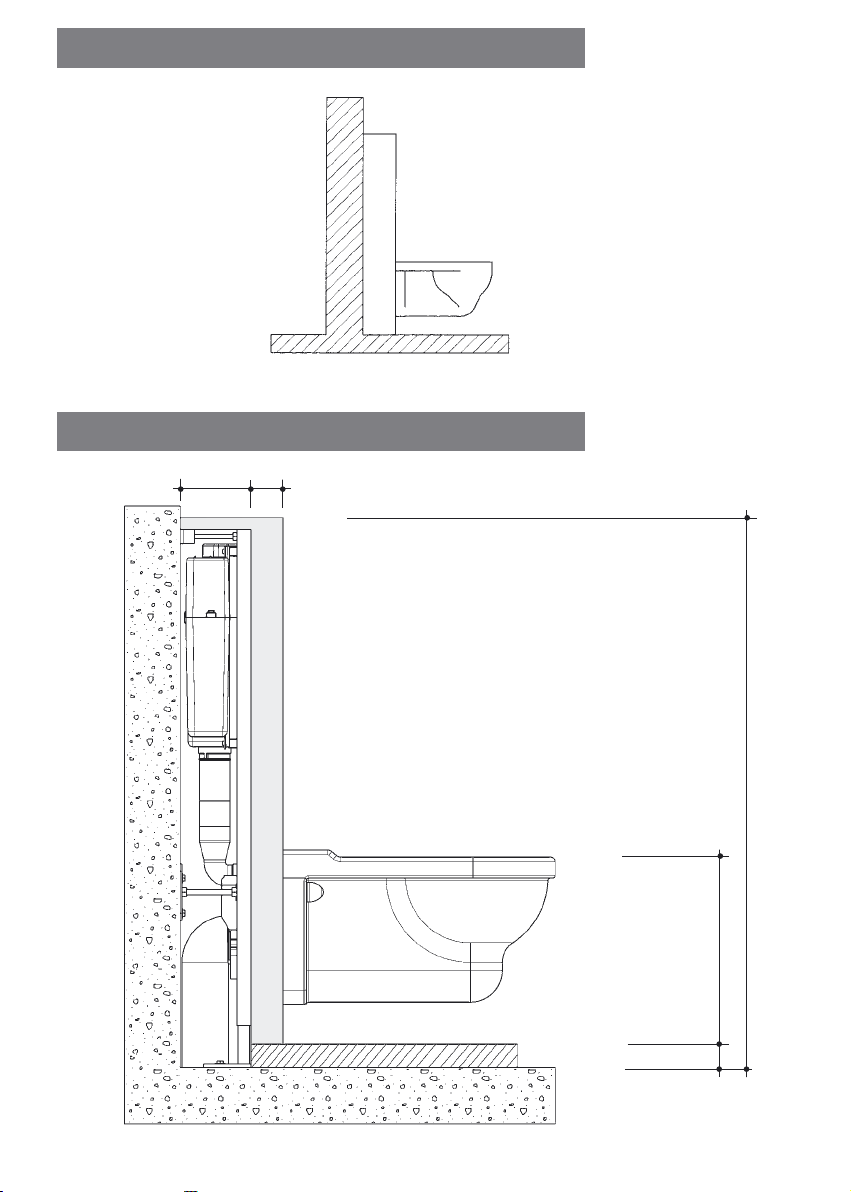

INSTALLATION TYPES
EFFECTIVE DIMENSIONS
➊ Wall fixing
I
I - Frame depth =
from 142 to 245 mm straight outlet
from 147 to 245 mm bent outlet
II - Cladding thickness = from 16 to 100 mm
III - Height = Adjustable from 1080 to 1280 mm
IV - Height of toilet bowl = 400 mm (finished floor level)
V - Maximum thickness of finished flooring = 185 mm
II
III
VIV

I - ASSEMBLING THE TOILET BOWL ATTACHING RODS AND WALL FIXING
II - ADJUSTMENT OF THE FRAME HEIGHT
➊ Measure the center distance of the toilet bowl (A)
➋ Insert the rods (I) into the holes of the frame,
corresponding to the center distance
➌ Position the frame in place
➍ Secure the attaching tabs (q) to the rods (l),
position the assembly against the wall and lock
with the nuts.
➎ Position the wall mounting bracket (r) against
the wall and attach it with the nuts, first
checking that the frame is vertically level
➏ Use a hacksaw to cut the threaded rods of the
bracket protruding from the frame
➊ Position the frame in its final location
➋ Undo the 2 setscrews (m)
➌ Adjust the height of the feet so that the top of the toilet bowl
is at a height of 400 mm from the finished floor level.
➍ Check that the frame is level (vertically and horizontally) and
tighten the setscrews
 If the frame is being attached to an unfinished floor surface,
the maximum thickness of the finished floor surface shall
not be more than 185 mm.
5
A
➊ ➋
➍
➎➏
r
q
l
m➋
➍
➌

6
III - PREPARING FOR ATTACHMENT
IV - CONNECTING THE DRAIN OUTLET
➊ Mark the drilling points (6 for wall and 2 for floor)
➋ Remove the frame and drill to a depth of 70 mm at the least, using
an 10 mm diameter drill bit
➌ Position the screw plugs in the holes
➍ Move the frame back in place and connect the drain pipe
➊ Attach the collar (k)
➋ Position the drain outlet pipe
➌ Tighten the collar (k)
 Before gluing the drain outlet pipe to the main
drain pipe, ensure that the frame is correctly
positioned.
If the drainpipe is not opposite the outlet pipe,
the connection can be made using PVC bends and
couplings.
➊
➋➌
x 6
x 2
k
Bent outlet
Straight outlet
➊
or
➊
➋

7

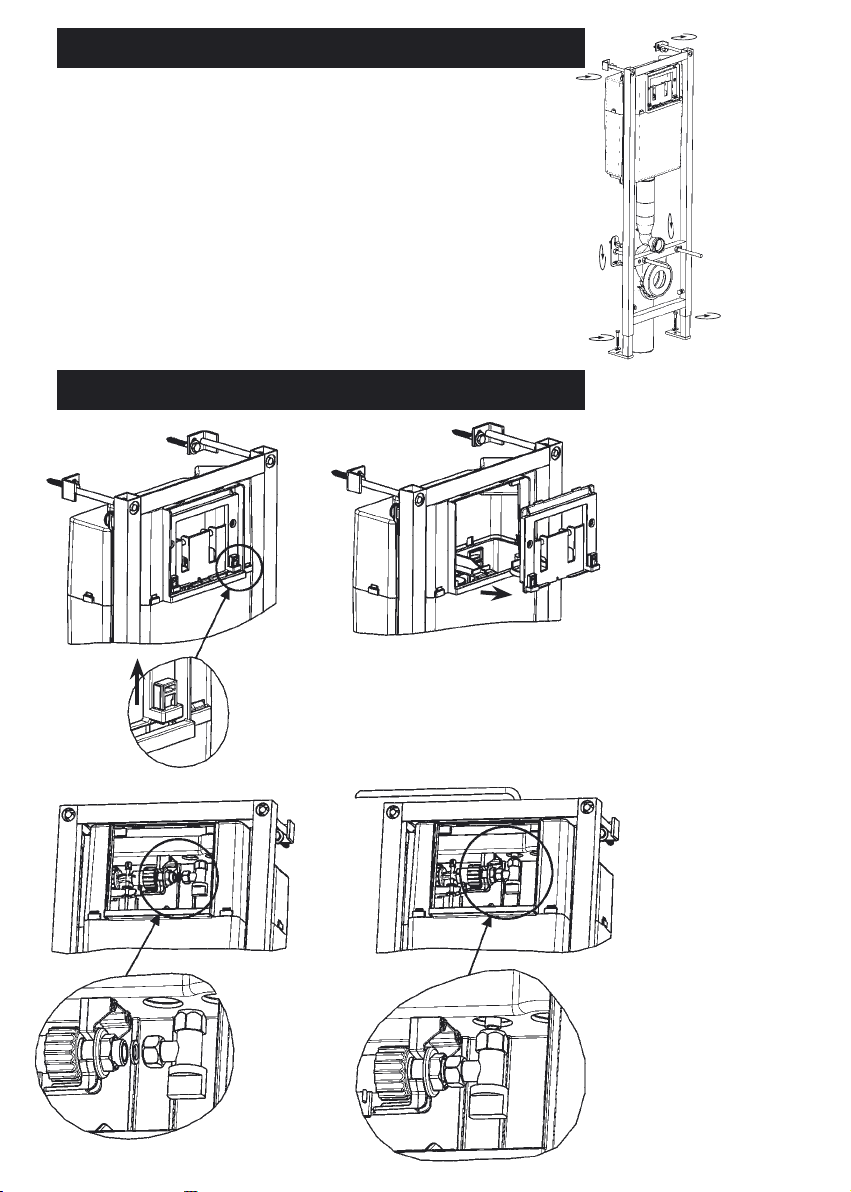

V - ATTACHING THE FRAME
VI - WATER SUPPLY CONNECTION
➊ Attach the frame definitively
➊ Remove the frame by
lifting the two locks
➋ Connect your pipe to the
shut-off valve (b) either
using the dual cone
supplied or directly with
the nuts provided on the
water inlet (in this case,
ensure tightness using a
fibre washer)
➌ Insert the water supply
tube in the cistern
➍ Connect the shut-of f
valve (b) to the float valve
(a) (ensure tightness by
a fibre washer).
Frame
Locks
Frame
b
a
b
➊
➋
➌
➍

8
VII - TESTING WITH WATER
➊
➋
➎
➐
➊ Insert the supply sleeve (h) and
the drain sleeve on the toilet
bowl
➋ Position the toilet bowl on the
frame
➌ Turn on the water using the shut-
off valve (b) and wait until the
toilet bowl fills
➍ Manually operate the mechanism
(c) using the flush-pull control
➎ Check the tightness of the supply
and drain connections
➏ Close the shut-off valve and drain the
cistern
➐ Remove the toilet bowl
c
h
➌
➍
➏
➎
➏
b

9

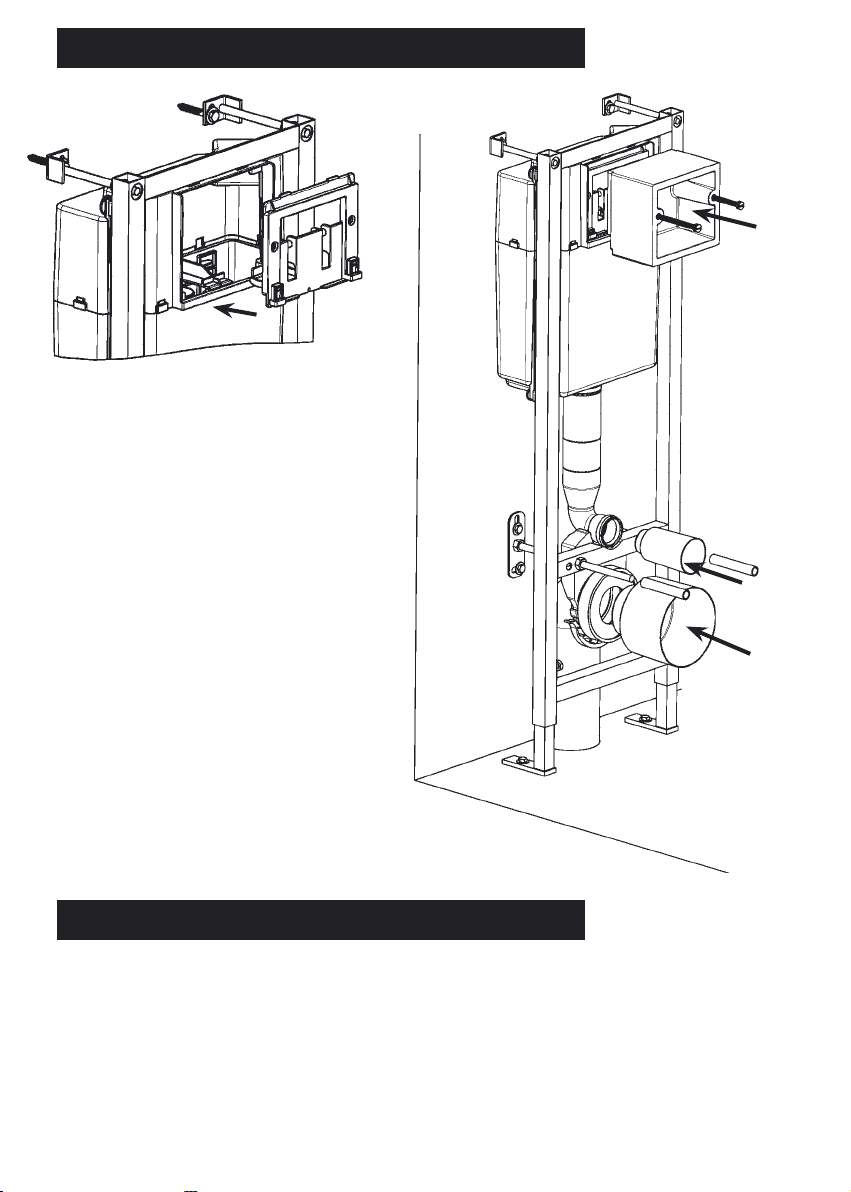

VIII - PREPARING THE CLADDING
IX - CLADDING
➊ Fit the frame
➋ Attach the PSE template (d) to the frame using
the two grey screws provided in the control
panel box
➌ Fit the caps (f) and (g) on the supply bend (e) and
on the drain pipe as well as the flexible sheaths
(i) over the attaching rods of the toilet bowl (l)
 The thickness of the covering must be between 16 and 100mm,
the covering must be fixed to the support structure.
Cladding can be of various materials (brick, plaster blocks, plaster board, water repellent
wood panels etc).
For the preliminary punching out of the various holes (command plate, evacuation and
filling of the bowl, and bowl-fixing rods) a measuring guage can be found on the back
of the packing.
Once the covering is finished, take off the PSE guage (d), keep the screws for fixing on
the command plaque, take off the shutters (f) and (g).
d
f
j
Frame
➊
➋
➌
g

10

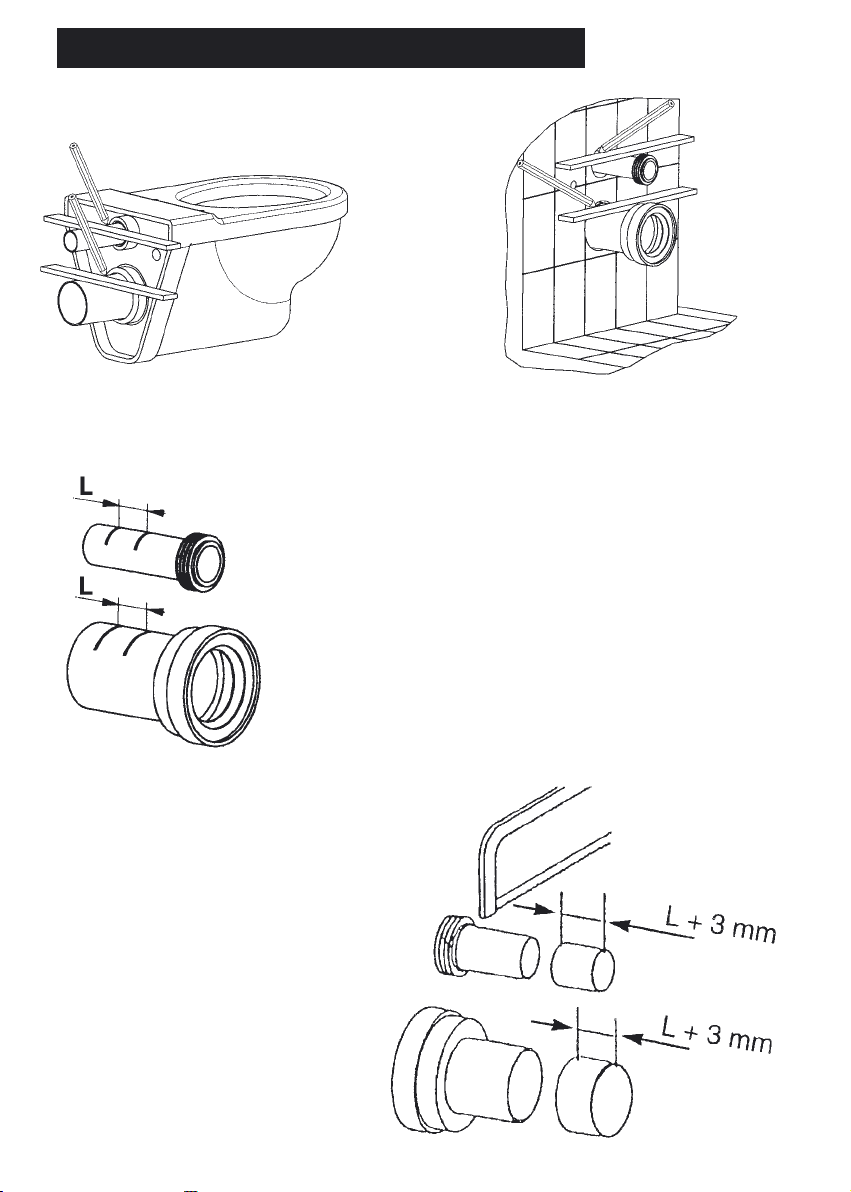

X - TOILET BOWL CONNECTION
➊ Using a rule placed as shown in the above drawing,
draw a mark on the toilet bowl side, on the two
sleeves.
➋ Remove the sleeves from the toilet bowl and fit them
to the frame. Using a rule placed as shown in the
drawing above, make a mark on the wall side, on
the two sleeves
➌ For each of the sleeves, measure the dimension
(L) between the two marks.
➍ Transfer this dimension (L) by
increasing by 3 mm at the end (frame
side) the size obtained on each
sleeve. For instance, if L = 50 mm,
shorten the sleeve by 53 mm.
➎ Cut the sleeves using a hack saw.
 Read bowl and toilet seat instructions before intalling
the cistern frame.

B
11

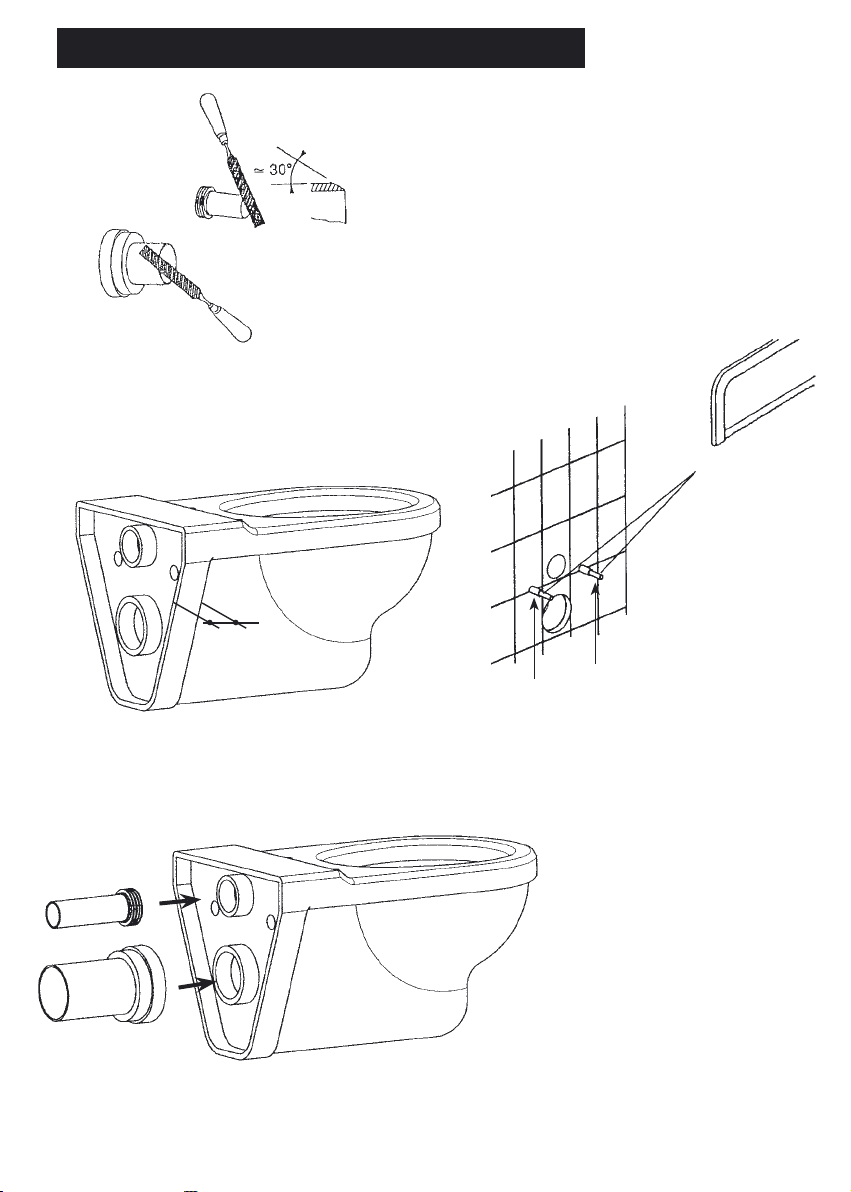

X - CONNECTING THE TOILET BOWL (cont’d)
➏ Deburr the cut pipes using a file
➐ Measure the thickness at the rear of the toilet
bowl (B)
➑ If necessary, cut the attaching rods (I) so that
the part protruding from the wall measures (B)
+ 20 mm
➒ Shorten the flexible sheaths (j) so that the par t
protruding from the wall measures (B) - 15 mm
l
j
B + 20 mm
➓ Fit the supply sleeve (h) and the drain
sleeve onto the toilet bowl.
Then position the toilet bowl on the
two attaching rods.
 To facilitate the fitting of the drain
sleeve onto the bowl and the pipe,
use soapy water.

12

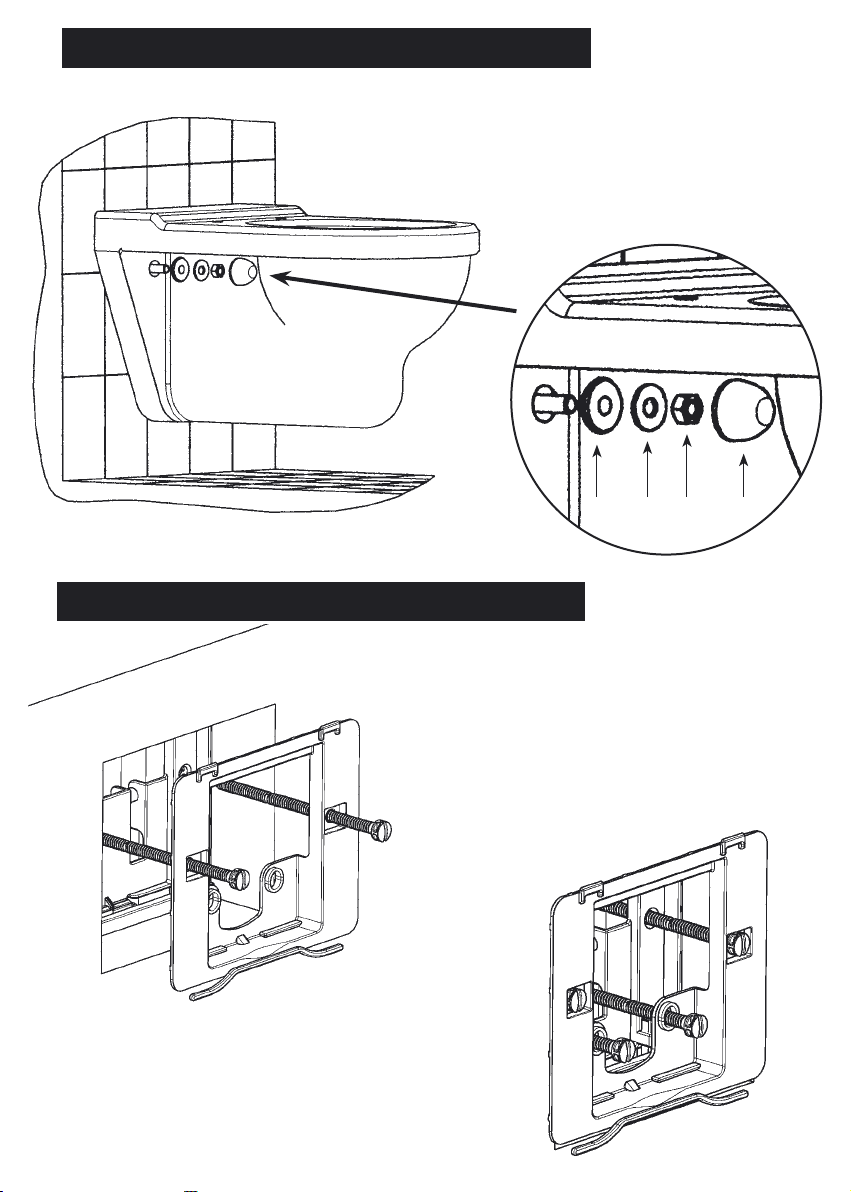

XI - ATTACHING THE TOILET BOWL
XII - INSTALLING THE CONTROL PANEL
➊ When the toilet bowl is correctly
positioned, attach it using the kit (i)
complying with the part stacking order:
i = centering washer
ii = metal washer
iii = nut
iv = cover
i ii iii iv
➊ Attach the control panel chassis to the frame using
the two grey screws
 If the mounting surface is not very thick, shorten
the screws by simply breaking them at the notch
provided for the purpose.
➋ Install the two control screws (the two remaining
grey screws)
 If the mounting surface is not very thick, shorten
the screws by simply breaking them at the notch
provided for the purpose.
➊
➋

13
XII - POSITION IN THE CONTROL PANEL (cont’d)
➊ Adjust operating screws so that size ( C )
is 31 mm.
NB : (C) = form the outside of the collar to the head
of the screw.
C
Catch pin
➋ Place the command plate on the
springs from the bottom upwards,
then lift slightly, clip the plaque onto
the catch pins.
Spring

14

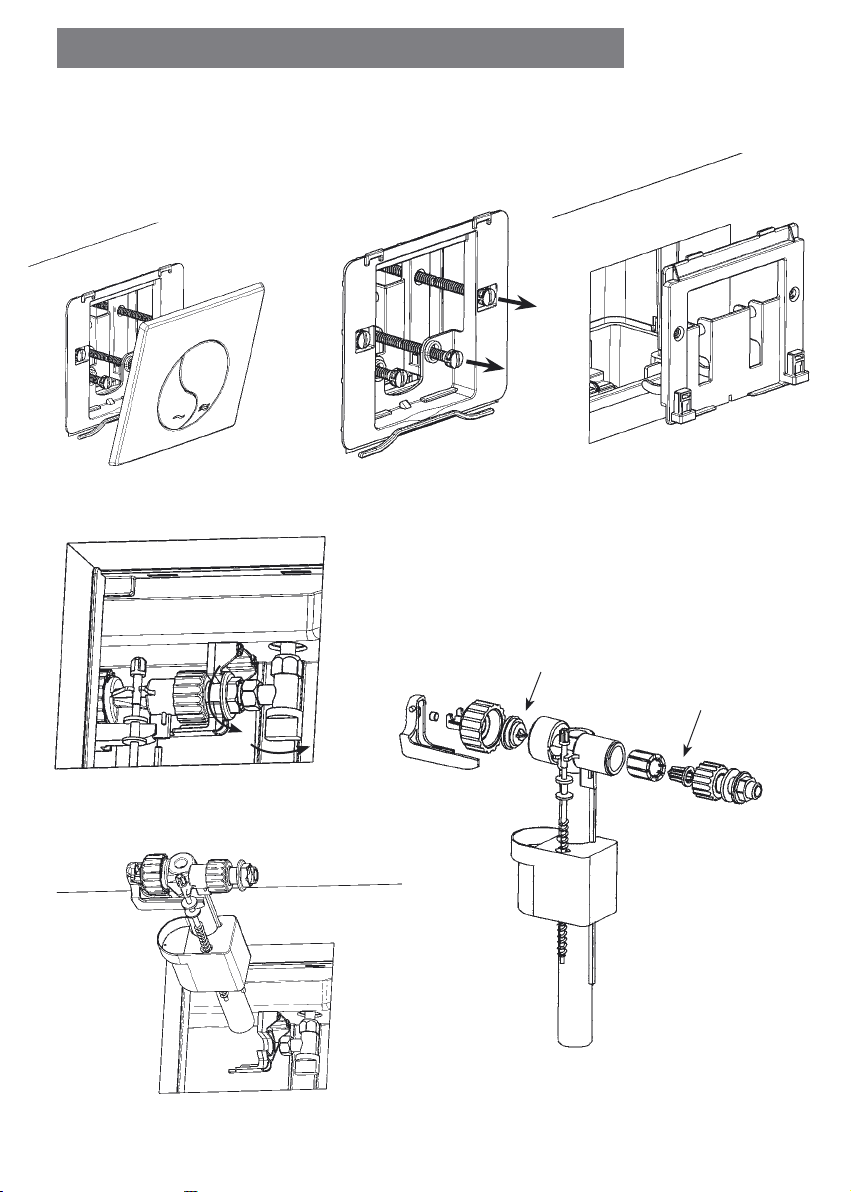

MAINTENANCE OPERATIONS
During the use of your VERSO BCM 350 flushing cistern, you may be required to maintain
the equipment.
I - MAINTENANCE OF THE VALVE (filter cleaning, replacement of membrane)
➊ Remove the control panel by lifting it slightly and tilting it forward
➋ Remove the operating screws
➌ Lstening the chassis screws and remove the chassis
➍ Remove the frame as indicated under point VI of the manual
➎ Close the shut-off valve (b) and separated from the float valve (a).
➏ Take out the floater tap
➐ Unscrew the screws of the tap to take out the membrane
and the filter. Change the membrane and clean the filter
Spare parts:
Membrane: P/N 349513-07
Complete valve: P/N 309503-07
Filter
Membrane
➊ ➍➋➌
➎
ab
➏

15
MAINTENANCE OPERATIONS (cont’d)
II - MECHANISM MAINTENANCE (cleaning or replacement of the seal)
Proceed in the same way as for the maintenance of the valve up to point
➏ then:
➊ ➋
➊ Take off the brace
➋ Grasp the mechanism by the base and remove it from the cistern
Spare parts:
Seal P/N 34 2332-07
Complete mechanism: P/N 32-4544-07
➌ Unfix the body of the device from the plughole by turning the plughole round. Unclip the washer, take
out the joint and change it, then re-assemble the whole set.
 To position the mechanism properly it is provided with a polariser on the base
Seal
Washer to be unclipped
➌

You have just installed a cistern frame forming part of the VERSO range by
SIAMP and we would like to thank you for your confidence in our products.
As expert in technical equipment and accessories for the toilet, SIAMP has
taken every possible measure to apply all the necessary care to the design and
production of this product, offering a ten-year guarantee except for rubber parts
and manpower.
For any complementar y information, or indicated claim, please contact your
dealer.
Or contact directly:
4, quai Antoine 1er - BP 219 - MC 98007 MONACO Cedex
Tel. [phone] - Fax : [phone]
E-mail: [e-mail]
Site Internet : http//: www.siamp.com
Réf. 5944 - Imprimerie PONS s.a.

IEII *lnstytut Techniki Budowtanej
l,?ti.r-il I '.J,j&Ii!:Âii.jÀ I i.ri ÿl'ri;1r,)'";Â i i 1,..'i.: I;iij à.lr Ëli {.!.1 j i. {,!11 ,l"l
Celsnek Europejskiej Unii Akseptâcji Technicznej
Cz*onek Ëurope.iskiej Organizacji d§. Aprobat
ù;t:,./i.i I:t, i;rtr: icF:..t iLi:: I"i Érj
w Budownictwie * UEÂtc
Technicznych * EôTÂ
SeTia: APROBATY TECHNICZNE
ANEKS nr I
DO APROBATY TECHNICZNEJ ITB
AT-1 5-941 912010
Na podstawie rozpozqdzenia Ministra lnfrastruktury z dnia I listopada 2004 r.
w sprawie aprobat technicznych oraz jednostek organizacyjnych upowa2nionych do ich
wydawania (Dz. U. Nr 249, po2.2497), na wniosek firmy:
SIAMP
4, quaiAntonie 1-BP 219
MC 98007 MONACO
do Aprobaÿ Technicznej ITB AT-15-841812010
stwierdzajqcej przydatno3é do stosowania w budownictwie wyrob6w pod nazw4
Podtynkowe ramy montaàowe typôw:
Bati chasse Verso, Bati Verco Mural 350 pack,
Bati chasse ECO, Bati bidet Verso,
Bati' lavaho Verso
wprowadza siç zmiany wyszczegôlnione na stronie 2 Aneksu.
DYREKTOR
lnsÿtutu Techniki Budowlanej
fu/*-?
/ ,r, Bobrowicz
Warszawa, 27 wrze§nia 2A12 r.
\.,Jt,r--
Aneks nr 1 do Aprobaÿ Technicznej ITB AT-15-841812010 zawiera 2 strony.
