SICK WSE16 Series User manual

OPERATING INSTRUCTIONS
WSE16

OPERATING INSTRUCTIONS
WSE16
de
en
es
fr
it
ja
pt
ru
zh

Described product
W16
WSE16
Manufacturer
SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Germany
Legal information
This work is protected by copyright. Any rights derived from the copyright shall be
reserved for SICK AG. Reproduction of this document or parts of this document is
only permissible within the limits of the legal determination of Copyright Law. Any modi‐
fication, abridgment or translation of this document is prohibited without the express
written permission of SICK AG.
The trademarks stated in this document are the property of their respective owner.
© SICK AG. All rights reserved.
Original document
This document is an original document of SICK AG.
2006/42/EC
NO
SAFETY
28020353.19RH / 15.01.2021 | SICK
Subject to change without notice

Contents
1 Safety information............................................................................ 4
1.1 General safety notes................................................................................ 4
1.2 Notes on UL approval............................................................................... 4
2 Intended use...................................................................................... 4
3 Operating and status indicators...................................................... 4
4 Mounting............................................................................................. 5
5 Electrical installation........................................................................ 5
6 Additional functions.......................................................................... 7
7 Commissioning.................................................................................. 9
7.1 Alignment.................................................................................................. 9
7.2 Check the application conditions............................................................ 9
7.3 Time function setting................................................................................ 10
7.4 Setting light/dark switching..................................................................... 11
8 Process data structure..................................................................... 11
9 Troubleshooting................................................................................. 11
10 Disassembly and disposal............................................................... 12
11 Maintenance...................................................................................... 12
12 Technical data.................................................................................... 13
12.1 Dimensional drawings.............................................................................. 13
CONTENTS
8020353.19RH / 15.01.2021 | SICK
Subject to change without notice 3

1 Safety information
1.1 General safety notes
■Read the operating instructions before commissioning.
■
Connection, mounting, and configuration may only be performed by trained
specialists.
■
2006/42/EC
NO
SAFETY
Not a safety component in accordance with the EU Machinery Directive.
■
Do not install the sensor at locations that are exposed to direct sunlight
or other weather influences, unless this is expressly permitted in the operating
instructions.
■These operating instructions contain information required during the life cycle of
the sensor.
1.2 Notes on UL approval
The device shall be supplied from an isolating transformer having a secondary overcur‐
rent protective device that complies with UL 248 to be installed in the field rated either:
a) max 5 amps for voltages 0 ~ 20 V (0 ~ 28.3 V peak), or
b) 100 / Vp for voltages of 20 ~ 30 V (28.3 ~ 42.4 V peak).
Alternatively, they can be supplied from a Class 2 power supply.
UL Environmental Rating: Enclosure type 1
2 Intended use
The WSE16 is an opto-electronic through-beam photoelectric sensor (referred to as
“sensor” in the following) for the optical, non-contact detection of objects, animals, and
persons. A sender (WS) and a receiver (WE) are required for operation. If the product is
used for any other purpose or modified in any way, any warranty claim against SICK AG
shall become void.
3 Operating and status indicators
WSO16x-xxxxxxA0 WEO16x-xxxxxx00 WEO16x-xxxxxx01 WEO16x-xxxxxx02
3 2
1
3 2
1
23
5
1
3 2
4
1 SAFETY INFORMATION
48020353.19RH / 15.01.2021 | SICK
Subject to change without notice

WEO16x-xxxxxx30 WEO16x-xxxxxx31 WEO16x-xxxxxx32
3 2
61
1
23
5
6
1
3 2
4
6

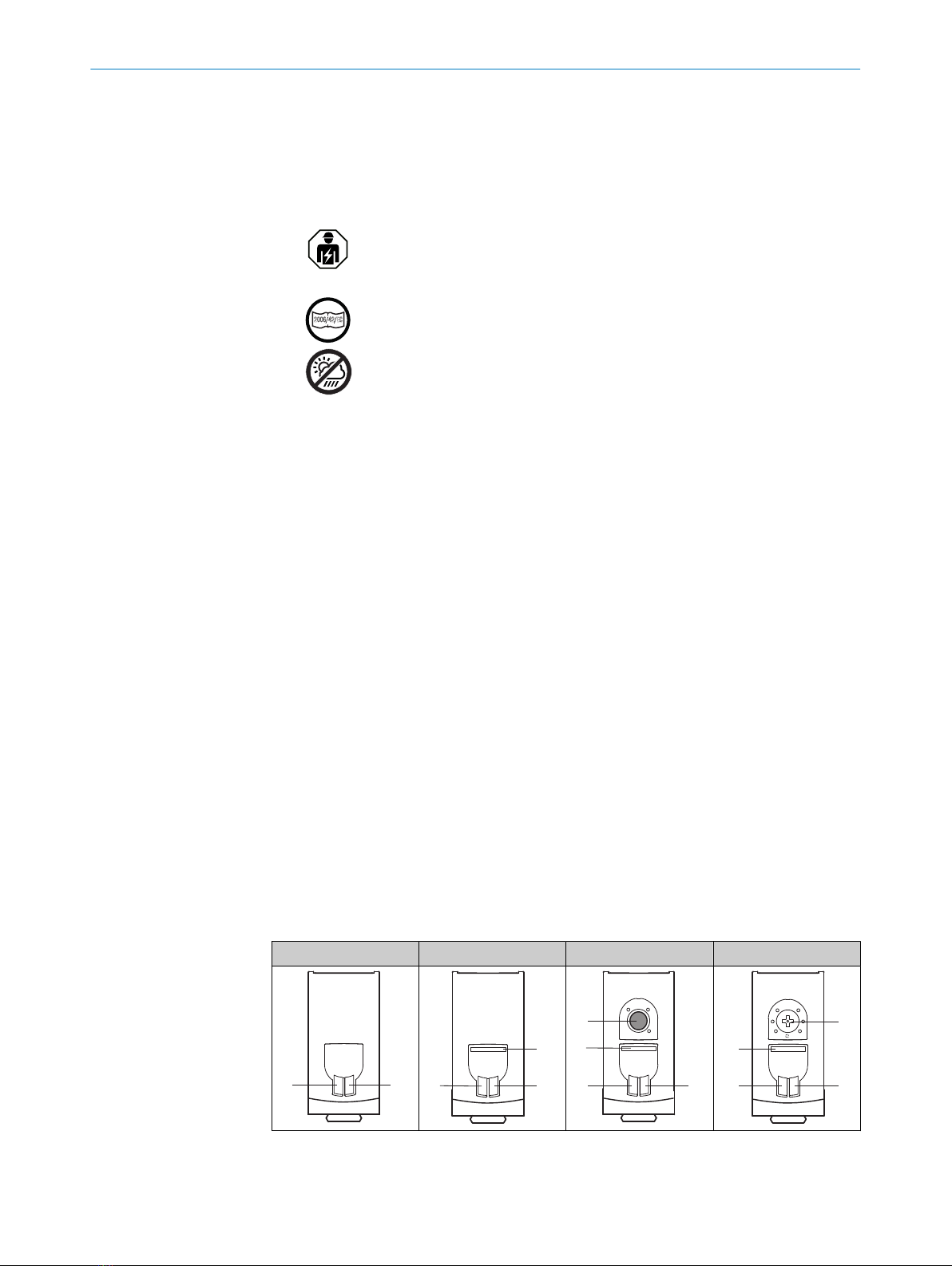

1BluePilot blue: alignment aid
2LED indicator yellow: status of received light beam
3LED indicator green: supply voltage active
4Press-turn element: time function adjustment
5Teach pushbutton: adjustment of light/dark switching
6Teach-Button: adjusting the sensitivity
4 Mounting
Mount sensors (sender and receiver) using suitable mounting brackets (see the SICK
range of accessories). Align the sender and receiver with each other.
NOTE
Swap the sender and receiver arrangement at every second through-beam photoelec‐
tric sensor and ensure that there is sufficient distance between the through-beam
photoelectric sensors.
Receiver (WE)
Receiver (WE)
Sender (WS)
Sender (WS)
Sender (WS)
Receiver (WE)

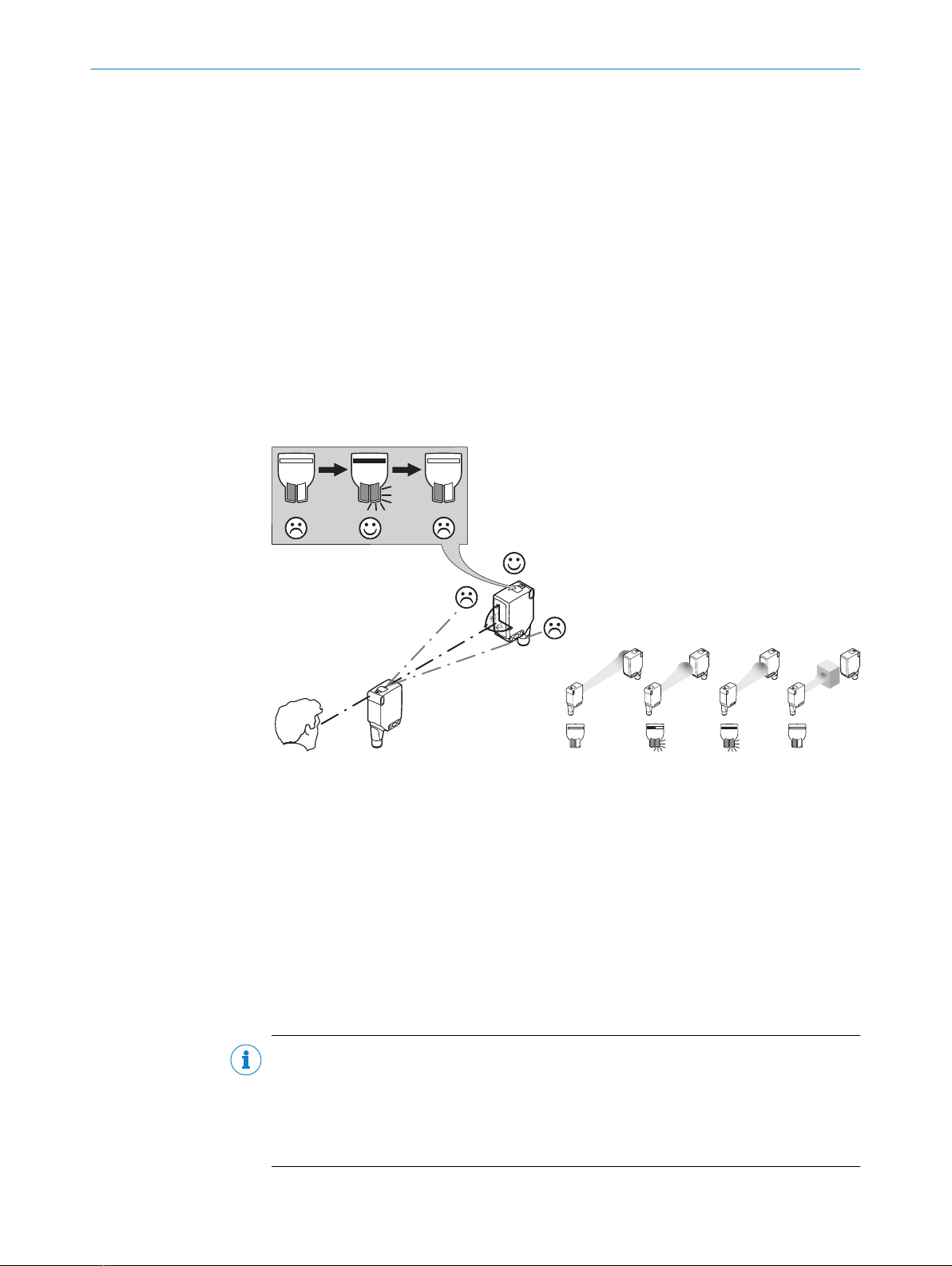

Figure 1: Arrangement of several through-beam photoelectric sensors
Note the sensor’s maximum permissible tightening torque of < 1,3 Nm.
5 Electrical installation
The sensors must be connected in a voltage-free state. The following information must
be observed, depending on the connection type:
– Male connector connection: Note pin assignment.
– Cable: wire color
Only supply/switch on the voltage once all electrical connections have been estab‐
lished.
MOUNTING 4
8020353.19RH / 15.01.2021 | SICK
Subject to change without notice 5

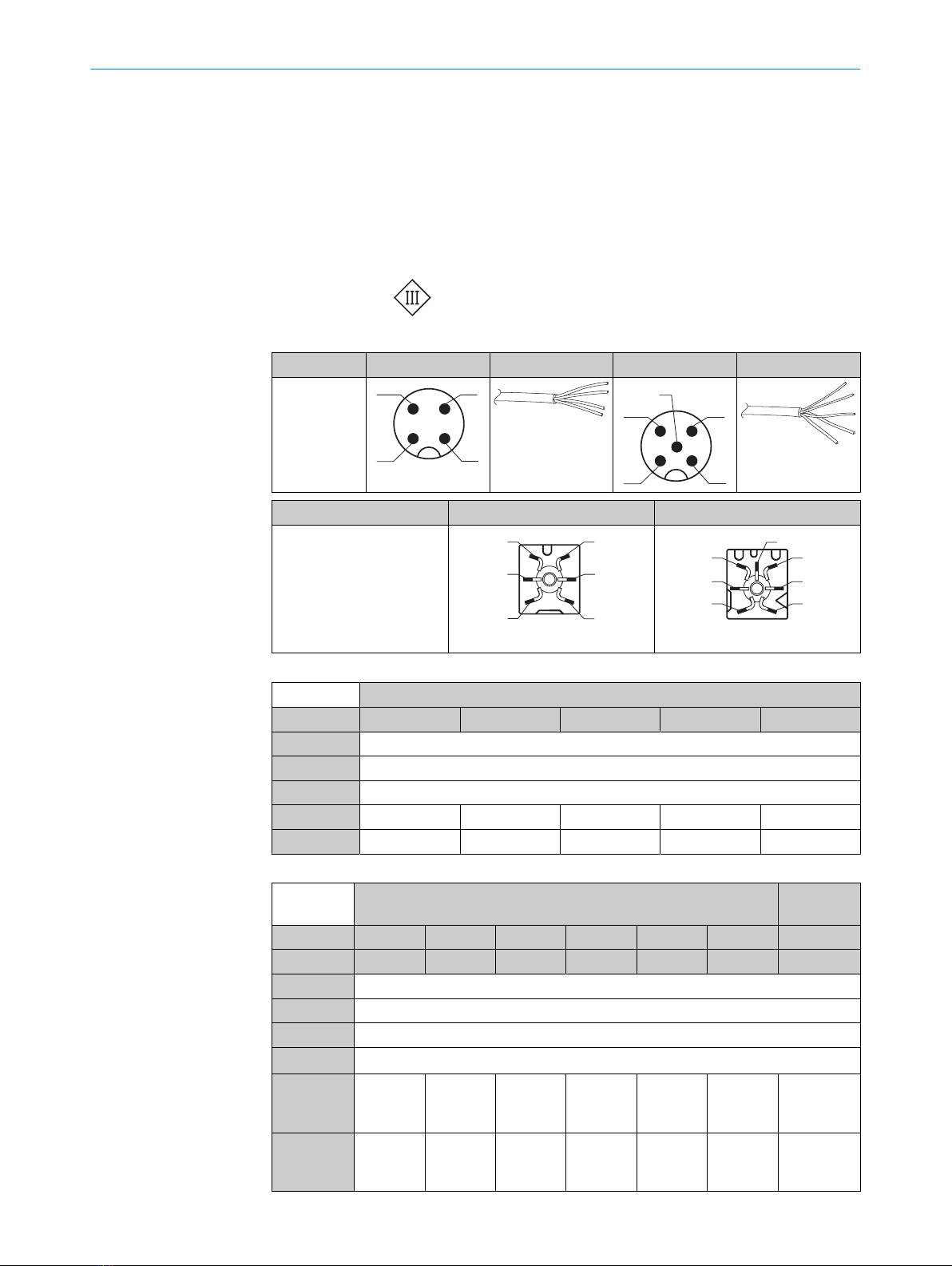

Explanations on connection diagram:
Alarm = alarm output
Health = alarm output
MF (pin 2 configuration) = external input, teach-in, switching signal
QL1/C = switching output, IO-Link communication
Test = test input
UB: 10 ... 30 V DC
Table 1: Connections
Wxx16x- x4 xH x5 xI
1 = BN
2 = WH
3 = BU
4 = BK
5= GY
12
4 3
0.14 mm2
AWG26
12
4 3
5
0.14 mm2
AWG26
Wxx16x- x9 xB
1 = BN
2 = BU
3 = not connected
4 = BK
5= WH
6 = GY
7 = not connected
3 4
1
2 5
6
IN = 4 A
3
7
2
16
5
4
IN = 6 A
Table 2: DC, sender
WSO16x- xxXZZxZZZ
xx1ZZ xx2ZZ xx3ZZ xx6ZZ xx7ZZ
BN + (L+)
WH -
BU - (M)
BK - Test → L+ Test → M - -
GY - - - Test → L+ Test → M

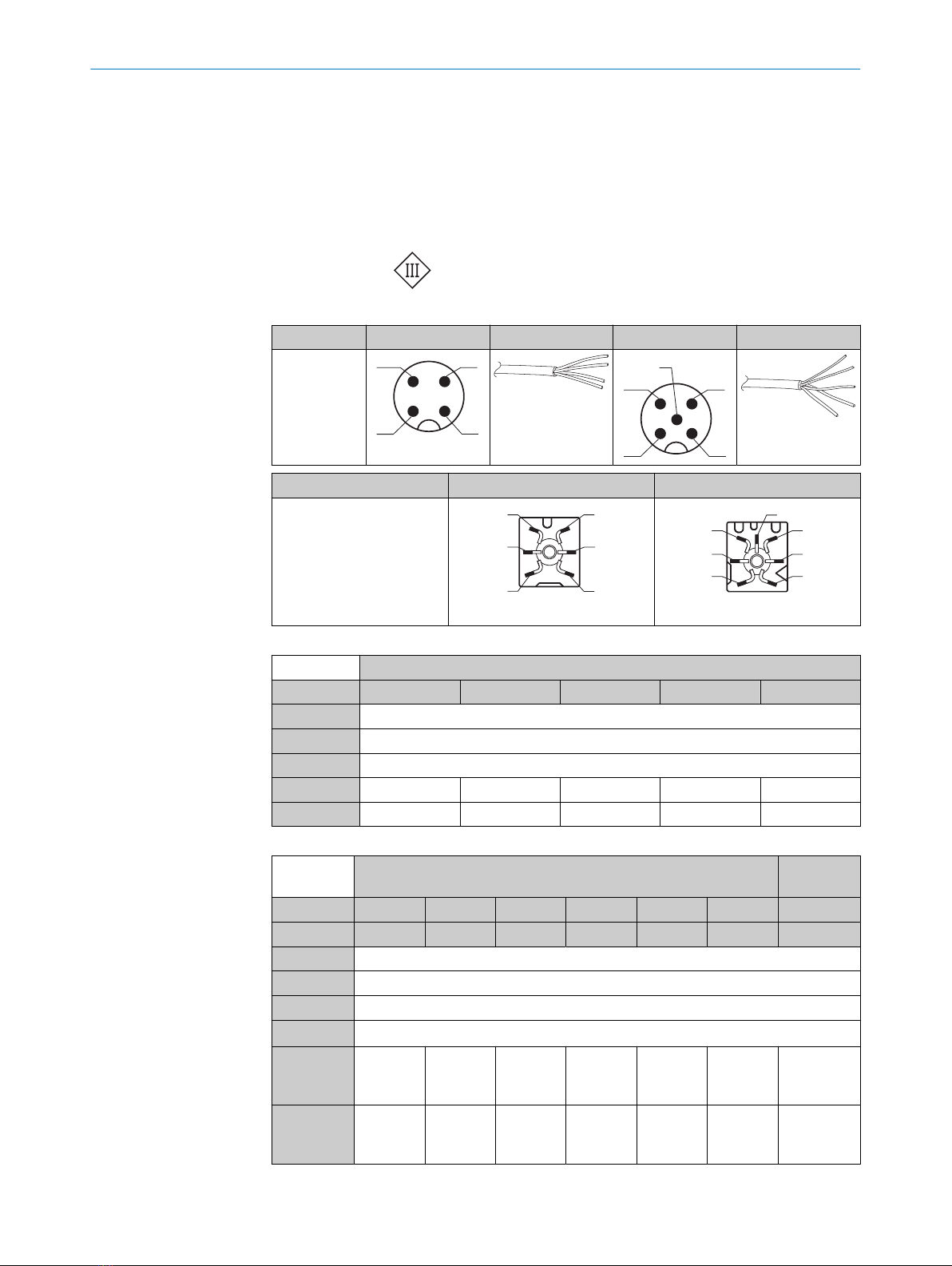

Table 3: DC, receiver
WEO16x- xxX6XxxxA00 xxX6XxxxA
01-A99
Push-pull xx162 xx161 xx163 xx165 xx16A xx16N xx16x
PNP xx862 xx861 xx863 xx865 xx86A xx86N xx86x
1 = BN + (L+)
2 = WH MF
3 = BU - (M)
4 = BK QL1/C
Default: MF QQ Alarm Alarm no func‐
tion
no func‐
tion
www.sick.c
om/
8022709
Default:
QL1/C
QQ Q QQQ www.sick.c
om/
8022709
5 ELECTRICAL INSTALLATION
68020353.19RH / 15.01.2021 | SICK
Subject to change without notice

Table 4: DC, receiver
WEO16x- xxXXXxxZZZ
Push-pull xx111 xx112 xx114 xx116
PNP xx811 xx812 xx814 xx816
BN + (L+)
WH QQHealth Health
BU - (M)
BK QQQQ
GY - - - -
Table 5: Push-pull, PNP, NPN
Push-pull
PNP
NPN
+ (L+)
Q ≤ 100 mA
‒ (M)
Push-pull
PNP
NPN
+ (L+)
Q ≤ 100 mA
‒ (M)
Push-pull
PNP
NPN
+ (L+)
Q≤ 100 mA
‒ (M)
Push-pull
PNP
NPN
+ (L+)
Q≤ 100 mA
‒ (M)
6 Additional functions
Alarm
Alarm output: The sensor (WSE16) features a pre-failure notification output (“Alarm”
in connection diagram []), which issues a notification if the sensor is only ready for
operation to a limited extent. The LED flashes in this case. Possible causes: Sensor
is contaminated, sensor is out of alignment. In the good state: LOW (0), if excessively
contaminated HIGH (1).
Alarm output: The sensor (WEO16P, WEO16I) features a pre-failure notification output
(“Alarm” in connection diagram [see table 6]), which issues a notification if the sensor
is only ready for operation to a limited extent. The LED flashes in this case. Possible
causes: Sensor is contaminated, sensor is out of alignment. In the good state: LOW (0),
if excessively contaminated HIGH (1).
ADDITIONAL FUNCTIONS 6
8020353.19RH / 15.01.2021 | SICK
Subject to change without notice 7

Health output: The sensor (WEO16P, WEO16I) features a pre-failure notification output
(“Health” in connection diagram [see table 6]), which issues a notification if the sensor
is only ready for operation to a limited extent or the cable has been interrupted.
Possible causes: Sensor is contaminated, sensor is out of alignment, cable is damaged.
In the good state: HIGH (1), if excessively contaminated or in the event of cable inter‐
ruption LOW (0). The yellow LED indicator flashes in this case.

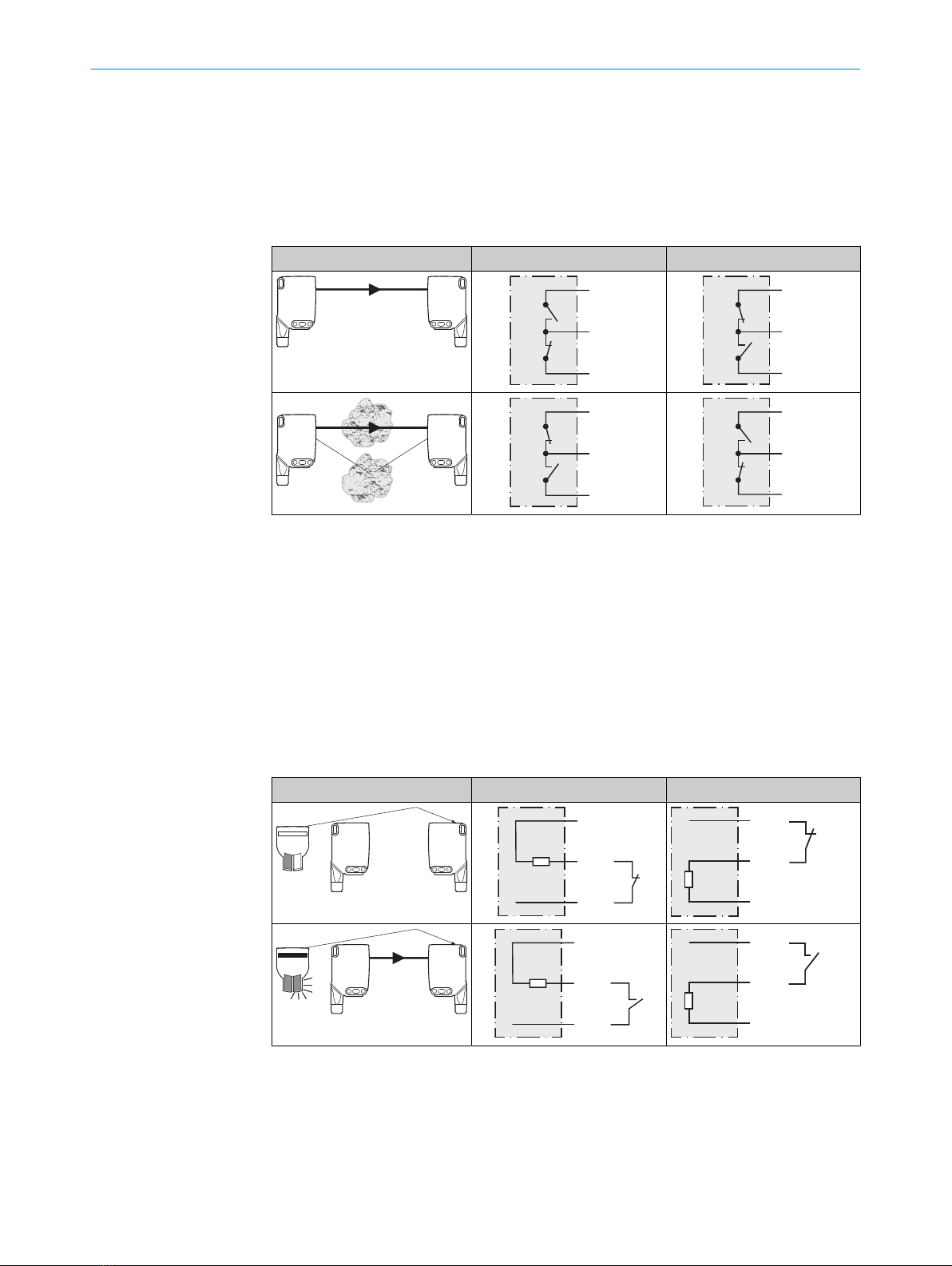

Table 6: Alarm / Health
Alarm (≤ 100 mA) Health (≤100 mA)
+ (L+)
Alarm
‒ (M)
+ (L+)
Health
‒ (M)
+ (L+)
Alarm
‒ (M)
+ (L+)
Health
‒ (M)
Test input
Test input: The sensors (WSO16P, WSO16I) feature a test input (“TI” or “Test” on
the connection diagram [table 2], which can be used to switch the sender off and,
therefore, check that the sensor is functioning correctly: If female cable connectors with
LED indicators are used, you have to ensure that the TI is assigned accordingly.
It is important that there is no object between the sender and receiver; activate the test
input (see the connection diagram table 2).
The send LED is shut down or the detection of an object is simulated. Refer to table 7
to check the function. If the switching output fails to behave in accordance with the
graphic, check the application conditions. see „Troubleshooting“, page 11.
Table 7: Test
Test → M Test → L+
+ (L+)
Test
‒ (M)
+ (L+)
Test
– (M)
+ (L+)
Test
‒ (M)
+ (L+)
Test
– (M)
6 ADDITIONAL FUNCTIONS
88020353.19RH / 15.01.2021 | SICK
Subject to change without notice

7 Commissioning
7.1 Alignment
WSO16P: Align the sender with the receiver. Select the position so that the red emitted
light beam hits the receiver. Tip: Use white paper or a reflector as an alignment aid.
The sender must have a clear view of the receiver, with no object in the path of the
beam [table]. You must ensure that the optical openings (front screen) of the sensors
are completely clear.
WSO16I: Align the sender with the receiver. Select the position so that the infrared light
(not visible) hits the receiver. The correct alignment can only be detected via the LEDs
table. The sender must have a clear view of the receiver, with no object in the path of
the beam. You must ensure that the optical openings (front screen) of the sensors are
completely clear.
Table: Alignment
Figure 2: Alignment 1
WEO
WEO
WSO
Figure 3: Alignment 2
7.2 Check the application conditions
WSE16 are through-beam photoelectric sensors that can be used at shorter distances,
in particular due to the large sensing range or the very high operating reserve.
Note application conditions: Adjust distance between sender and receiver with the
associated diagram [see table 8] (x = sensing range, y = operating reserve).
If several through-beam photoelectric sensors which are installed next to one another
are to be used, we recommend swapping the sender/receiver arrangement at every
second through-beam photoelectric sensor and ensuring that there is sufficient dis‐
tance between the through-beam photoelectric sensors. By doing this, mutual interfer‐
ence can be prevented [see figure 1].
NOTE TIP:
For some applications (e.g., when switching errors arise due to reflections), we recom‐
mend slightly misaligning the sender and receiver or significantly reducing the oper‐
ating reserve. The WSE16 can suppress switching errors under these conditions by
means of a teach-in (via IO-Link or using the Teach-in button on the housing). This
reduces the operating reserve at the same time.
COMMISSIONING 7
8020353.19RH / 15.01.2021 | SICK
Subject to change without notice 9

Table 8: Application conditions
0 10
(0.39)
20
(0.79)
30
(1.18)
40
(1.57)
50
(1.97)
1,000
100
10
1
Function reserve
Distance in m (feet)
WSE16P-xxxxx1xx, WSE16I-xxxxx1xx
Figure 4: Characteristic line 1
Sensing range
0 30
(98.43)
40
(131.23)
50
(164.04)
10
(32.81)
20
(65.62)
30 450
Sensing range typ. max.
1
Distance in m (feet)
Figure 5: Bar graph 1
7.3 Time function setting
1
0
T1
T2
M
T4
T3
t
t
t t t t
t t t t
t t t tt
t t
Input signal
0
T1
T2
T3
T4
M = Manual (specific setting via IO-Link)
1 ms 30.000 ms
2
7 COMMISSIONING
10 8020353.19RH / 15.01.2021 | SICK
Subject to change without notice

7.4 Setting light/dark switching
1
L
D
M
Llight switching
DDark switching
Mmanual (specific setting via IO-Link)
8 Process data structure
WSE16x-xxxxxxxxAxx:
A00 A70 A71 A72 A73 A75
IO-Link V1.1
Process
data
2 bytes 4 bytes
Byte 0: bits 15... 8
Byte 1: bits 7... 0
Byte 0: bits 31...
24
Byte 1: bits 13...
16
Byte 2: bits 15...
8
Byte 3: bits 7... 0
Bit 0 / Data
type
QL1 / Boolean
Bit 1 / Data
type
QL2 / Boolean Qint.1 /
Boolean
QL2 /
Boolean
Qint.1 / Boolean
Bit... /
Descrip‐
tion / Data
type
2 ...15 /
[empty]
2 ...15 /
[time mea‐
surement
value] /
UInt 14
2 … 15 /
[counter
value] /
UInt 14
2 … 15 /
[length /
speed
measure‐
ment] /
SInt14
2 /
Qint.1 /
Boolean
2 … 7 / [empty]
Bit... /
Descrip‐
tion / Data
type
3 … 15 /
[time mea‐
surement
value] /
UInt13
8 … 31 / [carrier
load] / UInt 24
9 Troubleshooting
The Troubleshooting table indicates measures to be taken if the sensor stops working.
LED indicator/fault pattern Cause Measures
WEO:Green LED flashes IO-Link communication None
COMMISSIONING 7
8020353.19RH / 15.01.2021 | SICK
Subject to change without notice 11

LED indicator/fault pattern Cause Measures
Switching outputs do not
behave in accordance with
table 5
1. Change of the configuration
2. Short-circuit
1. Adjustment of the configura‐
tion
2. Check electrical connections
Not all blue LEDs light up. a) Insufficient alignment
b) Contamination of the opti‐
cal surfaces
c) Particles in the light beam
d) Distance between sender
(WS) and receiver (WE) is
too large
a) Check alignment
b) Cleaning of the optical sur‐
faces.
c) Avoid contamination in the
air as far as possible
d) Check sensing range
No object in beam path, no
output signal
Test input (Test) is not con‐
nected properly
Check connection of the test
input. When using female cable
connectors with LED indicators,
make sure the test input is
assigned correspondingly.
Yellow LED flashes Distance between sender
(WS) and receiver (WE) is too
large / Beam of WS is not
completely on WE or WE is not
aligned to WS
Check sensing range, see
figure 5
Check alignment
Yellow LED lights up, although
an object is in the path of the
beam.
The beam of light of a pho‐
toelectric through-beam sen‐
sor hits the receiver of
another (neighboring) photo‐
electric through-beam sensor
Swap the sender and receiver
arrangement at every sec‐
ond through-beam photoelec‐
tric sensor and ensure that
there is sufficient distance
between the through-beam
photoelectric sensors
10 Disassembly and disposal
The sensor must be disposed of according to the applicable country-specific regula‐
tions. Efforts should be made during the disposal process to recycle the constituent
materials (particularly precious metals).
NOTE
Disposal of batteries, electric and electronic devices
•According to international directives, batteries, accumulators and electrical or
electronic devices must not be disposed of in general waste.
•The owner is obliged by law to return this devices at the end of their life to the
respective public collection points.
•
WEEE: This symbol on the product, its package or in this document,
indicates that a product is subject to these regulations.
11 Maintenance
SICK sensors are maintenance-free.
We recommend doing the following regularly:
•Clean the external lens surfaces
•Check the screw connections and plug-in connections
No modifications may be made to devices.
10 DISASSEMBLY AND DISPOSAL
12 8020353.19RH / 15.01.2021 | SICK
Subject to change without notice

Subject to change without notice. Specified product properties and technical data are
not written guarantees.
12 Technical data
WSE16P WSE16I
Sensing range max. 0 m ... 45 m 0 m ... 45 m
Light spot diameter/distance Ø 90 mm (8 m) Ø 110 mm (8 m)
Supply voltage UBDC 10 ... 30 V DC 10 ... 30 V
Ripple ≤ 5 VSS ≤ 5 VSS
Current consumption ≤ 30 mA1)
< 50 mA2)
≤ 30 mA1)
< 50 mA2)
Output current Imax. ≤ 100 mA ≤ 100 mA
Max. response time 500 µs3) 500 µs3)
Switching frequency 1,000 Hz4) 1,000 Hz4)
Enclosure rating5) see table 1:
x4, xH, x5, xI: IP66,
IP67, IP696)
x9, xB: IP65
see table 1:
x4, xH, x5, xI: IP66,
IP67, IP696)
x9, xB: IP65
Protection class III III
Circuit protection A, B, C, D7) A, B, C, D7)
Ambient operating temperature –40 °C ... +60 °C8) –40 °C ... +60 °C8)
1) 16 VDC to 30 VDC, without load
2) 10 VDC to 16 VDC, without load
3) Signal transit time with resistive load in switching mode. Deviating values possible in COM2 mode.
4) With a light/dark ratio of 1:1 in switching mode. Deviating values possible in IO-Link mode.
5) Pursuant to EN 60529
6) Replaces IP69 K pursuant to ISO 20653: 2013-03
7) A = UB-Anschlüsse verpolsicher
B = Ein- und Ausgänge verpolsicher
C = Störimpulsunterdrückung
D = Ausgänge überstrom- und kurzschlussfest
8) Do not bend cables below 0°C.
12.1 Dimensional drawings
4
3
2
16
(0.63)
20 (0.79)
Ø 12.9
(0.51)
Ø 4.1 (0.16)
39.9 (1.57) 55.4 (2.18)
45.5 (1.79) 5(0.2)
42 (1.65)
29.9 (0.18)
6
(0.24)
3(0.12)
6.5 (0.26)
15 (0.59)
27.8 (1.09)
7.7
(0.3)
7.8
(0.31)
7.2 (0.28)
35.5 (1.4)
4.1 (0.16)
8.3
(0.33)
55.7 (2.19)
5
20 (0.79)
Ø 12.9
(0.51)
8.3
(0.33)
34.5 (1.36)
1
Figure 6: Dimensional drawing 1, cable
1Center of optical axis, sender
2Center of optical axis, receiver
3Fixing hole Ø 4,1 mm
4Connection
5Display and setting elements
M12
15
4
3
217.5
(0.24)
20 (0.79)
18
(0.71) 16
(0.63)
Ø 4.1 (0.16)
7(0.28)
39.9 (1.57)
55.4 (2.18)
55.7 (2.19)
45.5 (1.79) 5(0.2)
29.9 (0.18)
52.9 (2.08)
6
(0.24)
3(0.12)
6.5 (0.26)
15 (0.59)
28 (1.1)
7.5
(0.3)
35.5 (1.4)
4.1 (0.16)
42 (1.65)
5
M12
1
20 (0.79)
18
(0.71) 34.5 (1.36)
Figure 7: Dimensional drawing 2, male con‐
nector
TECHNICAL DATA 12
8020353.19RH / 15.01.2021 | SICK
Subject to change without notice 13

BETRIEBSANLEITUNG
WSE16
de
en
es
fr
it
ja
pt
ru
zh

Beschriebenes Produkt
W16
WSE16
Hersteller
SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Deutschland
Rechtliche Hinweise
Dieses Werk ist urheberrechtlich geschützt. Die dadurch begründeten Rechte bleiben
bei der Firma SICK AG. Die Vervielfältigung des Werks oder von Teilen dieses Werks
ist nur in den Grenzen der gesetzlichen Bestimmungen des Urheberrechtsgesetzes
zulässig. Jede Änderung, Kürzung oder Übersetzung des Werks ohne ausdrückliche
schriftliche Zustimmung der Firma SICK AG ist untersagt.
Die in diesem Dokument genannten Marken sind Eigentum ihrer jeweiligen Inhaber.
© SICK AG. Alle Rechte vorbehalten.
Originaldokument
Dieses Dokument ist ein Originaldokument der SICK AG.
2006/42/EC
NO
SAFETY
8020353.19RH / 15.01.2021 | SICK
Subject to change without notice 15

Inhalt
13 Zu Ihrer Sicherheit............................................................................. 17
13.1 Allgemeine Sicherheitshinweise.............................................................. 17
13.2 Hinweise zur UL Zulassung...................................................................... 17
14 Bestimmungsgemäße Verwendung............................................... 17
15 Bedien- und Anzeigeelemente........................................................ 17
16 Montage.............................................................................................. 18
17 Elektrische Installation..................................................................... 18
18 Zusatzfunktionen.............................................................................. 20
19 Inbetriebnahme................................................................................. 22
19.1 Ausrichtung............................................................................................... 22
19.2 Einsatzbedingungen prüfen..................................................................... 22
19.3 Einstellung Zeitfunktionen....................................................................... 23
19.4 Einstellung Hell-/Dunkelschaltend.......................................................... 24
20 Prozessdatenstruktur........................................................................ 24
21 Störungsbehebung............................................................................ 24
22 Demontage und Entsorgung............................................................ 25
23 Wartung.............................................................................................. 25
24 Technische Daten.............................................................................. 26
24.1 Maßzeichnungen...................................................................................... 26
INHALT
16 8020353.19RH / 15.01.2021 | SICK
Subject to change without notice

13 Zu Ihrer Sicherheit
13.1 Allgemeine Sicherheitshinweise
■Lesen Sie vor der Inbetriebnahme des Geräts die Betriebsanleitung.
■
Der Anschluss, die Montage und die Konfiguration des Geräts dürfen nur
von geschultem Fachpersonal vorgenommen werden.
■
2006/42/EC
NO
SAFETY
Bei diesem Gerät handelt es sich um kein sicherheitsgerichtetes Bauteil im
Sinne der EU-Maschinenrichtlinie.
■
Installieren Sie den Sensor nicht an Orten, die direkter Sonneneinstrahlung
oder sonstigen Wettereinflüssen ausgesetzt sind, ausser dies ist in der Betriebs‐
anleitung ausdrücklich erlaubt.
■Die vorliegende Betriebsanleitung enthält Informationen, die während des Lebens‐
zyklus der Lichtschranke benötigt werden.
13.2 Hinweise zur UL Zulassung
The device shall be supplied from an isolating transformer having a secondary overcur‐
rent protective device that complies with UL 248 to be installed in the field rated either:
a) max 5 amps for voltages 0 ~ 20 V (0 ~ 28.3 V peak), or
b) 100 / Vp for voltages of 20 ~ 30 V (28.3 ~ 42.4 V peak).
Alternatively, they can be supplied from a Class 2 power supply.
UL Environmental Rating: Enclosure type 1
14 Bestimmungsgemäße Verwendung
Die WSE16 ist eine opto-elektronische Einweg-Lichtschranke (im Folgenden Sensor
genannt) und wird zum optischen, berührungslosen Erfassen von Sachen, Tieren und
Personen eingesetzt. Zum Betrieb ist ein Sender (WS) und ein Empfänger (WE) erfor‐
derlich. Bei jeder anderen Verwendung und bei Veränderungen am Produkt verfällt
jeglicher Gewährleistungsanspruch gegenüber der SICK AG.
15 Bedien- und Anzeigeelemente
WSO16x-xxxxxxA0 WEO16x-xxxxxx00 WEO16x-xxxxxx01 WEO16x-xxxxxx02
3 2
1
3 2
1
23
5
1
3 2
4
ZU IHRER SICHERHEIT 13
8020353.19RH / 15.01.2021 | SICK
Subject to change without notice 17

WEO16x-xxxxxx30 WEO16x-xxxxxx31 WEO16x-xxxxxx32
3 2
61
1
23
5
6
1
3 2
4
6
1BluePilot blau: Ausrichthilfe
2Anzeige-LED gelb: Status Lichtempfang
3Anzeige-LED grün: Betriebsspannung aktiv
4Drück-Dreh-Element: Einstellung der Zeitfunktionen
5Teach-Taste: Einstellung hell-/dunkelschaltend
6Teach-Taste: Einstellung der Empfindlichkeit
16 Montage
Sensoren (Sender und Empfänger) an geeignete Befestigungswinkel montieren (siehe
SICK-Zubehör-Programm). Sender und Empfänger zueinander ausrichten.
HINWEIS
Bei jeder zweiten Einweg-Lichtschranke die Anordnung von Sender und Empfänger
tauschen, bzw. genügend Abstand zwischen den Einweg-Lichtschranken einhalten.
Receiver (WE)
Receiver (WE)
Sender (WS)
Sender (WS)
Sender (WS)
Receiver (WE)
Abbildung 8: Anordnung von mehreren Einweg-Lichtschranken
Maximal zulässiges Anzugsdrehmoment des Sensors von < 1,3 Nm beachten.
17 Elektrische Installation
Anschluss der Sensoren muss spannungsfrei erfolgen. Je nach Anschlussart sind die
folgenden Informationen zu beachten:
– Steckeranschluss: Pinbelegung beachten.
– Leitung: Adernfarbe
Erst nach Anschluss aller elektrischen Verbindungen die Spannungsversorgung anlegen
bzw. einschalten.
Erläuterungen zum Anschlussschema:
16 MONTAGE
18 8020353.19RH / 15.01.2021 | SICK
Subject to change without notice

Alarm = Alarmausgang
Health = Alarmausgang
MF (Pin-2-Konfiguration) = Externer Eingang, Teach-in, Schaltsignal
QL1/C = Schaltausgang, IO-Link Kommunikation
Test = Testeingang
UB: 10 ... 30 V DC
Tabelle 9: Anschlüsse
Wxx16x- x4 xH x5 xI
1 = BN
2 = WH
3 = BU
4 = BK
5= GY
12
4 3
0.14 mm2
AWG26
12
4 3
5
0.14 mm2
AWG26
Wxx16x- x9 xB
1 = BN
2 = BU
3 = not connected
4 = BK
5= WH
6 = GY
7 = not connected
3 4
1
2 5
6
IN = 4 A
3
7
2
16
5
4
IN = 6 A
Tabelle 10: DC, Sender
WSO16x- xxXZZxZZZ
xx1ZZ xx2ZZ xx3ZZ xx6ZZ xx7ZZ
BN + (L+)
WH -
BU - (M)
BK - Test → L+ Test → M - -
GY - - - Test → L+ Test → M
Tabelle 11: DC, Empfänger
WEO16x- xxX6XxxxA00 xxX6Xxxx‐
A01-A99
Push-pull xx162 xx161 xx163 xx165 xx16A xx16N xx16x
PNP xx862 xx861 xx863 xx865 xx86A xx86N xx86x
1 = BN + (L+)
2 = WH MF
3 = BU - (M)
4 = BK QL1/C
Default: MF QQ Alarm Alarm no func‐
tion
no func‐
tion
www.sick.c
om/
8022709
Default:
QL1/C
QQ Q QQQ www.sick.c
om/
8022709
ELEKTRISCHE INSTALLATION 17
8020353.19RH / 15.01.2021 | SICK
Subject to change without notice 19
