Siegenia AERO Series User manual

AERO
Sound absorbing ventilator.
AEROMAT VT
Window systems
Door systems
Comfort systems
ORIGINAL OPERATING
INSTRUCTIONS

Original operating instructions AEROMAT VT
10.2018 3
Contents
1. Target group of this documentation ........................................................................................................................................... 4
2. Intended use................................................................................................................................................................................ 4
3. Dimensions.................................................................................................................................................................................. 5
4. Safety notes ................................................................................................................................................................................ 6
5. Scope of delivery / equipment .................................................................................................................................................. 7
6. Installation................................................................................................................................................................................... 8
7. Mains supply ............................................................................................................................................................................11
8. Unit function ..............................................................................................................................................................................13
9. Membrane key and LED display ..............................................................................................................................................13
10. Operation...............................................................................................................................................................................14
11. Care and maintenance ..........................................................................................................................................................17
12. Rectification of malfunctions ..................................................................................................................................................20
13. Technical specifications..........................................................................................................................................................21
14. Feedback on documentation .................................................................................................................................................22
15. EU Declaration of Conformity with regard to CE marking....................................................................................................23

4
AEROMAT VT Original operating instructions
10.2018
1. Target group of this documentation
• This documentation is intended for use by specialists and end users.
• All instructions concerning assembly, installation and repairs described in this document are to be performed exclusively
by experienced professionals with training and practice in the installation, commissioning, servicing and maintenance of
decentralised ventilation units.
• All instructions on operation, care and maintenance as well as the rectification of malfunctions described here are
intended for specialists end users.
• After the successful assembly and installation, the installation company is committed to handing over the operating
instructions to the end user.
2. Intended use
• The AEROMAT VT is intended for installation in the exterior windows/walls of permanent structures in accordance with
our installation and design documents and the specifications of our operating instructions and is only suitable for the
ventilation of enclosed rooms.
• The AEROMAT VT must be installed in the intended installation position (horizontal or vertical). The intended installation
position results from the weather grille preassembled in the factory.
Weather grille: 911 HW
Installation position:
Horizontal
Weather grille: 911 HW-g
(concealed installation in the wall)
Installation position:
Horizontal
Weather grille: 911 CW
Installation position:
Horizontal
Weather grille: 911 HS
Installation position:
Vertical
Weather grille: 911 CS
Installation position:
Vertical
• Do not use the AEROMAT VT in environments with corrosive or explosive atmospheres (dust, vapour or gas).
• Do not install the unit in contaminated rooms and ensure that no hazardous substances can be drawn in.

Original operating instructions AEROMAT VT
10.2018 5
• The AEROMAT VT may be installed in damp locations in protection class 2; however, the socket used must be in at least
protection class 3.
• If the AEROMAT VT is to be used in a room with a heating unit that draws air from the room, prior authorisation must be
obtained from the proper authorities, such as the officially appointed district chimney sweep. Intended use requires that
any combustion air lines and exhaust gas systems of solid fuel heating units must be able to be shut off.
• Only operate and/or store the AEROMAT VT at temperatures between ‒ 15°C and +40°C.
• Use the AEROMAT VT only with genuine accessories from SIEGENIA.
• Comply with the safety regulations for operating electrical equipment and, if necessary, for ladders, steps and work
overhead or at certain heights.
• Use the AEROMAT VT only when it is in a technically sound condition.
• Do not modify the unit's components in any way.
• Ensure that the device's ventilation openings are kept free and are not blocked by other equipment, furniture or objects.
• Please do not put any objects on top of the unit.
• If the AEROMAT VT is fitted with filters, you must make sure that these cannot become the source of elements that are
odorous and harmful to health; this also includes regular inspection and replacement of filters.
• In the event of a fault, the AEROMAT VT is only to be repaired by experienced specialists with training and practice in the
repair of ventilation units.
• Any use or application of this product that is not in accordance with its proper use, or any adaptation of or modifications
made to the product and its associated components, for which the express consent of SIEGENIA has not been obtained,
are strictly prohibited. SIEGENIA accepts no liability whatsoever for any material losses or injury to people caused by
failure to comply with this stipulation.
3. Dimensions
• All the dimensions in this documentation are specified in millimeter (mm).

6
AEROMAT VT Original operating instructions
10.2018
4. Safety notes
Type RS1
• This unit can be used by children aged 8 and above as well as by people with physical, sensory or mental difficulties or
with a lack of experience and knowledge as long as they are supervised or have been instructed in how to use the unit
safely and understand the resulting risks. Children must not play with the unit. Cleaning and user maintenance may not be
carried out by unsupervised children.
• Electrically operated unit. Risk of fatal injury from electric shock or fire.
To prevent personal injury or damage to property, always comply with the following instructions:
- Work on a 230 V AC mains power supply may only be performed by a qualified electrician.
- If the mains connection cable for the unit is damaged, it must be replaced by SIEGENIA, the company's customer service
department, or similarly qualified personnel in order to prevent personal injury or damage to property.
- All-pole safety isolation is required if the customer is routing the network connection cable.
- All work on the 230 V AC mains power supply must be carried out in compliance with the current German VDE regulations
(e.g., VDE 0100) and any relevant country-specific requirements.
- Relevant country-specific regulations must be strictly followed for all work carried out on the voltage supply system or house
wiring system.
- Should a solid object or any liquid get inside the unit, stop operation immediately and disconnect the AEROMAT VT from the
mains power supply:
Check whether the AEROMAT VT is damaged
If necessary, repair work can be performed by experienced professionals
• Hazard due to third party attacks on SIEGENIA WLAN devices! Please observe the following notes to protect your
system against attacks by third parties:
- Every SIEGENIA WLAN device is protected by two passwords (user and administrator). It is essential that you change these
passwords after the initial setup. Do not leave in the default setting.
- If the SIEGENIA WLAN devices are integrated in your home WLAN, this must be encrypted for operation.
- Please choose secure passwords consisting of lower case and capital letters, numbers and special symbols.

Original operating instructions AEROMAT VT
10.2018 7
5. Scope of delivery / equipment
Item Designation AEROMAT VT
DSg DS1 DS2 RS1 RS smart
Scope of delivery
1Unit
2Original operating instructions
3Quick start instructions
SIEGENIA Comfort App* ————
Function
Operation via SIEGENIA Comfort app ————
Optional electrical locking slider () ( ) ( ) ( ) ( )
* The quick start instructions for the SIEGENIA Comfort app are located behind the front panel (To open the front panel, see
page 18).
2 31

8
AEROMAT VT Original operating instructions
10.2018
6. Installation
6.1 Prerequisites for installation
• The position from which the outdoor air is drawn in must be selected so that any nearby emission sources have as little
impact as possible on the quality of the air being drawn in.
• The maximum permissible area load is 1,000 kg per running metre of ventilator length.
• Installation options:
Installation in the window sill Concealed installation in the
window sill
Concealed installation in the wall
with wall duct
Installation in the window lintel Concealed installation in the
window lintel
Vertical installation next to the window

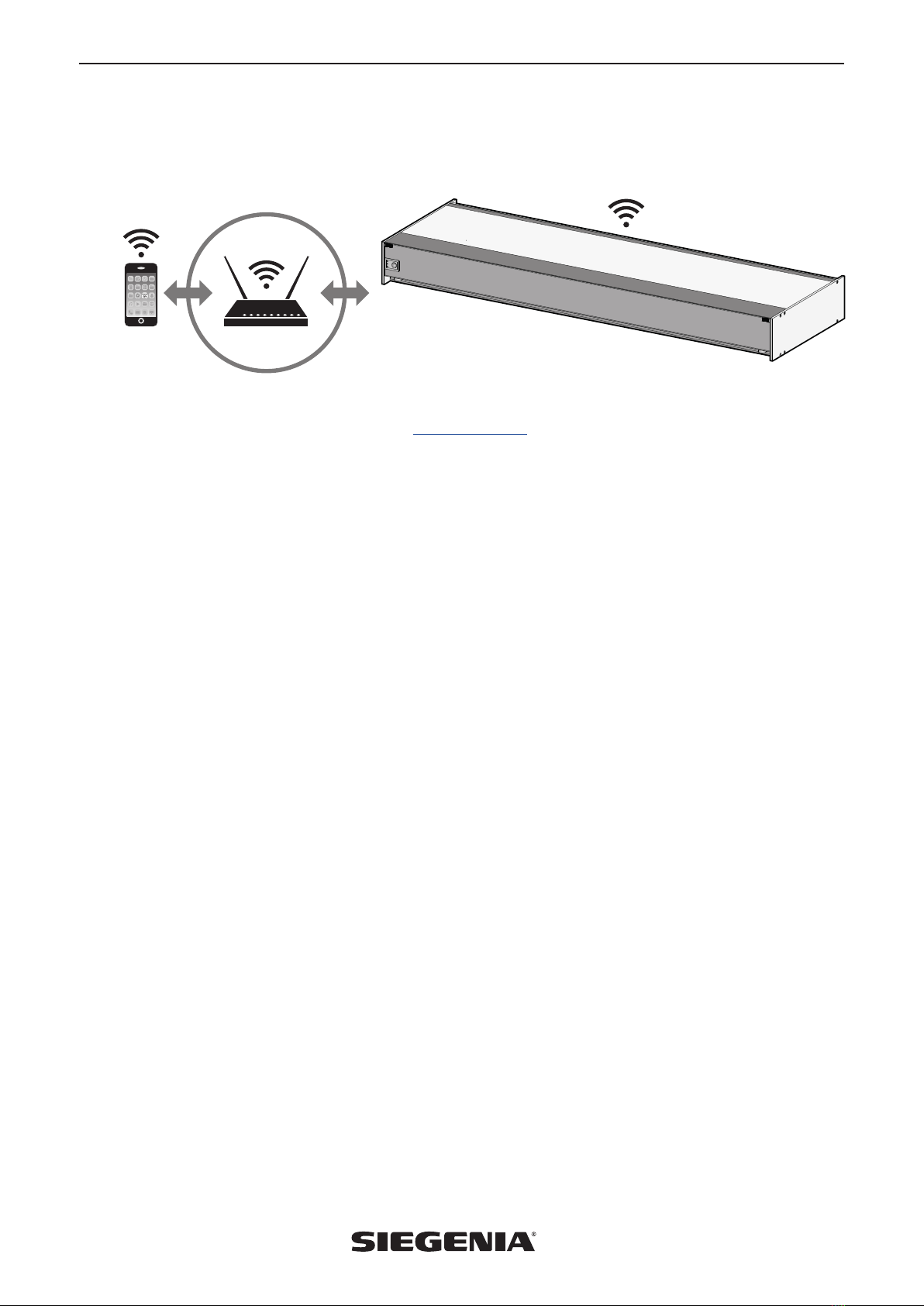

6.2 Additional requirements for AEROMAT VT RS smart
• The AEROMAT VT RS smart should be installed to be as free from interference as possible.
The following interferences can have a negative influence on the WLAN signal:
- Water pipes
- Stone and concrete walls
- Metal objects
- Air conditioning units
- Wireless devices (e. g. radio telephones, baby monitors, Bluetooth loudspeakers, etc.)
- WLAN networks on the same wireless channels (e. g. the neighbour's WLAN router)
• If energy-carrying cables are routed in parallel to data cables (ISDN, DSL, etc.), this could lead to interference e.g. in the
speed of the data transmission.
AEROMAT VT
AEROMAT VT
AEROMAT VT
AEROMAT VT
AEROMAT VT
AEROMAT VT

Original operating instructions AEROMAT VT
10.2018 9

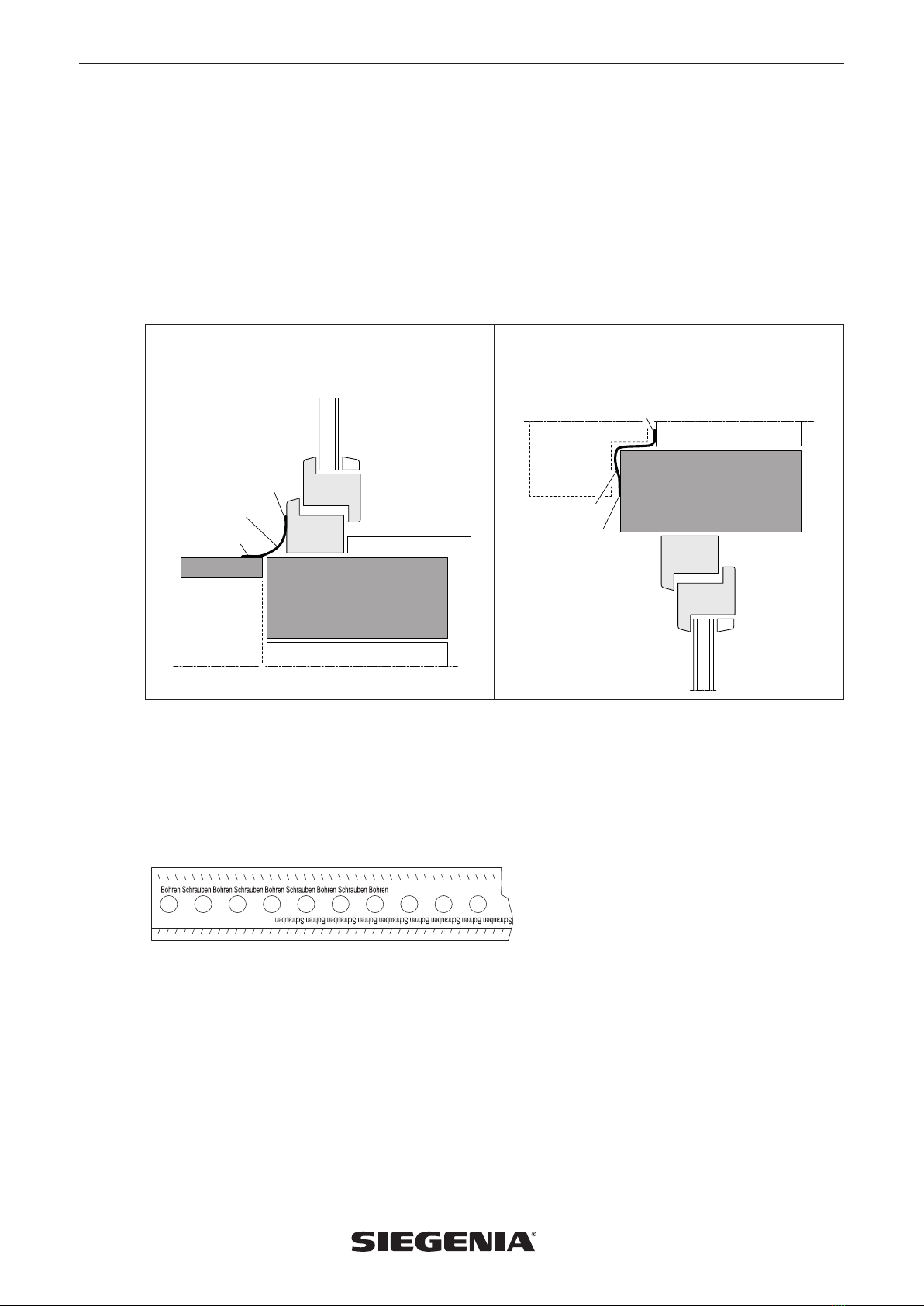

6.3 Installation sequence
1. Remove the AEROMAT VT carefully from the packaging and do not place it on the weather grille or front panel. We
recommend storing the unit on a soft surface (e.g. cardboard or sheet) during installation.
2. Close the sliders on the front to prevent dirt (e.g. dust) from entering the unit during installation. If the AEROMAT VT does
not have sliders, tape up the recesses in the front panel with film.
3. Make sure that no dirt and liquids can get inside the AEROMAT VT including the weather grille prior to the installation of
the exterior insulation or cladding.
Attention! According to the installation location, it is therefore necessary to adhere the AEROMAT VT at points where rain
could permeate.
Example
"Concealed installation in the wall
with wall duct"
Example
"Concealed installation in the lintel"
AEROMAT VT
Film
Adhesive tape
Exterior insulation
Adhesive tape
AEROMAT VT
Exterior insulation
Film
Adhesive tape
Adhesive tape
4. Install the AEROMAT VT in its intended installation position and seal it in accordance with the installation directives
applicable on site.
5. Check AEROMAT VT for cleanliness prior to starting it up. Clean if necessary (see "maintenance and care" on page
17).
Attention! Only drill in through-holes for wall plugs and screws in the area indicated (see marker tape).
Important! Remove any marker tape that is visible after installation.
6.4 Interruption of installation work
› Prior to stopping work or while work is interrupted, protect open ends or areas so that no dust or moisture can enter.

10
AEROMAT VT Original operating instructions
10.2018
6.5 Mounting angle
› Screw on the mounting bracket in the area indicated (marker tape) or fasten it to the casing profiles with a rivet. We
recommend that you use SIEGENIA aluminium mounting angles.
AEROMAT VT with 911 CW weather grille
AEROMAT VT with 911 HW weather grille
Dimension Meaning
aMounting area for bracket
bScrew and drilling area (e.g. for wall plugs or mounting screws)
cOverall depth
ABracket 20 x 20 x 2 (optional)
BZ profile (optional)
CStop profile (optional)
6.6 Z profile
› First, fix the Z profile (optional) to the weather grille using double-sided tape, then drill and rivet it.

Original operating instructions AEROMAT VT
10.2018 11
7. Mains supply
Depending on the design, the AEROMAT VT is connected to a suitable socket of the 230-V AC mains power supply using the
Euro plug or directly to the 230-V AC mains power supply using an external switch.
7.1 Socket connection
Important: When installed in damp locations, the socket for the AEROMAT VT must be installed in at least protection
class3.
› Insert the Euro plug into a suitable 230-V AC mains power supply.
7.2 External switch connection
Exposed electrical components.
Risk of fatal injury from electric shock or fire.
› Work on a 230 V AC mains power supply may only be performed by a qualified electrician.
› All work on the 230 V AC mains power supply must be carried out in compliance with the current German VDE
regulations (e.g. VDE 0100) and any relevant country-specific requirements.
› Switch off or unscrew the security devices.
Important: If the AEROMAT VT is connected directly to the 230-V AC mains power supply, the customer must install a
mains isolator.

12
AEROMAT VT Original operating instructions
10.2018
7.3 Type DS wiring scheme with external switch and internal electrical closer
L1 N
18
17
16
15
13
11
10
9
8
7
14
12
654321
4321
S1
Flat ribbon cable
20 V∼
20 V∼
Red
Black
Yellow
Red
Black
Yellow
Supply air +
Supply air ―
Exhaust air +
Exhaust air ―
+ 24 V button button button Level 2 Level 1
Inputs
Blower
Supply
air
Exhaust
air
Slider Trans-
former
Transformer
2
1 3
Cable no. Colour
1 Black
2 Blue
3 Brown
7.4 Wiring diagrams type RS1
3-stage rotary switch Series switch
L1 N
18
17
16
15
13
11
10
9
8
7
14
12
654321
4321
S1
0
321
Level 1
Flat ribbon cable
20 V∼
20 V∼
Red
Black
Yellow
Red
Black
Yellow
Supply air +
Supply air ―
Exhaust air +
Exhaust air ―
+ 24 V button button button Level 2 Level 1
Inputs
Blower
Supply
air
Exhaust
air
Slider Trans-
former
Transformer
Level 2 Level 3
Black Grey White Blue Brown
L1 N
18
17
16
15
13
11
10
9
8
7
14
12
654321
4321
S1 S2
Level 1
Flat ribbon cable
20 V∼
20 V∼
Red
Black
Yellow
Red
Black
Yellow
Supply air +
Supply air ―
Exhaust air +
Exhaust air ―
+ 24 V button button button Level 2 Level 1
Inputs
Blower
Supply
air
Exhaust
air
Slider Trans-
former
Transformer
Level 2
Level 3
Black Grey Blue Brown
Switch Value Colour Switch Value Colour
S1
Blower level 1 Black S1 Blower level 1 Black
Blower level 2 Grey S2 Blower level 2 Grey
Blower level 3 White
(Power level)

Original operating instructions AEROMAT VT
10.2018 13
8. Unit function
8.1 Operation by pressure differential: (DS/DSg type)
• The room is ventilated through compensation of the indoor and outdoor air pressures (pressure differential). As this
happens, the air normally flows into the room from outside.
• The air flow into the room varies as the wind pressure changes with the weather.
• With the optional internal electrical closer, the unit is opened and closed using e.g. an external switch.
8.2 Ventilator operation (type RS1)
• The AEROMAT VT RS1 is either equipped with 1 or 2 supply air fans and/or with 1 or 2 exhaust air fans.
• Supply air blower (depending on the the equipment): The outside air is drawn in through the supply air blower and enters
the room as supply air.
• Exhaust air blower (depending on the equipment): The exhaust air is drawn in through the exhaust air blower and makes
its way outside as outgoing air.
• When the blower is switched off, the Type RS1 AEROMAT VT functions as a pressure differential ventilator.
9. Membrane key and LED display
9.1 Operating status
Membrane key/LED Operating status
Blower level 0 (device is switched off)
1 LED lights up red Blower level 1
2 LEDs light up red Blower level 2
2 LEDs flash red Blower level 3 (power level)
9.2 Filter change display
Depending on the equipment, the filter change is displayed in addition to the current operating mode.
Membrane key/LED Malfunction Solution
Membrane key flashes
blue Filter soiled
Replace the filter (see page 18)
Please note: M5 filters must replaced not
cleaned.

14
AEROMAT VT Original operating instructions
10.2018
10. Operation
10.1 Ventilation without fans (type DS/DSg and RS1)
1. Open sliders*
10.2 Ventilation with fans (type RS1)
Note: Depending on the design, the membrane key is positioned on either the left or right in the AEROMAT VT. If it is on the
right, the membrane key is turned 180° (see figure). If it is located on the right-hand side, the membrane key is turned 180°
(see figure).
1. Open sliders*
2. Set the required blower level using either the membrane key or the external switch
*Control cord operation (optional): When the slider is operated using control cords, you move the slider into the position you require
by alternately pulling on the two control cords.
2.
1.
Membrane key
(left)
Membrane key
(right)

Original operating instructions AEROMAT VT
10.2018 15
10.2.1 Setting the blower level (using the membrane key)
• You can activate the required blower levels by pressing the membrane key several times (relaying).
• After a power failure, the AEROMAT VT RS1 switches to the last level to be used.
Switching sequence
Blower level 0 Blower level 1 Blower level 2 (Power level)
10.2.2 Setting the blower level (using the external switch)
• You can activate the required blower levels directly by pressing the external switch (without relaying).
• Attention! If the membrane key is pressed when an external switch is installed, the next blower level will be activated
(for switching sequence see page 15). Pressing the external switch again takes you back to the required blower level.
• After a power failure, the AEROMAT VT RS1 switches to the last level to be used.
3-stage rotary switch
Recommendation: use a 3-stage rotary switch provided onsite.
01
2
3
01
2
3
01
2
3
01
2
3
Blower level 0 Blower level 1 Blower level 2 (Power level)
Series switch
Recommendation: use the SIEGENIA type VT series switch (material number: 131322)
0 0
1 2
-Au- -to-
00
12
-Au- -to-
00
12
-Au- -to-
Blower level 0 Blower level 1 Blower level 2

16
AEROMAT VT Original operating instructions
10.2018
10.3 Operation via smartphone or tablet (AEROMAT VT smart only)
AEROMAT VT smart can be controlled via tablet or smartphone and offers additional device functions via the SIEGENIA
Comfort app.
11.3.1 Teaching in the device
Please follow the enclosed quick start instructions (H47.MOTS005EN) to integrate the device in your home WIFI.
11.3.2 Device functions in the app
Blower performance
• The blower performance can be set manually.
Warning (replace filter)
• As soon as a filter replacement is required, this will be indicated as a warning.

Original operating instructions AEROMAT VT
10.2018 17
11. Care and maintenance
Electrically operated unit.
Risk of fatal injury from electric shock or fire.
To prevent personal injury or damage to property, always comply with the following instructions:
› Pull the mains plug out of the socket prior to every cleaning process or maintenance work. Never pull at the cable to
disconnect the device from the electricity grid.
› For all devices with a fixed connection to the 230 V AC mains power supply, switch off all poles of the feeder. The fuses
may need to be removed.
11.1 Cleaning
Important: When cleaning the AEROMAT VT, do not allow liquids to get inside the unit.
• Never use cleaning agents that are aggressive or contain solvents, or sharp-edged objects, as these may damage the
surfaces of the casing.
• Never clean the unit with a high-pressure cleaner or steam-jet cleaner.
• Clean the AEROMAT VT with a cloth moistened with a mild soap solution or cleaning agent.
• Always clean the G3 dust filter manually (e.g. with a vacuum cleaner, wash out using a grease-dissolving cleaning
agent). Do not wash the filter in a washing machine!
11.2 Maintenance intervals
Component Check and clean Replace
Insect screen Every 6 months ―
Air ducts (foam elements)1) Every 12 months Depending on the level of soiling
M5 filter1) ―Every 12 months or when the filter
change notification illuminates
G3 Filter Every 12 months or when the filter
change notification illuminates
Depending on the level of soiling
1) M5 filters must replaced not cleaned. Only use genuine filters from SIEGENIA. You can purchase replacement filters from
SIEGENIA or from specialist retailers.

18
AEROMAT VT Original operating instructions
10.2018
11.3 Replacing the air canal and the filter (optional)
11.3.1 Removing the front panel
The figure below shows the opening direction for a AEROMAT VT that has been installed horizontally.Note: The number and
position of the components can deviate from the figure. Be sure to note the arrangement of the internal parts for special
models that do not correspond to the illustration.
1. Open the sliders on the right and left (or in the middle according to design)
2. Pull out the front panel
3. Slide the membrane key out sideways (if present)
4. Remove the front panel and place it on a soft surface (cardboard, sheet)
1.
2.
3.
4.
11.3.2 AEROMAT VT (Type DSg)
1. Remove the front panel (see also "Removing the front panel" page 18)
2. Remove air canal/foam elements and clean or replace
3. Reassemble the AEROMAT VT in the reverse order
2.

Original operating instructions AEROMAT VT
10.2018 19
11.3.3 AEROMAT VT (Type DS and RS1)
1. Pull out the mains plug or switch off the safety device for the power supply cable
2. Remove the front panel (see also "Removing the front panel" page 18)
3. Remove front profile insulation and filter
4. Remove the foam
5. Remove the supporting plate, to do this, press the top toward the interior of the unit and pull out of the bottom
6. Open the transformer compartment and release the blower cable from the circuit board
7. Carefully take out the air canal/foam element and remove the blower
8. If necessary, clean the blower using compressed air only
9. Insert blower in the new air canal
10.Reassemble the AEROMAT VT in the reverse order
11.After replacing the filter, hold down the membrane key for 5 seconds to reset the LED indicator (filter replacement
indicator)
4.
5.
7.
3.
Supply air (RS)
Exhaust air (RS)
(DS)
with internal electrical closer
with flap trap
Foam insulation
G3 / M5 Filter Front profile insulation

20
AEROMAT VT Original operating instructions
10.2018
12. Rectification of malfunctions
In case of a malfunction, do not open the device or try to repair it under any circumstances.
If the problem is not listed in the table below, please contact your installation firm or SIEGENIA directly: Tel. +49 271
3931-0
Problem Possible cause Solution
AEROMAT VT shows no reaction when
button is pressed
No power supply Check power supply
Wiring wrong/defective or cable
defective
Have the wiring checked by a qualified
electrician
Power supply defective Have the supply voltage checked by a
qualified electrician
AEROMAT VT smart does not respond
to smartphones/tablets
No WLAN connection to the router of
the home network
Restart WLAN router of the home
network
No WLAN connection to the smartpho-
ne/tablet Restart smartphone/tablet
No WLAN connection to the
AEROMAT VT smart
Reset on the AEROMAT VT smart:
1. Press membrane key 3 times briefly
in succession
2. Then immediately press and hold the
membrane key once (for approx. 4
seconds)
3. The AEROMAT VT smart has been
reset to the factory settings.
12.1 SIEGENIA Comfort App
You will find detailed operating information as well as information on how to rectify disturbances on the SIEGENIA Smartho-
me Internet page.
https//smarthome.siegenia.com
