Siegenia AEROMAT VT WRG 1100 User manual

AERO
Sound absorbing ventilator with heat recovery.
AEROMAT VT WRG 1100
Window systems
Door systems
Comfort systems
ORIGINAL OPERATING
INSTRUCTIONS

Original operating instructions AEROMAT VT WRG 1100
10.2018 3
Contents
1. Target group of this documentation ........................................................................................................................................... 4
2. Intended use................................................................................................................................................................................ 4
3. Dimensions.................................................................................................................................................................................. 5
4. Safety notes ................................................................................................................................................................................ 5
5. Scope of delivery / equipment .................................................................................................................................................. 6
6. Installation................................................................................................................................................................................... 7
7. Mains supply ............................................................................................................................................................................10
8. Unit function ..............................................................................................................................................................................12
9. Membrane key and LED display..............................................................................................................................................13
10. Commissioning.......................................................................................................................................................................14
11. Operation...............................................................................................................................................................................14
12. Care and maintenance ..........................................................................................................................................................18
13. Rectification of malfunctions ..................................................................................................................................................23
14. Accessories.............................................................................................................................................................................23
15. Technical specifications..........................................................................................................................................................24
16. Feedback on documentation .................................................................................................................................................25
17. EU Declaration of Conformity with regard to CE marking....................................................................................................26

4
AEROMAT VT WRG 1100 Original operating instructions
10.2018
1. Target group of this documentation
• This documentation is intended for use by specialists and end users.
• All instructions concerning assembly, installation and repairs described in this document are to be performed exclusively
by experienced professionals with training and practice in the installation, commissioning, servicing and maintenance of
decentralised ventilation units.
• All instructions on operation, care and maintenance as well as the rectification of malfunctions described here are
intended for specialists end users.
• After the successful assembly and installation, the installation company is committed to handing over the operating
instructions to the end user.
2. Intended use
• The AEROMAT VT WRG 1100 is intended for installation in the exterior windows/walls of permanent structures in
accordance with our installation and design documents and the specifications of our operating instructions and is only
suitable for the ventilation of enclosed rooms.
• The AEROMAT VT WRG 1100 must be installed in the intended installation position (horizontal or vertical). The intended
installation position results from the weather grille preassembled in the factory.
Weather grille: 911 HW
Installation position:
Horizontal
Weather grille: 911 HW-g
(concealed installation in the
wall)
Installation position:
Horizontal
Weather grille: 911 CW
Installation position:
Horizontal
• Do not use the AEROMAT VT WRG 1100 in environments with corrosive or explosive atmospheres (dust, vapour or gas).
• Do not install the unit in contaminated rooms and ensure that no hazardous substances can be drawn in.
• The AEROMAT VT WRG 1100 may be installed in damp locations in protection class 2; however, the socket used must
be in at least protection class 3.
• If the AEROMAT VT WRG 1100 is to be used in a room with a heating unit that draws air from the room, prior
authorisation must be obtained from the proper authorities, such as the officially appointed district chimney sweep.
Intended use requires that any combustion air lines and exhaust gas systems of solid fuel heating units must be able to be
shut off.
• Only operate and/or store the AEROMAT VT WRG 1100 at temperatures between ‒ 15°C and +40°C.
• Use the AEROMAT VT WRG 1100 only with genuine accessories from SIEGENIA.
• Comply with the safety regulations for operating electrical equipment and, if necessary, for ladders, steps and work
overhead or at certain heights.
• Use the AEROMAT VT WRG 1100 only when it is in a technically sound condition.
• Do not modify the unit's components in any way.
• Ensure that the device's ventilation openings are kept free and are not blocked by other equipment, furniture or objects.

Original operating instructions AEROMAT VT WRG 1100
10.2018 5
• Please do not put any objects on top of the unit.
• If the AEROMAT VT WRG 1100 is fitted with filters, you must make sure that these cannot become the source of elements
that are odorous and harmful to health; this also includes regular inspection and replacement of filters.
• In the event of a fault, only have the AEROMAT VT WRG 1100 repaired by experienced specialists with training and
practice in the repair of ventilation units.
• Any use or application of this product that is not in accordance with its proper use, or any adaptation of or modifications
made to the product and its associated components, for which the express consent of SIEGENIA has not been obtained,
are strictly prohibited. SIEGENIA accepts no liability whatsoever for any material losses or injury to people caused by
failure to comply with this stipulation.
3. Dimensions
• All the dimensions in this documentation are specified in millimeter (mm).
4. Safety notes
• This unit can be used by children aged 8 and above as well as by people with physical, sensory or mental difficulties or
with a lack of experience and knowledge as long as they are supervised or have been instructed in how to use the unit
safely and understand the resulting risks. Children must not play with the unit. Cleaning and user maintenance may not be
carried out by unsupervised children.
• Electrically operated unit. Risk of fatal injury from electric shock or fire.
To prevent personal injury or damage to property, always comply with the following instructions:
- Work on a 230 V AC mains power supply may only be performed by a qualified electrician.
- If the mains connection cable for the unit is damaged, it must be replaced by SIEGENIA, the company's customer service
department, or similarly qualified personnel in order to prevent personal injury or damage to property.
- All-pole safety isolation is required if the customer is routing the network connection cable.
- All work on the 230 V AC mains power supply must be carried out in compliance with the current German VDE regulations
(e.g., VDE 0100) and any relevant country-specific requirements.
- Relevant country-specific regulations must be strictly followed for all work carried out on the voltage supply system or house
wiring system.
- Should a solid object or any liquid get inside the unit, stop operation immediately and disconnect the
AEROMAT VT WRG 1100 from the mains power supply:
Check whether the AEROMAT VT WRG 1100 is damaged
If necessary, repair work can be performed by experienced professionals
• Hazard due to third party attacks on SIEGENIA WLAN devices! Please observe the following notes to protect your
system against attacks by third parties:
- Every SIEGENIA WLAN device is protected by two passwords (user and administrator). It is essential that you change these
passwords after the initial setup. Do not leave in the default setting.
- If the SIEGENIA WLAN devices are integrated in your home WLAN, this must be encrypted for operation.
- Please choose secure passwords consisting of lower case and capital letters, numbers and special symbols.

6
AEROMAT VT WRG 1100 Original operating instructions
10.2018
5. Scope of delivery / equipment
Item Designation AEROMAT VT WRG 1100 AEROMAT VT WRG 1100
smart
Var.1 Var. 2 Var. 3 Var. 4
Scope of delivery
1Unit
2Translation of the original operating
instructions
3SIEGENIA Comfort app*
quick start instructions — —
Function
Heat recovery
Automatic mode — —
Air quality sensor and/or
Temperature and humidity sensor — —
Operation via SIEGENIA Comfort app — —
Optional electrical locking slider () ( ) ( ) ( )
* The quick start instructions for the SIEGENIA Comfort app are located behind the front panel (To open the front panel, see
page 19).
2 31
-

Original operating instructions AEROMAT VT WRG 1100
10.2018 7
6. Installation
6.1 Prerequisites for installation
• The position from which the outdoor air is drawn in must be selected so that any nearby emission sources have as little
impact as possible on the quality of the air being drawn in.
• The maximum permissible area load is 1,000 kg per running metre of ventilator length.
• Installation options:
Installation in the window sill Concealed installation in the wall
with wall duct
Installation in the window lintel Concealed installation in the window lintel
6.2 Additional requirements for AEROMAT VT WRG 1100 smart
• The AEROMAT VT WRG 1100 smart should be installed to be as free from interference as possible.
The following interferences can have a negative influence on the WLAN signal:
- Water pipes
- Stone and concrete walls
- Metal objects
- Air conditioning units
- Wireless devices (e. g. radio telephones, baby monitors, Bluetooth loudspeakers, etc.)
- WLAN networks on the same wireless channels (e. g. the neighbour's WLAN router)
• If energy-carrying cables are routed in parallel to data cables (ISDN, DSL, etc.), this could lead to interference e.g. in the
speed of the data transmission.
AEROMAT VT
AEROMAT VT
AEROMAT VT
AEROMAT VT

8
AEROMAT VT WRG 1100 Original operating instructions
10.2018
6.3 Installation sequence
1. Remove the AEROMAT VT WRG 1100 carefully from the packaging and do not place it on the weather grille or front
panel. We recommend storing the unit on a soft surface (e.g. cardboard or sheet) during installation.
2. Close the sliders on the front to prevent dirt (e.g. dust) from entering the unit during installation. If the
AEROMAT VT WRG 1100 does not have sliders, tape up the recesses in the front panel with film.
3. Make sure that no dirt and liquids can get inside the AEROMAT VT WRG 1100 including the weather grille prior to the
installation of the exterior insulation or cladding.
Attention! According to the installation location, it is therefore necessary to adhere the AEROMAT VT WRG 1100 at points
where rain could permeate.
Example
"Concealed installation in the wall
with wall duct"
Example
"Concealed installation in the lintel"
AEROMAT VT
Film
Adhesive tape
Exterior insulation
Adhesive tape
AEROMAT VT
Exterior insulation
Film
Adhesive tape
Adhesive tape
4. Install the AEROMAT VT WRG 1100 in its intended installation position and seal it in accordance with the installation
directives applicable on site.
5. Check AEROMAT VT WRG 1100 for cleanliness prior to starting it up. Clean if necessary (see "care and maintenance"
on page 17).
Attention! Only drill in through-holes for wall plugs and screws in the area indicated (see marker tape).
Important! Remove any marker tape that is visible after installation.
6.4 Interruption of installation work
› Prior to stopping work or while work is interrupted, protect open ends or areas so that no dust or moisture can enter.

Original operating instructions AEROMAT VT WRG 1100
10.2018 9
6.5 Mounting angle
› Screw on the mounting bracket in the area indicated (marker tape) or fasten it to the casing profiles with a rivet. We
recommend that you use SIEGENIA aluminium mounting angles.
AEROMAT VT WRG 1100 with 911 CW weather grille
AEROMAT VT WRG 1100 with 911 HW weather grille
Dimension Meaning
aMounting area for bracket
bScrew and drilling area (e.g. for wall plugs or mounting screws)
cOverall depth
ABracket 20 x 20 x 2 (optional)
BZ profile (optional)
CStop profile (optional)
6.6 Z profile
› First, fix the Z profile (optional) to the weather grille using double-sided tape, then drill and rivet it.

10
AEROMAT VT WRG 1100 Original operating instructions
10.2018
7. Mains supply
Depending on the design, the AEROMAT VT WRG 1100 is connected to a suitable socket of the 230-V AC mains power
supply using the Euro plug or directly to the 230-V AC mains power supply using an external switch.
7.1 Socket connection
Important: When installed in damp locations, the socket for the AEROMAT VT WRG 1100 must be installed in at least
protection class3.
› Insert the Euro plug into a suitable 230-V AC mains power supply.
7.2 External switch connection
Exposed electrical components.
Risk of fatal injury from electric shock or fire.
› Work on a 230 V AC mains power supply may only be performed by a qualified electrician.
› All work on the 230 V AC mains power supply must be carried out in compliance with the current German VDE
regulations (e.g. VDE 0100) and any relevant country-specific requirements.
› Switch off or unscrew the security devices.
Important: If the AEROMAT VT WRG 1100 is connected directly to the 230-V AC mains power supply, the customer must
install a mains isolator.

Original operating instructions AEROMAT VT WRG 1100
10.2018 11
7.3 Wiring diagram AEROMAT VT WRG 1100 (3-stage rotary switch and changeover switch if required)
L1 N
18
17
16
15
13
11
10
9
8
7
14
12
654321
4321
0321
S1 S2
Level 1
Flat ribbon cable
20 V∼
20 V∼
Red
Black
Yellow
Red
Black
Yellow
Supply air +
Supply air ―
Exhaust air +
Exhaust air ―
+ 24 V button button button Level 2 Level 1
Inputs
Blower
Supply
air
Exhaust
air
Slider Trans-
former
Transformer
Level 2 Level 3 Auto
Black Grey White Red Blue Brown
Switch Value
S1 Blower level 0, 1, 2, 3
S2 Automatic*
Colour Value
Black Blower level 1
Grey Blower level 2
White Blower level 3 (power level)
Red Automatic*
Brown L1
Blue N
*only with AEROMAT VT WRG 1100 Var. 2 and Var. 4 (with sensors)
7.4 Wiring diagram AEROMAT VT WRG 1100 (series switch)
L1 N
18
17
16
15
13
11
10
9
8
7
14
12
654321
4321
S1 S2
Black Grey Blue Brown
Level 1
Flat ribbon cable
20 V∼
20 V∼
Red
Black
Yellow
Red
Black
Yellow
Supply air +
Supply air ―
Exhaust air +
Exhaust air ―
+ 24 V button button button Level 2 Level 1
Inputs
Blower
Supply
air
Exhaust
air
Slider Trans-
former
Transformer
Level 2 Level 3
Switch Value
S1 Blower level 1
S2 Blower level 2
S1 + S2 Automatic*
Colour Value
Black Blower level 1
Grey Blower level 2
Brown L1
Blue N
*only with AEROMAT VT WRG 1100 Var. 2 and Var. 4 (with sensors)

12
AEROMAT VT WRG 1100 Original operating instructions
10.2018
8. Unit function

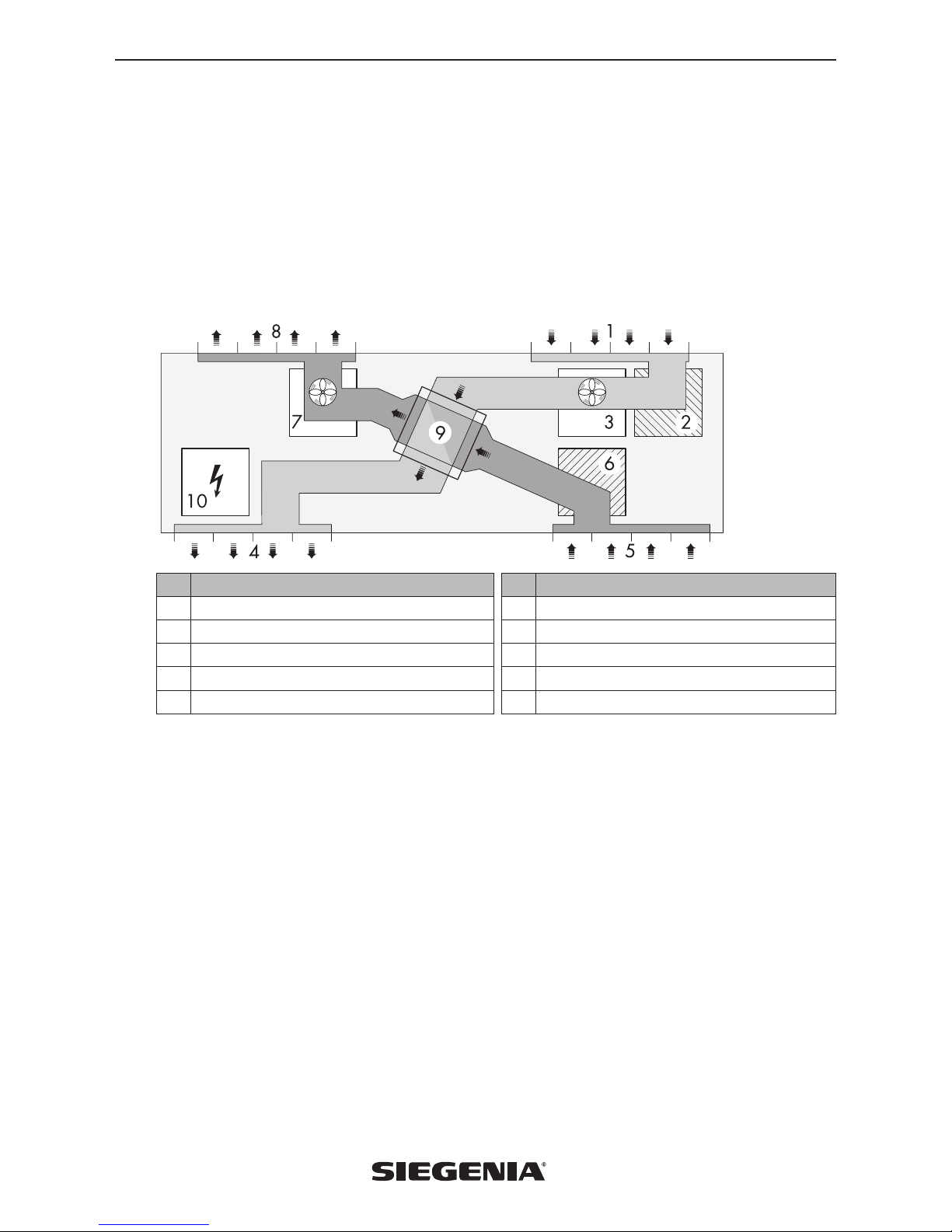

8.1 Ventilation with fans and heat recovery (schematic diagram)
• The outside air (1) is drawn in through the outside air filter (2) or insect grille (2, optional) using the supply air fan (3) and
enters the room as supply air (4).
• The exhaust air (5) is drawn in through an exhaust air filter (6) using the exhaust air fan (7) and makes its way outside as
exhaust air (8).
• Both streams of air are drawn through the heat exchanger (9). Here, particularly during cold times of the year, the outside
air is pre-heated by the warm exhaust air before it enters the room as supply air.
No. Element No. Element
1Outside air 6G3 exhaust air filter
2F7 outside air filter or insect grille (optional) 7Exhaust air fan
3Supply air fan 8Exhaust air
4Supply air 9Heat exchanger
5Exhaust air 10 Power supply, control, cable outlet, membrane key
8.2 Ventilation without fans
• When the fans are switched off and the sliders are open, the unit equalises the pressure of the indoor and outdoor air to
allow fresh air from the outside to flow into the room (pressure differential ventilation). Because the fans are not moving,
the air in both air canals flows in the same direction, meaning that air is generally drawn in from the outside into the room
– depending on the weather, the wind pressure increases the air flow into the room. Heat recovery does not take place
when the fans are not used for ventilation.
8.3 Operation in automatic mode (only for AEROMAT VT WRG 1100 Var. 2 and Var. 4 - with sensors)
• AEROMAT VT WRG 1100 automatically switches to blower levels 0, 1 or 2 according to the air quality, the temperature
and the air humidity.
• In automatic mode, the fans are controlled according to the humidity and temperature inside the room if an indoor sensor
has been installed. The levels are based on comfort criteria.
• If indoor and outdoor sensors are connected, the room is ventilated if the absolute water content of the air outside is lower
than that of the air inside (Example: Automatic ventilation will not take place if the outside air is relatively warm and
humid).
• If several sensors are connected, the highest required blower level is always selected.
*
VOC are volatile organic compounds in the form of gases, e.g. cigarette smoke, perspiration, kitchen odours, etc.

Original operating instructions AEROMAT VT WRG 1100
10.2018 13
9. Membrane key and LED display
9.1 Operating status
Membrane key/LED Operating status
2 LEDs flash red
Membrane key flashes
blue
Calibration of the sensors
Blower level 0 (device is switched off)
1 LED lights up red Blower level 1
2 LEDs light up red Blower level 2
2 LEDs flash red Blower level 3 1) (power level)
Membrane key lights up
blue Automatic mode: Blower level 0 2) (device is ready for operation)
1 LED lights up red
Membrane key lights up
blue
Automatic mode: blower level 1
2 LEDs light up red
Membrane key lights up
blue
Automatic mode: blower level 2
1) The power level can only be controlled manually and is not available in automatic mode.
2) In automatic mode, the fans are not switched off, but continue to run at a minimum level.
9.2 Malfunctions
Malfunctions are displayed in addition to the current operating status.
Membrane key/LED Malfunction Solution
1 LED flashes red
Frost protection function
(Outside temperature below − 15
°C):
• Supply air fan is switched off
• Exhaust air fan continues to run
As soon as the outside temperature
increases above -15°C again, the device
switches to the last level to be used.
2 LEDs flash red
alternately
Air quality sensor or sensor is
defective. Contact your specialist company.
Membrane key flashes
blue Filter soiled
Replace the filter (see page 20)
Please note: Filters must be replaced not
cleaned.

14
AEROMAT VT WRG 1100 Original operating instructions
10.2018
10. Commissioning
10.1 Automatic calibration of the air quality sensor (AEROMAT VT WRG 1100 Var. 2 and Var. 4)
• The sensors are calibrated automatically as soon as the AEROMAT VT WRG 1100 is connected to the power supply
(and also following a power failure).
• 2 LEDs flash red and the membrane key flashes blue during the calibration.
• The calibration is completed after approx. 20 min.
Requirements for a faultless calibration
• The room must be well aired before the calibration.
• The room temperature must be between 5°C and 40°C.
• There should be no persons or animals in the room.
• The membrane key must not be activated during the process.
11. Operation
11.1 Ventilation without fans

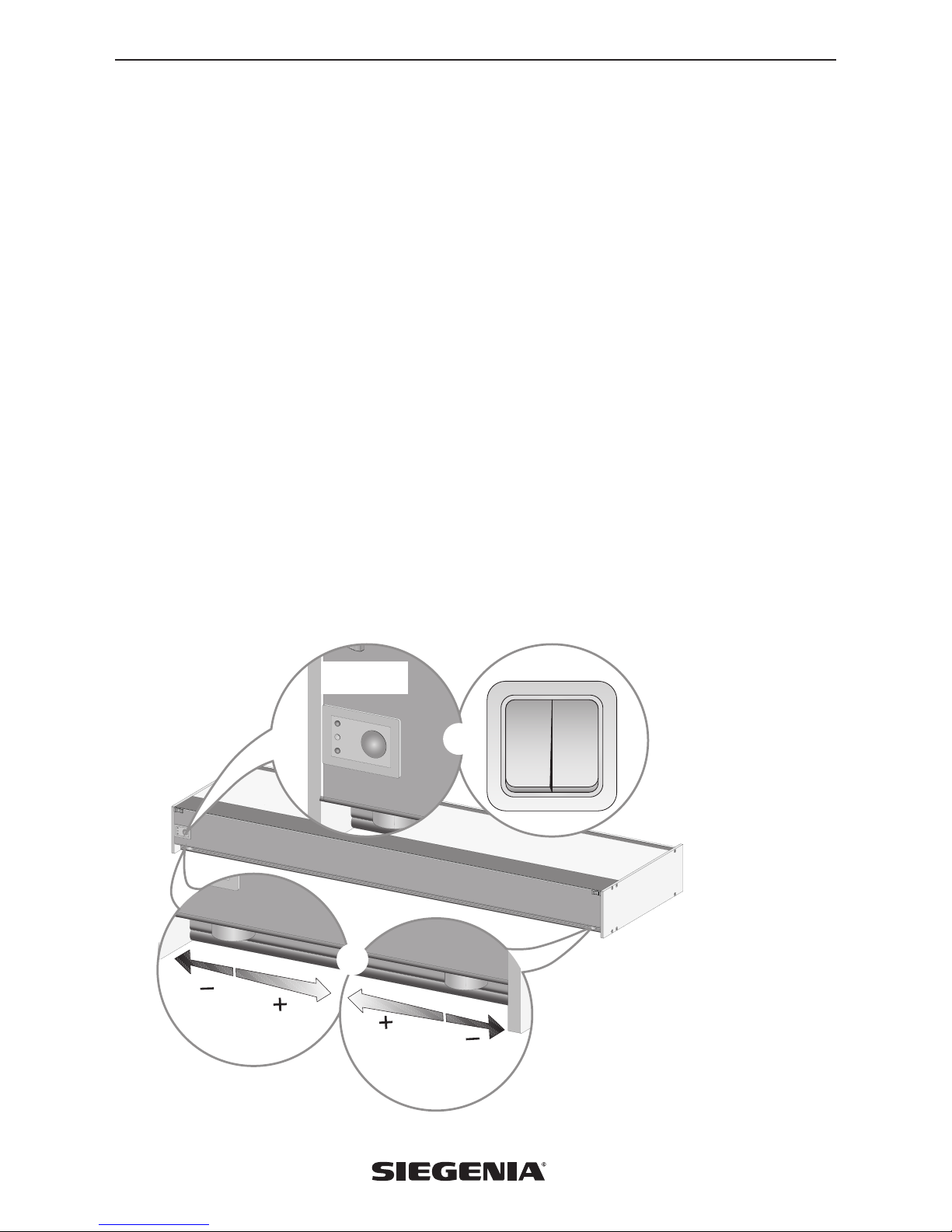

1. Open both sliders
2. Set the blower level to 0
11.2 Ventilation with fans
1. Open both sliders
2. Set the required blower level using either the membrane key or the external switch
2.
1.
External switchMembrane key
(left)

Original operating instructions AEROMAT VT WRG 1100
10.2018 15
11.2.1 Adjustment of the blower level (using the membrane key)
• By pressing the membrane key several times, you can activate the required blower levels and automatic mode (relaying).
• The automatic mode is only available in designs with sensors
(AEROMAT VT WRG 1100 Var. 2 and Var. 4).
• Following a power failure, the AEROMAT VT WRG 1100 switches to the last level to be used (automatic sensor
calibration is performed first in units with sensors, see page14).

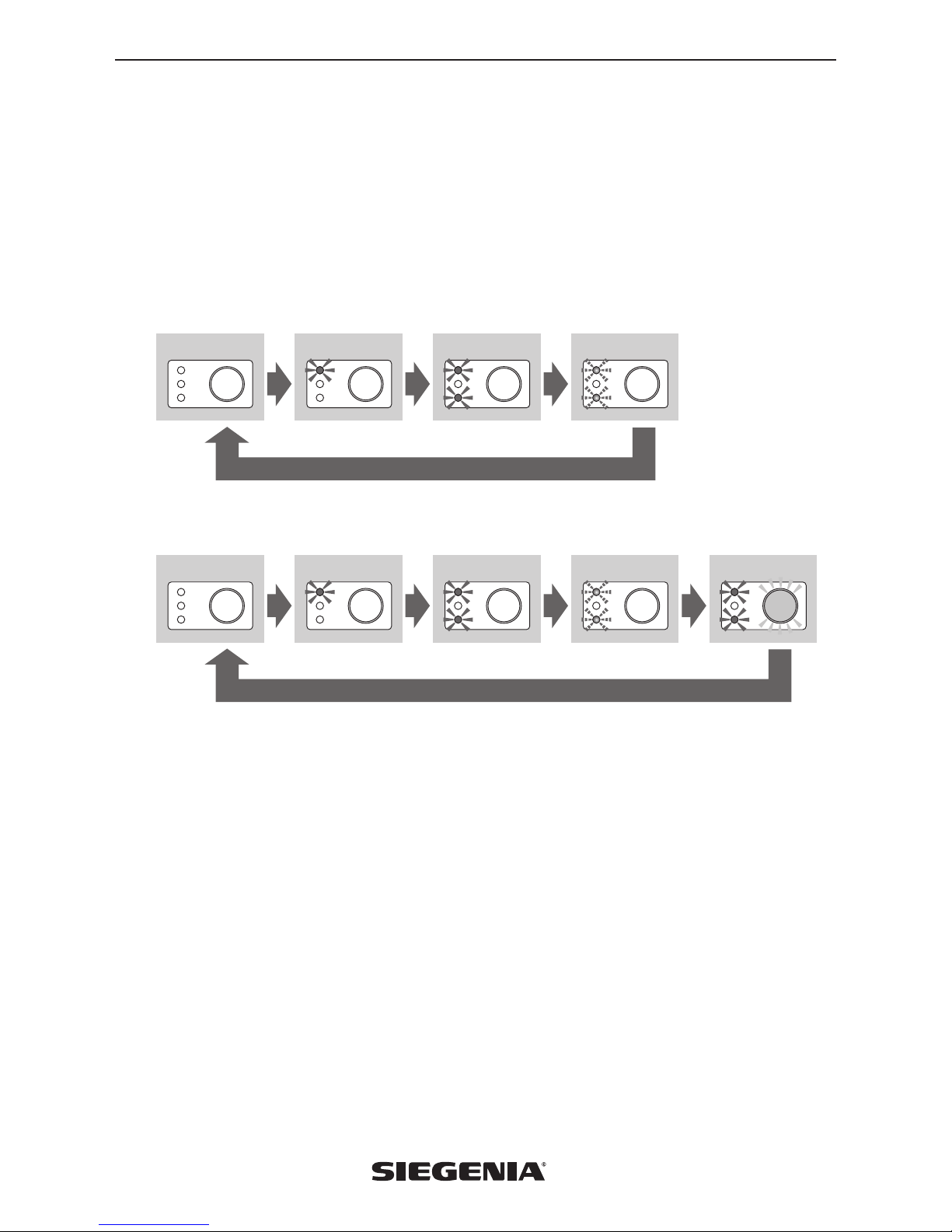

Switching sequence
AEROMAT VT WRG 1100 − Var. 1 and Var. 3 (without sensors)
Blower level 0 Blower level 1 Blower level 2 (Power level)
AEROMAT VT WRG 1100 − Var. 2 and Var. 4 (with sensors)
Blower level 0 Blower level 1 Blower level 2 Power level1) Automatic
1) The power level can only be controlled manually and is not available in automatic mode.

16
AEROMAT VT WRG 1100 Original operating instructions
10.2018
11.2.2 Adjustment of the blower level (using the external switch)
• By pressing the external switch, you can activate the required blower levels and automatic mode directly (without
relaying).
• Attention! If the membrane key is pressed when an external switch is installed, the next blower level will be activated
(for switching sequence see page 15). Pressing the external switch again takes you back to the required blower level
or automatic mode.
• The automatic mode is only available in designs with sensors
(AEROMAT VT WRG 1100 Var. 2 and Var. 4).
• Following a power failure, the AEROMAT VT WRG 1100 switches to the last level to be used (sensor calibration is
performed first in units with sensors, see page14).
AEROMAT VT WRG 1100 − Var. 1 and Var. 3 (without sensors)
Recommendation: use a 3-stage rotary switch provided onsite.
01
2
3
01
2
3
01
2
3
01
2
3
Blower level 0 Blower level 1 Blower level 2 (Power level)
AEROMAT VT WRG 1100 − Var. 2 and Var. 4 (with sensors)
Recommendation: use a changeover switch in combination with a 3-stage rotary switch provided onsite.
Auto
Manuell
01
2
3
01
2
3
Auto
Manuell
Auto
Manuell
01
2
3
Auto
Manuell
01
2
3
Auto
Manuell
01
2
3
Blower level 0 Blower level 1 Blower level 2 Automatic(Power level)
AEROMAT VT WRG 1100 − all versions
Recommendation: use the SIEGENIA type VT series switch („14. Accessories“ see page 23)
0 0
1 2
-Au- -to-
00
12
-Au- -to-
00
12
-Au- -to-
0 0
1 2
-Au- -to-
Blower level 0 Blower level 1 Blower level 2 Automatic*
*only with AEROMAT VT WRG 1100 Var. 2 and Var. 4 (with sensors)

Original operating instructions AEROMAT VT WRG 1100
10.2018 17
11.3 Operation via smartphone or tablet (AEROMAT VT WRG 1100 smart only)
AEROMAT VT WRG 1100 smart can be controlled via tablet or smartphone and offers additional device functions via the
SIEGENIA Comfort app.
11.3.1 Teaching in the device
Please follow the enclosed quick start instructions (H47.MOTS005EN) to integrate the device in your home WIFI.
11.3.2 Device functions in the app
Blower performance
• The blower performance can be set manually.
• On application of the automatic mode, the manually adjusted blower performance is overridden.
Automatic mode
• For information on the automatic mode, see page 13.
Warning (replace filter)
• As soon as a filter replacement is required, this will be indicated as a warning.
Temperature and air humidity
• The temperature of the exhaust air and supply air is indicated in degrees Celsius (°C).
• The air humidity of the exhaust air and supply air is indicated in percent (%).
• The air quality is indicated in the form of a traffic light:
- Red = bad air quality
- Yellow = mediocre air quality
- Green = good air quality

18
AEROMAT VT WRG 1100 Original operating instructions
10.2018
12. Care and maintenance
Electrically operated unit.
Risk of fatal injury from electric shock or fire.
To prevent personal injury or damage to property, always comply with the following instructions:
› Pull the mains plug out of the socket prior to every cleaning process or maintenance work. Never pull at the cable to
disconnect the device from the electricity grid.
› For all devices with a fixed connection to the 230 V AC mains power supply, switch off all poles of the feeder. The fuses
may need to be removed.
12.1 Cleaning
Important: When cleaning the AEROMAT VT WRG 1100, do not allow liquids to get inside the unit.
• Never use cleaning agents that are aggressive or contain solvents, or sharp-edged objects, as these may damage the
surfaces of the casing.
• Never clean the unit with a high-pressure cleaner or steam-jet cleaner.
• Clean the AEROMAT VT WRG 1100 with a cloth moistened with a mild soap solution or cleaning agent.
12.2 Maintenance intervals
Component Check and clean Replace
Insect screen Every 6 months ―
Air ducts and heat exchanger3) Every 12 months ―
Filter4) ―Every 12 months or when the filter
change notification illuminates
3) Condensation does not generally develop. If the surface of the heat exchanger becomes wet for a short period, as can
happen in damp locations, for example, the moisture will dissipate quickly with the outgoing air.
4) Filters must be replaced, not cleaned. Only use genuine filters from SIEGENIA. You can purchase replacement filters from
SIEGENIA or from specialist retailers.

Original operating instructions AEROMAT VT WRG 1100
10.2018 19
12.3 Removing the front panel
The figure below shows the opening direction for a AEROMAT VT WRG 1100 that has been installed horizontally.
1. Open the locking bolts on the right and left
2. Pull out the front panel
3. Slide the membrane key out sideways (if present)
4. Remove the front panel and place it on a soft surface (cardboard, sheet)
1.
2.
3.
4.

20
AEROMAT VT WRG 1100 Original operating instructions
10.2018
12.4 Replacing the outside air filter
1. Remove the front panel (see also page19)
2. Remove the retaining spring
3. Remove the exhaust air filter and dispose of it as household waste
4. Insert a new exhaust air filter
5. Reassemble the AEROMAT VT WRG 1100 in the reverse order
6. Hold down the membrane key for 5 seconds to reset the LED indicator (filter replacement indicator)
3.
2.
