Intended use
• The AEROMAT VT is intended for installation in the exterior windows/walls of permanent structures in accordance with
our installation and design documents as well as the specifications of our assembly instructions and is only suitable for the
ventilation of enclosed rooms.
• Do not use the AEROMAT VT in environments with corrosive or explosive atmospheres (dust, vapour or gas).
• If the AEROMAT VT is to be used in a room with a heating unit that draws air from the room, prior authorisation must be
obtained from the proper authorities, such as the officially appointed district chimney sweep. Intended use requires that
any combustion air lines and exhaust gas systems of solid fuel heating units must be able to be shut off.
• Only operate and/or store the AEROMAT VT at temperatures between -15°C and +40°C.
• Use the AEROMAT VT only with genuine accessories from SIEGENIA.
• Use the AEROMAT VT only when it is in a technically sound condition. Do not modify the unit's components in any way.
• Ventilation openings must be kept free and must not be blocked by other equipment, furniture or objects.
• If the AEROMAT VT is fitted with filters, you must make sure that these cannot become the source of elements that are
odorous and harmful to health; this also includes regular inspection and replacement of filters.
• In the event of a fault, only have the AEROMAT VT repaired by experienced specialists with training and practice in the
repair of ventilation units.
Safety notices
RS Type
• This unit can be used by children aged 8 and above as well as by people with physical, sensory or mental difficulties or
with a lack of experience and knowledge as long as they are supervised or have been instructed in how to use the unit
safely and understand the resulting risks. Children must not play with the unit. Cleaning and user maintenance must not be
carried out by children without supervision.
• Insert the Euro plug of the network connection cable into a suitable 230-V AC mains power supply only.
• If the network connection cable is damaged, it may only be replaced by SIEGENIA, its customer service department or
an electrician.
• Work on a 230-V AC mains power supply may only be performed by a qualified electrician.
• All work on the 230-V AC mains power supply must be carried out in compliance with the current German VDE
regulations (e.g. VDE 0100) and any relevant country-specific requirements.
• All-pole safety isolation should be used when fitting the network connection cable on-site.
• Should a solid object or any liquid get inside the unit, stop operation immediately and disconnect the AEROMAT VT from
the mains power supply:
- Check whether the AEROMAT VT has become damaged.
- Have the unit repaired by a specialist, if necessary

Installation and operating instructions AEROMAT VT
Last update: 02.2015 5
Installation
Prerequisites for installation
• The position from which the outdoor air is drawn in must be selected so that any nearby emission sources have as little
impact as possible on the quality of the air being drawn in.
• The maximum permissible area load is 1,000 kg per running metre of ventilator length.
• Installation options:
Installation in the window sill Concealed installation in the
window sill
Concealed installation in the wall
with wall duct
AEROMAT VT
AEROMAT VT
AEROMAT VT
Installation in the window lintel Concealed installation in the
window lintel
Vertical installation next to the window
AEROMAT VT
AEROMAT VT
AEROMAT VT

6
AEROMAT VT Installation and operating instructions
Last update: 02.2015
Installation sequence
1. Remove the AEROMAT VT carefully from the packaging and do not place it on the weather grille or front panel. We
recommend storing the unit on a soft surface (e.g. cardboard or sheet) during installation.
2. Close the sliders on the front to prevent dirt (e.g. dust) from entering the unit during installation. If the AEROMAT VT does
not have sliders, tape up the recesses in the front panel with film.
3. If the AEROMAT VT is to be concealed in the window sill, make sure that no dirt and liquids can get inside the weather
grille before the outside window sill is installed.
AEROMAT VT and cover the weather grille with film as shown in illustration.
4. Install the AEROMAT VT in its intended installation position and seal it in accordance with the installation directives
applicable on site.
5. Check AEROMAT VTfor cleanliness prior to starting it up. If necessary, clean the unit thoroughly as described in our
operating and maintenance instructions.
Attention! Only drill in through-holes for wall plugs and screws in the area indicated (see marker tape).
Important! Remove any marker tape that is visible after installation.
Interruption of installation work
› Prior to stopping work or while work is interrupted, protect open ends or areas so that no dust or moisture can enter.

Installation and operating instructions AEROMAT VT
Last update: 02.2015 7
Mounting Bracket
› Screw on the mounting bracket in the area indicated (marker tape) or fasten it to the casing profiles with a rivet. We
recommend that you use SIEGENIA aluminium mounting brackets.
AEROMAT VT with 911 CW weather grille
AEROMAT VT with 911 HW weather grille
Dimension Meaning
aMounting area for bracket
bScrew and drilling area (e.g. for wall plugs or mounting screws)
cInstallation depth
ABracket 20 x 20 x 2 (optional)
BZ profile (optional)
CStop profile (optional)
Z profile
› First, fix the Z profile (optional) to the weather grille using double-sided tape, then drill and rivet it.

8
AEROMAT VT Installation and operating instructions
Last update: 02.2015
Power supply
Depending on the design, the AEROMAT VT is connected to a suitable socket of the 230-V AC mains power supply using the
Euro plug or directly to the 230-V AC mains power supply using an external switch.
Socket connection
Important: When installed in damp locations, the socket for the AEROMAT VT must be installed to at least protection
class3.
› Insert the Euro plug into a suitable 230-V AC mains power supply.
External switch connection
Exposed electrical components.
Risk of fatal injury from electric shock or fire.
› Work on a 230-V AC mains power supply may only be performed by a qualified electrician.
› All work on the 230-V AC mains power supply must be carried out in compliance with the current German VDE
regulations (e.g. VDE 0100) and any relevant country-specific requirements.
› Switch off or unscrew the security devices.
Important: If the AEROMAT VT is connected directly to the 230-V AC mains power supply, a mains isolator must be
installed by the customer.
› Wire the circuit according to this circuit diagram.
DS Connection Type
with external switch and internal electrical closer:
RS Connection Type
with external switch
234
S1
16 15 14 13 12 11 10
N
Switch: ext. flap open/close
L1
Transformer 230V
Switch: ext. blower on
Switch: ext. blower level 1/2
1 1
2 0 Internal switch
3 2
4 Internal open/close
5 Blower yellow
6 Blower black
7 Blower red
8
9Transformer 19V AC
S1
Open/close
Cable no.
S1 S2
12 34
ribbon cable
L1 N transformer
18
17
16
15
13
11
10
9
8
7
14
12
654321
level 2level 1level 2level 1
+24V
4321
switch switch switch level 2 level 1
input
20 V∼
20 V∼
red
black
yellow
red
black
yellow
supply air +
supply air —
exhaust air +
exhaust air —
slider
exhaust
air
supply
air
trans-
former
blower
exhaust airsupply air
Cable no. Colour Cable no. Colour Switch Value
2 black 1 brown S1 Blower level 1
3 blue 2 blue S2 Blower level 2
4 brown 3 black
4grey

Installation and operating instructions AEROMAT VT
Last update: 02.2015 9
Function
Operation by pressure differential: (DS/DSg Type)
• The room is ventilated as the indoor and outdoor air pressures are equalised (pressure differential). As this happens, the
air normally flows from outside into the room.
• The air flow into the room varies as the pressure created by the wind changes with the weather.
• With the optional internal electrical closer, the unit is opened and closed using an external switch.
Ventilator operation (RS Type)
• The AEROMAT VT RS Type is either equipped with 1 or 2 supply air blowers and/or with 1 or 2 exhaust air blowers.
• Supply air blower (depending on the the equipment): The outside air is drawn in through the supply air blower and enters
the room as supply air.
• Exhaust air blower (depending on the equipment): The exhaust air drawn in through the exhaust air blower and makes its
way outside as outgoing air.
• When the blower is switched off, the AEROMAT VT RS Type functions as a pressure differential ventilator.
Operation
Ventilation without blowers (DS/DSg Type and RS Type)
1. Open sliders
Ventilation with blowers (RS Type)
Note: Depending on the design, the membrane key is positioned on either the left or right in the AEROMAT VT. If it is on the
right, the membrane key is turned 180° (see figure).
1. Open sliders
2. Set the required blower level using either the membrane key or the external switch
2.
1.
Membrane key
(left)
Membrane key
(right)
Operating with a control cord (optional)
When the slider is operated using control cords, you move the slider into the position you require by alternately pulling on the
two control cords.

10
AEROMAT VT Installation and operating instructions
Last update: 02.2015
Setting the blower level
• By pressing the membrane key several times, you can activate the required blower levels (relaying).
• After a power failure, the AEROMAT VT switches to the last level to be used.
Membrane key + LED indicator Function
LEDs do not light up
Membrane key does not light up
Blower level 0
(unit is switched off)
Membrane key + LED indicator Function
1 LED lights up red
Membrane key does not light up Blower level 1
Membrane key + LED indicator Function
2 LEDs light up red
Membrane key does not light up Blower level 2
1x
1x
1x
1x
1x

Installation and operating instructions AEROMAT VT
Last update: 02.2015 11
Care and maintenance
Important: When cleaning the AEROMAT VT, do not allow liquids to get inside the unit.
• Clean the AEROMAT VT with a cloth moistened with a mild soap solution or cleaning agent.
• Never use cleaning agents that are aggressive or contain solvents, or sharp-edged objects, as these may damage the
surfaces of the casing.
Model plate
Note: The model plate contains information concerning the design versions (e.g. information about the filter)
• The model plate is located beside the slider opening in the front profile (see exemplary illustration).
SIEGENIA-AUBI KG
AEROMAT VT Typ DSG 3
MOD.2292873 5313
SIEGENIA-AUBI KG
AEROMAT VT Typ RS Filterfach F7
MOD.2167213 5013
AC 230V 50Hz 13W
Vor dem Öffnen Stromzuführung unterbrechen!
Disconnect power supply line before opening!
SIEGENIA-AUBI KG
AEROMAT VT Typ RS mit Abluft
MOD.2278549 5113
AC 230V 50Hz 13W
Vor dem Öffnen Stromzuführung unterbrechen!
Disconnect power supply line before opening!
Manufacturer
Unit designation
Order no. Date of production (calendar week/year)

12
AEROMAT VT Installation and operating instructions
Last update: 02.2015
Replacing the air canal and the filter (optional)
• The unit’s air canal consists of foam elements. These must be replaced depending on the degree of contamination.
• Replacement air canals and filters are available from SIEGENIA.
• Be sure to note the arrangement of the internal parts for special models that do not correspond to the illustration.
• The AEROMAT VT can only be opened from “room side”.
• The M5 filters should be replaced if the LED indicator lights up. However, we recommend replacing the filters at least
every 12 months.
• Important: M5 filters must be replaced not cleaned.
• The G3 grit filters should be cleaned or replaced if the LED display lights up. However, we recommend replacing the
filters at least every 12 months.
• Always clean the G3 grit filter manually (e.g. with a vacuum cleaner, wash out using a grease-dissolving cleaning agent).
• After filter replacement, hold down the membrane key for 5 seconds to reset the LED indicator (filter replacement
indicator).
Membrane key + LED indicator Function
LEDs do not flash
Membrane key flashes blue Replace the filters*
* Only use genuine filters from SIEGENIA. You can purchase replacement filters from SIEGENIA or from specialist retailers.
Removing the front panel
The figure below shows the opening direction for a AEROMAT VT that has been installed horizontally.
1. Open the sliders on the right and left (or in the middle according to design)
2. Pull out the front panel
3. Slide the membrane key out sideways (if present)
4. Remove the front panel and place it on a soft surface (cardboard, sheet)
1.
2.
3.
4.

Installation and operating instructions AEROMAT VT
Last update: 02.2015 13
AEROMAT VT (DSg Type)
Note: The number and position of the components can deviate from the illustration.
1. Remove the front panel (see page12)
2. Remove air canal/foam elements and clean or replace
3. Reassemble the AEROMAT VT in the reverse order
AEROMAT VT (DS and RS Type)
Note: The number and position of the components can deviate from the illustration.
1. Pull out the mains plug or switch off the safety device for the power supply cable
2. Remove the front panel (see page 12)
3. Remove front profile insulation and filter
4. Remove the foam
5. Remove the supporting plate, to do this, press the top toward the interior of the unit and pull out of the bottom
6. Open the transformer compartment and release the blower cable from the circuit board
7. Carefully take out the air canal/foam element and remove the blower
8. If necessary, clean the blower using compressed air only
9. Insert blower in the new air canal
10.Reassemble the AEROMAT VT in the reverse order
2.
4.
5.
7.
3.
with flap trap
with internal electrical closer
Foam insulation
G3 / M5 Filter
Front profile insulation
(DS)
Exhaust air (RS)
Supply air (RS)

14
AEROMAT VT Installation and operating instructions
Last update: 02.2015
Technical data
Specifications for a VT unit DSg Type DS Type RS Type
Sound absorption
(at 300 mm installation depth)1) 5)
Rw-1.9 = 33 - 49 dB
Dn,e,w = 40 - 56 dB
Rw-1.9 = 50 dB
Dn,e,w = 57 dB
Rw-1.9 = 50 dB
Dn,e,w = 57 dB
Max. permissible area load per linear
metre of ventilator length
1,000 kg 1,000 kg 1,000 kg
Heat transition coefficient2) U = 0.25 W/m2KU = 0.25 W/m2KU = 0.25 W/m2K
Air throughput5) approx. 16 - 66 m3/h
(at 10 Pa)
approx. 16 m3/h
(at 10Pa)
Air throughput
measured via membrane key 3)
- - Level 1 = approx.30 m3/h
Level 2 = approx.50 m3/h
Internal noise at blower level 14) 6) --LpA = approx. 14 dB(A)
Internal noise at blower level 24) 6) --LpA = approx. 26 dB(A)
Supply voltage - - 230 V∼
Unit operating voltage --24 V
Power consumption at blower level 1 --approx. 5 Watt
Power consumption at blower level 2 --approx. 17 Watt
Protection class - - II
Power supply --230 V∼ / 50 Hz
Safety device --Thermal protection in
transformer
Length of connecting cable --Approx. 1.50 m or 5 m
1) measured according to DIN EN 20140-10
2) calculated according to DIN EN ISO 6946.
3) measured according to DIN EN ISO 5167
4) measured according to EN ISO 9614-2:1996 (with room insulation of 8 dB).
5) depending on the number of air canals
6) with exhaust air units internal sound increases by approx. 3 dB (A)

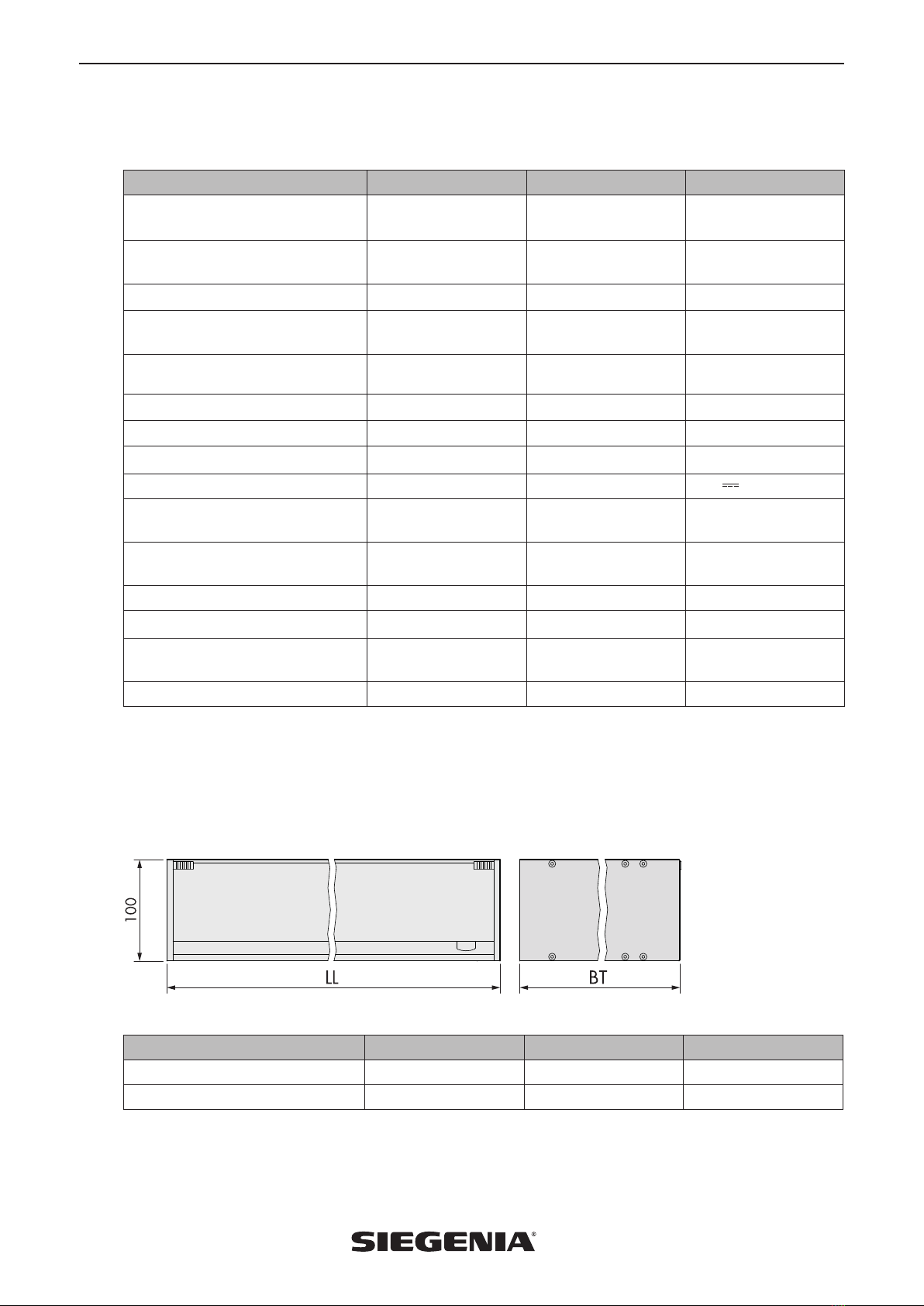

Dimensions
Specifications for a VT unit DSg Type DS Type RS Type
Ventilator length (LL) 600 mm to 3,000 mm 600 mm to 3,000 mm 725 mm to 3,000 mm
Installation depth (BT) 250 mm to 500 mm 250 mm to 500 mm 300 mm to 500 mm

Installation and operating instructions AEROMAT VT
Last update: 02.2015 15
Liability
Intended use
Any use of this product that is not in accordance with its intended use, or any adaptation of or modification to the product
and its associated components for which our express consent has not been obtained, is strictly prohibited. We accept no
liability whatsoever for any material losses or injury to people caused by failure to comply with this stipulation.
Product liability
Our products are guaranteed – subject to correct installation and proper use – for a period of one year from the date of
receipt by a company (according to our general terms and conditions) or as otherwise agreed, and for a period of two years
for end consumers, in accordance with statutory provisions. As part of our ongoing improvements, we reserve the right to
replace individual components or entire products. Consequential losses resulting from defects are excluded from the
warranty within the limits of the law. The warranty shall become void if modifications that are not authorised by us or have not
been described in this documentation are performed on the product and/or individual components, or if the product and/or
individual components is/are dismantled or partly dismantled, and the defect is due to the changes made.
Exclusion of liability
The product and its components are subject to stringent quality controls. As a result, they function reliably and safely when
used correctly. Our liability for consequential losses and/or claims for damages is excluded, except in the case of wilful
misconduct or gross negligence, or where we are responsible for injury to life, physical injury or damage to health. Strict
liability under the German Product Liability Act (Produkthaftungsgesetz) remains unaffected. Liability for the culpable
violation of significant contractual obligations also remains unaffected; liability in this case is limited to losses that are specific
to the contract and that could have been foreseen. The above regulations do not imply a change in the burden of proof to the
detriment of the consumer.
EU Declaration of Conformity
We, SIEGENIA-AUBI KG, declare under our own responsibility that the product complies with the provisions of
Directives 2004/108/EC and 2006/95/EC of the Council of the European Union.
Environmental protection
Although our products do not fall within the scope of the German Electrical and Electronic Equipment Act, SIEGENIA will
continue to meet the requirements of this Act and will endeavour to completely eliminate the use of substances that are
hazardous to the environment as soon as this becomes technically feasible. Electrical products should not be disposed of as
household waste.

Contact your dealer:
Head Office:
Industriestraße 1–3
57234 Wilnsdorf
GERMANY
Phone: [phone]
Telefax: [phone]
[e-mail]
www.siegenia.com
SIEGENIA worldwide:
Austria Phone: [phone]
Belarus Phone: [phone]
Benelux Phone: [phone]
China Phone: [phone]
France Phone: [phone]
Germany Phone: [phone]
Great Britain Phone: [phone]
Hungary Phone: [phone]
Italy Phone: [phone]
Poland Phone: [phone]
Russia Phone: [phone]
South Korea Phone: [phone]
Switzerland Phone: [phone]
Turkey Phone: [phone]
Ukraine Phone: [phone]
You can find address details for our
international sites at: www.siegenia.com
H47.FENSIAU0007EN/2
