ASSEMBLY INSTRUCTIONS

2
Assembly instructions
Lock switch contact

3
Assembly instructions Lock switch contact
Contents
Target group of this documentation 4
Intended use 4
Improper use 4
Technical information on magnetic contacts 5
Assembly 9
Wiring diagram 11
Function test 11
Adjustment of the trigger contact magnet 12
Adjustment of the frame parts 13
Technical specifications 14
Liability 15
EU Declaration of Conformity 15

4
Assembly instructions
Lock switch contact
Target group of this documentation
This documentation is intended for use by specialists only. All work described in this document
is to be performed by experienced professionals with training and practice in the assembly
and installation of door locks in connection with electronic components. Safe and proper
assembly of this electronic door lock is not possible without expert knowledge.
Intended use
• The lock switch contact is suitable for use in striker plates or locking rails with Q-adjustment
in combination with KFV multi-point locks with hook bolts or pin-hook-bolt combination.
• The lock switch contact is used in systems, e.g. alarm systems that provide feedback on the
status of the door lock.
• The lock switch contact is suitable for installation in timber, aluminium, steel and PVC front
doors in residential and public buildings.
• All assembly and electrical installation work must be carried out according to our assembly
and installation instructions.
• Use the lock switch contact only when it is in a technically sound condition. Do not modify
the unit's components in any way.
• Use the lock switch contact only with genuine accessories from KFV.
• Switching voltage 30 V DC, 0.2 A
Improper use
• When used in steel frames and /or doors made of timber, aluminium and PVC with steel
reinforcement, it must be ensured that there is sufficient clearance to the magnetic parts. This
area must be milled if necessary.
• Application of mechanical force to the housing e.g. during assembly, could damage the
casing of the reed switch. Installation using heavy tools (e.g. hammers) is strictly prohibited!
• The magnet loses its field strength if it is subjected to intense heat, vibration or mechanical
processing.
• Wiring the unit incorrectly can irreparably damage the component.
• Operating voltage >30 V DC; switching current > 0.2 A
• Temperatures outside the specifications in the technical data

5
Assembly instructions Lock switch contact
Technical information on magnetic contacts
Please observe the technical specifications on page 14. These specifications are max. values and
may never be exceeded, not even for brief periods of time. Therefore, under no circumstances may
continuity testers with in-built bulbs be used for the testing/inspection of lock switch contacts. The
current flowing through the lock switch contact in these devices is so high that the contact could
be damaged irreparably. Only use the control device magnetic switch ZUPG0010 for testing or
inspection purposes. (Fig. 6)
Lock switch contacts based on reed contact are sensitive to excessive voltage or currents. As reed
contacts open their contact extremely quickly, very high self-induction voltages are generated when
switching off inductive and capacitive switching devices such as e.g. relays. The lock switch contact
must be protected here.
Contact protection
To avoid overloading the switch, we recommend the provision of a protective circuit for the
switching of lamp loads, capacity or inductivity. The electrical values (current, voltage and output)
defined in the technical specifications of the magnetic contacts are applicable for purely ohmic
loads. Usually, however, the loads are combined with inductive or capacitive components or
lamp loads are switched. In all these cases, the magnetic contacts must be protected against the
occurrence of peak voltages and currents.
When is a contact protection necessary?
• VdS burglar alarm systems are designed for the activation of alarm contacts and do not
require any further contact protection. Contact protection is appropriate if alarm contacts
are operated outside units/systems that are not designed for reed contacts.
Alarm contacts loaded with capacitive or inductive switching devices must be safeguarded with
a contact protection.
Below you will find some recommendations of how magnetic contacts should be wired for different
types of load in order to prevent wear and tear or premature failure.
Electrical values

6
Assembly instructions
Lock switch contact
Capacitive loads
In contrast to inductive loads, increased inrush currents could occur with capacitive loads and lamp
loads, which could lead to interference - including contacts possibly welding together.
When charged capacitors are switched (e.g. also cable capacitors), a sudden discharge occurs,
the intensity of which depends on the capacity and length of the supply line to the switch to be
regarded as series resistor. The discharge current peak is reduced to a greater extent by a series
resistor to the capacitor.
Its dimensions are determined by the possibilities of the relevant circuit. In any case, it should be
as large as possible to limit the discharge current to an admissible value. These considerations also
apply to the charging of capacitors.
Lamp loads
It is a well-known fact that light bulb filaments when cold, i.e. when switched off, have a resistance
that is approximately one tenth of the resistance when burning. This means that on activation, even
for a short time, a current flows that is ten times higher than the current when the lamp is static. This
10-fold inrush current can be reduced to an admissible level by means of a current-limiting resistor
connected in series. Another possibility is the parallel connection of a resistor to the switch which
continually pre-heats the deactivated lamp filament to an extent that it is not quite yet glowing. Both
types of protection are associated with a loss in performance.
R 1
reed
R 2
C cable
cable
Load
resistance
Protection against high discharge
current from capacitors. Accord-
ing to circuit, R1 or R2 or both
should be used.
Parallel connection of the lamp
load to the switch
Fig. 1
Fig. 2 Fig. 3
R
reed
Bulb
R
reed
Bulb
Connection in series of the lamp
load to the switch

7
Assembly instructions Lock switch contact
Direct current
For switching of direct current, a free-wheeling diode must be connected in parallel to the load. The
polarity must be accomplished out to ensure that the diode locks at the normal operating voltage
and, on opening the switch, inversely short circuits occurring voltage peaks.
+
Alternating current
An electric arc attenuator must be used when switching to alternating current. In general this is an
RC element, which is connected in parallel to the switch and therefore connected in series with the
load.
R C
2
2
Fig. 5
Fig. 4
Direct current
Alternating current

8
Assembly instructions
Lock switch contact
Magnetic switch test unit ZUPG0010
You can check the function of the magnetic contact and the NO or NC contacts with the aid of the
magnetic switch ZUPG0010.
To do this, connect the three cables of the magnetic contact to the connections 1-3 with the aid of
the test terminals provided. When disconnected, the two LEDs of the NC contact light up.
If a metal bar is now pushed between the magnetic contact, the two LEDs of the NO contact light
up.
6x
S O L U T I O N S I N S I D E
Fig. 6
Magnetic switch test unit ZUPG0010

9
Assembly instructions Lock switch contact
Assembly
Unscrew the existing Q-adjustment
Assembling a new lock switch contact
1. Mount the fixing plate
!
Attention: You will also require screws and eccentric mandrels!

10
Assembly instructions
Lock switch contact
2. Position the eccentric mandrels
3. Position the striker plates or locking rail
4. Screw on the striker plate or locking rail

11
Assembly instructions Lock switch contact
Wiring diagram
burglar alarm
system
Reed contact
transom Magnet
green
brown
white
Checking functionality
On completion of the assembly, the dead bolt monitoring device must be checked for electrical
switching function (e.g. with a multimeter or the test unit ZUPG0010).
If the desired switching point is not reached immediately, the lock casing must be adjusted as
described in the following pages (adjustment of the trigger contact).
The magnet slider (trigger) is height-adjustable by +/- 3 mm. To achieve this, loosen the 3 fixing
screws of the Q-adustment and carefully lift the magnet slider out of the locking mechanism using
a flathead screwdriver and push upwards or downwards. The gear teeth will engage in 1.5 mm
steps. To achieve a later trigger point, push the magnet slider further upwards – for an earlier trig-
gering, push further downwards.
Fig. 7
Wiring diagram

12
Assembly instructions
Lock switch contact

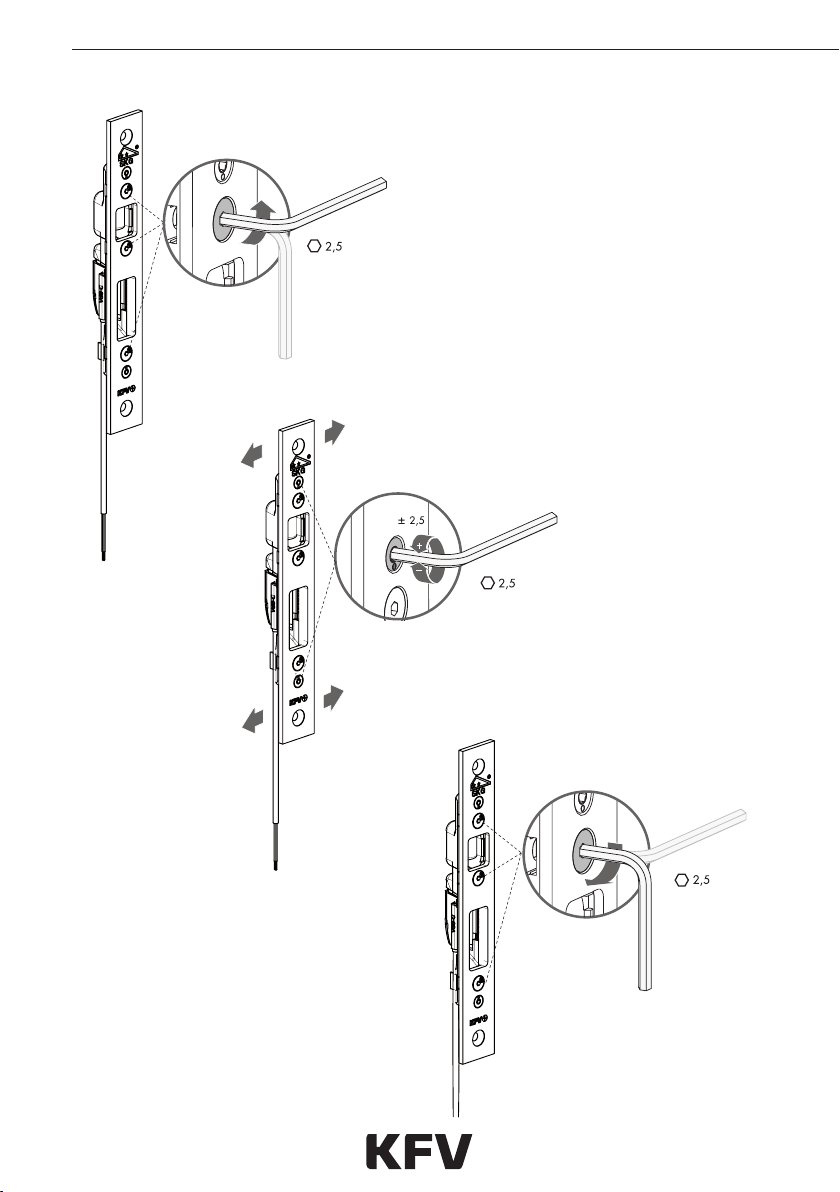

Adjustment of the trigger contact magnet
+/- 3 mm
Fig. 8
Adjustment of the switch contact
1.
2.

13
Assembly instructions Lock switch contact
Adjustment of the frame parts
Fig. 9
Adjustment of the frame parts

14
Assembly instructions
Lock switch contact
Technical specifications
Cable LiYY 3 x 0.14 mm2
Protection class in accordance with DIN 40050 VdS environmental class III, IP 67
Contact type: Changeover contact
Switching capacity max. 3 W / VA
Switching voltage max. 30 V DC
Switching current max. 0.2 A
Continuous current max. 0.5 A
Temperature with permanently installed cables 25 °C to 70 °C
Temperature with moved cables 5 °C to 50 °C
Installation site External and internal doors
Switching point adjustable
VdS class C certification G 114009

15
Assembly instructions Lock switch contact
Liability
Intended use
Any use of this product that is not in accordance with its intended use, or any adaptation of or
modification to the product and its associated components for which our express consent has not
been obtained, is strictly prohibited. We accept no liability whatsoever for any material losses or
injury to people caused by failure to comply with this stipulation.
Product liability
Our products are guaranteed – subject to correct installation and proper use – for a period of one
year from the date of receipt by a company (according to our general terms and conditions) or as
otherwise agreed, and for a period of two years for end consumers, in accordance with statutory
provisions. As part of our ongoing improvements, we reserve the right to replace individual
components or entire products. Consequential losses resulting from defects are excluded from
the warranty within the limits of the law. The warranty shall become void if modifications that are
unauthorized by us or have not been described in this documentation are performed on the product
and/or individual components, or if the product and/or individual components is/are dismantled or
partly dismantled, and the defect is due to the changes made.
Exclusion of liability
The product and its components are subject to stringent quality controls. As a result, they function
reliably and safely when used correctly. Our liability for consequential losses and/or claims for
damages is excluded, except in the case of wilful misconduct or gross negligence, or where we
are responsible for injury to life, limb or health. Strict liability under the German Product Liability
Act (Produkthaftungsgesetz) remains unaffected. Liability for the culpable violation of significant
contractual obligations also remains unaffected; liability in this case is limited to losses that are
specific to the contract and that could have been foreseen. The above regulations do not imply
a change in the burden of proof to the detriment of the consumer.
We, KFV KG, declare with full responsibility that this product complies with the
provisions of Directives 2008/108/EC and 2006/95/EC of the Council of the
European Union.
EU Declaration of Conformity
