Siemens VersiCharge VCPOST User manual

Siemens Industry, Inc.
Norcross, Georgia U.S.A.
For use with VC30GRYU
and VCSG30GRYUW
Installation Instructions for
VersiCharge Electric Vehicle
Charging Station Post
Catalog Number: VCPOST
© 2015 Copyright Siemens
Industry, Inc.
® The National Electrical Code is a registered
trademark of the National Fire Protection Association
Page 4 of 4
© 2015 Copyright Siemens
Industry, Inc.
® The National Electrical Code is a registered
trademark of the National Fire Protection Association
Page 1 of 4
Document # 814852 Rev. 0P
DANGER Hazardous voltage. Will cause death or
serious injury. Disconnect before working on this
equipment. This indicates a situation where the
present voltage could cause injury or death.
Extreme caution is required when servicing or
installing the equipment referenced.
DANGER Explosion hazard. This equipment has
arcing or sparking parts that should not be exposed
to flammable vapors. Use extreme caution and
follow instructions carefully.
WARNING! This indicates a situation where failure
to follow instructions may be a safety hazard or
cause equipment malfunction. Use extreme caution
and follow instructions carefully.
Provision for Padlock (sold separately) optional
padlock is used to supplement the connection
between the enclosure top and enclosure base at
designated location
NOTE: All tamper resistant and button head socket cap
screw locations are called out on the image to the left
and in the images on page 2. Every location requires a
washer to be used under the bolt head. Mounting screw
torques are as follows:
Material # 8&9: 12 ±.5 lb-ins
Material # 11: 18 ±.5 lb-ins
NOTE: This instruction outlines the recommended
general procedure for installation by a qualified
person, as defined by all local electrical codes
and/or the National Electrical Code ®.
PERMITS: Be aware that many areas require
special permits and/or utility approvals to install EV
charging equipment. Contact your local electrical
inspector’s office and your local utility prior to
beginning work to understand local requirements.
WARRANTY: See Siemens’standard terms and
conditions below with regards to warranty of
purchase.
www.usa.siemens.com/VersiChargeWarranty
TOUCH UP PAINT: See link below for replacement
paint if needed for aesthetic restoration throughout
life of post:
http://www.lowvolumepowder.com/RAL7035-Color-
Plate
Applications include any public or private place where Electric
Vehicle charging is required. These places may include homes,
both single and multifamily, places of business, commercial
institutions, etc.
These instructions do not purport to cover all details or variations in equipment, or to provide for every possible
contingency to be met in connection with installation, operation, or maintenance. Should further information be
desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the
matter should be referred to the local Siemens sales office or Siemens Customer Service available at 1-800-
SIEMENS. The contents of this Instruction Manual shall not become part of or modify any prior or existing
agreement, commitment, or relationship. The sales contract contains the entire obligation of Siemens. The
warranty contained in the contract between the parties is the sole warranty of Siemens. Any statements
contained herein do not create new warranties or modify the existing warranty.

© 2015 Copyright Siemens
Industry, Inc.
® The National Electrical Code is a registered
trademark of the National Fire Protection Association
Page 2 of 4
© 2015 Copyright Siemens
Industry, Inc.
® The National Electrical Code is a registered
trademark of the National Fire Protection Association
Page 3 of 4
Leveling
Should the concrete pad not be level, hex nuts and washers may be placed between post and
concrete pad. This method will cause a gap between the base of the post and cement, increase
conduit height above cement accordingly (minimum of 3”). See next page for post mounting
instructions.
VersiCharge Wiring Instructions
Please consider all safety warnings in the VersiCharge Installation and Operation manual
(document # 813776) prior to wiring. The post product is compatible with the VC30GRYU product
and the VCSG30GRYUW product. To reduce the risk of fire, connect only to a circuit provided
with 40 amperes maximum branch circuit overcurrent protection in accordance with the
ANSI/NFPA 70 National Electrical Code. VersiCharge EV charging stations can draw up to 30A
at 240 VAC, 50/60 Hz (7.2kW of power). Use 6-8 AWG, 75°C copper wire to connect to supply
circuit. Refer to section 3.4 of the VersiCharge Installation and Operations Manual for instruction
on removing the cord-and-plug assembly and steps for hardwired installation. Ensure breaker is
off during all electrical work.
Assembly Instructions
1. Make sure power to the circuit is off
before beginning assembly
2. See last page for mounting the post
and leveling instructions below, feed
wiring through the post out of circular
cutout
3. Attach the mid-panel to the enclosure
using qty 4 x #10-32 X 3/8”, tamper
resistant screws
4. Attach the enclosure to the post using
qty 3 x #10-32 X 3/8”, button head
socket cap screws and qty 1 x #10-32
X 3/8”, tamper resistant screw, install
bushing, feed wiring into the
enclosure and out of the mid-panel
5. Attach the U-bracket to the mid-panel
using qty 2 x #10-32 X 3/8”, button
head socket cap screws
6. Attach the wall mount bracket to the
mid-panel using qty 2 x #10-32 X 3/8”,
button head socket cap screws
7. Hardwire VersiCharge (see
“VersiCharge Wiring Instructions”
below)
8. Slide the VersiCharge into the wall
mount bracket
9. Attach the enclosure top to the
enclosure using qty 2 x #10-32 X 3/8”,
tamper resistant screws, a padlock
(sold separately) may be used to
supplement connection
10. Replace four cover Phillips closure
screws with qty 4 x #8-32 X 3/4”,
tamper resistant screws
11. Restore power, charger will turn on
Step 3
Steps 5-8
Steps 9-11
Step 4

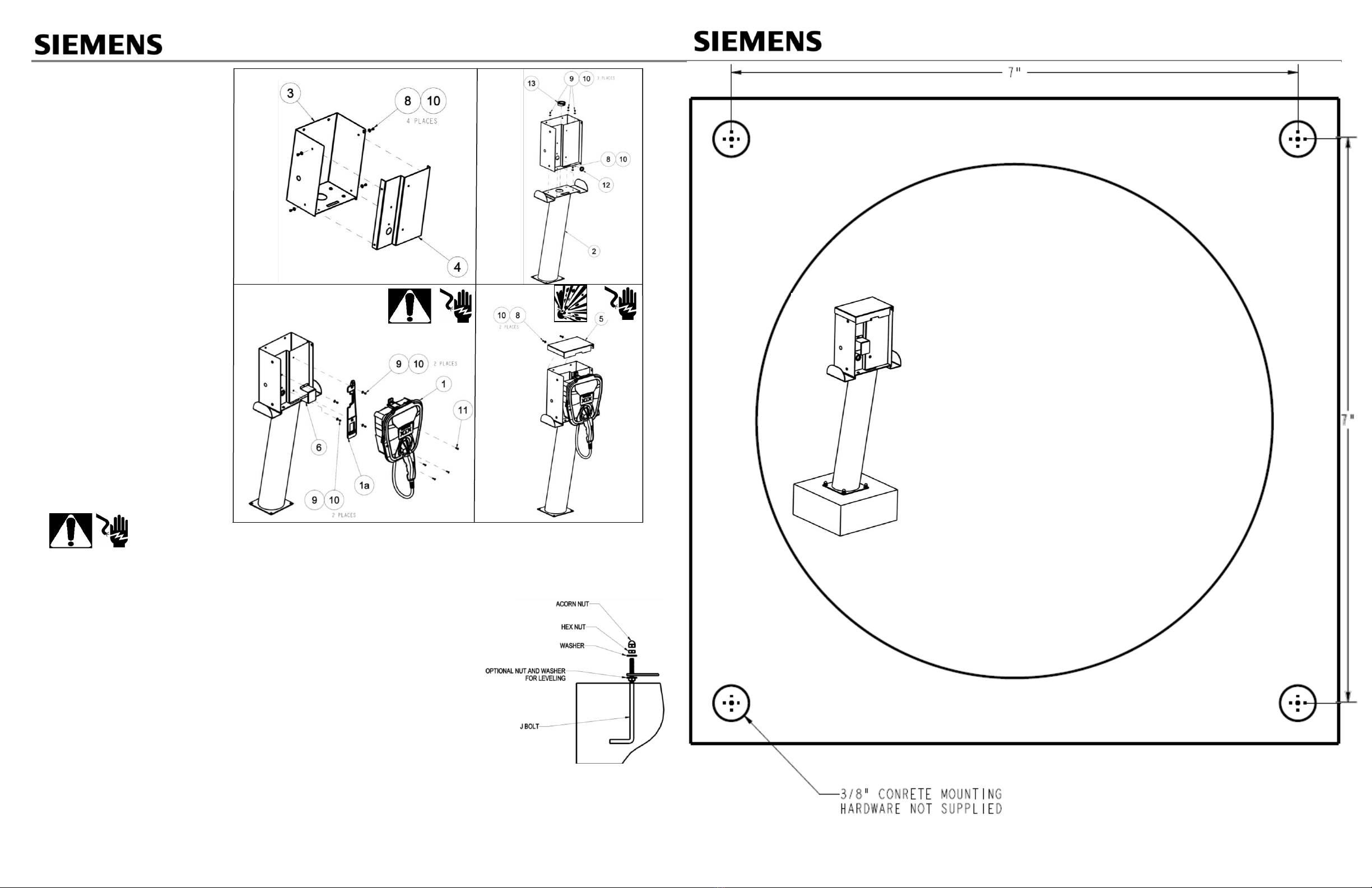

Concrete Mounting Instructions
This page is scaled 1:1 relative to the bottom of the post,
item 2. The center of the post must be placed minimum 36”
behind the curb if there is no wheel stop or minimum 12”
behind the curb if there is a wheel stop. Installation of the
post is dependent upon application (parking deck, lot,
curbside, etc.) but in general at least 2.25” of qty 4 x 3/8”-16
threaded bolts must protrude from the selected mounting
surface in the orientation shown (7” x 7” square). Mounting
hardware is sold separately. Suggested hardware consists
of qty 4 x 3/8”-16 S/S L-hook 8” anchor bolts, at least qty 4 x
3/8”-16 S/S nylon insert nuts and washers. If leveling is
required, it is suggested to use qty 8 nuts. Acorn nuts are
suggested to be used as a safety precaution, but are not
required. Suggested concrete pad size is minimum 16”
diameter circle, or minimum 18” square, with a minimum
depth of at least 24”. Bolts are inserted into cement at the
locations shown below (ensure the bolts are perpendicular
relative to mounting surface). Cable in an approved
electrical conduit is run from the power source, through the
cement, emerging within the designated area shown below.
The electrical conduit must protrude at least 3” from the
surface of the concrete. Consult NEC when deciding upon
appropriate electrical conduit for your application. The wire
must protrude 72” from the surface of the concrete. Refer to
section 3.4 of the VersiCharge Installation and Operations
Manual for instruction on removing the cord-and-plug
assembly and stripping wires. Use 6-8 AWG, 75°C copper
wire to connect to supply circuit.
