Siemens SICHARGE CC AC22-MID User manual

SICHARGE Operating Manual MID
SICHARGE
SICHARGE CC AC22 - MID
SICHARGE Operating Manual MID
Operating Manual
02/2022
A5E48572776
-AD
Introduction
1
Safety information
2
Description
3
Operation
4
Faults
5
Appendix
A
List of abbreviations
B

Siemens AG
Smart
Infrastructure
Schuhstr.
60
91052 Erlangen
GERMANY
A5E48572776-AD
Ⓟ
03/2022 Subject to change
Copyright © Siemens AG 2019 - 2022.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

SICHARGE Operating Manual MID
Operating Manual, 02/2022, A5E48572776-AD 3
Table of contents
1 Introduction ........................................................................................................................................... 4
1.1 Purpose of this documentation ............................................................................................ 4
1.2 Conventions ........................................................................................................................ 4
1.3 Open-source software.......................................................................................................... 5
2 Safety information................................................................................................................................. 6
2.1 General safety information .................................................................................................. 6
2.2 Safety during operation and charging .................................................................................. 7
3 Description............................................................................................................................................. 9
3.1 Charging station structure.................................................................................................... 9
4 Operation............................................................................................................................................. 10
4.1 Status indicators ................................................................................................................ 10

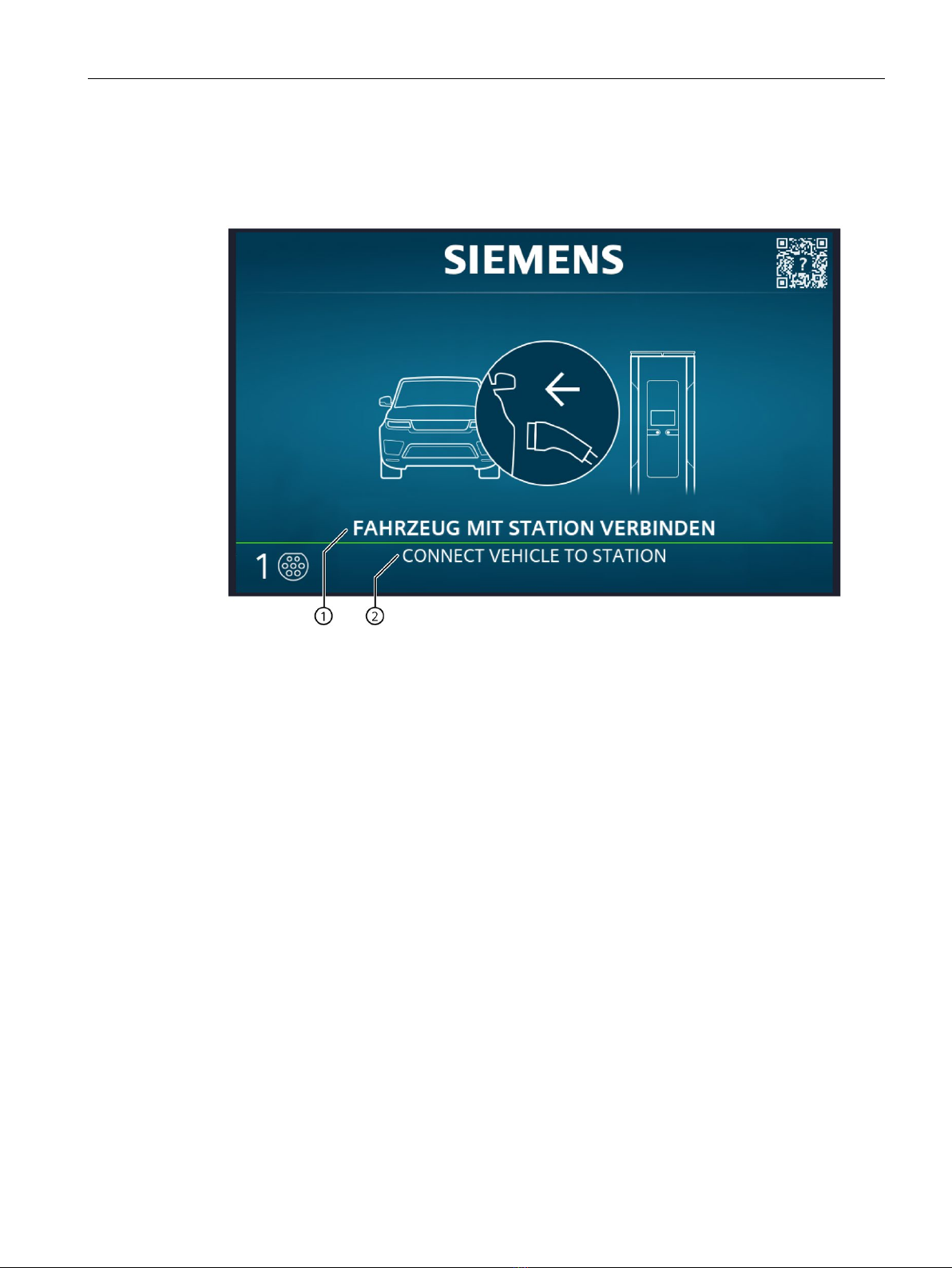

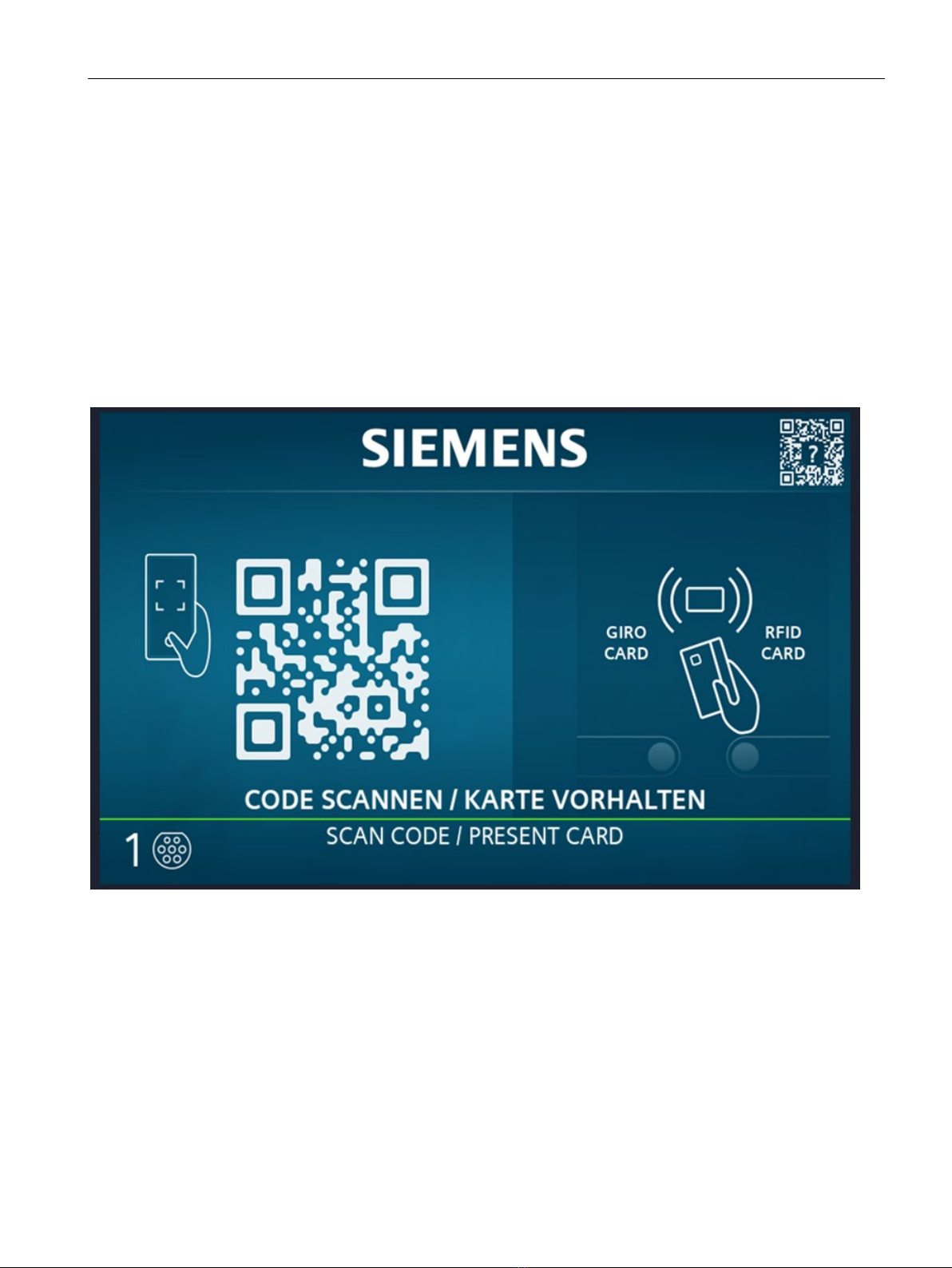

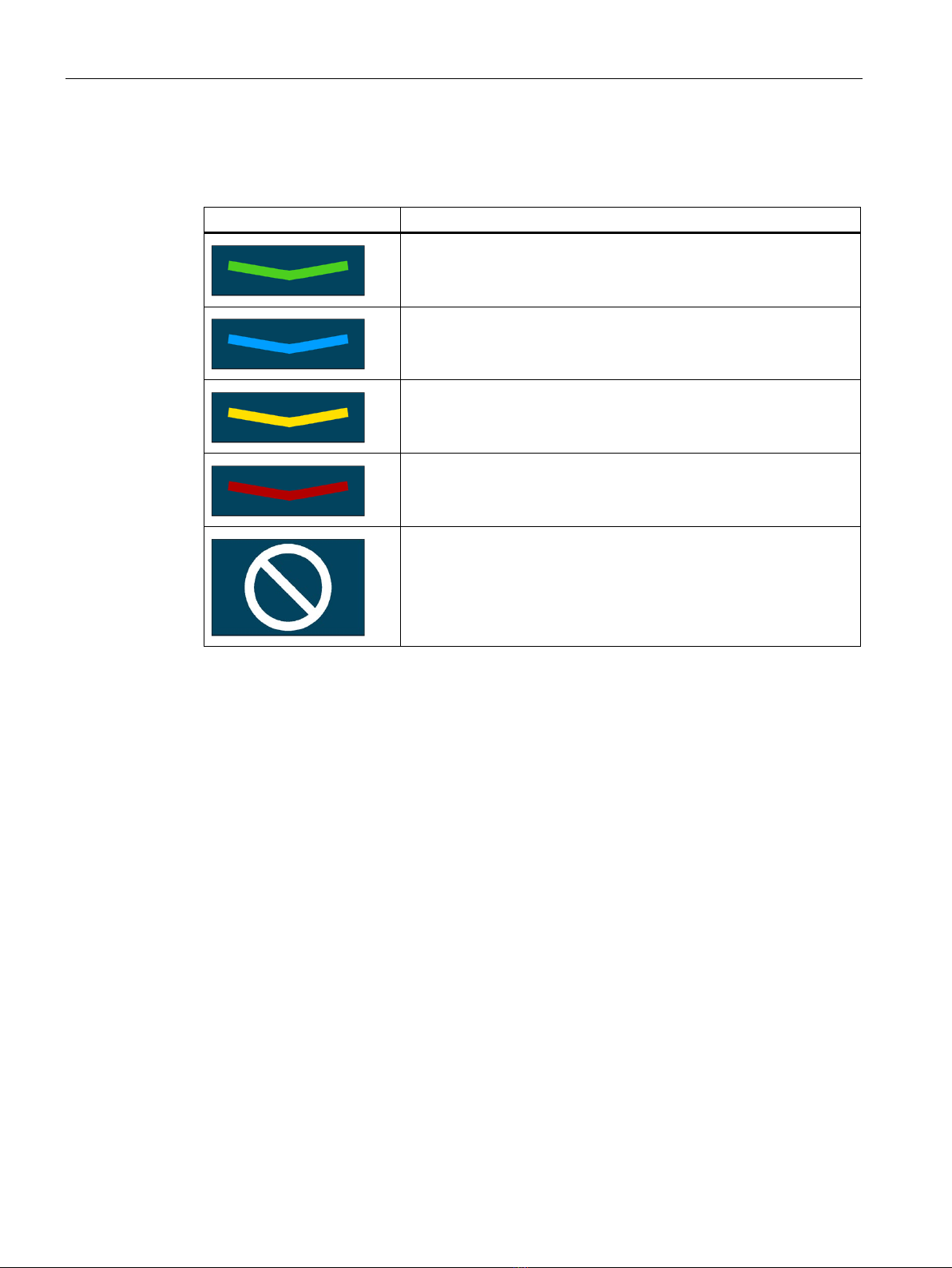

4.2 Display/GUI........................................................................................................................ 12
4.3 Charging ........................................................................................................................... 14
5 Faults ................................................................................................................................................... 18
5.1 Fault clearance .................................................................................................................. 18
A Appendix.............................................................................................................................................. 21
A.1 Quality documentation ...................................................................................................... 21
B List of abbreviations ............................................................................................................................ 22
B.1 Abbreviations .................................................................................................................... 22

SICHARGE Operating Manual MID
4Operating Manual, 02/2022, A5E48572776-AD
Introduction
1
1.1 Purpose of this documentation
This operating manual contains information for operating the SICHARGE CC AC22 charging
station.
The operating manual contains information on the prescribed use of the charging station.
WARNING
Failure to comply with the information in these operating instructions may result in the
following:
•Personal injury
•Material damage
•
Dangerous situations
Follow also vehicle-specific operating instructions for the respective vehicle.
Validity of the documentation
This document is valid as of software version V71 and hardware version V3.
Changes compared to the previous version
Compared to the 07/2020 edition, this manual contains the following changes:
•Adaptations to new HMI design
•Adaptations in the operating manual
1.2 Conventions
The illustrations in the operating manual may differ slightly from the device supplied.
Observe the notes labeled as follows:
Note
A
note contains:
•
Important product information
•
Information on how to handle the product

Introduction
1.3 Open-source software
SICHARGE Operating Manual MID
Operating Manual, 02/2022, A5E48572776-AD 5
1.3 Open-source software
Open-source software is used in the firmware of the product described. The open-source
software is provided free of charge. We are liable for the product described, including the
open-source software contained in it, pursuant to the conditions applicable to the product.
Siemens accepts no liability for the use of the open-source software over and above the
intended program sequence, or for any faults caused by modifications to the software.
For legal reasons, we are obliged to publish the license terms and copyright notices in the
original text. Please also read the information that is supplied with the product or made
available for download on the Siemens homepage.

SICHARGE Operating Manual MID
6Operating Manual, 02/2022, A5E48572776-AD
Safety information
2
2.1 General safety information
This chapter contains important and generally valid information for preventing accidents or
property damage that may occur during operation and use of the charging station. Read this
chapter carefully and follow the safety regulations. This will minimize safety risks.
The instructions in the documentation do not replace statutory safety instructions.
Target group
The following safety instructions is based on the use phases of the product life cycle. The
operating manual is intended for drivers of electric vehicles who want to charge their vehicles
with the SICHARGE CC AC22 charging station.
Areas of application of the device
•Charging electrically operated vehicles in public and semi-public areas
•Charging stations for depots, car parks, public parking areas, and retail
•Stations for car-to-go projects
Intended use
The device is used to charge batteries in fully electric and plug-in hybrid electric vehicles. The
charging station can be used both indoors and outdoors.
Charge electric vehicles according to IEC 61851-1 and 61851-22. If the device is used for any
other purpose, this is not intended use and constitutes a misuse of the device.
Under the Product Liability Act, you must also plan for predictable, unreasonable, and
improper use of the equipment.
You may use the SICHARGE charging stations conforming to MID for the purpose of billing
electrical work in kWh.

Safety information
2.2 Safety during operation and charging
SICHARGE Operating Manual MID
Operating Manual, 02/2022, A5E48572776-AD 7
2.2 Safety during operation and charging
The following description warns of additional hazards that must be considered when
operating the charging station. Act according to the specified operating instructions, and
observe the valid regional standards and regulations. Failure to follow safety instructions may
result in hazardous situations that could cause death or serious injury.
Risk of electric shock and fire
Touching live parts may cause electric shock or even death! Defective connectors or cables
may cause fire.
•Do not kink or squeeze the charging cable. Do not draw the charging cable over sharp
edges or hot surfaces.
•Do not use the charging station if dangerous damage or tampering is visible. Inform the
operator and keep yourself and other persons away from the charging station.
•Grip the power plug to pull the charging cable out of the socket. Do not grip by the cable
itself.
•Never touch the mains plug with wet hands.
•Do not connect or disconnect any cables during a thunderstorm.
Risk of overheating and fire
Using unauthorized accessories increases the risk of fire due to overheating.
•Only use a charging cable approved for the vehicle.
•Do not use an extension to connect the charging station to the vehicle.
•Adapter and adapter cable are not permitted.
High currents during charging can cause frequently used connectors or damaged charging
cables to heat up to extreme levels.
Hot surfaces on plugs or cables can cause serious injury and fire.
•Check the charging cable for damage before each use.
•Always avoid direct contact with hot objects or parts of the enclosure.
•Do not allow children to play on the system or with the charging cable.
Risk of accident
Ensure that the charging cable does not block any escape route or constitute a tripping
hazard. In this case, the cable can become an obstacle that can lead to injuries. The cable
could also be ripped out from the anchoring and cause damage to the vehicle or the charging
station.

Safety information
2.2 Safety during operation and charging
SICHARGE Operating Manual MID
8Operating Manual, 02/2022, A5E48572776-AD
Charging cable and socket
Defective connectors or cables may cause fire. Qualified personnel must shut down the unit
and replace the damaged components immediately.
Do not bend or squeeze the charging cable; do not run it over sharp edges, and use it only
within the permissible temperature range.
Check the sockets and the charging cable for damage.

SICHARGE Operating Manual MID
9Operating Manual, 02/2022, A5E48572776-AD
Description
3

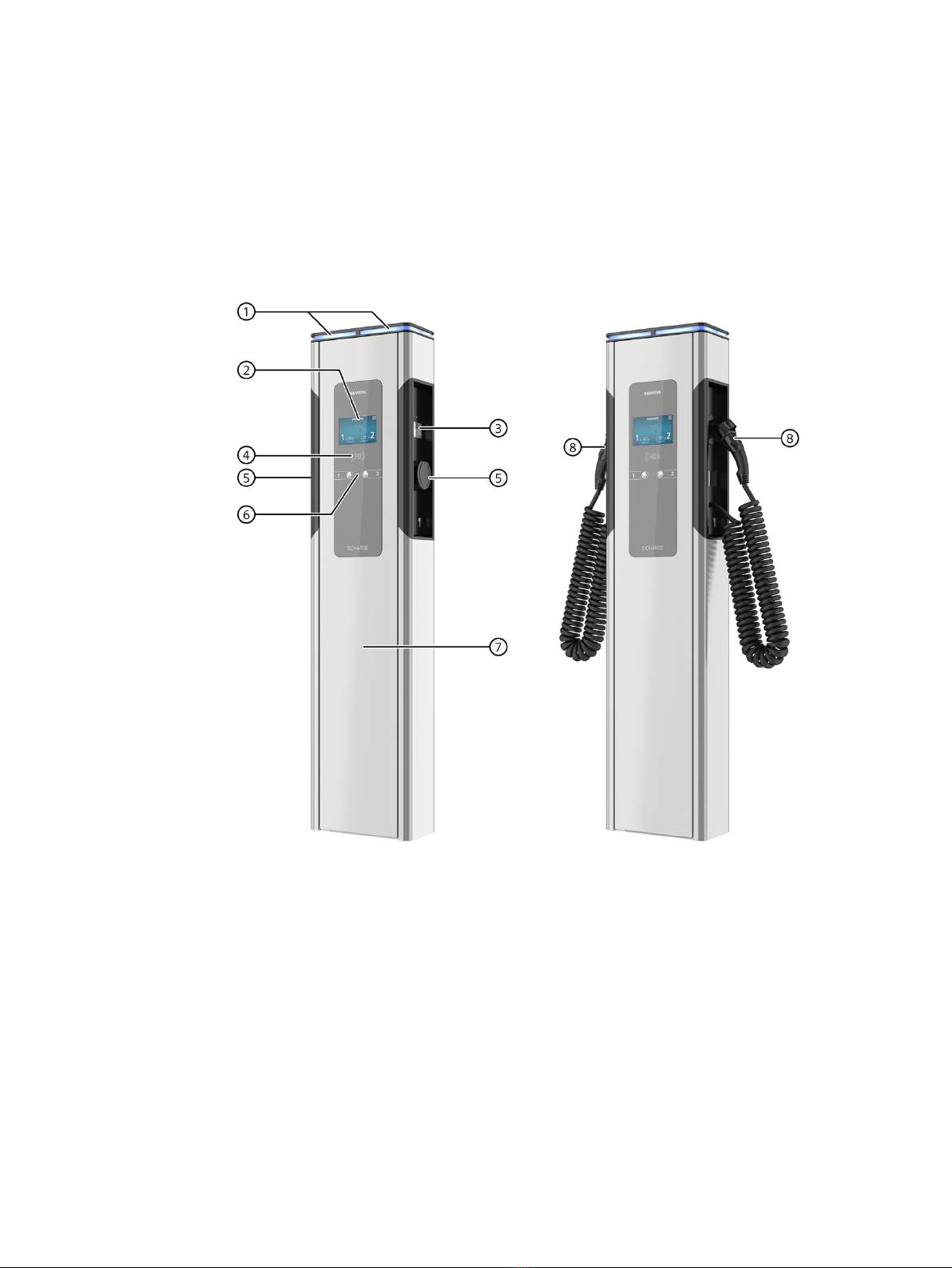

3.1 Charging station structure
①
Status light
⑤
Charging connection type 2
②
HMI
⑥
Pushbutton
③
Viewing window for meter
⑦
Maintenance door
④
RFID reader
⑧
Option: Fixed charging cable
Figure 3-1 Charging station structure

SICHARGE Operating Manual MID
Operating Manual, 02/2022, A5E48572776-AD 10
Operation
4
4.1 Status indicators
Notes on operation
The SICHARGE CC AC22 charging station is equipped with status indicators. Different colors
and flashing signals indicate the current status of charging points 1 and 2. This signalizes to
drivers if the charging station is available and what its status is.
The display also directly shows the required information.
①
LED status indicator charging point 1
②
LED status indicator charging point 2
Figure 4-1 LED status indicators of the charging station

Operation
4.1 Status indicators
SICHARGE Operating Manual MID
Operating Manual, 02/2022, A5E48572776-AD 11
Status indicators
The table below provides an overview of the LED status indicators of the charging points:
Does not light up
If the status indicator does not light up, this indicates an
interruption to the power supply. If there is not a power
failure, check the backup fuses.
Lights up white
The controller is deactivated. The charging point is not avail-
able.
Flashing white
Controller has been started. The charging point is not availa-
ble at the moment.
Lights up green
Charging of vehicles is possible.
Flashes green
No cable plugged in. Charging point is signing charging
process.
Lights up yellow
The charging point is connected to the vehicle.
No charging in progress.
Pulsating blue light
Charging process active:
The connected vehicle is receiving power.
Lights up blue
Charging inactive:
The connected vehicle is not drawing any power.
Flashing blue
Meter data for the charging process are being signed.
Flashes red 1x
•EVSE connection error
•EV connection error
•Overtemperature
Flashes red 2x
Contactor error
Flashes red 3x
Circuit breaker (CB) has tripped
Flashes red 4x
The residual current circuit breaker (RCCB) has tripped
Flashes red 5x
Connector lock error
Flashes red 6x
Meter error
Flashes red 7x
Vehicle error: Mode 3 unknown status

Operation
4.2 Display/GUI
SICHARGE Operating Manual MID
12 Operating Manual, 02/2022, A5E48572776-AD
4.2 Display/GUI
Start screen
After power on or after a few seconds without operation command, the station will show the
start screen.
①
Charging point 1
④
Drawn energy charging point 1
②
Status display charging point 1
⑤
QR code for help function
③
Display charging time charging point 1
Figure 4-2 Start screen

Operation
4.2 Display/GUI
SICHARGE Operating Manual MID
Operating Manual, 02/2022, A5E48572776-AD 13
Operator guidance
The user of the charging station is guided through the operating steps using graphics. Some
displays also show text references.
①
Primary language
②
Secondary language
Figure 4-3 Operator guidance

Operation
4.3 Charging
SICHARGE Operating Manual MID
14 Operating Manual, 02/2022, A5E48572776-AD
Status display of the charging points
The status displays ②on the HMI have the following meanings for the charging points:
Status display
Meaning
•Charging point available
•Charging of an electric vehicle is possible
Charging active
Charging point reserved
Charging point error
Charging point inactive
4.3 Charging
Different versions
The charging process is described for the socket with type 2 charging port.
The procedure is largely identical for the following versions.
•SCHUKO socket type E/F
•Fixed charging cables type 2
Possible deviations in the procedure:
•Plugging and unplugging directly on the charging station
•Connector lock

Operation
4.3 Charging
SICHARGE Operating Manual MID
Operating Manual, 02/2022, A5E48572776-AD 15
Start charging
Proceed as follows to start charging:
1. Check if the required charging point is ready for operation: The status LED must light up
green.
2. Use the left or right pushbutton to select the desired charging point.
3. Authenticate yourself at the charging station.
Depending on the operator configuration (configuration via web interface or backend),
these methods are available:
–Hold RFID card in front of the card reader
–Open operator app and scan QR code
Figure 4-4 Authentication
4. Depending on the configuration (configuration via web interface or backend) of your device,
the software will now check your authorization to charge a vehicle.
5. The charging station now unlocks the cover lock.
6. Plug the plug connector of the charging cable into the power outlet of the charging station.
Make sure that the charging cable and the connecting cables are not damp or dirty. Follow
also the instructions of the vehicle manufacturer.
7. The communication connection to the vehicle is established. The LED status indicator
changes from yellow to blue. This process can take some time depending on the connection
speed and reaction speed of the backend.

Operation
4.3 Charging
SICHARGE Operating Manual MID
16 Operating Manual, 02/2022, A5E48572776-AD
8. The device locks the plug into the socket.
9. After the plug is locked successfully, the charging process starts automatically and the LED
status indicator pulsates blue. The vehicle is now being charged. The plugs are still protected
against unauthorized removal.
10.The HMI informs you about the current charging status.
11.The vehicle is fully charged as soon as the LED status indicator changes from flashing to
permanently lit.
The status LED pulsating in blue indicates that current is flowing to the vehicle and the
vehicle battery is charging. The status LED lights up permanently in blue in the following
cases:
•The vehicle is not drawing power.
–The charging station pauses, for example, because of load management
–The vehicle pauses the charging
•The charging of the vehicle battery is completed.
Completing the charging
Your vehicle is being charged as long as the light pulsates in blue. Charging is complete when
the light of the LED status indicator is constant.
You can stop charging at any time.
Note
Option: Permanently installed charging cables
After charging, place the permanently installed chargi
ng cable in the holder provided.
Cables that are not stowed may cause the following hazards:
•
You may trip over it
•
Damage to the plug
•
Damage to the cable
•
Moisture may enter the plug

Operation
4.3 Charging
SICHARGE Operating Manual MID
Operating Manual, 02/2022, A5E48572776-AD 17
There are 3 different ways to terminate charging:
Procedure with RFID card
Proceed as follows to end the charging process with the RFID card:
1. Charging point selection: Press the pushbutton below the display and follow the
instructions.
2. Place the RFID card onto the icon for the card reader.
Once the RFID card has been identified, the validity is checked.
3. Charging stops.
The status indicator changes from blue to yellow.
4. The charging cable is now unlocked. Remove the charging cable.
5. Also unplug the connector from the socket of your electric vehicle. Stow away the provided
charging cable. To do this, follow the instructions in the manual for your vehicle.
Procedure with operator app, hotline
Proceed as follows to end the charging process with the operator app or hotline:
1. Charging point selection: Select your vehicle or the charging point in the operator app.
2. The charging cable is released on the charging station side.
The status indicator changes from blue to yellow.
3. Remove the charging cable.
4. Also unplug the connector from the socket of your electric vehicle. Stow away the provided
charging cable. To do this, follow the instructions in the manual for your vehicle.
Procedure for unplugging from the vehicle
Proceed as follows to end the charging process by disconnecting the vehicle:
1. Unlock the charging cable on the vehicle. Follow the instructions listed in your vehicle's
manual.
The status indicator changes from blue to yellow.
2. Remove the plug from the socket of your electric vehicle and the socket of the charging
station.
The status indicator changes from yellow to green.
3. Stow away the provided charging cable. To do this, follow the instructions in the manual for
your vehicle.

SICHARGE Operating Manual MID
Operating Manual, 02/2022, A5E48572776-AD 18
Faults
5
5.1 Fault clearance
Procedure in the event of a fault
If the charging station experiences a fault, proceed as follows:
1. Check the display.
The following options are available for diagnostics:
–Screen maintenance status: Open the screen by pressing a button for five seconds
(long press).
Figure 5-1 Screen maintenance status

Faults
5.1 Fault clearance
SICHARGE Operating Manual MID
Operating Manual, 02/2022, A5E48572776-AD 19
–Screen out of order: The displayed error code (for example, #40-02-00) can only be
used for diagnostics and fault clearance (e.g. with the help of the Service hotline).
Figure 5-2 Screen out of order
–Flash codes of the LED status indicator (see Status indicators (Page 10))
–Error message via OCPP to the backend. You can find more information in the
operating instructions.
