Walking-Beam Interlock
Módulo de enclavamiento recíproco para interruptores adyacentes
Module d'interverouillage mécanique
1 / 8
806892_ _ _
For Use With Frame JG, LG
Para Usar Con Caja Base JG, LG
Use only with Siemens certified Components.
Utilizar únicamente con componentes certificados de Siemens.
A utiliser uniquement avec les composants certifiés Siemens.
Turn off and lock out all power supplying this device before
working on this device.
Replace all covers before power supplying this device is
turned on.
Couper l'alimentation de l'appareil et barrer avant de
travailler.
Remplacez touts les couverts avant que
l'approvisionnement de pouvoir soit alimenté.
Tensión peligrosa.
Puede causar la muerte o lesiones graves.
Tension dangereuse.
Danger de mort ou risque de blessures graves.
Hazardous Voltage.
Will cause death or serious injury.
Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de
energizar el interruptor.
Turn off and lock out all power supplying this device before
working on this device.
Replace all covers before power supplying this device is
turned on.
Couper l'alimentation de l'appareil et barrer avant de
travailler.
Remplacez touts les couverts avant que
l'approvisionnement de pouvoir soit alimenté.
Tensión peligrosa.
Puede causar la muerte o lesiones graves.
Tension dangereuse.
Danger de mort ou risque de blessures graves.
Hazardous Voltage.
Will cause death or serious injury.
Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de
energizar el interruptor.

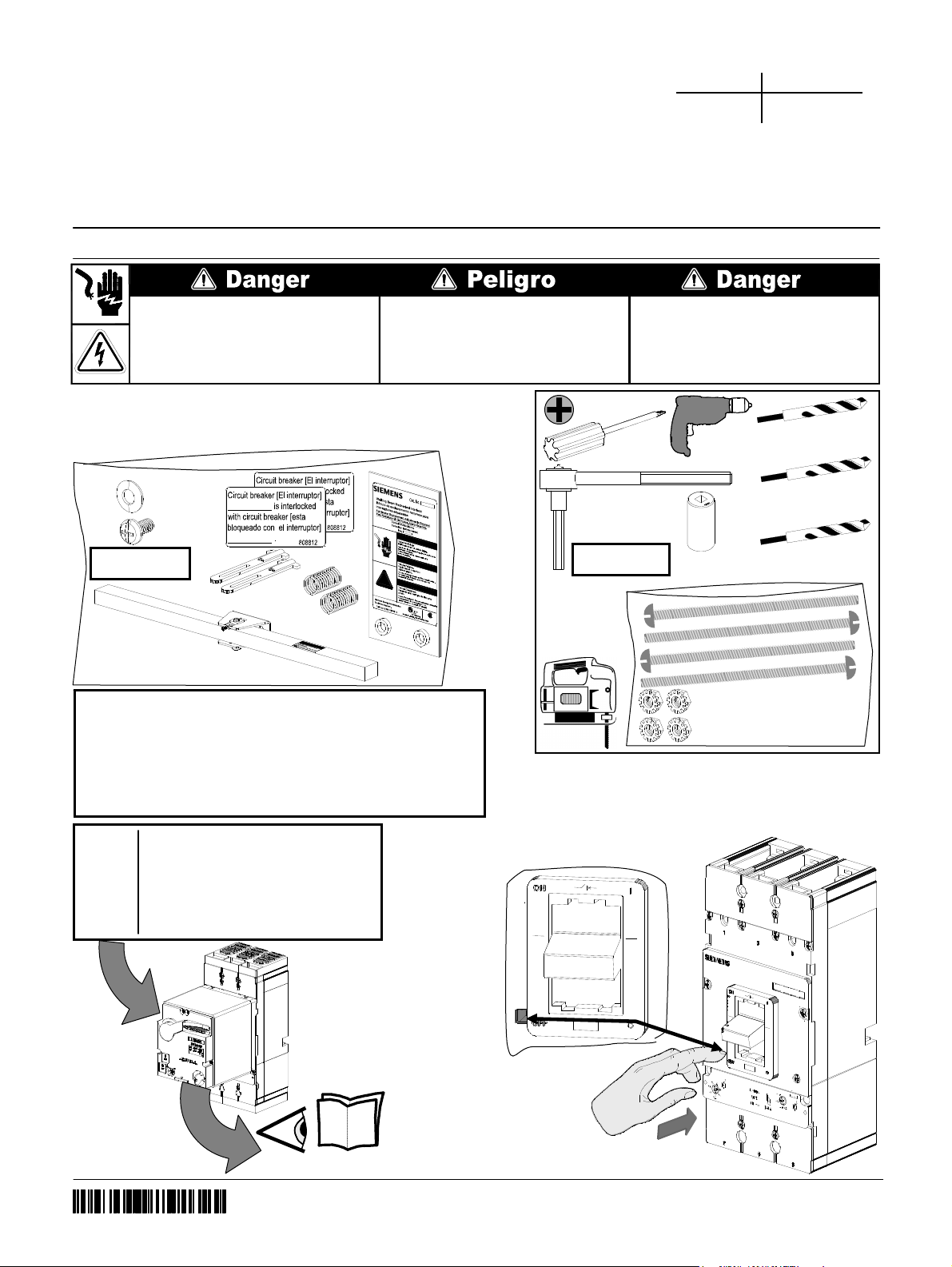

Installation Instructions / Instructivo de Instalación
3VL94008LC01Item: WBMLFM
U.S. Cat. No. Euro Order No.
I.L. No. 806894A01
SEALB 3VL9400-3MJ01 = 24 Vdc
SEALM 3VL9400-3ML01 = 42-48 V ac/dc
SEALY 3VL9400-3MS01 = 60 V ac/dc
SEALN 3VL9400-3MN01 = 110-127 V ac/dc
SEALR 3VL9400-3MQ01 = 220-250 V ac/dc
