Siemens 2AI 2/4WIRE HF User manual

SIMATIC ET 200S distributed I/O 2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
_
_____________
_
_____________
_
_____________
_
_____________
_
_____________
Preface
Properties
1
Parameters
2
Diagnostics
3
Analog value representation
4
Connecting
5
SIMATIC
ET 200S distributed I/O
2 AI I 2/4WIRE HF analog electronic
module (6ES7134-4MB02-0AB0)
Manual
04/2007
A5E01076111-01

Safety Guidelines
Safety Guidelines
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
with a safety alert symbol, indicates that minor personal injury can result if proper precautions are not taken.
CAUTION
without a safety alert symbol, indicates that property damage can result if proper precautions are not taken.
NOTICE
indicates that an unintended result or situation can occur if the corresponding information is not taken into
account.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The device/system may only be set up and used in conjunction with this documentation. Commissioning and
operation of a device/system may only be performed by qualified personnel. Within the context of the safety notes
in this documentation qualified persons are defined as persons who are authorized to commission, ground and
label devices, systems and circuits in accordance with established safety practices and standards.
Prescribed Usage
Note the following:
WARNING
This device may only be used for the applications described in the catalog or the technical description and only
in connection with devices or components from other manufacturers which have been approved or
recommended by Siemens. Correct, reliable operation of the product requires proper transport, storage,
positioning and assembly as well as careful operation and maintenance.
Trademarks
All names identified by ® are registered trademarks of the Siemens AG. The remaining trademarks in this
publication may be trademarks whose use by third parties for their own purposes could violate the rights of the
owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
Siemens AG
Automation and Drives
Postfach 48 48
90327 NÜRNBERG
GERMANY
Ordernumber: A5E01076111-01
Ⓟ 09/2007
Copyright © Siemens AG 2007.
Technical data subject to change
이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하시기 바라며 가정 외의 지역에서 사용하는 것을 목적으로 합니다.

2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
Manual, 04/2007, A5E01076111-01 3
Preface
Purpose of the manual
This manual supplements the ET 200S Distributed I/O System Operating Instructions.
General functions for the ET 200S are described in the
ET 200S Distributed I/O System
Operating Instructions.
The information in this document along with the operating instructions enables you to
commission the ET 200S.
Basic knowledge requirements
To understand these operating instructions you should have general knowledge of
automation engineering.
Scope of the manual
This manual applies to this ET 200S module. It describes the components that are valid at
the time of publication.
Recycling and disposal
Thanks to the fact that it is low in contaminants, this ET 200S module is recyclable. For
environmentally compliant recycling and disposal of your electronic waste, please contact a
company certified for the disposal of electronic waste.
Additional support
If you have any questions relating to the products described in these operating instructions,
and do not find the answers in this document, please contact your local Siemens
representative.
http://www.siemens.com/automation/partner
The portal to our technical documentation for the various SIMATIC products and systems is
available at:
http://www.siemens.com/automation/simatic/portal
The online catalog and ordering system are available at:
http://www.siemens.com/automation/mall

Preface
2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
4 Manual, 04/2007, A5E01076111-01
Training center
We offer courses to help you get started with the ET 200S and the SIMATIC S7 automation
system. Please contact your regional training center or the central training center in D -
90327, Nuremberg, Germany.
Phone: [phone].
http://www.siemens.com/sitrain
Technical Support
You can reach technical support for all A&D projects
● using the support request web form:
http://www.siemens.com/automation/support-request
● Phone: + 49 180 5050 222
● Fax: + 49 180 5050 223
For more information about our technical support, refer to our Web site at
http://www.siemens.de/automation/service
Service & Support on the Internet
In addition to our documentation services, you can also make use of our comprehensive
online knowledge base on the Internet.
http://www.siemens.com/automation/service&support
There you will find:
● Our Newsletter, which constantly provides you with the latest information about your
products.
● The right documentation for you using our Service & Support search engine.
● The bulletin board, a worldwide knowledge exchange for users and experts.
● Your local contact for Automation & Drives in our contact database.
● Information about on-site services, repairs, spare parts. Lots more can be found on our
"Services" pages.

2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
Manual, 04/2007, A5E01076111-01 5
Table of contents
Preface ...................................................................................................................................................... 3
1 Properties .................................................................................................................................................. 7
1.1 2AI 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0) ..........................................7
2 Parameters.............................................................................................................................................. 13
2.1 Parameters...................................................................................................................................13
2.2 Parameter description..................................................................................................................14
3 Diagnostics.............................................................................................................................................. 15
3.1 Diagnostics using LED display.....................................................................................................15
3.2 Error types....................................................................................................................................16
4 Analog value representation .................................................................................................................... 17
4.1 Introduction ..................................................................................................................................17
4.2 Analog value representation for measuring range with SIMATIC S7 ..........................................17
4.3 Measuring ranges ........................................................................................................................18
4.4 Effect on analog value representation .........................................................................................20
4.4.1 Effect of the supply voltage and the operating state on analog input values ..............................20
4.4.2 Effect of the value range on the 2 AI I 2/4WIRE HF analog input ...............................................20
5 Connecting .............................................................................................................................................. 21
5.1 Connecting measuring sensors ...................................................................................................21
5.2 Wiring unused channels of the analog input modules.................................................................25
5.3 Using the shield connection .........................................................................................................25
Index........................................................................................................................................................ 27

Table of contents
2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
6 Manual, 04/2007, A5E01076111-01

2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
Manual, 04/2007, A5E01076111-01 7
Properties 1
1.1 2AI 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
Properties
● 2 inputs for measuring current
● Input ranges:
– ± 20 mA, resolution 15 bits + sign
– 4 mA to 20 mA, resolution 15 bits
● Isolated from the load voltage L+
● Permitted common-mode voltage between the channels 100 VAC
● Supports two-wire or four-wire measuring transducers
● Supports isochronous operation
– Minimum time for the isochronous DP cycle (TDPmin): 0.7 ms
– Minimum conversion time of the input modules: (TWEmin): 0.5 ms
● Supports I&M functions
● Extended temperature range from 0 to 50°C with vertical installation
General terminal assignment
Note
Terminals 4, 8, A4, A8, A3 and A7 are only available at specified terminal modules.

Properties
1.1 2AI 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
8 Manual, 04/2007, A5E01076111-01
Terminal assignment for the 2 AI I 2/4WIRE HF (6ES7134-4MB02-0AB0)
Terminal Assignment Terminal Assignment Notes
1 M
0+ 5 M 1+
2 M
0- 6 M 1-
3 L+ 7 L+
4 L- 8 L-
A4 AUX1 A8 AUX1
A3 AUX1 A7 AUX1
for 2-wire transducer:
•Mn+: Input signal "-", Channel n
•Mn-: Connect to L-
•L+: Input signal "+", Channel n
•AUX1: Protective-conductor terminal or potential bus (freely usable
up to 230 VAC)
For 4-wire transducer:
•Mn+: Input signal "+", Channel n
•Mn-: Input signal "-", Channel n
•L+: Power supply for four-wire measuring transducer
•L-: Return circuit for measuring transducer supply
•AUX1: Protective-conductor terminal or potential bus (freely usable
up to 230 VAC)
Usable terminal modules
Usable terminal modules for the 2 AI I 2/4WIRE HF (6ES7134-4MB02-0AB0)
TM-E15C26-A1
(6ES7193-4CA50-
0AA0)
TM-E15C24-01
(6ES7193-4CB30-
0AA0)
Spring terminal
TM-E15S26-A1
(6ES7193-4CA40-
0AA0)
TM-E15S24-01
(6ES7193-4CB20-
0AA0)
Screw-type terminal
TM-E15N26-A1
(6ES7193-4CA80-
0AA0)
TM-E15N24-01
(6ES7193-4CB70-
0AA0)
Fast Connect








$
$8; 
$

$

$









P$
/
/
P$
0
0
ZLUH
ZLUHWUDQVGXFHU
ZLUH
ZLUHWUDQVGXFHU
:LULQJH[DPSOHV

Properties
1.1 2AI 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
Manual, 04/2007, A5E01076111-01 9

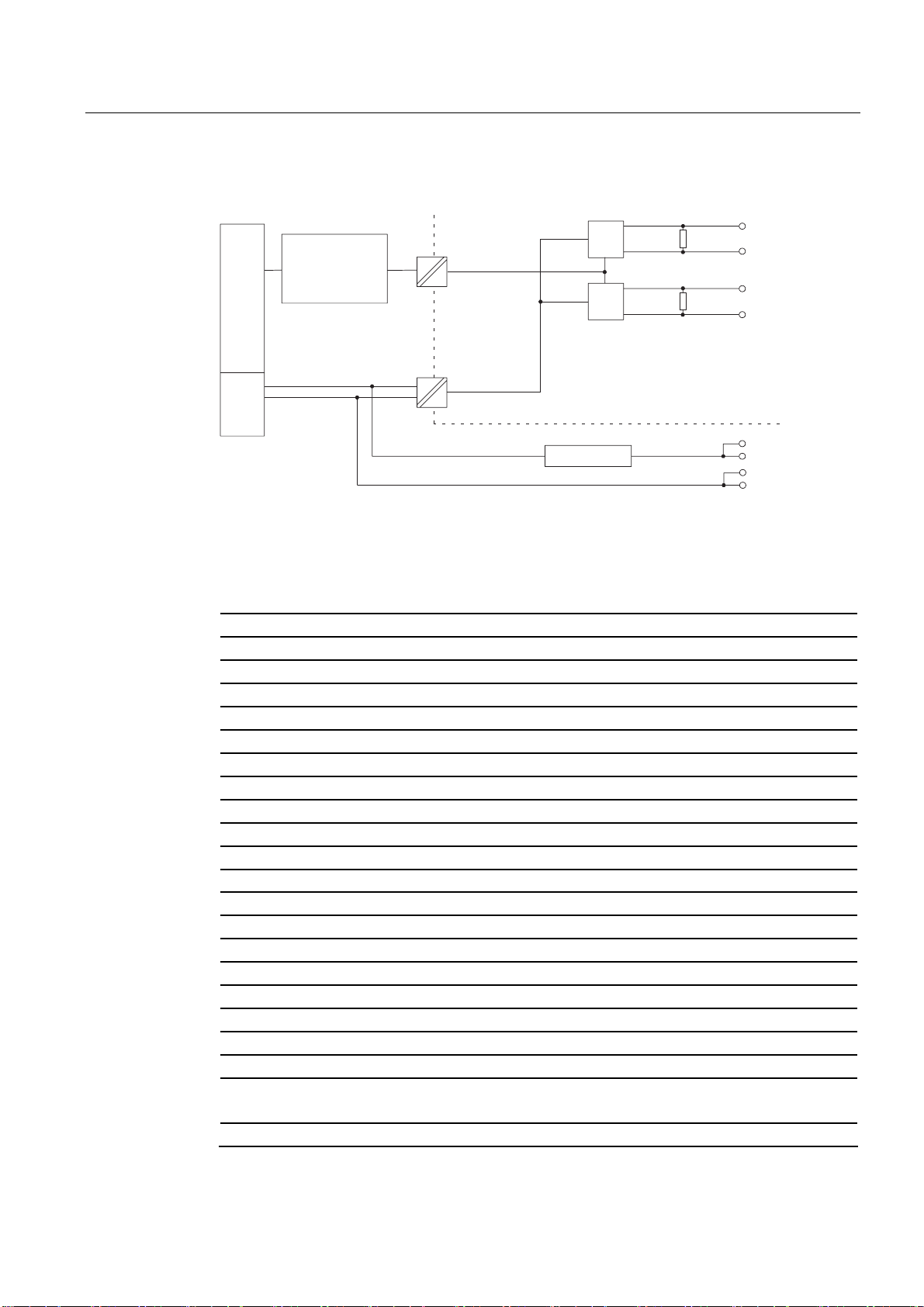

Block diagram
0
$1$
9
/
0








3
3
$'8
$'8
%DFNSODQHEXV
&XUUHQWOLPLWDWLRQ
(76
EDFNSODQHEXV
FRQQHFWLRQ
Figure 1-1 Block diagram of the 2AI I 2/4WIRE HF
2 AI I 2/4WIRE HF (6ES7134-4MB02-0AB0) technical data
Dimensions and weight
Width (mm) 15
Weight Approx. 45 g
Module-specific data
Supports isochronous operation 1 Yes
Supports I&M functions Yes
Number of inputs 2
Cable length
•Shielded Max. 200 m
Parameter length 12 bytes
Address space 4 bytes
Analog value representation S5 and S7 format
1 Supported if no interference frequency suppression or smoothing is configured.
Voltages, currents, potentials
Rated load voltage L+ (from the power module) 24 VDC
•Reverse polarity protection Yes
Power supply of the transducers Yes
•Short-circuit protection Yes, 60 mA (for both channels)
Electrical isolation
•Between the channels and backplane bus Yes
•Between the modules and load voltage L+ No, with 2WIRE
Yes, with 4WIRE
•Between the channels No

Properties
1.1 2AI 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
10 Manual, 04/2007, A5E01076111-01
Permissible potential difference
•Between channels (UCM) 140 VDC/100 VAC (with isolated power supply
for the measuring transducer)
•Between MANA and the central grounding point
(UISO) 75 V DC/60 V AC
•Insulation tested 500 VDC
•Current consumption
•From the load voltage L+ (no encoder supply) Max. 48 mA
Power dissipation of the module Typically 1.2 W
Status, interrupts, diagnostics
Diagnostics function
•Group error Red "SF" LED
•Diagnostic functions readable Yes
•Process interrupts 2 Configurable, violation of upper and lower limits
2 Process interrupts are only sent if the process interrupt mechanism is not overloaded.
Analog value generation
Measuring principle Sigma-Delta
Conversion and cycle time:
Integration time can be assigned parameters Yes
•Interference frequency suppression in Hz 60 50 No
•Conversion time in ms (per channel) 17 20 0,04
•Cycle time of the module in ms (per module) 18 21 0,5
•Resolution ±20 mA/15 bits + sign
4 to 20 mA/15 bits
Suppression of interference, limits of error
Noise suppression for f = n x (f1 ± 0.5%),
(f1 = interference frequency)
•Common-mode interference (USS)
•Series-mode interference
(peak interference value < rated value of input
range)
Min. 100 dB
Min. 90 dB
Crosstalk between the inputs Min. -100 dB
Operational limit
(in the entire temperature range, with reference to
the input range)
±0.1% with interference frequency suppression
±0.2% without interference frequency
suppression
Intrinsic error limit
(operational limit at 25°C)
±0.05% with interference frequency suppression
±0.1% with interference frequency suppression
Temperature error (with reference to the input
range)
± 0.003 %/K
Linearity error (with reference to the input range) ± 0,01 %
Repeatability
(in steady state at 25°C with reference to input
range)
± 0,01 %

Properties
1.1 2AI 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
Manual, 04/2007, A5E01076111-01 11
Data for selecting a sensor
Input range (rated value)/input resistance
•Current Approx. 44 Ω
Permitted input current (destruction limit) Approx. 50 mA (can be limited electronically)
Load of the two-wire transmitter: Max. 750 Ω
Smoothing of the measured values Yes, can be assigned parameters in 4 steps by
means of digital filtering
Step
None
Weak
Medium
Strong
Time constant
1 x cycle time
4 x cycle time
16 x cycle time
32 x cycle time
I&M functions
The I&M data can be read from the module using interface modules with the following order
numbers or firmware/product versions (or higher):
Interface module Order number Firmware version Product version
IM151-1 HIGH FEATURE 6ES7151-1BA01-0AB0 V2.0 02
IM151-3 PN 6ES7151-3AA20-0AB0 V4.0 01
IM151-3 PN HIGH FEATURE 6ES7151-3AA20-0AB0 V4.0 01
IM151-3 PN FO 6ES7151-3BB21-0AB0 V4.0 01

Properties
1.1 2AI 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
12 Manual, 04/2007, A5E01076111-01

2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
Manual, 04/2007, A5E01076111-01 13
Parameters 2
2.1 Parameters
Table 2-1 Parameters for analog input module
2AI I 2/4WIRE HF Range of values Default setting Applicability
Group diagnostics (parameter assignment error,
internal error)
•Disable
•Enable
Disable Module
Diagnostics: Overflow/underflow •Disable
•Enable
Disable Module
Diagnostics: Wire break1 •Disable
•Enable
Disable Channel
Smoothing 2 •None
•Weak
•Medium
•Strong
None Channel
Type/range of measurement •Deactivated
•4 to 20 mA, 2-wire
transmitter
•4 to 20 mA, 4-wire
transmitter
•± 20 mA
4 to 20 mA, 4-wire
transmitter
Channel
Interference frequency suppression2 •Disable
•Enable
Disable Module
1 Only in the measuring range 4 to 20 mA
2 Not with isochronous mode

Parameters
2.2 Parameter description
2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
14 Manual, 04/2007, A5E01076111-01
2.2 Parameter description
Smoothing
The individual measured values are smoothed by digital filtering. The smoothing can be
adjusted in four steps, in which the smoothing factor k multiplied with cycle time of the
electronic module equals the time constant of the smoothing filter. The greater the
smoothing, the greater the time constant of the filter.

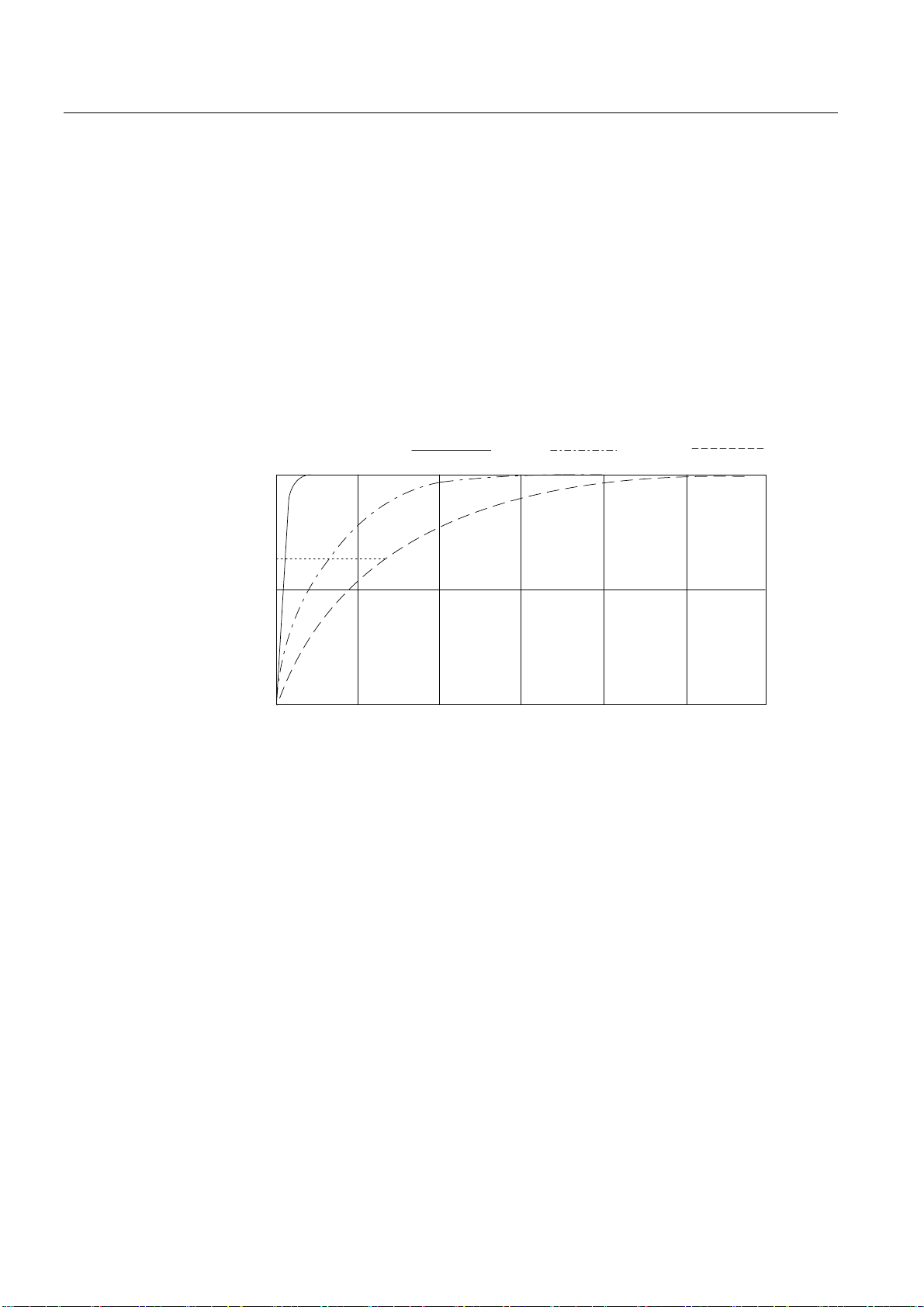

The following diagrams show the step response with the various smoothing factors in
relation to the number of module cycles.
     
[[ [ [



1RQHN  ZHDNN  PHGLXPN  VWURQJN 
0RGXOHF\FOHV
6WHSUHVSRQVH
Interference frequency suppression
The 2 AI I 2/4WIRE HF analog input module supports the setting of interference frequency
suppression (50 Hz or 60 Hz) on the interface module. This analog input module
(HIGH FEATURE) also enables the interference frequency suppression to be disabled; i.e.,
this setting can be ignored on the interface module. Disabling interference suppression
improves the conversion and cycle times in these modules.

2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
Manual, 04/2007, A5E01076111-01 15
Diagnostics 3
3.1 Diagnostics using LED display
LED display
1
6)
① Batch error (red)
Status and error displays
Event (LED)
SF
Cause Remedy
On No configuration or incorrect
module plugged in. No load
voltage.present There is a
diagnostic message.
Check the parameter
assignment. Check the load
voltage. Evaluate the
diagnostics.

Diagnostics
3.2 Error types
2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
16 Manual, 04/2007, A5E01076111-01
3.2 Error types
Analog input module error types
Table 3-1 Error types
Error type Meaning Remedy
16D 10000: Parameter
assignment error
Module cannot use the
parameter for the channel:
Inserted module does not
match the one configured.
Incorrect parameter
assignment.
Correct the configuration (align
actual and set configuration).
Correct the parameter
assignment (wire break
diagnostics only parameterized
for the permitted measuring
ranges).
9D 01001: Error Internal module error
(diagnostic message at
channel 0 applies to the entire
module)
Replace the module.
7D 00111: Upper limit
exceeded
Value is above the overshoot
range.
Correct the module/final
controlling element tuning.
8D 01000: Lower limit
value undershot
Value is below the underrange. Correct the module/final
controlling element tuning.
6D 00110:
Open circuit
Line to the encoder
interrupted.
Correct the process wiring.

2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
Manual, 04/2007, A5E01076111-01 17
Analog value representation 4
4.1 Introduction
Electronic modules with analog outputs
With the electronic module with analog inputs, continuously variable signals, such as those
occurring in temperature measurement and resistance measurement, can be acquired,
evaluated, and converted to digital values for further processing.
4.2 Analog value representation for measuring range with SIMATIC S7
Analog value representation
With the same nominal range, the digitized analog value is the same for input and output
values. Analog values are represented in two's complement.
The following table shows the analog value representation of the analog electronic modules.
Table 4-1 Analog value representation (SIMATIC S7 format)
Resolution Analog value
Bit number 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Significance of the bits S 214 2
13 2 12 2 11 2 10 2 9 2 8 2 7 2 6 2 5 2 4 2 3 2 2 2 1 2 0
Sign
The sign (S) of the analog value is always in bit number 15:
● "0" → +
● "1" → –

Analog value representation
4.3 Measuring ranges
2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
18 Manual, 04/2007, A5E01076111-01
Output value
The following table shows the representation of the binary analog values and the
corresponding decimal and hexadecimal representation of the units of the analog values.
The table below shows the resolutions 11, 12, 13, and 15 bit + sign. Each analog value is
entered left aligned in the ACCU. The bits marked with "x" are set to "0".
Table 4-2 Output values (SIMATIC S7 format)
Units Analog value
Resolution in bits
Decimal Hexadecimal High byte Low byte
11+S 16 10H S 0 0 0 0 0 0 0 0 0 1 x x x x
12+S 8 8H S 0 0 0 0 0 0 0 0 0 0 1 x x x
13+S 4 4H S 0 0 0 0 0 0 0 0 0 0 0 1 x x
15 + sign 1 1H S 0 0 0 0 0 0 0 0 0 0 0 0 0 1
4.3 Measuring ranges
Introduction
The following tables contain the digitized analog values for the measuring ranges of the
analog input modules.
Since the binary representation of the analog values is always the same, these tables only
compare the measuring ranges with the units.
Measuring ranges for voltage and current: 4 to 20 mA
Table 4-3 SIMATIC S7 format: Measuring range 4 to 20 mA
Units
Measuring range
4 to 20 mA Decimal Hexadecimal
Range
> 22,8142 32767 7FFFH Overflow
22,8142
:
20,0005
32511
:
27649
7EFFH
:
6C01H
Overshoot range
20,0000
16,0000
:
4,0000
27648
20736
:
0
6C00H
5100H
:
0H
Nominal range
3,9995
.
1,1852
-1
:
-4864
FFFFH
:
ED00H
Underrange
< 1,1852 -32768 8000H Underflow

Analog value representation
4.3 Measuring ranges
2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
Manual, 04/2007, A5E01076111-01 19
Current measuring range: ± 20 mA
Table 4-4 SIMATIC S7 format: Measuring range ± 20 mA
Units
Measuring range ± 20 mA
Decimal Hexadecimal
Range
> 23,5150 32767 7FFFH Overflow
23,5150
:
20,0007
32511
:
27649
7EFFH
:
6C01H
Overshoot range
20,0000
14,9980
:
-14,9980
-20,0000
27648
20736
:
-20736
-27648
6C00H
5100H
:
AF00H
9400H
Nominal range
-20,0007
:
-23,5160
-27649
:
-32512
93FFH
:
8100H
Underrange
< -23,5160 -32768 8000H Underflow
Measured values in the event of a wire break in relation to enabled diagnostics
The following additional information applies to the current measuring range 4 to 20 mA:
Table 4-5 Measured values in the event of a wire break in relation to enabled diagnostics
Measured values Format Parameter assignment1
Decimal Hexadecimal
Description
•"Wire break" diagnostics enabled 32767 7FFFH •"Open circuit" diagnostic message
•"Wire break" diagnostics disabled
•"Overflow/underflow" diagnostics
enabled
-32767 8000H •Measured value after leaving the
underrange
•"Lower limit value undershot"
diagnostic message
S7
•"Wire break" diagnostics disabled
•"Overflow/underflow" diagnostics
disabled
-32767 8000H •Measured value after leaving the
underrange
1 Measuring range limits for wire break and underflow detection: At 1.185 mA

Analog value representation
4.4 Effect on analog value representation
2 AI I 2/4WIRE HF analog electronic module (6ES7134-4MB02-0AB0)
20 Manual, 04/2007, A5E01076111-01
4.4 Effect on analog value representation
4.4.1 Effect of the supply voltage and the operating state on analog input values
The input values of the analog modules are dependent on the supply voltage for
electronics/encoders and on the operating state of the PLC (CPU of the DP master). This is
illustrated by the table below.
Table 4-6 Relationship between the analog input values for the operating state of the PLC (CPU of
the DP master) and the supply voltage L+
Operating state of the PLC
(CPU of the DP master)
Supply voltage L+ on
ET 200S (power
module)
Input value of the electronic module with
analog inputs (evaluation possible on the
CPU of the DP master)
Process values L+ present
7FFFH until first conversion after startup, or
after assignment of parameters for the
module is completed.
POWER ON RUN
L+ missing 7FFFH
L+ present Process value POWER ON STOP
L+ missing 7FFFH
L+ present - POWER OFF -
L+ missing -
4.4.2 Effect of the value range on the 2 AI I 2/4WIRE HF analog input
The way electronic modules respond to analog inputs depends on where the input values fall
within the value range. This is illustrated by the table below.
Table 4-7 Response of the analog modules, depending on where the analog input value falls within the range of values
Measured value within ... Input value in SIMATIC S7 format Input value in SIMATIC S5 format
Nominal range Measured value Measured value
Over-/underrange Measured value Measured value
Overflow 7FFFH End of the overshoot range +1 plus
overflow bit
Underflow 8000H End of the underrange -1 plus overflow
bit
Prior to parameter assignment, or
incorrect parameter assignment
7FFFH 7FFFH
