Siemens Simatic S7-1500 User manual

support.industry.siemens.com
5/2022
SIMATIC
S7-1500 / ET 200MP
Communucation module IO-Link Master CM 8xIO-Link
6ES7547-1JF00-0AB0
MANUAL
Edition

S7-1500/ET 200MP
Documentation Guide 1
Product overview 2
Connecting 3
Parameters / address space 4
Diagnostic alarms 5
Technical specifications 6
Dimensional drawing 7
Parameter data record A
SIMATIC
S7-1500/ET 200MP
Communication module IO-Link
Master CM 8xIO-Link
(6ES7547-1JF00-0AB0)
Equipment Manual
08/2022
A5E45488510-AB

Siemens AG
Digital Industries
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E45488510-AB
Ⓟ 07/2022 Subject to change
Copyright © SiemensAG 2019 - 2022.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions. Qual
ified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding
potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical doc
umentation. If products and components from other manufacturers are used, these must be recommended or
approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and mainten
ance are required to ensure that the products operate safely and without any problems. The permissible ambient
conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of SiemensAG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent edi
tions.

Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB
4
Preface
Purpose of the documentation
This manual supplements the ET200MP Distributed I/O System
(https://support.industry.siemens.com/cs/ww/en/view/59191792) system manual. It describes
functions that generally affect the ET200MP distributed I/O system.
The information provided in the present manual, the system manual and the function
manuals enables you to commission the ET200MP distributed I/O system.
Conventions
Please also observe notes marked as follows:
NOTE
A note contains important information on the product described in the documentation, on
the handling of the product or on the section of the documentation to which particular atten
tion should be paid.
Recycling and disposal
For environmentally friendly recycling and disposal of your old equipment, contact a certified
electronic waste disposal company and dispose of the equipment according to the applicable
regulations in your country.
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens’ products and solutions constitute one element of such a concept.
Customers are responsible for preventing unauthorized access to their plants, systems,
machines and networks. Such systems, machines and components should only be connected
to an enterprise network or the internet if and to the extent such a connection is necessary
and only when appropriate security measures (e.g. firewalls and/or network segmentation)
are in place.
For additional information on industrial security measures that may be implemented, please
visit (https://www.siemens.com/industrialsecurity).
Siemens' products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends that product updates are applied as soon as they are
available and that the latest product versions are used. Use of product versions that are no
longer supported, and failure to apply the latest updates may increase customers' exposure to
cyber threats.

To stay informed about product updates, subscribe to the Siemens Industrial Security RSS
Feed visit (https://www.siemens.com/industrialsecurity).
Open Source Software
Open-source software is used in the firmware of the I/O modules. Open Source Software is
provided free of charge. We are liable for the product described, including the open-source
software contained in it, pursuant to the conditions applicable to the product. Siemens
accepts no liability for the use of the open source software over and above the intended
program sequence, or for any faults caused by modifications to the software.
For legal reasons, we are obliged to publish the original text of the license conditions and
copyright notices. Please read the information relating to this on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/109757558).
Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB 5
Preface

6
1 S7-1500/ET 200MP Documentation Guide.......................................................................................... 7
1.1 S7-1500 / ET 200MP Documentation Guide....................................................................... 7
1.2 SIMATIC Technical Documentation.................................................................................... 8
1.3 Tool support..................................................................................................................... 10
2 Product overview................................................................................................................................ 12
2.1 Properties......................................................................................................................... 12
2.2 Functions......................................................................................................................... 13
2.3 Replacing the IO-Link Master CM 8xIO-Link communication module.................................. 14
2.4 Reset communication module to factory settings............................................................... 14
3 Connecting......................................................................................................................................... 16

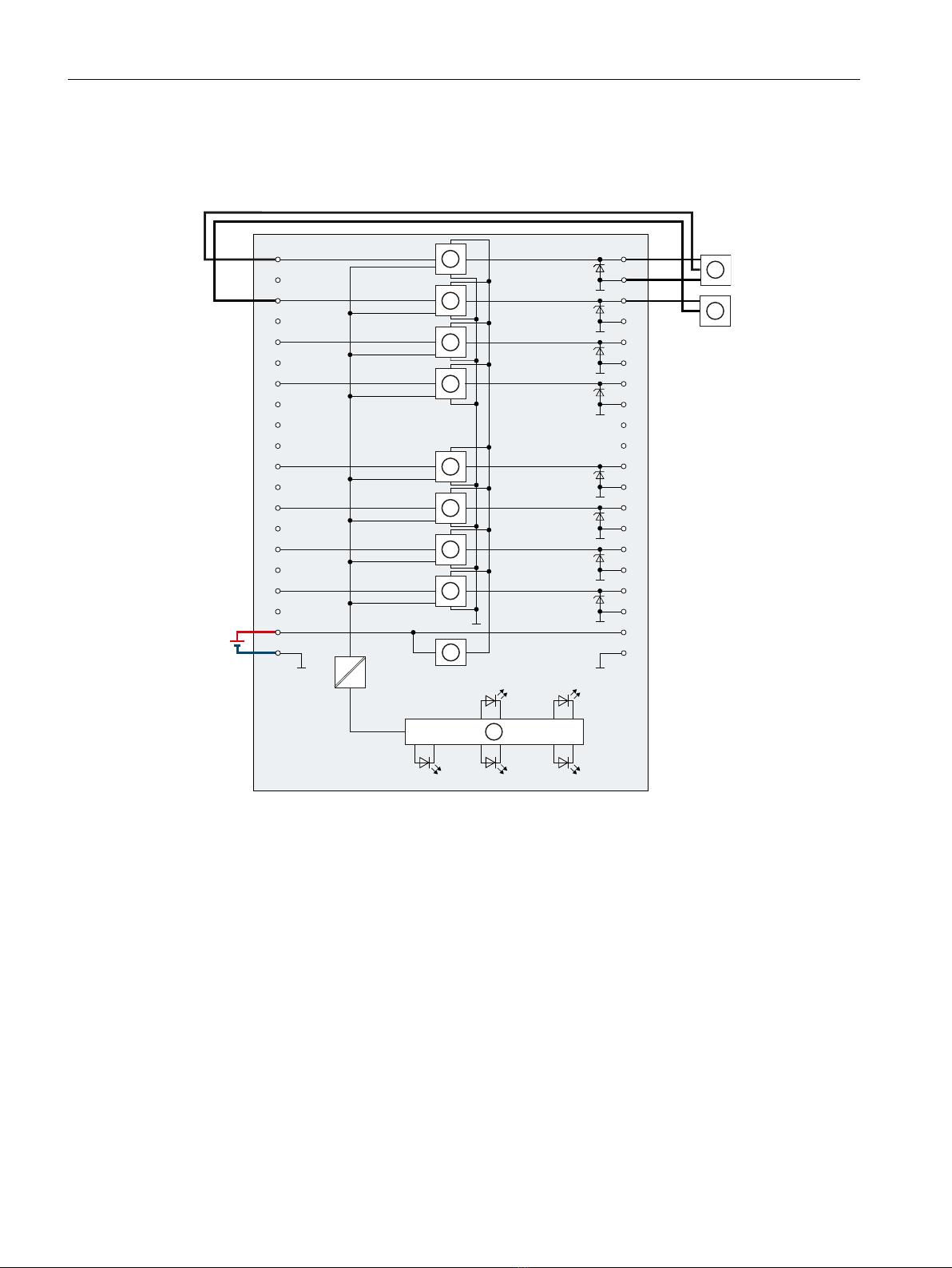

3.1 Wiring and block diagram................................................................................................. 16
4 Parameters / address space................................................................................................................ 19
4.1 Parameters....................................................................................................................... 19
4.2 Declaration of parameters................................................................................................. 20
4.3 Address space................................................................................................................... 22
5 Diagnostic alarms............................................................................................................................... 26
5.1 Status and error displays................................................................................................... 26
5.2 Diagnostic alarms............................................................................................................. 28
6 Technical specifications...................................................................................................................... 30
7 Dimensional drawing.......................................................................................................................... 33
7.1 Dimensional drawing........................................................................................................ 33
A Parameter data record........................................................................................................................ 35
A.1 Parameter assignment and structure of parameter data set............................................... 35
Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB
Table of contents

S7-1500/ET 200MP Documentation Guide 1
1.1 S7-1500 / ET 200MP Documentation Guide
The documentation for the SIMATIC S7-1500 automation system and the ET200MP
distributed I/O system is arranged into three areas.
This arrangement enables you to access the specific content you require. Changes and
supplements to the manuals are documented in a Product Information.
You can download the documentation free of charge from the Internet
(https://support.industry.siemens.com/cs/ww/en/view/109742691).
Basic information
The System Manual and Getting Started describe in detail the configuration, installation,
wiring and commissioning of the SIMATIC S7-1500 and ET200MP systems.
The STEP7 online help supports you in the configuration and programming.
Examples:
•Getting Started S7-1500
•S7-1500/ET 200MP System Manual
•Online help TIA Portal
Device information
Equipment manuals contain a compact description of the module-specific information, such
as properties, wiring diagrams, characteristics and technical specifications.
Examples:
•Equipment Manuals CPUs
•Equipment Manuals Interface Modules
•Equipment Manuals Digital Modules
•Equipment Manuals Analog Modules
•Equipment Manuals Communications Modules
•Equipment Manuals Technology Modules
•Equipment Manuals Power Supply Modules
7
Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB

General information
The function manuals contain detailed descriptions on general topics relating to the SIMATIC
S7-1500 and ET200MPsystems.
Examples:
•Function Manual Diagnostics
•Function Manual Communication
•Function Manual Motion Control
•Function Manual Web Server
•Function Manual Cycle and Response Times
•PROFINET Function Manual
•PROFIBUS Function Manual
Product Information
Changes and supplements to the manuals are documented in a Product Information. The
Product Information takes precedence over the device and system manuals.
You can find the latest Product Information on the S7-1500 and ET200MP systems on the
Internet (https://support.industry.siemens.com/cs/de/en/view/68052815).
Manual Collection S7-1500/ET200MP
The Manual Collection contains the complete documentation on the SIMATIC S7‑1500
automation system and the ET200MP distributed I/O system gathered together in one file.
You can find the Manual Collection on the Internet.
(https://support.industry.siemens.com/cs/ww/en/view/86140384)
SIMATIC S7-1500 comparison list for programming languages
The comparison list contains an overview of which instructions and functions you can use for
which controller families.
You can find the comparison list on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/86630375).
1.2 SIMATIC Technical Documentation
Additional SIMATIC documents will complete your information. You can find these
documents and their use at the following links and QR codes.
The Industry Online Support gives you the option to get information on all topics. Application
examples support you in solving your automation tasks.
8Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB
S7-1500/ET 200MP Documentation Guide
1.2 SIMATIC Technical Documentation

Overview of the SIMATIC Technical Documentation
Here you will find an overview of the SIMATIC documentation available in SIOS:
Industry Online Support International
(https://support.industry.siemens.com/cs/ww/en/view/109742705)
Watch this short video to find out where you can find the overview directly in SIOS and how
to use SIOS on your mobile device:
Quick introduction to the technical documentation of automation products per
video (https://support.industry.siemens.com/cs/us/en/view/109780491)
YouTube video: Siemens Automation Products - Technical Documentation at a
Glance (https://youtu.be/TwLSxxRQQsA)
mySupport
With "mySupport" you can get the most out of your Industry Online Support.
Registration You must register once to use the full functionality of "mySupport". After registration,
you can create filters, favorites and tabs in your personal workspace.
Support
requests
Your data is already filled out in support requests, and you can get an overview of
your current requests at any time.
Documentation In the Documentation area you can build your personal library.
Favorites You can use the "Add to mySupport favorites" to flag especially interesting or fre
quently needed content. Under "Favorites", you will find a list of your flagged entries.
Recently viewed
articles
The most recently viewed pages in mySupport are available under "Recently viewed
articles".
CAx data The CAx data area gives you access to the latest product data for your CAx or CAe sys
tem. You configure your own download package with a few clicks:
• Product images, 2D dimension drawings, 3D models, internal circuit diagrams,
EPLAN macro files
• Manuals, characteristics, operating manuals, certificates
• Product master data
You can find "mySupport" on the Internet. (https://support.industry.siemens.com/My/ww/en)
Application examples
The application examples support you with various tools and examples for solving your
automation tasks. Solutions are shown in interplay with multiple components in the system -
separated from the focus on individual products.
You can find the application examples on the Internet.
(https://support.industry.siemens.com/cs/ww/en/ps/ae)
9
S7-1500/ET 200MP Documentation Guide
1.2 SIMATIC Technical Documentation
Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB

1.3 Tool support
The tools described below support you in all steps: from planning, over commissioning, all
the way to analysis of your system.
TIA Selection Tool
The TIA Selection Tool tool supports you in the selection, configuration, and ordering of
devices for Totally Integrated Automation (TIA).
As successor of the SIMATIC Selection Tools , it assembles the configuration editors for
automation technology already familiar into a single tool.
With the TIA Selection Tool , you can generate a complete order list from your product
selection or product configuration.
You can find the TIA Selection Tool on the Internet.
(https://support.industry.siemens.com/cs/ww/en/view/109767888)
SIMATIC Automation Tool
You can use the SIMATIC Automation Tool to perform commissioning and maintenance
activities on various SIMATIC S7 stations as bulk operations independent of TIA Portal.
The SIMATIC Automation Tool offers a wide range of functions:
•Scanning of a PROFINET/Ethernet system network and identification of all connected CPUs
•Assignment of addresses (IP, subnet, Gateway) and device name (PROFINET device) to a
CPU
•Transfer of the date and the programming device/PC time converted to UTC time to the
module
•Program download to CPU
•RUN/STOP mode switchover
•CPU localization through LED flashing
•Reading out of CPU error information
•Reading the CPU diagnostic buffer
•Reset to factory settings
•Firmware update of the CPU and connected modules
You can find the SIMATIC Automation Tool on the Internet.
(https://support.industry.siemens.com/cs/ww/en/view/98161300)
PRONETA
SIEMENS PRONETA (PROFINET network analysis) is a commissioning and diagnostic tool for
PROFINET networks. PRONETA Basic has two core functions:
•The "Network analysis" offers a quick overview of the PROFINET topology. It is possible to
make simple parameter changes (for example, to the names and IP addresses of the
devices). In addition, a quick and convenient comparison of the real configuration with a
reference system is also possible.
•The "IO test" is a simple and rapid test of the wiring and the module configuration of a
plant, including documentation of the test results.
You can find SIEMENS PRONETA Basic on the Internet:
(https://support.industry.siemens.com/cs/ww/en/view/67460624)
10 Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB
S7-1500/ET 200MP Documentation Guide
1.3 Tool support

SIEMENS PRONETA Professional is a licensed product that offers you additional functions. It
offers you simple asset management in PROFINET networks and supports operators of
automation systems in automatic data collection/acquisition of the components used through
various functions:
•The user interface (API) offers an access point to the automation cell to automate the scan
functions using MQTT or a command line.
•With PROFIenergy diagnostics, you can quickly detect the current pause mode or the
readiness for operation of devices that support PROFIenergy and change these as needed.
•The data record wizard supports PROFINET developers in reading and writing acyclic
PROFINET data records quickly and easily without PLC and engineering.
You can find SIEMENS PRONETA Professional on the Internet:
(https://www.siemens.com/proneta-professional)
SINETPLAN
SINETPLAN, the Siemens Network Planner, supports you in planning automation systems and
networks based on PROFINET. The tool facilitates professional and predictive dimensioning of
your PROFINET installation as early as in the planning stage. In addition, SINETPLAN supports
you during network optimization and helps you to exploit network resources optimally and to
plan reserves. This helps to prevent problems in commissioning or failures during productive
operation even in advance of a planned operation. This increases the availability of the
production plant and helps improve operational safety.
The advantages at a glance
•Network optimization thanks to port-specific calculation of the network load
•Increased production availability thanks to online scan and verification of existing systems
•Transparency before commissioning through importing and simulation of existing STEP 7
projects
•Efficiency through securing existing investments in the long term and the optimal use of
resources
You can find SINETPLAN on the Internet
(https://new.siemens.com/global/en/products/automation/industrial-
communication/profinet/sinetplan.html).
11
S7-1500/ET 200MP Documentation Guide
1.3 Tool support
Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB

Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB
12
Product overview 2
2.1 Properties
Article number
6ES7547-1JF00-0AB0
View of the module
Figure 2-1View of the IO-Link Master CM8xIO-Link communication module
Properties
The module has the following technical properties:
•IO-Link master according to IO-Link specification V1.1
•Communication module with 8 ports (channels)
•Data transfer rates COM1 (4.8kB), COM2 (38.4kB), COM3 (230.4kB)
•Standard DI mode
•Suitable for connecting up to eight IO-Link devices (3-wire connection) or eight standard
encoders

•Configurable diagnostics can be set for each channel
•Automatic backup of the device parameters during replacement of the IO-Link device
(only for V1.1 devices)
•Configuration limits:
–Max. 32 bytes input and output data per port
–Max. 240 bytes input and output data per module
The module supports the following functions:
•Firmware update
•Identification and maintenance data (I&M)
•IO-Link port configuration with S7-PCT
•IO-Link port configuration with STEP7 or GSD (without S7-PCT)
•Variable address range of I/O data with up to 240 byte inputs and 240 byte outputs
•Master backup with function block "LIOLink_Master"
•Port Qualifier Information (PQI)
•I&M 0 to 3
The module can be used with the following engineering tools:
Table 2-1Engineering tools
Firmware version of the
module
S7-PCT STEP7 (TIA Portal) GSD file
V1.0 (in
CPU/PROFINET/PROFIBUS sta
tion)
As of V3.5 SP1 As of V15.1 X
Accessories/spare parts
The following accessories/spare parts are available for the module and can also be ordered
separately:
•Labeling strips
•U connector
•Universal front cover
The following component must be ordered separately:
•Front connectors, including potential jumpers and cable ties
Additional information
You can find more information on accessories in the S7-1500/ET200MP Distributed I/O Sys
tem (https://support.industry.siemens.com/cs/ww/en/view/59191792) system manual in the
Accessories/Spare parts section.
2.2 Functions
IO-Link is a point-to-point connection between a master and a device. Both conventional and
intelligent sensors/actuators can be used as devices at the IO-Link via unshielded standard
13
Product overview
2.2 Functions
Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB

cables using proven 3-wire technology. IO-Link is backward compatible to conventional
sensors. The switching state and data channels are designed with trusted 24VDC
technology.
Reference
Additional information can be found in the IO-Link System
(https://support.automation.siemens.com/WW/view/en/65949252) function manual.
2.3 Replacing the IO-Link Master CM 8xIO-Link communication
module
Master Backup
You can back up the parameters of your module with the function block "LIOLink_Master".
The "LIOLink_Master" function block is used to read all relevant IO-Link device and IO-Link
Master parameters. The parameters can be stored retentively at a central location, such as in
a data block in the IO controller.
The status of the IO-Link devices or IO-Link ports stored in the IO-Link Master can be restored
with the "LIOLink_Master" function block.
As a result, the IO-Link ports and the IO-Link Master are configured with the values stored in
the master backup.
A typical application is the restoration of parameters after replacement of the IO-Link Master.
Firmware version
Module Function block LIOLink_Master
as of V1.0 as of V1.0.0
Compatibility table of the firmware versions
NOTE
Availability
Note that the Master Backup function is available only for IO-Link devices that are specified
for the IO-Link Standard as of V1.1.
You can find additional information on the master backup functions in the section
'Integration into the automation system' in the IO-Link System
(https://support.industry.siemens.com/cs/ww/en/view/65949252) function manual.
2.4 Reset communication module to factory settings
Effects of resetting to the factory settings
Use the "Reset to factory settings" function to restore the parameter assignments of your IO-
Link Master CM8xIO‑Link communication module made with S7-PCT to the factory state.
14 Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB
Product overview
2.4 Reset communication module to factory settings

After a "Reset to factory settings", the parameters of the IO-Link Master CM8xIO-Link
communication module are assigned as follows:
•The ports are in DI mode
•The ports are mapped to the relative addresses 0.0 ... 0.7
•The PortQualifier is disabled
•I&M data 1 to 3 is deleted
NOTE
The master backup of the IO-Link Master is deleted and the delivery condition is restored.
You should reset a removed IO-Link Master CM8xIO-Link communication module to the fact
ory settings before you place it in storage.
Procedure
To perform a "Reset to factory settings", proceed as described in the S7‑PCT online help.
15
Product overview
2.4 Reset communication module to factory settings
Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB

Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB
16
Connecting 3
3.1 Wiring and block diagram
This section includes the block diagram of the communication module
IO‑LinkMasterCM8xIO‑Link with the terminal assignments for 3-wire and 5-wire connection
of IO-Link devices or 2-wire and 3-wire connection in DI operating mode.
You can use and combine the different wiring options for all channels.
Ensure that all devices are connected to the SELV/PELV power supply (or equivalent).
NOTICE
Internal transducer supply
Use only the supply voltage (USn/M) made available by the
IO-Link Master CM8xIO-Link communication module to supply the IO-Link device (L+/L-).

Wiring: 3-wire and 5-wire connection of IO-Link devices
The example in the following figure shows the terminal assignment of the communication
module IO‑LinkMasterCM8xIO‑Link (3- and 5-conductor connection of IO-Link devices).
86&40086086&48608608608608600/'&9/0(55255813:5[&Q[4Q
① Reverse polarity protection USn Supply voltage (positive)
② Backplane bus interface RUN Status display LED (green)
③ IO-Link circuitry ERROR Error display LED (red)
④ Device, 3-wire connection PWR Power LED (green)
⑤ Device, 5-wire connection C/Qn Port n
M Ground CnPort status/channel error LED
(green/red)
L+ Supply voltage 24VDC QnLED channel status in standard DI mode
(green)
Figure 3-1Block diagram and terminal assignment for 3-wire and 5-wire connection of IO-Link devices
17
Connecting
3.1 Wiring and block diagram
Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB

Wiring: 2-wire and 3-wire connection in DI operating mode
The example in the following figure shows the terminal assignment of the IO‑Link
MasterCM8xIO‑Link communication module in DI operating mode.
86&40086086&48608608608608600//0(55255813:5[&Q[4Q
① Reverse polarity protection USn Supply voltage (positive)
② Backplane bus interface RUN Status display LED (green)
③ IO-Link circuitry ERROR Error display LED (red)
④ Sensor, 3-wire connection PWR Power LED (green)
⑤ Sensor, 2-wire connection C/Qn Port n
M Ground CnPort status/channel error LED (green/red)
L+ Supply voltage 24VDC QnLED channel status in standard DI mode
(green)
Figure 3-2Terminal assignment for 2-wire and 3-wire connection in DI operating mode
18 Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB
Connecting
3.1 Wiring and block diagram

Parameters / address space 4
4.1 Parameters
Parameters (GSD file)
The following table shows the general parameters for the IO-Link Master CM8xIO-Link
communication module.
The default settings of the parameters are marked in bold in the "Value ranges" column.
Table 4-1General parameters (GSD file)
Parameters Value range Effective range
Diagnostics
Diagnostics: No supply voltage L+ • Disable
• Enable
Module
Diagnostics: Port • Disable
• Enable
Port (channel)
Master parameter
Port Qualifier Information (PQI) • Disable
•Enable
Module
Port configuration without S7-PCT • Disable
• Enable
Module
The following table shows the port parameters for the IO-Link Master CM8xIO-Link
communication module.
Parameters Value range Default
Port configuration
Operating mode • IO-Link Autostart
• IO-Link Manual
• DI
• Deactivated
IO-Link Autostart
Length of the input data* depending on the selected
input/output type**
depending on the selected
input/output type**
Length of output data depending on the selected
input/output type**
depending on the selected
input/output type**
* If PQI is activated, 1 byte less space remains for input data of the device. For example: GSD setting 16
bytes = 15 bytes + PQI
** Make sure not to exceed the maximum possible length of the input or output data for all ports.
*** Only effective if you use the "IO-Link Manual" port mode.
19
Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB

Parameters Value range Default
Vendor ID*** Manufacturer ID of the connected
IO-Link device
0
Device ID*** Device ID of the connected IO-Link
device
0
Inspection Level/Data Stor
age***
• Identical type (V1.0) without
Backup&Restore
• Type-compatible (V1.1) without
Backup&Restore
• Type-compatible (V1.1) with
Backup&Restore
• Type-compatible (V1.1) with
Restore
Type-compatible (V1.1) with
Backup&Restore
* If PQI is activated, 1 byte less space remains for input data of the device. For example: GSD setting 16
bytes = 15 bytes + PQI
** Make sure not to exceed the maximum possible length of the input or output data for all ports.
*** Only effective if you use the "IO-Link Manual" port mode.
Maximum possible length of the input or output data
Example:
You have selected the configuration 64 I / 64 Q.
You have assigned 4 bytes of input data to the first port.
For the remaining ports, you can assign a total of 60 bytes of input data.
Reference
You can find additional information on the Vendor ID and Device ID on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/109748852).
4.2 Declaration of parameters
Diagnostics: No supply voltage L+
Enabling the diagnostic alarm for missing or insufficient supply voltage L+.
Diagnostics: Port
This parameter allows the enabling of the diagnostics for the selected port.
The possible diagnostics are dependent on the IO-Link device used. Additional information
about the diagnostic interrupts can be found in the description of the utilized IO-Link device.
20 Communication module IO-Link Master CM 8xIO-Link (6ES7547-1JF00-0AB0)
Equipment Manual, 08/2022, A5E45488510-AB
Parameters / address space
4.2 Declaration of parameters
