Siemens Simatic S7-1500 User manual

___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
SIMATIC
S7-1500/ET 200MP
Digital output module
DQ 16x230VAC/1A ST Triac
(6ES7522-5FH00-0AB0)
Manual
09/2016
A5E34934069
-AB
Preface
Documentation guide
1
Product overview
2
Wiring
3
Parameters/address space
4
Diagnostic alarms
5
Technical specifications
6
Dimensional drawing
A
Parameter data records
B

Siemens AG
Division Digital Factory
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E34934069-AB
Ⓟ
11/2016 Subject to change
Copyright © Siemens AG 2015 - 2016.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
4Manual, 09/2016, A5E34934069-AB
Preface
Purpose of the documentation
This manual supplements the system manual S7-1500/ET 200MP
(https://support.industry.siemens.com/cs/ww/en/view/59191792).
Functions that relate in general to the systems are described in this system manual.
The information provided in this manual and in the system/function manuals supports you in
commissioning the systems.
Changes compared to previous version
Compared to the previous version, this manual contains the following change:
Original texts of the license conditions and copyright notes for open-source software are
available on the Internet as of 09/2016.
Conventions
CPU: The term "CPU" is used in this manual both for the CPUs of the S7-1500 automation
system and for interface modules of the ET 200MP distributed I/O system.
STEP 7: In this documentation, "STEP 7" is used as a synonym for all versions of the
configuration and programming software "STEP 7 (TIA Portal)".
Please also observe notes marked as follows:
Note
A note contains important information on the product described in the docume
ntation, on the
handling of the product or on the section of the documentation to which particular attention
should be paid.

Preface
Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
Manual, 09/2016, A5E34934069-AB 5
Security information
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens’ products and solutions only form one element of such a concept.
Customer is responsible to prevent unauthorized access to its plants, systems, machines
and networks. Systems, machines and components should only be connected to the
enterprise network or the internet if and to the extent necessary and with appropriate security
measures (e.g. use of firewalls and network segmentation) in place.
Additionally, Siemens’ guidance on appropriate security measures should be taken into
account. For more information about industrial security, please visit
(http://www.siemens.com/industrialsecurity).
Siemens’ products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends to apply product updates as soon as available and to
always use the latest product versions. Use of product versions that are no longer supported,
and failure to apply latest updates may increase customer’s exposure to cyber threats.
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS
Feed under (http://www.siemens.com/industrialsecurity).
Open Source Software
Open-source software is used in the firmware of the I/O modules. Open Source Software is
provided free of charge. We are liable for the product described, including the open-source
software contained in it, pursuant to the conditions applicable to the product. Siemens
accepts no liability for the use of the open source software over and above the intended
program sequence, or for any faults caused by modifications to the software.
For legal reasons, we are obliged to publish the original text of the license conditions and
copyright notices. Please read the information relating to this on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/109741045).

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
6Manual, 09/2016, A5E34934069-AB
Table of contents
Preface ................................................................................................................................................... 4
1 Documentation guide .............................................................................................................................. 7
2 Product overview .................................................................................................................................. 11
2.1 Properties............................................................................................................................... 11
3 Wiring ................................................................................................................................................... 13
4 Parameters/address space ................................................................................................................... 15
4.1 Parameters............................................................................................................................. 15
4.2 Declaration of parameters...................................................................................................... 15
4.3 Address space ....................................................................................................................... 16
5 Diagnostic alarms ................................................................................................................................. 21
5.1 Status and error displays ....................................................................................................... 21
6 Technical specifications ........................................................................................................................ 23
A Dimensional drawing............................................................................................................................. 27
B Parameter data records ........................................................................................................................ 29
B.1 Parameter assignment and structure of the parameter data records.................................... 29

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
Manual, 09/2016, A5E34934069-AB 7
Documentation guide
1
The documentation for the SIMATIC S7-1500 automation system, the CPU 1516pro-2 PN
based on SIMATIC S7-1500 and the SIMATIC ET 200MP distributed I/O system is arranged
into three areas.
This arrangement enables you to access the specific content you require.
Basic information
The System Manual and Getting Started describe in detail the configuration, installation,
wiring and commissioning of the SIMATIC S7-1500 and ET 200MP systems. For
CPU 1516pro-2 PN you use the corresponding operating instructions. The STEP 7 online
help supports you in the configuration and programming.
Device information
Product manuals contain a compact description of the module-specific information, such as
properties, wiring diagrams, characteristics and technical specifications.

Documentation guide
Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
8Manual, 09/2016, A5E34934069-AB
General information
The function manuals contain detailed descriptions on general topics regarding the SIMATIC
S7-1500 and ET 200MP systems, e.g. diagnostics, communication, motion control, Web
server, OPC UA.
You can download the documentation free of charge from the Internet
(http://w3.siemens.com/mcms/industrial-automation-systems-simatic/en/manual-
overview/Pages/Default.aspx).
Changes and supplements to the manuals are documented in a Product Information.
You can download the product information free of charge from the Internet
(https://support.industry.siemens.com/cs/us/en/view/68052815).
Manual Collection S7-1500/ET 200MP
The Manual Collection contains the complete documentation on the SIMATIC S7-1500
automation system and the ET 200MP distributed I/O system gathered together in one file.
You can find the Manual Collection on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/86140384).
SIMATIC S7-1500 comparison list for programming languages
The comparison list contains an overview of which instructions and functions you can use for
which controller families.
You can find the comparison list on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/86630375).
"mySupport"
With "mySupport", your personal workspace, you make the best out of your Industry Online
Support.
In "mySupport", you can save filters, favorites and tags, request CAx data and compile your
personal library in the Documentation area. In addition, your data is already filled out in
support requests and you can get an overview of your current requests at any time.
You must register once to use the full functionality of "mySupport".
You can find "mySupport" on the Internet (https://support.industry.siemens.com/My/ww/en).
"mySupport" - Documentation
In the Documentation area in "mySupport" you can combine entire manuals or only parts of
these to your own manual.
You can export the manual as PDF file or in a format that can be edited later.
You can find "mySupport" - Documentation on the Internet
(http://support.industry.siemens.com/My/ww/en/documentation).

Documentation guide
Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
Manual, 09/2016, A5E34934069-AB 9
"mySupport" - CAx data
In the CAx data area in "mySupport", you can access the current product data for your CAx
or CAe system.
You configure your own download package with a few clicks.
In doing so you can select:
●Product images, 2D dimension drawings, 3D models, internal circuit diagrams, EPLAN
macro files
●Manuals, characteristics, operating manuals, certificates
●Product master data
You can find "mySupport" - CAx data on the Internet
(http://support.industry.siemens.com/my/ww/en/CAxOnline).
Application examples
The application examples support you with various tools and examples for solving your
automation tasks. Solutions are shown in interplay with multiple components in the system -
separated from the focus on individual products.
You will find the application examples on the Internet
(https://support.industry.siemens.com/sc/ww/en/sc/2054).
TIA Selection Tool
With the TIA Selection Tool, you can select, configure and order devices for Totally
Integrated Automation (TIA).
This tool is the successor of the SIMATIC Selection Tool and combines the known
configurators for automation technology into one tool.
With the TIA Selection Tool, you can generate a complete order list from your product
selection or product configuration.
You can find the TIA Selection Tool on the Internet
(http://w3.siemens.com/mcms/topics/en/simatic/tia-selection-tool).

Documentation guide
Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
10 Manual, 09/2016, A5E34934069-AB
SIMATIC Automation Tool
You can use the SIMATIC Automation Tool to run commissioning and maintenance activities
simultaneously on various SIMATIC S7 stations as a bulk operation independently of the TIA
Portal.
The SIMATIC Automation Tool provides a multitude of functions:
●Scanning of a PROFINET/Ethernet network and identification of all connected CPUs
●Address assignment (IP, subnet, gateway) and station name (PROFINET device) to a
CPU
●Transfer of the date and the programming device/PC time converted to UTC time to the
module
●Program download to CPU
●Operating mode switchover RUN/STOP
●Localization of the CPU by means of LED flashing
●Reading out CPU error information
●Reading the CPU diagnostic buffer
●Reset to factory settings
●Updating the firmware of the CPU and connected modules
You can find the SIMATIC Automation Tool on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/98161300).
PRONETA
With SIEMENS PRONETA (PROFINET network analysis), you analyze the PROFINET
network during commissioning. PRONETA features two core functions:
●The topology overview independently scans PROFINET and all connected components.
●The IO check is a fast test of the wiring and the module configuration of a system.
You can find SIEMENS PRONETA on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/67460624).

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
Manual, 09/2016, A5E34934069-AB 11
Product overview
2
2.1
Properties
Article number
6ES7522-5FH00-0AB0

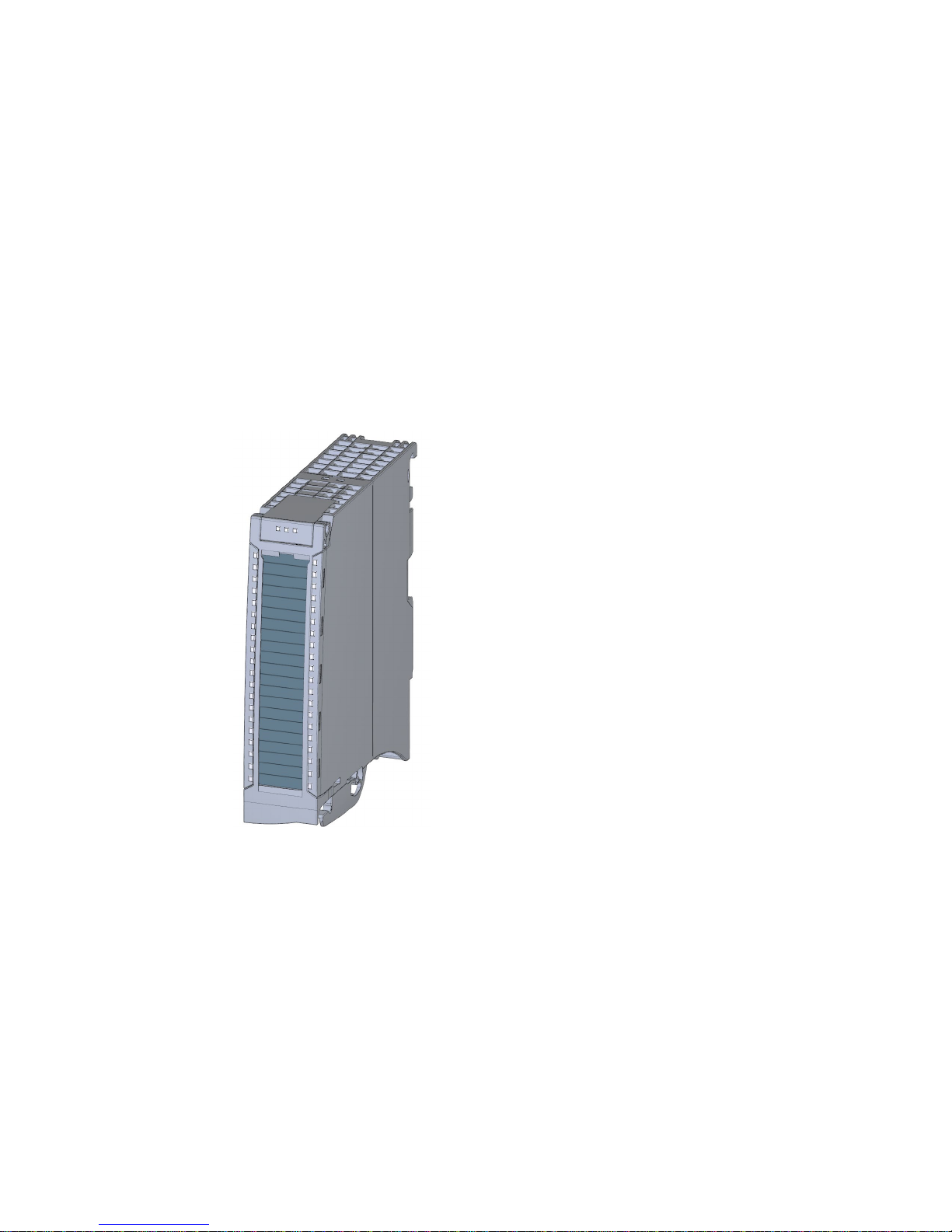

View of the module
Figure 2-1 View of the DQ 16x230VAC/1A ST module
Properties
The module has the following technical properties:
●16 digital outputs (Triac)
●Rated output voltage 120 V/230 V AC
●Rated output current 1A (per channel)
●Configurable substitute values (per channel)
●Suitable for solenoid valves, DC contactors, indicator lights and smaller single phase
drives

Product overview
2.1 Properties
Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
12 Manual, 09/2016, A5E34934069-AB
The module supports the following functions:
Table 2- 1 Version dependencies of the module functions
Function
Firmware version of
the module
Configuration software
STEP 7
as of V13 SP1 with
HSP 0119
GSD file in
STEP 7 , V12 or higher
STEP 7 V5.5 SP3 or higher
Firmware update
V1.0.0 or higher
X
--- / X
Identification data I&M0 to I&M3
V1.0.0 or higher
X
--- / X
Parameter assignment in RUN V1.0.0 or higher X X
Module-internal Shared Output (MSO) V1.0.0 or higher X
(PROFINET IO only)
X
(PROFINET IO only)
Configurable submodules/submodules
for shared device
V1.0.0 or higher X
(PROFINET IO only)
X
(PROFINET IO only)
You can configure the module with STEP 7 and with a GSD file.
Accessories
The following components are supplied with the module and can also be ordered separately
as spare parts:
●Labeling strips
●U connector
●Universal front door
Other components
The following component can be ordered separately:
Front connectors, including potential jumpers and cable ties
For more information on accessories, refer to the S7-1500, ET 200MP system manual
(https://support.industry.siemens.com/cs/ww/en/view/59191792).

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
Manual, 09/2016, A5E34934069-AB 13
Wiring
3
This section contains the block diagram of the module and outlines various wiring options.
You can find information on wiring the front connector, creating a cable shield, etc. in the
Wiring section of the S7-1500, ET 200MP system manual
(https://support.industry.siemens.com/cs/ww/en/view/59191792).
Note
Do not insert the potential jumpers included with the front connector!

Wiring
Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
14 Manual, 09/2016, A5E34934069-AB
Wiring and block diagram
The example in the following figure shows the terminal assignment and the assignment of
the channels. The individual channels are connected with a TRIAC (Triode for Alternating
Current).
①
TRIAC 16x
CHx
Channel or channel status LED (green)
②
Backplane bus interface
RUN
Status display LED (green)
ERROR
Error display LED (red)
Figure 3-1 Block diagram and terminal assignment

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
Manual, 09/2016, A5E34934069-AB 15
Parameters/address space
4
4.1
Parameters
DQ 16x230VAC/1A ST parameters
When you assign the module parameters in STEP 7, you use various parameters to specify
the module properties. The table below lists the parameters that can be set. The effective
range of the configurable parameters depends on the type of configuration. The following
configurations are possible:
●Central operation with a S7-1500 CPU
●Distributed operation on PROFINET IO in an ET 200MP system
●Distributed operation on PROFIBUS DP in an ET 200MP system
For parameter assignment in the user program, the parameters are transferred to the
module using the WRREC instruction (reconfiguration in RUN) and data records; see
chapter Parameter assignment and structure of the parameter data records (Page 29).
Table 4- 1 Configurable parameters and their defaults
Parameter
Range of values
Default
Reconfigu-
ration in
RUN
Range of effectiveness with configuration
software, e.g. STEP 7
Integrated in the hardware
catalog STEP 7, SP1 with
HSP 0119
or GSD file PROFINET IO
GSD file
PROFIBUS DP
Reaction to CPU
STOP
•Turn off
•Keep last value
•Output substitute value 1
Turn off Yes Channel Channel
4.2
Declaration of parameters
Reaction to CPU STOP
Determines the reaction of the output to the CPU going into STOP state or when the
connection to the CPU is interrupted.

Parameters/address space
4.3 Address space
Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
16 Manual, 09/2016, A5E34934069-AB
4.3
Address space
The module can be configured differently in STEP 7; see following table. Depending on the
configuration, additional/different addresses are assigned in the process image output/input.
Configuration options of DQ 16x230VAC/1A ST
You can configure the module with STEP 7 or with a GSD file.
When you configure the module by means of the GSD file, the configurations are available
under different short designations/module names.
The following configurations are possible:
Table 4- 2 Configuration options
Configuration
Short designation/module name
in the GSD file
Configuration software, e.g., STEP 7
Integrated in hardware
catalog STEP 7 V13,
SP1 or higher with
HSP 0119
GSD file in
STEP 7 V12 or higher or
STEP 7 V5.5 SP3 or
higher
1 x 16-channel without value status
DQ 16x230VAC/1A ST
X
X
2 x 8-channel without value status DQ 16x230VAC/1A ST S X
(PROFINET IO only)
X
(PROFINET IO only)
1 x 16-channel with value status for
module-internal Shared Output with
up to 4 submodules
DQ 16x230VAC/1A ST MSO X
(PROFINET IO only)
X
(PROFINET IO only)
Value status (Quality Information, QI)
The value status is always activated for the DQ 16x230VAC/1A ST MSO.
An additional bit is assigned to each channel for the value status. The bit for the value status
indicates if the output value specified by the user program is actually pending at the module
terminal (0 = value is incorrect).

Parameters/address space
4.3 Address space
Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
Manual, 09/2016, A5E34934069-AB 17
Address space for configuration as 16-channel DQ 16x230VAC/1A ST
The figure below shows the address space allocation for the configuration as 16-channel
module. You can freely assign the start address for the module. The addresses of the
channels are derived from the start address.
The letters "a to b" are printed on the module; "QB a", for example, stands for module start
address output byte a.
Figure 4-1 Address space for configuration as 16-channel DQ 16x230VAC/1A ST
Address space for configuration as 2 x 8-channel DQ 16x230VAC/1A ST S
For the configuration as a 2 x 8-channel module, the channels of the module are divided into
two submodules. The submodules can be assigned to different IO controllers when the
module is used in a shared device.
The number of I/O controllers depends on the interface module being used. Please observe
the information in the manual for the particular interface module.
Unlike the 1 x 16-channel module configuration, each of the two submodules has a freely
assignable start address.
Figure 4-2 Address space for configuration as 2 x 8-channel DQ 16x230VAC/1A ST S
Note
Substitute value behavior in shared device operation with 2 x 8-channel configuration
If the system is in shared device mode and one of the associated IO controllers goes int
o
STOP or fails due to, for example, a communication failure, all submodules of the output
module follow the configured substitute value behavior (e.g. switch off).
This means that even when only one IO controller fails, the other IO controllers associated
with the shared device no longer control the assigned submodule of the output module.

Parameters/address space
4.3 Address space
Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
18 Manual, 09/2016, A5E34934069-AB
Address space for configuration as 1 x 16-channel DQ 16x230VAC/1A ST MSO
For the configuration as a 1 x 16-channel module (module-internal Shared Output, MSO),
channels 0 to 15 of the module are copied to multiple submodules. Channels 0 to 15 are
then available with identical values in various submodules. These submodules can be
assigned to up to four IO controllers when the module is used in a shared device:
●The IO controller to which submodule 1 is assigned has write access to outputs 0 to 15.
●The IO controllers to which submodule 2, 3, or 4 is assigned have read access to outputs
0 to 15.
The number of IO controllers depends on the interface module being used. Please observe
the information in the manual for the particular interface module.
Value status (Quality Information, QI)
The meaning of the value status depends on the submodule involved.
For the 1st submodule (=basic submodule), the value status 0 indicates that the value is
incorrect or that the IO controller of the basic submodule is in STOP state.
For the 2nd to 4th submodule (=MSO submodule), the value status 0 indicates that the value
is incorrect or one of the following errors has occurred:
●The basic submodule is not yet configured (not ready).
●The connection between the IO controller and the basic submodule has been interrupted.
●The IO controller of the basic submodule is in STOP or POWER OFF state.

Parameters/address space
4.3 Address space
Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
Manual, 09/2016, A5E34934069-AB 19
The following figure shows the assignment of the address space for submodules 1 and 2 and
the value status.
Figure 4-3 Address space for configuration as 1 x 16-channel DQ 16x230VAC/1A ST MSO with
value status

Parameters/address space
4.3 Address space
Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)
20 Manual, 09/2016, A5E34934069-AB

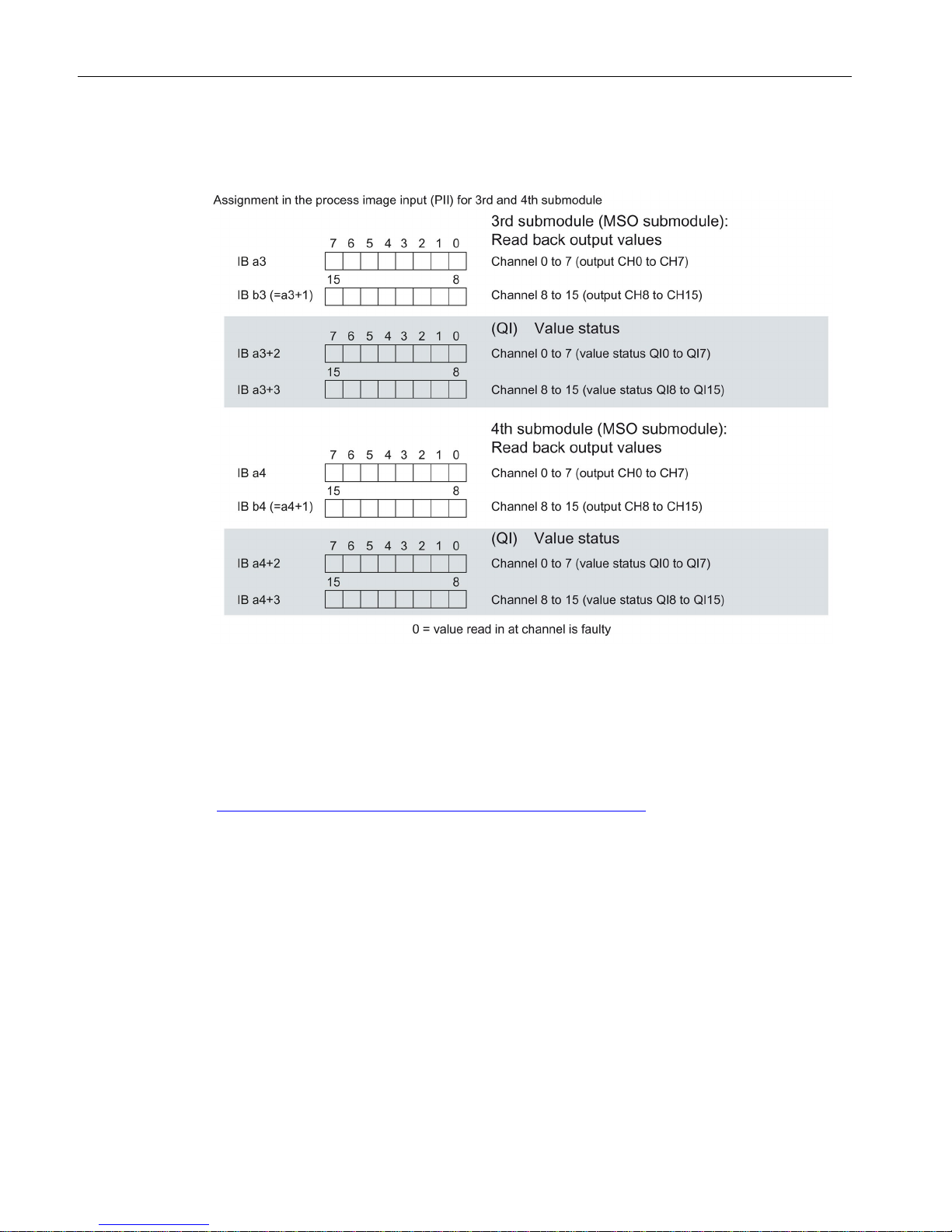

The figure below shows the assignment of the address space for submodules 3 and 4 and
the value status.
Figure 4-4 Address space for configuration as 1 x 16-channel DQ 16x230VAC/1A ST MSO with
value status
Reference
You will find information on the module-internal shared input/shared output (MSI/MSO)
function in the function manual PROFINET with STEP 7 V13
(https://support.industry.siemens.com/cs/ww/en/view/49948856) in the section Module-
internal shared input/shared output (MSI/MSO).
