Siemens LITHOSTAR Multiline User manual

LITHOSTAR Multiline
English
Print No.: RXL2-120.812.01.02.02 Doc. Gen. Date: 10.04
Replaces: RXL2-120.812.01.01.02
© Siemens AG 2004
The reproduction, transmission or
use of this document or its contents
is not permitted without express
written authority. Offenders will be
liable for damages. All rights,
including rights created by patent
grant or registration of a utility
model _or_design,_are_reserved.
SP
System
for Subcontractors and Siemens Technicians
Installation Instructions

LITHOSTAR Multiline RXL2-120.812.01 Page 2 of 4 Siemens AG
System Rev. 02 10.04 CS PS 24 Medical Solutions
0 - 2 Revision
Document revision level
The document corresponds to the version/revision level effective at the time of system delivery.
Revisions to hardcopy documentation are not automatically distributed.
Please contact your local Siemens office to order current revision levels.
Disclaimer
The installation and service of equipment described herein is to be performed by qualified personnel
who are employed by Siemens or one of its affiliates or who are otherwise authorized by Siemens or
one of its affiliates to provide such services.
Assemblers and other persons who are not employed by or otherwise directly affiliated with or autho-
rized by Siemens or one of its affiliates are directed to contact one of the local offices of Siemens or
one of its affiliates before attempting installation or service procedures.
Chapter Page Revision
all all 02

Contents 0 - 3
Siemens AG RXL2-120.812.01 Page 3 of 4 LITHOSTAR Multiline
Medical Solutions Rev. 02 10.04 CS PS 24 System
1 _______General Remarks_______________________________________________1 - 1
Items included in the Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Text Emphasis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Replacement of damaged or Lost Screws . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 2
Yellow enameled Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2
Test Equipment and Tools (Service Tools Cataloque). . . . . . . . . . . . . . . . . .1 - 2
Installation auxiliary devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2
Materials. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Component Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
Component Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4
2 _______System Installation _____________________________________________2 - 1
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Preinstallation work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 1
Options: Monitor trolley and/or Patient monitor . . . . . . . . . . . . . . . . . . .2 - 1
Polydoros LX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2
Polydoros SX 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3
Installing and Connecting the High Voltage Charger . . . . . . . . . . . . . . . . . . 2 - 3
Installing and Connecting the Cooling Unit . . . . . . . . . . . . . . . . . . . . . . .2 - 4
Setting Up the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 4
Installing the Covers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 7
Installing the Components for the System Controller . . . . . . . . . . . . . . . . . . 2 - 9
Setting Up the Console Table . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 9
Positioning/Connecting the Monitors . . . . . . . . . . . . . . . . . . . . . . . . 2 - 9
Positioning the Keyboard and the PC Mouse . . . . . . . . . . . . . . . . . . . . 2 - 9
Connecting the Footswitch, Tableside Control Console,
Shock Wave Trigger Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 9
Back panel of the PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 10
Positioning/Connecting the Operating System Unit (PC) . . . . . . . . . . . . . 2 - 10
Cover the cable outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 10
Positioning/Connecting DICOM Connect (Option). . . . . . . . . . . . . . . . . 2 - 10
Positioning/Connecting the Multiformat Camera (Option) . . . . . . . . . . . . . 2 - 11
Positioning/Connecting the Diamentors (Option) . . . . . . . . . . . . . . . . . 2 - 11
Installing the TV camera on the 23" I.I. . . . . . . . . . . . . . . . . . . . . . . . . 2 - 12
Installing the TV camera on the 33" I.I. . . . . . . . . . . . . . . . . . . . . . . . . 2 - 12
Checking the temperature of the image intensifier . . . . . . . . . . . . . . . . . . 2 - 12
Installing the Collimator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 13
Installing the Diamentor (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 13
3 _______Connections with POLYDOROS LX 30 _____________________________3 - 1
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1
Connections and cable locations in the A12 electronics cabinet . . . . . . . . . . . . 3 - 2
Page

0 - 4 Contents
LITHOSTAR Multiline RXL2-120.812.01 Page 4 of 4 Siemens AG
System Rev. 02 10.04 CS PS 24 Medical Solutions
Connections/cable locations in the generator cabinet (Part A). . . . . . . . . . . . . 3 - 3
Connections of the options and their cable locations in the A12
electronics cabinet and generator AC . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 6
Connections and cable locations in the A12 electronics cabinet
and in the control console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 8
Connections/cable locations in the A13 shock wave cabinet. . . . . . . . . . . . . .3 - 11
Connections/Cable Locations in the Generator Cabinet (Part. B) . . . . . . . . . . .3 - 13
Connections/harness locations in the generator cabinet (Part C) . . . . . . . . . . .3 - 16
Fastening of plug, Sonoline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 20
4 ______ Connections with POLYDOROS SX 65 _____________________________4 - 1
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1
Connections and cable locations in the A12 electronics cabinet. . . . . . . . . . . . 4 - 2
Overview of cable run in the power cabinet . . . . . . . . . . . . . . . . . . . . . . 4 - 3
Connections/harness locations in the generator cabinet (Part A) . . . . . . . . . . . 4 - 4
Connections of the options and their cable positions in the A12
electronics cabinet and generator AC . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6
Connections and cable locations in the A12 electronics cabinet
and in the control console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 8
Connections/cable locations in the A13 shock wave cabinet. . . . . . . . . . . . . .4 - 11
Overview of cable run in the power cabinet . . . . . . . . . . . . . . . . . . . . . .4 - 13
Connections/cable locations in the generator cabinet . . . . . . . . . . . . . . . . .4 - 14
Overview of cable run in the power cabinet . . . . . . . . . . . . . . . . . . . . . .4 - 18
Connections/harness locations in the generator cabinet (Part C) . . . . . . . . . . .4 - 19
Monitoring devices and indicators for radiation protection . . . . . . . . . . . . . . .4 - 20
Fastening of plug, Sonoline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 24
5 ______ Final Work Steps _______________________________________________5 - 1
Attaching the remaining panels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1
Adapting the Other Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 2
6 ______ Changes to previous version _____________________________________6 - 1
Page

1 - 1
Siemens AG RXL2-120.812.01 Page 1 of 4 LITHOSTAR Multiline
Medical Solutions Rev. 02 10.04 CS PS 24 System
General Remarks 1
Items included in the Shipment 1
The system was prestaged, tested and programmed in the factory with all components.
System start-up and the function checks required should be performed in accordance with
Start-up Instructions, RXL2-120.034.01.
The system is operational once installation and start-up have been completed.
The system is shipped in the following sections:
•LITHOSTARMultiline- basicunit.
•Generatorpowerunit cabinet,equippedwith componentsand boards.
•H1HFhigh voltagetransformer.
•Twostandardcabinets.
•Controlconsole.
•Accessories/coverpanels.
Requirements 1
- Thepreinstallationwork stepsmust havebeencompleted inaccordance with Planning
Guide(PG)RXL2-120.021.01.
- Prior to the installation, thepower lineconnection mustbecompleted andprovided
withasystem breaker,anemergency OFFswitch, and groundfault detectoras
specifiedinthe PlanningGuide (PG) RXL2-120.021.01.
- Thehardware formountingthe unittothefloor(Liebig expansionbolts/mounting plate)
mustbeinstalled perInstallationInstructions RXL2-120.038.01...
- Theconditionof theaccess routewithinthe building,as well asthe conditionofthe
roominwhich theunit is tobe installed,mustbe incompliance with theproject
drawingsandthe datalisted under the”General InstallationandConditions of
Shipment-Med. TechnologyDivision”.
Text Emphasis 1
•”Cautions” areinformationprovided withspecial emphasis whenthere isthepotential
fordamageto theequipment.
•”Notices” areinformationprovided withspecial emphasistofacilitate properuseof the
equipmentorproper executionof a procedure.
•Alltextsreferring toadjustmentsor installationstepsmarked withsymbol” ” have to
beconfirmedby thesubcontractor or theSiemens engineerinthe installationprotocol
(register3of logbook).
Replacement of damaged or Lost Screws 1
•Damagedorlost screwsmay bereplacedonly withsteel screws whichmeet the
requirementsofDIN 267and must berated inthespecified hardnessclass.
•All Allen screws used must be classified as hardness class 8.8.
p

LITHOSTAR Multiline RXL2-120.812.01 Page 2 of 4 Siemens AG
System Rev. 02 10.04 CS PS 24 Medical Solutions
1 - 2 General Remarks
Safety notes 1
•Thegeneralsafety notesfor medical productsmust beobservedin theperformance of
workandchecks.
Yellow enameled Parts 1
•Allpartsof theunitand ofcomponentsthat arepaintedwith yellow/red enamelare
shippingbracketswhich maybe removed onlyin accordance withthe Installation
Instructions.
Test Equipment and Tools (Service Tools Cataloque) 1
Installation auxiliary devices 1
Materials 1
•Tool kit for Installation engineers
•Torque wrench (20to 100 Nm)
•DigitalMultimeter
Transport carriage roller set 11 53 654 G5338
The roller set must be ordered if the system
is not installed by the "Erlangen carrier".
•Loctite221 20 48 874 RV090
•Oilfor highvoltage transformer H1
forrefillingonly, ifrequired 99 00 952

General Remarks 1 - 3
Siemens AG RXL2-120.812.01 Page 3 of 4 LITHOSTAR Multiline
Medical Solutions Rev. 02 10.04 CS PS 24 System
Component Overview 1
Patient monitor
(Option)
SC
3rd Monitor (Option)
Polydoros LX
AC A12
A13
”HPE”
charger
N12
Shock
wave
controller
Cooling
unit
VIDEO-
MED
-DIM-
storage
N11
System
controller
M16
Power
supply
Water
prepara-
tion
PC-
Monitor Monitor I + II
Multispot
or DICOM
Connect
(Options)
Operating
system
unit
Ultrasound unit
(Option)
Diamentor
(Option)
DICOM
Monitor
(Option)

LITHOSTAR Multiline RXL2-120.812.01 Page 4 of 4 Siemens AG
System Rev. 02 10.04 CS PS 24 Medical Solutions
1 - 4 General Remarks
Component Overview 1
Polydoros SX
AC A12
A13
”HPE”
charger
N12
Shock
wave
controller
Cooling
unit
VIDEO-
MED
-DIM-
storage
N11
System
controller
M16
Power
supply
Water
prepara-
tion
Patient monitor
(Option)
SC
3rd Monitor (Option)
PC-
Monitor Monitor I + II
Multispot
or DICOM
Connect
(Options)
Operating
system
unit
Ultrasound unit
(Option)
Diamentor
(Option)
DICOM
Monitor
(Option)

2 - 1
Siemens AG RXL2-120.812.01 Page 1 of 14 LITHOSTAR Multiline
Medical Solutions Rev. 02 10.04 CS PS 24 System
System Installation 2
Preparation 2
Preinstallation work 2
•Checkthecondition ofthetable installationplate (floor plate).
•Checkthecable feed-throughsfor cabinets, systemcontrol console,andthe unitfor
usability.
Options: Monitor trolley and/or Patient monitor 2
•Checkthecable feed-throughsfor the Patientmonitor forusability.
•Makesurethat thereissufficient spacefora Patientmonitor.
p
p
p
p

LITHOSTAR Multiline RXL2-120.812.01 Page 2 of 14 Siemens AG
System Rev. 02 10.04 CS PS 24 Medical Solutions
2 - 2 System Installation
Generator and Cabinet Installation
With the exception of the cooling unit and the high voltage charger, the cabinets are
shipped from the factory completely assembled and are individually crated.
We recommend setting up and bolting down the generator according to the project plan or
Figure 1 before installing the remaining cabinets.
Polydoros LX 2
•Markonthe flooranddrill thefour mounting holesfor the generatorcabinet at its
intendedlocationusing thesupplied template.
•Drilltheholes andinsertthe Liebiganchorsthat areincluded intheshipment (Fig.2).
•Removealltransport safetybracketsfrom thegenerator.
•Takethegenerator offthepallet.
•Ifnecessary,knock outthe cable inletin thegeneratorcabinet forinterconnections with
theadjacentcabinet. Installthe edgeprotectionstrip (servicepackage).
•Mountthegeneratorinplace byinsertingthe4 hexboltsinto theLiebig screwanchors.
Do not insert the H1 high-voltage transformer until the generator
is cabled in the power cabinet.
Cable lead-in
(on both sides) Hand grip indentations
(on both sides)
Mounting holes
Cable lead-in from below
Cable
lead-in from
the back
2
AC A13 A12
Polydoros
LX 30
N12
N11
M16
Polydoros
SX 65
Fig. 1 Fig. 2
NOTICE

System Installation 2 - 3
Siemens AG RXL2-120.812.01 Page 3 of 14 LITHOSTAR Multiline
Medical Solutions Rev. 02 10.04 CS PS 24 System
Polydoros SX 65 2
•Movethepower cabinetinto its location.
•Attachthetop ofthe cabinet tothe wallwithretaining bracketsto prevent thecabinet
fromtilting.
•Ifrequired,the cabinetcan alsobebolted tothefloor.
•Ifrequired,remove thecoverfor thecorrespondingcable inleton the generatorcabinet.
•Movecabinets A12 andA13 to theirlocation according tothe projectplanor theabove
example (Fig.1).
•Thesplashguard hasto be installedbetween thecontrol cabinet A12 andtheshock
wavecabinetA13. Ifnecessary, turnit around.
•Installthesidewalls ofthe cabinets.
•Withinthescope ofvalidity of theUL regulations(e.g.USA) themetalcase shouldnot be
removeddueto fireprotection.
•Installthe enclosedscrew(1/Fig.3)with nut(2/Fig.3) toacabinettoconnect thecabinet.
Thenmovethe secondcabinetto itsposition and tightenwith nut (4/Fig.3) and flat
washer(3/Fig.3).
•Movethecabinets totheirfinal positionandbolt themtothe walland the floor.
Installing and Connecting the High Voltage Charger 2
•Unpackthecharging unit,place it onthe rails providedin theshockwave cabinetabove
theelectronicsunit N12and secure iton thefrontusing 4screws.
•Connectthepower linecableat N12(1 on L1,2 onNand ge/gnonPE).
•Pluginthe cablefrom the N12,K108 tothecharger controlleronthe charger.
Fig. 3
4
1
23
p

LITHOSTAR Multiline RXL2-120.812.01 Page 4 of 14 Siemens AG
System Rev. 02 10.04 CS PS 24 Medical Solutions
2 - 4 System Installation
Installing and Connecting the Cooling Unit 2
•Placethecooling systemon the railsprovided inthe shock wavecabinet A13 (underthe
N12electronicsunit), slideit into positionand secureiton thefront using twoscrews.
•Insertthehoses inthe appropriate connectionsaccording to marking,and ensurethat
theylockinto position.
•Plugthepower lineconnectorfor thecooling systemintothe socketonthe electronics
unitatN12.X3.
•Connecttheprotective conductorbetween the coolingsystem and theshock wave
cabinet.
Setting Up the Unit 2
•Placethefour transportrollers (2/Fig. 4)onto thetransportcarriage ontheyellow
shippingframeat (c/Fig.5) and boltthem inplace.
•Removetheshipping palletfrom the unit.
Lifttheunit withthe help ofthe spindlesandpull thetransportation pallets outto the side.
•Dependingonthe dimensionsof the transportroute, itmaybe necessaryto reposition
the rollers on thecarriage (Pos. a or b inFig. 5)andbolt themin place.
Forthisreason, theunitshould beloweredon anappropriate woodenbase.
•Movetheunit toitsinstallation locationandplace itnext to themounting plate.
To avoid the risk of excessive heat build-up, make sure that the
ventilation inside and outside the cabinet is always sufficient.
When lowering the unit, the cable harnesses must not be dam-
aged.
ca. 1200
ca. 1100
ca. 1100
ca. 2300
ca. 2400
ca. 2620
a
b
c
2
Fig. 4 Fig. 5
CAUTION
CAUTION

System Installation 2 - 5
Siemens AG RXL2-120.812.01 Page 5 of 14 LITHOSTAR Multiline
Medical Solutions Rev. 02 10.04 CS PS 24 System
•Put the insulation plates ontop of the thoroughlycleaned mounting plate(Fig. 6)
(thedrillholes fortheequipment mustnot be covered).
•Uncoilthefour cableharnessesthat arepermanently connected tothe unit andlay them
out(Fig.7).
•Guidethefree endsofthe cableharnessesinto theopening in themounting plate, and
intothecorresponding cabinetsvia the cableconduits.
The cable harnesses are color-coded:
- blue for the shock wave cabinet
- green for the control cabinet
- yellow for the generator
The correspondingly color-coded target connections are located
in the cabinets.
Fig. 6 Fig. 7
NOTICE

LITHOSTAR Multiline RXL2-120.812.01 Page 6 of 14 Siemens AG
System Rev. 02 10.04 CS PS 24 Medical Solutions
2 - 6 System Installation

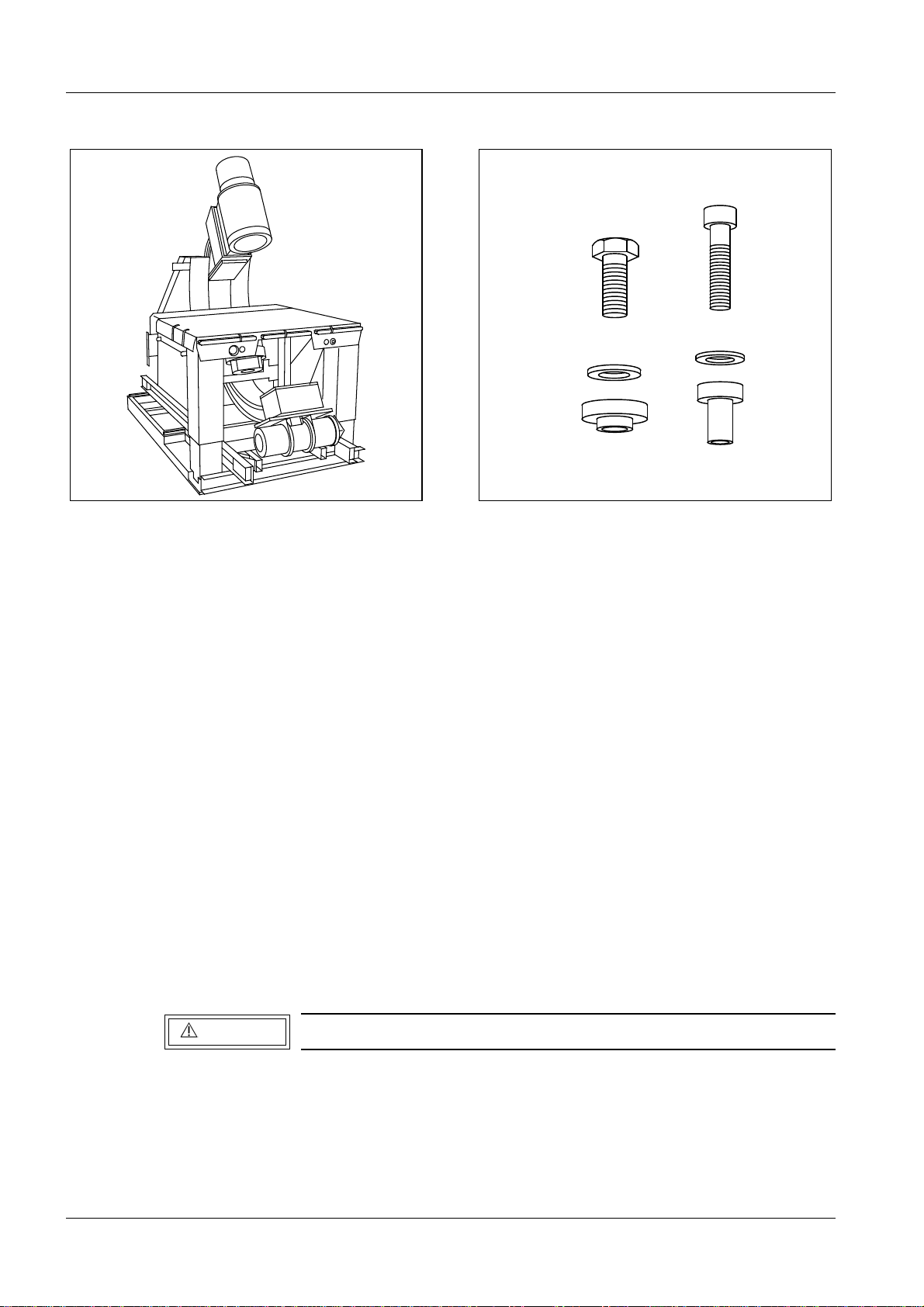

•Movetheunit sothat it ispositioned correctlyoverthe mountingplateand sothat it is
leveli.e.,lower allfour transport rollersevenly (Fig.8).
•Mountthe unitusing 12boltsandinsulatingsleeves onthe floor.Apply Loctite221onthe
boltthreadsto securethem(Fig. 9):
•Removetheentire transportdevice.
•Removetheyellow shippingbrackets on theW-drive.
•Measuretheresistance toensure that theunit iselectrically isolatedonthe mounting
plate.
•Carefullyfeedthrough thecable harnesses.Storeany excesscablelengths. Rollthem
upwithoutkinks.
Donotplace anyexcess cable orcable loopsinthe unitframe,since theymay come into
contactwiththe movingenergy chain andbecome damaged.
Donotblock themovement of theenergy chain.
•Removethetransport safetybracketfrom theI.I. collision protection.
- 8xRecessed sockethead M 8 x 4 tighten to 24 Nm, ±10%
- 4xHex head M10 x 25
(The bolts are contained in the box with service materials.)
Excess cable lengths may not be stored in the cabinets.
4 x
8 x
Fig. 8 Fig. 9
CAUTION

System Installation 2 - 7
Siemens AG RXL2-120.812.01 Page 7 of 14 LITHOSTAR Multiline
Medical Solutions Rev. 02 10.04 CS PS 24 System
Installing the Covers 2
For all visible surfaces, special paneling screws with 2.5 Allen sockets have been pro-
vided.
•Therequiredscrewsand washersare alreadycounted out andpackedin plasticbags.
•Securethetwo lateralstrips on theunit baseframe withthreepaneling screwsforeach
(/Fig.10).
•Installtherear metalroll-downsash inthe unitbaseframe ontheleft andthe right
( /Fig.11);for this,the mountingbracketsmust be installedon theinsideof theframe.
•Attachthecover (K/Fig.11) for thecable routingusingtwo panelingscrews.
Before installing the covers, connect each metal cover to ground;
the connections are provided in the unit and on the cover panels
themselves.
K
Fig. 10 Fig. 11
CAUTION

LITHOSTAR Multiline RXL2-120.812.01 Page 8 of 14 Siemens AG
System Rev. 02 10.04 CS PS 24 Medical Solutions
2 - 8 System Installation
•Atthispoint youhaveto routethe SONOLINE cables(see chapter3,page 18or
chapter4,page 22)if the ultrasoundoption is beinginstalled.
•Insertthetwo-part baseframecover andmountit inplace using fourpaneling screwsfor
eachpart( /Fig. 12).
•Installthekick plateson both tablelegs andfastenthem together(Fig. 13).
•Attachthepaneling totheunderside ofthe shockheadsupport (A/Fig.14).
•Inthefront sectionof the baseframe (B/Fig. 14),use black plasticplugs tosealthe two
holesformounting thetransport carriage.
Fig. 12 Fig. 13
A
B
Fig. 14

System Installation 2 - 9
Siemens AG RXL2-120.812.01 Page 9 of 14 LITHOSTAR Multiline
Medical Solutions Rev. 02 10.04 CS PS 24 System
Installing the Components for the System Controller 2
Setting Up the Console Table 2
The cable outlet (A/Fig. 16) is set up at the factory for downward cable feed-through.
However, it is possible to route the cables to the back by punching out one of the perfo-
rated openings.
•Routethecable fromthecontrol consoletable tothecontrol cabinet.
•Ifthe Diamentoroptionis present,routethe Diamentorcablefromthe electronicscabinet
totheconsole table.
Positioning/Connecting the Monitors 2
•Placethemonitors onthe control consoletable as shownin Fig. 15and connectthem
pertheirdesignations.
Positioning the Keyboard and the PC Mouse 2
•Placethekeyboard andthe PC mouseon thecontrolconsole table.
•Connectthecable tothekeyboard.
Connecting the Footswitch, Tableside Control Console,
Shock Wave Trigger Mechanism 2
•Connectthetableside controlwithout the holder(optional) (B/Fig.16) and the(C/Fig. 16)
shockwaverelease controltothe consoletable.
•Connectthefootswitch forfluoroscopy(optional) eitherto theconsole table orto theunit:
- Rightbackpanel ofthe unit,
- Underthefoot supportat the controlconsole table.
•Connectthetableside controlwith the holderto theunit.
•Connecttheunit footswitch(optional)on theright inbackof theunit.
Fig. 15 Fig. 16
BC
A
PC-
Monitor Monitor I + II
Multispot
or DICOM
Connect
(Options)
Operating
system
unit
DICOM
Monitor
(Option)
p

LITHOSTAR Multiline RXL2-120.812.01 Page 10 of 14 Siemens AG
System Rev. 02 10.04 CS PS 24 Medical Solutions
2 - 10 System Installation
Back panel of the PC 2
Positioning/Connecting the Operating System Unit (PC) 2
•Openthedoor onthe console tableand pulloutthe PCslide-outshelf.
•Positiontheoperating systemunit on PCslide-out shelfandsecure itfrom below.
•Connectthecablesforthemouse,thekeyboard, themonitorsand theDUEPcable atthe
PC(Fig.17).
•Connectthepower linecable to theoperating systemunit.
•Inserttheslide-out shelf.Pay attentiontothe cablerouting in theconsole.
Cover the cable outlet 2
•Inareaswhere ULregulationsapply,(e.g. USA) youmust cover thecable outletwiththe
extraaluminumsheet locatedin the operatingconsole asfireprotection.
Positioning/Connecting DICOM Connect (Option) 2
•Performinstallationand startupaccording tothemanual RXL2-120.814.02..
Fig. 17
DICOM can be built into the LITHOSTAR Multiline only if no
MULTISPOT is installed.
LM - Control Unit
X51
6
1
2
4
7
X50
1 Keyboard port
2 Mouse port
4 Monitor power line connector
6 Monitor port
7 Power line connector
X50 Respirator-ECG signal interface
X51 DUEP port
NOTICE

System Installation 2 - 11
Siemens AG RXL2-120.812.01 Page 11 of 14 LITHOSTAR Multiline
Medical Solutions Rev. 02 10.04 CS PS 24 System
Positioning/Connecting the Multiformat Camera (Option) 2
•ConnecttheMultispot perthedesignations andplace it onthe consoletableas shownin
Fig.15andtighten thescrews. The cablescan be foundin theconsoletable (power,
video,controlcable).
Positioning/Connecting the Diamentors (Option) 2
•Plugthepower cableinto the multiplesocket outletofthe consoledesk(slide-out-shelf).
•Leadthecable upthrough the freeopening.
•Connectthecable routedfrom the measuringchamber oftheDiamentor viathe adapter
cablesupplied.
•Connectthecable routedfrom power supplyunit attheDiamentor.
•PositiontheDiamentor ontheconsole desk.
The two Allen screws in the base of the Multispot have to extend
into the drilled holes of the intermediate plate in the operating
cabinet. Depending on the customer's request, the drilled holes
on the front or on the back can be used.
NOTICE

LITHOSTAR Multiline RXL2-120.812.01 Page 12 of 14 Siemens AG
System Rev. 02 10.04 CS PS 24 Medical Solutions
2 - 12 System Installation
Installing the TV camera on the 23" I.I. 2
•Removethehousing (1/Fig.18) from theTV camera.
•Removethecover oftheI.I. optics(blacklid).
•Removetheset screwsonthe longersides of theTV camera.
•PlacetheTV cameraon the I.I.and mountit with thetwo set screws( /Fig. 18).
•Pluginthe twoconnection cables onthe TVcameraand securethem(Fig. 18).
•Clamptheshielding ofthe camera cableD115.X2 undertheclamp.
•ReinstalltheTV camerahousing (1/Fig. 18)but do notsecure it.
•Connecttheprotective conductorto the whitecover (2/Fig.18).
•Placethewhite cover(2/Fig.18) overthe TV cameraand secure ittogether withthe
housing.
•Usethewhite plasticplugsto coverthe holes.
Installing the TV camera on the 33" I.I. 2
•Thecamerahas beenpre-installed at thefactory.
Checking the temperature of the image intensifier 2
•Checkthetemperature indicatorsof the imageintensifier accordingtothe installation
instructionsregardingtemperature checkswith SIRECON unitsand OPTILIX tubesin
RXD0-000.038.01...Theresults ofthe evaluationarerecorded inthe image quality
protocol(IQC)during start-up.
1
2
Fig. 18
