Installation Instructions
Model ABHW-4BZ
Intelligent Audible Base
Introduction
The Model ABHW-4BZ audible base from Siemens Industry,
Inc. consists of a standard base combined with an audible
device. It is an intelligent supervised audible base which
provides 6 selectable tone patterns, 2 volume levels and 2
different power types for alarm (loop power or external power)
by using system configuration tool when ABHW-4BZ used with
the FD-UL compatible detectors (refer to “Compatible fire
alarm control panels”, “Compatible detector ”,“Detector
Placement” and “Tone and Volume Selection”). The ABHW-
4BZ audible bases in the same device loop are fully
synchronized with FD-UL detectors and also support RL-HC,
RL-HW remote lamp. The ABHW-4BZ provides Steady,
Temporal 3, Temporal 4, Temporal 4 low power, March time
120 and Canadian March time 30.
ABHW-4BZ is fully compatible with all Siemens addressable
detectors (see Compatible detectors section) and recognizes
the detector type automatically.
Application
note
The ABHW-4BZ is a UL268 & ULC-S529 listed smoke detector
supplementary device which combines detector base and
audible device functions. It meets or exceeds 85dB at 10 foot
audibility requirement as specified in UL268. When used in
conjunction with listed, compatible Siemens equipment, the
ABHW-4BZ
may be used in lieu of single/multiple station smoke
alarms to achieve enhanced, system-level functionality.
The ABHW-4BZ
can also meet requirement specified in UL464,
UL2075 and ULC-
525 except 520Hz requirements for “Sleeping
Area”.

2
S
pecifications
Physical Specifications:
Operating temperature: 32°F ~ 120°F (0°C ~ 49°C)
Operating humidity: 10 ~ 95%RH (Non Condensing)
Compatible electrical mounting boxes: 4” square gang box
ONLY with 2.5 inch depth minimum; 4” octagon box is
NOT compatible
Sound Output:
High: ≥85dB
Low: ≥75dB
Tones:
Steady
Temporal 3
Temporal 4
Temporal 4 low power
March time 120
Canadian March time 30
Electronic Ratings:
Operating voltage:
Loop power: 16 ~ 33 Vdc
External power: 16 ~ 33 Vdc
Supervisory current (max):
From loop: 250 µA
From external: 20 uA
Alarm current (RMS max):
Loop powered:
High dBA: 7.5 mA
Low dBA: 4.5 mA
External powered:
High dBA: 8.0 mA
Low dBA: 3.5 mA
Constraints 1. If the alarm current of ABHW-4BZ is energized by an
external power supply, any UL listed 24VDC regulated
power supply including the aux power output of XLS,
FC2005/FC901, FC2025/FC2050/FV2025/FV2050,
FC922/FC924/FV922/FV924 and PAD-3/PAD-4/PAD-5 can
be used (refer to Figure 1); or a 24VDC NAC, such as PAD-
3/PAD-4/PAD-5 (refer to Figure 3), ZIC-4A (FireFinder-XLS
zone indicating card (NAC), refer to Figure 2) and NAC from

3
FC2005/FC901 (refer to Figure 4.1)
or NAC from FC2025/FC2050/FV2025/FV2050, FC922/
FC924/FV922/FV924 (refer to Figure 4.2).
2. The alarm current of ABHW-4BZ CAN’T be energized by a
24V FWR power supply.
3. The maximum number of ABHW-4BZ is related to the max.
current rating and the power line resistance of the external
power supplies applied on the ABHW-4BZ. Refer to the
related installation instructions of the auxiliary power supply.
4. Refer to Figure 5 for “Loop Powered”.
The maximum number
of “loop powered” ABHW-4BZ is limited by the max. load

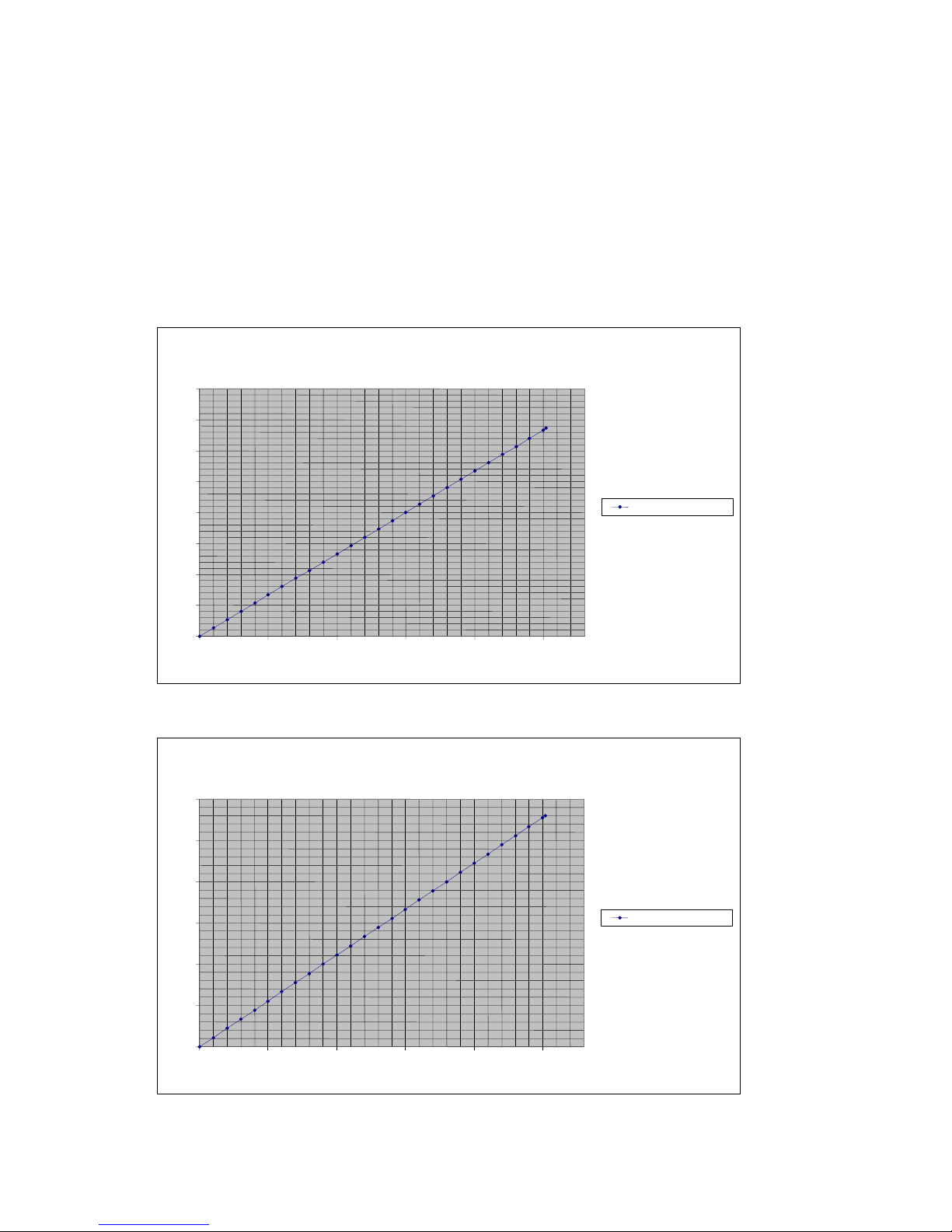

capacity and devices loaded in loop. Refer to APPENDIX-A
in this document to calculate the max. number of “loop
powered” ABHW-4BZ audible bases.
5. The maximum device line resistance cannot exceed the
maximum device line resistance specified in the compatible
panels.
6. T-tapping of the notification appliance circuit is not allowed.
7. The NAC output must be set to a steady DC if it is used for
ABHW-4BZ.
C
onfiguration
Important!
The ABHW-4BZ must be configured by the panel when it is
connected with FD-UL detectors (see table 1). Failure to
configure the ABHW-4BZ will cause problems. For additional
information please refer to the manual of related panel. Also for
use with H-Series detectors (see table 2) it does not require
panel configuration as it will function the same as an ADBH-11
which will not be synchronized.

4
D
etector
wiring

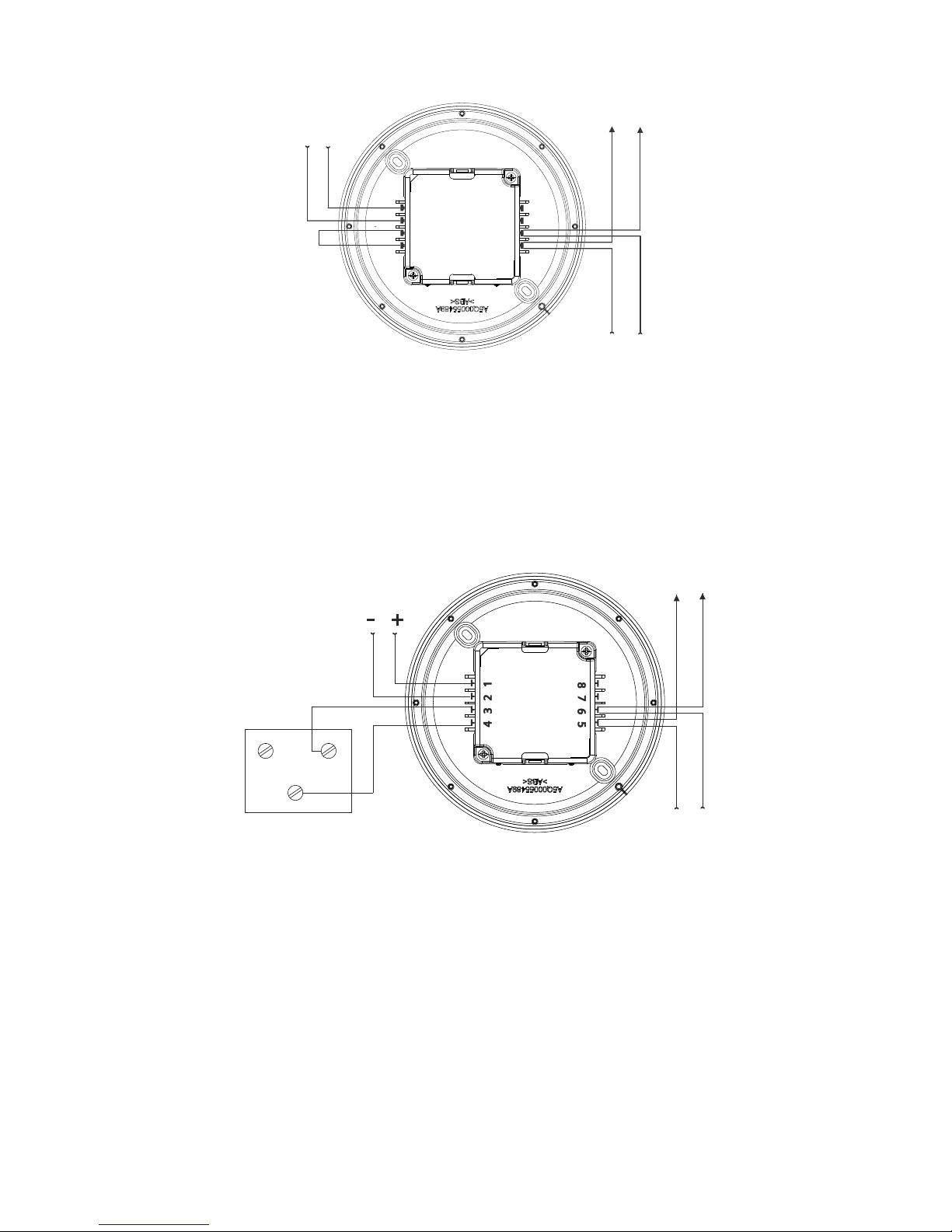

(Refer to Figure 6,7) Audible base Model ABHW-4BZ should
be interconnected as shown in the Installation/Wiring
Diagrams and wired to the specific system modules and
control panels following the appropriate instructions. For
operation with FireFinder-XLS, FC2005/FC901,
FC2025/FC2050/FV2025/FV2050,
FC922/FC924/FV922/FV924 system, note any limitations on
the number of audible bases permitted on each notification
appliance circuit or 24VDC regulated power supply, depending
on the total cable resistance and load of each circuit. (See
Electronic Ratings section.)
Note: Recommended wire size: 18 AWG min.; 14 AWG max.
Wire larger than 14 AWG can damage the connector.
D
etector
mounting
The detector base comes from the factory prewired. All
signaling and initiating circuits are connected directly to the
back of the ABHW-4BZ audible base using the four position
terminal blocks.
B
ase
mounting
1. Route all wires out from the outlet box.

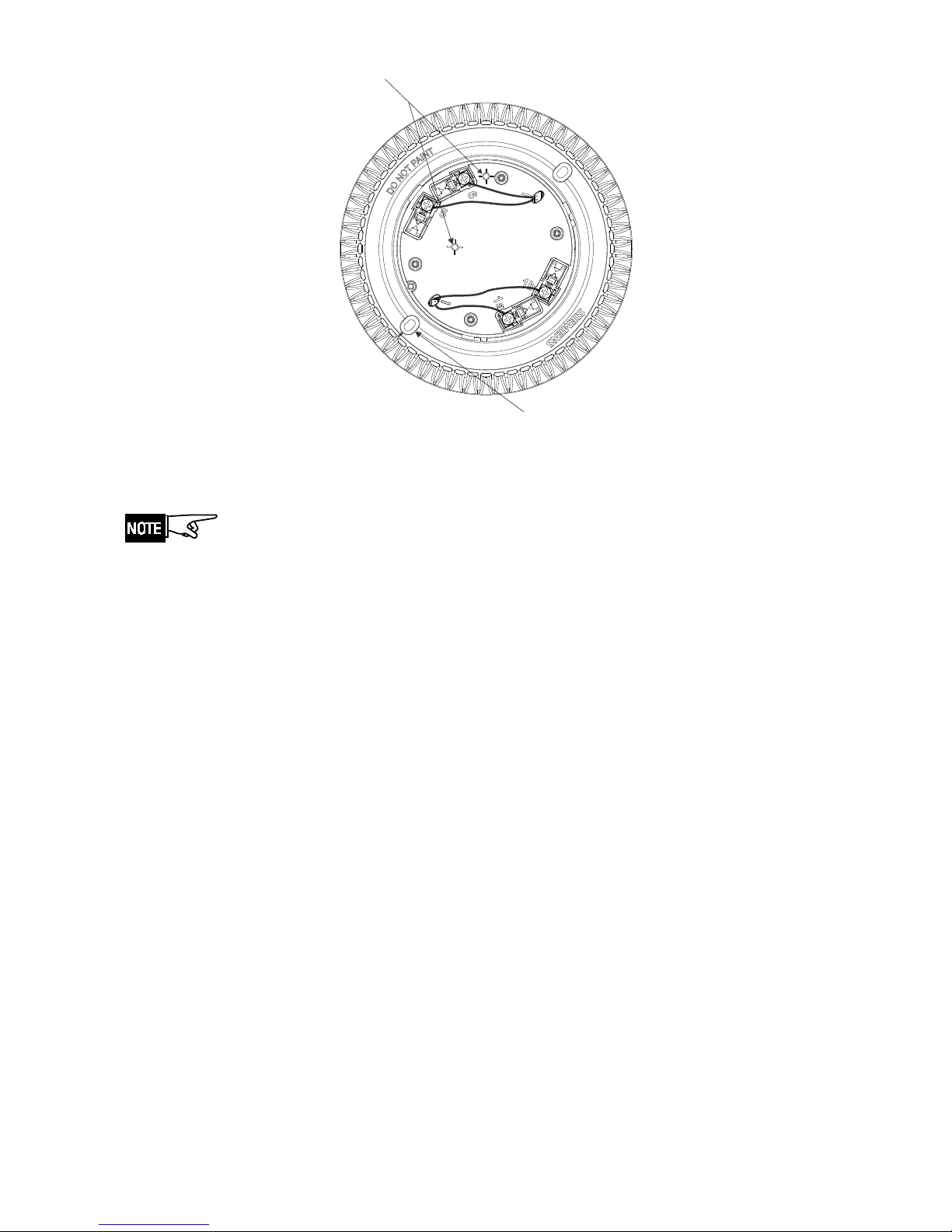

2. When the alarm LED viewing is critical, position the LED
mark on the base in the intended direction (Refer to Figure
8).
3. Make connections directly to the audible base terminals
located on the back of the base. Refer to the related
Installation/Wiring diagram.
4. After all bases are installed, check loop continuity. For
ABHW-4BZ loop continuity check, refer to the DPU or
SDPU Manual, “Testing a FireFinder-XLS”.
5. If loop continuity is acceptable, proceed with detector head
installation.
D
etector
placement
Even though no specific spacing are allocated to the detectors
used with this base, use 30 foot center spacing (900 sq ft), as
referred to in NFPA Standard 72 National Fire Alarm Code
and CAN/ULC-S524, as a guide or starting point, if practical,
in a detector installation layout. This spacing is based on ideal
conditions—smooth ceiling, no air movement, and no physical
obstructions. In all installations (except in special
circumstances like computer room under floors), locate the
detector on the ceiling, a minimum of 6 inches from a side

5
wall, or on a wall, between 4 and 6 inches from the ceiling.
If questions arise regarding detector placement, it is extremely
important that the drawings provided or approved by Siemens
Industry, Inc., or by its authorized distributors be followed! The
detector placements shown on these drawings were chosen
after a careful evaluation of all facets of protecting the area.
Environmental factors such as air current, temperature,
humidity, air pressure, and the nature of the fire load are
carefully considered. Special consideration is given to room or
area configuration and the type of ceiling (sloped or
flat, smooth
or beamed). Siemens Industry, Inc.'s extensive experience in
the design of fire detection systems assures optimum detector
placement and is reflected in these drawings. Follow sound
engineering judgment made by qualified personnel.
Compatible fire alarm control panels:
Model
System Type
Doc. P/N
(See Page 10 Note 1)
FireFinder® XLS FACP
315-034242
FC2005
Desigo™ Fire Safety 50-point panel
A6V10333722
FC901
Cerberus™ PRO 50-point FACP
A6V10336754
FC2025 / FC2050 /
FV2025 / FV2050
Desigo 250 & 500 point Fire Alarm Control Panels
A6V10337045
FC922 / FC924 / FV922 /
FV924
Cerberus PRO 250 & 500 point Fire Alarm Control Panels
A6V10356958
Compatible detectors:
FD-UL series detectors (table 1):
Model
Siemens Part #
Doc. P/N
Type / Description
FDO421
S54320-F4-A1
A6V10323926
Desigo optical detector
FDOT421
S54320-F6-A1
A6V10323934
Desigo optical / heat detector
FDT421
S54320-F5-A1
A6V10323930
Desigo heat detector
FDOOT441
S54320-F7-A1
A6V10324655
Desigo dual optical heat detector
FDOOTC441
S54320-F8-A1
A6V10324657
Desigo dual optical heat & CO detector
OOH941
S54320-F7-A2
A6V10324659
Cerberus PRO dual optical heat detector
OOHC941
S54320-F8-A2
A6V10324661
Cerberus PRO dual optical heat & CO detector
OP921
S54320-F4-A2
A6V10323928
Cerberus PRO optical detector
OH921
S54320-F6-A2
A6V10323936
Cerberus PRO optical / heat detector
HI921
S54320-F5-A2
A6V10323932
Cerberus PRO heat detector
H-series detectors (table 2):
Model
Siemens Part #
Doc. P/N
Type / Description
HFP-11
500-033290
315-033290
H-Series optical / heat detector
HFPT-11
500-033380
315-033290
H-Series heat detector
HFPO-11
500-034800
315-034800
H-Series optical detector
SFP-11
500-033290C
315-033290C
Canada H-Series optical / heat detector
SFPT-11
500-033380C
315-033290C
Canada H-Series heat detector
SFPO-11
500-034800C
315-033290C
Canada H-Series optical detector

6
Compatible remote lamps (table 3):
Model
Siemens Part #
Doc. P/N
Type / Description
RL-HW
500-033310
315-033230
Remote alarm lamp (wall)
RL-HC
500-033230
315-033230
Remote alarm lamp (ceiling)
Note:
1. RPR-1 remote relay and HTRI are used for 24VDC power supervision. 24VDC wire open will
cause trouble reported by HTRI. Refer to Installation Instruction of RPR-1 (315-096055).
2. ABHW-4BZ terminals 5-6 are polarity insensitive. Line 1 and Line 2 can be either line of
device loop.
3. EOL device of HTRI: 3.6K, 1/4W resistor, P/N 140-820185.
4. ABHW-4BZ can be wired either Style Z (Class A) or Style Y (Class B).
5. For the max load current, refer to the specifications of the compatible panels listed in this
document.
6. The 24VDC regulated power supply could be the Aux Power Output from the compatible
panels, or from PAD-3/PAD-4/PAD-5, or other UL listed 24VDC regulated power supply. 24V
FWR power supply can't be allowed.

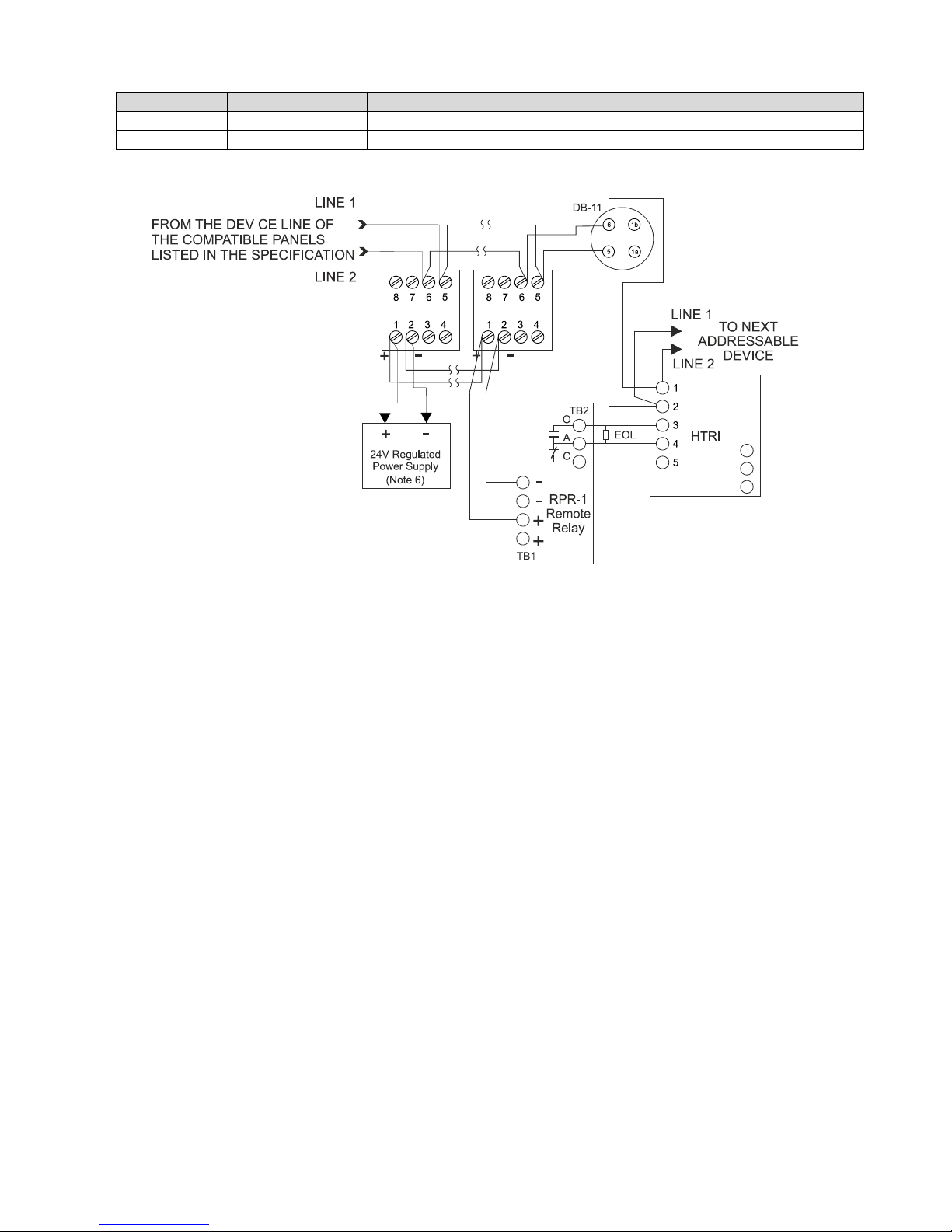

Figure 1
Installation/Wiring Diagram for ABHW-4BZ Audible Base Powered by 24V
Regulated Power Supply
ABHW-4BZ ABHW-4BZ

7
Note:
1. Polarity shown in active state at terminals 1 and 2 of ABHW-4BZ and 1-4 of ZIC-4A. Proper
polarity must be maintained or audible base will not operate properly. Each audible base must
be tested to verify operation.
2. Tone selection (refer to page 10 NOTE 4 for more information).
3. ABHW-4BZ terminals 5-6 are polarity insensitive. Line 1 and Line 2 can be either line of the
loop.
4. ABHW-4BZ shown Style Z (Class A). It may also be wired as Style Y (Class B).
5. ZIC-4A Notification Appliance Circuits provide 4 outputs that can be configured for Class A. or
Class B. Refer to the ZIC-4A Installation Instructions, P/N 315-033050.
6. EOL resistor, 24k ohms, 1/2 watt, 5%, P/N 140-820405.

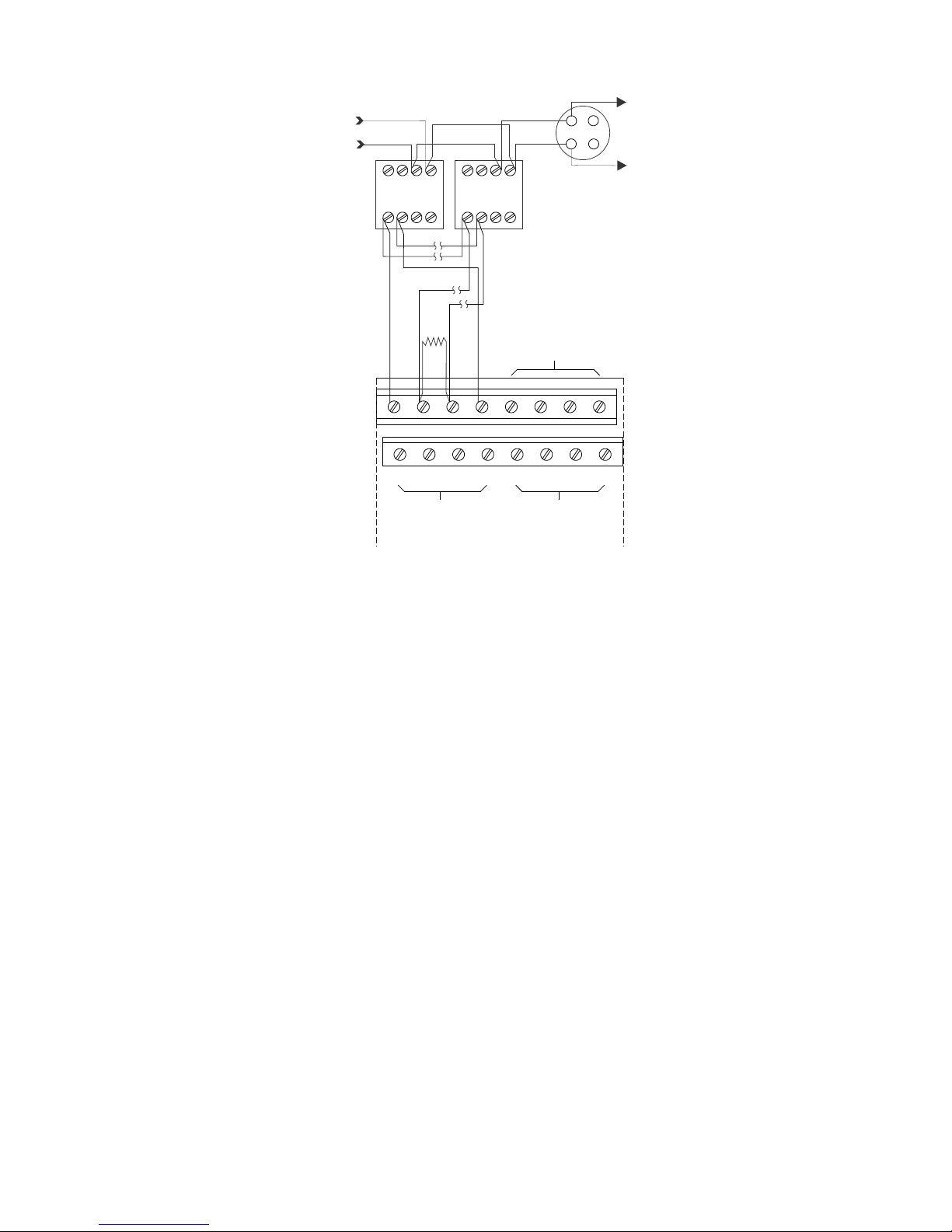

Figure 2
Installation/Wiring Diagram for ABHW-4BZ Audible Base Powered by ZIC-4A
(NAC of FireFinder-XLS System)
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
+ +
--
ZONE 3
ZONE 2
ZONE 4
ZIC-4A
ABHW-4BZ ABHW-4BZ
-
+
-
+
5
61b
1a
8 8
7 7
6 6
5 5
1 12 2
3 3
4 4
TO NEXT
ADDRESSABLE
DEVICE
LINE 2
LINE 1
LINE 1
LINE 2
24K
1/2W
5%
FROM DLC LOOP OF
FIREFINDER-XLS
SYSTEM
NOTE 2
NOTE 2
SEE 3 SEE 3

8
Note:
1. The NAC circuit shown in the diagram is the active state at terminal 1 and 2 of ABHW-4BZ.
2. ABHW-4BZ terminals 5-6 are polarity insensitive. Line 1 and Line 2 can be either line of
device loop.
3. The wiring at NAC of PAD-3/PAD-4/PAD-5 shown in the diagram for ABHW-4BZ is Style Z
(Class A)(No EOL needed). If Style Y (Class B) wiring used at NAC output, EOL (24K, 0.5W
resistor) must be used.
4. For the max load current and max cable resistance, refer to the specifications of PAD-
3/PAD-4/PAD-5, P/N: 315-099082/315-050217/A6V101030358.
Figure 3
Installation/Wiring Diagram for ABHW-4BZ Audible Base Powered by NAC of
PAD-3/PAD-4/PAD-5 system
Note:
1. The NAC circuit shown in the diagram is the active state at terminal 1 and 2 of ABHW-4BZ.
2. ABHW-4BZ terminals 5-6 are polarity insensitive. Line 1 and Line 2 can be either line of
device loop.
3. The wiring at NAC of FC2005/FC901 shown in the diagram for ABHW-4BZ is Style Z (Class
A) (no EOL needed). If Style Y (Class B) wiring used at NAC output, EOL (24K, 0.5W
resistor) must be used.
4. For the max load current and max cable resistance, refer to the specifications of FC2005/FC901.
Figure 4.1
Installation/Wiring Diagram for ABHW-4BZ Audible Base Powered by NAC of
FC2005/FC901
ABHW-4BZ ABHW-4BZ
-
+
-
+
5
61b
1a
8 8
7 7
6 6
5 5
1 12 2
3 3
4 4
TO NEXT
ADDRESSABLE
DEVICE
LINE 1
LINE 2
LINE 2
LINE 1
FROM THE DEVICE LINE OF
THE COMPATIBLE LISTED
IN THE SPECIFICATION
NAC1
-
+
NAC1 NAC2
+
NAC2 NAC3
+
NAC3 NAC4
+
NAC4
-
--
NAC outputs of PAD-3/
PAD-4/PAD-5
ABHW-4BZ ABHW-4BZ
-
+
-
+
5
61b
1a
8 8
7 7
6 6
5 5
1 12 2
3 3
4 4
TO NEXT
ADDRESSABLE
DEVICE
LINE 1
LINE 2
LINE 2
LINE 1
FROM THE DEVICE LINE OF
THE COMPATIBLE LISTED
IN THE SPECIFICATION
N_AN N_AP N_BN N_BP
NAC outputs of
F 2005 / FC901C

9
Note:
1. The NAC circuit shown in the diagram is the active state at terminal 1 and 2 of ABHW-4BZ.
2. ABHW-4BZ terminals 5-6 are polarity insensitive. Line 1 and Line 2 can be either line of
device loop.
3. The wiring at NAC of FC2025/FC2050/FV2025/FV2050 and FC922/FC924/FV922/FV924
shown in the diagram for ABHW-4BZ is Style Z (Class A) (no EOL needed). If Style Y (Class
B) wiring used at NAC output, EOL (2.4K, 0.5W resistor) must be used.
4. For the max load current and max cable resistance, refer to the specifications of FC2025/FC2050
/FV2025/FV2050 and FC922/FC924/FV922/FV924.
Figure 4.2
Installation/Wiring Diagram for ABHW-4BZ Audible Base Powered by NAC of
FC2025/FC2050/FV2025/FV2050 and FC922/FC924/FV922/FV924
Figure 5
Installation/Wiring Diagram for ABHW-4BZ Audible Base Powered by Device
Loop
ABHW-4BZ ABHW-4BZ
-
+
-
+
5
61b
1a
8 8
7 7
6 6
5 5
1 12 2
3 3
4 4
TO NEXT
ADDRESSABLE
DEVICE
LINE 1
LINE 2
LINE 2
LINE 1
FROM THE DEVICE LINE OF
THE COMPATIBLE LISTED
IN THE SPECIFICATION
NAC1
2_- NAC1 2_+ NAC1 1_- NAC1 1_+
per Periphery
NAC outputs
ABHW-4BZ ABHW-4BZ
5
61b
1a
8 8
7 7
6 6
5 5
1 12 2
3 3
4 4
LINE 1
LINE 2
FROM DLC LOOP OF
FIREFINDER-XLS SYSTEM
FC2005/FC901 SYSTEM
FC2025/FC2050/FV2025/FV2050 SYSTEM
SYSTEMFC922/FC924/FV922/FV924
5
61b
1a

10
Figure 6
ABHW-4BZ Audible Base Terminal Blocks (only for HFP-11, HFPT-11,
HFPO-11, SFP-11, SFPT-11 and SFPO-11 detectors)
Note:
The ABHW-4BZ terminal 3 should be connected to RL-HC/RL-HW TB1
The ABHW-4BZ terminal 4 should be connected to RL-HC/RL-HW TB2 or TB3
Figure7
ABHW-4BZ Audible Base Terminal Blocks (only for FDO421, FDOT421,
FDT421, FDOOT441, FDOOTC441, OP921, OH921, HI921, OOH941 and
OOHC941 detectors.)
1
23
4
8765
TO NEXTABHW-4BZ, DB-11,
DB-3S or DB-X3RS
LINE 1 LINE 2
LINE 1 LINE 2
FROM DLC LOOP OF
FIREFINDER-XLS SYSTEM
F 2005 / F 901 SYSTEM
FC2025/FC2050/FV2025/FV2050
FC922/FC924/FV922/FV924
C C
SYSTEM
SYSTEM
+
-
JUMPER FOR
TONE SELECTION ABHW-4BZ
TO NEXTABHW-4BZ, DB-11,
DB-3S or DB-X3RS
LINE 1 LINE 2
LINE 1 LINE 2
FROM DLC LOOP OF
FIREFINDER-XLS SYSTEM
FC2005 / FC901 SYSTEM
FC2025/FC2050/FV2025/FV2050
FC922/FC924/FV922/FV924
SYSTEM
SYSTEM
TB1TB3
TB2
RLH
REMOTE LAMP
See table 3
ABHW-4BZ

11
Figure 8
Positioning the Alarm LED
1. When installing FD-UL detectors in a FireFinder XLS panel,
use the following panel versions
•PMI ver 10.02 or later
•Zeus ver 10.02 or later
•DLC ver 06.01 or later
2. When the audible base ABHW-4BZ works with FD-UL series
detectors. Up to 6 tone patterns and 2 volume levels can be
selected by user with system configuration tool; there are
two power types for ABHW-4BZ during alarm, “Loop
Powered” and “External Powered” which can be configured
by system tool.
3. When the audible base ABHW-4BZ works with H-series
detector Only “External Powered” can be used. A fixed 85dB
tone is provided and only 2 tones can be selected (steady
and Temporal 3, refer to Figure 6): Steady: without a jumper
at terminals 3 and 4; Temporal 3: terminals 3 and 4 are
shorted with jumper.
4. When use “External Powered” for alarm, the ABHW-4BZ still
takes some power from loop during both supervision and
alarm status to keep it alive and external power is only for
the alarm current.
5. For additional information on the modules used in an
individual system, refer to the Installation Instructions for that
particular module or contact your authorized Siemens
Industry, Inc. representative.
BASE
MOUNTING
HOLES
ALARM LED LOCATION
WITH DETECTOR
INSTALLED IN BASE

12
APPENDIX: Max. number of loop powered ABHW-4BZ
audible bases in one loop
1. The max. number of loop powered ABHW-4BZ audible bases in one device
loop depends on the available load current for ABHW-4BZ audible bases. The
available load current for loop powered ABHW-4BZs (I) can be calculated by:
I = Imax – Id
In which, Imax is the max load current in one loop under the worst case
scenario with 50 Ωcable r esistance. I
d is the total load current for the
devices loaded in the loop.
Figure 9: Max. number of loop powered ABHW-4BZ in high dBA
Figure 10: Max. number of loop powered ABHW-4BZ in low dBA
Loop Powered ABHW-4BZ (Low dBA)
0
10
20
30
40
50
60
0
50
100
150
200
250
Load Current (mA) for ABHW-4BZ
audible base quantity
Number of ABHW-4BZ
Loop Powered ABHW-4BZ (High dBA)
0
5
10
15
20
25
30
35
40
0
50
100
150
200
250
Load Current (mA) for ABHW-4BZ
audible base quantity
Number of ABHW-4BZ

13
2. The max. number of loop powered ABHW-4BZ for the worst case
scenario (All detectors wired at the end of 50 ohms cable)
Detector Loaded
in one DLC
Current available
for ABHW-4BZ
Max number of loop powered ABHW-4BZ
High dBA Low dBA
252 FD-UL detectors
189 mA
25
42
252 H-series detectors
Note
Note
Note
100 FD-UL detectors and
152 H-detectors
113 mA 15 25
Note: Loop power can’t be used for ABHW-4BZ with H-series detector
and the external power must be used.
3. How to calculate the max. number of loop powered ABHW-4BZ.
Step 1:
Calculate the total load current (Id) for the devices loaded in the device
line using the current rating of each device including accessories.
Example: Current load of 100 FDOT421 detectors = 0.25mA*100 = 25mA
Current load of 152 HFP-11 detectors = 0.75mA*152 = 114mA
Step 2:
Find out the max. device load current (Imax) of device line card at worst
case from the user manual of the panel.
Example: For DLC in XLS systems, 252 H-series devices can be
loaded at the end of 50 ohms max. line resistance (the worst case) and
max. load current is 252mA (Imax).
Step 3:
Find out the available load current (I) for loop powered ABHW-4BZ
audible bases.
I = Imax – Id
Example: If 100 FDOT421 and 150 HFP-11 detectors loaded at the
end of 50 ohms cable, I=252–139 = 113mA
Step 4:
Find out the max. alarm current rating for the loop powered ABHW-
4BZ (Ia). Find out the max. number of the loop powered ABHW-4BZ
using the charts above, or it is equal to (I/Ia).
Example: If all ABHW-4BZs are set to Low volume, the max. number of
loop powered ABHW-4BZs is 25 (from Figure 10). The max. current
rating of ABHW-4BZ is 4.5mA (from electronic ratings). The max.
number of loop powered ABHW-4BZs is equal to 113mA/4.5mA=25.
If all ABHW-4BZs are set to high volume, the max. number of loop
powered ABHW-4BZs is 15 (from Figure 9). The max. current rating of
ABHW-4BZ is 7.5mA. The max. number of loop powered ABHW-4BZs
is equal to 113mA/7.5mA=15.

Siemens Industry, Inc.
Building Technologies Division
Florham Park, NJ
Siemens Canada, Ltd.
1577 North Service Road East
Oakville, Ontario
L6H 0H6 Canada
Document ID
A6V10806895_en--_d
P/N A5Q00069244
Cyber security disclaimer
Siemens provides a portfolio of products, solutions, systems and services that
includes security functions that support the secure operation of plants,
systems, machines and networks. In the field of Building Technologies, this
includes building automation and control, fire safety, security management as
well as physical security systems.
In order to protect plants, systems, machines and networks against cyber
threats, it is necessary to implement – and continuously maintain – a holistic,
state-of-the-art security concept. Siemens’ portfolio only forms one element of
such a concept.
You are responsible for preventing unauthorized access to your plants,
systems, machines and networks which should only be connected to an
enterprise network or the internet if and to the extent such a connection is
necessary and only when appropriate security measures (e.g. firewalls and/or
network segmentation) are in place. Additionally, Siemens’ guidance on
appropriate security measures should be taken into account. For additional
information, please contact your Siemens sales representative or visit
https://www.siemens.com/global/en/home/company/topicareas/
future-of-manufacturing/industrial-security.html.
Siemens’ portfolio undergoes continuous development to make it more secure.
Siemens strongly recommends that updates are applied as soon as they are
available and that the latest versions are used. Use of versions that are no
longer supported, and failure to apply the latest updates may increase your
exposure to cyber threats. Siemens strongly recommends to comply with
security advisories on the latest security threats, patches and other related
measures, published, among others, under
https://www.siemens.com/cert/en/cert-security-advisories.htm.
