SIIG AV-GM03T3-S1 User manual

VGA/Component Extender over Cat.X with Audio,
RS-232, PS/2, and Bi-directional IR
P/N: AV-GM03T3-S1

Safety and Notice
The AV-GM03T3-S1 VGA/Component Extender over Cat.X with Audio, RS-232, PS/2, and
Bi-directional IR has been tested for conformance to safety regulations and requirements, and
has been certified for international use. However, like all electronic equipments, the
AV-GM03T3-S1 should be used with care. Please read and follow the safety instructions to
protect yourself from possible injury and to minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS......................................................................................................1
SPECIFICATIONS..............................................................................................................2
PANEL DESCRIPTIONS.....................................................................................................3
Transmitting unit ►TX............................................................................................3
Receiving unit ► RX................................................................................................4
IR PASS-THROUGH...........................................................................................................6
CONNECTION DIAGRAM ..................................................................................................8
PIN DEFINITION.................................................................................................................9
NOTICE............................................................................................................................10
WARRANTY .....................................................................................................................11

1
INTRODUCTION
With only one cost effective Cat-5/5e/6 cable, the AV-GM03T3-S1 lets you extend VGA (at
WUXGA) or 720p component video, bi-directional IR control and half-duplex serial RS-232 at the
same time to cover the distance up to 330m (1,000ft). The AV-GM03T3-S1 comes in a set of a
transmitter and a receiver. The transmitting unit AV-GM03T3-S1-TX is installed near the signal
source, and the receiving unit AV-GM03T3-S1-RX is placed near the desired VGA display. With the
built-in equalization and signal gain control, the transmission path can be adjusted to adapt the
cable quality and video bandwidth. With commonly obtainable VGA-component breakout cables
connected to the VGA ports, the extender can support to transmit the component video for 330m
(1,000ft) as well.
AV-GM03T3-S1 also can extend popular PS/2 keyboard and mouse signal up to 330m (1,000ft).
With this computer control path, AV-GM03T3-S1 makes long range KVM applications more cost
effective and with no video or audio compression!
FEATURES
●Supports up to WUXGA [1920x1200@60] or UXGA [1600x1200@60] to 330m (1,000ft)
●Supports 720p component video signal to 330m (1,000ft)
●Supports RS-232 half-duplex & bi-directional IR pass-through
●Supports analog stereo audio and digital S/PDIF stereo audio
●Supports PS/2 keyboard and mouse extension
●Video and audio local out on transmitting unit for easy monitoring
●Adjustable equalization and gain control on receiving unit for signal tuning
●De-skew compensation available for RGB delay
●Wall mounting case & interlocked power jack for secure installation
PACKAGE CONTENTS
●1x AV-GM03T3-S1 [TX & RX]
●1x IR receiver
●1x IR blaster
●2x DC 5V 2A power supply
●1x User Manual

2
SPECIFICATIONS
Model Name
AV-GM03T3-S1
Technical
AV-GM03T3-S1[TX]
AV-GM03T3-S1[RX]
Role of usage
Transmitter [TX]
Receiver [RX]
Video bandwidth
350MHz
Video support
VESA
Transmission
WUXGA [1920x1200] / 720p —330m (1,000ft) [CAT5e]
Audio support
Stereo
RS-232 signal type
Half-duplex
Input video signal
1.2 Volts [peak-to-peak]
Equalization
Continuous analog control
RGB delay control
Yes
Keyboard & Mouse
control
Yes
Loop-out
1 VGA local-out + 1 audio local-out at TX
ESD protection
[1] Human body model —±19kV [air-gap discharge] & ±12kV [contact
discharge]
[2] Core chipset —±8kV
Input
1x VGA + 1x RS-232 + 2x 3.5mm
+ 1x RCA + 1x RS-232
2x 3.5mm + 1xRJ-45
Output
2x RJ-45 + 1x VGA
+ 2x 3.5mm + 1x RCA
1x VGA + 1x RS-232
+ 1x RCA + 1x 3.5mm
VGA connector
HD-15 [15-pin D-sub female]
RJ-45 connector
WE/SS 8P8C with 2 LED indicators
RS-232 connector
DE-9 [9-pin D-sub female]
RCA connector
S/PDIF digital audio
PS/2 connector
Mini DIN-6
3.5mm connector
Earphone jack for analog stereo audio or IR cable
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
TBA
Package
330 x 200 x 95mm [1'1" x 7.9" x 3.7"]
Carton
495 x 440 x 380mm [1'7" x 1'5" x 1'3"]
Weight
Model
TBA
Package
TBA
Fixedness
Wall-mounting case with screws

3
Power supply
Inter-locked 5V 2A DC
Power consumption
6 Watts [max]
Operation
temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
PANEL DESCRIPTIONS
Transmitting unit ►AV-GM03T3-S1-TX
#
Connector
Function
1
PS/2
Mouse input
2
PS/2
Keyboard input
3
RS-232
Serial channel
4
3.5mm
IR sender
5
3.5mm
Stereo audio input
6
RCA
S/PDIF audio input
7
Push button
Audio selection
8
VGA
VGA input
9
IR
IR receiver

4
10
Power
+5V DC latch-locking
11
VGA
Local VGA output
12
RJ45
Cat.X output
13
RCA
Local S/PDIF audio output
14
3.5mm
Local stereo audio output
15
RJ45
Cat.X output
Receiving unit ►AV-GM03T3-S1-RX
#
Connector
Function
16
PS/2
Mouse output
17
PS/2
Keyboard output
18
RS-232
Serial channel
19
3.5mm
IR receiver
20
3.5mm
Stereo audio output
21
RCA
S/PDIF audio output

5
22
VGA
VGA output
23
3.5mm
IR sender
24
Power
+5VDC latch-locking
25
RJ45
Cat.X input
26
Rotary control
EQ
27
Rotary control
Gain
28
RJ45
Cat.X input

6
IR PASS-THROUGH
IR Extenders
IR Blaster
IR Receiver
IR Sockets
IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from
the other end to control the devices corresponding to the IR signals.
IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of
the corresponding devices.
Definition of IR Earphone Jack
IR Blaster
IR Receiver
Incorrect placement of IR Blaster and Receiver may result in the failure of the IR
extenders. Please check carefully before plugging in the IR extender to the
respective IR sockets. Warranty will not cover the damage.
CAUTION!

7
Supported IR Data Format
Data Format
Suitable
Not Recommended
NEC
RC5
TOSHIBA MICOM CODE
GRUNDIG CODE
SONY 12 BIT CODE
SONY 15 BIT CODE
SONY 20 BIT CODE
RCA CODE
RCM CODE
MATSUSHITA CODE
MITSUBISHI CODE
ZENITH CODE
JVC CODE
M50560-001P
MN6125H
MN6125L
MN6014_C5D7
MN6014-C6D6
MC14457P
LC7464(AHEA)
GEMINI_CM
You can buy any IR extension cables in the market that are compatible to the definition of
the IR sockets for the matrix if necessary for replacement use. However, IR cables longer
than 2m (6-ft) may not work.

8

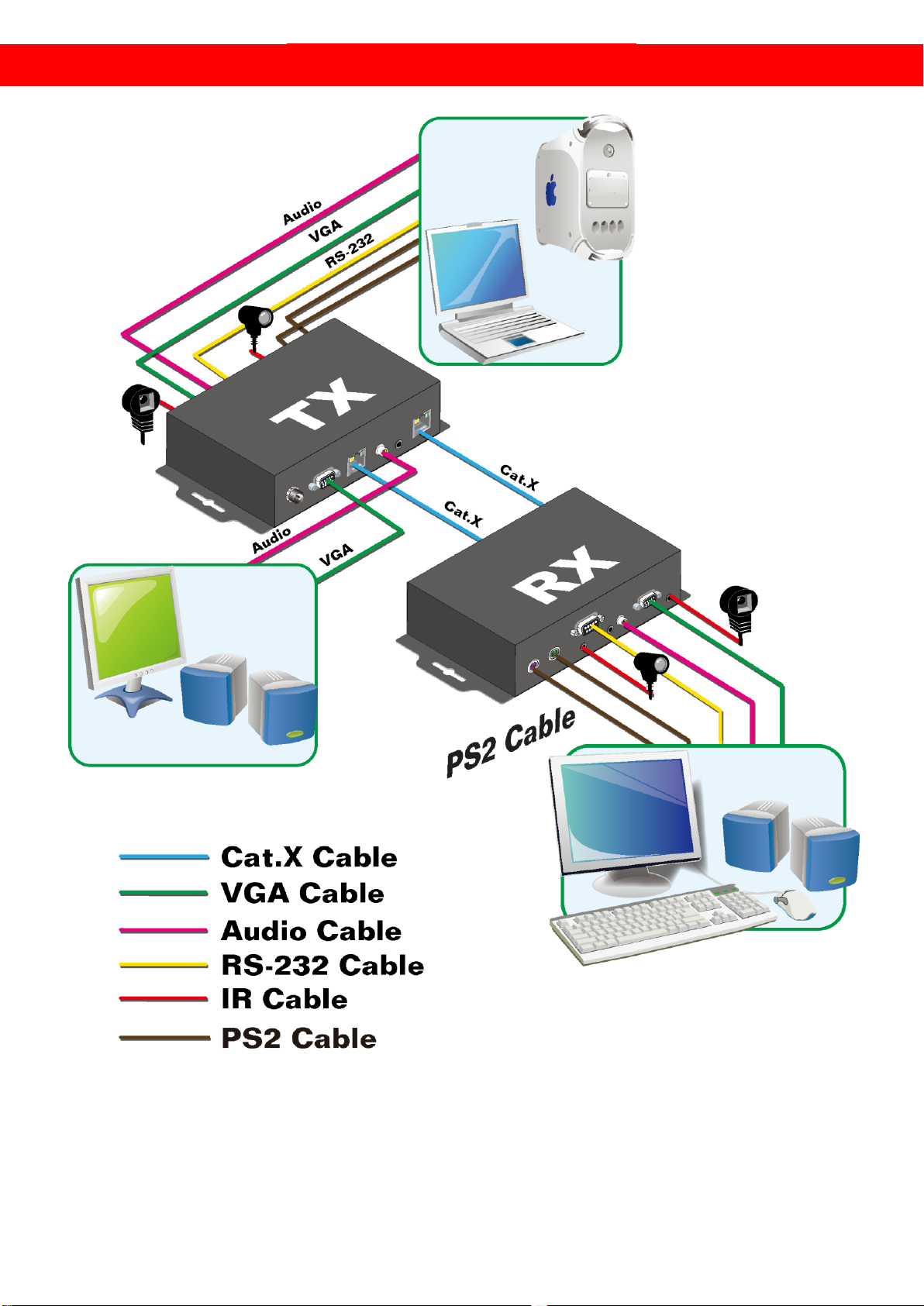

CONNECTION DIAGRAM

9
PIN DEFINITION
CAT5 [RJ45]

10
NOTICE
1. All transmission distances are measured using Belden 1583A CAT5e 125MHz Solid UTP cable
and ASTRODESIGN Video Signal Generator VG-859C. The transmission distance is defined as the
distance between the video source and the VGA display.
2. The transmission length is largely affected by the type of CAT5/6 cables, the type of VGA sources,
and the type of VGA display. The testing result shows solid UTP cables (usually in the form of
300m or 1,000ft bulk cables) can transmit a lot longer signals than stranded UTP cables (usually
in the form of fixed length patch cords). Shielded STP cables are better suited than unshielded
UTP cables. A solid UTP CAT5e cable shows longer transmission range than stranded STP CAT6
cable. For long extension users, solid UTP/STP cables are the only viable choice.
3. To reduce the interference among the unshielded twisted pairs of wires in UTP cable, you can
use shielded STP cables to improve EMI problems, which is worsen in long transmission.
4. Because the quality of the CAT5/6 cables has the major effect on how long the transmission limit
can achieve and how good is the received picture quality, the actual transmission range is
subject to one’s choice of CAT5/6 cables. For desired resolutions greater than 1080i or
1280x1024, a Cat-6 cable is recommended.
Performance Guide for HDMI over Category Cable Transmission
Performance rating
Type of category cable
Wiring
Shielding
CAT5
CAT5e
CAT6
Solid
Unshielded (UTP)



Shielded (STP)



Stranded
Unshielded (UTP)



Shielded (STP)



Termination
Please use EIA/TIA-568-B termination (T568B) at any
time

11
WARRANTY
The SELLER warrants the AV-GM03T3-S1 VGA/Component Extender over Cat.X with Audio,
RS-232, PS/2, and Bi-directional IR free from defects in the material and workmanship for 3 years
from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be
in good working order within 3 years warranty period, The SELLER, at its option, repair or replace
the unit, provided that the unit has not been subjected to accident, disaster, abuse or any
unauthorized modifications including static discharge and power surge. This warranty is offered by
the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on
the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day
of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or
assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted
without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or fitness or merchantability for any particular purpose, all
of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables and power adapters are limited to
a 30 day warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual.
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages
resulting from any defect or omission in this manual, even if advised of the possibility of such
damages. Also, the technical information contained herein regarding the AV-GM03T3-S1 features
and specifications is subject to change without further notice.
April, 2018
Support
For more info or tech support
http://www.siig.com/support
