Silver Cross Surf Aston Martin Edition User manual

1
for
Silver Cross Aston Martin Instructions 2019.indd 1 16/01/2019 09:59

2
IMPORTANT:
KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE
Read these instructions before use and keep
them for future reference.Your child’s safety
may be affected if you do not follow these
instructions.
Your Silver Cross Surf – Aston Martin Edition is a
high quality Silver Cross product. It meets current
British and European safety standards. Care and
regular light maintenance will ensure long service.
This pushchair is suitable from birth up to 9kg
with the Carrycot and from 6 months up
to 15 kgs using the Seat Unit.
If somebody unfamiliar is using your Silver Cross
Surf – Aston Martin Edition always ensure that
they read these instructions carefully so that
they understand how the product works best.
The Silver Cross Surf – Aston Martin Edition is
designed and tested to be used with the Silver
Cross Ventura Plus S Car Seat, and Silver Cross
Simplicity Infant Carrier all sold separately.
Always read all the instructions provided
carefully and remember, the safety of your child
is your responsibility.
WARNING: It may be dangerous to
leave your child unattended.
Contents
First check all your parts have been supplied.
Your Silver Cross Surf – Aston Martin Edition
includes:

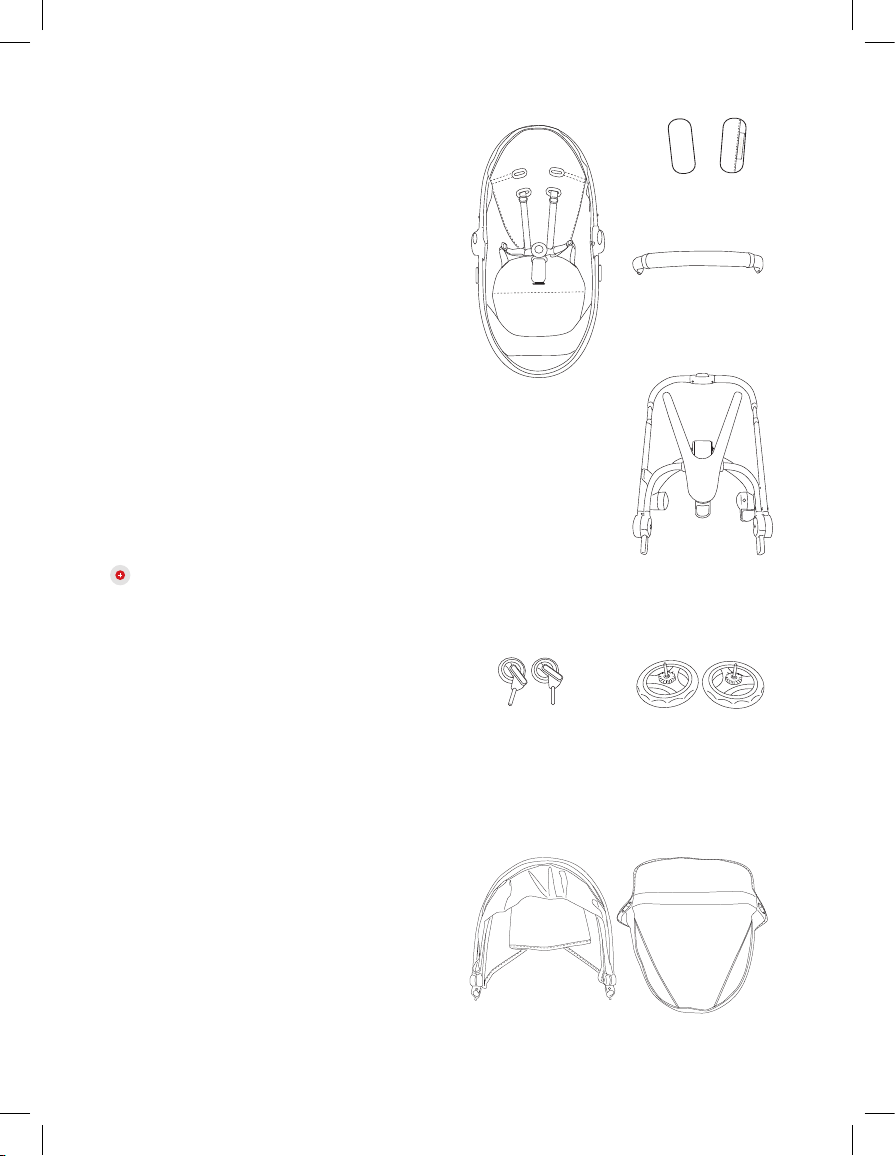

1.1 Seat unit with harness
1.2 Chest pads
1.3 Bumper bar
1.4 Chassis
1.5 Front wheels
1.6 Rear wheels
1.7 Seat Unit Hood and Apron
1.8 Cup holder
1.9 Shopping basket
1.1 0 Sunshade

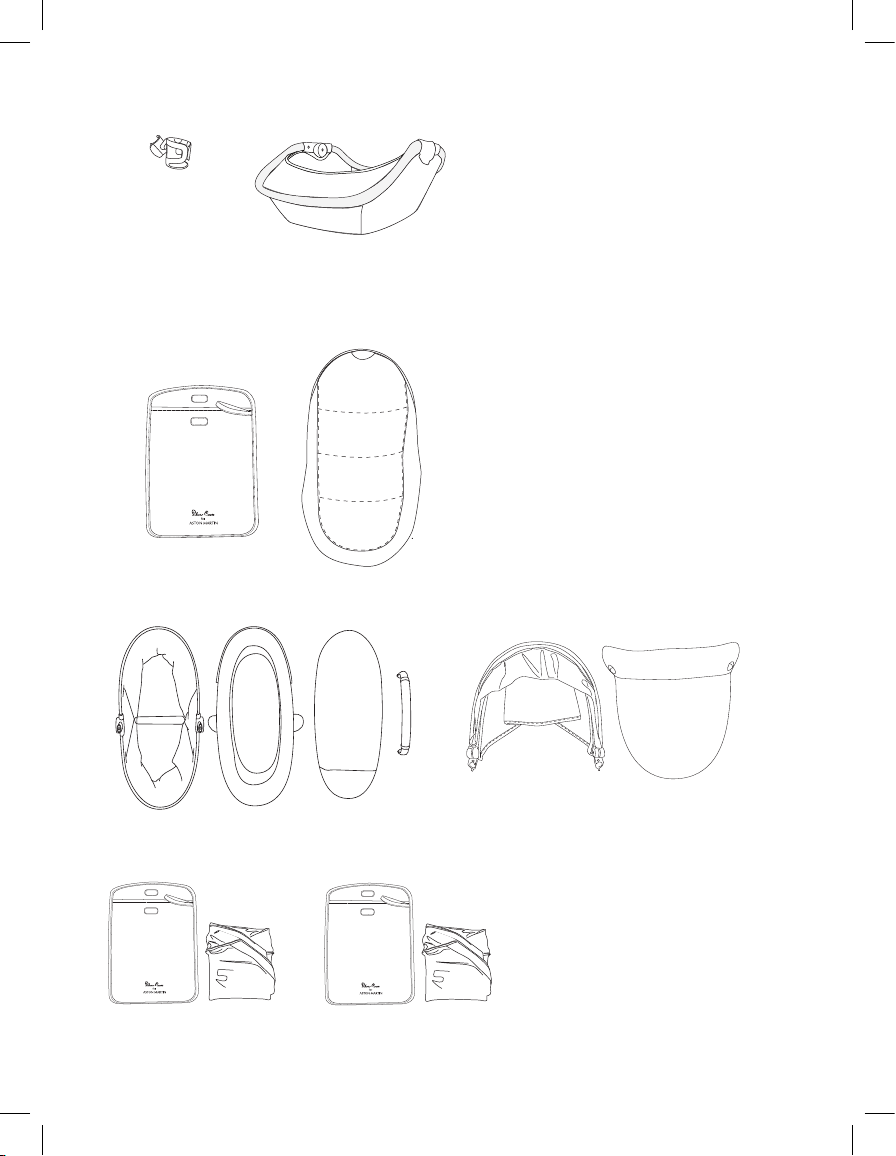

1.1 1 Carrycot, Mattress, Liner & Bumper bar
1.1 2 Carrycot Hood and Apron
1.1 3 Seat Unit Raincover
1.1 4 Carrycot Raincover
1.1 1.2
1.3
1.4
1.5 1.6
1.7
Silver Cross Aston Martin Instructions 2019.indd 2 16/01/2019 09:59

3
1.91.8
1.1 1 1.12
1.1 3
1.1 0
1.1 4
Silver Cross Aston Martin Instructions 2019.indd 3 16/01/2019 09:59

4
Preparation for use
Remove all packaging material from your Silver
Cross Surf – Aston Martin Edition.To use your
Silver Cross Surf – Aston Martin Edition from
birth you must use the Silver Cross Surf – Aston
Martin Edition Carrycot (included).
WARNING: Check that the carrycot
or seat unit is correctly engaged
before use.
Silver Cross Surf - Aston Martin
Edition chassis

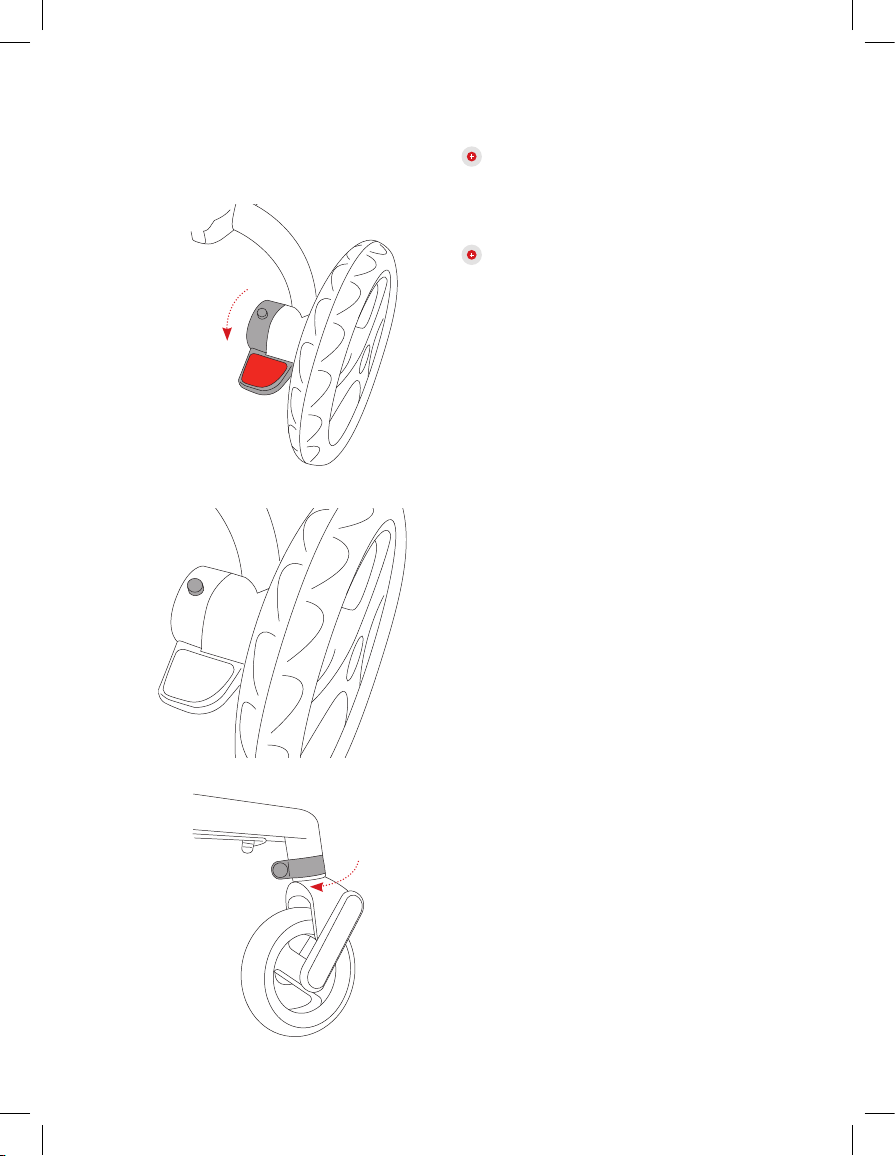

2.1 Attach the front and back wheels by
inserting the axles into the frame until they
‘click’ into position.
2.2 Release the folding lock and lift the
handle to waist height.
2.1
2.2
Silver Cross Aston Martin Instructions 2019.indd 4 16/01/2019 09:59

5
2.3
2.4
Silver Cross Surf - Aston Martin
Edition chassis (continued)
2.3 Lift the handle upwards and ick
forwards, while holding the handle tightly,
the frame ‘clicks’ and locks into position.
Always check that the frame is secure.
2.4 Apply the brake (see point 25.1) and
adjust the handle height by pushing the
adjustment button in. Slide the handle up
or down and release the adjustment button.
The handle will lock and ‘click’
into position.
Your chassis is now ready for use.
Silver Cross Aston Martin Instructions 2019.indd 5 16/01/2019 09:59

6
Using your Silver Cross Surf -
Aston Martin Edition from birth
Preparation for use
Remove all packaging material from your carrycot.
3.1 First erect the carrycot outer. Lay the carrycot
outer down with frame upper most. Press the
2x metal bars into the locators on internal base
of carrycot.A small groove in the locator holds
the frame in position.
3.2 Attach the carrycot liner to the carrycot outer.
Fasten each inner zip.There is one at each end
of the liner.
3.3 Pass the two D-shaped parts of the liner
between the liner and the outer and fasten the
velcro patches to secure the liner in place.
3.4 Place the mattress into the base of the liner.
3.5 Zip your hood to the zip on the carrycot outer.
3.6 Attach the hood to the frame by pressing down
on the hood attachment clips on each side of
frame.
3.7 Fit the apron by zipping it to the Carrycot outer.
3.8 Slide the apron ap clips over the attachment
points on the inside of the carrycot frame.
3.9 Attach the bumper bar by pressing the ends
of the bumper bar into the attachment points
of the carrycot frame. Wait to hear them ‘click’
into place.Lift gently to ensure the bumper bar
is locked in place. Fold the apron ap over the
bumper bar to hold it in place.
WARNING: Please ensure the bumper
bar is fully locked in place whenever
lifting your child in the carrycot. Your
child’s safety is your responsibility.
WARNING: Ensure all locking devices
are engaged before use.
Your carrycot is ready to use.
Attaching the carrycot to
your chassis
4.1 To attach your carrycot to the chassis hold
the carrycot above the chassis. Locate
the carrycot chassis connector onto the
attachment post of the chassis. Ensure
the carrycot‘clicks‘ into place.The carrycot
should be tted rearward facing. Lift the
carrycot gently by the bumper bar to check
it has locked into place.
WARNING: Do not add a mattress
other than the one provided.
3.1
3.4
3.5
3.6
3.8
3.7
3.2
3.3
4.1
3.9
Silver Cross Aston Martin Instructions 2019.indd 6 16/01/2019 09:59

7
Detaching the carrycot from
your chassis
5.1 With the carrycot facing you press the red
release button rst located on the side of the
carrycot until it clicks into place.
WARNING: This button is now
unlocked. It will re-lock automatically
when the carrycot is re-attached to
the chassis.
Then while pressing and holding the other
black release button on the opposite side of the
carrycot,lift the carrycot from the chassis using
the bumper bar.
WARNING: Always ensure your
bumper bar is attached when your
child is in the carrycot.
The seat unit will now lift clear of the chassis.
Using your carrycot bumper bar
6.1 To attach, simply press both ends of the
bumper bar into the connector points on the
seat unit. Wait for it to ‘click’ in place.
6.2 To detach, press the bumper bar release
button on the carrycot frame with one hand
and pull the bumper bar away from the
connector point with the other hand.The
bumper bar will rotate.
To detach both sides repeat point (6.2) above.
With one side of the bumper bar removed the
carrycot is easily accessible.
WARNING: The bumper bar must be
securely connected at all times when
in use.The safety of your child is your
responsibility.
Using your carrycot hood

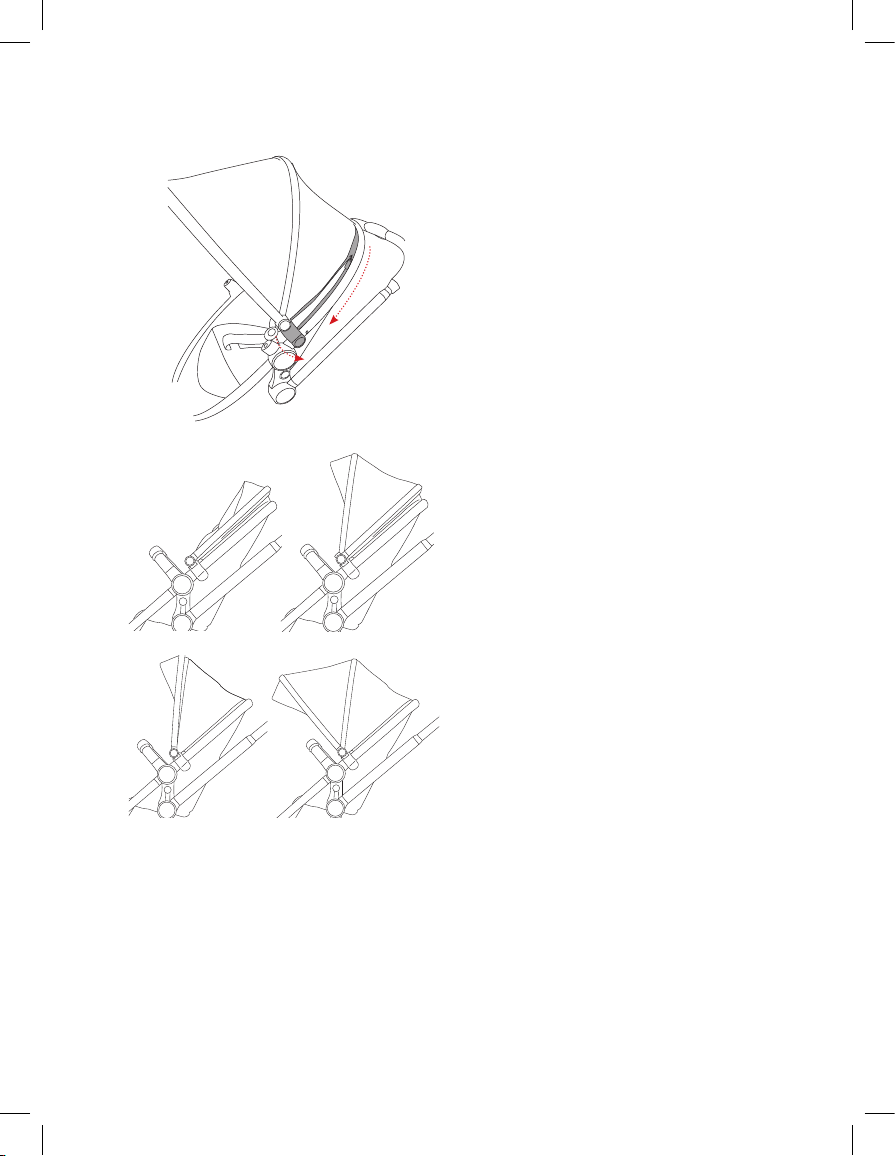

7.1 Zip the back of the hood to the top of the
carrycot frame taking care to engage the zip
properly.
7. 2 Your hood ts to the carrycot frame by
pressing the hood clips down onto the frame
below the round black plastic locator.
7. 3 Your hood can be used in 3 positions. Fully
covered, partly covered and fully open.
5.1
6.26.1
7.1 7. 2
7. 3
Silver Cross Aston Martin Instructions 2019.indd 7 16/01/2019 09:59

8
Using your carrycot apron
8.1 To attach the apron, zip the apron to the
carrycot outer.
8.2 Slide the apron ap clips over the
attachment points on the inside of the
carrycot frame.
Using your carrycot liner and
mattress
9.1 Your carrycot mattress is removable.Simply
lift it out of the liner.To clean your mattress
cover refer to the Care Guide. Remove the foam
mattress insert prior to cleaning by opening
the ap on the back of the mattress cover and
removing the foam mattress.The carrycot has
a removable liner.Simply unzip each end and
release the Velcro fastenings to remove it. To t
the liner and mattress see preparation for use
points (3.1-3.4).
Using your raincover
1 0 .1 Your carrycot raincover should be used when
the hood is attached to the carrycot. First
slide over the hood and down towards the
foot of the carrycot. Velcro fastenings secure
the carrycot sides around the chassis. A zip
gives easy access to your child.
WARNING:Never leave your child in
the pram with the raincover fully fitted
other than in normal outside use.
Using your sun shade
Your summer shade/insect net can be used
with your carrycot and Seat Unit.
11.1 Attach your sun shade by pulling over your
fully open hood and ensuring the elastic
edge is secured around the seat.
11.2 Your sun shade has a fabric panel on
the front which can be fully rolled up for
maximum ventilation or rolled down to create
more shade if required.The fabric panel can be
secured in place using the velcro squares.
WARNING: Do not leave your child
for long periods with the sun shade
attached.
8.1 8.2
1 0 .1
11.1
9.1
11.2
Silver Cross Aston Martin Instructions 2019.indd 8 16/01/2019 09:59

9
Using your Silver Cross Surf
- Aston Martin Edition as a
pushchair
12.1 Your seat unit can be tted to the chassis in
rearward facing position (infant facing you) or
forward facing position (infant facing away
from you). Follow point (14.1) to attach the
seat unit to the chassis.
Adjust the seat unit to the desired position.
See point (22.1).Secure the apron see point
(13.4).Your Silver Cross Surf – Aston Martin
Edition is ready to use.
Preparing the seat unit

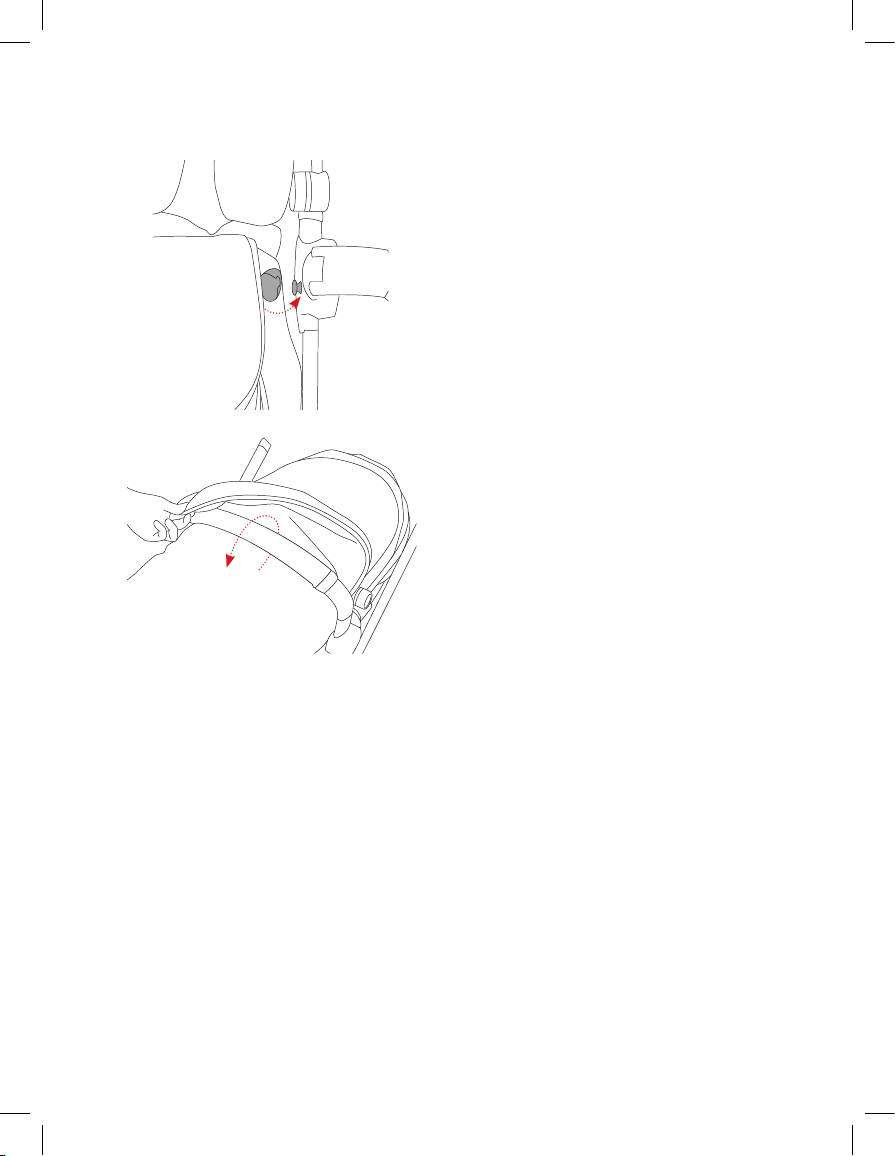

13.1 First, zip the hood to the back of the seat
frame taking care to engage the zip properly.
Attach the hood by pressing down on the
hood clips on either side of the seat frame
below the round black plastic locator.
13.2 Thread the harness through the buttonholes,
slide the chest and buckle pads over the
harness and secure the harness buckle.(see
point 17.4).
13.2
13.1
12.1
Silver Cross Aston Martin Instructions 2019.indd 9 16/01/2019 09:59

10
Preparing the seat unit
(continued)
13.3 Fit the bumper bar to the seat unit by placing
the metal ends of the bumper bar into the
xing points on the seat unit. Wait to hear
the bumper bar ‘click’ into place.
WARNING: Always ensure your
bumper bar is attached when your
child is in the seat unit.
13.4 Slide the apron ap clips onto the
attachment points on the inside of the seat
frame.Fold the apron ap over the bumper
bar using the hidden magnets to secure it in
place and to enclose and secure your child.
To secure, release and adjust the harness
see points (16.1-16.5)
13.4
13.3
Silver Cross Aston Martin Instructions 2019.indd 10 16/01/2019 09:59

11
Attaching the seat unit to
your chassis
WARNING: Ensure all locking devices
are engaged before use.
14.1 To attach your seat unit to the chassis hold
the seat unit above the chassis.Locate the
seat unit chassis connector onto the seat
attachment post of the chassis. Ensure the
seat unit ‘clicks’ into place. The seat unit can
be tted forward or rearward facing.Lift the
seat unit gently by the bumper bar to check
the seat has locked into place.
To adjust the seat position (see point 22.1).
Detaching the seat unit
from your chassis
15.1 With the seat unit facing you press the
red release button rst located on the side
of the seat unit until it clicks into place.
WARNING: This button is now
unlocked. It will re-lock automatically
when the seat is re-attached to the
chassis.
Then while pressing and holding the other
black release button on the opposite side
of the seat unit, lift the seat unit from the
chassis using the bumper bar.
WARNING: Always ensure your
bumper bar is attached when your
child is in the seat unit.
The seat unit will now lift clear of the
chassis.
Note: Remove the child from the
seat unit before detaching from
your chassis.
15.1
14.1
Silver Cross Aston Martin Instructions 2019.indd 11 16/01/2019 09:59

12
Using the harness
WARNING: Always use the crotch
strap in combination with the waist
and shoulder straps.

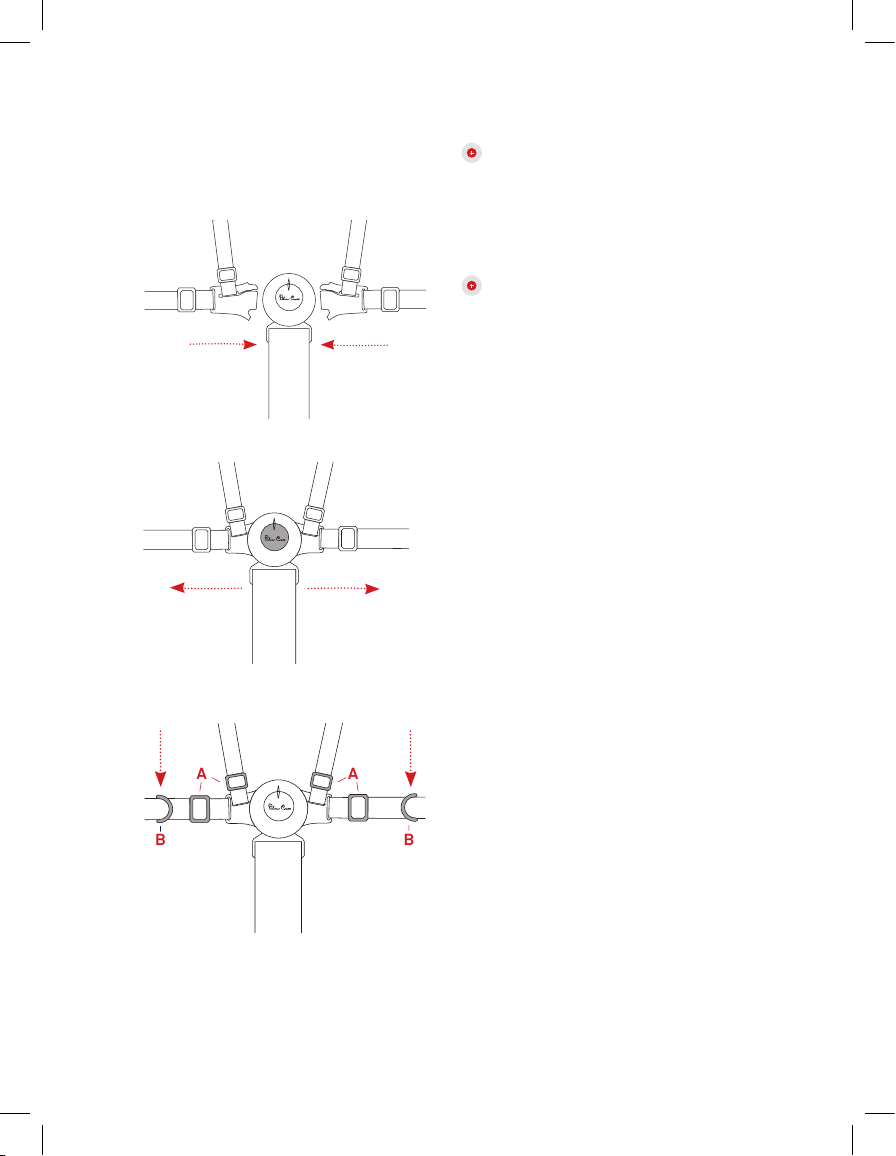

16.1 To fasten the harness insert both buckle
clips into each side of the buckle. Listen
for the ‘click’.
WARNING: Always use the harness
provided.
16.2 To release the harness press the button
at the centre of the buckle and pull apart.
The shoulder straps can be unhooked from
the buckle if required.
16.3 Your harness is fully adjustable by moving
the slides (A), to make tting easy.‘D’rings
are provided for tting a separate harness
if required (B). Any additional harness must
comply with BS 6684.Your child should
always be harnessed in and should never
be left unattended,even for short periods of
time.
Your harness can be adjusted for the size of
your child.
16.1
16.2
16.3
A
BB
A
A
BB
A
A
BB
A
Silver Cross Aston Martin Instructions 2019.indd 12 16/01/2019 09:59

13
Using the harness (continued)

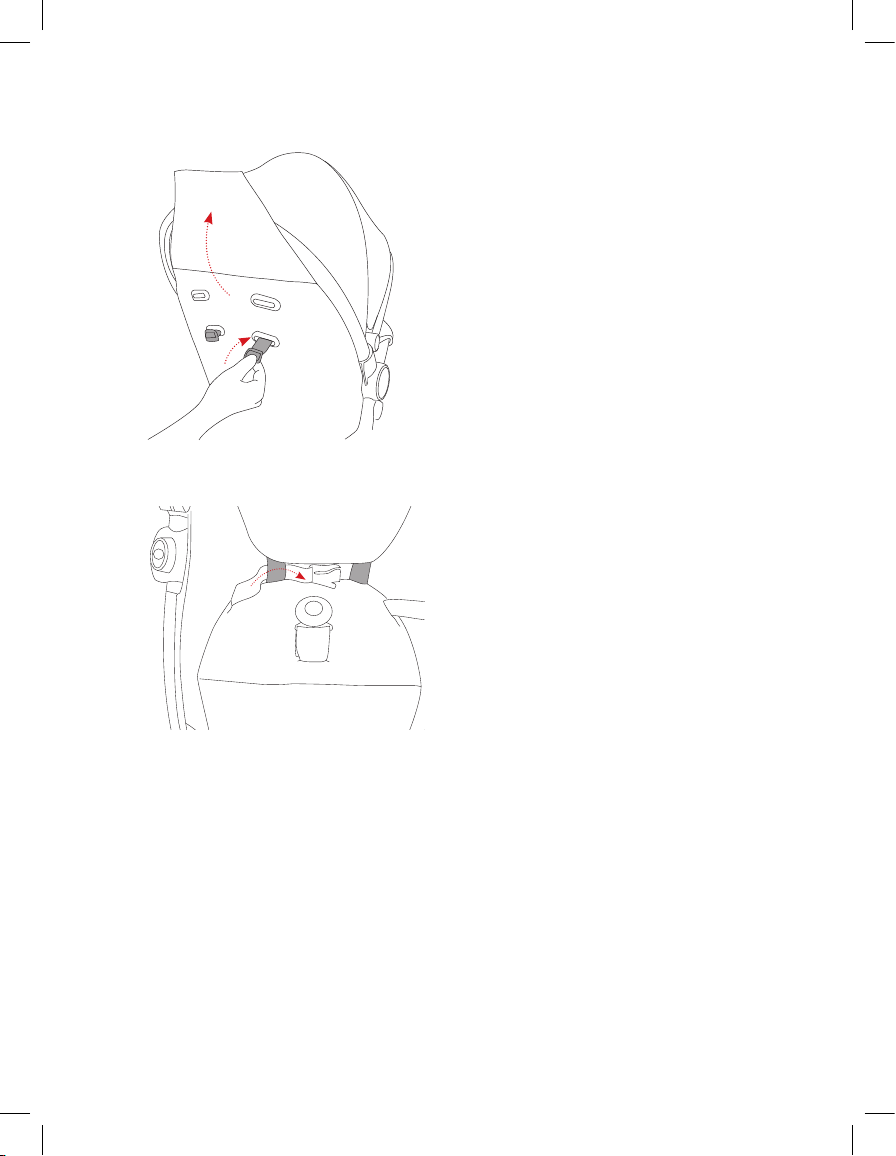

17.4 The shoulder straps have 2 height positions.
To adjust, rst lift the ap on the back
of the seat unit.Thread the harness buckle
from the back of the seat unit through
to the front of the seat unit and allow the
buckle to lay at behind the seat securing
the shoulder strap in place.
17.5 The waist straps can be reduced to t
a smaller child by threading them through
the loops on the seat.
17.5
17.4
Silver Cross Aston Martin Instructions 2019.indd 13 16/01/2019 09:59

14
Using your hood
18.1 Zip the hood to the back of the seat frame
taking care to engage the zip properly. Attach
the hood by pressing down on the hood clips
on either side of the seat frame below the
round black plastic locator.
18.2 Your hood can be used in 4 positions. Fully
open, semi-open, semi-open, and fully
covered.
18.1
18.2
Silver Cross Aston Martin Instructions 2019.indd 14 16/01/2019 09:59

15
Using your seat unit apron
19.1 Slide the apron ap clips on your apron
to the attachment points on the inside
of the seat frame and fold the apron
ap over the bumper bar using the
hidden magnets to secure it in place
and to enclose and secure your child.
19.1
Silver Cross Aston Martin Instructions 2019.indd 15 16/01/2019 09:59

16
Using your seat unit raincover
2 0 .1 Your raincover should be used when the
hood is attached to the seat unit. First
slide over the hood and down towards
the toe of the seat unit. Velcro fastening
secures the raincover under
the foot of the seat unit.
20.2 A zip gives easy access to your child.
2 0 .1
20.2
Silver Cross Aston Martin Instructions 2019.indd 16 16/01/2019 09:59

17
Using your seat unit bumper bar
Your seat unit has a bumper bar that can be fully
or partly removed
WARNING: Always ensure your
bumper bar is attached when your
child is in the seat unit.

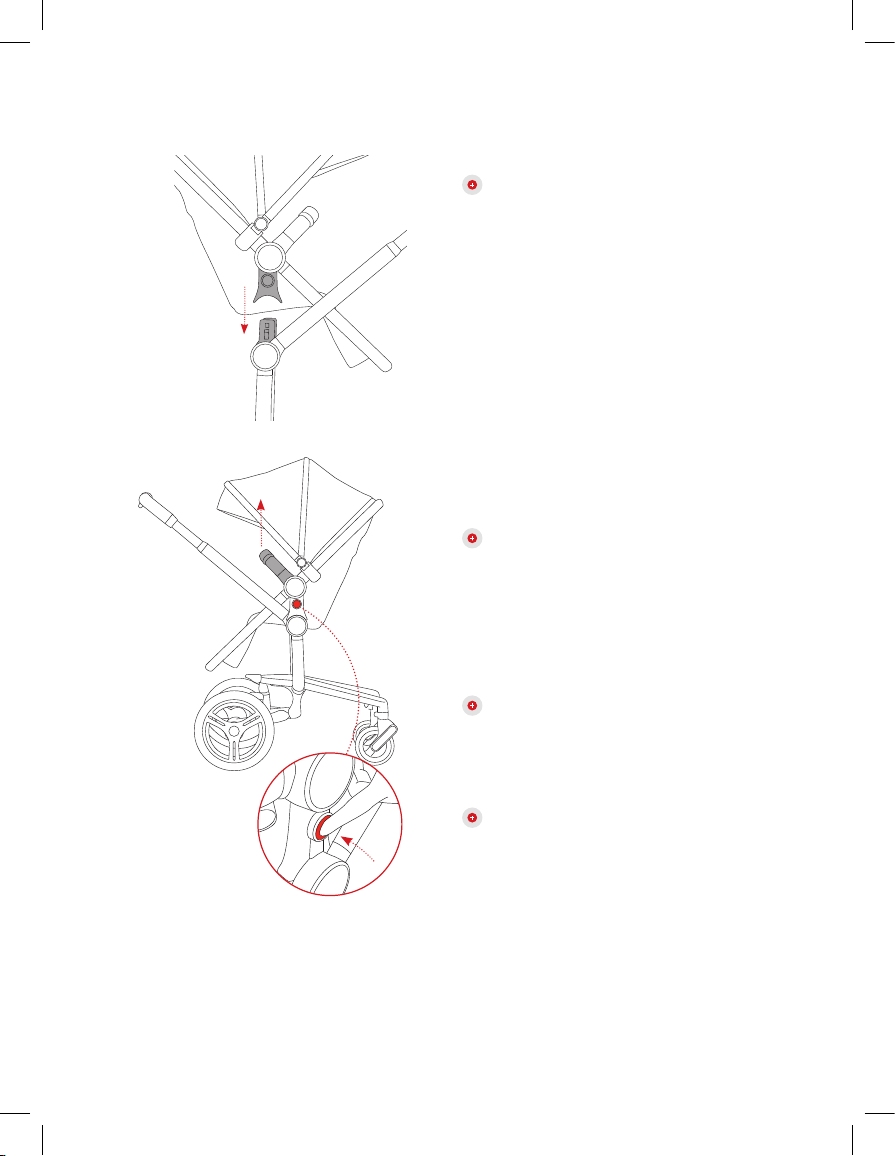

21.1 Fit the bumper bar to the seat unit by placing
the metal ends of the bumper bar into the
xing points on the seat unit. Wait
to hear the bumper bar ‘click’ into place.
21.2 To detach, press the bumper bar release
button on the seat unit with one hand and
pull the bumper bar away from the xing
point with the other hand.The bumper bar
will rotate allowing easy access to your child,
if the bumper needs to be fully removed then
repeat on the opposite side.
WARNING: Always remove your child
from the seat before attempting to lift
and remove the seat unit.
Adjusting the seat position
Your Silver Cross Surf – Aston Martin Edition
has 3 forward facing and 3 rearward facing seat
positions
22.1 To adjust the seat position in either forward
or rearward facing mode, grip the outside
of the seat unit with both hands.Place your
ngers against the large, circular seat
adjustment buttons.Press rmly inwards
moving the seat unit forwards or backwards
to upright, semi-recline or full recline.
Release the button and wait to hear the
‘click’ for each position to lock into place.
21.1
21.2
22.1
Silver Cross Aston Martin Instructions 2019.indd 17 16/01/2019 09:59

18
Folding your chassis
NOTE: To ensure your chassis folds
correctly remove all items from the
shopping basket before attempting to
fold.
NOTE: If using as a travel system (with
a car seat), pushchair (with seat unit)
or pram (with Carrycot) please ensure
each part has been removed before
folding.
23.1 Ensure the swivel wheels are locked.
(See point 26.1)
23.2 Engage the red coloured brake pedal.
(See point (25.1)
23.3 Press and hold the handle height
adjustment /folding button and slide
the handle down to its lowest point.
23.4 Applying pressure to the centre of
the handle, push down to release
the locking mechanism.
23.1
23.2
23.3
23.4
Silver Cross Aston Martin Instructions 2019.indd 18 16/01/2019 09:59

19
Folding your chassis
24.1 Rotate the handle forwards to its vertical
position, listen for the click
24.2 Still holding the handle press down gently on
the central red foot pedal. Rotate the handle
forwards as the chassis begins
to fold.
24.3 Ensure the folding lock is applied by
pressing down on the folded frame.
24.1
24.3
24.2
Silver Cross Aston Martin Instructions 2019.indd 19 16/01/2019 09:59

20
Using the brake
WARNING: Always apply the parking
brake when you are standing still.
25.1 To engage the brake, press down on the
red brake pedal. Listen for the ‘click’.
NOTE: Always check that your brake
is fully engaged by gently rocking
the pushchair.
25.2 To disengage the brake,gently press
down on the green brake release button.
Rock the pushchair backwards before
moving forward.
Operating your swivel wheels
Your chassis has lockable front, swivel
wheels. We advise locking the front wheels
if pushing the pushchair straight ahead for
a long period.
26.1 Rotate the swivel release lever sideways
to lock the wheels into the xed position.
25.1
25.2
26.1
Silver Cross Aston Martin Instructions 2019.indd 20 16/01/2019 09:59
