Simrad GO XSE Series User manual

GO™XSE™/XSR Series
INSTALLATION MANUAL
ENGLISH
www.simrad-yachting.com

Preface
Disclaimer
As Navico is continuously improving this product, we retain the
right to make changes to the product at any time which may not be
reflected in this version of the manual. Please contact your nearest
distributor if you require any further assistance.
It is the owner’s sole responsibility to install and use the equipment
in a manner that will not cause accidents, personal injury or
property damage. The user of this product is solely responsible for
observing maritime safety practices.
NAVICO HOLDING AS AND ITS SUBSIDIARIES, BRANCHES AND
AFFILIATES DISCLAIM ALL LIABILITY FOR ANY USE OF THIS PRODUCT
IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR THAT MAY
VIOLATE THE LAW.
This manual represents the product as at the time of printing.
Navico Holding AS and its subsidiaries, branches and affiliates
reserve the right to make changes to specifications without notice.
Governing language
This statement, any instruction manuals, user guides and other
information relating to the product (Documentation) may be
translated to, or has been translated from, another language
(Translation). In the event of any conflict between any Translation of
the Documentation, the English language version of the
Documentation will be the official version of the Documentation.
Copyright
Copyright © 2021 Navico Holding AS.
Warranty
The warranty card is supplied as a separate document. In case of any
queries, refer to the brand website of your unit or system:
www.simrad-yachting.com
Compliance statements
Declarations
The relevant declarations of conformity are available at:
Preface | GO XSE/XSR Installation Manual 3

www.simrad-yachting.com
Europe
Navico declare under our sole responsibility that the product
conforms with the requirements of:
•CE under RED 2014/53/EU
United States of America
Navico declare under our sole responsibility that the product
conforms with the requirements of:
•Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired
operation
Warning: The user is cautioned that any changes or
modifications not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the equipment.
ÚNote: This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that the
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and receiver
•Connect the equipment into an outlet on a circuit different from
that of the receiver is connected
•Consult the dealer or an experienced technician for help
ISED Canada
This device complies with ISED (Innovation, Science and Economic
Development) Canada’s license-exempt RSSs. Operation is subject
4Preface | GO XSE/XSR Installation Manual

to the following two conditions: (1) This device may not cause
interference; and (2) This device must accept any interference,
including interference that may cause undesired operation of the
device.
La traduction française de ce document est disponible sur le site
Web du produit.
Australia and New Zealand
Navico declare under our sole responsibility that the product
conforms with the requirements of:
•Level 2 devices of the Radiocommunications (Electromagnetic
Compatibility) standard 2017
•Radiocommunications (Short Range Devices) Standards 2021
Internet usage
Some features in this product use an internet connection to
perform data downloads and uploads.
Internet usage via a connected mobile/cell phone internet
connection or a pay-per-MB type internet connection may require
large data usage. Your service provider may charge you based on
the amount of data you transfer. If you are unsure, contact your
service provider to confirm rates and restrictions.
Trademarks
®Reg. U.S. Pat. & Tm. Off, and ™ common law marks. Visit
www.navico.com/intellectual-property to review the global
trademark rights and accreditations for Navico Holding AS and
other entities.
•Navico® is a trademark of Navico Holding AS.
•SIMRAD® is a trademark of Kongsberg Maritime AS, Licensed to
Navico Holding AS.
•BEP® is a trademark of Power Products, LLC.
•Bluetooth® is a trademark of Bluetooth SIG, Inc.
•C-Monster™ is a trademark of JL Marine Systems, Inc.
•CZone® is a trademark of Power Products LLC.
•DownScan Imaging™ is a trademark of Navico Holding AS.
•Evinrude® is a trademark of Bombardier Recreational Products
(BRP) US, Inc.
Preface | GO XSE/XSR Installation Manual 5

•ForwardScan® is a trademark of Navico Holding AS.
•GO™ is a trademark of Navico Holding AS.
•Halo® is a trademark of Navico Holding AS.
•HONDA® is a trademark of American Honda Motor Co., Inc.
•JOHNSON® is a trademark of Bombardier Recreational Products
(BRP) US, Inc.
•Mercury®, Mercury Marine®, VesselView®, and SmartCraft® are
trademarks of Brunswick Corporation.
•NAC™ is a trademark of Navico Holding AS.
•Naviop® is a trademark of Navico Holding AS.
•Naviop Loop® is a trademark of Navico Holding AS.
•NMEA® and NMEA 2000® are trademarks of the National Marine
Electronics Association.
•Power-Pole® is a trademark of JL Marine Systems, Inc.
•SD™ and microSD™ are trademarks of SD-3C, LLC.
•StructureScan® is a trademark of Navico Holding AS.
•Suzuki® is a trademark of Suzuki Motor Corporation.
•Yamaha® is a trademark of Yamaha Corporation.
•XSE™ is a trademark of Navico Holding AS.
6Preface | GO XSE/XSR Installation Manual

Contents
9 Introduction
9Parts included
11 Front controls
12 Card reader
13 Connectors
14 Installation
14 General mounting guidelines
17 Bracket mounting
21 Panel mounting
21 Bezel fitment and removal
22 Wiring
22 Connectors
22 Wiring guidelines
23 Power connections
24 Power control connection
26 External alarm
27 Connecting control devices
27 NMEA 2000
30 Echosounder
31 Radar connector
32 System setup
32 Turning the system on and off
32 First time startup
32 System setup sequence
32 The settings dialog
33 System settings
35 Feature option
35 Alarms
35 Radar installation
40 Echosounder settings
45 Autopilot settings
47 Fuel settings
50 Wireless settings
51 Network settings
Contents | GO XSE/XSR Installation Manual 7

55 3rd party support
55 FUSION-Link integration
55 CZone
57 Naviop
57 Mercury
57 Suzuki Marine
57 Yamaha
57 Evinrude
58 Power-Pole
58 FLIR camera setup
60 Appendix
60 Technical specifications
62 Dimensional drawings
64 Supported data
8Contents | GO XSE/XSR Installation Manual

Introduction
Parts included
ENGLISH
Installation Manual
bandg.com
ENGLISH
Installation Manual
bandg.com
ENGLISH
Installation Manual
bandg.com
ENGLISH
Installation Manual
bandg.com
123
4567
8A 8B 8C
1 Display unit
2 Panel mounting kit
•Gasket
•Mounting screws (4x #4 x 3/4" PN HD SS)
3 Sun cover
4 Cable
Combined power and NMEA 2000 cable - 5" unit
Power cable - 7", 9" and 12" units
5 Fuseholder and fuse (3 A, ATC-blade)
6 Protective caps
2x - 5" unit
3x - 7", 9" and 12" units
1
Introduction | GO XSE/XSR Installation Manual 9

7 Documentation package
•Installation manual
•Quick guide
•Mounting template
8 A: Bracket mounting kit - 5" unit
•Quick Release Bracket
•Mounting screws (4x #10 x 3/4" PN HD SS)
B: Bracket mounting kit - 7" and 9" units
•U bracket (plastic)
•Mounting screws (4x #10 x 3/4" PN HD SS)
•Bracket knobs (2x)
C: Bracket mounting kit - 12" unit
•U bracket (metal)
•Mounting screws (4x #10 x 3/4" PN HD SS)
•Bracket knobs (2x)
10 Introduction | GO XSE/XSR Installation Manual

Front controls
2
1
1 Touch screen
2 Power key
Press and hold to turn the unit ON/OFF.
Press once to display the System Controls dialog.
Introduction | GO XSE/XSR Installation Manual 11

Card reader
Used for inserting a microSD memory card. The memory card can
be used for detailed chart data, software updates, transfer of user
data, and system backup.
ÚNote: Do not download, transfer or copy files to a chart card.
Doing so can damage chart information on the chart card.
The card reader door is opened by pulling the rubber cover open.
The card reader door should always be securely shut immediately
after inserting or removing a card, in order to prevent possible water
ingress.
Card reader on the 5" unit Card reader on the 7" and 9" units
Card reader on the 12" unit
12 Introduction | GO XSE/XSR Installation Manual

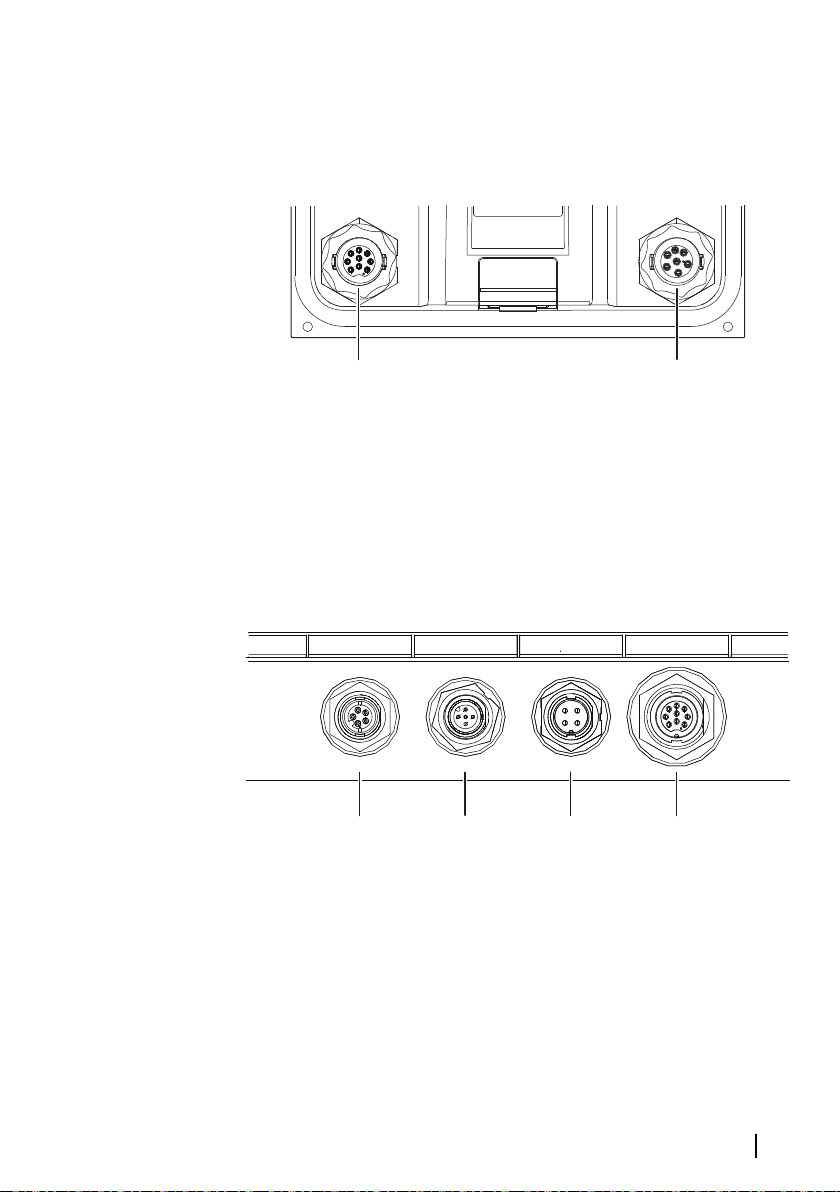

Connectors
5" unit rear connections
1 2
1 Sonar - CHIRP, Broadband, DownScan, and SideScan
imaging (dependent on the transducer)
2 Power 12 V DC supply input and NMEA 2000
7", 9" and 12" units rear connections
1234
RADAR NMEA2000 POWER SONAR
1 Radar - radar (Ethernet) connection
2 NMEA 2000 - data input / output
3 Power - 12 V DC supply input
4 Sonar - CHIRP, Broadband, DownScan, and SideScan
imaging (dependent on the transducer)
Introduction | GO XSE/XSR Installation Manual 13

Installation
General mounting guidelines
Warning: Do not install the unit in a hazardous/
flammable atmosphere.
ÚNote: Choose a mounting location that will not expose the unit
to conditions that exceed the technical specifications.
Mounting location
This product generates heat which must be considered when
choosing the mounting location.
Ensure that the selected area allows for:
•Cable routing, cable connection and cable support.
•Connection and use of portable storage devices.
•Viewing any LED indicators.
•Easy access to serviceable parts.
Do also consider:
•The free space around the unit to avoid overheating.
•The mounting surface’s structure and strength, with regard to
the weight of the equipment.
•Any mounting surface vibration that might damage the
equipment.
•Hidden electrical wires that might be damaged when drilling
holes.
Ventilation
Inadequate ventilation and subsequent overheating of the unit may
cause reduced performance and reduced service life.
Ventilation behind units is recommended for all units which are not
bracket mounted.
Ensure that cables do not obstruct the airflow and that the
ventilation holes are not blocked.
Examples of enclosure ventilation options, in order of preference,
are:
2
14 Installation | GO XSE/XSR Installation Manual

•Positive pressure air from the vessel's air conditioning system.
•Positive pressure air from local cooling fans (fan required at input,
fan optional at outlet).
•Passive airflow from air vents.
Electrical and radio frequency interference
This unit conforms to the appropriate Electromagnetic
Compatibility (EMC) regulations. To ensure that the EMC
performance is not compromised, the following guidelines apply:
•Separate battery used for the vessel engine.
•Minimum 1 m (3 ft) between the device, the device's cables and
any transmitting equipment or cables with radio signals.
•Minimum 2 m (7 ft) between the device, the device's cables and
the SSB radio.
•More than 2 m (7 ft) between the device, the device's cables and
the radar beam.
WiFi
It is important to test the WiFi performance before the location of
the unit is decided.
Construction material (steel, aluminum, or carbon) and heavy
structure might affect WiFi performance.
The following guidelines apply:
•Select a location where there is a clear, direct line of sight
between WiFi connected units.
•Keep the distance between WiFi units as short as possible.
•Mount the WiFi unit at least 1 m (3 ft) away from:
-Other WiFi enabled products.
- Products that send wireless signals in the same frequency
range.
- Equipment that might generate interference.
Compass safe distance
The unit outputs electromagnetic interference that can cause
inaccurate readings on a nearby compass. To prevent compass
inaccuracy the unit must be mounted far enough away so the
interference does not affect compass readings. For minimum
compass safe distance, refer to "Technical specifications" on page 60.
Installation | GO XSE/XSR Installation Manual 15

GPS
It is important to test the GPS performance before the location of
the unit is decided.
Construction material (steel, aluminum, or carbon) and heavy
structure might affect GPS performance. Avoid a mounting location
where metal obstacles block the view of the sky.
A well placed external GPS module can be added to overcome poor
performance.
A
B
C
AOptimal location (above deck)
BLess effective location
CNot recommended location
ÚNote: Consider the lateral swinging if mounting the GPS sensor
high above the sea level. Roll and pitch might give false
positions and affect the true directional movement.
Touchscreen
Touchscreen performance can be affected by the location of the
unit. Avoid locations where the screen is exposed to:
•Direct sunlight.
•Prolonged rainfall.
16 Installation | GO XSE/XSR Installation Manual

Bracket mounting
Quick release bracket mounting
The 5" unit can be mounted with the quick release bracket.
1. Place the bracket in the desired mounting location.
ÚNote: Ensure that the chosen location has enough height to
accommodate the unit fitted in the bracket, allows tilting of the
unit and connecting cables in the back.
2. Mark the screw locations using the bracket as a template, and
drill pilot holes.
ÚNote: Use fasteners suited to the mounting surface material. If
the material is too thin for self-tappers, reinforce it, or mount
the bracket with machine screws and large washers. Use only
304 or 316 stainless steel fasteners.
3. Screw down the bracket.
4. Snap the unit to the bracket.
Installation | GO XSE/XSR Installation Manual 17

5. Tilt the unit to the desired position angle.
Removing the unit from the quick release bracket
Pull and hold the release handle and then pull the unit from the
bracket.
U-bracket mounting
The 7", 9" and 12" units can be mounted with the U-bracket.
18 Installation | GO XSE/XSR Installation Manual

1. Place the bracket in the desired mounting location. Ensure that
the chosen location has enough height to accommodate the
unit fitted in the bracket, and allows tilting of the unit. Also
adequate space is required on both sides to allow tightening
and loosening of the knobs.
2. Mark the screw locations using the bracket as a template, and
drill pilot holes. Use fasteners suited to the mounting surface
material. If the material is too thin for self-tappers, reinforce it, or
mount the bracket with machine screws and large washers. Use
only 304 or 316 stainless steel fasteners.
3. Screw down the bracket.
4. Mount the unit to the bracket using the knobs. Hand tighten
only. The ratchet teeth in the bracket and unit ensure a positive
grip and prevent the unit from changing from the desired angle.
Installation | GO XSE/XSR Installation Manual 19

20 Installation | GO XSE/XSR Installation Manual
