INSTALLATION
INSTRUCTIONS
CARE AND USE MANUAL FOR:
Ceiling Hood
Models covered by this instructions:
SUT950 - SUT951 - SUT958
*** BEFORE INSTALLATION ***
ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAINED
DURING SHIPPING
*** SHIPPING DAMAGE ***
MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT

WARNING
Thank you for purchasing a Sirius Range Hood.
Please read all the instructions in this manual before
installing the appliance.
Save these instructions for future reference.
Only use this appliance as an exhaust ventilation system for the removal of
cooking vapors. DO NOT use to expel ammable substances or any other
materials or vapors.
The installation procedures in this manual are intended for qualied instal-
lers, service technicians or persons with similar qualied background.
DO NOT attempt to install this appliance yourself.
Ensure that electrical power is turned o at source before commencing in-
stallation. All electrical wiring must be properly installed, insulated and
grounded and conform to all applicable codes and standards.
Make sure all existing duct work is clean of grease build up, or duct work
should be replaced, if necessary, to avoid the possibility of a grease re.
Check all joints on ductwork to ensure proper connection and all joints
should be properly taped. Be careful when cutting through ceilings or walls
not to damage any hidden pipes or electrical wiring. Ensure your kitchen has
sucient air return vents to replace the exhausted air.
Fan ducts should always be vented to the outside of your home and never
into spaces within walls, ceilings, lofts or attics. Only use rigid, smooth
steel for ducting. The exhaust point of the blower requires a 6” or 8” round
connection.
2

TABLE OF CONTENTS
3
BEFORE YOU BEGIN 4
DUCTING 4
ELECTRICAL 5
Electrical Supply 5
INSTALLATION 6
Before the installation 6
Panels opening 6
Installation 6
OPERATING PROCEDURES 8
General Advice 8
Technical data 9
Standard conguration 9
Generating a new transmission code 9
Learning the new transmission code 9
MAINTENANCE 10
Cleaning the Filter 10
Cleaning the Hood 10
WARRANTY 12

4
BEFORE YOU BEGIN: It is advisable to test
run the range hood before installation.
BEFORE STARTING – please read this en-
tire document and ensure you are fully
conversant with the require-ments and
limitations. These units weigh approxi-
mately 125lbs and therefore require a
minimum of two people to install.
Recommended height from cook top to
underside of hood = 30” for gas, 25” for
electric.
BEFORE YOU BEGIN
The manufacturer declines all responsi-
bility in the event of failure to observe the
instructions given here for installation,
maintenance and suitable operation of
the product. The manufacturer further
declines all responsibility for injury due
to negligence and the warranty of the
unit automatically expires due to impro-
per maintenance and/or installation.
Use the shortest most direct ductwork
route possible. Only use metal ducting
- plastic ducting is generally not permit-
ted by code. Do not use exible metal
ducting as the ridges of the ducting cau-
se severe air turbulence and will signi-
cantly reduce the eciency of any hood
-THIS TYPE OF DUCTING WILL REDUCE
EFFICIENCY BY 50%.
Vent hoods may interrupt the proper ow
of exhaust gases from re-places, gas
furnaces and gas water heaters. To mini-
mize the risk of drawing these lethal ga-
ses back into the home please follow the
heating equipment manufacturers safety
standards and guidelines. Refer to NFPA
and ASHRAE for additional information.
DUCTING
If vented externally, 6” / 150mm round
ducting must be available for the hood
through the ceiling, in line with the cen-
tral vertical axis of the range hood.
If it’s gas range or cook top recomman-
ded 8”.
This unit must have it’s own ductwork.
Do not under any circumstances vent this
unit into any other ductwork or exhaust
ducting in the building.
Furthermore, please read carefully all of
the following installation instructions.
- Use an exhausting pipe whose maxi-
mum length does not exceed 5 meters.
- Limit the no. of elbows in the piping,
since each elbow reduces the air capacity
of 1 linear meter. (Ex.: if you use no. 2 x
90 ° elbows, the length of piping must
not exceed 3 meters).
- Avoid abrupt direction changes.
- Use a 6”/8” mm constant diameter
pipe for the whole length.
- Use piping approved by standards in
force.

5
Electrical Supply.
This appliance requires 120V/60Hz,
3amp electrical supply – ensure an ap-
propriately qualied person completes
the electrical hook-up. The connection
point for the electrical supply is at the top
of the unit, therefore the electrical supply
must be run down from the ceiling alon-
gside the ductwork.
All electrical and venting hook-ups must
be in place before commencing installa-
tion of the hood-fan.
ELECTRICAL
WARNING: All electrical work must be
performed by a qualied electrician.
Please ensure that the appropriate electri-
cal codes or prevailing local building co-
des and ordinances are adhered to.
Ensure that the electricity supply is di-
sconnected at source. Do not use an ex-
tension cord or adapter plug with this
appliance.
This appliance must be grounded. Con-
nect to a properly grounded branch
circuit, protected by a 15 amp circuit
breaker.

6
INSTALLATION
BEFORE THE INSTALLATION
This models can be used only if connec-
ted with external motors produced by
the same manufacturer.
PANELS OPENING
It is possible to open the steel panels,
which cover the grease lters, by slightly
pulling on a side of the panel itself, as
shown in Fig. 1.
Draw the outline of the hole to house the
ceiling-mounted hood on the solid ceiling
as shown in Fig. 3 according to the model
chosen.
Make 4 holes in the ceiling according to the
dimensions as shown in Fig. 4, place the
metric plugs provided in the holes.
SUT958: 34” 4/64 x 15” 60/64
distance of 12” between the ceiling and the
false ceiling.
After having chosen the most suitable po-
sition, prepare the ducting: an air outlet
connection piece, with a diameter of 6” to
be installed in the side selected, is provided
with the appliance.
Leave any unused exhaust outlets closed.
As shown in g.2.
To achieve the complete opening of
panels, you need to release the safety
chains, by using the appropriate spring
catches.
For proper working, it is recommended
to install the appliance at a distance of
83” from the oor.
Before starting the appliance installation,
please check that all components are not
damaged, in such a case contact your
retailer and do not carry out installation.
INSTALLATION
Fit a false ceiling with an opening that
has the following dimensions:
SUT950: 57” 43/64 x 37” 63/64
distance of 12” between the ceiling and
the false ceiling;
SUT951: 41” 59/64 x 26” 12/64

Open the stainless steel panels and re-
move the grease lters in order to avoid
damaging them in any way and too al-
low installation; screw the threaded bars
provided into the plugs as shown in g.5.
7
The threaded bars are 9” 27/32 long
and serve to install the ceiling-mounted
hood at a distance from the solid ceiling
of between 10” 40/64 and 14” 9/16 as
shown in g. 6.
MAX
10” 40/64 MAX
14” 36/64

7
in case of a larger gap between the hood
and the ceiling, you need to use longer
threaded bars.

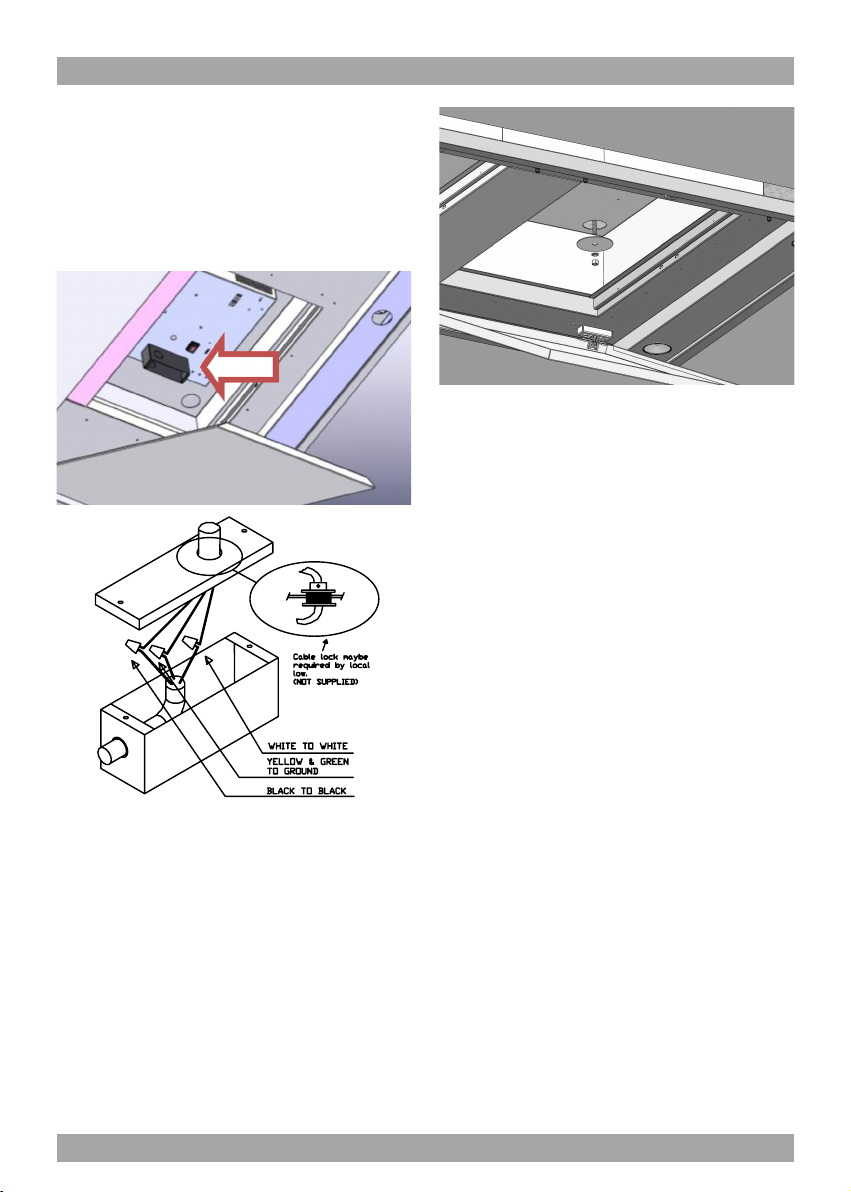

Connect the power supply into the metal
box placed inside the hood as shown in
g. 7.
and connect the air outlet pipe.
Do not x the ducting to the outlet with
screws - use DUCT TAPE;
place the ceiling-mounted hood into the
niche, the outer edge of the hood needs
to be perfectly ush with the false ceiling.
Insert the plates and nuts provided on
the threaded bars, making sure to tighten
them securely, as shown in Fig. 8; ret
the grease lters and lter cover panels.

11
OPERATING PROCEDURES
Read all the instructions before opera-
ting the appliance. Save these instruc-
tions for future reference.
General Advice.
Ensure that the grease lters are in place.
Without these components, operating
blowers could catch on to hair, ngers
and loose clothing. Keep fan, lters and
surfaces clean of grease and fat. Always
turn hood fan ON when cooking. NEVER
leave cooking unattended.
NEVER dispose cigarette ashes, ignitable
substances or any foreign objects into
blowers.
Cooking that generates ame is not re-
commended as this hood is equipped
with a thermal overload that will shut
down the motor if it senses excessive
heat.
When frying, oil in the pan can easily
overheat and ignite. Heat oil slowly in an
appropriately sized pot (covering the en-
tire burner) to reduce the risk of boiling
over and burning.
In the event of a range top grease re,
observe the following:
Switch OFF the range hood. Turn o
the cook top then smother ames with
a close tting lid, cookie sheet or other
metal tray. If the ames do not go out
immediately.
EVACUATE AND CALL THE FIRE DEPART-
MENT.
Never pick up a aming pan – you may
be burned. DO NOT USE WATER inclu-
ding wet dishcloths or towels, as a vio-
lent steam explosion may occur.
8

SUT950 - SUT951 - SUT958
9
RC001
RADIO CONTROL
Radio control used for the remote operation
of ducted cooker hoods.
TECHNICAL DATA
- Alkaline battery powered: 12 V mod. 23 A
- Operating frequency: 433.92 Mhz
- Combinations: 32.768
- Max. consumption: 25 mA
- Operating temperature: -20 ÷ + 55 °C
- Dimensions: 120 x 45 x 15 mm.
OPERATING DESCRIPTION
The transmitter is equipped with 5 buttons
for cooker hood management, as specied
below:
: Light ON/OFF command.
: Motor ON (speed level 1) / OFF command.
: Reduce speed.
: Increase speed.
: 10-minute timer.
INITIAL OPERATING CONDITION
The manufacturer supplies the radio control
unit ready to be used with codes preset in the
Factory
OPERATION MODE
Standard conguration:
Standard conguration requires all “cooker
hoods – radio control - system” to be provi-
ded with the same transmission code. In the
event two cooker hoods – radio control sy-
stem are installed in the same room or near-
by, each system may aect the operation of
the another. Therefore, the code of one radio
control system must be changed.
Generatiing a new transmiissiion code:
The radio control system is provided with
preset codes. Should new codes be required,
proceed as follows: Press simultaneously but-
tons:
for two seconds. When Leds light on, press
buttons:
(within 5 seconds). Leds ashing 3 times in-
dicate
the procedure is completed.
WARNING! This operation deletes perma-
nently the preset codes.
Learniing the new transmiissiion code:
Once the transmission code is changed in the
radio control unit, the electronic central unit
of the cooker hood must be made to set the
new code in the fol- lowing way:
Press the main power-o button of the hood
and then restore power to the electronic con-
trol unit. Within the next 15 seconds, press
the Liight Button to synchronise the cen-
tral unit with the code.
Reset of the Factory coniguratiion:
To restore the Factory conguration, follow
the pro- cedure described below: press si-
multaneously buttons:
for 2 seconds. When Leds light on, press but-
tons:

9
(within 5 seconds). Leds ashing 6 times indi-
cate the procedure is completed.
WARNING! This operation deletes perma-
nently the preset codes.
Emergency button:
In the event that the radio control does not
work, use the emergency button to switch
the appliance o. After any necessary repai-
rs have been performed, reset the emergency
button.
WARNIING
The battery should be replaced every year
to guarantee the optimal range of the tran-
smitter.
To replace the exhausted battery, take the
plastic lid o, remove the battery and re-
place it with a new one, observing the cor-
rect battery polarities.
Used batteries should be discarded in spe-
cial collection bins.
The below product:
RC001 Radiio Controll
complies with the specications set out in
the R&TTE Directive 99/5/EC.
WARNING
Any adjustments or modications which
have not been expressly approved by the
holder of the legal conformity certicate
may invalidate the user’s rights relating to
the operation of the device.
The products are endowed with an electronic
device which allows the automatic switching
o after 4 hours working from the last ope-
ration.

Warning The battery should be repla-
ced every year to guarantee the optimal
range of the transmitter. To replace the
exhausted battery, take the plastic lid
o, remove the battery and replace it
with a new one, observing the cor-
rect battery polarities. Used batteries
should be discarded in special collec-
tion bins. ??????????
QUALE SAREBBE QUELLO NUOVO?????
Cleaning the Hood.
Cleaning of the internal parts should be
done with a clean damp (not excessively
wet) cloth together with regular household
detergent. The external stainless steel ele-
ments should be cleaned with a good qua-
lity foaming stainless steel cleaner. Read
the manufacturers directions. Generally
they recommend that the foam be sprayed
onto a clean dry cloth and then applied to
the stainless steel. Allow the foam to react
on the surface for a few minutes and then
wipe with a clean dry cloth.
On the surfaces that are exposed directly
to heat from the cook-top, it is advisable
to clean these on a regular basis to avoid
the marks from becoming baked on.
Do not under any circumstances use an
abrasive type cleaner as this will scratch
and damage the stainless steel nish.
Glass components should be cleaned with
a product such as Windex.
MAINTENANCE
The hood-fan should provide many
years of trouble free service provided it
is maintained properly.
Cleaning the Filter.
Clean the grease lter either by careful-
ly hand washing, (so as not to dama-
ge the lter design) or, preferably in a
dishwasher. Depending on use, the l-
ters should be cleaned at least every two
weeks in a dishwasher.
If a carbon lter has been tted this
must be replaced at least every 6 mon-
ths as a minimum. Depending on coo-
king style and nature of cooking (greasy
foods, fry’s, curries etc) would probably
require more frequent replacement – if
odors start to manifest themselves when
cooking it is time to replace the carbon
lter . We suggest you retain a spare set.
These can be ordered from the supplier
of your range hood.
Filter requires washing indicator: after
30 hours of use, all the buttons will li-
ght up to remind you that the grease lter
should be cleaned. Follow the instruc-
tions for cleaning lters in this booklet.
Once the grease lters have been cleaned
and replaced, reset by pressing the timer
button (F). Do not rely solely on this indi-
cator. Generally, the grease lter should
be washed on a regular basis to avoid
grease lter res.
The blower should be turned on for ap-
proximately 5 minutes before cooking
in order to establish air currents upward
through the hood. Use the low speeds
for normal use and the higher speeds for
strong odors and fumes.
10

FOR SUT950 - SUT951
Turn blower and lights o. Make sure the
lights are cool.
If new lights do not operate, check fuses
and be sure globes and breakers are in-
serted correctly.
Do not remove the entire xture (socket)
as this is very dicult to reinstall. Gently
pry the bulb from the xture using a soft
instrument such as a toothpick. Steel in-
struments will scratch the surface (refer
to gure 5).
Replace the appropriate bulb. Check par-
ts brochure or specication sheets on our
website. Wipe both sides of the glass whi-
lst it is out. Re-insert the glass-blocking
ring and fasten it.

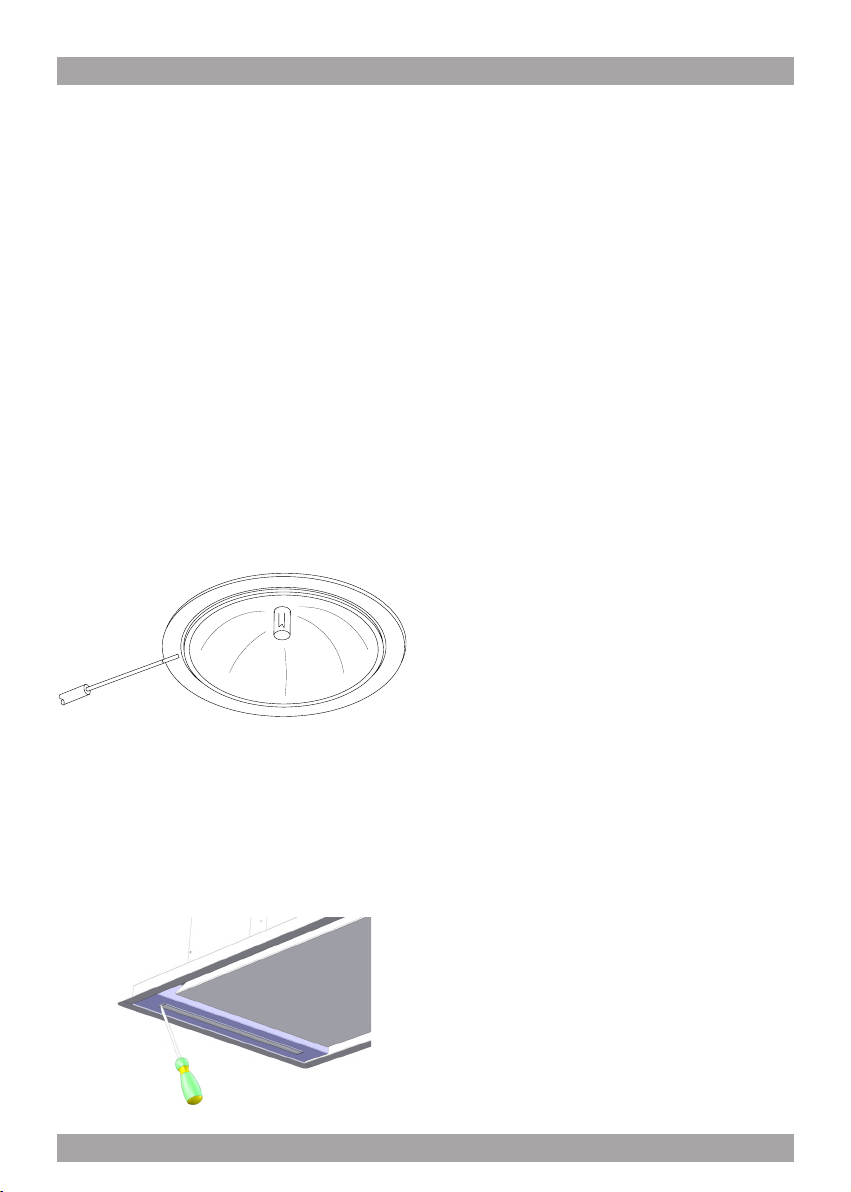

g. 5
11
Substitution of the LED bar:
Using an appropriate tool, remove the
LED bar from its seat (refer to Fig. 6), di-
sconnect it electronically using the ap-
propriate connector then substitute it
with a LED bar with same characteristics.
g. 6

Three Year Limited Warranty
YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT www.siriuscappe.
com/usa/warranty.htm TO CONVALIDATE YOUR WARRANTY.
YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE
THE GREASE FILTER TO READ IT.
WARRANTY SERVICE
To qualify for warranty service, you must notify Sirius After sale service at the email ad-
dress stated below or call toll free USA 1-877-474-8770 and provide the model number,
description of the fault or defect and original date of purchase. Sirius reserves the right
to request proof of original purchase. Sirius will at its sole option and discretion replace
products that arrive damaged through shipping, provided shipping damage is reported as
stated above WITHIN 5 BUSINESS DAYS OF RECEIPT of the shipped product or products.
ONE YEAR SERVICE REPAIR WARRANTY:
During the rst year from date of original purchase, Sirius will, at its option, repair or repla-
ce, without charge, any product or part which is found to be defective under normal use and
service.
THREE YEAR PARTS WARRANTY:
For three years from date of purchase, Sirius will provide free of charge, non-consumable repla-
cement parts which are found to be defective under normal use and service.
WHO IS COVERED:
Sirius warrants to the original consumer purchaser of its products that such products will be
free from defects in materials and workmanship for a period of three years from the original
date of purchase. There are no other warranties, express or implied, including, but not limited
to, implied warranties of merchantability or tness for a particular purpose or application.
WHAT IS NOT COVERED:
This warranty does not extend to lters, lamps, batteries, ducts and ductwork components. This
warranty does not cover normal maintenance and service or products or parts which have been
subject to misuse, negligence, accident, improper maintenance or repair, faulty installation or
installation contrary to recommended installation instructions. The warranty on glass screens
is limited to manufacturing defects only and expressly excludes cracks and breakages as a
result of faulty installation. Labor and associated costs associated directly with removal and re-
installation are expressly excluded.
The duration of any implied warranty is limited to the three year period as specied for the
express warranty. Some states and provinces do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you.
Sirius S.P.A.
Zona industriale Berbentina 6/A
60041 SASSOFERRATO (AN)
ITALY
Sirius after sale service
Telephone (toll free): 1-877-474-8770
Email: [e-mail]
Register Online! www.siriuscappe.com/usa/warranty.htm
90001109023 - MG 04/16
