User manual for ‘The Kite’
and ‘The Line’ Rangehoods
INSTALLATION AND USE INSTRUCTIONS
‘The Kite’ SLT977EMEL EAN #9351116003050
‘The Line’ SLT978EMELBK EAN #9351116001353
Congratulations on your purchase!
Thank you for choosing a Sirius product.

2

3
BEFORE YOU INSTALL
TO THE ATTENTION OF THE USER
PRE-INSTALLATION CHECKS
BEFORE YOU INSTALL
ATTACHING THE PENDANT LIGHT
LINE MEASUREMENTS
INSTALLING THE TIMBER SUPPORT BEAMS
MOTOR AND VENTING OPTIONS
TOP VENT INSTALLATION
SIDE VENT INSTALLATION
SEM11 & SEM 21
DUCTING FROM MOTOR TO WALL
ELECTRICAL CONNECTION
REMOTE CONTROL
OPERATION
THE SIRIUS APP
PARTS LIST
OPTIONAL PARTS LIST
WIRING DIAGRAMS
WARRANTY
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
26
27
28
29

4
The symbol on the product or on its packaging indicates that this product
may not be treated as house-hold waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory
such as flexible ducting, Sirius will only warrant the rangehood and motor. If installation is found to be
the cause of failure or issue then charges will apply for service and parts.
Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to
increase noise levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be
used in lieu. There is a range available to suit any application.
Ducting available at www.siriusbrand.com
6 Year Warranty when Sirius Ducting is used. Full replacement warranty on parts and labour.
See website for terms & conditions.
A reduction in the duct diameter from stated ducting size will void warranty.
If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to installation
WARNING
The appliance must be installed and
connected to the power supply only by a
qualified technician.
• There should be adequate ventilation of the room when the rangehood is used at the same time as
appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the
room)
• The details concerning the method and frequency of cleaning
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flambé under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.
BEFORE YOU INSTALL - DUCTING INFORMATION

5
TO THE ATTENTION OF THE USER
HEIGHT CLEARANCES:
SLT977EMEL, SLT978EMEL
This rangehood is designed to work with ducted
outside evacuation.
Keep these instructions for use with the appliance. If
the appliance should be sold or passed on to others,
make sure that the instructions are passed on with
it. We thank you for taking note of these suggestions
before installing and using the appliance. They have
been written for your personal safety and the safety
of others.
SAFETY INSTRUCTIONS
These hoods have been designed for personal
use in the home. The appliance must be used by
adults. Make sure that the appliance is out of reach
of children and that they do not use it to play with.
Make sure that children do not operate the controls.
• When the appliance is delivered, check the overall
appearance of the packaging. Check PARTS
LIST on page 26 for all included parts prior
to discarding packaging.
Any remarks should be written on the delivery
docket, of which you keep a copy.
Your appliance is designed for normal domestic
use. It is not designed for commercial or industrial
use, or for purposes other than those for which it
was designed.
• Any consequences of or damage from incorrect
installation or incorrect use of the appliance will
not be covered by the manufacturer’s guarantee.
• Do not ever change or try to change the
characteristics of this appliance. This would be
a danger. Repairs must be performed only by an
authorised technician.
• Always disconnect the hood before carrying out
cleaning or maintenance operations.
• Adequately ventilate the room when a rangehood
and other appliances, powered by energy other
than electricity, are used simultaneously, so that
the hood does not suck any combustion fumes.
• It is not allowed to cook food over open flames
(flambé) or operate gas hobs without pots
or pans on them under the hood itself (the
flames sucked into the hood might damage the
appliance).
• Frying under the appliance must be done under
constant supervision as hot oils and fats may
ignite.
• Respect the guidelines for cleaning and
replacement of grease filters. Accumulated
deposits of grease are a fire hazard.
WARNING
• This appliance must not be used over cook tops
powered by wood or coal or in any case, over
cook tops with power levels that could damage
the appliance.
• Never use steam or high-pressure devices
for cleaning your hood (regulations regarding
electrical safety).
• Never use the rangehood without the grease
filters.
At Sirius, we are constantly seeking to improve
our products. We reserve the right to modify their
technical, functional, or aesthetic characteristics
deriving from their upgrading.
Motors manufactured and approved by Sirius only
are to be used at all times. Failure to comply with this
will result in the forfeit of the manufacturer warranty.
The air collected must not be conveyed into a flue
used for smoke or fumes from appliances powered
by anything other than electricity (central heating
systems, bathroom and toilet exhausts, etc.). As
far as discharging exhaust air is concerned, please
follow the guidelines given by competent authorities.

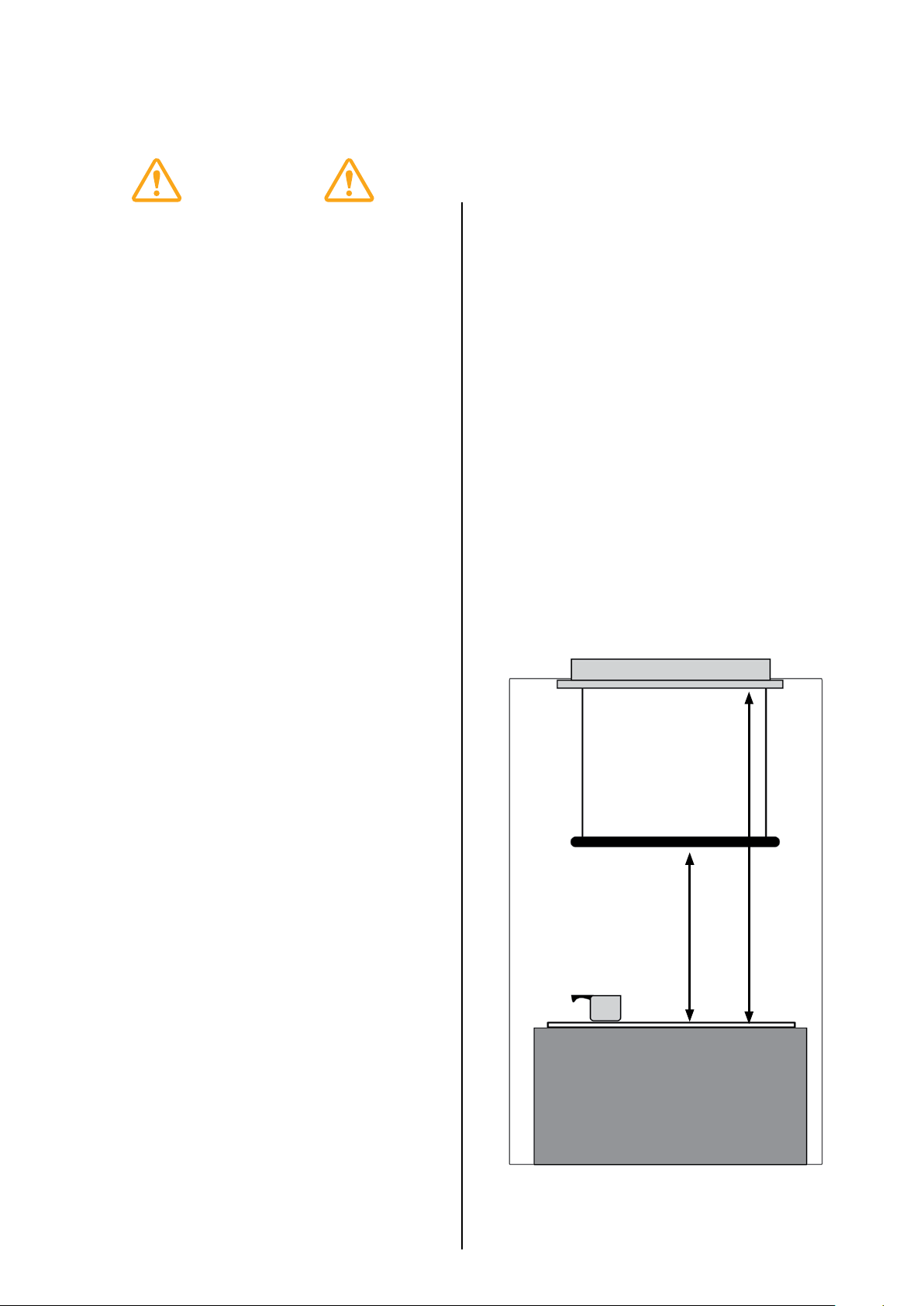

Cassette distance:
Min 900mm -
Max 1600mm
Light distance:
Min 700mm

6
PRE-INSTALLATION CHECKS
Connect all of the electrical components to the unit and motor to make sure both the unit and the motor are
functioning properly (see page 15 for instructions).
Remove all connections and proceed with installation if both unit and motor are fully operational.
Installation must comply with the regulations in force regarding the ventilation of enclosed environments.
In particular, discharged air must not be conveyed into a duct used for fumes discharge or discharge from
appliances using gas or other combustible materials. Air cannot be ducted into roof space.
The use of discontinued ducts is not allowed without the approval of a qualified technician.
Check PARTS LIST on page 26 for all included
parts prior to discarding packaging.
CAUTION
NOTE

7
BEFORE YOU INSTALL
Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as
flexible ducting, Sirius will only warrant the hood and motor. If installation or inferior parts are found to be the
cause of failure or issue then charges will apply for service and parts.
Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to increase noise
levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be used in lieu. There is a
range available to suit any application.
Available at www.siriusbrand.com
A reduction in the duct diameter from stated ducting size will void warranty.
If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to
installation.
Before proceeding with the installation of the ceiling cassette, please thoroughly inspect the entire unit
(including the motor) for any damages, including all of the electrical connections. If any damage is found,cease
installation and report it immediately to the retail partner that the cassette was purchased from.
Reduction of the ducting diameter will void the manufacturer warranty as it will severely affect the performance
of the motor and may cause damage with prolonged usage.
Use ducting approved by standards enforced, see www.siriusbrand.com for details for approved ducting. The
manufacturer will not be deemed responsible for air capacity and noise problems caused by failure to comply
with the above and no warranty on the product will be provided.
FAILURE TO INSTALL THE SCREWS OR FIXING DEVICE IN
ACCORDANCE WITH THESE INSTRUCTIONS MAY RESULT IN
ELECTRICAL HAZARDS OR ELECTROCUTION.
The cassette requires one 10AMP GPO located inside the ceiling cavity
to power both the lighting and the motor.

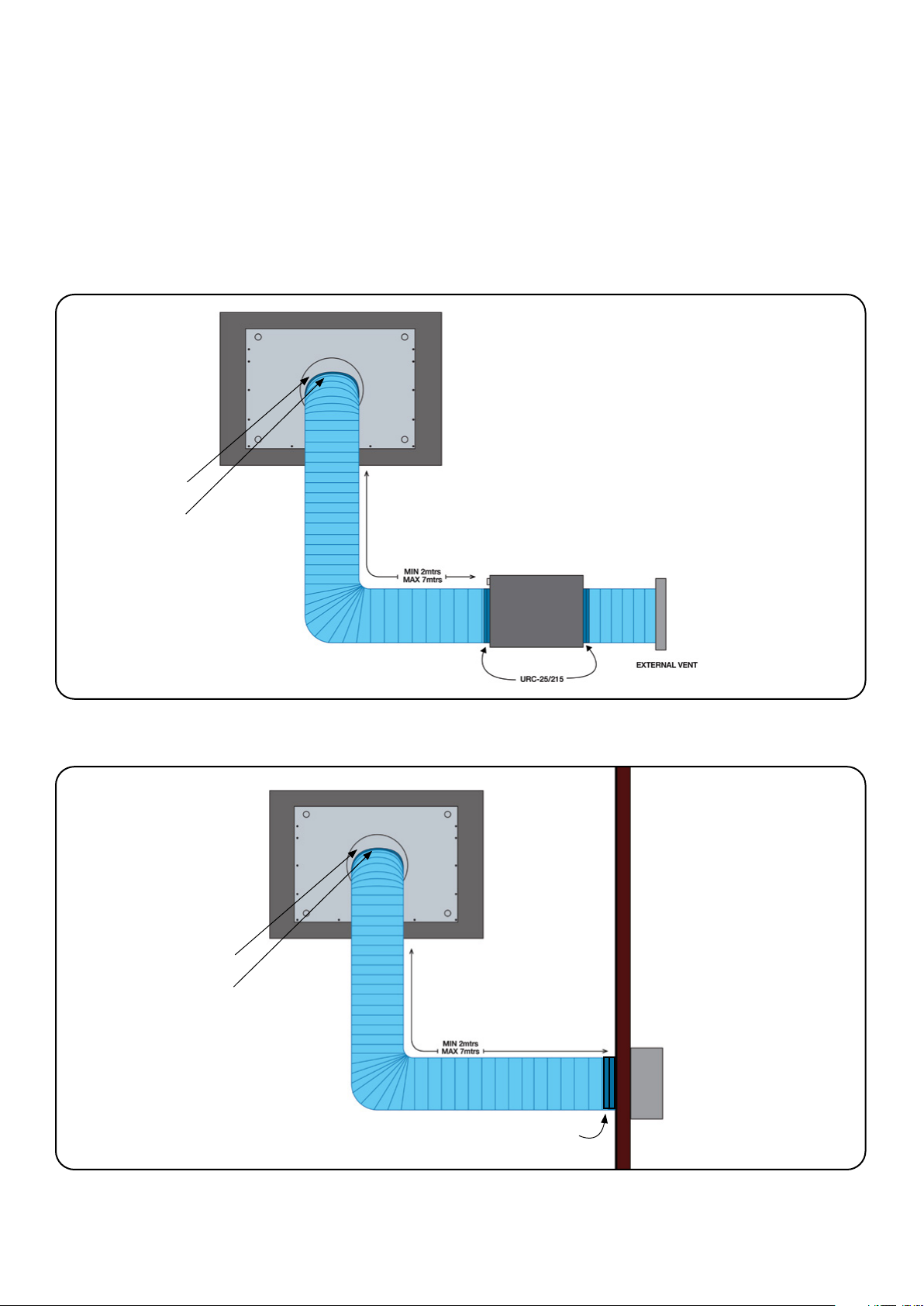

• Only use Sirius Ducting with a maximum length of 7 metres & minimum of 2 metres from the outlet collar
on the cassette to the motor location.
• Limit the number of elbows in the ducting, since each 90 degree bend reduces the air capacity by 1 lineal
metre (e.g. if there are 2 x 90 degree bends, the maximum duct length should not exceed 5 metres.)
• Avoid abrupt changes of direction where possible, bends of more than 90 degrees should be avoided at all
costs.
• A minimum of 150mm ducting is applicable to the SLT977EMEL and SLT978EMEL.
WARNING
WARNING
WARNING
NOTE
NOTE
DANGER

8

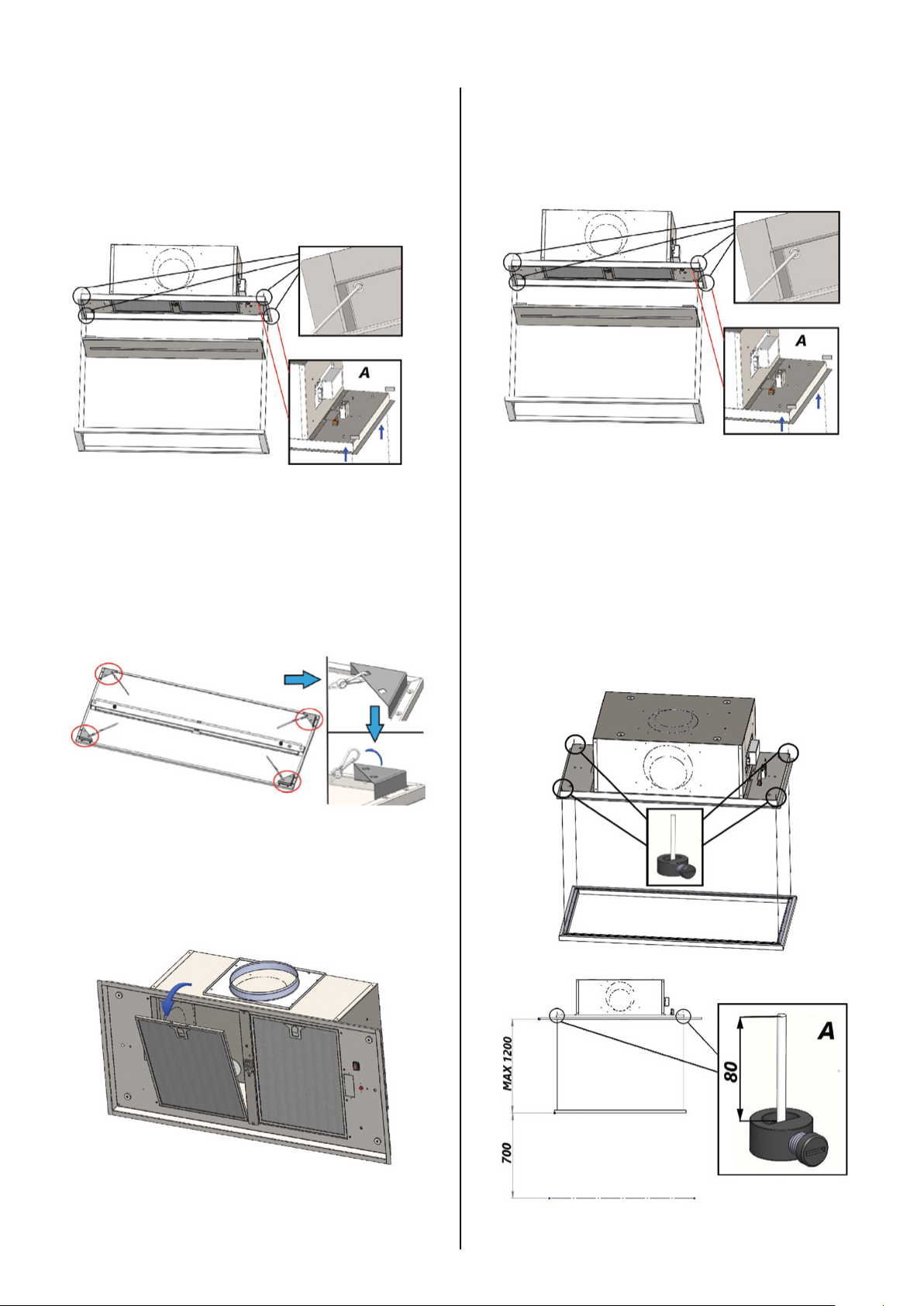

Step 1a: The Filter Cover is held in place via four
magnets. Accessibility to the filters is achieved by
gently pulling down on the cover as per fig.1
Step 1c: Once the panel is removed, lift the clip of
the filter and pull down to remove them from the
rangehood
Step 1d: Feed the cables through the four holes
in each corner of the rangehood ensuring that the
labelled + positive and - negative cables go into the
correct holes. Failure to do this may cause damage
to the unit when it is first turned on.
Step 1d: After feeding the cables through the
rangehood, using the four supplied grub screws,
fix the light into place by allowing the cables to pass
through their centre and tightening them down.
(NOTE: Depending on your circumstance and
accessibility to the cassette, determining the exact
height of the pendant light may be required to do
so prior to fitting the unit to the ceiling)
Step 1b: This panel will be held on via four cables
to prevent it falling. For installation is is required
to unhook these cables and remove the panel
altogether.
ATTACHING THE PENDANT LIGHT
Fig.1
Fig.3
Fig.4
Fig.5
Fig.6
Fig.2

9

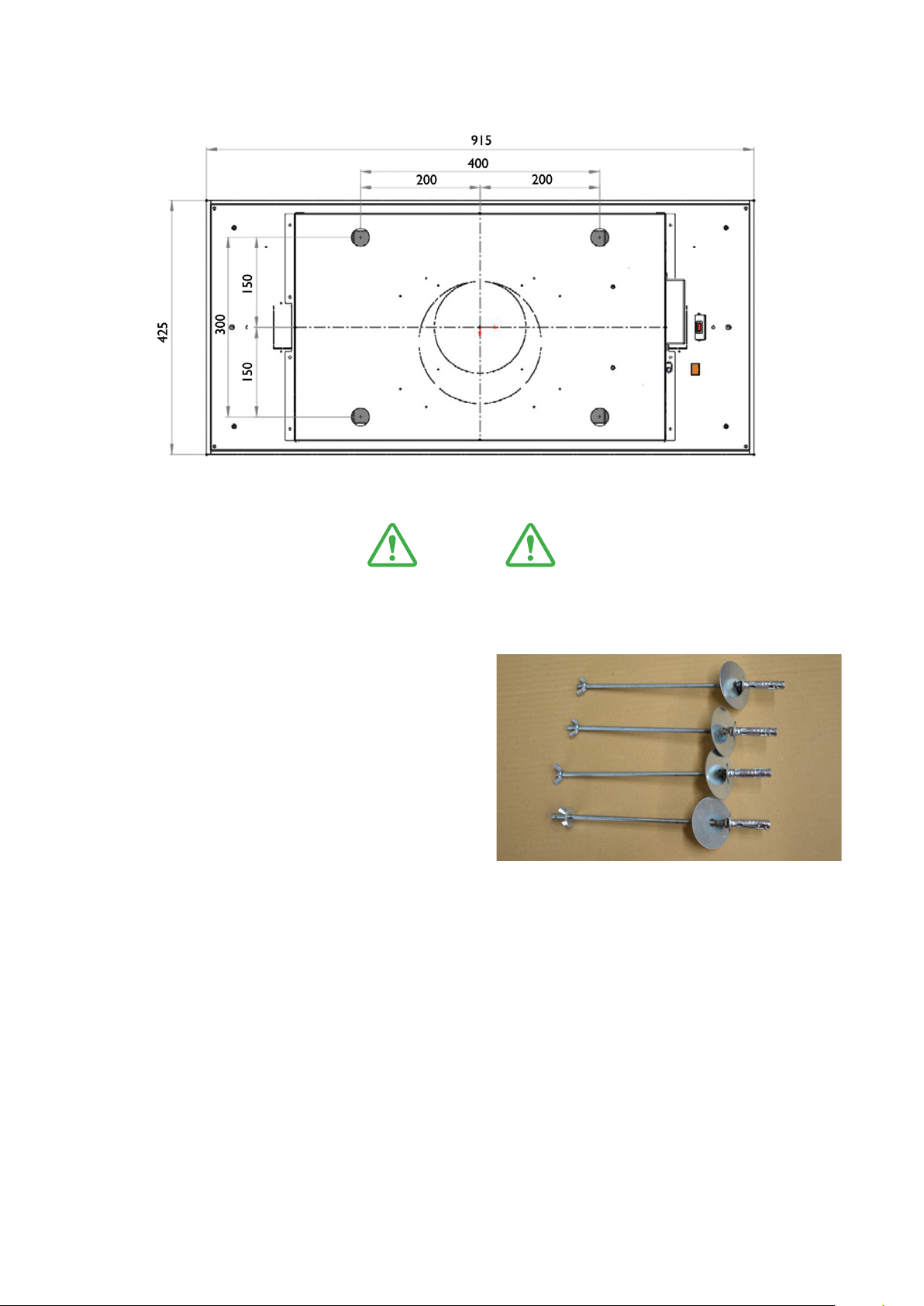

LINE MEASUREMENTS FOR CEILING CUTOUTS AND MOUNTING HOLES
As every installation will differ slightly depending on the ceiling cavity of the dwelling,
this installation shall be used as a guide only.
NOTE
• These cassettes are held in place with the use
of the 4 x 250mm threaded bolts. Using the
measurements in the Fig. 7 line drawings ensure
that there is timber framework (not supplied) inside
the cavity to support the weight on the cassette.
Please refer to each individual measurement for
the exact location of the mounting holes or take
a physical measurement of the location when the
cassette has been unpackaged.
Fig.7

10
Timber support beams (not supplied)
250mm bolts
250mm bolts
Fig. 8

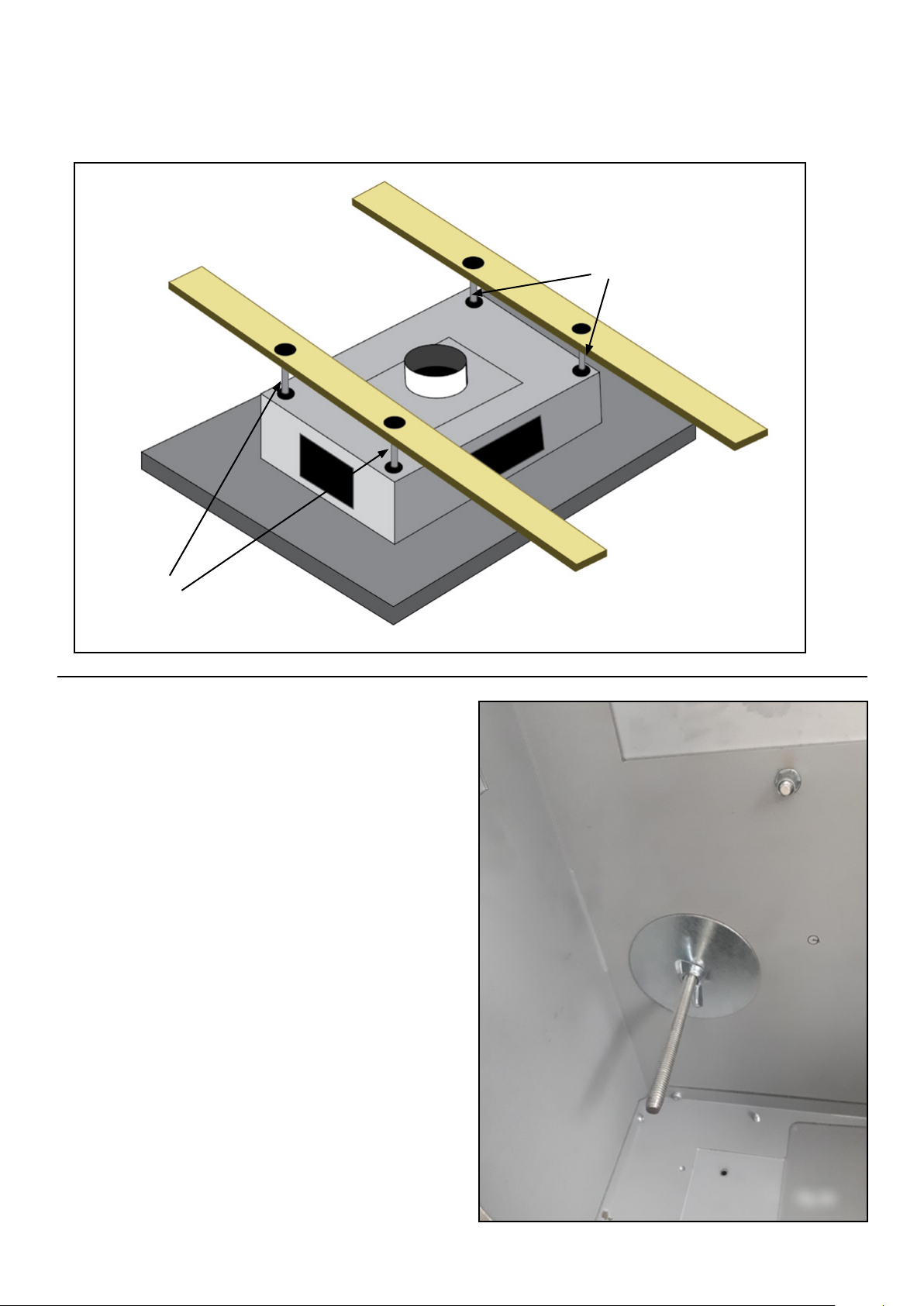

INSTALLING THE TIMBER SUPPORT BEAMS
• After running the timber support beams in the cavity above, pre-drill 4 x 8mm holes through the timber
and pass the 4 x 250mm bolts through them, ensuring that the larger washer is on the INSIDE OF THE
CEILING CASSETTE. (Fig. 8a)
• Lift the cassette into position and ensure that
the 4 x 250mm bolts pass through the mounting
points. Fit the larger diameter washer first and
then wind the wingnut up the thread and tighten
the cassette into position. These will enable you
to flush the unit tight with the ceiling (Fig. 8a).
Fig. 8a

11

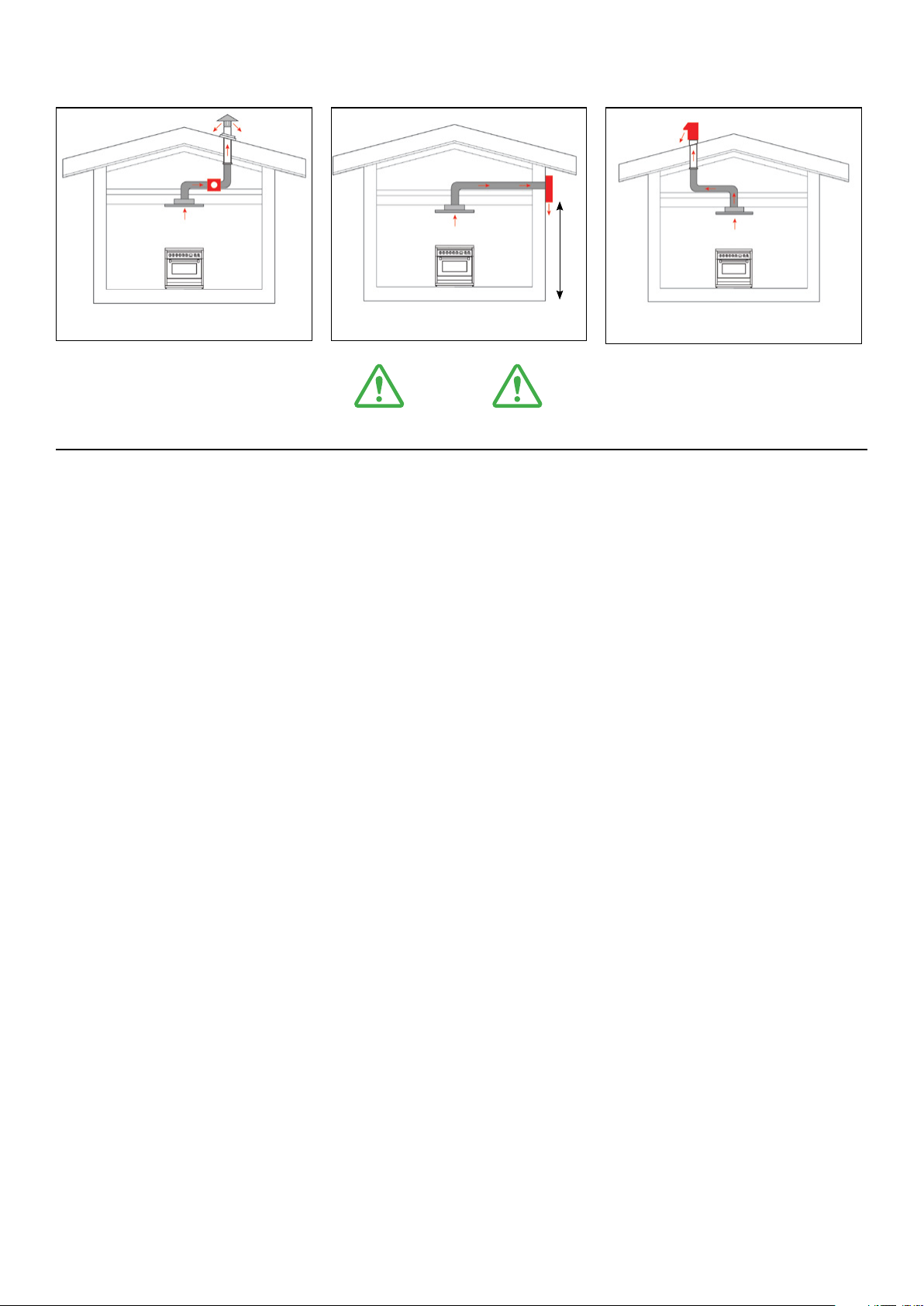

MOTOR AND VENTING OPTIONS:
SLT977EMEL, SLT978EMEL (150mm DUCTING)
Motor MUST be accessible for servicing at all times.
NOTE
Note: Roof vent option shown.
Motor can also be wall or eave vented.
Motor can be a maximum 2 metres from
ground level.
For SEM51 installation, please see manual on
www.siriusbrand.com
SEM11 SEM51 SEM21
2 metres max

12
TOP VENT INSTALLATION
1. Knock out the 150mm plate on the top of the unit and attach the 150mm adaptor plate (Part ‘A’)
1. Use 150mm ducting.
2. The ducting fits directly onto the collar on the top adaptor plate (Part ‘A’).
3. Fix in place using a universal ring clamp (Part ‘D’).
PART ‘D’
PART ‘D’
PART ‘E’
PART ‘A’
PART ‘A’
PART ‘D’
PART ‘D’
PART ‘E’
PART ‘E’
SEM21
OUTSIDE
INSIDE
WALL
INTERNAL MOTOR:
Ducting to SEM11 (150mm)
Please note that the final exit point for SEM11 can be through the roof, wall or eave vent.
EXTERNAL MOTOR:
Ducting to SEM21 (150mm)
EXTERNAL MOTOR: Ducting to SEM51 (150mm)
Download SEM51 user manual from www.siriusbrand.com
URC-25/325
HEIGHT FROM GROUND
500mm (min) - 2mtrs (max)
EXAMPLE ONLY
EXAMPLE ONLY
SEM11
SRPRO 30/150
SRPRO 30/150

13
SIDE VENT INSTALLATION:
150mm DUCTING: SEM11 MOTOR (INTERNAL)
SIDE VENT INSTALLATION:
150mm DUCTING: SEM21 MOTOR (EXTERNAL)
1: Knock out the 150mm plate on the chosen long or short side of the unit & attached the 150mm adaptor
plate (Part ‘A’)
2A: Connect the length of ductwork (Part ‘E’) directly to Part ‘A’, then secure with a universal ring clamp
(Part ‘D’).
3A. Secure to the motor with a universal ring clamp (Part ‘D’).
SEM21 MOTOR
SEM11 MOTOR
MIN 2 METRES /
MAX 7 METRES
MIN 2 METRES / MAX 7 METRES
MAX 5 METRES
LONG SIDE
VENT OPTION
LONG SIDE
VENT OPTION
OUTSIDEINSIDE
SHORT SIDE
VENTING OPTION
EXTERNAL VENT
PART ‘A’
PART ‘D’
PART ‘A’
PART ‘D’
PART ‘E’
PART ‘E’
WALL

14

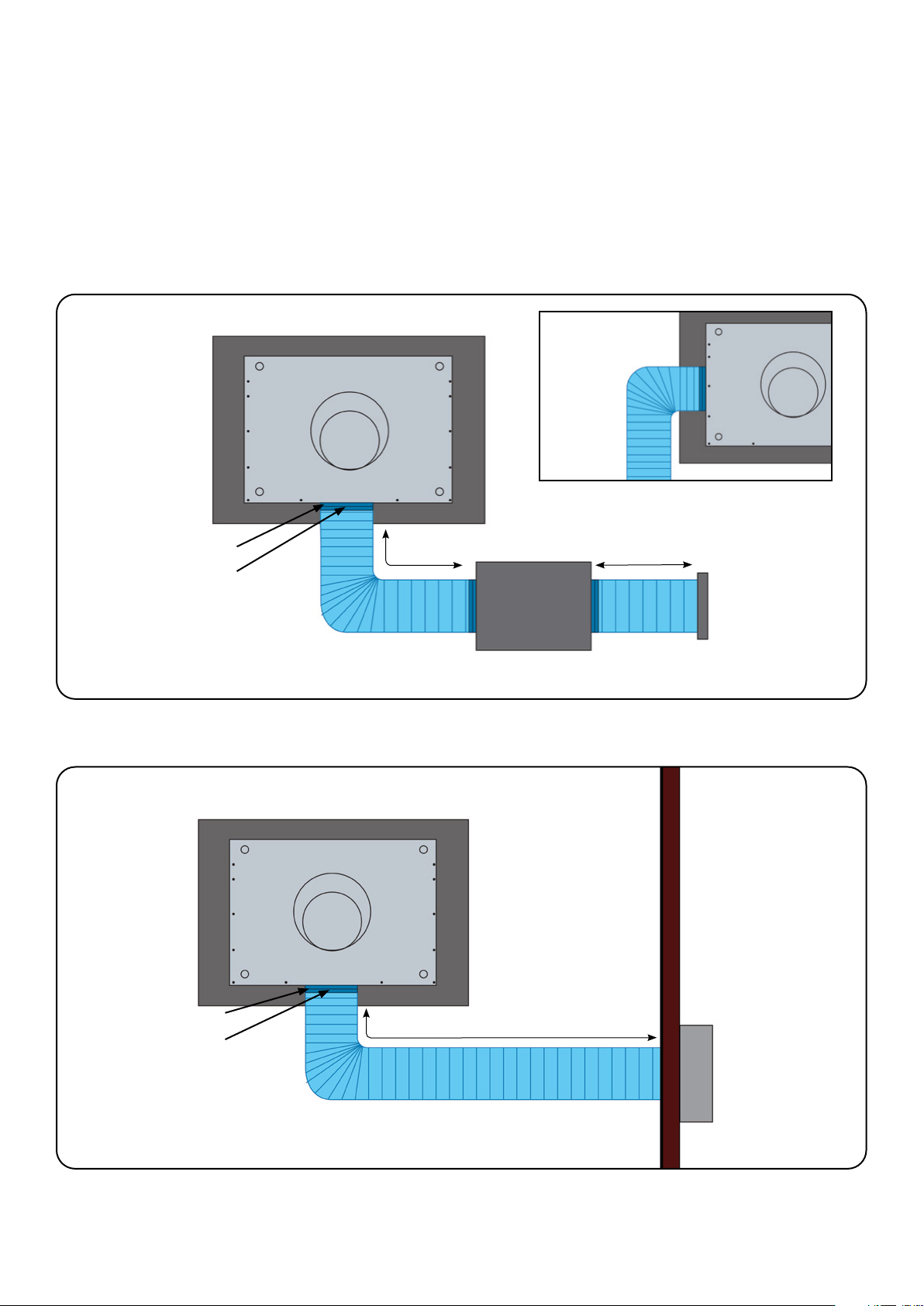

DUCTING FROM MOTOR TO EXIT POINT: (SEM11)
After completing the ducting from the Rangehood to the motor location, either a roof, wall or eave exit point
can be used. To see the range of Easykits available please head to www.siriusbrand.com or contact your
retailer.
The location of the motor is to be no less than
2 metres away from the rangehoood.
Failure to do so may result in additional noise level of the ceiling cassette.
Maximum distance is 7 metres, however 3 - 5 metres is optimum to minimise noise
and maximise performance.
NOTE
Easy Roof Kit Easy Wall KitEasy Eave Kit
DUCTING KITS

15
ELECTRICAL CONNECTION
MOTOR WIRING CONNECTION
CEILING CASSETTE
CABLE FROM MOTOR
10AMP GPO POWER
MOTOR CONNECTION
WIRING BOX
MOTOR
1. Remove the four screws holding the front of the
housing in place to expose the connections.
2. Following the wiring chart on the fron of the
housing, connect each wire to the matching colour,
making sure that this is done correctly before
running power to the unit.
3. Replace the cover and fix the four screws back
into place.

16
Set-up:
6 channel control for rangehood remote.
• When the rangehood is first turned on, hold the
lighting button for 5 seconds.
TECHNICAL DATA
• Alkaline battery powered: 12 V mod. 23 A
• Operating frequency: 433.92 Mhz
• Combinations: 32.768
• Max. consumption: 25 mA
• Operating temperature: -20 ÷ + 55 °C
• Dimensions: 120 x 45 x 15 mm.

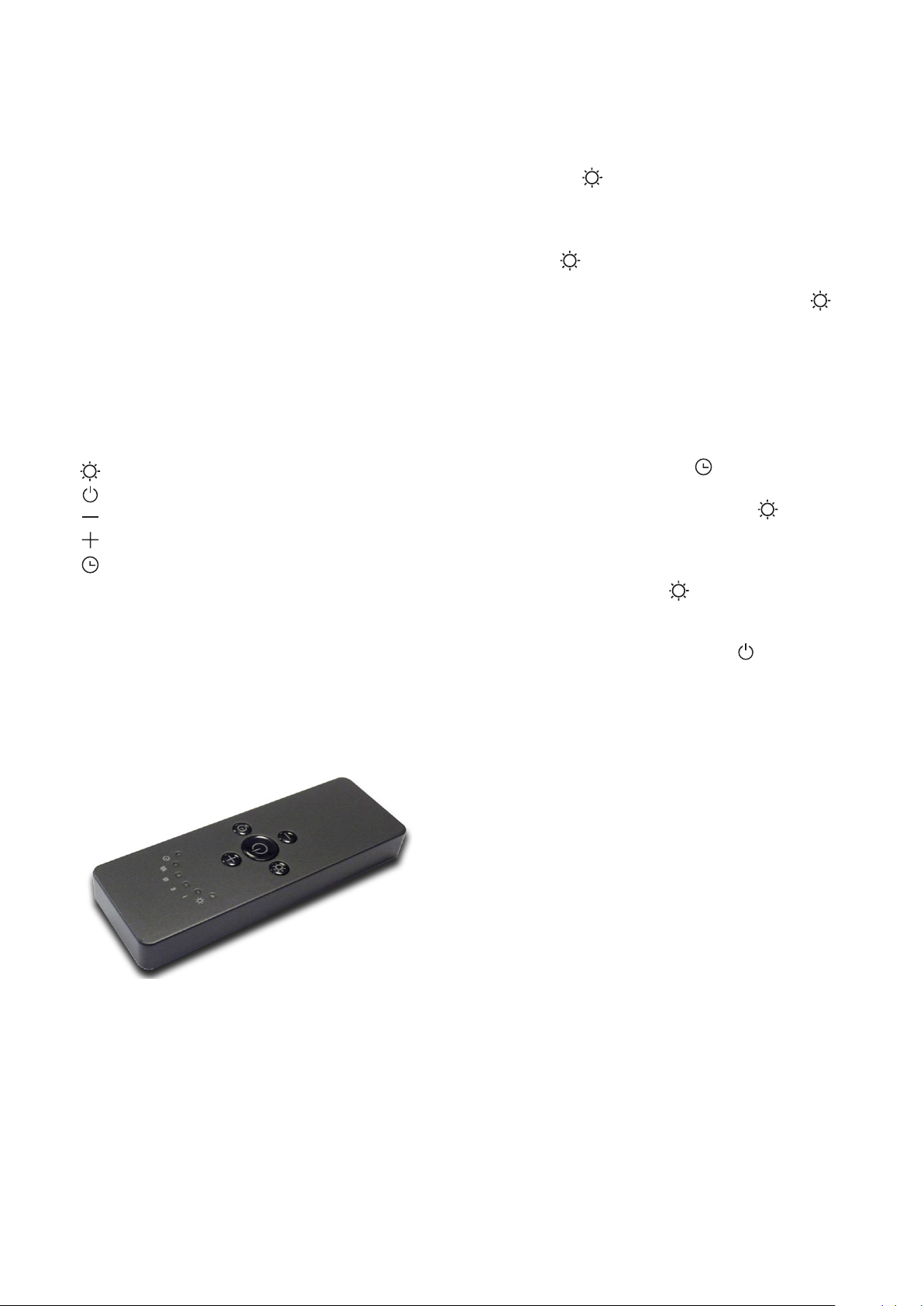

OPERATING DESCRIPTION
The transmitter is equipped with 5 buttons for
rangehood management, as specified below:
: Light ON/OFF command.
: Motor ON (speed level 1) / OFF command.
: Reduce speed.
: Increase speed.
: 10-minute timer.
INITIAL OPERATING CONDITION
The manufacturer supplies the radio control unit
ready to be used with codes preset in the factory.
Dimmable lights function:
SLT977EMEL, SLT978EMEL models only
This function provides for lights dimmability, ranging
from 20% to 100%, by continuously pressing the
Light ON/OFF on the remote control.
Functions are the following:
• Light ON or OFF: shortly press the Light ON/OFF
button:
• Change light brightness: When light is on,
continuously press the Light ON/OFF key to
adjust the brightness. Stop pressing the button to
set the brightness level.
Colour temperature settings:
SLT977EMEL, SLT978EMEL models only
Make sure that the lights and the fan are off.
Holding down the TIMER key will turn on the light
at the previously set colour temperature.
Press and hold the Light ON/OFF key to change
the colour temperature.
As long as the key is kept pressed, the colour
temperature is changed from warm to cold. Release
the Light ON/OFF button to select the desired
colour.
Exit the colour temperature selection function by
pressing the motor ON/OFF button .
REMOTE CONTROL

17
OPERATION MODE
Standard configuration:
Standard configuration requires all rangehood radio
control systems to be provided with the same
transmission code. In the event two rangehoods are
installed in the same room or nearby, each system
may affect the operation of the another. Therefore,
the code of one radio control system must be
changed.
Generating a new transmission code:
The radio control system is provided with preset
codes. Should new codes be required, proceed as
follows: Press simultaneously buttons:
for two seconds. When LEDs are on, press buttons:
(within 5 seconds). The LEDs flashing 3 times
indicate the procedure is completed.
WARNING! This operation deletes permanently
the preset codes.
Learning the new transmission code.
Once the transmission code is changed in the radio
control unit, the electronic central unit of the cooker
hood must be made to set the new code in the
following way:
Press the main power-off button of the hood and
then restore power to the electronic control unit.
Within the next 15 seconds, press the Light Button to
synchronise the central unit with the code.
Reset of the Factory configuration:
To restore the Factory configuration, follow the
procedure described below: press simultaneously
buttons:
for 2 seconds. When LEDs light on, press buttons:
(within 5 seconds). LEDs flashing 6 times in-dicate
the procedure is completed.
WARNING! This operation deletes permanently
the preset codes.
Emergency button:
In the event that the radio control does not work, use
the emergency button to switch the appliance off.
After any necessary repairs have been performed,
reset the emergency button.

18
THE SIRIUS APP
DOWNLOAD SIRIUS APP FOR ANDROID
1. Open the Google Play Store App
2. Search or browse for SIRIUS App.
3. Select it.
4. Tap to Install.
5. Follow the onscreen instructions to complete the
transaction and get the content.
You can change what language is displayed when
you visit Google Play on your computer by changing
your Google Accounts settings.
Note: Apps are designed for use with supported
Android and Chromebook devices and can’t be used
on Windows or Mac computers.
DOWNLOAD SIRIUS APP FOR iOS
Notes:
• After requesting an app, you may be asked to
verify your identity by entering your passcode or by
using Touch ID or Face ID.
• The steps below don’t apply to the iPhone 5c,
iPhone 5, iPhone 4s or the iPhone 4.
1. Open the App Store
• To install apps, you must sign in with your Apple ID
or create one.
2. To browse the App Store, tap Apps (at the bot
tom).
3. Tap Search (at the bottom) then enter SIRIUS App.
4. Tap the app.
5. Tap GET then tap INSTALL.
• If you have a compatible iPhone with Face ID
enabled, double-tap the Side button then look at the
screen to authenticate.
6. If prompted, sign in to the iTunes Store to
complete the install

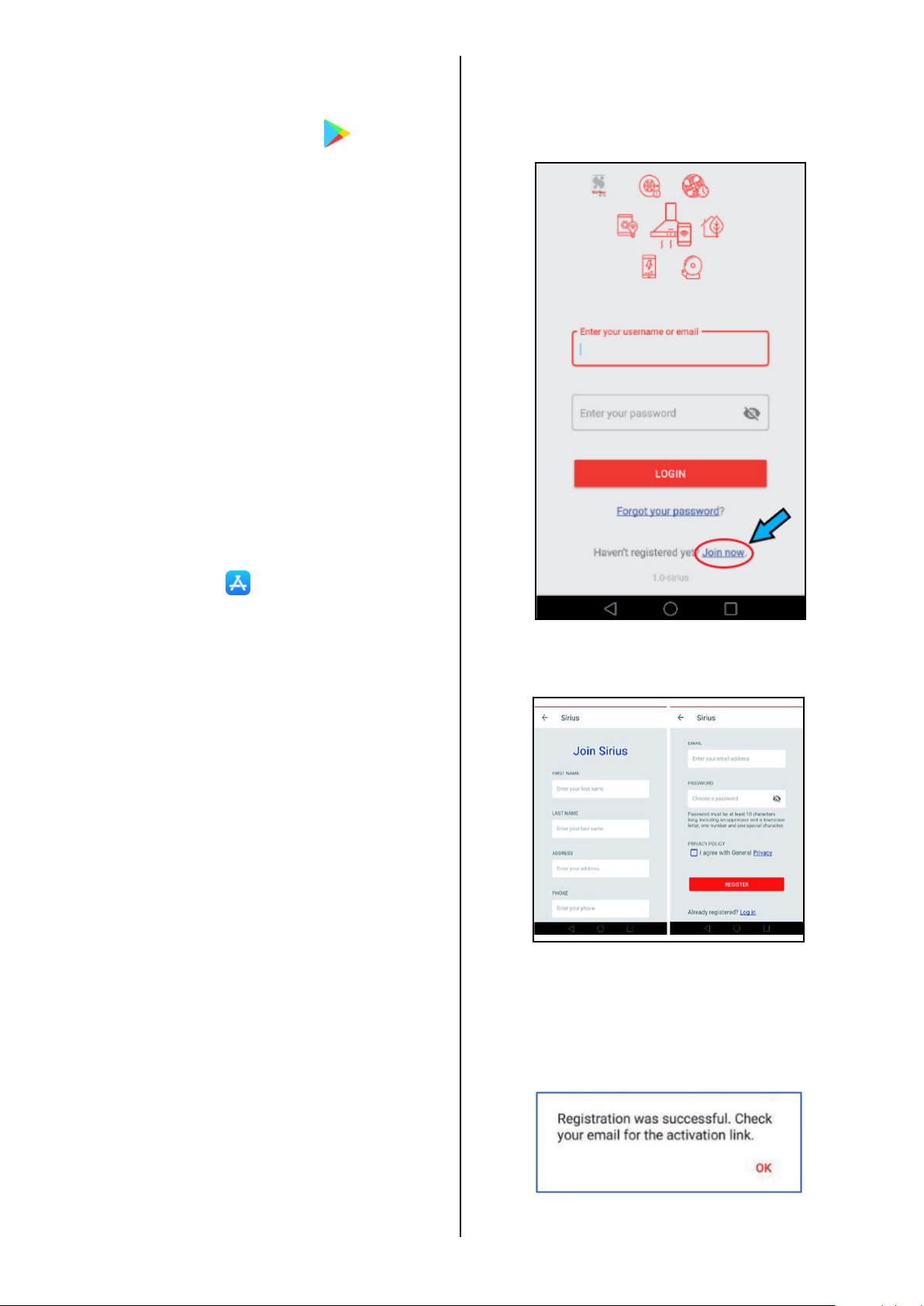

CREATE YOUR ACCOUNT ON SIRIUS APP.
1. From Home App, Tap on Join now.
2. Insert your account data
Tap Agree with General Privacy and tap on Register.
3. If all instructions are done correctly a Popup
message “Registration was successful. Check
your email for the activation link” appears.

19
4. Go to your e-mail address and Confirm your
account.
Note: We’ll send the email from
[email protected], so you can quickly
search for it. If it isn’t in your inbox, check your
folders. If a spam filter or email rule moved the email,
it might be in the Spam, Junk, Trash, Deleted Items,
or Archive folder. If you didn’t find yet please create
another account.

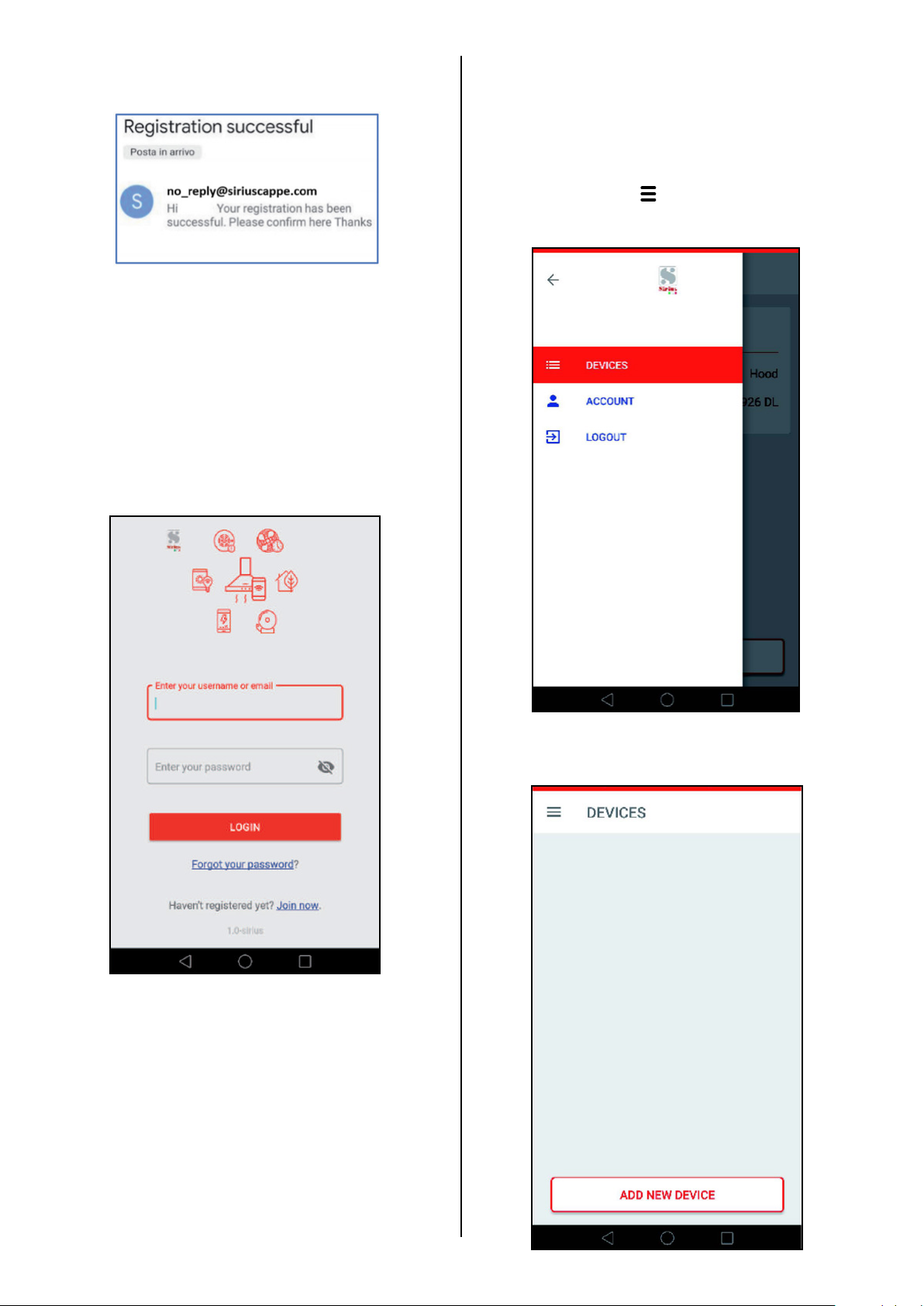

5. From Login page Insert the e-mail and password
of your account and tap LOGIN.
Fast way using the WPS procedure, if your router has
no WPS button, please follow the next instructions.
PAIRING WPS MODE
1. After Login Tap the App Menu (top left) and
select DEVICES.
PAIRING YOUR PRODUCT
Note: If you forgot your password, tap on Forgot
your password? insert your e-mail address and tap
Send me a Link.
2. Tap ADD NEW DEVICE.

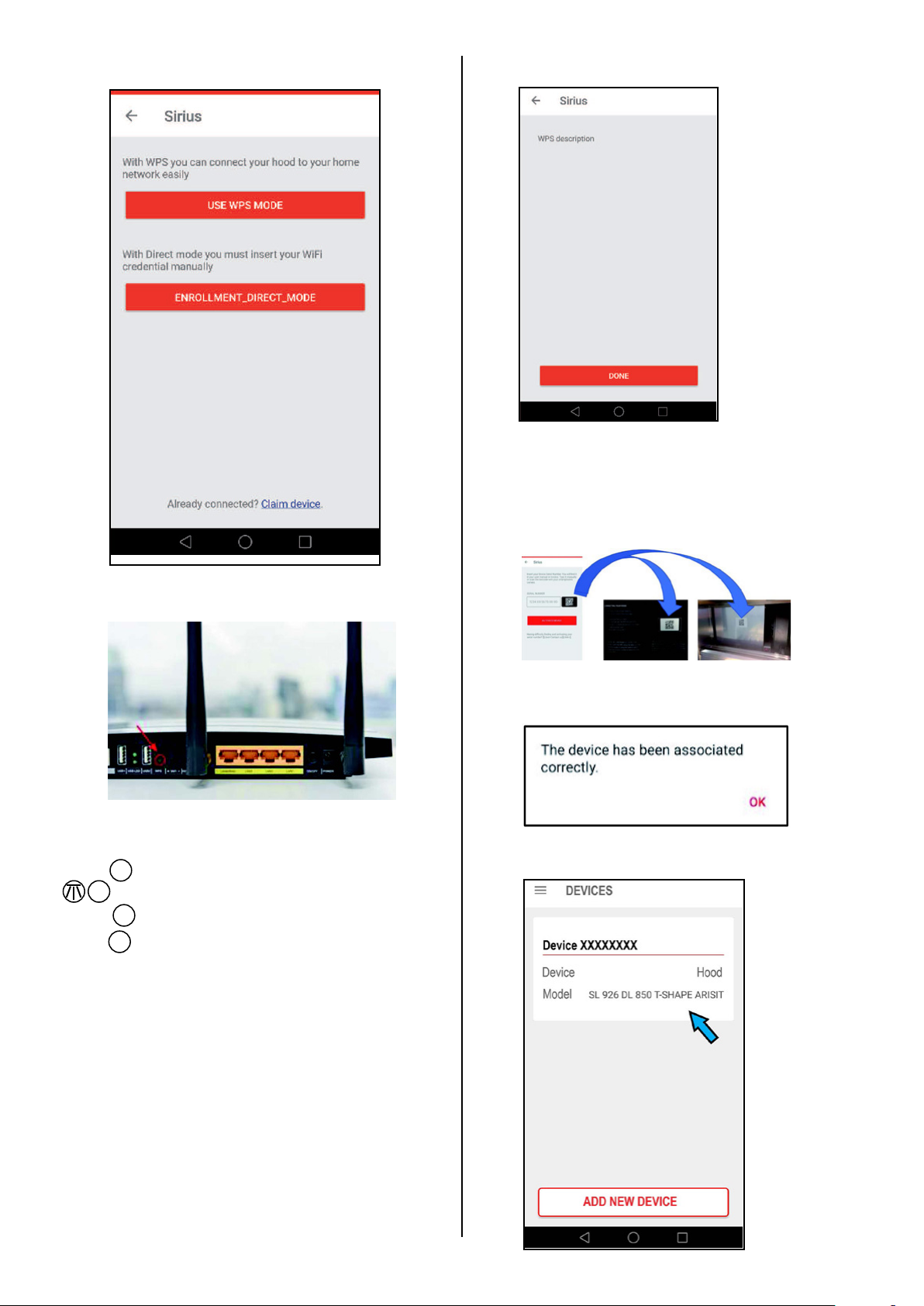

20
3. Tap USE WPS MODE.
4. On your Router WI-FI press WPS button.
6. Press DONE on WPS description.
7. Use the QR code reader to connect the product
with the App, using the label on the brochure or using
the label located inside the product, found on the
motor when you remove the grease filters.
8. Press ACTIVATE DEVICE and you have a pop-up
message.
8. Tap the device icon. Enjoy your device.
5. On your range hood:
• Switch off completely (light and motor)
• Hold button for 3 sec for settings menu
( LEDs will flash)
• Press button to enable WPS pairing.
• Hold button for 3 sec to save.
Note:
If buttons are not pressed within 10 secs the system
automatically exits from settings menu and all
unsaved operations will be discarded.
01
01
2
01
