S-DD2-L EMIC
INTEGRATED DOWNDRAFT INSTALLATION
INSTRUCTIONS FOR
SEM 7 & SEM 8 motors
Congratulations on your purchase!
Thank you for choosing a Sirius product.
SDD2 L EMIC 880 EAN #9351116002749
SDD2 L EMIC 1180 EAN #9351116004712

2
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE

3
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
3
The symbol on the product or on its packaging indicates that this product
may not be treated as house-hold waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
BEFORE YOU INSTALL - DUCTING INFORMATION 4
TO THE ATTENTION OF THE USER 5
INSTALLATION GUIDELINES 5
APPLIANCE DIAGRAMS 6
PRE-INSTALLATION CHECKS 7
INSTALLING THE RANGEHOOD 8
FOR SEM 7 AND SEM 8
200MM SIDE OR BOTTOM VENTING 16
FOR SEM 7, AND SEM 8
200MM FRONT OR REAR VENTING 18
DUCTING FROM MOTOR TO VENT SEM 8 ONLY) 20
ELECTRICAL CONNECTION 20
HOW THE RANGEHOOD WORKS 22
CLEANING THE RANGEHOOD 23
TROUBLESHOOTING 24
REPLACING THE LIGHT 25
PARTS LIST 28
WIRING DIAGRAM 30
WARRANTY INFORMATION 31
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE

4
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
The symbol on the product or on its packaging indicates that this product
may not be treated as house-hold waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory
such as flexible ducting, Sirius will only warrant the rangehood and motor. If installation is found to be
the cause of failure or issue then charges will apply for service and parts.
Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to
increase noise levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be
used in lieu. There is a range available to suit any application.
Ducting available at www.siriusbrand.com
6 Year Warranty when Sirius Ducting is used. Full replacement warranty on parts and labour.
See website for terms & conditions.
A reduction in the duct diameter from stated ducting size will void warranty.
If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to installation
WARNING
The appliance must be installed and
connected to the power supply only by a
qualified technician.
• There should be adequate ventilation of the room when the rangehood is used at the same time as
appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the
room)
• The details concerning the method and frequency of cleaning
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flambé under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.
BEFORE YOU INSTALL - DUCTING INFORMATION

5
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
TO THE ATTENTION OF THE USER
This rangehood is designed to be ducted to outside
the house.
Keep these instructions for use with the appliance. If
the appliance should be sold or passed on to others,
make sure that the instructions are passed on with
it. We thank you for taking note of these suggestions
before installing and using the appliance. They have
been written for your personal safety and the safety
of others.
SAFETY INSTRUCTIONS
These hoods have been designed for personal
use in the home. The appliance must be used by
adults. Make sure that the appliance is out of reach
of children and that they do not use it to play with.
Make sure that children do not operate the controls.
INSTALLATION GUIDELINES FOR
ELECTRIC HOB
Minimum 20mm to 60mm maximum distance
between liner of downdraft and edge of hob.
• When the appliance is delivered, check the overall
appearance of the packaging. Check PARTS
LIST on page 27-28 for all included parts
prior to discarding packaging.
Any remarks should be written on the delivery
coupon, of which you keep a copy.
Your appliance is designed for normal domestic
use. It is not designed for commercial or industrial
use, or for purposes other than those for which it
was designed.
• Any consequences of or damage from incorrect
installation or incorrect use of the appliance will
not be covered by the manufacturer’s guarantee.
• Do not ever change or try to change the
characteristics of this appliance. This would be
a danger. Repairs must be performed only by an
authorised technician.
• Always disconnect the hood before carrying out
cleaning or maintenance operations.
• Adequately ventilate the room when a rangehood
and other appliances, powered by energy other
than electricity, are used simultaneously, so that
the hood does not suck any combustion fumes.
• It is not allowed to cook food over open flames
(flambé) or operate gas hobs without pots
or pans on them under the hood itself (the
flames sucked into the hood might damage the
appliance).
• Frying under the appliance must be done under
constant supervision as hot oils and fats may
ignite.
• Respect the guidelines for cleaning and
replacement of grease filters. Accumulated
deposits of grease are a fire hazard.
WARNING INSTALLATION GUIDELINES FOR GAS
COOKTOP APPLICATIONS
• A minimum 150mm space between liner of
downdraft, and edge of hob burner
• For the downdraft to operate at a premium, the
distance between the downdraft opening and the
furthest burner shall not exceed 650mm.
• Distance between the burners on the side closest
to the downdraft shall not be closer than 165mm.
• This appliance must not be used over cooktops
powered by wood or coal or in any case, over
cook tops with power levels that could damage
the appliance.
• Never use steam or high-pressure devices
for cleaning your hood (regulations regarding
electrical safety).
• Never use the rangehood without the grease
filters.
• The minimum distance between the Downdraft
(closed) and the surface above it must be at
least 800 mm. Cabinetry lower than 800mm will
prevent the removal of the downdraft should
servicing be required.
• When handling the downdraft, never put your
hands in the field of action of the extractable unit.
• Downdraft must be removable for serviceability.
At Sirius, we are constantly seeking to improve
our products. We reserve the right to modify their
technical, functional, or aesthetic characteristics
deriving from their upgrading.
Motors manufactured and approved by Sirius only
are to be used at all times. Failure to comply with this
will result in the forfeit of the manufacturer warranty.
The air collected must not be conveyed into a flue
used for smoke or fumes from appliances powered
by anything other than electricity (central heating
systems, bathroom and toilet exhausts, etc.). As
far as discharging exhaust air is concerned, please
follow the guidelines given by competent authorities.
165mm
• Max mj3/H rating total for gas cooktop is 58.32 mj3/H
150mm
Max 18 mj3/h
Max 18 mj3/h

6
APPLIANCE DIAGRAMS
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE

7
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
7
PRE-INSTALLATION CHECKS
Connect all of the electrical components to the unit and motor to make sure both the unit and the motor are
functioning properly.
(NOTE: The motor plug is fitted with a dummy plug to protect the connection from dust. Ensure the
red dummy plug is removed and replaced with the two pin motor plug from the power transformer
box. Failure to do so will result in only two speeds operating).
Remove all plugs and proceed with installation if both unit and motor are fully operational.
BEFORE YOU INSTALL
Red dummy plug Two pin motor plug
Installation must comply with the regulations in force regarding the ventilation of enclosed environments.
In particular, discharged air must not be conveyed into a duct used for fumes discharge or discharge from
appliances using gas or other combustible materials. Air cannot be ducted into roof space.
The use of discontinued ducts is not allowed without the approval of a qualified technician.
Check PARTS LIST on page 25 for all included
parts prior to discarding packaging.
Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as
flexible ducting, Sirius will only warrant the hood and motor. If installation is found to be the cause of failure or
issue then charges will apply for service and parts.
Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to increase noise
levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be used in lieu. There is a
range available to suit any application.
Using Sirius ducting gives you an additional 3 years warranty making a total of 6 years.
SEM offboard motors have a 10 year warranty.
Available at www.siriusbrand.com
A reduction in the duct diameter from stated ducting size will void warranty.
If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to
installation.
CAUTION
NOTE

8
Technical specifications and product sizes
can be varied by the manufacturer without
notice. Cut out dimensions are indicitive only
and physical measurement should be taken as
a precautionary measure to ensure no issues
arise with fitment.
Front 200mm duct adapter will need to be
removed to allow the unit to clear
Certain installations will require ducting
provisions to be completed prior to this stage.
See Pages 16-19 for applicable motor
installations

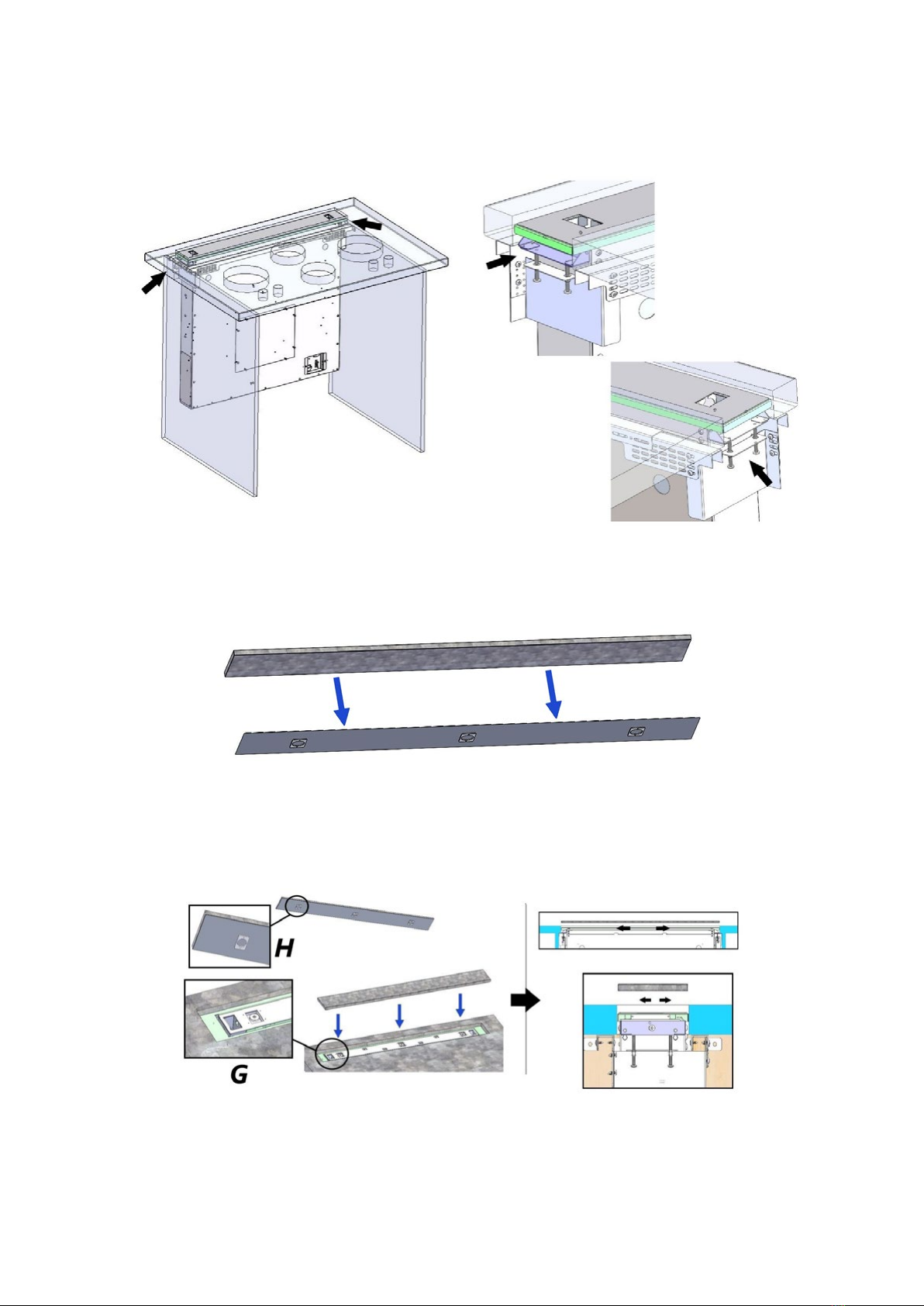

STEP 1:
Refer to cutout dimensions required per unit as they
vary for each unit.
WARNING
NOTE
NOTE
INSTALLING THE RANGEHOOD
• Before carrying out the appliance installation,
please check that all components are not
damaged, in such a case contact your retailer
and do not carry out any installation operation.

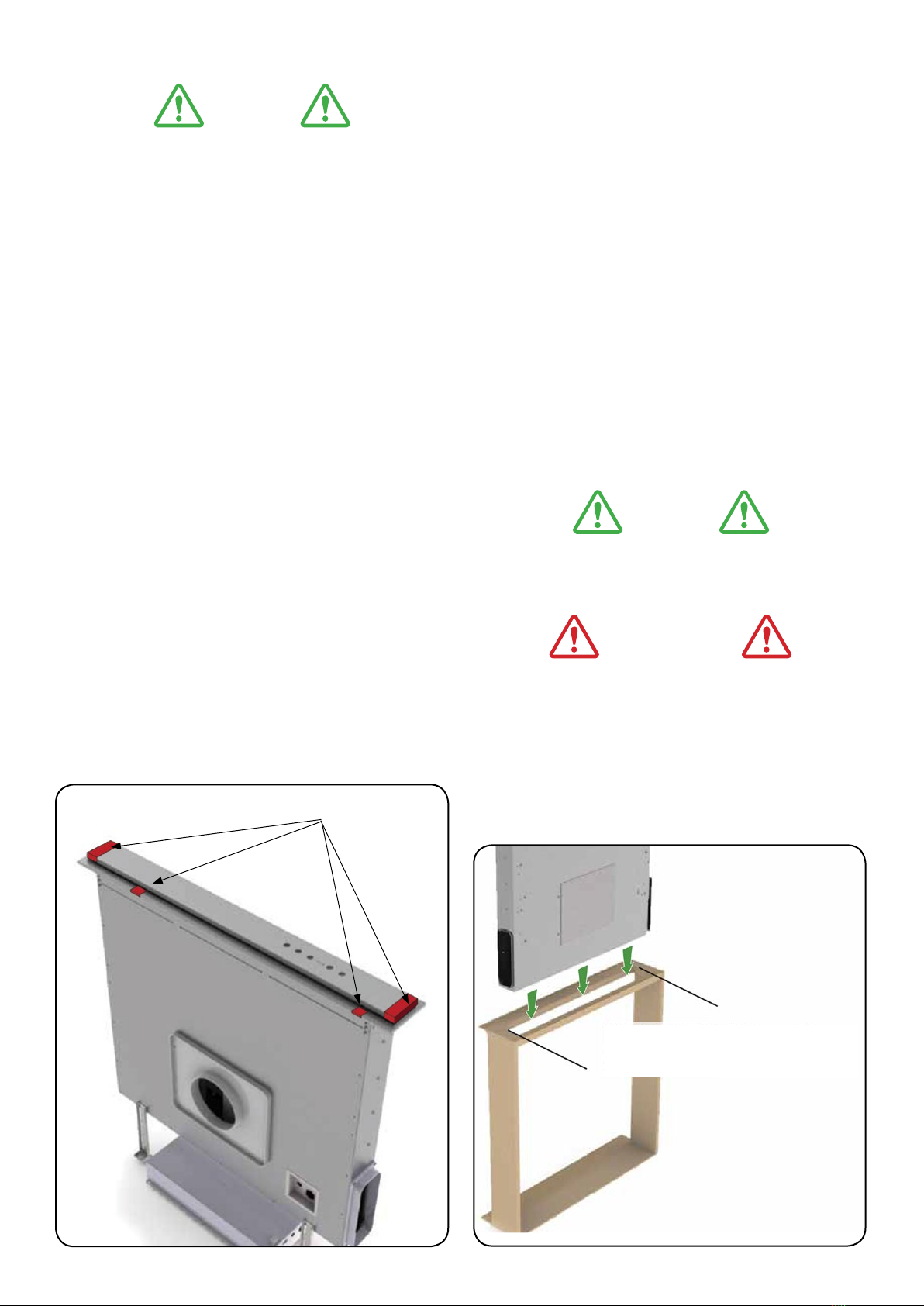

Before the installation of the downdraft, please
remove the safety piece you can see in the
picture (Fig. 1a). Leave all other protective
tape in place at this point. Furthermore, please
read carefully all of the following installation
instructions.

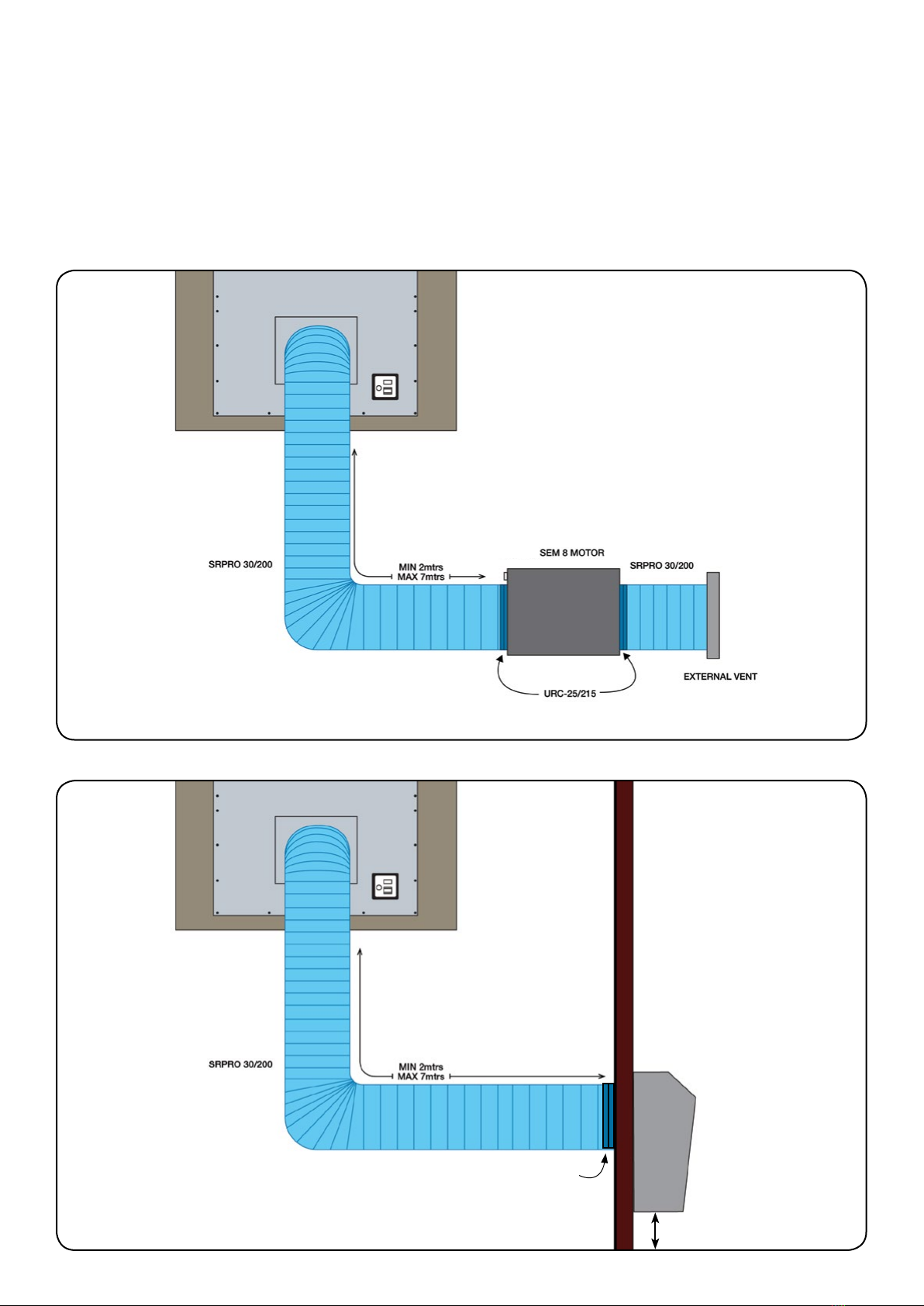

• Use Sirius ducting with a maximum length of 7
metres to the motor.
• Limit the number of elbows in the ducting, since
each elbow reduces the air capacity of 1 linear
meter. (Ex: if you use no. 2 x 90° elbows, the
length of piping should not exceed 5 meters).
• Avoid abrupt direction changes. (Optimum angle
45°when required)
• Use a 200mm ducting - constant diameter pipe
for the whole length.
Use ducting approved by standards enforced - see
www.siriusbrand.com.au for approved ducting
The manufacturer shall not be deemed responsible
for air capacity or noise problems caused by failure to
comply with the above instructions and no warranty
on the product shall be provided.
1. Before making the cutout, check that there are no
structural or other parts inside the cabinet where
the appliance is to be placed which could hinder
a proper installation. Check that the dimensions
of the downdraft and the cooktop are compatible
with the cabinet so that the installation can be
carried out properly.
2. Make a rectangular cutout at the rear of the
cooktop location:
• 837mm x 100mm for the 880mm model
• 1137mm x 100mm for the 1180mm model.
3. Lower the downdraft section into the cut out to
ensure clearance is sufficient for installation.
(Fig. 1b)
(Fig. 1a)
(Fig. 1b)
NB: Remove only red parts
880mm downdraft - 837mm x 100mm
1180mm downdraft - 1137mm x 100mm
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE

9
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
9
Internal Support Frame Assembly
4. Take the accessories supplied in the package (A-B-C-D see Fig 5)
NOTE
The cutout MUST be done by a professional. It is vital that the cutout is perfectly made so
as not to have fitment issues with the product. The cutout section can be used (thickness
dependent, Min. 10mm - 32mm Max.) as the top of the downdraft so it matches the
benchtop perfectly.
Should these instructions be ignored, the manufacturer or agent will not be held
responsible for any damage caused to either downdraft, benchtops or cabinetry.
(Fig. 5)

10
Slot the two corresponding part A with B and C with D together (fig 4).
5. Measure the desired length these two sections need to be in correspondence with the internal cabinetry
(Fig. 5). Note: Min 860mm – Max 1000mm for 880 units and Min 1160mm – Max 1300mm for 1180 units.
Secure the two sections A and B + C and D together using 4 x 10mm supplied screws (Fig. 6)
(Fig. 4)
(Fig. 5)
(Fig. 6)
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE

11
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
Line up the edges of the of the two sections of frame with the benchtop cutout and secure in place as per
(Fig. 7), (Fig. 8) & (Fig. 9). Note: The screws put in place in (Fig. 6) cannot sit inside the width of the benchtop
cutout as they will obstruct the downdraft body when lowered into place.
Warning: the accessories must be fixed in correspondence with the rectangular hole (each pair on
each long side) at a maximum distance of 107mm (Fig. 7).
(Fig. 7)
(Fig. 8)
(Fig. 9)

12
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE

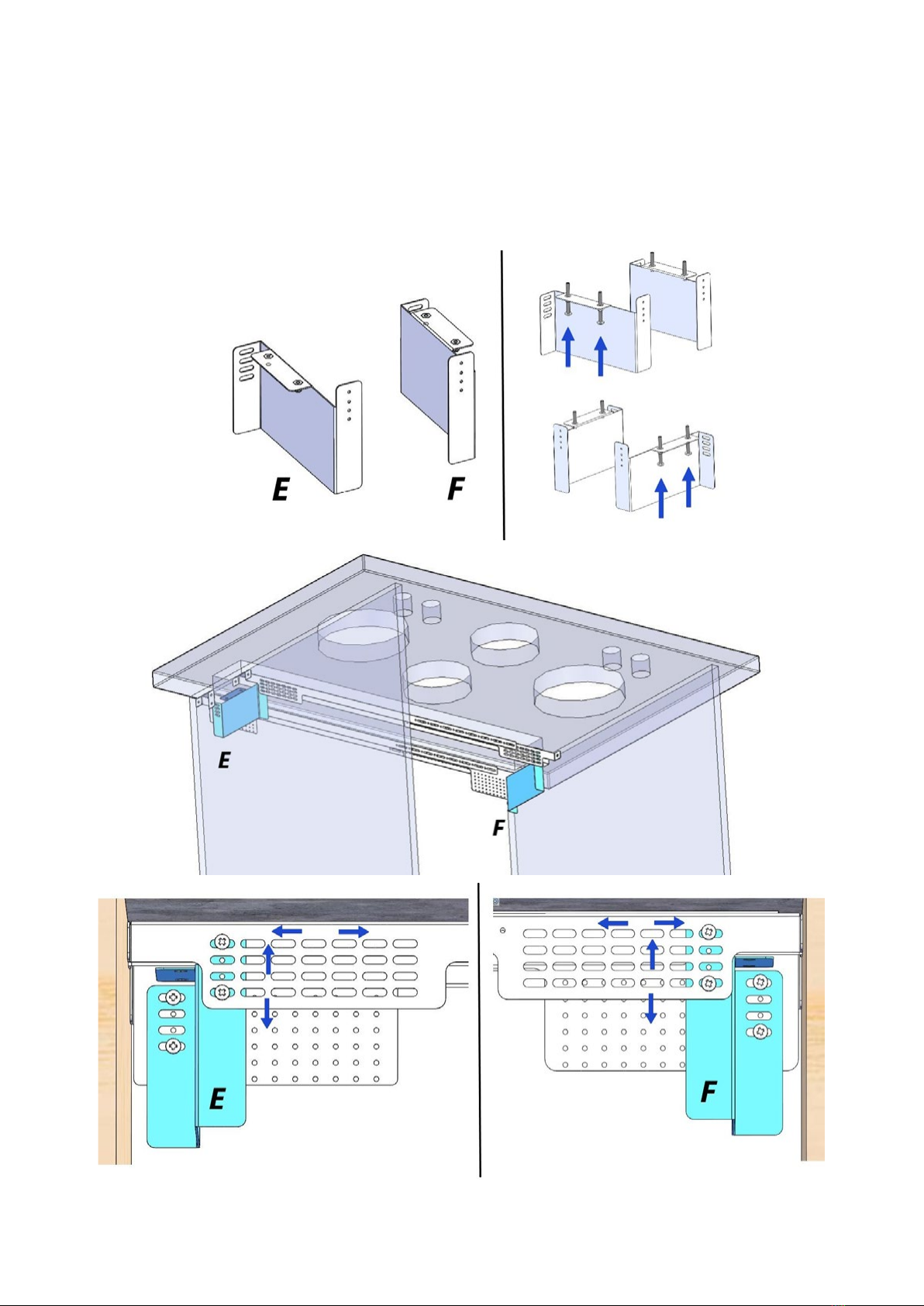

Note: The bracketing system has several slots to allow adjustments of the downdraft both on the basis of its
width (left - right) and on the thickness of the top to be glued on the downdraft (top - bottom) Fig. 12
Support and Height Adjustable Brackets (Fig. 10)
These brackets are fixed in between the horizontal length brackets and are put into position as per (Fig.11)
Insert one at either end ensuring that the slotted holes and the round holes correspond with the horizontal
bracket allowances. Slotted holes of parts E & F will be at the rear side (furthest from cooktop) and the round
holes to the front side (nearest to cooktop). (Fig 11)
Fasten in place with two x 10mm Screws on either side of ‘E&F’ as per (Fig.12)
(Fig. 10)
(Fig. 11)
(Fig. 12)

13
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
13
Support and Height Adjustable Brackets (Fig. 10)
Remove the 200mm Diameter Front Section by removing the screws securing it in place. If not using this outlet
for ducting, replace with the solid flat cover plate (SPS-75059000082) and fix back in place. If ducting from
this outlet, the connection can be put back on once the downdraft is in its set position. (Fig. 14a). If using the
bottom outlet to vent the range hood out it is advised to fit Part ‘B’ (SPS-51070102735) to the unit at this
stage as fitting it after the unit is lowered may be difficult.
7. Install the downdraft in the hole made, inserting it from above (Fig. 14b), (note, two people will be required
for this step as it is quite heavy.
The downdraft will sit onto the height adjustable brackets ‘E & F’ at either end of the cutout.
Remove & replace
with Part ‘E’
(Fig. 14a)
(Fig. 14b)

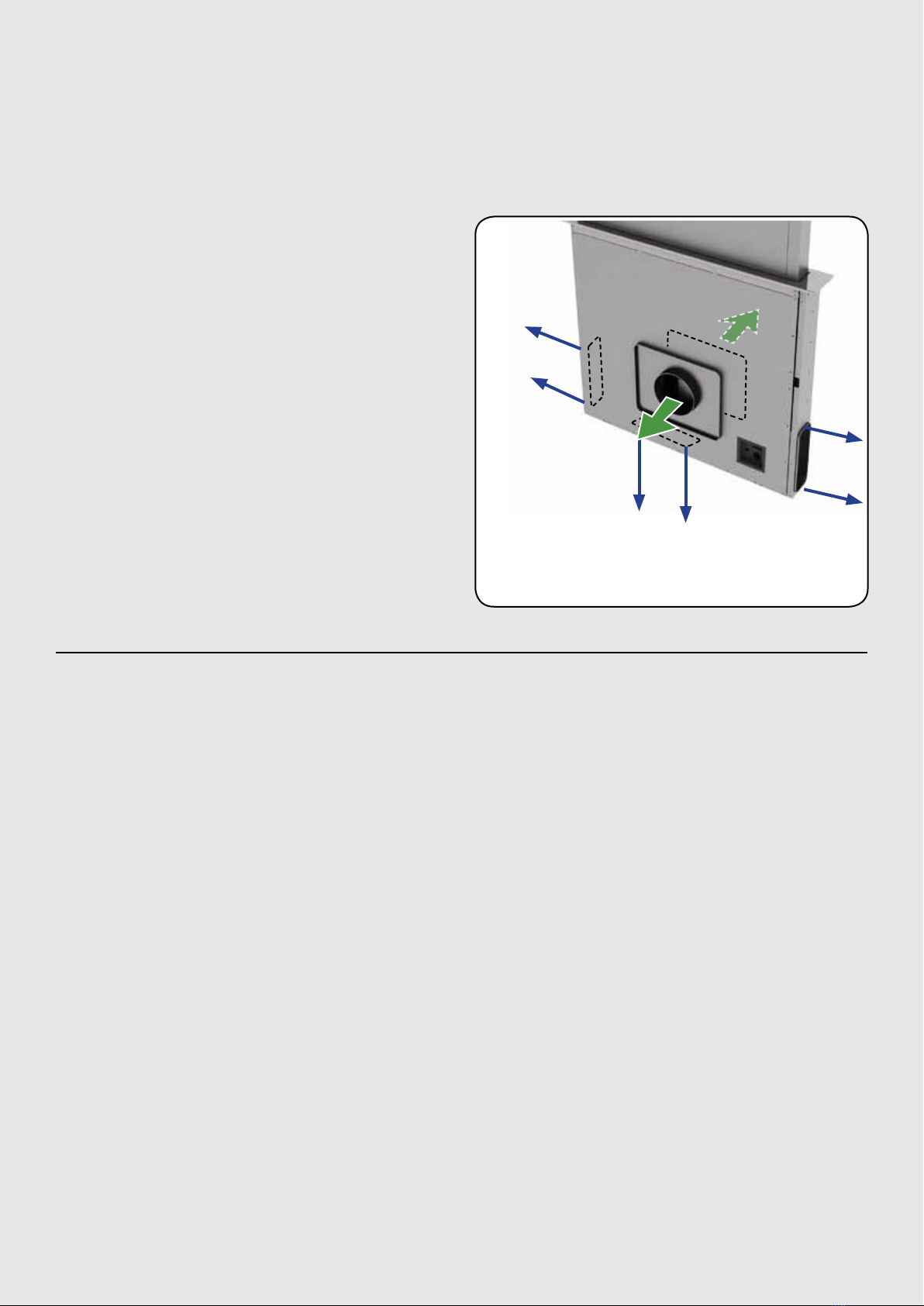

Make sure the unit is around the
correct way. Electrical connections
will be located as per diagram.
NOTE

14
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
Adjusting the height of the benchtop insert section
The height of the downdraft insert can be adjusted up and down to ensure a seamless flush finish with the
benchtop. Using a Phillips head screwdriver, adjust the threaded screws up or down to according to the
desired thickness of the insert. (Fig.15)
To determine the correct line-up of the downdraft, place the part (glued in the previous step) inside the
rectangular niche, making the magnets (G) coincide with the seat (H) and check that the two surfaces are
perfectly at the same level (fig. 16.2)
(Fig. 15)
(Fig. 16.1)
(Fig. 16.2)

15
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
15
Having verified the correct position and stability of the product, proceed to glue the additional surface on the
top of the downdraft.
8. After completion of the downdraft installation, the push button control buttons need to be fitted. These
can be positioned below the overhang of the bench top or recessed into the cabinetry (see fig.18A for central
installation, fig.18B for lateral installation). Before fixing the push-button panel, ensure that the controls do not
prevent any doors from closing.
Once the unit is fixed in position and the control buttons are fixed in place. Press the up and down arrows on
the controls to raise the downdraft up from the bench. Pop the front panel forward and insert the metal grease
filters. To close, push the panel forward until the magnets engage tightly.
Note: Any of the screws on the body of the downdraft can be used to secure these brackets in place.
(Fig. 17)
(Fig. 18)
(Fig. 19a) (Fig. 19b)

16
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
(Fig. 20)
Remove & replace
with Part ‘E’
STEP 2A:
STEP 3A:
1. Remove side or bottom cover plate (Part C).
(Fig. 4)
2. Connect air outlet collar (Part ‘B’) to the same
fixing points as removed from side or bottom
cover plate (Part ‘C’) and tighten.
1. Remove front adapter plate (Part D). (Fig. 4)
2. Connect air outlet collar (Part ‘B’) to the same
fixing points as removed from side or bottom
cover plate (Part ‘C’) and tighten. Depending on
sub floor clearances this step may be required
prior to fixing the downdraft into place.
Remove & replace
with Part ‘B’
Remove & replace
with Part ‘B’
(Fig. 3)
(Fig. 4)
STEP 1A:
INSTALLATION INSTRUCTIONS
SIDE OR BOTTOM VENTING
Components list at rear of Installation Guide
• Connect rectangular to round adaptor (Part ‘A’) to
air outlet (Part ‘B’), (Fig. 6).
• Secure both ends with duct tape

17
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
This step covers ducting for SDD2 L EMIC 880 and 1180 models.
17
For SEM 8 motor with SDD2 L EMIC 880/1180 - 200mm option only.
1B: Connect a duct expander (Part ‘H’) to rectangular to round adapter (Part ‘A’), then connect
length of ducting (Part ‘K.2’) to the 200mm outlet.
2B: Secure to the motor with a universal ring clamp (Part ‘G’).
• See page 12 for ducting to vent (N/A for SEM 7 motor)
STEP 4A: Ducting to SEM 7 motor (200mm ducting)
STEP 4B: Ducting to SEM 8 motor (200mm ducting)
PART ‘B’
PART ‘B’
PART ‘A’
PART ‘A’
PART ‘H’
PART ‘H’
SIDE VENT
OPTION
PART ‘G ’
PART ‘K.2’
PART ‘K.2’
OUTSIDEINSIDE
BOTTOM VENT
OPTION
WALL
MIN HEIGHT FROM GROUND
500mm - 2mtrs

18
INSTALLATION INSTRUCTIONS
FOR SEM 7, SEM 8
FRONT OR REAR VENTING
• If venting from the rear, remove 200mm adaptor
plate (Part ‘D’) and replace with front cover plate
(Part ‘E’).
If venting from front, check to see if front adaptor
plate (Part ‘D’) is attached.
STEP 1B:
Remove & replace with
cover plate (Part ‘C’)
Remove & replace with
cover plate (Part ‘C’)
Remove &
replace with
cover plate
(Part ‘C’)
(Fig. 7)
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE

19
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE
19
STEP 2B:
1. Use 200mm ducting (Part ‘K.2’) for S-DD2-L-EMIC 880 and 1180 versions.
2. The ducting fits directly onto the collar on the front adaptor plate (Part ‘D’).
3. Fix in place using a universal ring clamp (Part ‘G’).
PART ‘G’
PART ‘G’
PART ‘K.2’
PART ‘K.2’
PART ‘K.2’
SEM 7
OUTSIDEINSIDE
WALL
Ducting to SEM 8 motor (internal motor)
Ducting to SEM 7 motor (external motor)
URC-25/325
MIN HEIGHT FROM GROUND
500mm - 2mtrs
S-DD2-L EMIC INTEGRATED
DOWNDRAFT RANGEHOOD
INSTALLATION GUIDE

20
7 METRE POWER CORD
Power transformer can be located anywhere beneath
the bench. It must be accessible for servicing.
ELECTRICAL CONNECTION
DUCTING FROM MOTOR TO WALL VENT: (SEM 8)
1. Run the length of ducting to the motor. (Additional lengths of ducting can be attached using an
additional internal connector pieces.)
NOTE: No connector required as it connects directly to the collar of the motor.
2. Secure with another universal ring clamp (Part ‘G’).
NOTE: The location of the motor is to be no less than 2 metres away from the downdraft. Failure to
do so may result in additional noise level of the downdraft. Maximum distance is 7 metres, however
3 - 5 metres is optimum to minimise noise and maximise performance.
3. Using another length of semi-rigid duct run from the exit collar on the SEM 8 to a predetermined exit point
and connect to weatherproof vent with a clamp.
See www.siriusbrand.com for multiple vent options or see our nearest retail partner.
WARNING
Place the power transformer at a distance of no
less than 65 cm from gas cooktops.
NOTE
We recommend installing the power transformer
at least 10 cm above floor level and at a suitable
distance from all heat sources (e.g. oven sides or
cook top).
