SKYDANCE KV User manual

KC
RoHS
LED OUTPUT
Uin=12-48VDC
Iin=1.2A
Uout=5-46VDC
Temp Range: -30℃~+55℃
POWER I NPUT
+ +
ON
2.4G
300mA 400 mA 500 mA 600m A 700 mA 8 00mA 900 mA 10 50mA
LED Dimmer
- -
Rotary Panel LED Dimmer
Feature
User Guide
48.50 mm
51.50 mm
86.00 mm
86.00 mm
● Push: Turn on or off light.
After turn on light:
● Rotate: Rotate knob to adjust brightness, 2.5 turns, 50 levels.
● Long push(1-5s): Continuous 256 levels brightness adjustment.
Interface specification
● One channel constant voltage or constant current output.
● Rotate knob to change brightness, support push and long push operation.
● Smooth dimming and switch without any flickering.
● Great compatibility with a variety of dimming RF remote.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● Work with WiFi-relay controller after install APP on IOS and Android system.
Dimension
Knob function
Output current select
+
Uout=12-48VDC
Iout=6A
Pout=72 288W-
Temp Range: -30℃~+55℃
KV
RoHS
LED Dimmer
Uin=12-48VDC
Iin=6A 2.4G
LED OUTPUT
POWER I NPUT
-
+
-
LED outputPower input
LED outputPower input
Technical parameter
Model Input voltage Output current Output power Output type
KV
KC
Constant voltage
Constant current
12-48VDC
12-48VDC
6A
300,400,500,600,
700,800,900,1050mA
( ect)DIP switch sel
72-288W
3-48W
Output voltage
12-48VDC
5-46VDC
1. Match: Turn on light, turn off, immediately push the knob for 5s,
within 5s, press on/off key or zone key of the RF remote.
2. Delete: Turn on light, turn off, immediately push the knob for 10s, delete all matched RF remote.
3. Multiple zone RF remote only use zone key to match each zone receiver.
Match guide
There are two kinds of method to match the rotary panel dimmer with the RF remote.
● Use Knob
1. Match: Switch off the power, then switch on power again,
short press on/off key or zone key 3 times on the RF remote quickly within 5s after power on,
the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again,
short press on/off key or zone key 5 times on the RF remote quickly within 5s after power on,
the unlink is done once the light blinks 5 times.
3. Multiple zone remote only use zone key to match each zone receiver.
● Use Power-up
The rotary dimmer KV / KC is a single color LED controller with constant voltage or constant current output, which
offers both switch and smooth brightness dimming functions by push or rotate the knob. Smooth dimming range
from 0.1%-100% without any flickering can be very comfortable for human eyes. It is easy to install the wall switch
into existing standard size wall boxes.

KC
RoHS
LED OUTPUT
Uin=12-48VDC
Iin=1.2A
Uout=5-46VDC
Temp Range: -30℃~+55℃
POWER INPUT
+ +
ON
2.4G
300 mA 400 mA 50 0mA 60 0mA 7 00mA 80 0mA 900 mA 1050 mA
LED Dimmer
- -
+
Uout=12-48VDC
Iout=6A
Pout=72 288W-
Temp Range: -30℃~+55℃
KV
RoHS
LED Dimmer
Uin=12-48VDC
Iin=6A 2.4G
LED OUTPUT
POWER I NPU T
-
+
-
Causes Troubleshooting
1. The battery has no power.
2. Beyond controllable distance.
3. The controller did not match the remote.
1. Replace battery.
2. Reduce remote distance.
3. Re-match the remote.
1. No power.
2. Wrong connection or insecure.
1. Check the power.
2. Check the connection.
Malfunctions
No response
from the remote
No light
Malfunctions analysis & troubleshooting

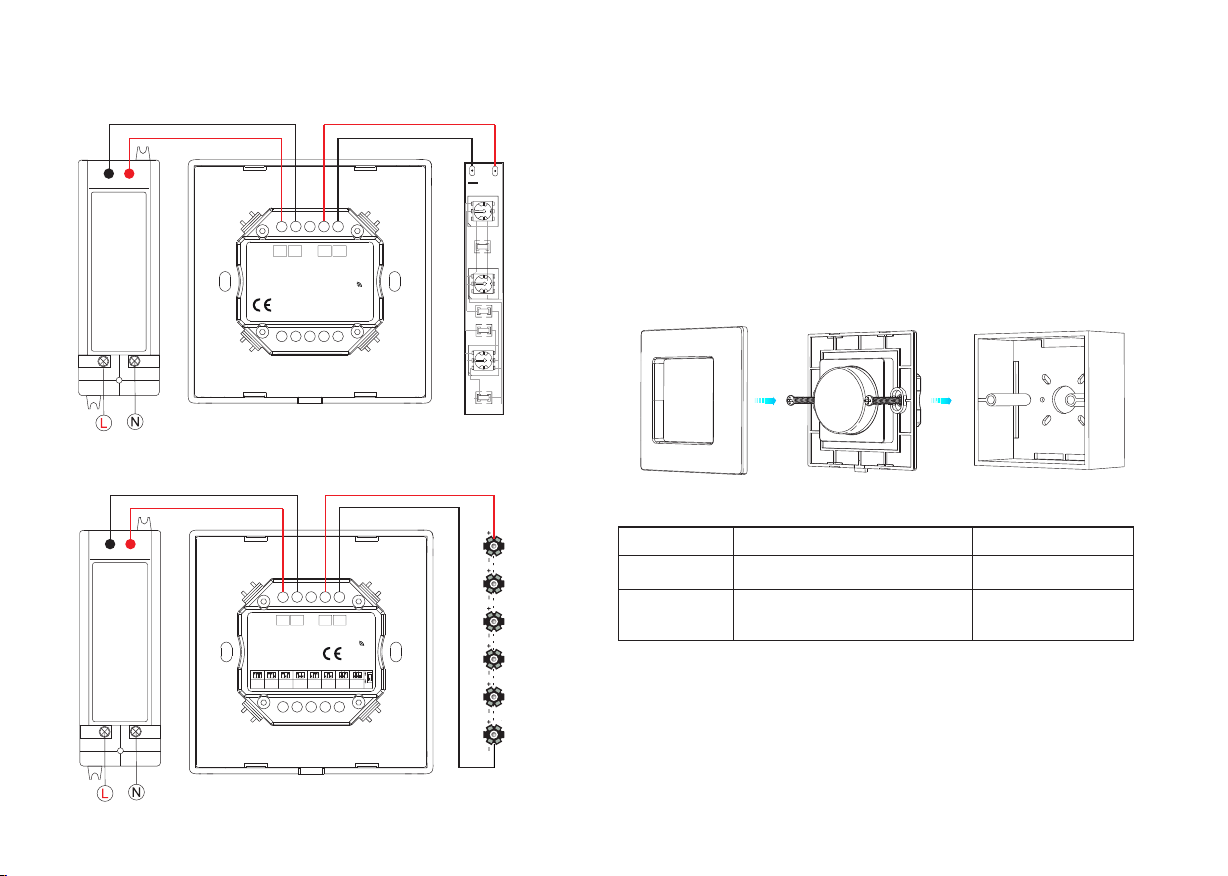

Installation diagram
Wiring diagram
1. The product shall be installed and serviced by a qualified person.
2. The product is non-waterproof. Please avoid the sun and rain.
3. Good heat dissipation will prolong the working life of the controller, Please ensure good ventilation.
4. Please check if the output voltage of any power supplies used comply with the working voltage
of the product.
5. Ensure all wire connections and polarities are correct and secure before applying power to avoid
any damages to the LED lights.
6. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
Safety information
● KV connect with single color LED strip
● KC connect with Hi-power LED
+
Single color LED strip
Power Supply
12-36VDC
Constant Voltage
AC110-230V
Power Supply
24-36VDC
Constant Voltage
AC110-230V
Drives 1-13pcs Hi-power LED
● Input 48V power supply, can series connect 1~13pcs LED,
● Input 36V power supply, can series connect 1~10pcs LED,
● Input 24V power supply, can series connect 1~6pcs LED.
● Input 12V power supply, can series connect 1~3pcs LED.
For KV, LED power supply voltage and power select :
● 12V lamp, Input 12V power supply, can load 0~72W,
● 24V lamp, Input 24V power supply, can load 0~144W,
● 36V lamp, Input 36V power supply, can load 0~216W,
● 48V lamp, Input 36V power supply, can load 0~288W,
The power supply power must larger than load power 20%.
For KC, LED power supply voltage select:
Power supply select guide
