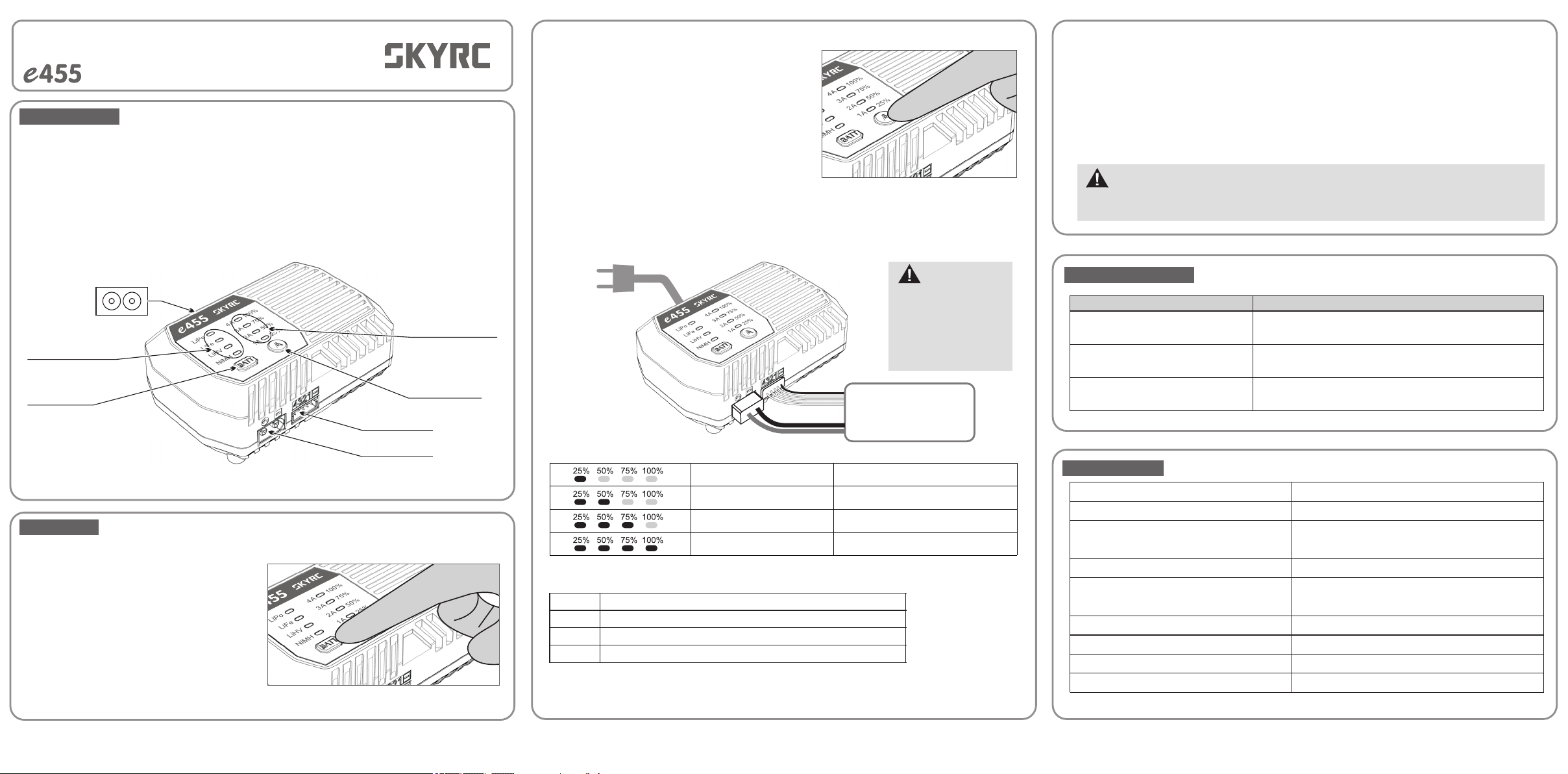

Skyrc SK-100170 User manual

Thank you for your choice of the SKYRC e455, 100-240V AC balance charger. This unit is simple to use
but its operation does require some knowledge on the part of the user. Please read this entire operating
manual completely and attentively before using this product, as it covers a wide range of information on
operating and safety.
SKYRC e455 Charger is an economical, high quality 100-240V AC balance charger, designed for
charging LiPo, LiFe and LiHV batteries from 2-4 cells in balance mode. It can charge 6-8S NiMH batteries
also. The circuit power is 50W and max charge current can reach to 4A. There are four kinds of charge
current 1A/2A/3A/4A that can be selected. You could select the proper charge current according to battery
capacity.
INTRODUCTION
OPERATION
SKYRC e455 comes with the built in power supply. You can connect the AC power cord to the AC
socket(100-240V AC) directly.
Insert the AC power cord into the charger.
Insert the AC cord into a wall socket (100-
240V). The battery type LED and the charge
current LED(default 2A) will glow constant
white.
Connect battery balance wire to balance port
which is in front side of the charger, select the
battery type LiPo/LiFe/LiHV by pressing the
"BATT" button.
Select the proper charging current 1A/2A/3A/4A by pressing the “A” button.
Connect the battery main charge lead to battery socket which is in the front side of the charger and
battery balance wire to balance port which is in the right side of the charger.
Press and hold “A" button for 2 seconds to start charging. The charge status LED will glow to indicate
charging is in progress.
When the battery is fully charged, the charge status LED will glow constant WHITE. Unplug the
battery from the charger, the charger will be ready to charge another battery.
During the charging process, if you want to stop charging, press the “A” button once.
Please refer to following steps to charge the battery,
1)
2)
3)
4)
5)
INSTRUCTIONMANUAL
SK-100170
Multi Chemistry Charger
Charging LiPo/LiFe/LiHV Battery
The charge current varies from 1A(1000mA) to
4A(4000mA). The recommended charge rate is 1C
(battery capacity = charge current). 1C means:
capacity value = charge current.
Example: LiPo cell of 2200mAh Capacity; 1C=2200mA
(=2.2A) charge current. You can choose 2A
current to charge the battery.
LiPo cell of 2800mAh Capacity; 1C=2800mA
(=2.8A) charge current. You can choose 3A
current to charge the battery.
6) Charging NiMH Battery
Connect the battery main charge lead to battery socket which is in the front side of the charger.
Select the battery type NiMH by pressing the "BATT" button.
Select the proper charging current 1A/2A/3A/4A by pressing the “A” button.
Press and hold “A" button for 2 seconds to start charging. The charge status LED will glow to indicate
charging is in progress.
During the charging process, the capacity indicator LEDs will light up in sequence.
When the battery is fully charged, the capacity indicator LEDs will glow constant white.
Always make sure you are charging NiMH battery under NiMH mode. Charging Lithium
Battery under NiMH mode can lead fire, personal injury or property damage.
WARNING:
SPECIFICATION
AC Input
Battery Type
Cell Count
Charge Current
Cell Terminate Voltage
Circuit Power
Current Drain for Balancing
Dimension
Weight
100-240V
LiPo/LiFe/LiHV/NiMH
LiPo/LiFe/LiHV: 2-4S
NiMH: 6-8S
1A/2A/3A/4A ± 10%
LiPo: 4.2V ± 0.02V / LiFe: 3.6V ± 0.02V
LiHV: 4.35V ± 0.02V / NiMH: -△V
50W
300mA
110x70x40mm
191g
LED Blinking Times Problem
Select Battery Type
Select Charging Current
Balance Port
BatterySocket
AC 100-240V
Power Jack
Battery Type Indicator
Battery Type
Button Current Switch
Current & Capacity
LED Indicator
TO 100-240V AC
Socket
This diagram shows the
correct way to connect
your battery to the e455
charger while charging.
Failure to connect as
shown in this diagram will
damage this charger.
CAUTION:
LiPo
CONNECTION DIAGRAM
EXPLANATION OF LED STATUS
25%≤Capacity<50%
75%≤Capacity<100%
50%≤Capacity<75%
Remark:
The capacity indicator LED flash times shows the charge current you set.
1A Flashes white ONCE and stop 1 second in cycle.
2A Flashes white TWICE and stop 1 second in cycle.
3A Flashes white THREE TIMES and stop 1 second in cycle.
4A Flashes white FOUR TIMES and stop 1 second in cycle.
All LEDs flash white ONCE and
stop 2 seconds in cycle
All LEDs flash white TWICE and
stop 2 seconds in cycle
All LEDs flash white THREE TIMES
and stop 2 seconds in cycle
Voltage of one cell in the battery pack is too high
Connection error in Balance port
Connection error in Main port
- 1 - - 2 - - 3 -
25% capacity indictor LED flashing
50% capacity indictor LED flashing
75% capacity indictor LED flashing
Capacity<25%
100% capacity indictor LED flashing
TROUBLESHOOTING

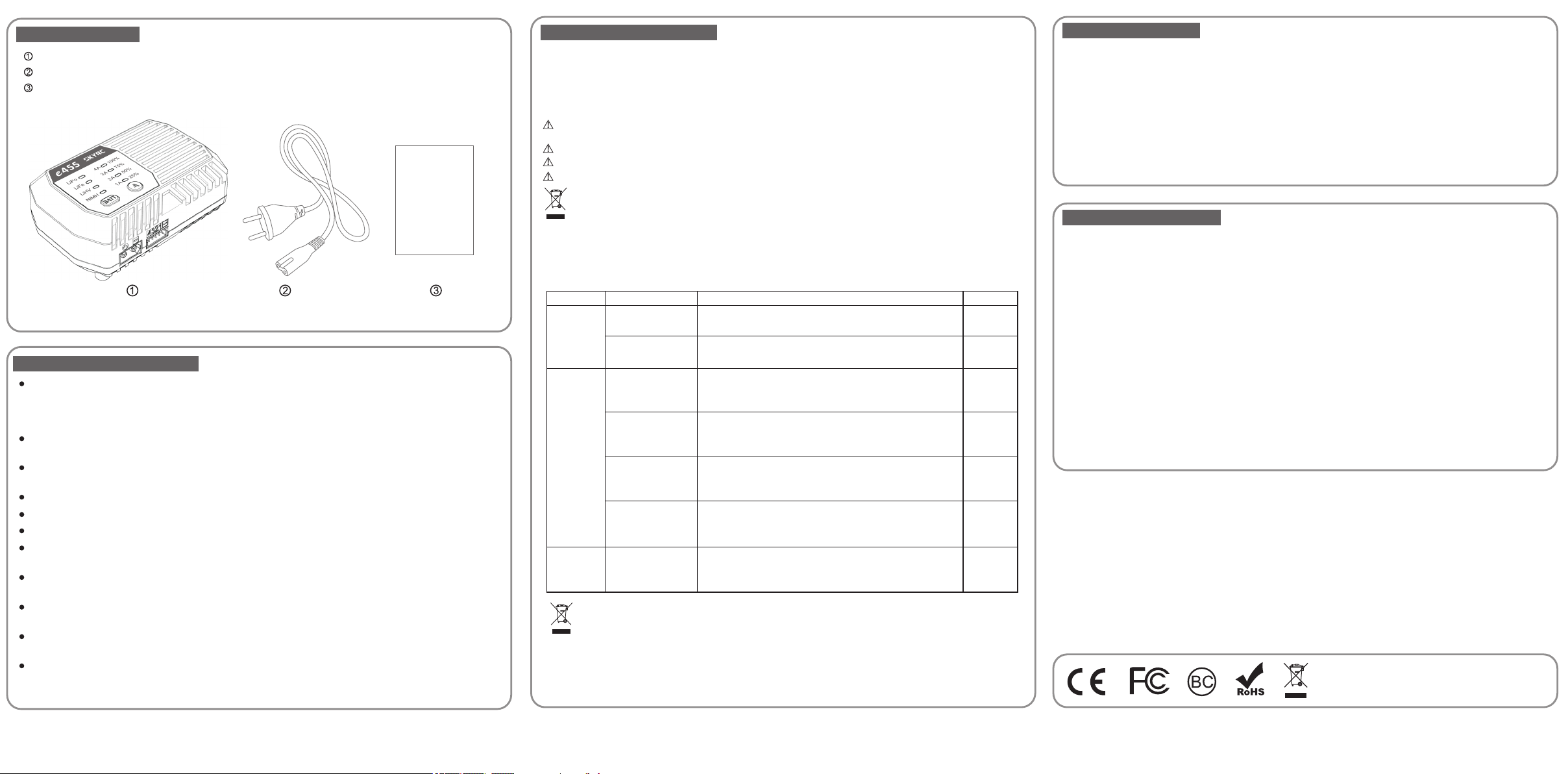

THE SET CONTAINS
WARNING AND SAFETY NOTES
LIABILITY EXCLUSION
This charger is designed and approved exclusively for use with the types of battery stated in these
Instruction Manual. SKYRC accepts no liability of any kind if the charger is used for any purpose other
than that stated. We are unable to ensure that you follow the instructions supplied with the charger, and
we have no control over the methods you employ for using, operating and maintaining the device. For this
reason we are obliged to deny all liability for loss, damage or costs which are incurred due to the
incompetent or incorrect use and operation of our products, or which are connected with such operation
in any way. Unless otherwise prescribed by law, our obligation to pay compensation, regardless of the
legal argument employed, is limited to the invoice value of those SKYRC products which were
immediately and directly involved in the event in which the damage occurred.
SkyRC e455 Charger
AC Power Cord
Instruction Manual
CONFORMITY DECLARATION
FCC-SDOC FCC Part 15B
Title 47 Telecommunication
PART 15 - RADIO FREQUENCY DEVICES
Subpart B - Unintentional Radiators
Conform
This charger is not intended for use by persons (include children) with reduced physical, sensory or
mentalcapabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerninguse of the appliance by a person responsible for their safety. Children should be supervised to ensure that
they donot play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons
in order to avoid a hazard.
This charger is suitable for charging rechargeable LiPo/LiFe/LiHV/NiMH batteries. Do not attempt to recharge non-
rechargeable batteries. Charging other types of batteries may cause fire or explosion.
Never leave the charger unattended when it is connected to its power supply.
The allowable AC input voltage is 100-240V AC. Never connect it to any other voltage.
Protect charger from dust, dirt and damp.
Never place the charger and batteries connected to it on any form of flammable surface. Never operate the charger
in the vicinity of inflammable material or gas.
During charging, the battery must be placed in a well ventilated area . Never place the charger on a carpet or similar
surface.
Take great care to maintain correct battery polarity, and avoid shot-circuit. Read the battery manufacturer's
instructions and adhere to them strictly.
The charger must only be plugged into an earthed socket-outlet (for portable class 1 battery chargers for outdoor
use)
The connection to the supply mains is to be in accordance with the national wiring rules when battery chargers for
installation in caravans and similar vehicles.
WARRANTYANDSERVICE
We guarantee this product to be free of manufacturing and assembly defects for a period of one year
from the time of purchase. The warranty only applies to material or operational defects, which are present
at the time of purchase. During that period, we will repair or replace free of service charge for products
deemed defective due to those causes.
You will be required to produce proof of purchase (invoice or receipt). This warranty is not valid for any
damage or subsequent damage arising as a result of misuse, modification or as a result of failure to
observe the procedures outlined in this manual.
Note:
The warranty service is valid in China only.
If you need warranty service overseas, please contact your dealer in the first instance, who is
responsible for processing guarantee claims overseas. Due to high shipping cost, complicated custom
clearance procedures to send back to China. Please understand SkyRC can't provide warranty
service to overseas end user directly.
If you have any questions which are not mentioned in the manual, please feel free to send email to
[email protected]
1.
2.
3.
7504-1355-05
Manufacturedby
SKYRCTECHNOLOGYCO.,LTD.
www.skyrc.com
- 6 -
EN 60335-1: 2012
+A11: 2014
Household and similar electrical appliances - Safety -
Part 1: General requirements
Never leave the charger unattended when it is connected to its power socket. If any malfunction is found,
TERMINATE THE PROCESS AT ONCE.
Keep the charger well away from dust, damp, rain, heat, direct sunshine and vibration. Never drop it.
Never charge batteries on wood, cloth, carpet or on any other flammable material.
During charging, the charger must be placed in a well ventilated area.
This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
This marking indicates that this product should not be disposed with other household wastes throughout the EU.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustain able reuse of material resources. To return your used device, please use the
return and collection systems or contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.
This symbol means that you must dispose of electrical from the general household waste when it reaches
the end of its useful life. Take your charger to your local waste collection point or recycling centre. This
applies to all countries of the European Union, and to other European countries with a separate waste
collection system.
The e455 satisfy all relevant and mandatory CE directives and FCC Part 15 Subpart B: 2016.
For EC directives:
The product has been tested to meet the following technical standards:
Conform
Conform
Conform
CE-EMC
Test Standards Title Result
Conform
EN60335-2-29
CE-LVD
Household and similar electrical appliances –. Safety –.
Part 2-29: Particular requirements for battery chargers.
Conform
EN61000-3-3: 2013
Electromagnetic compatibility (EMC) - Part 3-3: Limitation
of voltage supply systems for equipment with rated
current ≤16 A.
EN61000-3-2: 2014
Electromagnetic compatibility (EMC) –
Part 3-2: – Limits for harmonic current emissions (equipment
input current up to and incelding 16 A per phase)
EN55014-1: 2006+
A1: 2009+A2: 2011
Electromagnetic compatibility – Requirements for
householdappliances,electrictoolsandsimilar
apparatus – Part 1: Emission
EN55014-2: 1997+
A1: 2001+A2: 2008
Electromagnetic compatibility – Requirements for
householdappliances,electrictoolsandsimilar
apparatus – Part 2: Immunity Product Family Standard
Conform
- 5 -- 4 -
Instruction
Manual
The manual is subject to change without notice;
please refer to our website for the latest version!
