SMC Networks SY3000 SERIES User manual

®
RoHS
2-position double
Manifold base
U side
1 2 Stations
3
D side
Refer to pages 160 (SY5000) and
161 (SY7000) for the dimensions
of Type 11/Bottom-ported type.
For details on the EX500 Gateway Type Serial Transmission
System, refer to the Web Catalog and the Operation Manual.
For the part numbers of the SI units to be mounted, refer to
page 188. Please download the Operation Manual via the
SMC website, https://www.smcworld.com
*A separate GW unit and communication cable are required.
Plug-in Connector Connecting Base
EX500 Gateway Decentralized System 2 (128 Points)
SY3000/5000/7000 Series
SS5Y3-10SA3N-05D-C6···1 set (Manifold base part number)
* SY3200-5U1···················
5 sets (2-position double part number)
The asterisk denotes the symbol for the assembly.
Prefix it to the part numbers of the valve, etc.
•
For the valve arrangement, the valve closest to the D side is considered
the 1st station.
• Under the manifold base part number, state the valves to be mounted
in order starting with the 1st station as shown in the figure above. If the
arrangement becomes too complicated, specify the details on a
manifold specification sheet.
How to Order Manifolds
SS5Y S103 C6
How to Order Manifold Assembly
05
*1 Double wiring: 2-position single, double,
3-position, and 4-position valves can be
used on all manifold stations.
Use of a 2-position single solenoid will
result in an unused control signal.
If this is not desired, order with a specified
layout.
*2 Specified layout: Indicate the wiring
specifications on the manifold specification
sheet. (Note that 2-position double,
3-position, and 4-position valves cannot be
used where single wiring has been
specified.)
*When the product without the SI unit (S0) is
selected, note the maximum number of
solenoids of the SI unit that will be mounted.
If the layout is specified, indicate it on the
manifold specification sheet.
*This also includes the number of the blanking
plate assembly.
*1 16 outputs can be set by switching the built-in
setting switch.
*2 Ensure a match with the common specification
of the valve.
*3 ( ): Maximum number of stations for mixed
single and double wiring
*4 When using the SI unit with 32 outputs, use
the GW unit compatible with the EX500
Gateway Decentralized System 2 (128 points).
*For mixed mounting, refer to page 165 and
later.
U
Example
q w re t y u i
qSeries e
SI unit (Number of outputs, Output polarity,
Max. number of valve stations)
rValve stations
*1 3/5(E) port is plugged for the built-in
silencer type.
*2 When built-in silencer type is used, keep
the exhaust port from coming into direct
contact with water or other liquids.
ySUP/EXH block assembly
Nil Internal pilot
SInternal pilot, Built-in silencer*1*2
RExternal pilot
tP, E port entry
UU side (2 to 10 stations)
DD side (2 to 10 stations)
BBoth sides (2 to 24 stations)
Stations Note
02
2 stations
Double wiring
* 1
… …
16
16 stations
02
2 stations
Specified layout*2
(Up to 32 solenoids available)
… …
24
24 stations
*1 The SY5000 manifold base is used for the
bottom-ported SY3000. When ordering,
refer to the “Plug-in Mixed Mounting Type
Manifold” (from page 165).
*When mixing top-ported configurations,
select from those listed on page 110.
In such cases, use caution as there is also
output on the A and B ports on the base side.
Specify on the manifold specification sheet if
plugs are required for the A and B ports on
the base side.
wType
10 Side ported
11 Bottom ported*1
3SY3000
5SY5000
7SY7000
A3N
0Without SI unit
A3N
32 outputs*1*4, 2 to 16 stations (24
stations*3), Negative common*2
97
Type 10
Side Ported
Type 11
Bottom Ported
CAT.ES11-103E 2022-6

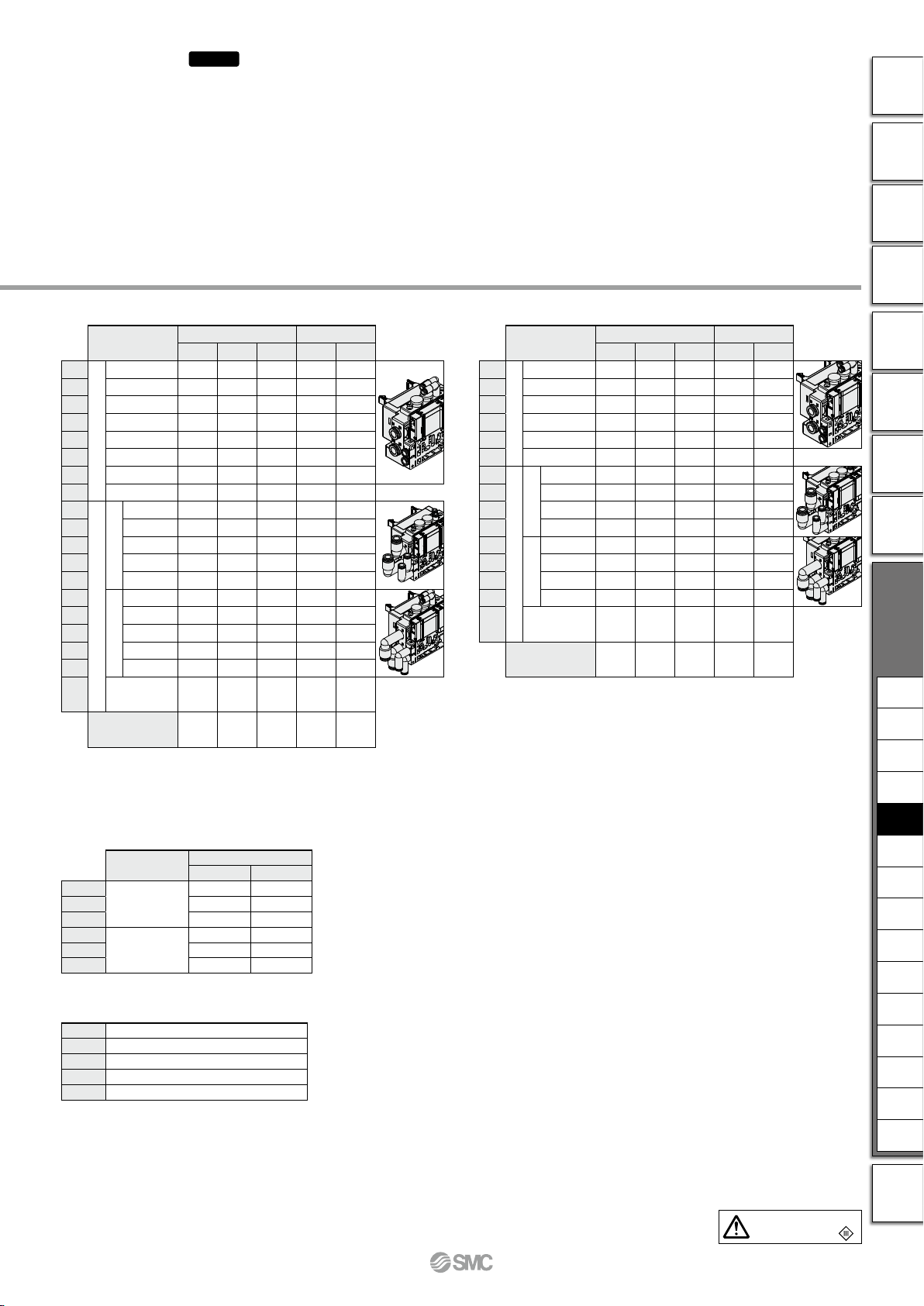

Protective class
class #(Mark: )
*1 Indicate the sizes on the manifold specification sheet.
*2 To avoid interference with the body or piping, select a downward elbow port when mounting the optional spacer assembly (pages 204 to 206).
*3 The direction of P, E port fittings is the same as for the A, B port. If selecting “LM,” indicate it on the manifold specification sheet for the P, E port fitting
direction.
uA, B port size (Metric/One-touch fitting) A, B port size (Inch/One-touch fitting)
*1 Refer to “DIN Rail Option” below.
*Select the direct mounting type for Type 11 (Bottom ported).
*1 Specify a longer rail than the length of valve stations.
*If the DIN rail must be mounted without an SI unit, select “D0” and order the
DIN rail separately. Refer to L3 of the dimensions for the DIN rail length.
Refer to page 203 for the DIN rail part number.
*Refer to page 295 for the fixation of DIN rail mounting type manifold.
iMounting and Option
DIN Rail Option
Nil
With DIN bracket, DIN rail with standard length
0With DIN bracket, without DIN rail
3*1
With DIN bracket, DIN rail for 3 stations
… …
24*1
With DIN bracket, DIN rail for 24 stations
Mounting Option
Name plate Station number
Nil Direct
mounting
— —
AA V V
BA V—
Dl*1
DIN rail
mounting
— —
Al*1V V
Bl*1V—
A, B port Type 10/Side ported
Type 11/Bottom ported
SY3000 SY5000 SY7000 SY5000 SY7000
C2
Straight
ø2 V————
C3 ø3.2 V————
C4 ø4 V V —V—
C6 ø6 VVVVV
C8 ø8 — VVVV
C10
ø10 — — V—V
C12
ø12 — — V—V
CM*1
Mixed sizes VVVVV
L4
Elbow*2
Upward
ø4 V V ———
L6 ø6 VVV— —
L8 ø8 — V V — —
L10
ø10 — — V— —
L12
ø12 — — V— —
B4
Downward
ø4 V V ———
B6 ø6 VVV— —
B8 ø8 — V V — —
B10
ø10 — — V— —
B12
ø12 — — V— —
LM*1
Mixed sizes VVV— —
P, E port*3ø8 ø10 ø12 ø10 ø12
A, B port Type 10/Side ported
Type 11/Bottom ported
SY3000 SY5000 SY7000 SY5000 SY7000
N1
Straight
ø1/8" V— — — —
N3 ø5/32" V V —V—
N7 ø1/4" VVVVV
N9 ø5/16" — V V V V
N11
ø3/8" — — V—V
CM*1
Mixed sizes VVVVV
LN3
Elbow*2
Upward
ø5/32" V— — — —
LN7
ø1/4" V V — — —
LN9
ø5/16" — V— — —
LN11
ø3/8" — — V— —
BN3
Downward
ø5/32" V— — — —
BN7
ø1/4" V V — — —
BN9
ø5/16" — V— — —
BN11
ø3/8" — — V— —
LM*1
Mixed sizes VVV— —
P, E port*3
ø5/16" ø3/8" ø1/2" ø3/8" ø1/2"
98
Plug-in Connector Connecting Base SY3000/5000/7000 Series
D-sub,
Flat
Ribbon
Lead
Wire
Circular
Connector
Terminal
Block
EX500
EX600
EX250
EX260
EX126
EX120
Common
Dimensions
Mixed
Mounting
Manifold
Exploded
View
Fitting,
Plug
Part Nos.
Manifold
Options
Valve
Specifications
Valve
Construction
Made to
Order
Valve
Replacement
Parts
With Residual
Pressure
Release Valve
Vacuum
Release Valve
with Restrictor
Specific
Product
Precautions
Chart
With
Pressure
Sensor
Connector
Connecting Base
CAT.ES11-103E 2022-6

Protective class
class #(Mark: )
*Refer to page 34 for the safety slide locking
manual override.
How to Order Valves (With mounting screw)
*1 Select the rubber seal type when the back
pressure check valve is built-in. A manifold
installed type is available if a back pressure
check valve with a metal seal is required.
Refer to page 212 for ordering examples.
However, it is not recommended to use the
built-in valve type and the manifold installed
type at the same time because it will reduce
the flow.
*Select “Nil” for the 3-position type or the
SY7000.
*1 Be sure to select the power saving circuit
type if the valve is to be continuously
energized for long periods of time.
*2 Be careful of the energizing time when the
power saving circuit is selected. For details,
refer to page 292.
*1 Select the metal seal type for the high
pressure type.
qSeries yPilot valve option
uCoil type
iRated voltage
eSeal type
rPilot type
tBack pressure check valve
*Select “NZ” for models with a power saving
circuit.
q w re t y u i o !0 !1
SY 3 51 00 1
Base mounted
*1 For “K” and “H,” the valve body cover has a
drop prevention construction to stop the
mounting screws from falling out when the
valve is removed for maintenance, etc.
*When ordering a valve individually, the
base gasket is not included.
Since the base gasket is attached to the
manifold, please order the base gasket
separately if it is needed for maintenance.
Refer to page 198 for base gasket and
mounting screw part numbers.
*Select “Nil” or “K” for the optional individual
SUP/EXH spacer assembly, interface
regulator, or double check spacer assembly
with residual pressure release valve.
!1 Type of mounting screw
!0 Manual override
*1 Select the rubber seal type for the 4-position
dual 3-port valve.
wType of actuation
oLight/surge voltage suppressor
and common specification
With light
Surge voltage
suppressor
Common
specification
R—
V
Non-polar
UV
NS —Negative
common
NZ V
12-position Single
2Double
3
3-position
Closed center
4Exhaust center
5Pressure center
A*1
4-position dual
3-port valve
N.C./N.C.
B*1N.O./N.O.
C*1N.C./N.O.
Nil D
Non-locking
push type
Push-turn
locking
slotted
type
E F
Push-turn
locking
lever
type
Slide locking
type
Nil Round head combination screw
BHexagon socket head cap screw
KRound head combination screw
(Drop prevention type)*1
HHexagon socket head cap screw
(Drop prevention type)*1
Nil Standard
TWith power saving circuit
(Continuous duty type)*1*2
Nil None
H*1Built-in
Nil Standard (0.7 MPa)
BQuick response type (0.7 MPa)
K*1High pressure type (1.0 MPa)
Nil Internal pilot
RExternal pilot
524 VDC
0Rubber seal
1Metal seal
3SY3000
5SY5000
7SY7000
Refer to page 15 for valve specifications.
99
SY3000/5000/7000 Series
A
CAT.ES11-103E 2022-6

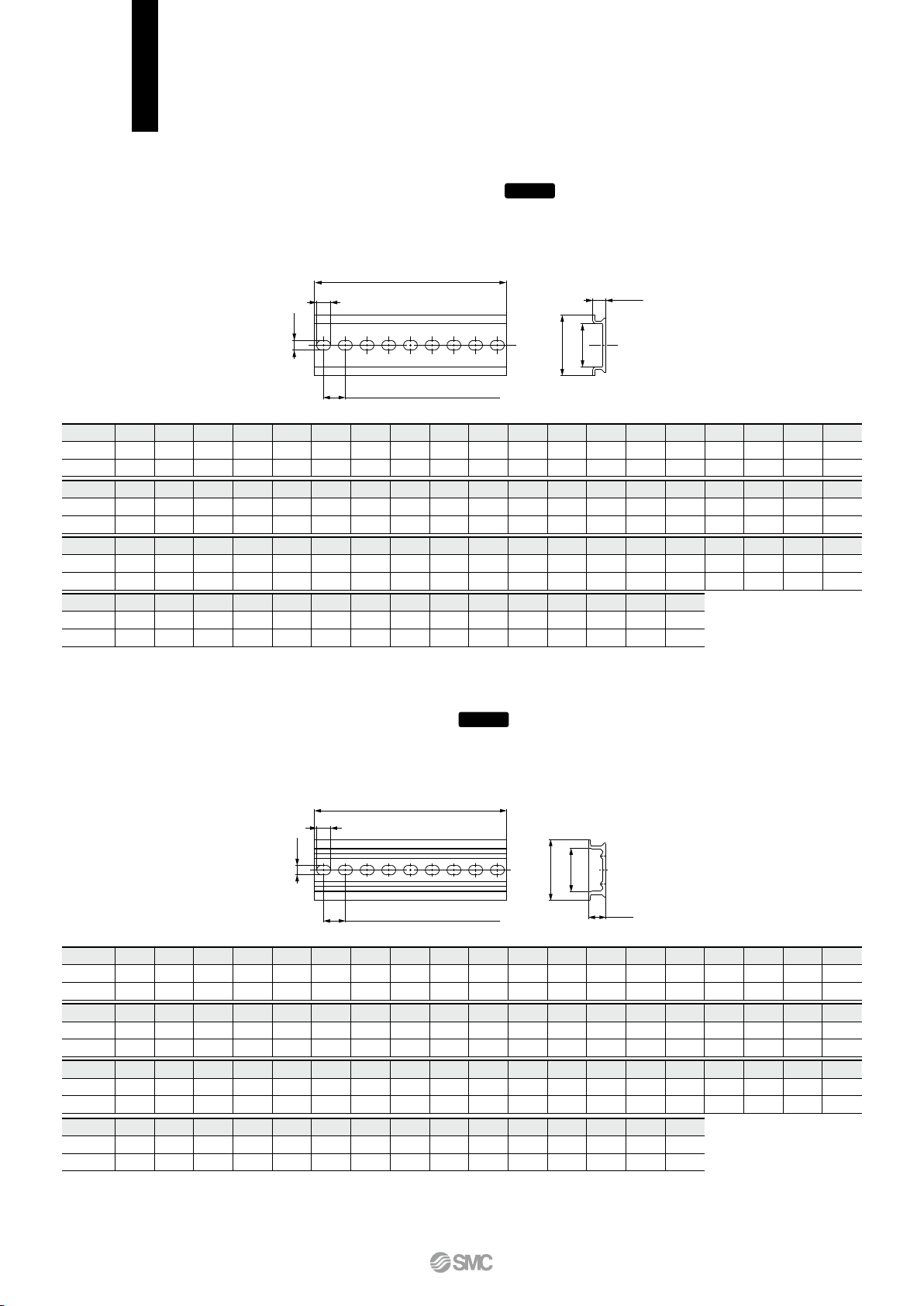

(Station n)(Station 1) Applicable tubing O.D.: ø2
: ø3.2, ø1/8"
: ø4, ø5/32"
: ø6, ø1/4"
One-touch fitting
[4(A), 2(B) port]
4(A) port side: Blue (for rubber seal)
: Gray (for metal seal)
2(B) port side: Yellow
SI unit
Light/surge voltage suppressor
( )
(L5)L1
80.221.2
(5.3)
(L3)
(L4)
(DIN rail mounting hole pitch: 12.5)
L2 1.5
(Fitting for the type with P/E ports on the U and/or D sides)
4 x M4 Mounting hole
(Recommended tightening torque: 1.4 N·m)
C6: 3.6 N7: 7.4
(4.9)
(8)
(5.5)
(35)
(40.9)
60.5
83
92.6
4.6
1.7
4.6
(7.5)
(17.8)
63.1
56.6
21.6
13.6 10.6
(Pitch)
P = 10.5
15.5 46.5
11.3M12
18
25.6
40.2
46.2
67.2
76.7
M12
One-touch fitting
[1(P), 3/5(E) port]
Applicable tubing O.D.: ø8, ø5/16"
(11.8)
Manual override∗1
34.7
14 A
12 B
B A
14 A
12 B
B A
IN
OUT
E
3/5
1 P
14 A
12 B
B A
14 A
12 B
B A
14 A
12 B
B A
E
3/5
1 P
B
4 A
2 B
4 A
2 B
4 A
2 B
4 A
2 B
4 A
2
D side U side
Type 10/Side Ported
EX500 (128 Points)
Plug-in
Connector Connecting Base
n
L2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
L1 103.7 114.2 124.7 135.2 145.7 156.2 166.7 177.2 187.7 198.2 208.7 219.2 229.7 240.2 250.7
L2 63 73.5 84 94.5 105 115.5 126 136.5 147 157.5 168 178.5 189 199.5 210
L3 135.5 148 148 160.5 173 185.5 198 210.5 223 223 235.5 248 260.5 273 285.5
L4 125 137.5 137.5 150 162.5 175 187.5 200 212.5 212.5 225 237.5 250 262.5 275
L5 16 17 11.5 12.5 13.5 14.5 15.5 16.5 17.5 12.5 13.5 14.5 15.5 16.5 17.5
n
L17 18 19 20 21 22 23 24
L1 261.2 271.7 282.2 292.7 303.2 313.7 324.2 334.7
L2 220.5 231 241.5 252 262.5 273 283.5 294
L3 285.5 298 310.5 323 335.5 348 348 360.5
L4 275 287.5 300 312.5 325 337.5 337.5 350
L5 12 13 14 15 16 17 12 13
Dimensions: SY3000 Series
SS5Y3-10SA3N- Stations U
D
B-
C2
C3, N1
C4, N3
C6, N7
(D)
*1 Refer to page 157 for dimensions of the external pilot, silencer, elbow fittings, and slide locking manual override.
*These figures show the “SS5Y3-10SA3N-05D-C6.”
*Refer to page 162 for dimensions of A or B port top-ported type.
n: Stations
L: Dimensions
100
Plug-in Connector Connecting Base SY3000/5000/7000 Series
D-sub,
Flat
Ribbon
Lead
Wire
Circular
Connector
Terminal
Block
EX500
EX600
EX250
EX260
EX126
EX120
Common
Dimensions
Mixed
Mounting
Manifold
Exploded
View
Fitting,
Plug
Part Nos.
Manifold
Options
Valve
Specifications
Valve
Construction
Made to
Order
Valve
Replacement
Parts
With Residual
Pressure
Release Valve
Vacuum
Release Valve
with Restrictor
Specific
Product
Precautions
Chart
With
Pressure
Sensor
Connector
Connecting Base
A
CAT.ES11-103E 2022-6

Applicable tubing O.D.: ø4, ø5/32"
: ø6, ø1/4"
: ø8, ø5/16"
One-touch fitting
[4(A), 2(B) port]
(Station 1) (Station n)
(L5)L1
113.4
97.510.9
4.7
81.2
(61.7)
5.5
(35)
(5.5)
(8)
1.5
4 x M5 Mounting hole
(Recommended tightening torque: 2.9 N·m)
(
Fitting for the type with P/E ports on the U and/or D sides)
L2
(L4)
(DIN rail mounting hole pitch: 12.5)
(L3)
(5.9)
(8.3)
34.2
(5.3)
0.4 101
73.2
56.6
14.1
29.1
(
7.5)
(20.5)
(Pitch)
P = 161848.2
11.3
M12
12.4
8.7
25.6
33.4
46.2
67.2
76.7
M12
One-touch fitting
[1(P), 3/5(E) port]
Applicable tubing O.D.: ø10, ø3/8"
(11.8)
4(A) port side: Blue (for rubber seal)
: Gray (for metal seal)
2(B) port side: Yellow
SI unit
Light/surge voltage suppressor Manual override∗1
B 12
14
A
B A
B 12
14
A
B A
A4
B2
A4
B2
A4
B2
A4
B2
A4
B2
IN
OUT
3/5
E
P1
3/5
E
P1
B 12
A 14
AB
B
12
A 14
AB
B 12
14
A
B A
D side U side
Type 10/Side Ported
EX500 (128 Points)
Plug-in
Connector Connecting Base
n
L2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
L1 120.7 136.7 152.7 168.7 184.7 200.7 216.7 232.7 248.7 264.7 280.7 296.7 312.7 328.7 344.7
L2 80 96 112 128 144 160 176 192 208 224 240 256 272 288 304
L3 148 160.5 185.5 198 210.5 235.5 248 260.5 273 298 310.5 323 348 360.5 373
L4 137.5 150 175 187.5 200 225 237.5 250 262.5 287.5 300 312.5 337.5 350 362.5
L5 13.5 12 16.5 14.5 13 17.5 15.5 14 12 16.5 15 13 17.5 16 14
n
L17 18 19 20 21 22 23 24
L1 360.7 376.7 392.7 408.7 424.7 440.7 456.7 472.7
L2 320 336 352 368 384 400 416 432
L3 385.5 410.5 423 435.5 448 473 485.5 498
L4 375 400 412.5 425 437.5 462.5 475 487.5
L5 12.5 17 15 13.5 11.5 16 14.5 12.5
*1 Refer to page 158 for dimensions of the external pilot, silencer, elbow fittings, and slide locking manual override.
*These figures show the “SS5Y5-10SA3N-05D-C8.”
*Refer to page 163 for dimensions of A or B port top-ported type.
SS5Y5-10SA3N- Stations U
D
B-C4, N3
C6, N7
C8, N9 (D)
n: Stations
L: Dimensions
Dimensions: SY5000 Series
101
SY3000/5000/7000 Series
CAT.ES11-103E 2022-6

(Station n)(Station 1)
(L5)L1
(8)
128.8
115
96.7
(77.1)
(35)
(5.5)
5.5
3.9
8.8
4 x M5 Mounting hole
(Recommended tightening torque: 2.9 N·m)
(Fitting for the type with P/E ports on the U and/or D sides)
1.5L2
(L4)
(DIN rail mounting hole pitch: 12.5)
(L3)
(A, B port: ø12)
(17.9)
(6)
(9.3)
(N13: 20.4)
34.4
(5.3)
15 101.4
Applicable tubing O.D.: ø6, ø1/4"
: ø8, ø5/16"
: ø10, ø3/8"
: ø12
One-touch fitting
[4(A), 2(B) port]
(14.3)
(10)
82.7
256.6
31.6
11.1
21.7
(Pitch)
P = 1920.553.2
11.3
M12
8.7
14.2
25.6
35.2
46.2
67.2
76.7
M12
One-touch fitting
[1(P), 3/5(E) port]
Applicable tubing O.D.: ø12, ø1/2"
4(A) port side: Blue (for rubber seal)
: Gray (for metal seal)
2(B) port side: Yellow
SI unit
Light/surge voltage suppressor Manual override∗1
B A
14 A
B
12
B A
14 A
B
12
P1
3/5
E
B A
14 A
B
12
B2
4 A
B2
4 A
S
B A
14 A
B
12
B A
14 A
B
12
IN
OUT
3/5
E
P1
B2
4 A
B2
4 A
B2
4 A
D side U side
Type 10/Side Ported
EX500 (128 Points)
Plug-in
Connector Connecting Base
n
L2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
L1 134.9 153.9 172.9 191.9 210.9 229.9 248.9 267.9 286.9 305.9 324.9 343.9 362.9 381.9 400.9
L2 94 113 132 151 170 189 208 227 246 265 284 303 322 341 360
L3 160.5 185.5 198 223 235.5 260.5 273 298 310.5 335.5 348 373 398 410.5 435.5
L4 150 175 187.5 212.5 225 250 262.5 287.5 300 325 337.5 362.5 387.5 400 425
L5 13 16 12.5 15.5 12.5 15.5 12 15 12 15 11.5 14.5 17.5 14.5 17.5
n
L17 18 19 20 21 22 23 24
L1 419.9 438.9 457.9 476.9 495.9 514.9 533.9 552.9
L2 379 398 417 436 455 474 493 512
L3 448 473 485.5 510.5 523 548 560.5 585.5
L4 437.5 462.5 475 500 512.5 537.5 550 575
L5 14 17 14 17 13.5 16.5 13.5 16.5
*1 Refer to page 159 for dimensions of the external pilot, silencer, elbow fittings, and slide locking manual override.
*These figures show the “SS5Y7-10SA3N-05D-C10.”
*Refer to page 164 for dimensions of A or B port top-ported type.
SS5Y7-10SA3N- Stations U
D
B-
C6, N7
C8, N9
C10, N11
C12
(D)
n: Stations
L: Dimensions
Dimensions: SY7000 Series
102
Plug-in Connector Connecting Base SY3000/5000/7000 Series
D-sub,
Flat
Ribbon
Lead
Wire
Circular
Connector
Terminal
Block
EX500
EX600
EX250
EX260
EX126
EX120
Common
Dimensions
Mixed
Mounting
Manifold
Exploded
View
Fitting,
Plug
Part Nos.
Manifold
Options
Valve
Specifications
Valve
Construction
Made to
Order
Valve
Replacement
Parts
With Residual
Pressure
Release Valve
Vacuum
Release Valve
with Restrictor
Specific
Product
Precautions
Chart
With
Pressure
Sensor
Connector
Connecting Base
CAT.ES11-103E 2022-6

Wiring
FREELOCK
D side
U side
Manifold Exploded View
p. 197
*The figures show the SY3000 series.
Type 10, 11, 12
Connector Connecting Base Manifold Exploded View
SY3000/5000/7000 Series
D-sub Connector <IP40>
/Flat Ribbon Cable
D-sub Connector <IP67> Terminal Block Box
(Spring Type)
Terminal Block Box Lead Wire
Circular Connector
EX500 Gateway Decentralized
System 2 (128 Points)
EX500 Gateway Decentralized
System (64 Points)
EX600 EX245
EX250 EX260 EX126 EX120 EX180
p. 186
p. 187
p. 185
p. 193
p. 182
p. 183
p. 188
p. 190
p. 184
p. 189
p. 192-1
p. 196-1
p. 194 p. 195 p. 196
181
A
CAT.ES11-103E 2022-6

*1 It can be selected only if no symbol or “S” or “V” or “B” is
selected for the pilot and the piping.
*1 Since the nuts are embedded in the SUP/EXH block
*1 For silencer (supply side)
E port is plugged.
*“B” for the bottom-ported type can be
selected for the SY5000/7000 series.
*For the bottom-ported type, the symbol is nil.
Refer to pages 197 to 200
for details on common parts.
SUP/EXH block assembly (D side)
accessories and the number of accessories
S103
wEX500 SI unit
EX500
Series
Mounting
0M 13 C81ASY
Pilot, Silencer/Piping type
P, E port size (One-touch fittings)
qSUP/EXH block assembly
eClamp bracket assembly
*Part number is for one assembly.
Manifold exploded view
EX500 Gateway Decentralized System 2 (128 Points)
Wiring
Manifold Parts Nos.
a
Tension
bolt
U side
D side
q
w
eClamp bracket assembly
It is mounted only for the DIN rail mounting type.
The holding screws of the clamp bracket is
tightened at two points.
(Tightening torque of holding screw: 1.4 N·m)
Holding screw
Series Part no.
SY3000 SY30M-15-1A
SY5000/7000 SY50M-15-1A
Symbol P, E port
SY3000 SY5000 SY7000
Note
C8 ø8 V— — Side/Bottom/
Top ported
Metric size
C10 ø10 — V—
C12 ø12 — — V
N9 ø5/16" V— — Side/Bottom/
Top ported
Inch size
N11 ø3/8" — V—
N13 ø1/2" — — V
L8
Upward elbow
ø8 V— — Side ported
Metric size
L10 ø10 — V—
L12 ø12 — — V
LN9 ø5/16" V— — Side ported
Inch size
LN11 ø3/8" — V—
LN13 ø1/2" — — V
B8
Downward elbow
ø8 V— — Side ported
Metric size
B10 ø10 — V—
B12 ø12 — — V
BN9 ø5/16" V— — Side ported
Inch size
BN11 ø3/8" — V—
BN13 ø1/2" — — V
00*1Plug V V V
P/E port entry on one
side or Top ported
Symbol Pilot type Built-in
silencer
Piping
direction
Internal External
Nil V— —
Side
SV—V
R—V—
VV— —
Top
RV —V—
VP V—V*1
BV— —
Bottom
BS V—V
BR —V—
Accessories SY3000 SY5000
SY7000
aTension bolt None*13 pcs.
Nil Direct mounting
D0
DIN rail mounting (Without DIN rail)
3SY3000
5SY5000
7SY7000
188
Type 10, 11, 12
Connector Connecting Base Manifold Exploded View SY3000/5000/7000 Series
D-sub,
Flat
Ribbon
Lead
Wire
Circular
Connector
Terminal
Block
EX500
EX600
EX250
EX260
EX126
EX120
Common
Dimensions
Mixed
Mounting
Manifold
Exploded
View
Fitting,
Plug
Part Nos.
Manifold
Options
Valve
Specifications
Valve
Construction
Made to
Order
Valve
Replacement
Parts
With Residual
Pressure
Release Valve
Vacuum
Release Valve
with Restrictor
Specific
Product
Precautions
Chart
With
Pressure
Sensor
Connector
Connecting Base
CAT.ES11-103E 2022-6

Manifold Exploded View (Common Parts)
1
2
3
Loosen the U-side tension bolt a, and remove
the BSUP/EXH end block assembly.
Screw in rtie-rods for additional stations to
the ttie-rod of the manifold.
Connect the Amanifold block assembly and B
SUP/EXH end block assembly to be added, and
tighten the tension bolt a.
Tightening torque for tension bolt a(M3): 0.8 N·m
<For SY3000>
1. Be sure to shut off the power and air supplies before
disassembly.
Furthermore, since air may remain inside the actuator,
piping and manifold, confirm that the air is completely
exhausted before performing any work.
2. When disassembly and assembly are performed, air
leakage may result if the tightening of the tension bolt is
inadequate.
Caution
*1 Manifold block assembly
Refer to page 198 for ordering single unit.
Type 10, 11, 12: How to Increase Connector Type Manifolds
Screw them in until there is no gap
between the tie-rods.
t
Tie-rod
(SY5000/7000: 3 pcs.)
A-e
A-q
A-w
u
aTension bolt
B
AManifold block
assembly
SUP blocking disk assembly
Refer to “Manifold Options”
on page 210.
EXH blocking disk assembly
Refer to “Manifold Options”
on page 210.
DIN rail
It is mounted only for
the DIN rail mounting
type (with DIN rail.)
(
)
Tightening torque: 0.8 N·m
SY3000: 2 pcs.
SY5000/7000: 3 pcs.
SUP/EXH end block assembly
(Includes a)
iClamp bracket assembly
It is mounted only for the DIN
rail mounting type. (Tightening
torque of holding screw: 1.4 N·m)
∗Refer to page 198 for order numbers.
∗
The figures show the SY3000 series.
M2: 0.16 N·m (SY3000)
M3: 0.8 N·m (SY5000/7000)
Tightening torque
Caution
Details: p. 199
Details: p. 200
A-r
Valve mounting screw
(SY7000: 3 pcs.)
y
D side
U side
Holding screw
Gaskets are mounted.
Manifold block assembly∗
1
Tie-rod for
additional
stations
r
Base gasket
q
Connector
gasket
w
Manifold
block gasket
e
No. Description Quantity Note
qwe Gasket 3 For base, connector,
and manifold block
rTie-rod for
additional stations
SY3000: 2 pcs.
SY5000: 3 pcs.
SY7000: 3 pcs.
197
SY3000/5000/7000 Series
CAT.ES11-103E 2022-6

For SS5Y3-10/11/12, SS5Y5-(M)10/11/12, SS5Y7-(M)10/11/12
*1 The manifold of the SY3000 (SS5Y3-10/11/12) can be assembled by connecting the tie-rods for additional stations for the number of manifold stations.
However, the manifold of the SY5000 or SY7000 (SS5Y5/7-10/11/12 including mixed mounting) cannot be assembled by connecting the tie-rods for
additional stations for the number of manifold stations.
*2 Includes the case when mounting with the SY5000
*3 When mounting only the SY3000 (12.5 mm pitch except A, B port size ø8, ø5/16")
*4 The port sizes except A, B port size ø8, ø5/16" are the following: ø2, ø3.2, ø4, ø6, ø1/8", ø5/32", ø1/4".
*5 When mounting only the SY3000 (16 mm pitch A, B port size ø8, ø5/16")
*6 For the SY3000 SUP/EXH end block (there are no tension bolts for the SY3000 SUP/EXH block) or the SY5000 and SY7000 SUP/EXH (end) block
No. Description SY3000 SY5000 SY7000 Note
A-q
Manifold block assembly
Base gasket
(for connector connecting base) SY30M-9-1A SY50M-9-1A SY70M-9-1A Part numbers shown on the left are for 10 valves. (10 pcs.)
A-wConnector gasket SX3000-146-2 Supplied individually
A-eManifold block gasket SY30M-9-2 SY50M-9-2 SY70M-9-2 Supplied individually
A-r
Tie-rod for
additional
stations*1
SY3000/5000/7000 SY30M-49-2-A
(10.5 mm pitch)
SV2000-55-2A-A
(16 mm pitch)
SY70M-49-2-A*2
(19 mm pitch)
2 pcs. supplied (SY3000),
3 pcs. supplied (SY5000/7000)
For mixed mounting of SY3000/5000:
SY3000 A, B port size ø8, ø5/16"
SV2000-55-2A-A
(16 mm pitch) —3 pcs. supplied
For mixed mounting of SY3000/5000:
SY3000 except A, B port size ø8, ø5/16"*4
SY50M-49-2
(12.5 mm pitch) —3 pcs. supplied
tTie-rod
SY3000/5000/7000
VVQC1000-TR-l
(10.5 mm pitch)
SV2000-55-1-l-A
(16 mm pitch)
SY70M-49-1-l-A
(19 mm pitch)
l: Manifold stations (2 to 24 stations)
2 pcs. supplied (SY3000),
3 pcs. supplied (SY5000/7000)
Mixed mounting
type manifold
SS5Y5-M**
SY50M-49-1--A*3*4
(12.5 mm pitch) —
: Manifold stations (2 to 24 stations)
3 pcs. supplied
SV2000-55-1--A*5
(16 mm pitch) —
SS5Y7-M** —SY70M-49-1--A
(19 mm pitch)
y
Valve
mounting
screw
Round head combination screw
SY3000-23-24A
(M2 x 32)
SY5000-221-1A
(M3 x 32.5)
SY7000-221-1A
(M3 x 36.5)
Part numbers shown on the left are as follows.
SY3000/5000:
for 10 valves (20 pcs. included)
SY7000:
for 10 valves (30 pcs. included)
Hexagon socket head cap screw
SY3000-222-1A
(M2 x 32)
SY5000-222-1A
(M3 x 32.5)
SY7000-222-1A
(M3 x 36.5)
uDIN rail VZ1000-11-1-lVZ1000-11-4-lRefer to page 203.
i
Clamp bracket assembly (for connector connecting base)
SY30M-15-1A SY50M-15-1A Supplied individually
a
Tension bolt (for connector connecting base)
*6AC00530 SX3000-145-21 Supplied individually
198
Type 10, 11, 12
Connector Connecting Base Manifold Exploded View SY3000/5000/7000 Series
D-sub,
Flat
Ribbon
Lead
Wire
Circular
Connector
Terminal
Block
EX500
EX600
EX250
EX260
EX126
EX120
Common
Dimensions
Mixed
Mounting
Manifold
Exploded
View
Fitting,
Plug
Part Nos.
Manifold
Options
Valve
Specifications
Valve
Construction
Made to
Order
Valve
Replacement
Parts
With Residual
Pressure
Release Valve
Vacuum
Release Valve
with Restrictor
Specific
Product
Precautions
Chart
With
Pressure
Sensor
Connector
Connecting Base
CAT.ES11-103E 2022-6

SY50M 2 C6D3 A
Wiring type
A, B port size (One-touch fittings)
AMixed mounting of the SY3000/5000
Manifold block assembly for mounting the SY3000
Piping direction
Manifold Parts Nos.
0M 23 ASY
Series
Wiring type
A, B port size (One-touch fittings)
AManifold block assembly
Piping direction
*1 Refer to mixed mounting type for ø8, ø5/16".
*“2” (bottom ported) can be
selected for the
SY5000/7000 series.
1 D C6
SY70M 2 C10D A
Wiring type
A, B port size (One-touch fittings)
AMixed mounting of the SY5000/7000
Manifold block assembly for mounting the SY5000
Piping direction
3
SY50M 2 C8D5 A
Wiring type
A, B port size (One-touch fittings)
AMixed mounting of the SY3000/5000
Manifold block assembly for mounting the SY3000 for ø8, ø5/16"
(A manifold block assembly for mounting the SY3000 valves on the
SY5000 manifolds at A, B port size: ø8, ø5/16")
Piping direction
Manifold block assembly accessories and
the number of accessories
*1 Including mixed mounting type
Single wiring
Marked with ß
Gaskets are mounted.
A
Connector
gasket
Manifold block gasket
Base gasket
Tie-rod for
additional
stations
r
q
w
e
Manifold
block assembly
(All parts inside are included.)
Symbol A, B port
SY3000 SY5000 SY7000
Note
L4
Upward elbow
ø4 V V —Side
ported
Metric
size
L6 ø6 VVV
L8 ø8 —*1V V
L10 ø10 — — V
L12 ø12 — — V
LN3 ø5/32" V— — Side
ported
Inch
size
LN7 ø1/4" V V —
LN9 ø5/16" —*1V—
LN11
ø3/8" — — V
B4
Downward elbow
ø4 V V —Side
ported
Metric
size
B6 ø6 VVV
B8 ø8 —*1V V
B10 ø10 — — V
B12 ø12 — — V
BN3 ø5/32" V— — Side
ported
Inch
size
BN7 ø1/4" V V —
BN9 ø5/16" —*1V—
BN11
ø3/8" — — V
00 Plug VVV
Top ported
Symbol A, B port Note
B6
Downward elbow
ø6
Side ported
Metric size
B8 ø8
B10
ø10
B12
ø12
BN11
ø3/8"
Side ported
Inch size
00 Plug
Top ported
Symbol A, B port Note
L6
Upward elbow
ø6
Side ported
Metric size
L8 ø8
L10 ø10
L12 ø12
LN11
ø3/8"
Side ported
Inch size
Symbol A, B port Note
C8 ø8
Side/Bottom ported Metric size
N9 ø5/16"
Side/Bottom ported Inch size
L8
Upward
elbow
ø8 Side ported Metric size
LN9 ø5/16"
Side ported Inch size
B8
Downward
elbow
ø8 Side ported Metric size
BN9 ø5/16"
Side ported Inch size
Accessories SY3000
SY5000
SY7000*1
qBase gasket 1 pc.
wConnector gasket 1 pc.
eManifold block gasket 1 pc.
r
Tie-rod assembly for additional stations
2 pcs. 3 pcs.
5Side ported
6Bottom ported
SSingle wiring
DDouble wiring
Symbol A, B port Note
C6 ø6
Side/Bottom
ported
Metric size
C8 ø8
C10
ø10
C12
ø12
N7 ø1/4"
Side/Bottom
ported
Inch size
N9 ø5/16"
N11
ø3/8"
3Side/Top ported
4Bottom ported
SSingle wiring
DDouble wiring
Symbol A, B port
SY3000 SY5000 SY7000
Note
C2 ø2 V— —
Side/
Bottom
ported
Metric
size
C3 ø3.2 V— —
C4 ø4 V V —
C6 ø6 VVV
C8 ø8 —*1V V
C10 ø10 — — V
C12 ø12 — — V
N1 ø1/8" V— — Side/
Bottom
ported
Inch
size
N3 ø5/32" V V —
N7 ø1/4" VVV
N9 ø5/16" —*1V V
N11 ø3/8" — — V
Symbol A, B port Note
L4
Upward elbow
ø4
Side ported
Metric size
L6 ø6
LN3
ø5/32"
Side ported
Inch size
LN7
ø1/4"
B4
Downward elbow
ø4
Side ported
Metric size
B6 ø6
BN3
ø5/32"
Side ported
Inch size
BN7
ø1/4"
00 Plug
Top ported
1Side/Top ported
2Bottom ported
SSingle wiring
DDouble wiring
3SY3000
5SY5000
7SY7000
Symbol A, B port Note
C2 ø2
Side/Bottom
ported
Metric size
C3 ø3.2
C4 ø4
C6 ø6
N1 ø1/8"
Side/Bottom
ported
Inch size
N3 ø5/32"
N7 ø1/4"
3Side/Top ported
4Bottom ported
SSingle wiring
DDouble wiring
199
SY3000/5000/7000 Series
CAT.ES11-103E 2022-6

*For the bottom-ported type, the symbol is nil.
Series
Pilot, Silencer/Piping type
Mounting
P, E port size (One-touch fittings)
*1 It can be selected only if no symbol or “S” or “V” or “B” is selected for
the pilot and the piping.
BSUP/EXH end block assembly
SUP/EXH end block assembly accessories and the number of accessories
0M 33 C81ASY
Gasket is mounted.
Manifold Parts Nos.
*1 For silencer (supply side)
E port is plugged.
*“B” for the bottom-ported type can be selected
for the SY5000/7000 series.
A-e
BSUP/EXH end block assembly
(Includes a)
aTension bolt
(
)
Tightening torque: 0.8 N·m
SY3000: 2 pcs.
SY5000/7000: 3 pcs.
Symbol P, E port
SY3000 SY5000 SY7000
Note
C8 ø8 V— — Side/Bottom/Top ported
Metric size
C10 ø10 — V—
C12 ø12 — — V
N9 ø5/16" V— — Side/Bottom/Top ported
Inch size
N11 ø3/8" — V—
N13 ø1/2" — — V
L8
Upward elbow
ø8 V— — Side ported
Metric size
L10 ø10 — V—
L12 ø12 — — V
LN9 ø5/16" V— — Side ported
Inch size
LN11 ø3/8" — V—
LN13 ø1/2" — — V
B8
Downward elbow
ø8 V— — Side ported
Metric size
B10 ø10 — V—
B12 ø12 — — V
BN9 ø5/16" V— — Side ported
Inch size
BN11 ø3/8" — V—
BN13 ø1/2" — — V
00*1Plug VVVP/E port entry on one side
or Top ported
Symbol Pilot type Built-in
silencer
Piping
direction
Internal External
Nil V— —
Side
SV—V
R—V—
VV— —
Top
RV —V—
VP V—V*1
BV— —
Bottom
BS V—V
BR —V—
Accessories SY3000 SY5000/7000
aTension bolt 2 pcs. 3 pcs.
A-eManifold block gasket 1 pc.
Nil Direct mounting
D0
DIN rail mounting (Without DIN rail)
3SY3000
5SY5000
7SY7000
200
Type 10, 11, 12
Connector Connecting Base Manifold Exploded View SY3000/5000/7000 Series
D-sub,
Flat
Ribbon
Lead
Wire
Circular
Connector
Terminal
Block
EX500
EX600
EX250
EX260
EX126
EX120
Common
Dimensions
Mixed
Mounting
Manifold
Exploded
View
Fitting,
Plug
Part Nos.
Manifold
Options
Valve
Specifications
Valve
Construction
Made to
Order
Valve
Replacement
Parts
With Residual
Pressure
Release Valve
Vacuum
Release Valve
with Restrictor
Specific
Product
Precautions
Chart
With
Pressure
Sensor
Connector
Connecting Base
A
CAT.ES11-103E 2022-6

Port block assembly
(Side/Bottom ported, External
pilot, Straight, Downward elbow)
Cover assembly
(Internal pilot)
Silencer cover assembly
(Internal pilot, Built-in silencer)
Port block assembly
(Top ported, Internal pilot,
for silencer (supply side))
Port block assembly
(Top ported, Internal/External
pilot)
LCover assembly/Silencer cover assembly/Port block assembly for SUP/EXH (end) block assembly
*Cover assembly, silencer cover assembly,
and port block assembly are included in
the SUP/EXH (end) block assembly, but
they need to be ordered for piping
direction change.
Tightening torque for mounting screw
SY3000/5000 (M3): 0.8 N·m
SY7000 (M4): 1.4 N·m
1. Be sure to shut off the power and air supplies before
disassembly.
Furthermore, since air may remain inside the actuator,
piping, and manifold, confirm that the air is completely
exhausted before performing any work.
2. When disassembly and assembly are performed, air
leakage may result if the tightening of the cover and port
block assemblies are inadequate.
Caution
Pilot type
A, B port
One-touch fittings
piping direction
X, PE port One-touch fitting type
0M 43 1ASY
0M 53 1ASY
0M 6 003 1ARSY
0M 63 C81ASY
P, E port size (One-touch fittings)
Series
V
0M 63 C83AVSY
Manifold Parts Nos.
Dent for positioning
Mounting screw (M3)
X, PE port P, E port
(Plug)
E port
(Plug)
P port
(
)
E port
P port
X, PE port
Internal pilot: Plug
External pilot: One-touch fitting
Symbol X, PE port SY3000 SY5000 SY7000
Nil Metric size ø4 V V —
ø6 — — V
UInch size ø5/32" V V —
ø1/4" — — V
3SY3000
5SY5000
7SY7000
Symbol P, E port SY3000 SY5000 SY7000
C8 ø8 V— —
C10 ø10 — V—
C12 ø12 — — V
N9 ø5/16" V— —
N11 ø3/8" — V—
N13 ø1/2" — — V
Nil
Straight, Downward elbow (Side ported)
V
Upward elbow (Side ported)
Nil Internal pilot
RExternal pilot
X, PE port
P, E port
(Plug)
Port block assembly
(Side ported, External pilot,
Upward elbow)
201
SY3000/5000/7000 Series
CAT.ES11-103E 2022-6

Refer to “How to Replace One-touch Fittings” on page 296 for the replacement method.
LPlug assembly
LOne-touch fittings
*1 A and B ports (ø8 and ø5/16") of the SY3000 and 5000 mixed mounting type are the same as those of the SY5000.
*Purchasing order is available in units of 10 pieces. Additionally, when performing the piping in the same orientation using the elbow type, please order
“elbow type” or “long elbow type” appropriately.
*Select the same port size for both the A and B ports.
*Purchasing order is available in units of 10 pieces.
One-touch Fitting, Plug Assembly Part Nos.
SY3000/5000/7000 Series
Port size SY3000 SY5000 SY7000
A, B port*1
Metric size
ø2
Straight type
VVQ1000-50A-C2 — —
ø3.2 VVQ1000-50A-C3 — —
ø4 VVQ1000-50A-C4 VVQ1000-51A-C4 —
ø6 VVQ1000-50A-C6 VVQ1000-51A-C6 VVQ2000-51A-C6
ø8 — VVQ1000-51A-C8 VVQ2000-51A-C8
ø10 — — VVQ2000-51A-C10
ø12 — — KQ2H12-17-X224
ø4
Elbow type
SZ3000-73-1A-L4 SZ3000-74-1A-L4 —
ø6 SZ3000-73-1A-L6 SZ3000-74-1A-L6 SZ3000-83-1A-L6
ø8 — SZ3000-74-1A-L8 SZ3000-83-1A-L8
ø10 — — SZ3000-83-1A-L10
ø12 — — KQ2L12-17N-X224
ø4
Long elbow type
SZ3000-73-2A-L4 SZ3000-74-2A-L4 —
ø6 SZ3000-73-2A-L6 SZ3000-74-2A-L6 SZ3000-83-2A-L6
ø8 — SZ3000-74-2A-L8 SZ3000-83-2A-L8
ø10 — — SZ3000-83-2A-L10
ø12 — — KQ2W12-17N-X224
Inch size
ø1/8"
Straight type
VVQ1000-50A-N1 — —
ø5/32" VVQ1000-50A-N3 VVQ1000-51A-N3 —
ø1/4" VVQ1000-50A-N7 VVQ1000-51A-N7 VVQ2000-51A-N7
ø5/16" — VVQ1000-51A-N9 VVQ2000-51A-N9
ø3/8" — — VVQ2000-51A-N11
ø5/32"
Elbow type
KJL03-95-X224 — —
ø1/4" KJL07-95-X224 KQ2L07-14-X224 —
ø5/16" — KQ2L09-14-X224 —
ø3/8" — — KQ2L11-14-X224
ø5/32"
Long elbow type
KJL03-95-X225 — —
ø1/4" KJL07-95-X225 KQ2L07-14-X225 —
ø5/16" — KQ2L09-14-X225 —
ø3/8" — — KQ2L11-14-X225
P, E port
Metric size
ø8
Straight type
VVQ1000-51A-C8 — —
ø10 — VVQ2000-51A-C10 —
ø12 — — VVQ4000-50B-C12
ø8
Elbow type
SZ3000-74-1A-L8 — —
ø10 — SZ3000-83-1A-L10 —
ø12 — KQ2L12-19N-X224
ø8
Long elbow type
SZ3000-74-2A-L8 — —
ø10 — SZ3000-83-2A-L10 —
ø12 — — KQ2W12-19N-X224
Inch size
ø5/16"
Straight type
VVQ1000-51A-N9 — —
ø3/8" — VVQ2000-51A-N11 —
ø1/2" — — VVQ4000-50B-N13
ø5/16"
Elbow type
KQ2L09-14-X224 — —
ø3/8" — KQ2L11-14-X224 —
ø1/2" — — KQ2L13-19N-X224
ø5/16"
Long elbow type
KQ2L09-14-X225 — —
ø3/8" — KQ2L11-14-X225 —
ø1/2" — — KQ2W13-19N-X224
SY3000 SY5000 SY7000
A, B port VVQ0000-58A VVQ1000-58A VVQ2000-58A
P, E port VVQ1000-58A VVQ2000-58A SY9000-62-1A
202
D-sub,
Flat
Ribbon
Lead
Wire
Circular
Connector
Terminal
Block
EX500
EX600
EX250
EX260
EX126
EX120
Common
Dimensions
Mixed
Mounting
Manifold
Exploded
View
Fitting,
Plug
Part Nos.
Manifold
Options
Valve
Specifications
Valve
Construction
Made to
Order
Valve
Replacement
Parts
With Residual
Pressure
Release Valve
Vacuum
Release Valve
with Restrictor
Specific
Product
Precautions
Chart
With
Pressure
Sensor
Connector
Connecting Base
A
CAT.ES11-103E 2022-6

*After confirming the L3 dimension in the dimensions table of each series, refer to the DIN rail dimensions table below and
specify the number in the box l.
VZ1000-11-1-l
*After confirming the L3 dimension in the dimensions table of each series, refer to the DIN rail dimensions table below and
specify the number in the box l.
VZ1000-11-4-l
LDIN rail dimensions/weight for the SY3000/5000 connector connecting base
LDIN rail dimensions/weight for the SY7000 connector connecting base
Manifold Options
SY3000/5000/7000 Series
Plug-in
Plug-in
(35) (25)
(7.5
)
L
8
5.5
Rail mounting hole pitch 12.5
(35) (25)
(10
)
5.5
8
L
Rail mounting hole pitch 12.5
No. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
Ldimension
98 110.5 123 135.5 148 160.5 173 185.5 198 210.5 223 235.5 248 260.5 273 285.5 298 310.5 323
Weight [g] 24.8 28 31.1 34.3 37.4 40.6 43.8 46.9 50.1 53.3 56.4 59.6 62.7 65.9 69.1 72.2 75.4 78.6 81.7
No. 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
Ldimension
335.5 348 360.5 373 385.5 398 410.5 423 435.5 448 460.5 473 485.5 498 510.5 523 535.5 548 560.5
Weight [g] 84.9 88 91.2 94.4 97.5 100.7 103.9 107 110.2 113.3 116.5 119.7 122.8 126 129.2 132.3 135.5 138.6 141.8
No. 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56
Ldimension
573 585.5 598 610.5 623 635.5 648 660.5 673 685.5 698 710.5 723 735.5 748 760.5 773 785.5 798
Weight [g] 145 148.1 151.3 154.5 157.6 160.8 163.9 167.1 170.3 173.4 176.6 179.8 182.9 186.1 189.2 192.4 195.6 198.7 201.9
No. 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71
Ldimension
810.5 823 835.5 848 860.5 873 885.5 898 910.5 923 935.5 948 960.5 973 985.5
Weight [g] 205.1 208.2 211.4 214.5 217.7 220.9 224 227.2 230.4 233.5 236.7 239.8 243 246.2 249.3
No. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
Ldimension
98 110.5 123 135.5 148 160.5 173 185.5 198 210.5 223 235.5 248 260.5 273 285.5 298 310.5 323
Weight [g] 17.6 19.9 22.1 24.4 26.6 28.9 31.1 33.4 35.6 37.9 40.1 42.4 44.6 46.9 49.1 51.4 53.6 55.9 58.1
No. 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
Ldimension
335.5 348 360.5 373 385.5 398 410.5 423 435.5 448 460.5 473 485.5 498 510.5 523 535.5 548 560.5
Weight [g] 60.4 62.5 64.9 67.1 69.4 71.6 73.9 76.1 78.4 80.6 82.9 85.1 87.4 89.6 91.9 94.1 96.4 98.6 100.9
No. 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56
Ldimension
573 585.5 598 610.5 623 635.5 648 660.5 673 685.5 698 710.5 723 735.5 748 760.5 773 785.5 798
Weight [g] 103.1 105.4 107.6 109.9 112.1 114.4 116.6 118.9 121.1 123.4 125.6 127.9 130.1 132.4 134.6 136.9 139.1 141.4 143.6
No. 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71
Ldimension
810.5 823 835.5 848 860.5 873 885.5 898 910.5 923 935.5 948 960.5 973 985.5
Weight [g] 145.9 148.1 150.4 152.6 154.9 157.1 159.4 161.6 163.9 166.1 168.4 170.6 172.9 175.1 177.4
203
CAT.ES11-103E 2022-6

*Calculation of effective area S and sonic conductance C: S = 5.0 x C
*The value is for manifold base with 5 stations, rubber seal, and individually operated 2-position type.
*For connector connecting base (type 10) manifolds
Model
Port size Flow rate characteristics
1, 3/5
(P, E)
4, 2
(A, B)
1 →4/2 (P →A/B) 4/2 →3/5 (A/B →E)
C [dm3/(s·bar)] b C [dm3/(s·bar)] b
SY30M-38-1A-C6 C8 C6 1.2 0.32 1.4 0.24
SY30M-39-1A-C6 1.2 0.27 1.1 0.27
SY50M-38-1A-C8 C10 C8 2.7 0.36 3.3 0.22
SY50M-39-1A-C8 2.2 0.37 2.2 0.36
SY70M-38-1A-C12 C12 C12 4.8 0.26 4.7 0.25
SY70M-39-1A-C12 4.9 0.28 4.7 0.23
Part numbers of mounting
screw (For repairs)
SY3000: SY3000-23-12A (2 pcs.)
SY5000: SY5000-221-2A (2 pcs.)
SY7000: SY7000-221-2A (3 pcs.)
Part numbers of mounting
screw (For repairs)
SY3000: SY3000-23-12A (2 pcs.)
SY5000: SY5000-221-2A (2 pcs.)
SY7000: SY7000-221-2A (3 pcs.)
LIndividual SUP spacer assembly
[With a connector gasket, a base gasket, and two mounting screws
(3 pcs. for the SY7000)]
When the same manifold is used for different pressures, an individual
SUP spacer assembly is used as a supply port for different pressures.
* When selecting a One-touch fitting elbow type for a spacer assembly,
use it faced upward, since it interferes with A and B port piping of
Type 10 manifolds.
*When the elbows are facing upward in A and B ports in Type 10
manifolds, they will interfere with the piping for the spacer assem-
bly. Therefore, combine the A and B ports with straight types or
elbows facing downward.
LIndividual EXH spacer assembly
[With a connector gasket, a base gasket, and two mounting screws
(3 pcs. for the SY7000)]
When valve exhaust affects other stations due to the circuit
configuration, this spacer assembly is used for individual valve exhaust.
* When selecting a One-touch fitting elbow type for a spacer assembly,
use it faced upward, since it interferes with A and B port piping of
Type 10 manifolds.
*When the elbows are facing upward in A and B ports in Type 10
manifolds, they will interfere with the piping for the spacer assem-
bly. Therefore, combine the A and B ports with straight types or el-
bows facing downward.
Series
Spacer type
Individual SUP/EXH spacer assembly
* Select the long elbow type for a 3-position valve when
using Type 11 and Type 12 downward. However,
Type 11 of the SY3000 series for the mixed mounting
of connector connecting bases cannot be used
downward.
Port size (Metric/One-touch fittings)
Port size (Inch/One-touch fittings)
Port size (Metric/One-touch fittings)
Port size (Inch/One-touch fittings)
*Refer to pages 215 to 217 for dimensions.
Manifold Options
SY 0M A1383C6
SY 0M AL62383
One-touch fitting
Straight type
One-touch fitting
Elbow type
How to Order Individual SUP/EXH Spacer Assembly
Caution
*When using in combination with the SY 30 -1-E (With
residual pressure release valve), the length of the required
mounting screws will differ. Please contact SMC for details.
5
70 1
2-position single valve
Mounting
screw
Base gasket Circuit diagram
(Mounting example of a
2-position single valve)
Connector gasket
1(P')
2(B)
4(A)
3(EB)
1(P)
5(EA)
Individual SUP spacer
assembly
2-position single valve
Circuit diagram
(Mounting example of a
2-position single valve)
Mounting
screw
Base gasket
Connector gasket
3/5(E')
2(B)
4(A)
3(EB)
1(P)
5(EA)
Individual EXH spacer
assembly
Tightening torque for mounting screw
M2: 0.16 N·m (SY3000)
M3: 0.8 N·m (SY5000/7000)
Symbol P, E port SY3000 SY5000 SY7000
LN3 ø5/32" V— —
LN7 ø1/4" V V —
LN9 ø5/16" — V—
LN11
ø3/8" — — V
Symbol P, E port SY3000 SY5000 SY7000
L4 ø4 V V —
L6 ø6 V V V
L8 ø8 — V V
L10 ø10 — — V
L12 ø12 — — V
Symbol P, E port SY3000 SY5000 SY7000
N1 ø1/8" V— —
N3 ø5/32" V V —
N7 ø1/4" V V V
N9 ø5/16" — V V
N11 ø3/8" — — V
Symbol P, E port SY3000 SY5000 SY7000
C2 ø2 V— —
C3 ø3.2 V— —
C4 ø4 V V —
C6 ø6 V V V
C8 ø8 — V V
C10 ø10 — — V
C12 ø12 — — V
2Short elbow type
3Long elbow type
38
Individual SUP spacer
39
Individual EXH spacer
3SY3000
5SY5000
7SY7000
204
Manifold Options SY3000/5000/7000 Series
D-sub,
Flat
Ribbon
Lead
Wire
Circular
Connector
Terminal
Block
EX500
EX600
EX250
EX260
EX126
EX120
Common
Dimensions
Mixed
Mounting
Manifold
Exploded
View
Fitting,
Plug
Part Nos.
Manifold
Options
Valve
Specifications
Valve
Construction
Made to
Order
Valve
Replacement
Parts
With Residual
Pressure
Release Valve
Vacuum
Release Valve
with Restrictor
Specific
Product
Precautions
Chart
With
Pressure
Sensor
Connector
Connecting Base
A
CAT.ES11-103E 2022-6

Valve mounting screw (Refer to page 198.)
Tightening torque:
SY3000 series: 0.16 N·m
SY5000/7000 series: 0.8 N·m
For hexagon socket head cap screws
Nominal wrench size:
SY3000 series: 1.5
SY5000/7000 series: 2.5
SUP stop valve mounting screw
Tightening torque:
SY3000 series: 0.16 N·m
SY5000/7000 series: 0.8 N·m
Hexagon wrench
Nominal wrench size:
SY3000 series: 1.3
SY5000/7000 series: 2
SUP stop valve spacer assembly with
residual pressure release valve
Plate type nut
SY3000 series:
SY30M-57-1A (10 pcs. included)
SY5000/7000 series:
SY50M-57-1A (10 pcs. included)
Valve
Connector gasket
Base gasket
Mounting screw
Circuit diagram
(Mounting example of a 2-position single valve)
EXH.
2-position single valve
SUP stop valve spacer assembly
with residual pressure release valve
2(B)
4(A)
3(EB)
1(P)
5(EA)
Manifold Options
 SUP stop valve spacer assembly with residual pressure release valve
[With a connector gasket, a base gasket, and two mounting screws
(3 pcs. for the SY7000)]
It is used to shut off the supply air to valves individually.
* Cannot be selected when the elbows are facing upward in A and B ports in Type
10 manifolds, since they will interfere with the piping for the spacer assembly
[How to mount SUP stop valve spacer assembly with residual pressure release valve]
Insert the SUP stop valve mounting screw from the side of the spacer assembly,
and mount it to the manifold.
Tighten the SUP stop valve mounting screw to the specified tightening torque.
Mount the valve and tighten the valve mounting screws to the specified
tightening torque after mounting the SUP stop valve spacer assembly with
residual pressure release valve.
*Install the plate type nut to the spacer assembly as shown in the figure if it
comes off. The SUP stop valve mounting screws can be tightened with a
hexagon wrench without removing the plate type nut.
*When the elbows are facing upward in A and B ports in Type 10 manifolds,
they will interfere with the piping for the spacer assembly. Therefore, combine
the A and B ports with straight types or elbows facing downward.
*This product is only for internal pilot specifications, as the external pilot air
cannot be shut off.
*If the product is equipped with a 3-position closed center, residual pressure
cannot be released, so use in combination with a 3-port valve, which can be
connected to the A, B piping port.
*For lever type:
When locking the lever type manual override, push the lever down in the
PUSH position with your fingers until it stops, then turn the lever 90°clockwise.
(PUSH →LOCK)
Turning the lever without pushing it down until it stops can cause damage to
the manual override and other problems such as air leakages.
To unlock the manual override, turn the lever counterclockwise. (LOCK →PUSH)
Series
SY 50 3 E
1A0M
Manual override
Valve mounting screw (Refer to page 198.)
Tightening torque:
SY3000 series: 0.16 N
·m
SY5000/7000 series: 0.8 N
·m
For hexagon socket head cap screws
Nominal wrench size:
SY3000 series: 1.5
SY5000/7000 series: 2.5
SUP stop valve mounting screw
Tightening torque:
SY3000 series: 0.16 N
·m
SY5000/7000 series: 0.8 N
·m
Hexagon wrench
Nominal wrench size:
SY3000 series: 1.3
SY5000/7000 series: 2
SUP stop valve spacer assembly with
residual pressure release valve
Plate type nut
SY3000 series:
SY30M-57-1A
(10 pcs. included)
SY5000/7000 series:
SY50M-57-1A
(10 pcs. included)
Valve
Connector gasket
Base gasket
Mounting screw
3SY3000
5SY5000
7SY7000
Nil
Push-turn
locking
slotted type
E
Push-turn
locking
lever type
*Calculation of effective area S and sonic conductance C: S = 5.0 x C
*The value is for manifold base with 5 stations, rubber seal, and individually operated 2-position type.
*For connector connecting base (type 10) manifolds
Model
Port size Flow rate characteristics
1, 3/5
(P, E)
4, 2
(A, B)
1 →4/2 (P →A/B) 4/2 →3/5 (A/B →E)
C [dm3/(s·bar)] b C [dm3/(s·bar)] b
SY30M-50-1A(E) C8 C6 0.6 0.18 1.4 0.29
SY50M-50-1A(E) C10 C8 1.6 0.20 3.1 0.23
SY70M-50-1A(E) C12 C12 3.1 0.18 4.3 0.32
Part numbers of mounting
screw (For repairs)
SY3000: SY30M-56-1A (2 pcs.)
SY5000: SY50M-56-1A (2 pcs.)
SY7000: SY70M-56-1A (3 pcs.)
*Refer to pages 215 to 217 for dimensions.
Caution
Tightening torque for mounting screw
M2: 0.16 N·m (SY3000)
M3: 0.8 N·m (SY5000/7000)
205
SY3000/5000/7000 Series
CAT.ES11-103E 2022-6

Manifold Options
 Double check spacer assembly with residual pressure release valve (Side/Bottom ported)
[With a connector gasket, a base gasket, and two mounting screws (3 pcs. for the SY7000)]
It is used to hold the intermediate position of the cylinder for a long period of time. Use a 3-position
exhaust center valve when the double check spacer assembly with residual exhaust valve is used.
It can also be used for drop prevention at the cylinder stroke end when supply residual
pressure is released by using a 2-position single/double valve.
* When the elbows are facing upward in A and B ports in Type 10 manifolds, they will interfere with the piping for
the spacer assembly. Therefore, combine the A and B ports with straight types or elbows facing downward.
• Air leakage from the pipe between the valve and cylinder or from the fittings will prevent the cylinder
from stopping for a long period of time. Check the leakage using neutral household detergent, such as
dish washing soap. Also, check the cylinder’s tube gasket, piston seal, and rod seal for air leakage.
• Combining with 3-position closed center or pressure center valve will not work.
• If the exhaust of the double check spacer is restricted too much, the cylinder may not operate properly
and may not stop intermediately.
• Set the cylinder load so that the cylinder pressure will be within two times that of the supply pressure.
• If using a double check spacer that is built in to the sub-plate, refer to page 283.
Caution
Specifications
Mounting screw
Base gasket
Connector gasket
(Intermediate stop: When 3-position exhaust center valve is mounted)
Double check spacer assembly with residual pressure release valve
3-position exhaust center valve
Double check spacer assembly with residual pressure release valve
(Drop prevention: When 2-position single valve is mounted)
2-position single valve
Circuit diagram
EXH.
2(B)4(A)
3(EB)
1(P)
5(EA)
Circuit diagram
EXH.
2(B)4(A)
3(EB)
1(P)
5(EA)
<Example>
Intermediate stop Drop prevention
Applicable
valve SY3
5
7400
1SY 3
5
7
1
200 1
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperatures
–10 to 50°C
Flow rate
characteristics: C
SY3000 0.3 dm3/(s·bar)
SY5000 0.7 dm3/(s·bar)
SY7000 1.1 dm3/(s·bar)
Max. operating frequency 3 Hz
Series Part no.
SY3000 SY30M-60-1A
SY5000 SY50M-60-1A
SY7000 SY70M-60-1A
Blanking plate assembly
[With two mounting screws (3 pcs. for the SY7000)]
Used when valve additions are expected or for maintenance. A
structure is in place on the blanking plate to prevent the mounting
screws from sliding.
SY30M-26-1A(-B) SY50M-26-1A(-B) SY70M-26-1A(-B)
How to Order Blanking Plate Assembly
SY 0M 26
Option for mounting
3 1A
Series
Circuit diagram
Mounting screw
(2 pcs.)
Mounting screw
(2 pcs.)
Mounting screw
(3 pcs.)
(A)
4
(B)
2
5
(EA)
1
(P)
3
(EB)
3SY3000
5SY5000
7SY7000
Nil
With mounting screw (Round head combination screw)
B
With mounting screw (Hexagon socket head cap screw)
*Refer to pages 215 to 217 for dimensions.
Caution
Tightening torque for mounting screw
M2: 0.16 N·m (SY3000)
M3: 0.8 N·m (SY5000/7000)
Part numbers of mounting screw [Hexagon bolt] (For repairs)
SY3000: SY3000-23-24A [SY3000-222-1A]
SY5000: SY5000-221-1A [SY5000-222-1A]
SY7000: SY7000-221-2A [SY7000-222-1A]
Part numbers of mounting
screw (For repairs)
SY3000: SY3000-23-27A (2 pcs.)
SY5000: SY5000-221-4A (2 pcs.)
SY7000: SY7000-221-4A (3 pcs.)
*Refer to pages 215 to 217 for dimensions.
Caution
Tightening torque for mounting screw
M2: 0.16 N·m (SY3000)
M3: 0.8 N·m (SY5000/7000)
206
Manifold Options SY3000/5000/7000 Series
D-sub,
Flat
Ribbon
Lead
Wire
Circular
Connector
Terminal
Block
EX500
EX600
EX250
EX260
EX126
EX120
Common
Dimensions
Mixed
Mounting
Manifold
Exploded
View
Fitting,
Plug
Part Nos.
Manifold
Options
Valve
Specifications
Valve
Construction
Made to
Order
Valve
Replacement
Parts
With Residual
Pressure
Release Valve
Vacuum
Release Valve
with Restrictor
Specific
Product
Precautions
Chart
With
Pressure
Sensor
Connector
Connecting Base
CAT.ES11-103E 2022-6

Part numbers of mounting
screw (For repairs)
SY3000: SY3000-23-12A (2 pcs.)
SY5000: SY5000-221-6A (2 pcs.)
SY7000: SY7000-221-6A (3 pcs.)
SY50M-M1-m
(Without pressure gauge)
SY50M-00/N0-m
(With pressure gauge)
SY70M-M1-m
(Without pressure gauge)
SY70M-00/N0-m
(With pressure gauge)
SY30M-M1-m
(Without pressure gauge)
SY30M-06/N6-m
(With pressure gauge/
For even number station)
SY30M-05/N5-m
(With pressure gauge/
For odd number station)
MInterface regulator
[With a connector gasket, a base gasket, and two mounting screws (3 pcs. for the SY7000)]
Used when the supply pressure for each valve on the same manifold must be individually set (reduced pressure).
SY 0M 053
SY 0M P005
How to Order
Specifications
P
Series
Series
Pressure gauge option
Pressure gauge option*1*1 In the case of the SY3000 series with a pressure gauge, when mounting on the manifold, use
caution that the part numbers are different between the odd no. stations and the even no. stations
to prevent the pressure gauges from interfering with each other.
If using a connector connecting base M10/11/12 (mixed mounting type) or laminating two or more
types of spacer type manifold options for the neighboring stations, you can use only the model
without a pressure gauge (M1).
*2 As per the new Measurement Law, gauges with a psi display will only be sold to overseas
customers.
*3 In the case of the SY3000 series, use caution that the part numbers will differ depending on the
one for single/double and 4- and 3-position due to the different length of solenoid valves. Also, if
you have selected a model with a pressure gauge, and if at least the one for 3-position is included
in the same manifold, use all the ones for 3-position to prevent the pressure gauges from
interfering with each other.
*Refer to pages 215 to 218 for dimensions.
Regulating port
Applicable valve*3
Symbol
Manifold Options
Caution
*1 3-position closed center and pressure center, and 4-position
dual 3-port valves are only available for 1(P) port pressure
regulation.
*2 Gasket and mounting screws are included in the weight.
*3 ( ): Denotes the values of SY30M-m-m-3
*Always apply pressure from 1(P) port in the base for interface
regulator.
*When using in combination with the SY 30 m-m1-E (With
residual pressure release valve), the length of the required
mounting screws will differ. Please contact SMC for details.
5
70 1
Mounting screw
Connector gasket
Base gasket
(EA)5
1
(P)
3(EB)
2(B)
(A)4
(EA)5
1
(P)
3(EB)
2(B)
(A)4
(EA)5
1
(P)
3(EB)
2(B)(A)4
2(B) port regulation
(P controlled type, B port regulation)
4(A) port regulation
(P controlled type, A port regulation)
1(P) port regulation
Tightening torque for mounting screw
M2: 0.16 N·m (SY3000)
M3: 0.8 N·m (SY5000/7000)
5SY5000
7SY7000
Interface regulator model SY30M-m-m-mSY50M-m-mSY70M-m-m
Applicable valve model*1SY3m0
3m(R) SY5m0 3m(R) SY7m0 3m(R)
Regulating port 1(P), 4(A), 2(B)
Set pressure range 0.1 to 0.7 MPa
Maximum operating pressure 1.0 MPa
Fluid Air
Ambient and fluid temperatures –10 to 50°C (No freezing)
Weight [g]*2
With pressure gauge 33 (35)*375 93
Without pressure gauge 27 (29)*369 87
Nil
For single, double, and 4-position
3For 3-position
P1(P) port
A1
4(A) port (P controlled type, A port regulation)
B1
2(B) port (P controlled type, B port regulation)
M1 Without pressure gauge
00
Pressure gauge with MPa display
N0
Pressure gauge with psi display*2
M1 Without pressure gauge
05
Pressure gauge with MPa display (For odd number station)
06
Pressure gauge with MPa display (For even number station)
N5
P ressure gauge with psi display (For odd number station)*2
N6
Pressure gauge with psi display (For even number station)*2
3SY3000
207
SY3000/5000/7000 Series
CAT.ES11-103E 2022-6

A
B
C
A
B
C
A
B
C
A
B
C
D
Manifold Options: Spacer Combinations and Screw List q
∗Mounting onto a manifold follows the order explained above.
∗The fitting for individual SUP/EXH spacers comes in a straight type only, since an elbow type would interfere with each spacer assembly when laminated.
Caution
Tightening torque for mounting screw
M2: 0.16 N·m (SY3000)
M3: 0.8 N·m (SY5000/7000)
Combination qqSY3000 (M2) wwSY5000 (M3) eeSY7000 (M3)
Round head combination screw Hexagon socket head cap screw Round head combination screw Hexagon socket head cap screw Round head combination screw Hexagon socket head cap screw
<Round head combination screw>
q: SY3000-23-24A
w: SY5000-221-1A
e: SY7000-221-1A
<Hexagon socket head cap screw>
q: SY3000-222-1A
w: SY5000-222-1A
e: SY7000-221-1A
q: SY30M-56-2A
w: SY50M-56-2A
e: SY70M-56-2A
AValve
SY3000-
23-24A
[for 10 valves
(20 pcs.)]
SY3000-
222-1A
[for 10 valves
(20 pcs.)]
SY5000-
221-1A
[for 10 valves
(20 pcs.)]
SY5000-
222-1A
[for 10 valves
(20 pcs.)]
SY7000-
221-1A
[for 10 valves
(30 pcs.)]
SY7000-
222-1A
[for 10 valves
(30 pcs.)]
B
SUP stop valve
spacer assembly
with residual
pressure
release valve
SY30M-56-2A
(2 pcs.)
SY50M-56-2A
(2 pcs.)
SY70M-56-2A
(3 pcs.)
C
Individual
SUP (EXH)
spacer
assembly
<Round head combination screw>
q: SY3000-23-33A
w: SY5000-221-5A
e: SY7000-221-5A
AValve
SY3000-
23-33A
(2 pcs.)
—
SY5000-
221-5A
(2 pcs.)
—
SY7000-
221-5A
(3 pcs.)
—
B
Double check
spacer assembly
with residual
pressure release
valve
C
Individual
SUP (EXH)
spacer
assembly
<Round head combination screw>
q: SY3000-23-32A
w: SY5000-221-3A
e: SY7000-221-3A
AValve
SY3000-
23-32A
(2 pcs.)
—
SY5000-
221-3A
(2 pcs.)
—
SY7000-
221-3A
(3 pcs.)
—
B
Individual
SUP (EXH)
spacer
assembly
C
Individual
EXH (SUP)
spacer
assembly
<Round head combination screw>
q: SY3000-23-24A
w: SY5000-221-1A
e: SY7000-221-1A
<Hexagon socket head cap screw>
q: SY3000-222-1A
w: SY5000-222-1A
e: SY7000-222-1A
q: SY30M-56-4A
w: SY50M-56-4A
e: SY70M-56-4A
AValve
SY3000-
23-24A
[for 10 valves
(20 pcs.)]
SY3000-
222-1A
[for 10 valves
(20 pcs.)]
SY5000-
221-1A
[for 10 valves
(20 pcs.)]
SY5000-
222-1A
[for 10 valves
(20 pcs.)]
SY7000-
221-1A
[for 10 valves
(30 pcs.)]
SY7000-
222-1A
[for 10 valves
(30 pcs.)]
B
SUP stop valve
spacer assembly
with residual
pressure
release valve
SY30M-56-4A
(2 pcs.)
SY50M-56-4A
(2 pcs.)
SY70M-56-4A
(3 pcs.)
C
Individual
SUP (EXH)
spacer
assembly
D
Individual
EXH (SUP)
spacer
assembly
208
Manifold Options SY3000/5000/7000 Series
D-sub,
Flat
Ribbon
Lead
Wire
Circular
Connector
Terminal
Block
EX500
EX600
EX250
EX260
EX126
EX120
Common
Dimensions
Mixed
Mounting
Manifold
Exploded
View
Fitting,
Plug
Part Nos.
Manifold
Options
Valve
Specifications
Valve
Construction
Made to
Order
Valve
Replacement
Parts
With Residual
Pressure
Release Valve
Vacuum
Release Valve
with Restrictor
Specific
Product
Precautions
Chart
With
Pressure
Sensor
Connector
Connecting Base
CAT.ES11-103E 2022-6
