SMC Networks EX260-SEN1-X242 User manual

No.EX※※-OMA1009
PRODUCT NAME
SI unit for Modbus/TCP
MODEL / Series / Product Number
EX260-SEN1-X242
2022-10-2817:33
DL415352

-1-
No.EX※※-OMA1009
Table of Contents
Safety Instructions 2
Model Indication and How to Order 8
Summary of Product parts 9
Definition and terminology 10

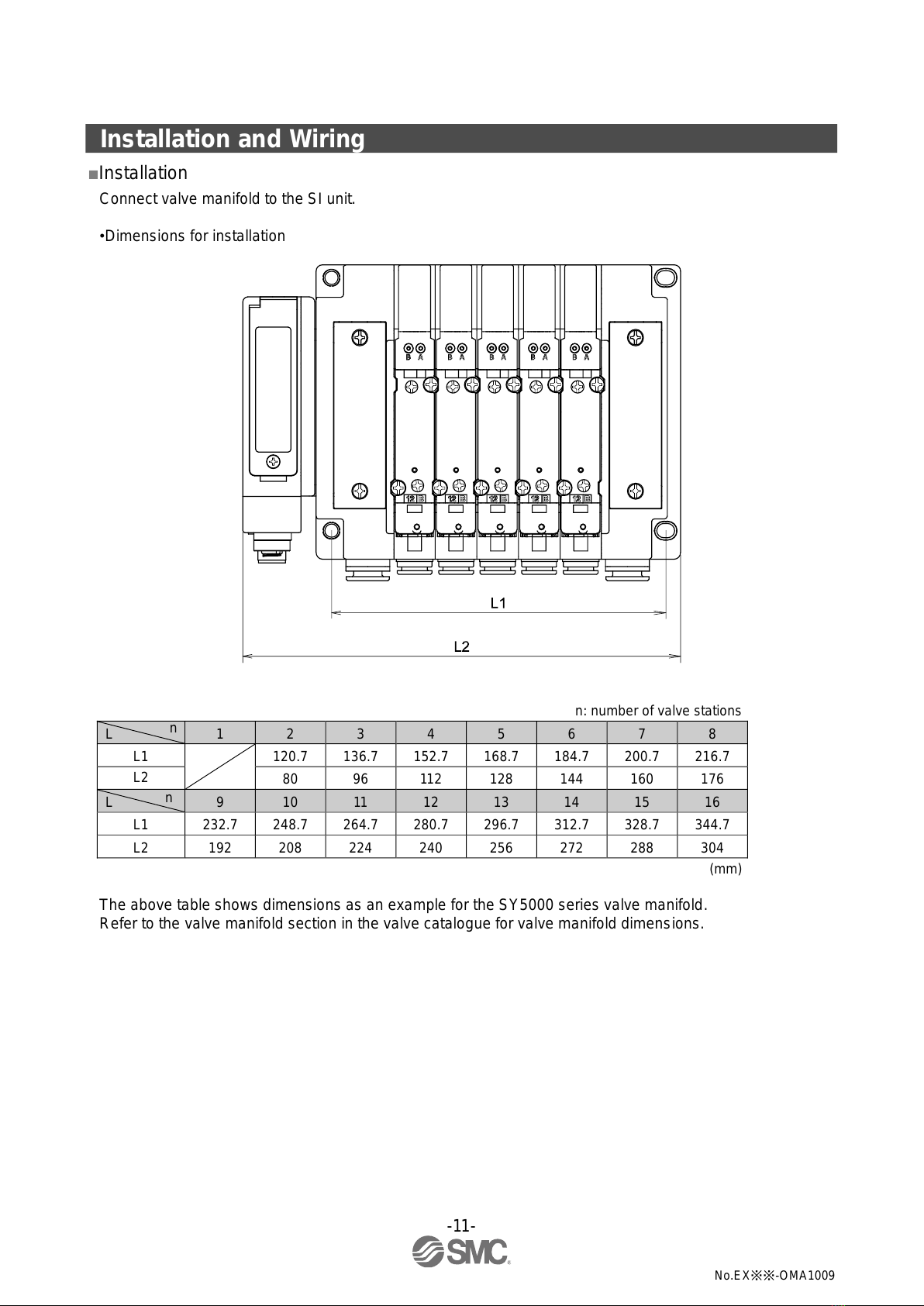

Installation and Wiring 11
Installation 11
Wiring 12
LED Indication and Settings 15
Modbus/TCP Register 18
Function Code 19
Web server function 25
Troubleshooting and Maintenance 34
Specification 38
Specifications 38
Dimensions 41
Accessories 42
2022-10-2817:33
DL415352

-2-
No.EX※※-OMA1009
Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or equipment damage.
These instructions indicate the level of potential hazard with the labels of "Caution", "Warning" or "Danger".
They are all important notes for safety and must be followed in addition to International Standards
(ISO/IEC)*1), and other safety regulations.
*1) ISO 4414: Pneumatic fluid power -- General rules relating to systems.
ISO 4413: Hydraulic fluid power -- General rules relating to systems.
IEC 60204-1: Safety of machinery -- Electrical equipment of machines .(Part 1: General requirements)
ISO 10218: Manipulating industrial robots -Safety.
etc.
Caution
Caution indicates a hazard with a low level of risk which, if not avoided, could
result in minor or moderate injury.
Warning
Warning indicates a hazard with a medium level of risk which, if not avoided,
could result in death or serious injury.
Danger
Danger indicates a hazard with a high level of risk which, if not avoided, will
result in death or serious injury.
Warning
1. The compatibility of the product is the responsibility of the person who designs the
equipment or decides its specifications.
Since the product specified here is used under various operating conditions, its compatibility with specific
equipment must be decided by the person who designs the equipment or decides its specifications
based on necessary analysis and test results.
The expected performance and safety assurance of the equipment will be the responsibility of the person
who has determined its compatibility with the product.
This person should also continuously review all specifications of the product referring to its latest catalog
information, with a view to giving due consideration to any possibility of equipment failure when
configuring the equipment.
2. Only personnel with appropriate training should operate machinery and equipment.
The product specified here may become unsafe if handled incorrectly.
The assembly, operation and maintenance of machines or equipment including our products must be
performed by an operator who is appropriately trained and experienced.
3. Do not service or attempt to remove product and machinery/equipment until safety is
confirmed.
1. The inspection and maintenance of machinery/equipment should only be performed after measures to
prevent falling or runaway of the driven objects have been confirmed.
2. When the product is to be removed, confirm that the safety measures as mentioned above are
implemented and the power from any appropriate source is cut, and read and understand the specific
product precautions of all relevant products carefully.
3. Before machinery/equipment is restarted, take measures to prevent unexpected operation and
malfunction.
4. Contact SMC beforehand and take special consideration of safety measures if the
product is to be used in any of the following conditions.
1. Conditions and environments outside of the given specifications, or use outdoors or in a place
exposed to direct sunlight.
2. Installation on equipment in conjunction with atomic energy, railways, air navigation, space, shipping,
vehicles, military, medical treatment, combustion and recreation, or equipment in contact with food and
beverages, emergency stop circuits, clutch and brake circuits in press applications, safety equipment or
other applications unsuitable for the standard specifications described in the product catalog.
3. An application which could have negative effects on people, property, or animals requiring special
safety analysis.
4. Use in an interlock circuit, which requires the provision of double interlock for possible failure by using
a mechanical protective function, and periodical checks to confirm proper operation.
2022-10-2817:33
DL415352

-3-
No.EX※※-OMA1009
Safety Instructions
Caution
1.The product is provided for use in manufacturing industries.
The product herein described is basically provided for peaceful use in manufacturing industries.
If considering using the product in other industries, consult SMC beforehand and exchange specifications
or a contract if necessary.
If anything is unclear, contact your nearest sales branch.
Limited warranty and Disclaimer/Compliance Requirements
The product used is subject to the following "Limited warranty and Disclaimer" and "Compliance
Requirements".
Read and accept them before using the product.
Limited warranty and Disclaimer
1. The warranty period of the product is 1 year in service or 1.5 years after the product is
delivered,whichever is first.2)
Also, the product may have specified durability, running distance or replacement parts. Please
consult your nearest sales branch.
2. For any failure or damage reported within the warranty period which is clearly our responsibility,
a replacement product or necessary parts will be provided.
This limited warranty applies only to our product independently, and not to any other damage
incurred due to the failure of the product.
3. Prior to using SMC products, please read and understand the warranty terms and disclaimers
noted in the specified catalog for the particular products.
2) Vacuum pads are excluded from this 1 year warranty.
A vacuum pad is a consumable part, so it is warranted for a year after it is delivered.
Also, even within the warranty period, the wear of a product due to the use of the vacuum
pad or failure due to the deterioration of rubber material are not covered by the limited
warranty.
Compliance Requirements
1. The use of SMC products with production equipment for the manufacture of weapons of mass
destruction(WMD) or any other weapon is strictly prohibited.
2. The exports of SMC products or technology from one country to another are governed by the
relevant security laws and regulation of the countries involved in the transaction. Prior to the
shipment of a SMC product to another country, assure that all local rules governing that export
are known and followed.
2022-10-2817:33
DL415352

-4-
No.EX※※-OMA1009
Operator
This operation manual is intended for those who have knowledge of machinery using pneumatic
equipment, and have sufficient knowledge of assembly, operation and maintenance of such
equipment. Only those persons are allowed to perform assembly, operation and maintenance.
Read and understand this operation manual carefully before assembling, operating or providing
maintenance to the product.
■Safety Instructions
Warning
■Do not disassemble, modify (including changing the printed circuit board) or repair.
An injury or failure can result.
■Do not operate the product outside of the specifications.
Do not use for flammable or harmful fluids.
Fire, malfunction, or damage to the product can result.
Verify the specifications before use.
■Do not operate in an atmosphere containing flammable or explosive gases.
Fire or an explosion can result.
This product is not designed to be explosion proof.
■If using the product in an interlocking circuit:
•Provide a double interlocking system, for example a mechanical system.
•Check the product regularly for proper operation.
Otherwise malfunction can result, causing an accident.
■The following instructions must be followed during maintenance:
•Turn off the power supply.
•Stop the air supply, exhaust the residual pressure and verify that the air is released before performing
maintenance.
Otherwise an injury can result.
Caution
■After maintenance is complete, perform appropriate functional inspections.
Stop operation if the equipment does not function properly.
Safety cannot be assured in the case of unexpected malfunction.
■Provide grounding to assure the noise resistance of the Serial System.
Individual grounding should be provided close to the product with a short cable.
2022-10-2817:33
DL415352

-5-
No.EX※※-OMA1009
■NOTE
○Follow the instructions given below when designing, selecting and handling the product.
•The instructions on design and selection (installation, wiring, environment, adjustment, operation,
maintenance, etc.) described below must also be followed.
Product specifications
•When conformity to UL is required, the SI unit should be used with a UL1310 Class 2 power supply.
•The SI unit is a "UL" approved product only if they have a mark on the body.
•Use the specified voltage.
Otherwise failure or malfunction can result.
•Reserve a space for maintenance.
Allow sufficient space for maintenance when designing the system.
•Do not remove any nameplates or labels.
This can lead to incorrect maintenance, or misreading of the operation manual, which could cause damage or
malfunction to the product.
It may also result in non-conformity to safety standards.
2022-10-2817:33
DL415352

-6-
No.EX※※-OMA1009
•Product handling
Installation
•Do not drop, hit or apply excessive shock to the fieldbus system.
Otherwise damage to the product can result, causing malfunction.
•Tighten to the specified tightening torque.
If the tightening torque is exceeded the mounting screws may be broken.
IP67 protection cannot be guaranteed if the screws are not tightened to the specified torque.
•Never mount a product in a location that will be used as a foothold.
The product may be damaged if excessive force is applied by stepping or climbing onto it.
Wiring
•Avoid repeatedly bending or stretching the cables, or placing heavy load on them.
Repetitive bending stress or tensile stress can cause breakage of the cable.
•Wire correctly.
Incorrect wiring can break the product.
•Do not perform wiring while the power is on.
Otherwise damage to the fieldbus system and/or I/O device can result, causing malfunction.
•Do not route wires and cables together with power or high voltage cables.
Otherwise the fieldbus system and/or I/O device can malfunction due to interference of noise and surge voltage
from power and high voltage cables to the signal line.
Route the wires (piping) of the fieldbus system and/or I/O device separately from power or high voltage cables.
•Confirm proper insulation of wiring.
Poor insulation (interference from another circuit, poor insulation between terminals, etc.) can lead to excess
voltage or current being applied to the product, causing damage.
•Take appropriate measures against noise, such as using a noise filter, when the fieldbus system is
incorporated into equipment.
Otherwise noise can cause malfunction.
Environment
•Select the proper type of protection according to the environment of operation.
IP67 protection is achieved when the following conditions are met.
(1) The units are connected properly with fieldbus cable with M12 connector and power cable with M12 (M8)
connector.
(2) Suitable mounting of each unit and manifold valve.
If using in an environment that is exposed to water splashes, please take measures such as using a cover.
•Do not use in a place where the product could be splashed by oil or chemicals.
If the product is to be used in an environment containing oils or chemicals such as coolant or cleaning solvent, even
for a short time, it may be adversely affected (damage, malfunction etc.).
•Do not use the product in an environment where corrosive gases or fluids could be splashed.
Otherwise damage to the product and malfunction can result.
•Do not use in an area where surges are generated.
If there is equipment which generates a large amount of surge (solenoid type lifter, high frequency induction furnace,
motor, etc.) close to the fieldbus system, this may cause deterioration or breakage of the internal circuit of the
fieldbus system. Avoid sources of surge generation and crossed lines.
•When a surge-generating load such as a relay or solenoid is driven directly, use an fieldbus system with
a built-in surge absorbing element.
Direct drive of a load generating surge voltage can damage the fieldbus system.
•The product is CE/UKCA marked, but not immune to lightning strikes. Take measures against lightning
strikes in the system.
•Prevent foreign matter such as remnant of wires from entering the fieldbus system to avoid failure and
malfunction.
2022-10-2817:33
DL415352

-7-
No.EX※※-OMA1009
•Mount the product in a place that is not exposed to vibration or impact.
Otherwise failure or malfunction can result.
•Do not use the product in an environment that is exposed to temperature cycle.
Heat cycles other than ordinary changes in temperature can adversely affect the inside of the product.
•Do not expose the product to direct sunlight.
If using in a location directly exposed to sunlight, shade the product from the sunlight.
Otherwise failure or malfunction can result.
•Keep within the specified ambient temperature range.
Otherwise malfunction can result.
•Do not operate close to a heat source, or in a location exposed to radiant heat.
Otherwise malfunction can result.
Adjustment and Operation
•Perform settings suitable for the operating conditions.
Incorrect setting can cause operation failure.
•Please refer to the PLC manufacturer's manual etc. for details of programming and addresses.
For the PLC protocol and programming refer to the relevant manufacturer's documentation.
•The surface on the product may be hot.
Maintenance
•Turn off the power supply, stop the supplied air, exhaust the residual pressure and verify the release of
air before performing maintenance.
There is a risk of unexpected malfunction.
•Perform regular maintenance and inspections.
There is a risk of unexpected malfunction.
•After maintenance is complete, perform appropriate functional inspections.
Stop operation if the equipment does not function properly.
Otherwise safety is not assured due to an unexpected malfunction or incorrect operation.
•Do not use solvents such as benzene, thinner etc. to clean the each unit.
They could damage the surface of the body and erase the markings on the body.
Use a soft cloth to remove stains.
For heavy stains, use a cloth soaked with diluted neutral detergent and fully squeezed, then wipe up the stains
again with a dry cloth.
2022-10-2817:33
DL415352

-8-
No.EX※※-OMA1009
Model Indication and How to Order
EX260-SEN1-X242
Protocol
Modbus/TCP
Polarity of output
PNP (negative common)/source
2022-10-2817:33
DL415352

-9-
No.EX※※-OMA1009
Summary of Product parts
No.
Element
Description
1
Fieldbus interface connector
(BUS OUT)
Modbus/TCP connection PORT 2.1
(M12 4-pin socket, D-coded)
2
Fieldbus interface connector
(BUS IN)
Modbus/TCP connection PORT 1.1
(M12 4-pin socket, D-coded)
3
Power supply connector
Power supply with load voltage for valves and operating voltage for SI unit.1
(M12 4-pin plug, A-coded)
4
FE terminal
Functional earth. (M3 screw)
5
Output connector
Output signal interface for valve manifold.
6
LED display
LED display to indicate the status of the SI unit.2
7
Mounting hole
Mounting hole for connection to the valve manifold.
Accessories
Hexagon socket head cap screw
2 pcs. M3 x 30 screw for connection to the valve manifold.
Seal cap
1 pc. seal cap for unused fieldbus interface connector (BUS OUT).
1: For details of suitable cables refer to the Accessories section on page 42.
2: Refer to page 15 for the LED Indication and Settings.
2022-10-2817:33
DL415352

-10-
No.EX※※-OMA1009
■Definition and terminology
Terms
Meaning
100
100BASE-TX
Standard of LAN transmission line with communication speed of 100 Mbps.
A
AD value
The signal from the analogue input device is converted to digital, and displayed in
decimal and hexadecimal. These hexadecimal and decimal values are also
outputted to the analogue output device.
Auto negotiation
The function that automatically optimizes the communication speed and method
between the Ethernet devices.
C
Current consumption
The current necessary to operate each unit.
D
DIN rail
A metal rail conforming with DIN (German) standard.
E
Enclosure (IP□□)
Abbreviation of international (ingress) protection. A standard related to the
protection from external objects (hands, steel ball, steel wire, dust, water, etc.)
applied to the product.
F
Fieldbus
The protocol that uses digital communication to exchange signals between field
equipment (instruments and actuators) running on site and a PLC.
Full duplex
Communication system that can send and receive data at the same time
bi-directionally
H
Half duplex
Communication system that sends and receives data in one direction at a time.
I
IP address
A 32 bit digit sequence which is assigned to identify devices which are connected
to the network.
M
MAC address
A unique number inherent to all devices which are connected to Modbus/TCP.
Manifold
A form consisting of multiple components. A form made by combining multiple
components
N
Number of outputs
The number of points that can operate output device (solenoid valve)
P
PLC
Abbreviation of programmable logic controller. A digital computer used for
automation of electromechanical processes.
PNP output
The output type that uses a PNP transistor to operate output device. It is also
known as a negative common type since a negative potential is applied to the
power supply common line.
S
SI unit
Abbreviation of serial interface unit. A unit connected to a PLC to communicate
input and output data.
T
Topology
Connection configuration of the network
2022-10-2817:33
DL415352

-11-
No.EX※※-OMA1009
Installation and Wiring
■Installation
Connect valve manifold to the SI unit.
•Dimensions for installation
n: number of valve stations
L
1
2
3
4
5
6
7
8
L1
120.7
136.7
152.7
168.7
184.7
200.7
216.7
L2
80
96
112
128
144
160
176
L
9
10
11
12
13
14
15
16
L1
232.7
248.7
264.7
280.7
296.7
312.7
328.7
344.7
L2
192
208
224
240
256
272
288
304
(mm)
The above table shows dimensions as an example for the SY5000 series valve manifold.
Refer to the valve manifold section in the valve catalogue for valve manifold dimensions.
n
n
2022-10-2817:33
DL415352

-12-
No.EX※※-OMA1009
■Wiring
Select the appropriate cables to mate with the connectors mounted on the SI unit.
○Fieldbus interface connector layout
BUS IN and BUS OUT: M12 4-pin socket, D-coded
No.
Designation
Description
1
TD+
Transmit Data +
2
RD+
Receive Data +
3
TD -
Transmit Data -
4
RD -
Receive Data -
Connect the "BUS IN" connector to the upstream device (PLC etc.) and connect the "BUS OUT" connector
to the downstream device.
NOTE
•Be sure to fit a seal cap on any unused connectors.
Proper use of the seal cap enables the enclosure to achieve IP67 specification.
: Refer to page 42 for the seal cap.
2022-10-2817:33
DL415352

-13-
No.EX※※-OMA1009
○Power supply connector layout
PWR: M12 4-pin plug, A-coded
No.
Designation
Description
1
SI24 V
+24 V for SI unit operation
2
SV24 V
+24 V for solenoid valve
3
SI0 V
0 V for SI unit operation
4
SV0 V
0 V for solenoid valve
Power-supply line for solenoid valve and power-supply line for SI unit operation are isolated.
Be sure to supply power, respectively.
Either single-source power or two different power supplies can be used.
: Pay attention not to exceed the tolerance range of power supply voltage.
2022-10-2817:33
DL415352

-14-
No.EX※※-OMA1009
○FE terminal
The SI Unit must be connected to FE (Functional Earth) to divert electromagnetic interference.
For maximum protection, the FE cable should be as thick and short as reasonably possible.
The FE terminal and the metal parts of the fieldbus interface/power supply connector are internally
connected.
FE terminal screw tightening torque: 0.3 N•m
2022-10-2817:33
DL415352

-15-
No.EX※※-OMA1009
LED Indication and Settings
○LED indication
LED
LED Status
Description
NS
OFF
The SI unit operating voltage is not supplied or No Link.
Green ON
Modbus/TCPcommunications established.
Green flashing
Modbus/TCP communications not established.
Red flashing
Query data time out.
MS
OFF
The SI unit operating voltage is not supplied.
Green ON
Operating normally.
Green flashing
Setting error.
Red ON
Unrecoverable error.
L/A1
OFF
BUS IN side: No Link, No Activity
Green ON
BUS IN side: Link, No Activity
Green flashing
BUS IN side: Link,Activity
L/A2
OFF
BUS OUT side: No Link, No Activity
Green ON
BUS OUT side: Link, No Activity
Green flashing
BUS OUT side: Link,Activity
PWR(V)
Green ON
Load voltage for the valve is supplied
OFF
Load voltage for the valve is not supplied or is outside the tolerance range
(19 V or less)
2022-10-2817:33
DL415352

-16-
No.EX※※-OMA1009
○Switch setting
The switches should only be set with the power supply turned off.
Open the cover and set the rotary switches and DIP switch with a small flat blade screwdriver.
Default settings are "Web setting" and all off.
Default IP address of "Web setting" is 192.168.1.20.
2022-10-2817:33
DL415352

-17-
No.EX※※-OMA1009
○Output number assignment
Output data
: The output numbering refers to the solenoid position on the manifold and starts at zero.
: Standard wiring of the manifold is for double-solenoid valves and the output number starts at the Aside and then B side in that
order as shown in the figure a.
If a single-solenoid valve is mounted on the standard wiring manifold, the output number for the B side valve is skipped.
: Custom wiring for mixed mounting single-solenoid valves and double-solenoid-valves can be specified with a Wiring Specification
Sheet. Example wiring is shown in the figure b.
: Bit status "0" and "1" in the data corresponds to solenoid valve status OFF and ON (0: OFF, 1: ON), and the output number starts
at zero from LSB (least significant bit).
2022-10-2817:33
DL415352

-18-
No.EX※※-OMA1009
Modbus/TCP Register
The Modbus/TCP server occupies 4 types of registers, "Holding Registers", "Input Registers", "Coils" and
"Discrete Inputs".
The Client performs "Read" and "Write" commands to the Server registers by using Function Command for
data communication.
The content of the registers assigned to EX260 is shown below.
1) Holding Registers (performs Read/Write using 16 bits (word))
Range
Process data
Contents
0000h to 0001h
Read process data
Output data from Client to Server
0002h to 00FFh
Reserved
-
: When Process active time out is not set (0: Disable), even if the communication cable is disconnected, Hold/Clear of the output will not
be performed.
When the cable is disconnected, the output is retained.
2) Input Registers (Read using 16 bits (word))
Range
Process data
Contents
0000h to 0001h
Write process data
Input data from Server to Client
0002h to 00FFh
Reserved
-
3) Coils (Read/Write using Single bit)
Range
Process data
Contents
0000h to 001Fh
Read process data
Output data from Client to Server
0020h to 07D0h
Reserved
-
4) Discrete Inputs (Read using Single bit)
Range
Process data
Contents
0000h to 000Fh
Write process data
Input data from Server to Client
0010h to 07D0h
Reserved
-
2022-10-2817:33
DL415352

-19-
No.EX※※-OMA1009
Function Code
EX260 supports the function codes below.
No.
Function code name
Function code
1
Read Coils
01h
2
Read Discrete Inputs
02h
3
Read Holding Registers
03h
4
Read Input Registers
04h
5
Write Single Coil
05h
6
Write Single Register
06h
7
Write Multiple Coils
0Fh
8
Write Multiple Registers
10h
9
Read/Write Multiple Registers
17h
1) Read Coils (01h)
Register type: Coils
This function code is used to read from 1 to 2000 contiguous status of coils.
•Request
Size
Contents
Function code
1 byte
01h
Starting address
2 bytes
0000h to 001Fh
Quantity of coils
2 bytes
0001h to 07D0h (2000)
•Response
Size
Contents
Function code
1 byte
01h
Byte count
1 byte
N
Coil status
n = N or N+1 byte
Read value
: N = Quantity of outputs / 8, if the remainder is different of 0 → N = N+1
•This function is mapped to the Read process data part of the Holding Registers as follows:
Coil #
Holding Register #
Bit #
0000h
0000h
0
0001h
1
:
:
000Fh
15
0010h
0001h
0
0011h
1
:
:
001Fh
15
2022-10-2817:33
