Sole Fitness E98 User manual

E98 ELLIPTICAL OWNER’S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL

TABLE OF CONTENTS
1
2
3
4
4
7
12
13
16
22
24
25
ATTENTION
THIS ELLIPTICAL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE
APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.
Product Registration
Important Safety Instructions
Important Electrical Information
Important Operation Instructions
Transport Instructions
E98 Assembly Instructions
Elliptical Features
Operation of Your New Elliptical
Programmable Features
Using Heart Rate Monitor
General Maintenance
Manufacturer’s Limited Warranty

E98 ELLIPTICAL1
Thank you for your purchase of this quality elliptical trainer from SOLE. Your new elliptical has been
manufactured by one of the leading tness manufacturers in the world and is backed by one of the
most comprehensive warranties available. SOLE will do all we can to make your ownership
experience as pleasant as possible for many years to come.
If you have any questions about your new product or questions about the warranty contact SOLE
Fitness at 1-866-780-SOLE (7653). If you have a technical problem with your new elliptical contact
SOLE technical service at 866-MYSOLE1 (697-6531).
Please take a moment at this time to record below the name of the dealer, their telephone number,
and the date of purchase for easy contact in the future. We appreciate your condence in SOLE and
we will always remember that you are the reason that we are in business. Please complete and mail
your registration card today and enjoy your new elliptical.
Yours in Health,
SOLE Fitness
CONGRATULATIONS ON YOUR NEW ELLIPTICAL AND WELCOME TO THE SOLE FAMILY!
RECORD YOUR SERIAL NUMBER
Please record the Serial Number of this tness product
in the space provided below.
Serial Number
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to SOLE.
You can also go to www.soleellipticals.com under the support tab to register online.
Name of Dealer
Telephone Number of Dealer
Purchase Date
PRODUCT REGISTRATION
E98_20110705

2E98 ELLIPTICAL
WARNING - Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock disconnect your SOLE elliptical from the electrical
outlet prior to cleaning and/or service work.
WARNING - To reduce the risk of burns, re, electric shock, or injury to persons, install
the elliptical on a at level surface with access to a 110-volt, 15-amp grounded outlet with only
the elliptical plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS A 14AWG OR BETTER, WITH ONLY ONE
OUTLET ON THE END: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING
IMPROPER ADAPTERS, OR IN ANY WAY MODIFY THE CORD SET.
A serious shock or re hazard may result along with computer malfunctions. See Grounding Instructions, page 3.
Do not operate elliptical on deeply padded, plush or shag carpet. Damage to both carpet
and elliptical may result.
Keep children away from the elliptical. There are obvious pinch points and other caution
areas that can cause harm.
Keep hands away from all moving parts.
Never operate the elliptical if it has a damaged cord or plug. If the elliptical is not working
properly, call your dealer.
Keep the cord away from heated surfaces.
Do not operate where aerosol spray products are being used or where oxygen is being
administered. Sparks from the motor may ignite a highly gaseous environment.
Never drop or insert any object into any openings.
Do not use outdoors.
To disconnect, turn all controls to the o position, then remove the plug from the outlet.
Do not attempt to use your elliptical for any purpose other than for the purpose it is
intended.
The hand pulse sensors are not medical devices. Various factors, including the user’s
movement, may aect the accuracy of heart rate readings. The pulse sensors are intended
only as exercise aids in determining heart rate trends in general.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your elliptical. Quality athletic shoes are recommended to avoid leg fatigue.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT SAFETY INSTRUCTIONS

E98 ELLIPTICAL3
WARNING!
NEVER remove any cover without rst disconnecting AC power.
If voltage varies by ten percent (10%) or more, the performance of your elliptical may be
aected. Such conditions are not covered under your warranty. If you suspect the voltage is
low, contact your local power company or a licensed electrician for proper testing.
NEVER expose this elliptical to rain or moisture. This product is NOT designed for use outdoors,
near a pool or spa, or in any other high humidity environment. The operating temperature
specication is 40 to 120 degrees Fahrenheit, and humidity is 95% non-condensing
(no water drops forming on surfaces).
IMPORTANT ELECTRICAL INSTRUCTIONS
GROUNDING INSTRUCTIONS
This product must be grounded. If the elliptical should malfunction or breakdown, ground-
ing provides a path of least resistance for electric current, reducing the risk of electric shock.
This product is equipped with a cord having an equipment-grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with
all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualied electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the
product if it will not t the outlet; have a proper outlet installed by a qualied electrician.
This product is for use on a nominal 110-volt circuit, and has a grounding plug that looks like
the plug illustrated below. A temporary adapter that looks like the adapter illustrated below
may be used to connect this plug to a 2-pole receptacle as shown below if a properly grounded
outlet is not available. The temporary adapter should be used only until a properly grounded
outlet, (shown below) can be installed by a qualied electrician. The green colored rigid ear-lug,
or the like, extending from the adapter, must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a
metal screw.

4E98 ELLIPTICAL
NEVER operate this elliptical without reading and completely understanding the results of
any operational change you request from the computer.
Understand that changes in resistance and incline do not occur immediately. Set your de-
sired resistance on the computer console and release the adjustment key. The computer will
obey the command gradually.
NEVER use your elliptical during an electrical storm. Surges may occur in your facility or
household power supply that could damage elliptical components. Unplug the elliptical
during an electrical storm as a precaution.
Use caution while participating in other activities while pedaling on your elliptical; such as
watching television, reading, etc. These distractions may result in serious injury.
Always hold on to a handrail or hand bar while making control changes (incline, resistance,
etc.).
Do not use excessive pressure on console control keys. They are precision set to function
properly with little nger pressure. Pushing harder is not going to make the unit go faster
or slower. If you feel the buttons are not functioning properly with normal pressure contact
your SOLE dealer.
IMPORTANT OPERATION INSTRUCTIONS
POWER CONNECTOR - FRONT, LEFT SIDE OF UNIT
TRANSPORT INSTRUCTIONS
The elliptical is equippped with two transport wheels which are engaged when
the rear of the elliptical is lifted.

E98 ELLIPTICAL5
E98 ASSEMBLY PACK CHECKLIST
HARDWARE STEP 1
1
#164. 3/8” x 23 x 2T
Curved Washer (2 pcs)
#154. 5/16” x 20 x 1.5T
Flat Washer (4 pcs)
#158. 3/8” x 19 x 1.5T
Flat Washer (2 pcs)
#145. 3/8” x 7T
Nyloc Nut (2 pcs)
#128. M5 x 10mm
Phillips Head Screw (4 pcs)
#167. 3/8” x 2T
Split Washer (1 pc)
#116. 3/8” x 3/4”
Hex Head Bolt (2 pcs)
#168. 5/16”
Star Washer (4 pcs)
#166. 5/16” x 1.5T
Split Washer (4 pcs)
#117. 3/8” x 1-1/2”
Hex Head Bolt (2 pcs)
#115. 5/16” x 2-1/4”
Hex Head Bolt (4 pcs)
#118. 3/8” x 2-1/4”
Hex Head Bolt (1 pc)

6E98 ELLIPTICAL
HARDWARE STEP 2
2
#160. 3/8” x 30 x 2T
Flat Washer (2 pcs)
#163. 25mm
Wave Washer (4 pcs)
#116. 3/8” x 3/4”
Hex Head Bolt (2 pcs)
#132. 3.5 x 12mm
Sheet Metal Screw (8 pcs)
HARDWARE STEP 3
3
#154. 5/16” x 20 x 1.5T
Flat Washer (2 pcs)
#143. 5/16” x 7T
Nyloc Nut (2 pcs)
#114. 5/16” x 1-1/4”
Hex Head Bolt (2 pcs)
HARDWARE STEP 4
4
#132. 3.5 x 12mm
Sheet Metal Screw (10 pcs)
#129. M5 x 15mm
Phillips Head Screw (29 pcs)
#131. M6 x 10mm
Phillips Head Screw (4 pcs)
#20. Bracket (2 pcs)

E98 ELLIPTICAL7
#171. Phillips Head Screwdriver
ASSEMBLY TOOLS
#170. Short Phillips Head Screwdriver
#172. 12/14mm Wrench #169. 13/14mm Wrench
1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along
the dotted Line. Lift Box over the unit and unpack.
2. Carefully remove all parts from carton and inspect for any damage or missing
parts. If damaged parts are found, or parts are missing, contact your dealer
immediately.
3. Locate the hardware package. Remove the tools rst. Remove the hardware
for each step as needed to avoid confusion. The numbers in the instructions
that are in parenthesis (#) are the item number from the assembly drawing
for reference.
PRE-ASSEMBLY
E98 ASSEMBLY INSTRUCTIONS

8E98 ELLIPTICAL
HARDWARE STEP 1
1. Install the Incline Rail Assembly (2) into the U-channel bracket of the Main
Frame (1). Secure with the six bolts & associated hardware as follows: From
the sides install two Hex Head Bolts (117) with two Flat Washers (158) and
two Nylon Nuts (145). From the top install four Hex Head Bolts (115), four
Split Washers (166), four Flat Washers (154), and four Star Washers (168), and
tighten with the Wrenches provided (169 & 172).
2. Connect the three Incline Motor Power lines by matching the Red, White and
Black color codes of the wires (43) and the 3-pin position Sensor
Connector (44). Locate the Console Mast (12) and Console Mast Cover (83)
and slide the Cover onto the Mast as far as it will go. Make sure the Console
Mast Cover is facing the correct way. At the top opening of the Main Frame of
the elliptical is a Computer Cable (45); Secure the free end of the twist tie that
exits thebottom of the console mast (12) to this cable. Pull the opposite end
of this twist tie up through the console mast (12) until the cable exits the top.
Install the Console Mast (12) into the receiving bracket on the top of the Main
Frame (1). Pull slightly on the computer cable at the top of the mast while
installing. This will ensure the cable does not get pinched and shorted during
console mast assembly.
3. Put one Split Washer (167) onto the Long Hex Head Bolt (118) and install
through the left side of the receiving bracket into the Console Mast (12). Put
the two Curved Washers (164) onto the two Short Hex Head Bolts (116) and
install through the front of the console mast. Using Wrench (172), tighten
the (116) bolts rst, then the (118) bolt, and lastly the fourth bolt, which is
pre-installed, rmly. These bolts should be tightened as much as you possibly
can. This is the main joint of the unit. If not tightened suciently, this could
lead to noise and instability issues.
4. Plug the Computer Cable (45), two Hand pulse Cables (52 & 56), and green
Ground Cable (175) into the back of the console . Secure the Console (40) on
the console mounting plate with four Phillips Head Screws (128).
INCLINE RAIL & CONSOLE MAST
1
1. Install two Washers (163) onto the Left and Right sides of the Handle Bar axle.
2. Slide the Left (10) and Right (11) Handle Bars onto the appropriate side of
the axle. The handlebars have a small sticker on them indicating L (left) and R
(right). Make sure the handlebars are facing the correct direction – see illustration.
3. Install two Flat Washers (160) onto the two Hex Head Bolts (116). Insert and
and tighten in the threaded holes at the ends of each axle.
4. Install the Handle Bar Covers (91 to 92) and (93 to 94) over the Console Mast
axle connections and secure with the eight Sheet Metal Screws (132).
HANDLEBAR
2HARDWARE STEP 2
#158. 3/8” x 19 x 1.5T
Flat Washer (2 pcs)
#154. 5/16” x 20 x 1.5T
Flat Washer (4 pcs)
#164. 3/8” x 23 x 2T
Curved Washer (2 pcs)
#167. 3/8” x 2T
Split Washer (1 pc)
#128. M5 x 10mm
Phillips Screw (4 pcs)
#145. 3/8” x 7T
Nylon Nut (2 pcs)
#166. 5/16” x 1.5T
Split Washer (4 pcs)
#168. 5/16”
Star Washer (4 pcs)
#116. 3/8” x 3/4”
Hex Head Bolt (2 pcs)
#115. 5/16” x 2-1/4”
Hex Head Bolt (4 pcs)
#117. 3/8” x 1-1/2”
Hex Head Bolt (2 pcs)
#118. 3/8” x 2-1/4”
Hex Head Bolt (1 pc)
#163. 25mm
Wave Washer (4 pcs)
#160. 3/8” x 30 x 2T
Flat Washer (2 pcs)
#132. 3.5 x 12mm Sheet
Metal Screw (8 pcs)
#116. 3/8” x 3/4”
Hex Head Bolt (2 pcs)

E98 ELLIPTICAL9
ASSEMBLY STEP 2
2
ASSEMBLY STEP 1
1

10E98 ELLIPTICAL

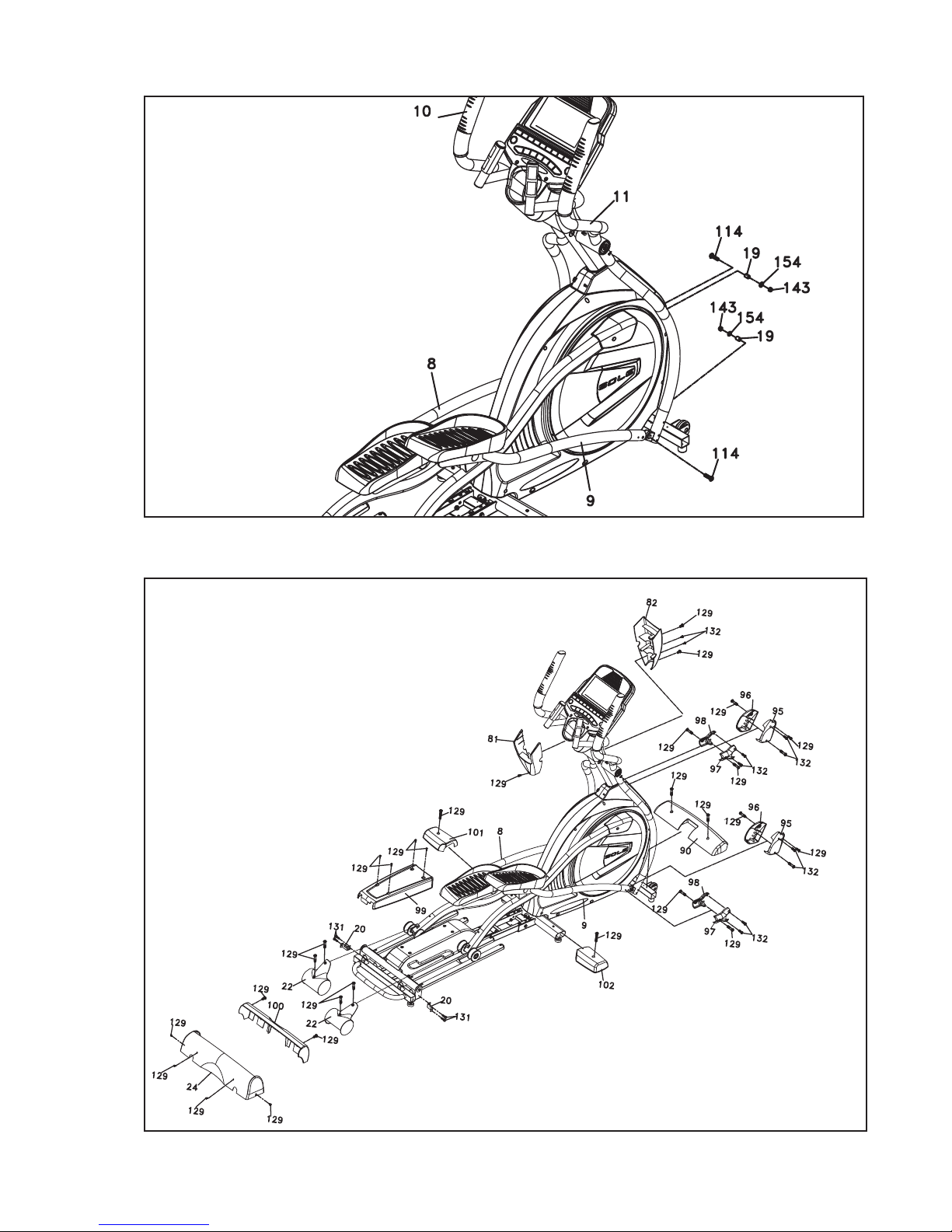

1. Match up the console covers (81 & 82) and secure with three Phillips head
screws (129) and two Sheet Metal Screws (132) using the short Phillips head
screw driver (170). Tighten the Sheet metal screws rst.
2. Match up the Connecting Arm Covers (97 & 98-inner covers and 95 & 96
-outer covers). Install the inner covers onto the Left and Right Connecting
Arms (8 & 9) and secure each side with two Phillips Head Screws (129) and
two Sheet Metal Screws (132) by using the Short Phillips Head Screw Driver
(170). Install the outer covers onto the left and right handlebars (10 & 11)
and secure each side with two Phillips Head Screws (129) and two Self
Tapping Screws (132). Make sure the outer covers are positioned in relation
to the arrow on each sticker.
3. Install Sliding Wheel Covers (22) on each side and secure with four Phillips
Head Screws (129).
4. Install the two Stabilizer Covers (101 & 102) on the middle stabilizer bar with
two Phillips Head Screws (129).
5. Install the Front Stabilizer Cover (90) on the front stabilizer with two Phillips
Head Screws (129).
6. Install the two incline Cover brackets (20), with the hole for mounting the
plastic cover on the bent tab facing rearward, and secure them on the Incline
Rail Assembly (2) with four Phillips Head Screws (131). Install the Rear incline
bar cover (100) on the rail base with two Screws (129).
7. Install the Rear Stabilizer Cover (24) on the Rear Stabilizer with four Phillips
Head Screws (129).
8. This step to be performed after the elliptical power is plugged in. Run the
incline to position 8 and install the incline Rail front cover (99) up against the
middle stabilizer tube with four Phillips Head Screws (129).
PLASTIC PARTS
4HARDWARE STEP 4
1. Untie the wire holding the Sleeve Spacer (19) in place on the rod-end bush-
ings, located on the ends of the connecting arms (8 & 9). Align the hole in the
rod ends with the hole in the brackets of the left and right Handle Bar (10 &
11). The rod end should be on the inside of the Handle Bar bracket. Secure
both sides with a Hex Head Bolt (114), Flat Washer (154) and Nyloc Nut (143)
by using the wrenches provided (169 & 172).
CONNECTING ARM
3HARDWARE STEP 3
#154. 5/16” x 20 x 1.5T
Flat Washer (2 pcs)
#143. 5/16” x 7T
Nyloc Nut (2 pcs)
#114. 5/16” x 1-1/4”
Hex Head Bolt (2 pcs)
#132. 3.5 x 12mm Sheet
Metal Screw (10 pcs)
#129. M5 x 15mm
Phillips Head Screw
(29 pcs)
#131. M6 x 10mm
Phillips Head Screw
(4 pcs)
#20. Bracket (2 pcs)

E98 ELLIPTICAL11
ASSEMBLY STEP 4
4
ASSEMBLY STEP 3
3

12E98 ELLIPTICAL
CORRECTLY ALIGNED ORTHOPEDIC FOOT PADS
Through research performed with a leading sports scientist and physical rehabilitation expert;
SOLE engineering has developed a breakthrough in pedal design. No other elliptical, at any
price, oers this unique feature. The history of elliptical use over the past few years tells us that
many users suer from numb toes while working out on elliptical trainers. Many other users
complain of ankle, Achilles tendon, knee and/or hip pain. While researching a solution to these
common problems SOLE engineers consulted Richard DeKok, P.T., M.T.C., of St. Bernard’s
Industrial Rehabilitation Center in Jonesboro Arkansas. Together we identied the inherent
problem in elliptical designs and developed a solution to solve the problem. What we found is
that when you use an elliptical you tend to push outward during the power stroke and not just
straight back. This causes stress on the outer part of the foot and throws o the natural
alignment of the joints. Our solution was simple but eective:
 We added a 2-degree inward angle to the footpads. This might sound simple but what it
does is puts the users joints back into a neutral alignment. This eases the over stressing of
the ankles, knees and hips.
RAMP INCLINE ADJUSTMENT
The E98 has an incline feature that will further increase the variety of your workouts. When the
incline is at its lowest position you get a normal elliptical workout. As the incline increases you
will feel your knees rise higher with each step; which means you are
involving more muscle bers, due to the increased range of motion.
The E98 has a computer controlled power incline. The power incline is controlled by buttons
on the console and will automatically adjust via the incline motor during the built-in workout
program.
ELLIPTICAL FEATURES

E98 ELLIPTICAL13
OPERATION OF YOUR ELLIPTICAL
E98 CONSOLE
GETTING FAMILIAR WITH THE CONTROL PANEL
COOLING FAN
DATA DISPLAY
DOT MATRIX
(Program Proles)
MESSAGE WINDOW
(Time, Program Name, Distance,
RPM, Calories, Laps, Level,
Incline, & Pulse)
FAN POWER SWITCH
DISPLAY
PROGRAM BUTTONS
(Manual, Hill, Fat Burn,
Cardio, Strength, Interval,
Custom, Fit-Test, 2HR)
CONTROL KEYS
POWER UP
When power is connected to the Elliptical the console will automatically power up. These
models are connected directly to 115 VAC and there is a power switch located where the line cord plugs into the
unit on the left side near the front (See page 4 for location).
When it is rst powered on, the console will perform an internal self-test. During this time all the lights will turn on.
When the lights go o, the Message window will show a software version (i.e.: VER 1.0) and the Calorie window will
display an odometer reading. The odometer reading displays how many virtual miles the elliptical has gone. The
Time window displays how many hours the elliptical has been used.
The odometer and time will remain displayed for only a few seconds then the console will go to the startup display.
The dot matrix display will be scrolling through the dierent workout proles and the Message window will be
scrolling the start up message. You may now begin to use the console.
!!ATTENTION
Your new elliptical console might come congured in an in-store ‘display mode’ of operation, where the console will
remain powered on unless the main power switch is turned o. If this is the case, follow this procedure to turn it o:
To exit the display mode, for normal operation, press and hold the Stop, Enter and Display keys for ve seconds;
the display will show: Display Mode - ON. Use the Resistance Up key to change the setting to OFF then press
Enter

14E98 ELLIPTICAL
CONSOLE OPERATION
QUICK START
This is the quickest way to start a workout. After the console
powers up you just press the Start key to begin, this will
initiate the Quick Start mode. In Quick Start the Time will
count up from zero and the workload and the resistance
and incline may be adjusted manually by pressing the Up
or Down buttons. The dot matrix display will be showing a
track with a blinking dot indicating your progress as it trav-
els around the track.
BASIC INFORMATION
The Message Window will initially be displaying the Speed in MPH. Each time the Display
Button - located left of the display - is pressed the next set of information will appear. The
information displayed will be: Speed in MPH, Ramp Incline, Watts, METs andSegment Time.
Pressing the Display Button one more time will set the display to Scan mode where all of the
information will be displayed sequentuially for 4 seconds each.

When in a program you may change the Dot Matrix prole (Resistance, Incline and Laps) view
by pressing the Enter button. After scrolling through the two proles and Laps the Dot Matrix
will automatically scroll through the three displays showing each for 4 seconds. The icon
associated with each display will light while that view is displayed.
The Stop button actually has several functions. Pressing the Stop key once during a program
will Pause the program for 5 minutes. If you need to get a drink, answer the phone or any of the
many things that could interrupt your workout, this is a great feature. To resume your workout
during Pause just press the Start key. If the Stop button is pressed twice during a workout the
program will end and a Workout Summary is displayed. If the Stop key is held down for 3
seconds the console will perform a complete Reset. During data entry for a program the Stop
key performs a Previous Screen function. This allows you to go back one step in the
programming each time you press the Stop key.
The Elliptical has a built in heart rate monitoring system. Simply grasping the Contact Heart
Rate Sensors on the stationary handle bars or wearing the chest strap transmitter (sold
separately) will start the heart (see Heart Rate Programs) Icon blinking (this may take a few
seconds). The Pulse Window will display your heart rate in beats per minute and the HR bar
graph will show your current % in relation to projected heart rate maximum. The chest strap is a
more accurate and reliable method of heart rate reading. The hand pulse sensors are subject to
false readings depending on user physiology and workout habits including how one grips the
sensors or how sweaty their hands are.
DOT MATRIX CENTER DISPLAY

E98 ELLIPTICAL15
PROGRAMMING THE CONSOLE
Each of the programs can be customized with your personal information and changed to suit
your needs. Some of the information asked for is necessary to ensure the readouts are correct.
You will be asked for your Age and Weight. Entering your Age is necessary during the Heart
Rate control program to ensure the correct settings are entered in the program; entering your
exact Weight results in a more accurate Calorie calculation. Although we cannot provide an
exact calorie count we do want to be as close as possible.
A message about Calories: Calorie readings on every piece of exercise equipment, whether
it is in a gym or at home, are not accurate and tend to vary widely. They are meant only as a
guide to monitor your progress from workout to workout. The only way to measure your
calorie burn accurately as in a clinical setting connected to a host of machines. This is because
every person is dierent and burns calories at a dierent rate.
ENTERING A PROGRAM AND CHANGING SETTINGS
Press each program button to scroll through the program selections. The prole for each
program will be displayed in the dot matrix window. The E98 will show the incline prole also
when the Display key is pressed. Press the Enter key to select a program and begin
customizing the settings. If you want to workout without entering new settings, then just press
the Start key. This will bypass the programming of data and take you directly to the start of your
workout. If you want to change the personal settings, then just follow the instructions in the
message window. If you start a program without changing the settings, the default settings will
be used.
Note: Age and Weight default settings will change when you enter a new number. So the last
Age and Weight entered will be saved as the new default settings. If you enter Age and Weight
the rst time you use the Elliptical you will not have to enter it every time you work out unless
either Age or Weight has changed or someone else enters a dierent Age and Weight.

16E98 ELLIPTICAL
MANUAL PROGRAM
The Manual program works as the name implies, manually. This means that you control the
workload yourself and not the computer.
1. Press the Manual program button then press the Enter key.
2. The Message window will ask you to enter your Age. You may adjust the age
setting using the Incline or Resistance Up and Down keys, then press the Enter key to
accept the new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust your weight setting using the
Incline or Resistance Up and Down keys, then press Enter to continue.
4. Next is the Time. You may adjust the length of Time by pressing the Up or Down Incline
or Resistance keys, then press Enter to continue..
5. Now you are nished editing the settings and can begin your workout by pressing the
Start key. You can also go back and modify your settings by pressing the Stop key to go
back one level of the programming screen.
6. Once the program starts the elliptical will be set to level one. This is the easiest level and it
is a good idea to stay at level one for a while to warm up. If you want to increase the work
load at any time press the Resistance Up key; the Resistance Down key will decrease the
workload.
7. During the Manual program you will be able to scroll through the data in the message
window by pressing the Display key.
8. When the program ends the message window will show a summary of your workout. The
summary will be displayed for a short time then the console will return to the start-up
display.
PROGRAMMABLE FEATURES

E98 ELLIPTICAL17
PRESET PROGRAMS
The Elliptical has ve dierent programs that have been designed for a variety of workouts.
These ve programs have factory preset work level proles for achieving dierent goals.
E98 WORK E98 INCLINE
E98 WORK E98 INCLINE
E98 WORK E98 INCLINE
E98 WORK E98 INCLINE
E98 WORK E98 INCLINE
Hill
The Hill program simulates going up and down a hill. The resistance in the pedals will
steadily increase and then decrease during the program.
Fat Burn
The Fat Burn program is designed, as the name implies, to maximize the burning of fat. There are many schools
of thought on the best way to burn fat but most experts agree that a lower exertion level that stays at a steady
workload is the best. The absolute best way to burn fat is to keep your heart rate at around 60% to 70% of its
maximum potential. This program does not use heart rate but simulates a lower, steady exertion workout.
Cardio
The Cardio program is designed to increase your cardiovascular function and endurance. This is exercise for
your heart and lungs. It will build up your heart muscle and increase blood ow and lung capacity. This is
achieved by incorporating a higher level of exertion with slight uctuations in work.
Strength
The Strength program is designed to increase muscular strength in your lower body. This program will steadily
increase in resistance to a high level and forces you to sustain it. This is designed to strengthen and tone your
legs and glutes (muscles of the butt).
Interval
The Interval program takes you through high levels of intensity followed by periods of low intensity. This
program increases your endurance by depleting your oxygen level followed by periods of recovery to replenish
oxygen. Your cardiovascular system gets programmed to use oxygen more eciently this way. This program
also forces your body to become more ecient due to spikes in heart rate, between recovery periods. This aids
in heart rate recovery from intense activities.
