SonoSite Basic Stand User manual

Basic Stand
User Guide

i
Basic Stand User Guide
Basic Stand-Benutzerhandbuch
Manual para el usuario del soporte básico
Guide d’utilisation de la station mobile Basic Stand
Basic Stand - Manuale dell'utente
Manual do Usuário do Pedestal Básico

ii
SonoSite, Inc.
21919 30th Drive SE
Bothell, WA 98021
USA
T: 1-888-482-9449 or 1-425-951-1200
F: 1-425-951-1201
SonoSite Ltd
Alexander House
40A Wilbury Way
Hitchin
Herts SG4 0AP
UK
T: [phone]
F: [phone]
“PowerMap,” “SiteCharge,” “SitePack,” “SonoHeart,” “SonoSite,” and “SiteStand” are trademarks of SonoSite, Inc.
Non-SonoSite product names may be trademarks or registered trademarks of their respective owners.
SonoSite products may be covered by one or more of the following U.S. patents: 4454884, 4462408, 4469106, 4474184, 4475376, 4515017,
4534357, 4542653, 4543960, 4552607, 4561807, 4566035, 4567895, 4581636, 4591355, 4603702, 4607642, 4644795, 4670339, 4773140,
4817618, 4883059, 4887306, 5016641, 5050610, 5095910, 5099847, 5123415, 5158088, 5197477, 5207225, 5215094, 5226420, 5226422,
5233994, 5255682, 5275167, 5287753, 5305756, 5353354, 5365929, 5381795, 5386830, 5390674, 5402793, 5,423,220, 5438994, 5450851,
5456257, 5471989, 5471990, 5474073, 5476097, 5479930, 5482045, 5482047, 5485842, 5492134, 5517994, 5529070, 5546946, 5555887,
5603323, 5606972, 5617863, 5634465, 5634466, 5636631, 5645066, 5648942, 5669385, 5706819, 5715823, 5718229, 5720291, 5722412,
5752517, 5762067, 5782769, 5800356, 5817024, 5833613, 5846200, 5860924, 5893363, 5916168, 5951478, 6036643, 6102863, 6104126,
6113547, 6117085, 6142946, 6203498 B1, 6371918, 6135961, 6364839, 6383139, 6416475, 6447451, 6471651, 6569101, 6575908,
6604630, 6648826, 6835177, D0280762, D0285484, D0286325, D0300241, D0306343, D0328095, D0369307, D0379231, D456509,
D461895. Other patents pending.
P01710-03 10/2006
Copyright 2006 by SonoSite, Inc.
All rights reserved.
Caution: Federal (United States) law restricts this device to sale by or on the order of a physician.

English Deutsch Español Français Italiano Português
Basic Stand User Guide 1
Basic Stand User Guide
Contents
Overview .......................................................................................................................................................1
Contact Information .................................................................................................................................3
Assemble Basic Stand ...............................................................................................................................4
Attaching Column to Base .............................................................................................................4
Adjusting Basket ................................................................................................................................5
Attaching Printer Bracket ...............................................................................................................6
Installing Printer on Printer Bracket ...........................................................................................7
Connect Printer ..........................................................................................................................................9
Install System ...........................................................................................................................................10
Clean and Disinfect Basic Stand ........................................................................................................12
Overview
Please read the information in the user guide before using the Basic Stand. It applies to the Basic
Stand, accessories, and peripherals. See the manufacturer’s instruction for specific information about
peripherals.
Basic Stand
The Basic Stand does the following:
• Provides a mobile, ergonomic work surface with a basket.
• Holds the SonoSite system, two transducers, a black and white printer, and accessories.

2 Basic Stand User Guide

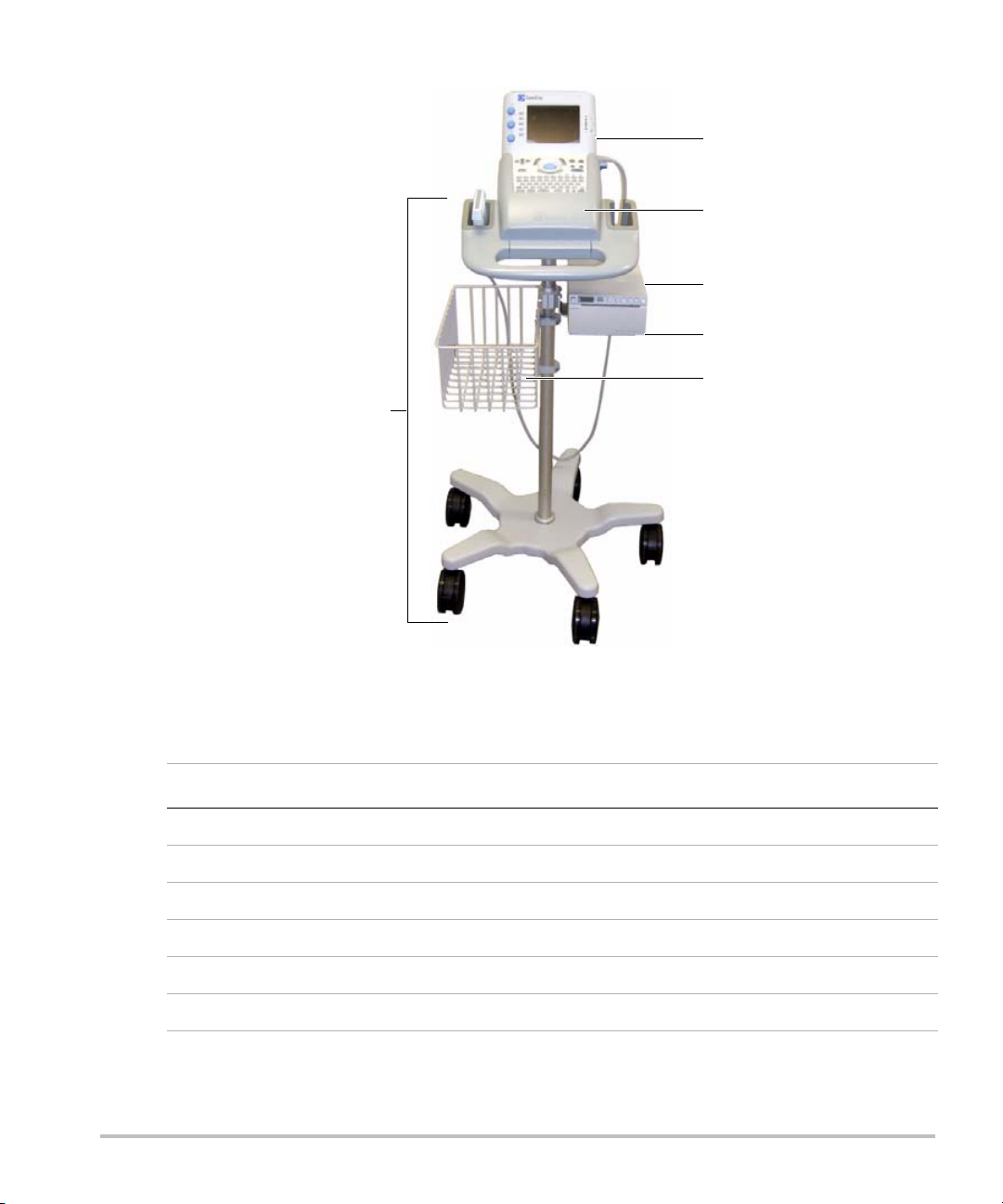

Figure 1 Basic Stand
1
2
4
5
6
3
Table 1: Basic Stand
Number Description
1 SonoSite system
2 Sleeve
3Printer
4Printertray
5Basket
6BasicStand

English Deutsch Español Français Italiano Português
Basic Stand User Guide 3
Conventions
These conventions are used in this user guide:
•AWARNING describes precautions necessary to avoid injury or loss of life.
•ACaution describes precautions necessary to protect the products.
• Numbered steps in the operating instructions must be performed in a specific order.
• Bulleted lists present information in list format but do not imply a sequence.
Symbols and Terms
Symbols and terms used on the system and transducers are explained in the SonoSite Ultrasound
System User Guide.
Contact Information
If you encounter difficulty, contact SonoSite technical support at the following numbers or addresses:
Technical Support (USA, Canada): 1-877-657-8118
Technical Support fax: [phone]
Technical Support e-mail: [e-mail]
SonoSite website: www.sonosite.com and select Support
International Technical Support: Contact your local representative or call (USA)
[phone]
Europe Service Center: [phone]
e-mail: uk.ser[email protected]

4 Assemble Basic Stand
Assemble Basic Stand
The Basic Stand requires the following assembly:
• Attaching column to base
•Adjustingbasket
• Attaching printer bracket
• Installing printer on printer bracket
Attaching Column to Base
Provided Tools and Equipment
• Basic Stand
•Printerbracket
• Allen wrench (5/32”)
• Phillips screws (4) (10 mm)
• Bolt with washers
Required Tools and Equipment
•1/2“wrench
• #1 Phillips screwdriver
• Sony black and white printers: UP-897MD, UP-895MD, UP-890MD (optional)
Attach Column
to Base

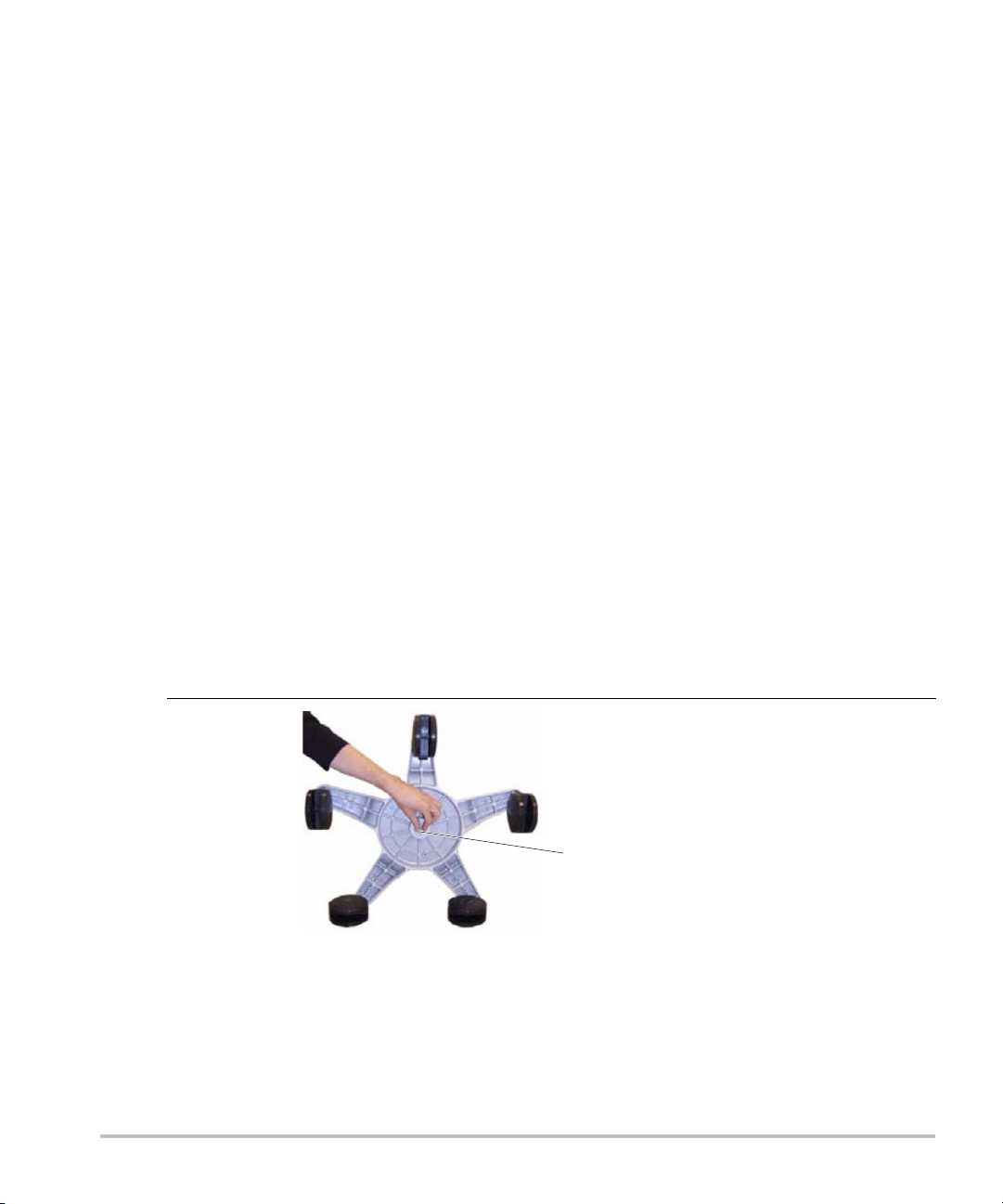

1 Remove bolt, flat washer, and lock washer from the base.
2 Place the column into the base.
3 Slide the lock washer and then the flat washer onto the bolt.
4 Insert the bolt into the bottom of the base.
5 Securely fasten the bolt using a 1/2 “ wrench.
Insert the bolt and washers

English Deutsch Español Français Italiano Português
Assemble Basic Stand 5
Adjusting Basket
Adjust the basket low enough to allow room for the printer bracket above it.
Adjust Basket
1 Loosen the two screws on the two brackets using a #1 Phillips screwdriver.
2 Rotate the basket 90 degrees to the left as viewed from the front of the stand.
3 Position the basket approximately 8 inches (20 cm) below the system sleeve.
4 Tighten the two screws on the two brackets to secure the basket to the column.
Column
Basket
Brackets with
screws (2)

6 Assemble Basic Stand
Attaching Printer Bracket
Attach the printer bracket close enough to the system for cables to reach from the system to the
printer.
Attach Printer
Bracket
1 Remove the two screws from the bracket using the 5/32” Allen wrench.
2 Position the printer bracket on the right side of the stand just above the basket.
Note: Position the printer bracket close enough to the sleeve so that the 1 foot
(30 cm) cables will reach when connected.
3 Insert the two screws into the printer bracket.
4 Tighten the two screws that secure the printer bracket to the column.
Printer bracket
Screws (2)
Allen wrench

English Deutsch Español Français Italiano Português
Assemble Basic Stand 7
Installing Printer on Printer Bracket
Locate the appropriate model number to determine the correct screw holes.
Attach Printer
to Bracket
Note: The printer is an optional feature.
Note: The printer installation procedure is dependent on the printer model
number.
Locate the appropriate printer model number and procedure.
UP-897MD
1 Place the printer on the printer bracket aligning the four holes on the printer
with the four, inside holes on the bracket.
2 Insert the four, 10 mm screws through the printer bracket and into the printer.
3 Securely fasten the screws using a #1 Phillips screwdriver.
4 See the manufacturer’s operating instructions for information on operating and
maintaining the printer.
Screws (4)

8 Assemble Basic Stand

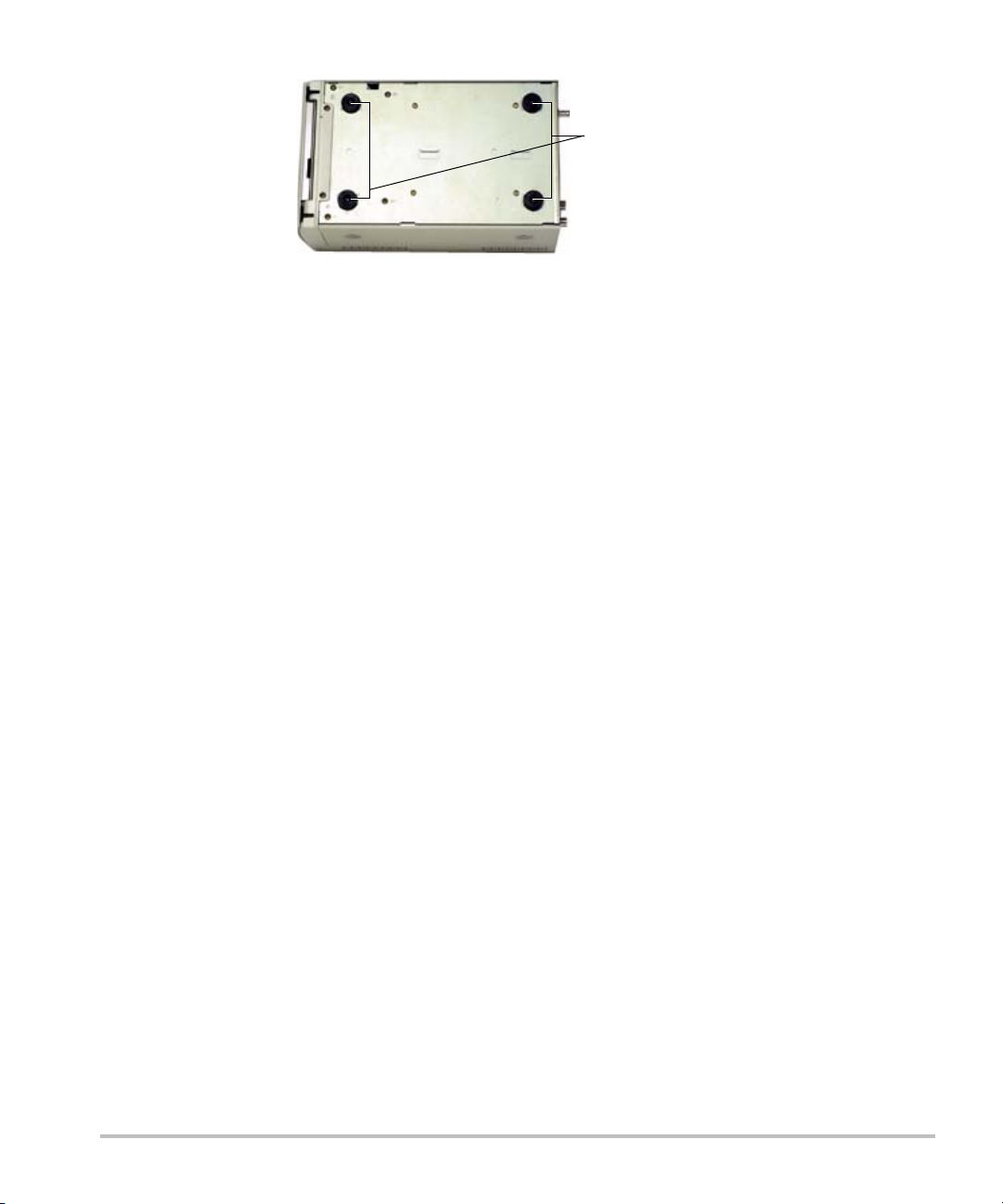

UP-890MD or UP-895MD
1 Remove the 4 screws from the bottom of the printer using a #1 Phillips
screwdriver.
2 Discard these screws. Leave the feet on.
3 Place the printer on the printer bracket aligning the four holes on the printer
with the four, inside holes on the bracket.
4 Insert the four, 16 mm screws through the printer bracket and into the printer.
5 Securely fasten the screws.
6 See the manufacturer’s operating instructions for information on operating and
maintaining the printer.
Screws (4)

English Deutsch Español Français Italiano Português
Connect Printer 9
Connect Printer
Follow procedure to ensure correct cable connections between printer and system.
Provided Equipment
• Basic Stand
• Video cable (BNC/BNC) (1.0 ft/ 0.3 m) with BNC female to RCA male adapter or video cable
(BNC/RCA) (1.0 ft/ 0.3 m)
• Printer control cable (1.0 ft / 0.3 m)
Required Equipment
• SonoSite 180® PLUS hand-carried ultrasound system or SonoHeart® ELITE
• System power supply
• Sony black and white printer: UP-897MD, UP-895MD, UP-890MD
• Printer AC power cord (ships with Sony printer)
• System power cord (ships with ultrasound system)
Connect
Printer to
System

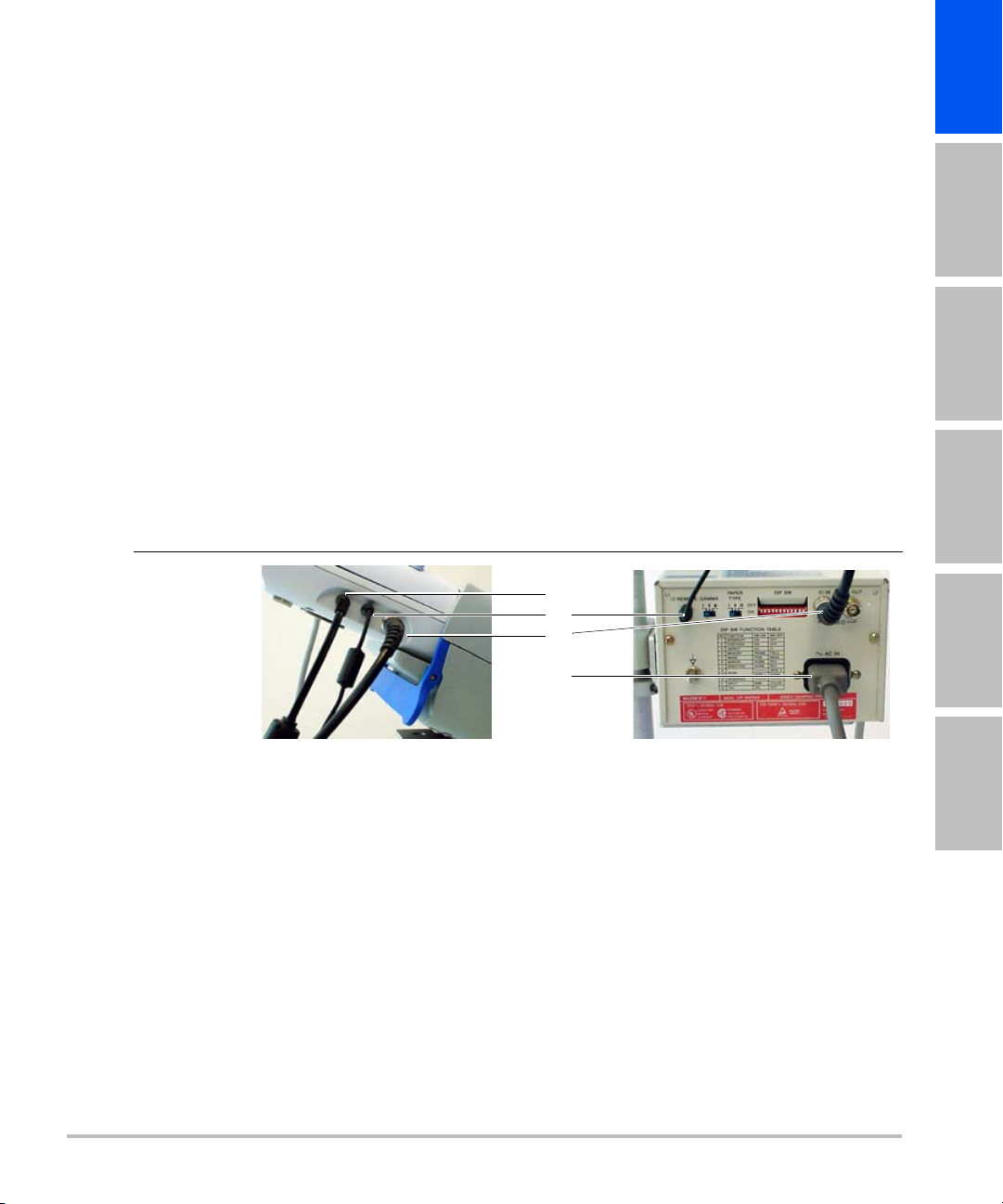

1 Attach the cables:
• Video cable (BNC/BNC) (A) from the system Video Out to the printer VIDEO
IN
• Printer control cable (B) from the system printer control out to the printer
REMOTE
• Power supply (C) from power supply output to the system power in
•PrinterACpowercord(D) from printer AC IN to a hospital grade outlet
• System power cord from power supply AC input to hospital grade outlet
2 Ensure printer is set up on ultrasound system. See SonoSite Ultrasound System
User Guide.
A
B
C
Left side of system
D
Back of printer

10 Install System
Install System
Slide the SonoSite system into the sleeve of the Basic Stand.
Insert System
1 Press on the release lever to open the sleeve.
2 Insert the transducer into the holder on the Basic Stand. Slide the system into
the sleeve.
3 Latch the Basic Stand by using both hands to press on both sides of the sleeve;
press until an audible click is heard.

English Deutsch Español Français Italiano Português
Install System 11

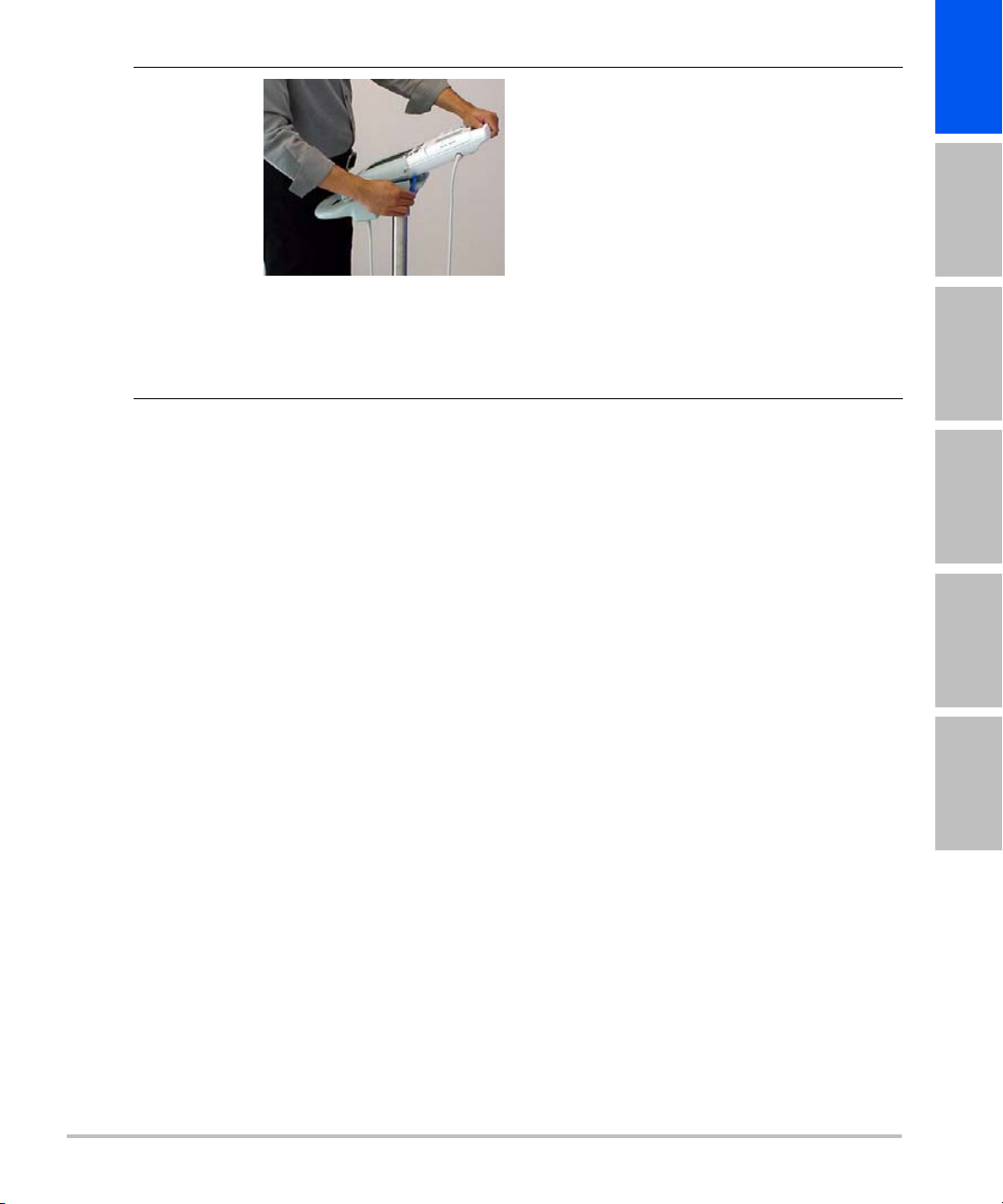

Remove
System
1 Hold the system by the handle.
2 Press on the release lever to open the sleeve.
3 Carefully remove the system by pulling it up and back.
4 Remove the transducer.
Lock and
Release
Wheels
1 Lock the wheels by pushing the locking levers down on the front wheels.
2 Release the wheels by pulling the locking levers up on the front wheels.

12 Clean and Disinfect Basic Stand
Clean and Disinfect Basic Stand
The exterior surface of the Basic Stand can be cleaned and disinfected using a recommended cleaner
or disinfectant.
WARNING: To avoid infection always use protective eyewear and gloves when performing
cleaning and disinfecting procedures.
To avoid infection, if a pre-mixed disinfection solution is used, observe the solution
expiration date, and ensure that the date has not passed.
To avoid infection, the level of disinfection required for a product is dictated by the
type of tissue it contacts during use. Ensure the solution strength and duration of
contact are appropriate for the equipment. For information, see the disinfectant
label instructions and the recommendations of the Association for Professionals in
Infection Control and Epidemiology (APIC) and FDA.
Caution: Use only recommended cleaners or disinfectants on Basic Stand surfaces.
Immersion-type disinfectants are not tested for use on Basic Stand surfaces.
Clean and
Disinfect
1 Remove the system and all contents from the Basic Stand.
2 Use a soft cloth lightly dampened in a mild soap or detergent cleaning solution
to clean the exterior surfaces.
3 Mix the disinfection solution compatible with your system according to the
label instructions for the solution strength. Theracide disinfectant is
recommended.
4 Wipe the surfaces with the disinfection solution, following disinfectant label
instructions for solution strengths and disinfectant contact duration. Ensure the
solution strength and duration of contact are appropriate for the intended
clinical application.
5 Air dry or towel dry with a clean cloth according to the instructions on the
disinfectant label.

Basic Stand-Benutzerhandbuch

ii
SonoSite, Inc.
21919 30th Drive SE
Bothell, WA 98021
USA
Tel.: [phone] oder [phone]
Fax: [phone]
SonoSite Ltd
Alexander House
40A Wilbury Way
Hitchin
Herts SG4 0AP
Großbritannien
Tel.: [phone]
Fax: [phone]
„PowerMap,“ „SiteCharge,“ „SitePack,“ „SonoHeart,“ „SonoSite“ und „SiteStand“ sind Marken von SonoSite, Inc.
Nicht zu SonoSite gehörende Produktnamen sind u. U. Marken oder eingetragene Marken der jeweiligen Eigentümer.
SonoSite-Produkte sind u. U. durch eines oder mehrere der folgenden US-Patente geschützt: 4454884, 4462408, 4469106, 4474184,
4475376, 4515017, 4534357, 4542653, 4543960, 4552607, 4561807, 4566035, 4567895, 4581636, 4591355, 4603702, 4607642, 4644795,
4670339, 4773140, 4817618, 4883059, 4887306, 5016641, 5050610, 5095910, 5099847, 5123415, 5158088, 5197477, 5207225, 5215094,
5226420, 5226422, 5233994, 5255682, 5275167, 5287753, 5305756, 5353354, 5365929, 5381795, 5386830, 5390674, 5402793, 5,423,220,
5438994, 5450851, 5456257, 5471989, 5471990, 5474073, 5476097, 5479930, 5482045, 5482047, 5485842, 5492134, 5517994, 5529070,
5546946, 5555887, 5603323, 5606972, 5617863, 5634465, 5634466, 5636631, 5645066, 5648942, 5669385, 5706819, 5715823, 5718229,
5720291, 5722412, 5752517, 5762067, 5782769, 5800356, 5817024, 5833613, 5846200, 5860924, 5893363, 5916168, 5951478, 6036643,
6102863, 6104126, 6113547, 6117085, 6142946, 6203498 B1, 6371918, 6135961, 6364839, 6383139, 6416475, 6447451, 6471651,
6569101, 6575908, 6604630, 6648826, 6835177, D0280762, D0285484, D0286325, D0300241, D0306343, D0328095, D0369307,
D0379231, D456509, D461895. Weitere Patente sind angemeldet.
P01710-03 10/2006
Copyright 2006 SonoSite, Inc.
Alle Rechte vorbehalten.
Vorsichtshinweis: Laut US-Bundesgesetzen darf dieses Gerät nur an Ärzte oder auf deren Anordnung
verkauft werden.

English Deutsch Español Français Italiano Português
Basic Stand-Benutzerhandbuch 1
Basic Stand-Benutzerhandbuch
Inhalt
Übersicht .......................................................................................................................................................1
Kontaktinformationen .............................................................................................................................3
Montage des Basic Stand ........................................................................................................................4
Befestigung der Tragsäule am Fußteil .......................................................................................4
Einstellen der Korbhöhe .................................................................................................................5
Befestigung der Druckerhalterung .............................................................................................6
Installation des Druckers auf der Druckerhalterung ............................................................7
Anschließen des Druckers ......................................................................................................................9
Anbringen des Ultraschallsystems ................................................................................................... 10
Reinigung und Desinfektion des Basic Stand ............................................................................... 12
Übersicht
Vor Gebrauch des Basic Stand die Angaben in diesem Benutzerhandbuch lesen. Es bezieht sich auf
den Basic Stand sowie dessen Zubehör und Peripheriegeräte. Spezifische Informationen über die
Peripheriegeräte sind den Herstelleranweisungen zu entnehmen.
Basic Stand
Der Basic Stand weist folgende Leistungsmerkmale auf:
• mobile, ergonomische Arbeitsfläche mit einem Korb
• Halterungen für das SonoSite-Ultraschallsystem, zwei Schallköpfe, einen Schwarz-Weiß-Drucker
und Zubehör

2 Basic Stand-Benutzerhandbuch
Abbildung 1 Basic Stand
1
2
4
5
6
3
Tabelle 1: Basic Stand
Nummer Beschreibung
1 SonoSite Ultraschallsystem
2Schutzkasten
3Drucker
4 Druckerhalterung
5Korb
6BasicStand
