Sonova Lyric4 User manual

The contact lens for your ear™
Phonak LyricTM4
User Guide

Your hearing aid
1. Introduction to Lyric 5
2. Adjusting and removing Lyric 9
3. Follow-up care and replacement 18
Further information
4. Frequently asked questions 20
5. Service and warranty 26
6. Compliance information 27
7. Information and explanation of symbols 28
8. For the US market only, complies 33
with the FDA regulations
9. Privacy Notice 39
10. Important safety information 41
Contents
This user guide is valid for the following hearing aid
model:
Non wireless model CE mark applied
Lyric4 2020

45
Lyric. The contact lens for your ear.
Thank you for choosing Lyric, the rst extended wear
hearing aid that is 100% invisible. Lyric requires a lot
less interaction and handling compared to conventional
hearing aids. We are convinced that your Lyric will
provide valuable benets to your daily life.
Your hearing aids have been developed by Phonak – the
world leader in hearing solutions based in Zurich,
Switzerland.
Please read this user guide carefully in order to safely
operate your Lyric hearing aids and to benet from all
the possibilities they have to oer.
If you have any questions, please consult your hearing
care professional.
Phonak – life is on
www.phonak.com
1. Introduction to Lyric
aInsertion handle
bMicrophone protection
c“This side up” indication
dMicrophone and
signal processor
eReceiver
fBattery
gMedial seal
hLateral seal
iRemoval loop
i
a
b
cd
e
g
h
f

67
1.1 What makes Lyric dierent
Lyric is comfortably placed in the ear canal by a Lyric
trained hearing care professional and can be used
24 hours a day, seven days a week, for months at a time.
No surgery or anesthesia is required. Unlike many
other hearing aids, Lyric is positioned totally inside the
ear canal and uses your ear’s anatomy to provide
natural sound quality.
1.2 What you can expect with your new Lyric
Adjusting to your new hearing aid
Like all hearing aids, Lyric requires an adjustment period.
For most people, Lyric becomes comfortable within
a few days. Others may take up to two weeks to adjust
to Lyric.
You may notice some initial discomfort when sleeping.
Try to sleep with as little direct pressure on your ears
as possible. Sleeping on your back is ideal.
If your ear is itchy, do not scratch or pull at the ear.
Instead, gently massage the side of your face near
your ear.

89
Getting used to new sounds and sound quality
Usually, hearing loss progresses slowly over years. So it
is not unusual for things to sound a bit loud or strange
when you rst wear Lyric. The voices of your friends and
loved ones – and perhaps even your own voice – may
sound dierent for a while.
At rst, you may also notice normal environmental
sounds such as the refrigerator running, road noise from
the tires on the car and heels clicking on the oor while
walking. Within a short period of time, you will notice
such sounds less as they become part of your everyday
hearing world.
The following chapter provides instructions on how to
use your Lyric. Please read it carefully.
2.1 Using the SoundLync
The SoundLync contains a small black magnet that
functions like a remote control to change the settings
of your Lyric (see instructions chapters 2.2 – 2.5).
SoundLync
aKeychain housing
bMagnet
cRemoval tool
dCap
2. Adjusting and removing Lyric
a
b
c
d

10 11
To be able to use the SoundLync, unscrew the magnet
from the keychain housing and hold it inside the ear
canal without touching the hearing aid.
Attached to one end of the magnet is a small tool
that can be used to safely remove Lyric from your
ear in urgent situations.
Note: Please be aware that Lyric is muted for one
second after a beep is played. It is also muted during
the beep series when changing the volume.
IC
2.2 Putting Lyric in SLEEP mode
While the hearing aid is ON, hold the magnet inside
the ear canal without touching the hearing aid.
You will hear 2 beeps.
Remove the magnet from your ear.
Note: Sleep mode is a setting for acoustic transparency.
In this setting, Lyric compensates the damping caused
by the hearing aid itself. It sounds like you are not
wearing a hearing aid.
2.3 Turning Lyric OFF
While the hearing aid is ON, hold the magnet inside
the ear canal without touching the hearing aid.
Wait until you hear 2 beeps.
Continue to hold the magnet in place until you
hear 4 more beeps. (There is a short pause between
the rst 2 and the last 4 beeps).

12 13
Remove the magnet from your ear.
Note: Be aware when Lyric is OFF, it acts as an earplug.
2.4 Turning Lyric ON
To switch Lyric ON, from either SLEEP mode or OFF,
hold the magnet inside the ear canal without touching
the hearing aid.
Wait until you hear 1 beep.
Remove the magnet from your ear.
2.5 Adjusting the volume
Put the hearing aid in SLEEP Mode – 2 beeps. Remove
the magnet from the ear canal.
Wait until Lyric unmutes.
Insert the magnet into the ear canal again and turn
the hearing aid ON – 1 beep. Keep the magnet
inside the ear canal.
Continue to hold the magnet inside your ear canal.
Lyric will start to increase the volume one step from
where it was set previously. Each step is indicated
by a beep. Once you reach the maximum level, Lyric
will play a double beep. If you leave the magnet in
place, Lyric will continue to cycle to your lowest
volume setting and increase the volume steps from
the softest to the loudest level.
Remove the magnet from your ear when you reach
the desired volume level.
Note: Whenever you turn Lyric ON or take the hearing
aid out of SLEEP mode, the volume will be set auto-
matically at the last volume level chosen.
2.6 SoundLync quick reference
ON 1 beep
SLEEP 2 beeps
OFF 2 beeps (hold)
4 beeps
Volume 2 beeps (remove magnet)
1 beep (hold & wait)
Beep sequence
Double beep (highest volume level)

14 15
IC
2.7 Self-removal instructions
Removing Lyric
You should not have to remove Lyric between routine
oce visits. If you do need to remove the hearing
aid for any reason and a Lyric trained hearing care
professional is not available, you may remove the
hearing aid yourself, or a family member or friend can
help you remove it. Once you remove Lyric from your
ear, it cannot be reinserted.
Step 1: If Lyric is still working, turn it OFF using the
magnet (see the instructions in chapter 2.3).
IC

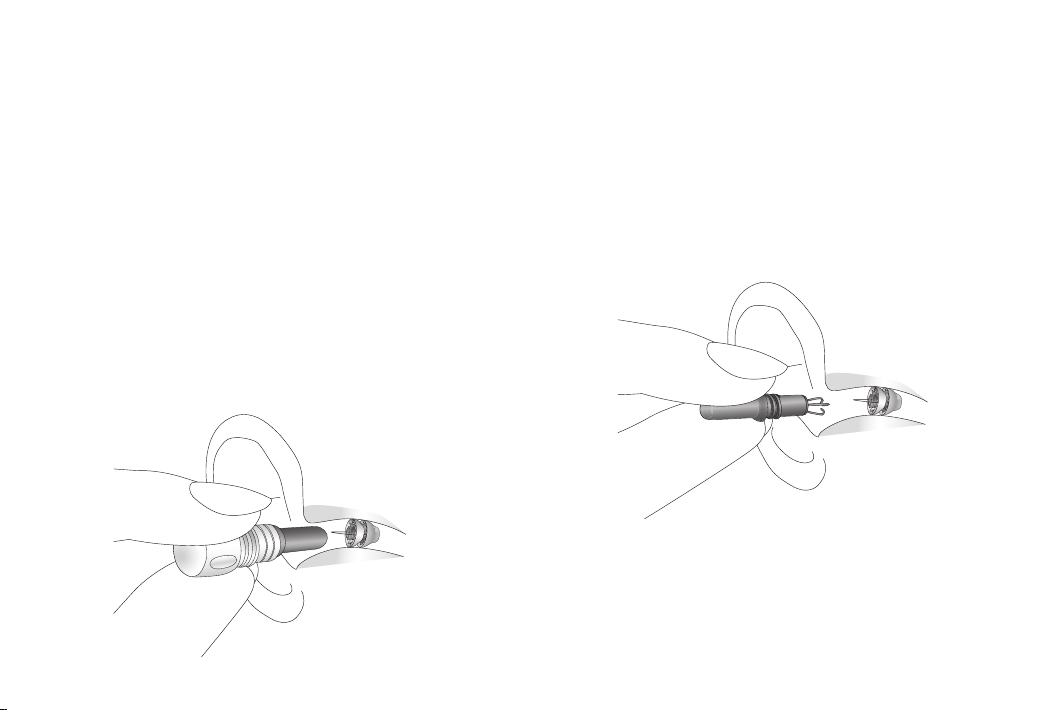

Step 2: Unscrew the cap on the magnet to expose
the removal tool. Firmly hold the removal tool as you
would hold a pencil, with your hand braced against
your cheek. Slowly and gently insert the removal tool
into the ear canal until it lightly touches the hearing
aid.

16 17
Step 3: Use a gentle circular motion to engage the
removal loop. You should feel a slight resistance when
you tug on it. Gently remove the hearing aid using a
gradual circular motion.
Step 4: When the hearing aid is out of the ear, place it
into its container. See your Lyric trained hearing care
professional as soon as possible to have your ear canal
examined. Please return the used hearing aid to your
hearing care professional.
IC
Note: Lyric can be removed using a blunt-nosed
tweezer if the removal tool is not available. Use the
tweezer to grasp the handle on the hearing aid
and gently remove the hearing aid using a circular
motion. This requires the help of a family member
or friend. Please be especially careful if you are not
removing the hearing aid yourself and advise the
person helping you to work slowly in a circular motion
when removing Lyric.
Warning: If the device or part of the device cannot be
removed, contact your hearing care professional for
help.
IC

18 19
After Lyric is placed in your ear(s), your Lyric trained
hearing care professional may schedule a follow-up
appointment to make any necessary programming
adjustments or to answer any questions you may have.
For hearing aid replacements, your Lyric trained hearing
care professional will either instruct you to call the
oce for an appointment when the hearing aid stops
functioning or will schedule an appointment for retting
your Lyric at a predetermined time interval. When
the hearing aid ceases to function, it should be removed
within 24 hours.
If removal by your Lyric trained hearing care professional
is not possible within 24 hours, you may remove the
hearing aid yourself, or a family member or friend may
remove it for you. Please see chapter 2.7 for instructions
on removal of Lyric.
3. Follow-up care and replacement
Caring for Lyric
Lyric may be worn 24/7, for months at a time,
even while showering. Lyric is water resistant,
not waterproof, and should not be completely
submerged underwater. Do not submerge your
head unless you wear a custom made earplug to
protect Lyric from water exposure.
You can protect Lyric by minimizing its exposure to
hairspray, conditioners, gels, cologne, hair dyes,
or any corrosive liquid. To protect the SoundLync, avoid
dropping it on hard surfaces, exposing it to heat, or
subjecting it to any other activities that may demagnetize
it.
For more information, contact your Lyric trained
hearing care professional.
Maximizing battery life
In normal use, the battery will last for months at a
time. Putting Lyric in SLEEP mode when going to sleep
will extend wear time.

20 21
4. Frequently asked questions
You can watch the Lyric Patient Counseling Video
online at www.lyrichearing.com/new-patient-video for
more tips on how to operate your Lyric hearing aid.
Can I use headsets / earbuds with Lyric?
External headphones and external hearing protection
can be used. Do not use inserted headsets, earbuds,
or earplugs, because they may dislodge the hearing
aid. Standard iPod earphones can be used.
Will an MRI scan, X-ray, or CT scan damage Lyric
or place my ear at risk?
Lyric must be removed before you have an MRI scan
because the hearing aid contains metallic parts.
Unlike an MRI scan, an X-ray or CT scan will not damage
or dislodge the hearing aid because a magnet is not
used. However, you should inform the physician and/or
technician about the hearing aid. If an X-ray or CT
scan of the ear or head is needed, the hearing aid may
need to be removed. Let your physician know that you
are wearing Lyric if you are having surgery of any kind.
Can I y on a plane with Lyric?
Yes. It is safe to y while wearing Lyric (provided the
aircraft cabin is pressurized).
Can I swim with Lyric?
Lyric is water resistant, not waterproof, and should not
be completely submerged underwater. Do not submerge
your head unless you wear a custom made earplug to
protect Lyric from water exposure. Lyric may be worn
while showering.
What happens if I dive underwater or skydive while
wearing Lyric?
You should not use Lyric while diving underwater or
skydiving. Pressure changes from underwater diving or
skydiving may cause discomfort and/or feedback if
Lyric moves in the ear canal. If you accidentally do these
activities while wearing Lyric, visit your Lyric trained
hearing care professional to have your ear canal
examined.

22 23
Should I visit my Lyric trained hearing care
professional if the battery is depleted in only one ear?
Yes. If the hearing aid in either ear stops working for
any reason, it needs to be removed within 24 hours,
and a Lyric trained hearing care professional needs to
examine your ear canal. If you cannot get to a Lyric
trained hearing care professional within 24 hours, you
should remove the hearing aid at home using the
SoundLync.
What should I do if my ear hurts?
You may experience initial discomfort or pressure
when wearing Lyric for the rst time. In most cases
this is a matter of hours or days, and it is minor
discomfort rather than pain. If you do experience pain
beyond the initial minimal discomfort, please see
your Lyric trained hearing care professional. If you
cannot reach your Lyric trained professional, discontinue
the use of Lyric by removing it yourself or have a
family member or friend remove it. Please see your Lyric
trained hearing care professional as soon as possible.
What do I do when my ear itches?
Do not move Lyric around. If your ear gets itchy, gently
massage the side of your face, in front of the ear. If your
ear continues to itch, or if the skin becomes irritated,
return to your Lyric trained hearing care professional
for evaluation.

24 25
How do I clean earwax from my ears while Lyric
is in place?
You should not attempt to remove earwax from your
ear canal while Lyric is in place. Do not use cotton
swabs. Have earwax cleaned from your ear by an Ear-
Nose-Throat physician or a Lyric trained hearing care
professional.
Will Lyric set o a metal detector?
No. Lyric’s metal components are too small to set o
a metal detector.
How long will my Lyric hearing aid last?
Lyric is designed to be worn until it stops functioning
(meaning there is no amplication) or for a maximum
of 120 days. Varying factors aect hearing aid life
including but not limited to time in the SLEEP Mode,
time turned OFF, noisy environments, excessive water
exposure and earwax production.
Do I have to return to the Lyric trained hearing care
professional each time I want a new hearing aid?
Your Lyric trained hearing care professional needs to
reinsert and program each Lyric hearing aid after
evaluating your ear(s). Placing replacement hearing
aids takes approximately 10 minutes.
Will I feel any discomfort in my ear when sleeping?
You may notice some initial discomfort when sleeping.
Try to sleep with as little direct pressure on your ears
as possible. Sleeping on your back is ideal.
Can I use Lyric with the telephone?
Yes, you can easily use the telephone with Lyric.

26 27
5. Service and warranty
Sonova AG oers you a comprehensive warranty for
Lyric, starting from the date of purchase. Please ask
your hearing care professional about the terms of
the warranty valid in the country of purchase. The
warranty provides for replacement hearing aids in
case of defects in the Lyric manufacturing process or
the materials used.
No warranty claims will be considered if the hearing
aid shows normal wear and tear, improper handling
or care, exposure to chemicals, immersion in water
or undue stress. The warranty does not cover services
performed by a hearing care professional at his or her
workplace.
6. Compliance information
Europe:
Declaration of Conformity
Hereby Sonova AG declares that this product meets the
requirements of the Medical Devices Directive 93/42/
EEC. The full text of the Declaration of Conformity can
be obtained from the manufacturer:
www.phonak.com/us/en/certicates
Emission standards: EN 60601–1-2:2015, IEC
60601– 1-2:2014, EN 55011:2009+A1, CISPR11:2009/
AMD1:2010, CISPR22:1997, CISPR32:2012, ISO 7637-
2:2011, CISPR25:2016, EN 55025:2017
Immunity standards: EN 60601-1-2:2015, IEC 60601-
1-2:2014, EN 61000-4-2:2009, IEC 61000-4-2:2008, EN
61000-4-3:2006+A1+A2, IEC 61000-4-3:2006+A1+A2,
EN 61000-4-4:2012, IEC 61000-4-4:2012, EN 61000-4-
5:2014, IEC 61000-4-5:2014, EN 61000-4-6:2014,
IEC 61000-4-6:2013, EN 61000-4-8:2010, IEC 61000-4-
8:2009, EN 61000-4-11:2004, IEC 61000-4-11:2004, IEC
60601-1(§ 4.10.2):2005, ISO 7637-2:2011

28 29
7. Information and explanation
of symbols
With the CE symbol, Sonova AG
conrms that this Phonak product
– including accessories – meets the
requirements of the Medical Devices
Directive 93/42/EEC. The numbers
after the CE symbol correspond to
the code of the certied institu-
tions that were consulted under the
above-mentioned directive.
This symbol indicates that the
products described in these user
instructions adhere to the require-
ments for an application part of
Type B of EN 60601-1. The surface
of the hearing aid is specied to
be as an applied part of Type B.
Indicates the medical device manu-
facturer, as dened in EU Directive
93/42/EEC.
Indicates the authorized representative
in the European Community.
This symbol indicates that it is
important for the user to read and
take into account the relevant
information in these user guides.
This symbol indicates that it is
important for the user to pay
attention to the relevant warning
notices in these user guides.
Important information for handling
and product safety.
During transportation keep dry.
Indicates that the device is a medical
device.

30 31
The symbol with the crossed out
number two indicates that this
hearing aid is for single use only.
Do not reuse. Return your used
Lyric to a Lyric trained hearing
care professional.
Indicates the manufacturer’s serial
number so that a specic medical
device can be identied.
Indicates the manufacturer’s cata-
logue number so that the medical
device can be identied.
Temperature during transportation:
0° to +50° Celsius (+32° to +122°
Fahrenheit). Temperature during
storage: +10° to +40° Celsius (+50°
to +104° Fahrenheit). Operating
conditions: +10 to +40 °C
(+50° to +104° Fahrenheit).
Humidity transportation: Up to 90%
(non condensing). Humidity storage:
0% to 70%.
Operating conditions: : 5-85% rH non
condensing (up to 95% non condensing
for <2h)
Atmospheric pressure:
500 hPa to 1100 hPa
Operating conditons:
700 hPa - 1060 hPa
The symbol with the crossed-out
garbage bin is to make you aware
that this hearing aid may not be
thrown away as normal household
waste. Please dispose old or unused
hearing aids at waste disposal sites
intended for electronic waste or
return them to your hearing care
professional. Proper disposal protects
the environment and health.

32 33
This symbols represent the two packets
that are packed with the Lyric hearing
aid in the shipping pouch. These packets
ensure an optimal environment for the
Lyric battery during shipping and storage.
After opening the shipping pouch,
throw the two packets away
immediately.
Do not open the two packets.
Do not ingest the contents of the two
packets.
Indicates the date after which the medi-
cal device is not to be used.
Indicates the date when the medical
device was manufactured.
Important information: Cell phones
Some hearing aid users have reported a buzzing sound
in their hearing aids when they are using cell phones.
According to the ANSI 63.19 (American National
Standard Methods of Measurement of Compatibility
Between Wireless Communications Devices and
Hearing Instruments) standard, the compatibility of a
particular hearing aid and cell phone can be predicted
by adding the rating for the hearing aid immunity to
the rating for the cell phone emissions. The sum of the
hearing aid rating (e.g. M2/T2=2) and the telephone
rating (e.g. M3/T3=3) is 5, and any combination that
equals 5 will provide “normal use”; a sum of 6 or
greater would indicate “excellent performance”. The
equipment performance measurements, categories and
system classications are based upon the best
information available but cannot guarantee that all
users will be satised. The immunity of this hearing aid
is at least M2/T2.
8. For the US market only, complies
with the FDA regulations

34 35
Note: the performance of individual hearing aids may
vary with individual cell phones. Therefore, please
try the hearing aid with your cell phone or, if you are
purchasing a new phone, be sure to try it with your
hearing aid prior to purchase. For additional guidance,
please ask your hearing care professional for the
booklet entitled “hearing aid compatibility with digital
wireless cell phones”.
Warning to Hearing Aid Dispensers
A hearing aid dispenser should advise a prospective
hearing aid user to consult promptly with a licensed
physician (preferably an ear specialist) before dispensing
a hearing aid if the hearing aid dispenser determines
through inquiry, actual observation, or review of any
other available information concerning the prospective
user, that the prospective user has any of the following
conditions:
(i) Visible congenital or traumatic deformity of
the ear.
(ii) History of active drainage from the ear within
the previous 90 days.
(iii) History of sudden or rapidly progressive hearing
loss within the previous 90 days.
(iv) Acute or chronic dizziness.
(v) Unilateral hearing loss of sudden or recent onset
within the previous 90 days.
(vi) Audiometric air-bone gap equal to or greater
than 15 decibels at 500 hertz (Hz), 1,000 Hz, and
2,000 Hz.

36 37
(vii) Visible evidence of signicant cerumen
accumulation or a foreign body in the ear canal.
(viii) Pain or discomfort in the ear. Special care should
be exercised in selecting and tting a hearing
aid whose maximum sound pressure level
exceeds 132 decibels because there may be risk
of impairing the remaining hearing of the
hearing aid user. (This provision is required only
for those hearing aids with a maximum sound
pressure capability greater than 132 decibels (dB).)
Important Notice for Prospective
Hearing Aid Users
Good health practice requires that a person with a
hearing loss have a medical evaluation by a licensed
physician (preferably a physician who specializes
in diseases of the ear) before purchasing a hearing aid.
Licensed physicians who specialize in diseases of the
ear are often referred to as otolaryngologists, otologists
or otorhinolaryngologists. The purpose of medical
evaluation is to assure that all medically treatable
conditions that may aect hearing are identied
and treated before the hearing aid is purchased.
Following the medical evaluation, the physician will
give you a written statement that states that your
hearing loss has been medically evaluated and that
you may be considered a candidate for a hearing
aid. The physician will refer you to an audiologist or
a hearing aid dispenser, as appropriate, for a hearing
aid evaluation.
The audiologist or hearing aid dispenser will conduct
a hearing aid evaluation to assess your ability to hear
with and without a hearing aid. The hearing aid
evaluation will enable the audiologist or dispenser to
select and t a hearing aid to your individual needs.
If you have reservations about your ability to adapt to
amplication, you should inquire about the availability
of a trial-rental or purchase-option program. Many
hearing aid dispensers now oer programs that permit
you to wear a hearing aid for a period of time for a
nominal fee after which you may decide if you want to
purchase the hearing aid.
Federal law restricts the sale of hearing aids to those
individuals who have obtained a medical evaluation

38 39
from a licensed physician. Federal law permits a fully
informed adult to sign a waiver statement declining
the medical evaluation for religious or personal beliefs
that preclude consultation with a physician. The
exercise of such a waiver is not in your best health
interest and its use is strongly discouraged.
Children with Hearing Loss
In addition to seeing a physician for a medical
evaluation, a child with a hearing loss should be
directed to an audiologist for evaluation and
rehabilitation since hearing loss may cause problems
in language development and the educational and
social growth of a child. An audiologist is qualied by
training and experience to assist in the evaluation
and rehabilitation of a child with a hearing loss.
Important information in case of battery
ingestion
If a battery is swallowed, call the 24-hour National
Battery Ingestion Hotline at 202-625-3333 or consult
your physician immediately.
The European Union General Data Protection Regulation
(GDPR) regulates how companies need to handle your
personal data. Sonova, parent company of Phonak,
respects your privacy and is committed to protecting
your personal data. We want to inform you as to how
we look after your personal data and how the law
protects you.
The data we received from your hearing care
professional about you
Please nd below the data that is collected and
processed by Sonova:
Identity Data
(rst & last name, date of birth and gender)
Lyric-ID
Product serial numbers
Contract information
(duration and payment modality)
Lyric tting data
9. Privacy Notice
