SERVICE MANUAL
WIRELESS STEREO HEADSET
SPECIFICATIONS
Ver. 1.4 2007.03
General
Communication system
BLUETOOTH Specification version 2.0
Output
BLUETOOTH Specification Power Class 2
Maximum communication range
Line of sight approx. 10 m (30 ft) *1
Frequency band
2.4 GHz band (2.4000 GHz – 2.4835 GHz)
Modulation method
FHSS
Compatible BLUETOOTH Profiles*2
A2DP (Advanced Audio DistributionZ Profile)
HSP (Headset Profile)
HFP (Hands-free Profile)
Supported codecs
SBC & MP3 decoder
Supplied accessories
AC power adaptor (1)
Battery charging stand (1)
Earbuds (S ×2, M ×2, L ×2)
Holder (1)
*1 The actual range will vary depending
on factors such as obstacles between
devices, magnetic fields around a
microwave oven, static electricity,
reception sensitivity, aerial’s
performance, operating system,
software application, etc.
*2 BLUETOOTH standard profiles
indicate the purpose of BLUETOOTH
Sony Corporation
Personal Audio Division
Published by SonyTechno Create Corporation
9-887-376-05
2007C02-1
© 2007.03
Headset
Power source
DC 3.7 V: Built-in lithium-ion
rechargeable battery
Dimensions
Approx. 25 ×51 ×29 mm
(1 ×2 ×1 3/16 in) (w/h/d)
Cord (from unit to earpiece)
Approx. 0.3 m (11 7/8 in)
Mass
Approx. 27 g (1.0 oz) including earpieces and cord
Earpieces: Approx. 4 g (0.15 oz) not including cord
Rated power consumption
1.5 W
Receiver
Type
Closed, dynamic
Driver unit
9 mm dome type (CCAW adopted)
Reproduction frequency range
20 – 20,000 Hz
Microphone
Type
Omni directional, electret condenser
Effective frequency range
100 – 4,000 Hz
Design and specifications are subject to
change without notice.

DR-BT10CX
2
TABLE OF CONTENTS
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
1. GENERAL........................................................................... 2
2. DIAGRAMS
2-1. Block Diagram ····························································· 5
2-2. Printed Wiring Boards – Main Board– (SideA)– ········ 6
2-2. Printed Wiring Boards – Main Board– (Side B)– ········ 7
2-3. Schematic Diagram – Main Board– ····························· 8
3. EXPLODEDVIEWS......................................................... 9
4. ELECTRICAL PARTS LIST........................................ 10
•IC101 (CXN1450-2ABL) on MAIN board cannot be
replaced individually.
Replace it with “MAIN BOARD, COMPLETE”.
Unleaded solder
Boards requiring use of unleaded solder are printed with the lead
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40°C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to
be applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set
to about 350°C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder
may also be added to ordinary solder.
SECTION 1
GENERAL
Location and Function of Part
s
This section is extracted
from instruction manual.

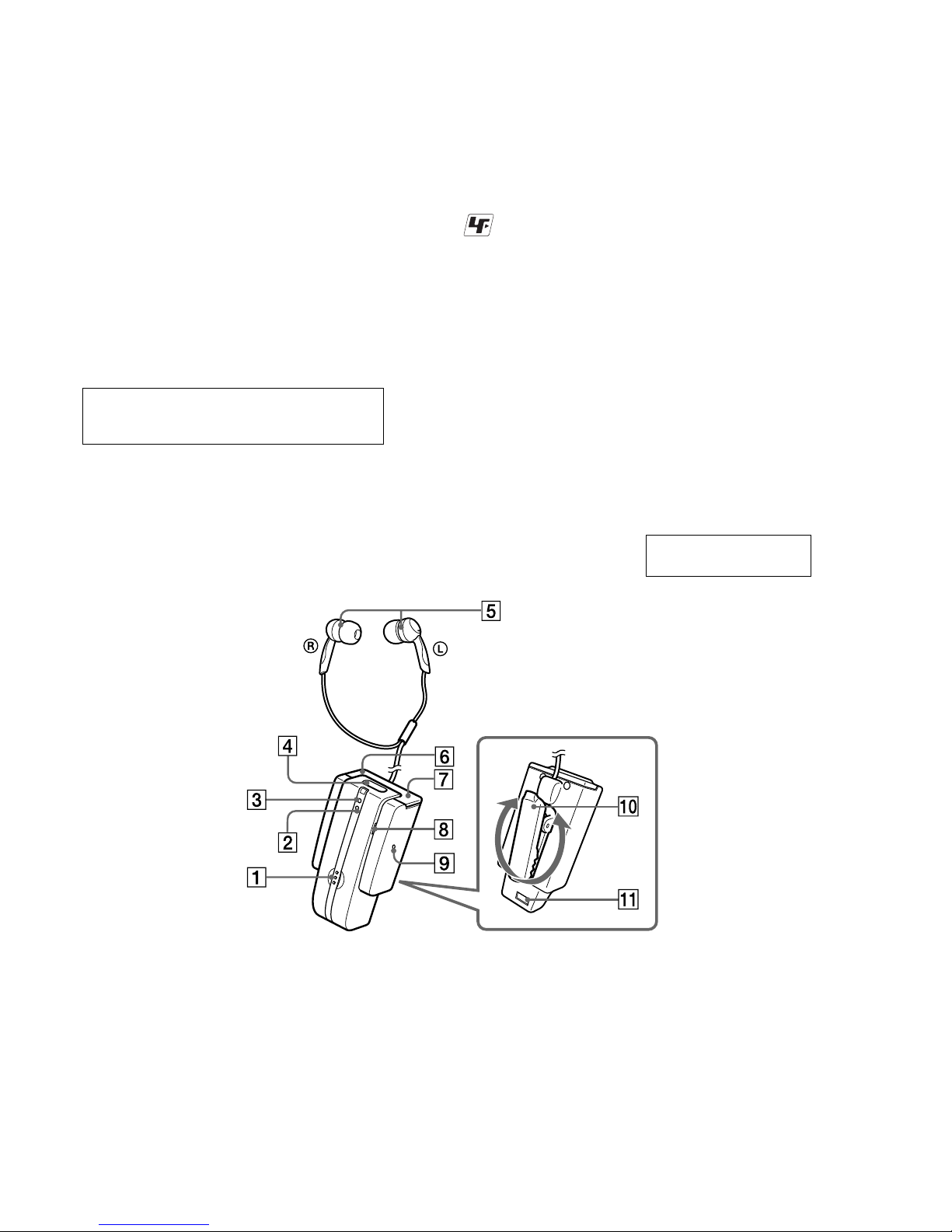

1Multi function button
Controls various call
functions.
2Indicator (red)
Indicates the power status of
the unit.
3Indicator (blue)
Indicates the communication
status of the unit.
4POWER button
5Earpieces
6VOL – button
7VOL + button
8Microphone
9RESET button
0Holding clip
Adjust the holding clip to the
desired angle and clip to your
pocket or collar.
qa Contact point
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.

3
DR-BT10CX
SECTION 2
DIAGRAMS
For schematic diagrams.
Note:
•All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4 W or less unless otherwise
specified.
•%: indicates tolerance.
•C: panel designation.
•A: B+ Line.
•Power voltage are dc 3.7 V and fed with regulated dc
power supply from battery terminal.
•Voltages are dc with respect to ground under tolerances.
no mark : STANDBY
(): AC ADAPTOR IN
•Voltagesaretakenwith a VOM (Inputimpedance10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Signal path.
F: AUDIO
NOTE FOR PRINTEDWIRING BOARDS AND SCHEMATIC DIAGRAMS.
Caution:
Parts face side: Parts on the parts face side seen from
(Side A) the parts face are indicated.
Pattern face side: Partsonthe patternfaceside seenfrom
(Side B) the pattern face are indicated.
For printed wiring boards.
Note:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
• IC101 (CXN1450-2ABL) on MAIN board cannot be replaced
individually.
Replace it with “MAIN BOARD, COMPLETE”.
•The voltage of IC101 cannot be measured.
•MAIN board is four-layer pritnted board.However, the patterns of
layer 2 and 3 have not been included in this diagrams.

4
DR-BT10CX
OUT
BAT
VCC
ISET
IN
VCC VCC
VCC
STAT2
VSS
9
10
8
7
6
2
3
5
1
4
I (DETECT)
ENABLE
V
(ISET)
V I(BAT)
V I(BAT)
V I(BAT)
V I(BAT)
V (RCH)
V (PRECHG)
V (TAPER)
V (TERM)
VSET
V I(BAT)
V I(SET)
V I(SET)
V (SLP)
V O(REG)
V O(REG)
V O(REG)
VSET
CHG ENABLE
CHG ENABLE
CHG ENABLE I
(FAULT)
ENABLE
I
(DETECT) ENABLE
I
(FAULT) ENABLE
DEGLITCH
DEGLITCH
DEGLITCH
DEGLITCH
RECHARGE
PRECHARGE
TAPER
TERM
STAT1
REFERENCE
AND BIAS
THERMAL
SHUTDOWN
CHARGE
CONTROL,
TIMER,
AND
DISPLAY
LOGIC
PG
PG
TS
IC261 BQ24010ADRCR
• IC Block Diagram

55
DR-BT10CX
DR-BT10CX
2-1. BLOCK DIAGRAM
•Signal path
F: AUDIO
D103
(BLUE)
41
28
7
MIC301
MIC
RF_IN/OUT
ANT101
ANTENNA
48 A_IN_L_N/MIC_N
PIO_03
PIO_10
RESET-1
SP302
L-CH
HEADPHONE
DR–EX51PT
52
51
LED DRIVER
Q102 D102
(RED)
34
39
19
RESET-2
18
PIO_05
30
PIO_09
(MIC ON/OFF)
PIO_06
29
PIO_04
31
CORE_VDD
25
CORE_VDD
24
IO_VDD
15
IO_VDD
14
RF_VDD
2
AIO_00
(BATT VOLTAGE DET)
PIO_07
IC202
2.0V REG
A_IN_L_P/MIC_P
RECEIVER/TRANSMITTER,
MIC AMP, AF AMP,
BLUETOOTH CONTROL
A_OUT_L_P
A_OUT_L_N
SP301
R-CH 4
3A_OUT_R_P
A_OUT_R_N
47
13
5
37
IC151
IC101
4 1
RESET
IC201
4
1
3
5
1.8V DC/DC
CONVERTER
POWER
SWITCH
Q201
POWER
ON/OFF
Q202
D201
STAT1
IC261
BATT
9
1
2
8
3
OUT
LI-ION BATTERY
CHARGE MANAGEMENT
10
TS
IN
VCC
CN201
LI-ION
RECHARGEABLE
BATTERY
3.7V
B301
CN251
BATTERY
CHARGING
STAND
36
PIO_11
(CHARGER INPUT DET)
38
PIO_08
(POWER SW IN)
PG
7
CEVIN
VIN
VOUT
VOUT
RESET
S108
S307
MULITI FUNCTION
S305
VOLUME+
S104
VOLUME–
POWER
S301
LX
VOUT
VIN
CE

DR-BT10CX
66
DR-BT10CX
VOL –
VOL +
POWER
BATTERY
CHARGING
STAND
S301
D102
(RED)
D103
(BLUE)
IC101
IC151
ANT101
S104
C255
C101
C106
C104
C151
R101
R102
C103
R104
R105
C107
C108
R120
R264
C261
C262
R262
R261
R263
C263
C113
C112
C111
C110
FB103
FB104
R133
R134
IC261
S305
S307
C131
C132
R107
R109
R110
R108
C133
L102 C116
CN251
D303
(MULTI FUNCTION)
1
2
3
4
(SIDE A)
BOARDSWITCH
BOARDMAIN (SIDE A)
(SIDE A)
BOARDJACK
11
(11)
1-871-239-
11
(11)
1-871-238-
11
(11)
1-870-895-
A
MAIN
BOARD
(SIDE A)
(Page 7)
(RED)
(BLK)
23 4 5 6 7
A
1
B
C
D
2-2. PRINTED WIRING BOARD – MAIN BOARD (SIDE A) – : Uses unleaded solder.
Ref. No. Location
D102 C-5
D103 C-6
D303 B-4
IC101 C-3
IC151 C-4
IC261 B-5
•Semiconductor Location

77
DR-BT10CX
DR-BT10CX
RESET
TP318
TP319 TP320 TP322
C120
IC202
L201
IC201
TP118
TP122
TP119
TP120 TP121
R112
S108
CN201
C208
C207
C204
C205
R202 R201
Q202
Q201 S
E
C201 C202 Q102
FB102
FB101
C121
C122
R126
C118
C119
R204
R203
R125
C211
R151
C105 C209
D201
R106
R113
C109
R121
R127
C123
C212
C210
R111
R131
R132
C203
C125
(NATURAL)
(RED)
(GRN)
(NATURAL/GRN))
C126
R115
L103
C134
R114
L301
L302
R152
L104
J101 J103
J102
MIC301
HEADPHONE
DR–EX51PT
SP302
L–CH
SP301
R–CH
(SIDE B)
BOARDMAIN
RECHARGEABLE
BATTERY
(LI–ION)
+3.7V
11
(11)
1-871-238-
1
3
1
3
4
4
5
5
11
(11)
1-870-895-
11
(11)
1-871-239-
(SIDE B)
BOARDJACK
(SIDE B)
BOARDSWITCH
E
CC
BB
MIC
A
JACK
BOARD
(SIDE B)
(Page 6)
(RED)
(BLK)
23 4 5 6 7
A
1
B
C
D
2-3. PRINTED WIRING BOARD – MAIN BOARD (SIDE B) – : Uses unleaded solder.
D201 B-4
IC201 C-3
IC202 C-4
Q102 B-4
Q201 B-3
Q202 B-3
•Semiconductor Location
Ref. No. Location

DR-BT10CX
88
DR-BT10CX
2-4. SCHEMATIC DIAGRAM – MAIN BOARD – •See page 4 for IC Block Diagrams.
TP205
TP206
IC101
IC151
IC201
IC202
IC261
C261
C255
CN251
B301
CN201
MIC301
C122
C121
C120
L103
C118
C119 R126
R125
C263
R262
R261
R263
R264
C262
R121
R120
ANT101
FB103
FB104 R134
R133
C131 C132
SP301
SP302
FB101 R131
FB102 R132 C126 C125
C103
R102
C104 C101
R151
C105
S108
C151
C204
C210
C205
R202
R201
D201
R203 C203
R204 C208
C207
L201
10uH
R110
C113
R109
C112
R107
C110
R105
C108
R104
C107
R115
R106
C109 C111
R108 C123
R127
R111
R112
R101
C209
C211
C212
C201 C202
C106
Q201
Q202
Q102
D102 D103
C116
C134
C133
R114 R152
L301
1uH L302
1uH
L104
S305
S307
S301
D303
L102
S104
R113
POWER_HOLD
1.8V
CXN1450
XC6109N16ANR
XC9226A186MR
XC6219B202MR
BQ24010ADRCR
0.47
0.1
2P
2P
C6027CD423LFP
1000p
1
15pF
15nH
0.047
0.047 0
2.2k
1000p
10k
10k
5.1k
0.5%
470
0.5%
1
100
470
0mH
0mH 10
10
100p 100p
0mH 10
0mH 10 100p 100p
0.1
150k
0.5%
0.1 0.01
100k
0.1
0.01
0.1
1
4.7 10V
47k
100k
RB715W
100k 0.01
470k 0.1
10
6.3V
150k
0.01
150k
0.01
150k
0.01
150k
0.01
150k
0.01
47k
150k
0.01 0.01
47k 0.01
2.2k
10k
10k
220k
0.5%
0.01
0.1
J103
0
J102
0
J101
0
1
22
10V 0.1
0.1
RTF015P02TL
POWER SWITCH
2SC4617TL-Q
POWER ON/OFF
RN1704-TE85R
LED DRIVER
CL-191S-PP193
(RED) CL-191S-PB168
(BLUE)
1.5p
100p
100p
1k 1k
15nH
AVR-M1005C120MTA
4.7nH
10k
BLUETOOTH CONTROL
MIC AMP,AF AMP,
RECEIVER/TRANSMITTER,
LI-ION BATTERY
CHARGE MANAGEMENT
2.0V REG
RESET
BATTERY
RECHARGEABLE
(LI-ION)
+3.7V
DC-DC CONVERTOR
BATTERY
CHARGING
STAND
HEADPHONE
DR–EX51PT

9
DR-BT10CX
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
SECTION 3
EXPLODEDVIEWS
NOTE:
•-XX, -X mean standardized parts, so they may
have some differences from the original one.
•Items marked “*” are not stocked since they
are seldom required for routine service. Some
delayshould be anticipatedwhen ordering these
items.
•Themechanical partswith no referencenumber
in the exploded views are not supplied.
•Abbreviation
CND: Canadian model
KR: Korean model
13-254-136-11 SCREW (B1.4)
2X-2159-957-1 CABINET LOWER SUB ASSY
38-912-760-90 HEADPHONE DR-EX51PT SET
42-688-503-01 BUTTON, VOLUME
5X-2159-958-1 LITHIUM (ION) BATTERY SUB ASSY
(AEP, UK, E, KR)
5X-2178-102-1 LITHIUM (ION) BATTERY SUB ASSY (US, CND)
62-683-433-01 SHEET, PROTECTION
72-693-055-01 SHEET, BATTERY
82-890-550-01 SHEET, COIL B
92-890-005-01 SHEET, COIL
10 A-1197-623-A MAIN PC BOARD ASSY
11 A-1197-716-A SWITCH BOARD, COMPLETE
12 A-1216-556-A JACK BOARD, COMPLETE
13 A-1197-626-A MAIN BOARD, COMPLETE
14 2-683-435-01 CUSHION, MICROPHONE
15 2-688-502-01 BUTTON, POWER
16 2-688-498-01 CABINET, UPPER
17 2-688-501-01 BUTTON, MULTIFUNCTION
18 2-688-500-01 LID, UPPER
MIC301 1-542-707-11 ELECTRET CONDENSER MICROPHONE
16
17
18
15
14
13
12 11
10
9
8
8
7
6
5
21
4
3
MIC301
Ver. 1.4

10
DR-BT10CX SECTION 4
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
NOTE:
•Due to standardization, replacements in the
parts list may be different from the parts
specifiedin thediagrams or thecomponents
used on the set.
•-XX, -X mean standardized parts, so they
may have some difference from the original
one.
•Itemsmarked “*”are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•CAPACITORS:
uF: µF
•RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METALOXIDE: Metal Oxide-film resistor
F: nonflammable
•COILS
uH: µH
•SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
•Abbreviation
CND: Canadian model
KR: Korean model
JACK
A-1216-556-A JACK BOARD, COMPLETE
*********************
< CONNECTOR >
CN251 1-816-868-21 CONNECTOR (POWER JACK)
< COIL >
L301 1-400-135-11 INDUCTOR 1uH
L302 1-400-135-11 INDUCTOR 1uH
************************************************************
A-1197-626-A MAIN BOARD, COMPLETE
*********************
< ANTENNA >
ANT101 1-754-380-11 HELICAL ANTENNA
< CAPACITOR >
C101 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C103 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C104 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C105 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C106 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C107 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C108 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C109 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C110 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C111 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C112 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C113 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C116 1-164-841-11 CERAMIC CHIP 1.5PF 0.25PF 50V
C118 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
C119 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
C120 1-164-854-11 CERAMIC CHIP 15PF 5% 50V
C121 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V
C122 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C123 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C125 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C126 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C131 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C132 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C133 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C134 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C151 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C201 1-100-844-91 TANTAL. CHIP 22uF 20% 10V
C202 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C203 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C204 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C205 1-112-017-91 TANTAL. CHIP 4.7uF 20% 10V
C207 1-100-450-91 TANTAL. CHIP 10uF 20% 6.3V
C208 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C209 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C210 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V
C211 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C212 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V
C255 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C261 1-112-324-91 CERAMIC CHIP 0.47uF 20% 10V
C262 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V
C263 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
< CONNECTOR >
CN201 1-784-650-21 CONNECTOR 2P
< DIODE >
D102 6-501-537-01 DIODE CL-191S-PP193-D-T (RED)
D103 6-501-538-01 DIODE CL-191S-PB168-D-T (BLUE)
D201 8-719-082-45 DIODE RB715W-TL
D303 1-804-209-21 VARISTOR (SMD)
< FERRITE BEAD >
FB101 1-469-084-21 FERRITE 0mH
FB102 1-469-084-21 FERRITE 0mH
FB103 1-469-084-21 FERRITE 0mH
FB104 1-469-084-21 FERRITE 0mH
< IC >
IC101 (Not supplied) IC CXN1450-2ABL
IC151 6-709-935-01 IC XC6109N16ANR
IC201 6-709-718-01 IC XC9226A186MR
IC202 6-708-084-01 IC XC6219B202MR
IC261 6-704-354-02 IC BQ24010ADRCR
< CHIP CONDUCTOR >
J101 1-216-864-11 CONDUCTOR, CHIP 0
J102 1-216-864-11 CONDUCTOR, CHIP 0
J103 1-216-864-11 CONDUCTOR, CHIP 0
When indicating parts by reference
number, please include the board
name.
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
• IC101 (CXN1450-2ABL) on MAIN board cannot be replaced
individually.
Replace it with “MAIN BOARD, COMPLETE”.
MAIN
Ver. 1.2

11
DR-BT10CX
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
< SWITCH >
S301 1-786-650-21 SWITCH, TACTILE (POWER)
S305 1-786-650-21 SWITCH, TACTILE (VOL –)
S307 1-786-650-21 SWITCH, TACTILE (VOL +)
************************************************************
MISCELLANEOUS
**************
38-912-760-90 HEADPHONE DR-EX51PT SET
5X-2159-958-1 LITHIUM (ION) BATTERY SUB ASSY
(AEP, UK, E, KR)
5X-2178-102-1 LITHIUM (ION) BATTERY SUB ASSY (US, CND)
MIC301 1-542-707-11 ELECTRET CONDENSER MICROPHONE
************************************************************
ACCESSORIES
************
01-478-430-12 ADAPTOR, AC (AC-ES455K) (KR)
01-478-432-13 ADAPTOR, AC (AC-ES455K) (AEP, E)
01-478-433-12 ADAPTOR, AC (AC-ES455K) (UK)
01-478-434-11 ADAPTOR, AC (AC-ES455K) (US, CND)
2-698-598-11 MANUAL, INSTRUCTION (ENGLISH) (AEP, UK)
2-698-598-21 MANUAL, INSTRUCTION (FRENCH, SPANISH,
GERMAN) (AEP)
2-698-598-31 MANUAL, INSTRUCTION (ITALIAN, DUTCH,
PORTUGUESE, RUSSIAN) (AEP)
2-698-598-41 MANUAL, INSTRUCTION (ENGLISH, SPANISH)
(US)
2-698-598-51 MANUAL, INSTRUCTION (ENGLISH, FRENCH)
(CND)
2-698-598-61 MANUAL, INSTRUCTION (ENGLISH) (E, KR)
2-698-598-71 MANUAL, INSTRUCTION (KOREAN) (KR)
A-1197-622-A CRADLE OVERALL ASSY
< COIL >
L102 1-456-367-11 INDUCTOR 4.7nH
L103 1-414-842-21 INDUCTOR 15nH
L201 1-481-168-11 INDUCTOR 10uH
< TRANSISTOR >
Q102 6-550-974-01 TRANSISTOR RN1704 (TE85R.F)
Q201 6-551-067-01 TRANSISTOR RTF015P02TL
Q202 8-729-927-99 TRANSISTOR 2SC4617R
< RESISTOR >
R101 1-208-943-11 METAL CHIP 220K 0.5% 1/16W
R102 1-208-939-11 METAL CHIP 150K 0.5% 1/16W
R104 1-218-979-11 RES-CHIP 150K 5% 1/16W
R105 1-218-979-11 RES-CHIP 150K 5% 1/16W
R106 1-218-979-11 RES-CHIP 150K 5% 1/16W
R107 1-218-979-11 RES-CHIP 150K 5% 1/16W
R108 1-218-973-11 RES-CHIP 47K 5% 1/16W
R109 1-218-979-11 RES-CHIP 150K 5% 1/16W
R110 1-218-979-11 RES-CHIP 150K 5% 1/16W
R111 1-218-965-11 RES-CHIP 10K 5% 1/16W
R112 1-218-965-11 RES-CHIP 10K 5% 1/16W
R113 1-218-965-11 RES-CHIP 10K 5% 1/16W
R114 1-218-953-11 RES-CHIP 1K 5% 1/16W
R115 1-218-973-11 RES-CHIP 47K 5% 1/16W
R120 1-218-949-11 RES-CHIP 470 5% 1/16W
R121 1-218-941-81 RES-CHIP 100 5% 1/16W
R125 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
R126 1-218-990-81 SHORT CHIP 0
R127 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
R131 1-218-929-11 RES-CHIP 10 5% 1/16W
R132 1-218-929-11 RES-CHIP 10 5% 1/16W
R133 1-218-929-11 RES-CHIP 10 5% 1/16W
R134 1-218-929-11 RES-CHIP 10 5% 1/16W
R151 1-218-977-11 RES-CHIP 100K 5% 1/16W
R152 1-218-953-11 RES-CHIP 1K 5% 1/16W
R201 1-218-977-11 RES-CHIP 100K 5% 1/16W
R202 1-218-973-11 RES-CHIP 47K 5% 1/16W
R203 1-218-977-11 RES-CHIP 100K 5% 1/16W
R204 1-218-985-11 RES-CHIP 470K 5% 1/16W
R261 1-218-965-11 RES-CHIP 10K 5% 1/16W
R262 1-218-965-11 RES-CHIP 10K 5% 1/16W
R263 1-218-864-11 METAL CHIP 5.1K 0.5% 1/10W
R264 1-208-675-11 METAL CHIP 470 0.5% 1/16W
< SWITCH >
S104 1-786-650-21 SWITCH, TACTILE (MULTI FUNCTION)
S108 1-786-723-11 SWITCH, TACTILE (RESET)
************************************************************
A-1197-716-A SWITCH BOARD, COMPLETE
**********************
< COIL >
L104 1-414-842-21 INDUCTOR 15nH
MAIN SWITCH
Ver. 1.4

DR-BT10CX
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2006.08 New
1.1 2006.08 Delete of manual, instruction 2. (SPM-06098)
1.2 2006.12 Addition of Korean model.
1.3 2007.01 Part No. addition of Ref. No.5 (US, CND). (SPM-07002)
1.4 2007.03 Addition of E model.
