Sony DVS-9000SF User manual

DVS-9000/9000SF System
(With CCP-9000 Series Center Control Panel)
User’s Guide
Production Switcher System
Volume 2 [English]
1st Edition (Revised 2)
Software Version 3.00 and Later

NOTICE TO USERS
© 2002 Sony Corporation. All rights reserved. This
manual or the software described herein, in whole or in
part, may not be reproduced, translated or reduced to
any machine readable form without prior written approval
from Sony Corporation.
SONY CORPORATION PROVIDES NO WARRANTY
WITH REGARD TO THIS MANUAL, THE SOFTWARE
OR OTHER INFORMATION CONTAINED HEREIN AND
HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR ANY PARTICULAR PURPOSE WITH REGARD TO
THIS MANUAL, THE SOFTWARE OR SUCH OTHER
INFORMATION. IN NO EVENT SHALL SONY
CORPORATION BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES,
WHETHER BASED ON TORT, CONTRACT, OR
OTHERWISE, ARISING OUT OF OR IN CONNECTION
WITH THIS MANUAL, THE SOFTWARE OR OTHER
INFORMATION CONTAINED HEREIN OR THE USE
THEREOF.
Sony Corporation reserves the right to make any
modification to this manual or the information contained
herein at any time without notice.
The software described herein may also be governed by
the terms of a separate user license agreement.

3Table of Contents
Table of Contents
Chapter 11 DME Operations
Three-Dimensional Transformation Operations.......................................13
Basic Operations....................................................................................13

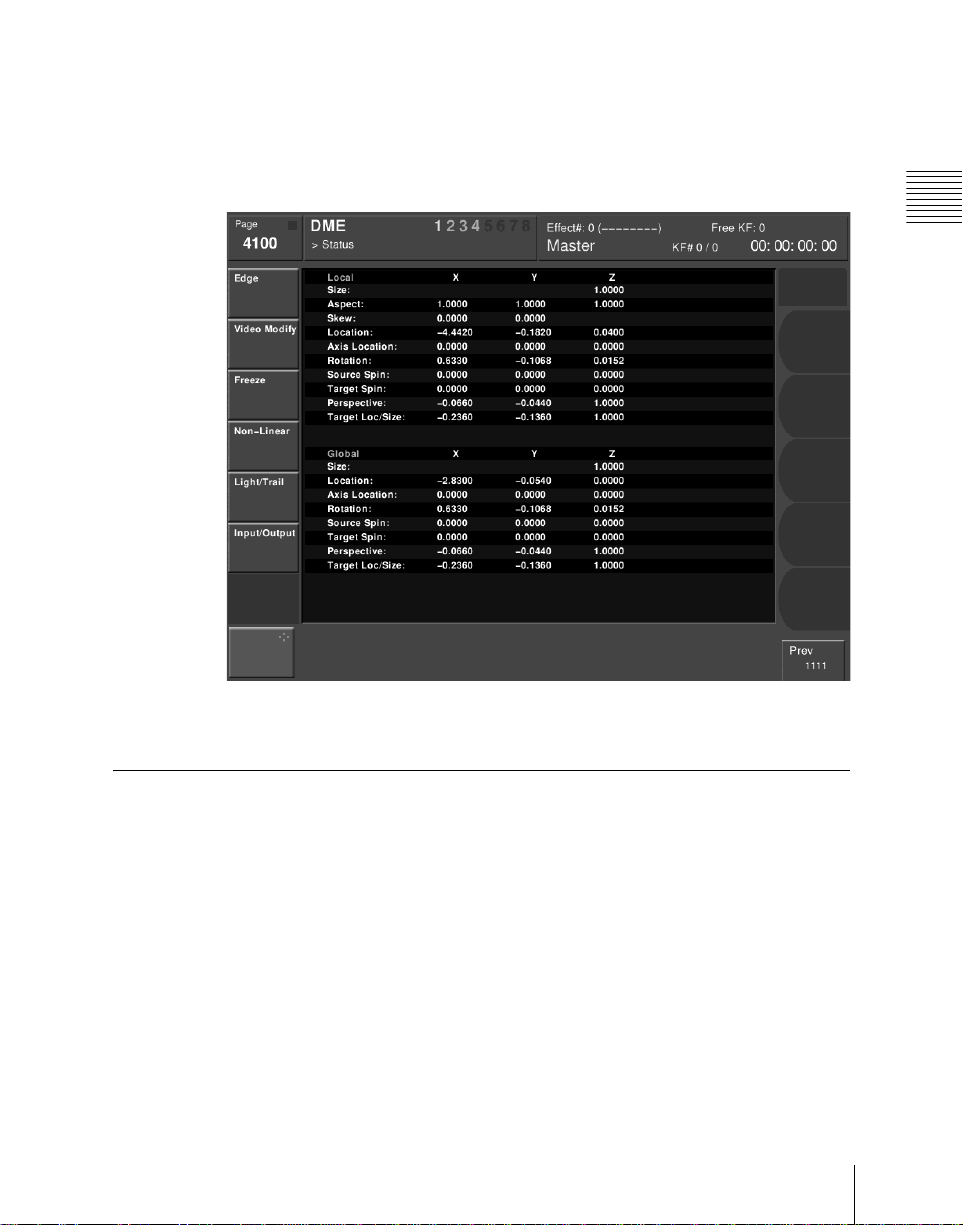

Three-Dimensional Parameter Display .................................................17
Entering Three-Dimensional Parameter Values....................................19
Graphics Display...................................................................................20
Canceling Virtual Images......................................................................22
DME Special Effect Operations ..................................................................24
Border Settings......................................................................................24
Crop Settings.........................................................................................26
Beveled Edge Settings...........................................................................28
Key Border Settings ..............................................................................30
Art Edge Settings...................................................................................31
Flex Shadow Settings............................................................................39
Defocus Settings....................................................................................45
Blur Settings..........................................................................................46
Multi Move Settings..............................................................................47
Sepia Settings ........................................................................................48
Mono Settings........................................................................................49
Posterization and Solarization Settings.................................................49
Nega Settings.........................................................................................50
Contrast Settings....................................................................................51
Mosaic Settings .....................................................................................52
Sketch Settings ......................................................................................52
Metal Settings........................................................................................55
Dim and Fade Settings ..........................................................................56
Glow Settings ........................................................................................58
Mask Settings ........................................................................................59
Freeze Settings ......................................................................................61
Nonlinear Effect Settings ......................................................................63
Lighting Settings ...................................................................................90
Trail Settings .........................................................................................94
Motion Decay Settings..........................................................................97
Keyframe Strobe Settings......................................................................99

4Table of Contents
Spotlighting Settings ...........................................................................101
Background Settings............................................................................110
Separate Sides Settings........................................................................111
Shaped Video Settings.........................................................................111
Invert Settings......................................................................................112
Key Density Settings...........................................................................113
Key Source Selection ..........................................................................113
Interpolation Settings ..........................................................................114
Global Effect Operations ...........................................................................116
Combiner Settings...............................................................................116
Brick Settings ......................................................................................121
Shadow Settings ..................................................................................123
Chapter 12 External Devices
Control of External Devices.......................................................................126
Control of P-BUS Devices..........................................................................127
Creating and Editing the P-BUS Timeline..........................................127
P-BUS Trigger.....................................................................................130
Control of GPI Devices ..............................................................................131
GPI Timeline Creation and Editing.....................................................131
Control of VTRs and Disk Recorders.......................................................134
Controlling the Tape/Disk Transport ..................................................134
Checking VTR/Disk Recorder Information........................................137
Cueup & Play ......................................................................................138
VTR/Disk Recorder Timeline .............................................................143
Disk Recorder File Operations............................................................149
Chapter 13 Keyframe Effects
Sequence of Keyframe Operations............................................................155
Displaying the Timeline Menu ..................................................................156
Interpreting the Timeline Menu ..........................................................156
Settings in the Timeline Menu ............................................................158
Recalling a Register....................................................................................161
Specifying the Region and Edit Points......................................................164
Creating and Editing Keyframes..............................................................166
Creation ...............................................................................................166
Insertion...............................................................................................167
Modification........................................................................................167
Deletion ...............................................................................................171

5Table of Contents
Movement............................................................................................172
Copying ...............................................................................................173
Pause....................................................................................................174
Keyframe Loop (Repeated Execution of a Specified Range) .............174
Undoing an Edit Operation..................................................................177
Duration Mode Setting........................................................................178
Transition Mode Settings for User Programmable DME....................178
Time Settings...............................................................................................179
Setting the Keyframe Duration............................................................179
Setting the Effect Duration..................................................................180
Setting the Delay .................................................................................181
Path Setting.................................................................................................182
Basic Procedure for Path Settings .......................................................182
Executing Effects........................................................................................186
Executing Effects in the Keyframe Control Block..............................186
Setting the Run Mode..........................................................................187
Saving Effects..............................................................................................189
Creating and Saving a Master Timeline...................................................191
Creating and Saving a Master Timeline Using the Buttons in the Numeric
Keypad Control Block .............................................................191
Creating and Saving a Master Timeline With the Menu.....................193
Register Operations in the Menus.............................................................196
Effect Attribute Settings......................................................................196
Effect Status Display...........................................................................197
Effect Register Editing........................................................................197
Chapter 14 Snapshots
Snapshot Operations From the Numeric Keypad Control Block..........204
Saving and Recalling Snapshots..........................................................205
Snapshot Operations in the Menus...........................................................210
Setting Snapshot Attributes.................................................................210
Snapshot Status Display......................................................................212
Setting Key Snapshot Attributes .........................................................213
Creating and Saving a Master Snapshot..............................................214
Snapshot Register Editing ...................................................................215
Chapter 15 Utility/Shotbox
Utility Execution.........................................................................................218

6Table of Contents
Executing a Utility With the User Preference Buttons (Menu Control
Block).......................................................................................218
Executing a Utility in the Utility/Shotbox Control Block...................219
Shotbox Register Creation.........................................................................221
Creating a Shotbox Register in the Numeric Keypad Control Block..221
Creating a Shotbox Register Using the Menus ...................................223
Shotbox Execution......................................................................................226
Shotbox Execution From the Numeric Keypad Control Block...........226
Shotbox Execution in the Utility/Shotbox Control Block...................228
Shotbox Register Editing...........................................................................230
Chapter 16 Engineering Setup
Setup for the Whole System.......................................................................233
Network Settings (Network Config Menu).........................................233
System Settings (System Config Menu) .............................................234
Setting the Signal Format and Screen Aspect Ratio (Format Menu)..236
Selecting the State After Powering On (Start Up Menu)....................237
Reset and Initialization (Initialize Menu)............................................239
Installation and Device Setup (Install/Unit Config Menu) .................240
System Maintenance (Maintenance Menu).........................................245
Setup Relating to Operations From the Control Panel...........................248
Overall Control Panel Settings (Config Menu)...................................248
Cross-Point Settings (Xpt Assign Menu)............................................257
Auxiliary Bus Control Block Settings (Aux Assign Menu)................262
Setting Button Assignments (Prefs/Utility Menu) ..............................266
Interfacing With External Devices (Device Interface Menu)..............276
Operation Settings (Operation Menu).................................................282
Screen Saver and Other Settings (Maintenance Menu).......................287
Setup Relating to Switcher Processor.......................................................289
Settings for Switcher Configuration (Config Menu)...........................289
Signal Input Settings (Input Menu).....................................................293
Signal Output Settings (Output Menu)................................................294
Settings Relating to Video Switching (Transition Menu)...................299
Settings Relating to Keys, Wipes and Frame Memory (Key/Wipe/FM
Menu).......................................................................................301
Settings Relating to Function Links (Link Menu)...............................304
Interfacing With External Devices (Device Interface Menu)..............308
Setup Relating to DME..............................................................................317
Settings Relating to Signal Inputs (Input Menu).................................317

7Table of Contents
Interfacing With External Devices (Device Interface Menu)..............319
Setup Relating to DCU...............................................................................323
Settings Relating to Parallel Inputs (Input Config Menu)...................323
GPI Input Setting (GPI Input Assign Menu).......................................324
Parallel Output Settings (Output Config Menu)..................................327
GPI Output Setting (GPI Output Assign Menu) .................................329
Serial Port Settings (Serial Port Assign Menu)...................................331
Setup Relating to Router Interface and Tally..........................................338
Router Interface Settings (Router Menu)............................................338
Tally Group Settings (Group Tally Menu)..........................................341
Wiring Settings (Wiring Menu) ..........................................................341
Tally Generation Settings (Tally Enable Menu) .................................343
Tally Copy Settings (Tally Copy Menu).............................................345
Parallel Tally Settings (Parallel Tally Menu)......................................347
Serial Tally Settings (Serial Tally Menu)............................................348
Simple Connection of the MKS-8080/8082 AUX Bus Remote Panel.....351
Procedure for Simple Connection .......................................................351
Setting Status of the MKS-8080/8082 in Simple Connection.............351
Chapter 17 Files
Operations on Individual Files..................................................................354
Displaying the Individual Menus ........................................................354
Viewing Detailed File Information .....................................................354
Selecting Regions................................................................................356
Selecting a Device for Operations.......................................................356
Saving Files.........................................................................................357
Loading Files.......................................................................................358
Copying Files ......................................................................................359
Renaming Files....................................................................................360
Deleting Files ......................................................................................360
File Batch Operations.................................................................................362
Displaying the Batch Operation Menu................................................362
Batch Saving Files...............................................................................362
Batch Loading Files.............................................................................363
Batch Copying Files............................................................................363
Batch Deleting Files............................................................................364
Importing and Exporting Files..................................................................365
Displaying the Import/Export Menu ...................................................365
Importing Frame Memory Data ..........................................................365

8Table of Contents
Exporting Frame Memory Data ..........................................................366
Directory Operations..................................................................................367
Displaying the Directory Menu...........................................................367
Creating a New Directory....................................................................367
Renaming a Directory .........................................................................367
Deleting a Directory............................................................................368
Copying Files Between Different Unit IDs...............................................369
Chapter 18 Macros
Macro Operations in the Numeric Keypad Control Block and the Key-
frame Control Block .......................................................................372
Recalling a Macro Register and Executing a Macro...........................374
Creating and Editing a Macro .............................................................375
Saving a Macro....................................................................................382
Macro Attachment Assigning....................................................................383
Setting and Canceling a Macro Attachment........................................383
Executing a Macro by Macro Attachment...........................................385
Chapter 19 Color Corrector
Preparations................................................................................................388
Overall Color Corrector Operations ........................................................390
Enabling color corrector......................................................................390
Copy and Swap Operations.................................................................390
Color Corrector Functions ........................................................................392
Input Video Processing Operations.....................................................392
Primary Color Correction Operations .................................................392
Secondary Color Correction Operations .............................................396
RGB Clip Operations ..........................................................................397
Luminance Processing Operations......................................................397
Spot Color Adjustment........................................................................399
Output Video Processing Operations ..................................................401
YUV Clip Operations..........................................................................402
Chapter 20 DIAGNOSIS
Appendix
Wipe Pattern List .......................................................................................409
Standard Wipes....................................................................................409
Enhanced Wipes..................................................................................410

9Table of Contents
Rotary Wipes.......................................................................................411
Mosaic Wipes......................................................................................412
Random/Diamond Dust Wipes............................................................414
DME Wipe Pattern List.............................................................................415
DME Wipe Patterns Available in One-Channel Mode.......................415
DME Wipe Patterns Available in Two-Channel Mode.......................419
Spotlighting.................................................................................................421
Texture Patterns...................................................................................421
Shape Patterns .....................................................................................422
Menu Tree...................................................................................................423
Recalling Menus..................................................................................423
M/E-1 to M/E-3 Menus .......................................................................423
PGM/PST Menu..................................................................................425
Frame Memory Menu..........................................................................426
Color Bkgd Menu................................................................................426
AUX/MON Menu................................................................................427
CCR Menu...........................................................................................428
Copy/Swap Menu................................................................................429
MISC Menu.........................................................................................429
DME Menu..........................................................................................430
Global Effect Menu.............................................................................431
Device Menu .......................................................................................431
Macro Menu ........................................................................................432
Key Frame Menu.................................................................................432
Effect Menu.........................................................................................433
Snapshot Menu....................................................................................434
Shotbox Menu .....................................................................................435
File Menu ............................................................................................436
Engineering Setup Menu.....................................................................437
Macro File Editing Rules...........................................................................440
Macro File Syntax ...............................................................................440
Syntax of Event and Continue Statements ..........................................441
File Name ............................................................................................442
Saving and Recalling a File.................................................................442
Errors...................................................................................................443
Correspondence Between Events and Symbols ..................................443
Symbols and Parameters .....................................................................444
Example of File Contents....................................................................447
Error Messages...........................................................................................448

10 Table of Contents
Error Messages Appearing in a Message Box.....................................448
Error Messages Shown in the Error Information Menu......................453
Index ...........................................................................................................457

Chapter 11 DME Operations
Three-Dimensional Transformation Operations.......................................13
Basic Operations....................................................................................13
Three-Dimensional Parameter Display .................................................17
Entering Three-Dimensional Parameter Values....................................19
Graphics Display...................................................................................20
Canceling Virtual Images......................................................................22
DME Special Effect Operations ..................................................................24
Border Settings......................................................................................24
Crop Settings.........................................................................................26
Beveled Edge Settings...........................................................................28
Key Border Settings ..............................................................................30
Art Edge Settings...................................................................................31
Flex Shadow Settings............................................................................39
Defocus Settings....................................................................................45
Blur Settings..........................................................................................46
Multi Move Settings..............................................................................47
Sepia Settings ........................................................................................48
Mono Settings........................................................................................49
Posterization and Solarization Settings.................................................49
Nega Settings.........................................................................................50
Contrast Settings....................................................................................51
Mosaic Settings .....................................................................................52
Sketch Settings ......................................................................................52
Metal Settings........................................................................................55
Dim and Fade Settings ..........................................................................56
Glow Settings ........................................................................................58
Mask Settings ........................................................................................59
Freeze Settings ......................................................................................61
Nonlinear Effect Settings ......................................................................63
Lighting Settings ...................................................................................90

Trail Settings .........................................................................................94
Motion Decay Settings..........................................................................97
Keyframe Strobe Settings......................................................................99
Spotlighting Settings ...........................................................................101
Background Settings............................................................................110
Separate Sides Settings........................................................................111
Shaped Video Settings.........................................................................111
Invert Settings......................................................................................112
Key Density Settings...........................................................................113
Key Source Selection ..........................................................................113
Interpolation Settings ..........................................................................114
Global Effect Operations ...........................................................................116
Combiner Settings...............................................................................116
Brick Settings ......................................................................................121
Shadow Settings ..................................................................................123

13Three-Dimensional Transformation Operations
Chapter 11 DME Operations
Three-Dimensional Transformation
Operations

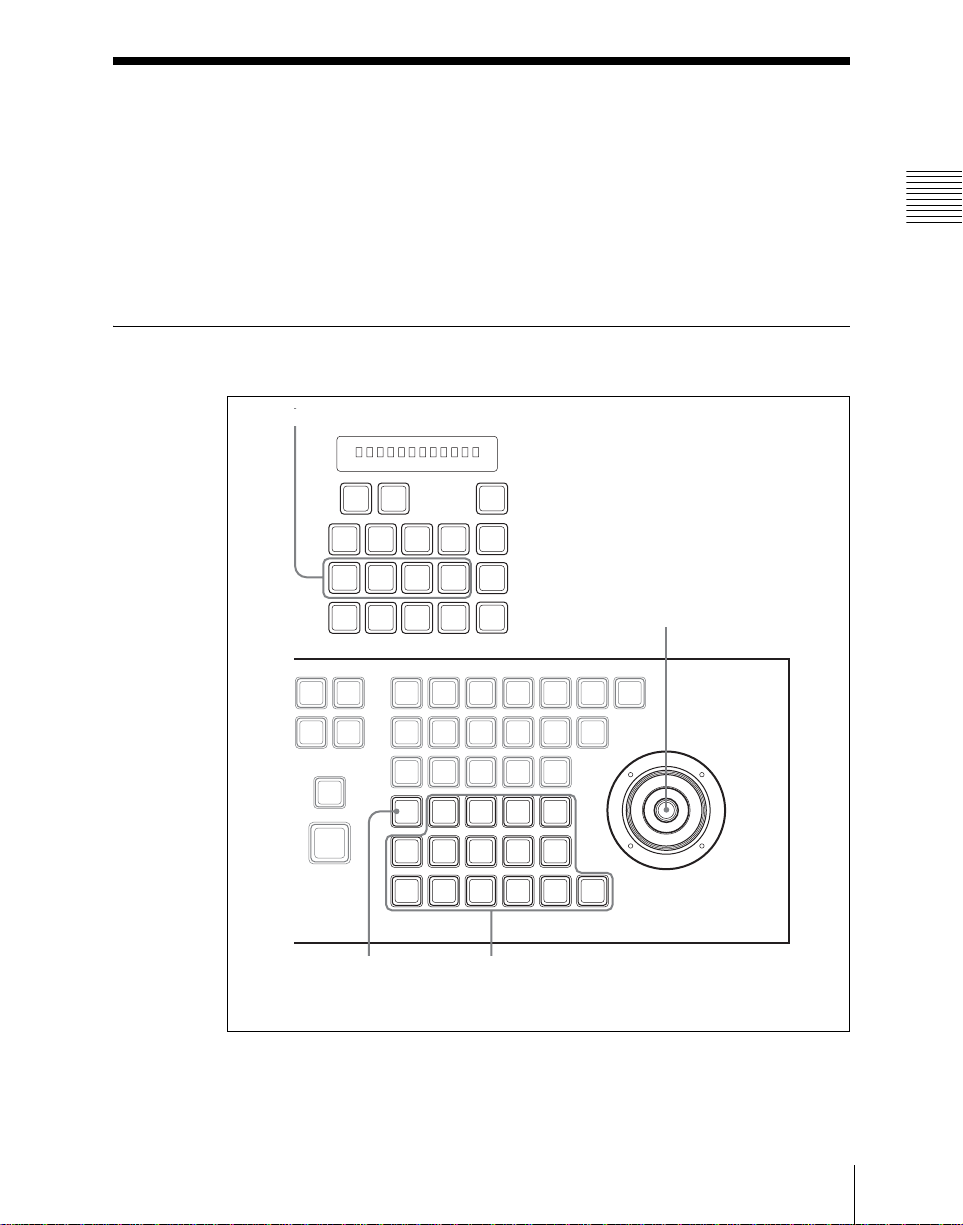

To carry out three-dimensional DME transformations, use either part of the
device control block (joystick type) and numeric keypad control block or the
optional device control block (MKS-8031TB Trackball Module).
Basic Operations
Controls used for DME operations
PAUSE
COPY
INS
RUN
MENU LOCAL GLB SRC TRGT
ROT
SHIFT
PASTEREV
MOD
ASP
SKEW
PERS
STOP
NEXT
KF
CLR
WORK
BUFR
DEL
X
DELAY
UNDO
LOC
XYZ
LOC
SIZE
AXIS
LOC
Y Z CTR
NEXT
KF
PREV
KF
GOTO
KF/TC
CONST
DUR
EFF
DUR
KF
DUR
EDIT
ENBL
FROM
TO RUN CTRL
KF
LOOP
EFF
LOOP
RE
WIND
NORM
/REV
Operating buttons
Joystick
Part of the numeric
keypad control block
MENU button
Part of the device control block (joystick type)
UNDO
STORE
STATS
MASTR ALL
P-BUS GP1
STORE
RCALL
DME
1DME 2DME 3DME 4
M/E
1USER 1USER 2
P/P
Region selection buttons (DME1 to 4)

Chapter 11 DME Operations
14 Three-Dimensional Transformation Operations

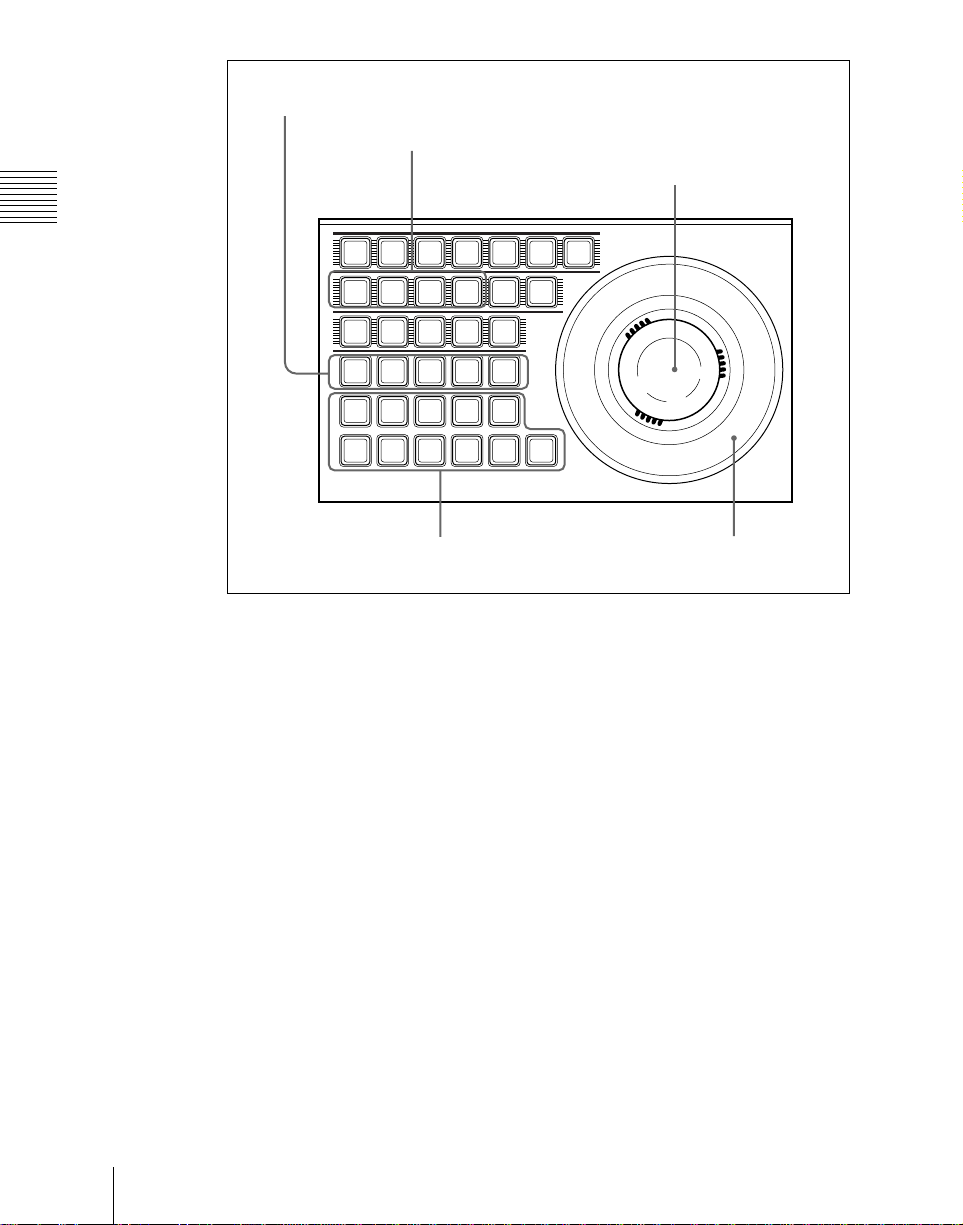

Device control block (MKS-8031TB)
Transforming an image in three-dimensional coordinate space
For details of three-dimensional DME coordinate space, see “Three-
Dimensional Transformations” in Chapter 1 (Volume 1).
Use the following procedure.
1 With the region selection buttons, select the target channel of the
operation.
You can press several of the buttons simultaneously to select several
channels. In this case, the button that you pressed first lights in green,
while buttons pressed subsequently light in amber.
2 With the function assignment buttons, select the three-dimensional
coordinate space in which to perform the transformation.
LOCAL button: Selects local coordinate space.
GLB button: Selects global coordinate space. You can select this button
and the [LOCAL] button simultaneously.
SRC button: Selects the source coordinate space.
DEVUSER
M/E1
DME1
DME5
MENU
SHIFT
M/E2
DME2
DME6
ASP
PERS
SUB
LOC
SIZE
FMR1
AXIS
LOC
MAIN
LOCAL
K1
CB1
GLB
K2
CB2
CLR
WORK
BUFR
M/E3
DME3
DME7
SRC
K3
FM1
TRGT
K4
FM2
LOC
XYZ
FMR2
X
P/P
DME4
DME8
ROT
POS
YZCTR
RUN
CTRL
Function assignment buttons
Operating buttons Z-ring
Region selection buttons (DME1 to 4)
Trackball

15Three-Dimensional Transformation Operations
Chapter 11 DME Operations
TRGT button: Selects the target coordinate space.
([SRC] and [TRGT] cannot be selected at the same time.)
3 Press the button for the operation you want to do, turning it on, to select
the transformation mode.
Thejoystick isassignedtothe selectedthree-dimensionalcoordinatespace
transformation mode.
For details of the three-dimensional transformation operation modes, see
“Transformation Operation Modes” in Chapter 1 (Volume 1).
To move the image: Press the [LOC XYZ] button, turning it on.
You can move the image with the joystick. Pressing the [LOC SIZE]
button instead of the [LOC XYZ] button, turning it on, makes it
possible to move the image on the x- and y-axes.
To rotate the image: Press the [ROT] button, turning it on.
You can rotate the image with the joystick.
To rotate the image in Spin mode, press the [ROT] button, turning it
on, while holding down the [SHIFT] button. You can operate in the
same way with the joystick.
To move an axis of rotation: With the [SRC] button selected in step 2,
press the [AXIS LOC] button, turning it on.
You can move the axis of rotation of the image with the joystick.
To magnify or shrink the image: Press the [LOC SIZE] button, turning
it on.
You can magnify and shrink the image by rotating the joystick knob.
Rotate counterclockwise to shrink, and clockwise to magnify.
To change the aspect ratio of the image:With the [SRC] button selected
in step 2, press the [ASP PERS] button, turning it on.
You can change the aspect ratio with the joystick.
To change the perspective on the image: With the [TRGT] button
selected in step 2, press the [ASP PERS] button, turning it on.
You can change the perspective of the image on the x- and y-axes by
movingthe joystick horizontally or vertically, and change the distance
to the view point by rotating the joystick knob.
To change the skew of the image: With the [SRC] button selected in step
2, press the [ASP PERS] button, turning it on, while holding down the
[SHIFT] button.
You can change the skew of the image along the x- and y-axes with
the joystick.

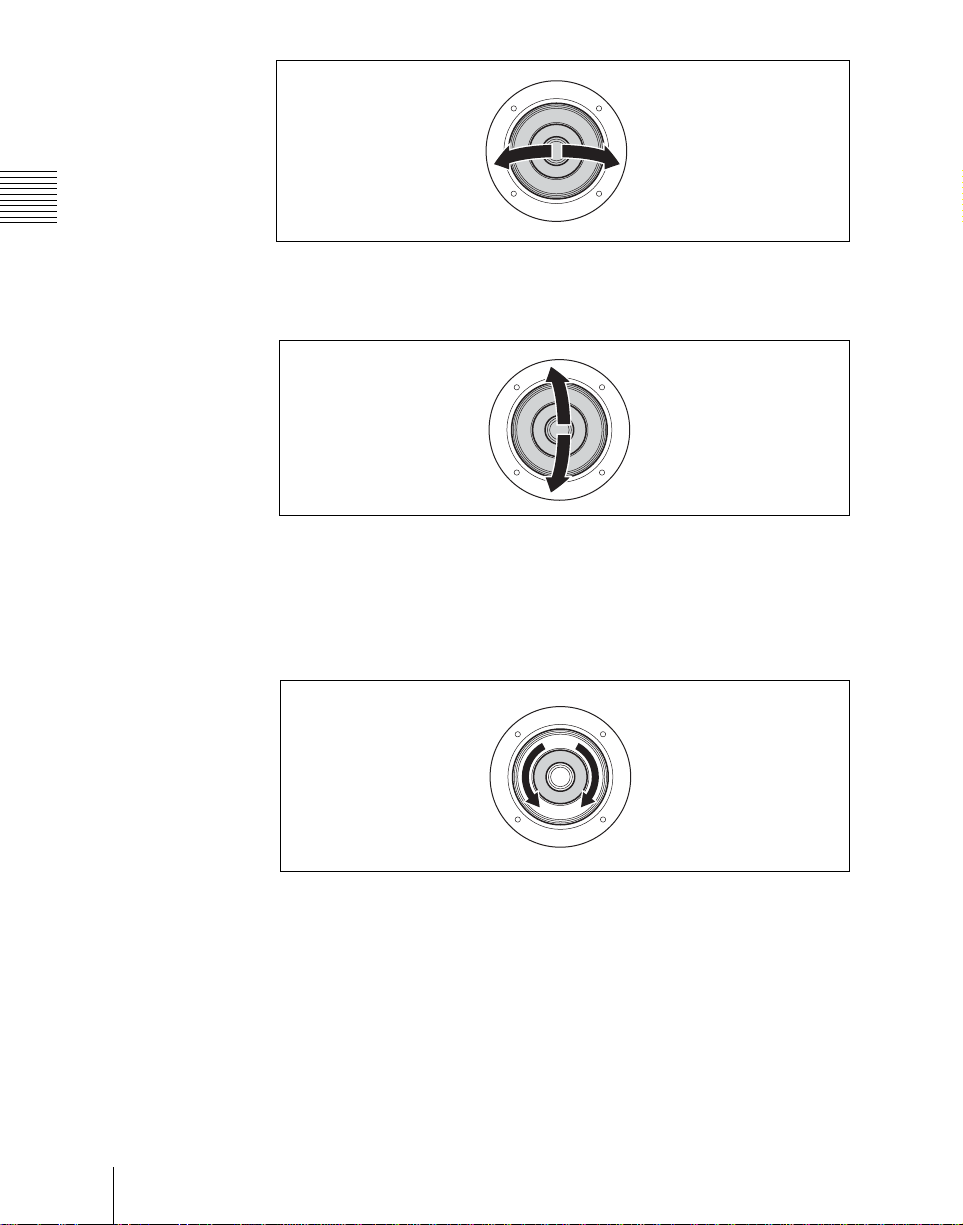

4 Depending on the axis of the change, operate the joystick as follows.
• To change on the x-axis, move the joystick horizontally.
Parameter values increase as you move to the right, and decrease as you
move to the left.

Chapter 11 DME Operations
16 Three-Dimensional Transformation Operations
• To change on the y-axis, move the joystick vertically.
Parameter values increase as you move upward, and decrease as you
move downward.
• To change on the z-axis, rotate the joystick knob.
Parameter values increase as you rotate clockwise, and decrease as you
rotate counterclockwise.
However, when you have pressed the [LOC XYZ] button to move the
image, z-axis parameters increase as you rotate counterclockwise, and
decrease as you rotate clockwise.
Ifyou hold down the [SRC] or[TRGT]buttonwhilecarryingouttheabove
operations, the rate of change of the parameters is reduced. (Fine mode)
5 To restrict the change in thetransformationto a specific axis,press the [X],
[Y], or [Z] button, tuning it on.
This enables the joystick on the selected axis only.

17Three-Dimensional Transformation Operations
Chapter 11 DME Operations
Three-Dimensional Parameter Display
You can check the values of the three-dimensional parameters in the DME
menu.
Displaying the three-dimensional parameters in the DME menu
In the menu control block, select the top menu selection button [DME].
The DME menu appears. The status area shows the three-dimensional
parameters currently controlled by the device control block.
• When multiple DME channels are selected, this shows the parameters for the
reference channel.
• When both Global and Local are selected, the three-dimensional parameters
are shown for the channel (the reference channel) for which the button is lit
green.
Functions assignable to joystick operations
Button Usable coordinate
space Joystick x-direction Joystick y-direction Joystick z-direction
LOC XYZ Source, target Move image on x-
axis Move image on y- axis Move image on z- axis
ROT Source, target Rotate image on y-
axis Rotate image on x- axis Rotate image on z- axis
SHIFT+
ROT Source, target Rotate image on y- axis (Spin mode) Rotate image on x- axis (Spin mode) Rotate image on z- axis (Spin mode)
AXIS LOC Source Move x-axis of
rotation Move y-axis of rotation Move z-axis of rotation
LOC SIZE Source, target Move image on x-
axis Move image on y- axis Magnify and shrink image
ASP PERS Source Change aspect ratio
on x-axis Change aspect ratio on y-axis Change aspect ratio on x- and y-axes
simultaneously
Target Shift view point on x-
axis Shift view point on y- axis Change distance from view point to
SHIFT+ASP
PERS Source Change skew on x- axis Change skew on y- axis Change aspect ratio on x- and y-axes
simultaneously

Chapter 11 DME Operations
18 Three-Dimensional Transformation Operations
Example three-dimensional parameter display (DME menu)
Type of three-dimensional space a)
Operation mode for three-dimensional
transforms b)
Value of X
Value of Y
Value of Z
a) This shows one of Local Target, Local Source, Global Target, and Global
Source.
b) This shows one of Loc XYZ, Loc Size, Rot, Spin, Axis Loc, Skew, Asp, and
Pers.

19Three-Dimensional Transformation Operations
Chapter 11 DME Operations
Viewing the three-dimensional parameter details
In the DME menu, press the menu title button (the [DME] in the upper left part
of the screen).
The Status menu appears. This menu shows the three-dimensional parameters
for the DME reference channel currently selected in the device control block.
Example three-dimensional parameter details
Entering Three-Dimensional Parameter Values
In addition to setting three-dimensional parameter values with the trackball and
Z-ring, you can enter them directly from the numeric keypad control block.
Entering three-dimensional parameter values
Use the following procedure.
1 In the device control block, press the [X], [Y], or [Z] button, turning it on.
The numeric keypad control block enters a mode in which you can enter
parameters for the selected axis.

Chapter 11 DME Operations
20 Three-Dimensional Transformation Operations
2 Enter a parameter value with the numeric keypad.
The number of significant digits after a decimal point is 4.
3 Press the [ENTER] button.
The parameter value is changed, and the image changes.
To enter difference values
You can enter difference values by pressing the [+/–] button, entering the
difference from the current value, and pressing the [TRIM] button to confirm.
The [+/–] button toggles between “+” (plus) and “–” (minus) each time it is
pressed.
Resetting three-dimensional parameter values
Pressing the [CTR] button in the device control block sets the current three-
dimensional parameter values to the closest detent points.
To reset three-dimensional parameter values to the defaults for the current
transformation operation mode, press the [CTR] button twice in rapid
succession. (For details ofdetentsand default values, see “Three-Dimensional
Transformations” in Chapter 1 (Volume 1).)
Clearing the working buffer
The working buffer is memory that holds the instantaneous state of an effect.
To clear (initialize) only the three-dimensional transform parameters in the
working buffer, press the [CLR WORK BUFR] button in the device control
block.
To clear all of the parameters in the working buffer and initialize the DME
system, press the [CLR WORK BUFR] button twice in rapid succession. It is
necessary to do this for both the local coordinate space and global coordinate
space.
As the initial DME state, you can specify whether to use the factory default
settings or user settings in the Setup menu. (See “Selecting the State After
Powering On (Start Up Menu)” (page 237).)
Graphics Display
You can display graphics such as a wireframe, coordinate axis,and a grid over
the currentDME image. This makes it easier to set up transformations, because
you can operate while viewing the coordinate axes and the position of the
image in three-dimensional coordinate space. (For the types of graphics
displayed, see “Graphics Display” in Chapter 1 (Volume 1).)
