Sony DVS-7200A User manual

INSTALLATION MANUAL
1st Edition (Revised 1)
DVS-7200A
SWITCHER CONTROL PANEL
BKDS-7015
DIGITAL VIDEO SWITCHER
BKDS-7025/7026
BKDS-2031
BKDS-2032
BKDS-2041
BKDS-2070
BKDS-7001
BKDS-7002
BKDS-7030
BKDS-7031
BKDS-7033
BKDS-7075
BKDS-7090
BKDS-7091
BKDS-7103
BKDS-7110
BKDS-7111
BKDS-7113
BKDS-7133
BKDS-7161
BKDS-7163
BKDS-7250
BKDS-7270
BKDS-7271
BKDS-7280
BKDS-7340
BKDS-7370
BKDS-7420
BKDS-7444
BKDS-7445
BKDS-7690
BZS-7040A
BZS-7060A

!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden.Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen.Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
DVS-7200A Serial No. 10001 and Higher
BKDS-2031 Serial No. 10001 and Higher
BKDS-2032 Serial No. 10001 and Higher
BKDS-2041 Serial No. 10001 and Higher
BKDS-2070 Serial No. 10001 and Higher
BKDS-7001 Serial No. 10001 and Higher
BKDS-7002 Serial No. 10001 and Higher
BKDS-7015 Serial No. 10001 and Higher
BKDS-7025 Serial No. 10001 and Higher
BKDS-7026 Serial No. 10001 and Higher
BKDS-7030 Serial No. 10001 and Higher
BKDS-7031 Serial No. 10001 and Higher
BKDS-7033 Serial No. 10001 and Higher
BKDS-7075 Serial No. 10001 and Higher
BKDS-7090 Serial No. 10001 and Higher
BKDS-7091 Serial No. 10001 and Higher
BKDS-7103 Serial No. 10001 and Higher
BKDS-7110 Serial No. 10001 and Higher
BKDS-7111 Serial No. 10001 and Higher
BKDS-7113 Serial No. 10001 and Higher
BKDS-7133 Serial No. 10001 and Higher
BKDS-7161 Serial No. 10001 and Higher
BKDS-7163 Serial No. 10001 and Higher
BKDS-7250 Serial No. 10001 and Higher
BKDS-7270 Serial No. 10001 and Higher
BKDS-7271 Serial No. 10001 and Higher
BKDS-7280 Serial No. 10001 and Higher
BKDS-7340 Serial No. 10001 and Higher
BKDS-7370 Serial No. 10001 and Higher
BKDS-7420 Serial No. 10001 and Higher
BKDS-7444 Serial No. 10001 and Higher
BKDS-7445 Serial No. 10001 and Higher
BKDS-7690 Serial No. 10001 and Higher
BZS-7040A Serial No.10001 and Higher
BZS-7060A Serial No.10001 and Higher

WARNING
This unit has no power switch.
When installing the unit, incorporate a readily
accessible disconnect device in the fixed wiring, or
connect the power cord to a socket-outlet which must be
provided near the unit and easily accessible, so that the
user can turn off the power in case a fault should occur.
WARNUNG
Dieses Gerät hat keinen Netzschalter.
Beim Einbau des Geräts ist daher im Festkabel ein leicht
zugänglicher Unterbrecher einzufügen, oder das
Netzkabel mu
ß mit einer in der Nähe des Geräts
befindlichen, leicht zugänglichen Wandsteckdose
verbunden werden, damit sich bei einer
Funktionsstörung die Stromversorgung zum Gerät
jederzeit unterbrechen lä
ß t.
Attention-when the product is installed in Rack:
1. Prevention against overloading of branch circuit
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
make sure that the rack does not overload the supply
circuit.
2. Providing protective earth
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
confirm that the outlet is provided with a suitable
protective earth connection.
3. Internal air ambient temperature of the rack
When this product is installed in a rack, please make
sure that the internal air ambient temperature of the
rack is within the specified limit of this product.
4. Prevention against achieving hazardous
condition due to uneven mechanical loading
When this product is installed in a rack, please make
sure that the rack does not achieve hazardous
condition due to uneven mechanical loading.

1
DVS-7200AE IM
Table of Contents
Manual Structure
Purpose of this manual .............................................................................................. 4
Related manuals......................................................................................................... 4
Contents ..................................................................................................................... 5
1. Installation
1-1. Operating Environment...............................................................................1-1
1-2. Power Supply ..............................................................................................1-1
1-2-1. Power Switch for Service (Control panel) .................................1-1
1-2-2. Power Specifications ..................................................................1-1
1-2-3. Power Cord.................................................................................1-1
1-3. Connectors...................................................................................................1-2
1-4. Input and Output Signals of Connectors .....................................................1-3
1-4-1. DVS-7200A................................................................................1-3
1-4-2. BKDS-7015................................................................................1-6
1-4-3. BKDS-7025/7026.......................................................................1-8
1-5. Examples of System Connection ..............................................................1-11
2. Installation of DVS-7200A
2-1. External Dimensions ...................................................................................2-1
2-2. Rack Mounting............................................................................................2-2
3. Installation of Control Panel
3-1. External Dimensions ...................................................................................3-1
3-2. Installation Space ........................................................................................3-3
3-3. Installation of MAIN PANEL.....................................................................3-4
3-4. Installation of DISPLAY PANEL (BKDS-7025/7026)..............................3-5
3-5. Replacement of Key Tops...........................................................................3-6

2DVS-7200AE IM
4. Installation of Options
4-1. Installation of Plug-in Boards .....................................................................4-2
4-2. Combination of Optional boards .................................................................4-4
4-2-1. Function of Optional Boards ......................................................4-4
4-2-2. Relation between Optional Boards and
Rear Panel Connectors ...............................................................4-4
4-3. Installation of Options for DVS-7200A ......................................................4-6
4-3-1. Removing and Installing of Front Panel ....................................4-6
4-3-2. Inserting/Pulling Out of Plug-in Boards ....................................4-7
4-3-3. Installation of Optional Boards ..................................................4-9
4-3-4. Installation of BKDS-7690 (Redundant Power Supply Unit) ..4-12
4-3-5. Installation of BKDS-7444
(Frame Memory Expansion Board) ..................................... 4-12-1
4-4. Installation of Options for Control Panel ..................................................4-13
4-4-1. Opening and Closing of Panel..................................................4-13
4-4-2. Turning On/Off the Power Switch ...........................................4-15
4-4-3. Installation of BKDS-7001 (Control Port Expansion Board) ..4-16
4-4-4. Installation of BKDS-7002 (Source Name Display Unit)
(BKDS-7015) ...........................................................................4-17
4-4-5. Installation of BKDS-7031 Track Ball ....................................4-19
4-4-6. Installation of Option Panels
(BKDS-7030/7031/7033/7340) ................................................4-21
4-4-7. Joining of BKDS-7075 (Control Panel Remote Adaptor) .......4-29
4-4-8. Installation of BKDS-7091 (Redundant Power Supply Unit)
(BKDS-7015) ...........................................................................4-33
4-4-9. Installation of BKDS-7090 (Redundant Power Supply Unit)
(BKDS-7025/7026) ..................................................................4-34
5. Confirmation in Installation
5-1. Switch Settings on Boards and LEDs Description......................................5-1
5-1-1. DVS-7200A................................................................................5-1
5-1-2. BKDS-7133 ................................................................................5-6
5-1-3. BKDS-7015 ................................................................................5-6
5-1-4. BKDS-7091 ................................................................................5-9
5-1-5. BKDS-7025/7026.....................................................................5-10
5-1-6. BKDS-7090 ..............................................................................5-16
5-2. Adjustment of Secondary Power Supply Voltage.....................................5-17
5-2-1. DVS-7200A..............................................................................5-17
5-2-2. BKDS-7015 ..............................................................................5-19
5-2-3. BKDS-7025/7026.....................................................................5-21
5-3. Adjustment of Operation Power for Fader Lever .....................................5-23

3
DVS-7200AE IM
6. Initial Set-up of System
6-1. Operation and Saving of Set-up Data..........................................................6-1
6-2. Installation of Program (BZS-7040A/7060A) ............................................6-5
6-2-1. Down Load of Program..............................................................6-6
6-2-2. Initializing of Data on RAM ......................................................6-7
6-2-3. Initializing of “Nonvolatile Memory”........................................6-8
6-3. Set-up ..........................................................................................................6-9
6-3-1. Confirmation of the Software Version .....................................6-10
6-3-2. Setting of the Signal Format ....................................................6-10
6-3-3. Setting about the System ..........................................................6-11
6-3-4. Saving Set-up Data to Nonvolatile Memory ............................6-12
6-4. Installation of Software for Option Board ................................................6-13

4DVS-7200AE IM
Manual Structure
Purpose of this manual This manual is the installation manual of Digital Video Switcher DVS-7200A.
This manual is intended for use by trained system and service engineers, and
describes the information when installing DVS-7200A.
Related manuals The following manuals are prepared for DVS-7200A.
The part numbers of these manuals as of February, 1999 describe.
..
..
.User’s Guide (Supplied with BZS-7040A or BZS-7060A)
This manual describes the application and operation of DVS-7200A
..
..
.Operation Manual (Supplied with DVS-7200A)
This manual describes the overview, system configuration examples and specifica-
tions of options.
..
..
.Maintenance Manual Part 1 (Supplied with DVS-7200A)
This manual describes the information for the periodic maintenance, and the
information for the service with predicated on the replacement of the principal
blocks and mounted circuit boards.
Part number : 3-201-866-01
..
..
.Maintenance Manual Part 2
The following manuals describe the detailed service information. For obtaining,
please contact your local Sony’s sale/service office.
Volume 1 (Block diagrams and Frame wirings)
Part number : 9-967-615-03
Supplement 4 Part number : 9-967-615-84
Volume 2
(Spare parts, Service overview and Replacement of main parts)
Part number : 9-967-616-03
Supplement 5 Part number : 9-967-616-85
Volume 3 (Semiconductor pin assignments)
Part number : 9-967-617-03
Supplement 3 Part number : 9-967-617-83
Volume 4 (Board layouts)
Part number : 9-967-618-03
Supplement 4 Part number : 9-967-618-84

5
DVS-7200AE IM
..
..
.Maintenance Manual Part 2
Volume 5 (Schematic diagrams 1 A through I)
Part number : 9-967-624-03
Supplement 3 Part number : 9-967-624-83
Volume 6 (Schematic diagrams 2 K through Z)
Part number : 9-967-625-02
Supplement 4 Part number : 9-967-625-84
Contents This manual is organized by following sections.
Section 1 Installation
This section describes the operating environment, power supply, connectors, input
and output signals of connectors, and example of system connection.
Section 2 Installation of DVS-7200A
This section describes the external dimensions and rack mounting.
Section 3 Installation of Control panel
This section describes the external dimensions, installation space, rack mounting and
replacement of key tops.
Section 4 Installation of Options
This section describes the installation of plug-in boards, combinations of optional
boards and installation of options.
Section 5 Confirmation in Installation
This section describes the switch settings on boards and LEDs description, adjust-
ment of secondary power supply voltage and adjustment of operation power for
fader lever.
Section 6 Initial Set-up of System
This section describes the operation and saving of set-up data, installation of pro-
gram, set-up, saving set-up data to nonvolatile memory.

1-1
DVS-7200AE IM
Section 1
Installation
1-1. Operating Environment
.Install the unit in a well ventilated place to prevent a
temperature rise in the unit. Never cover the ventilation
holes of the outer frame.
.Never install the unit near a heat source because the
environmental temperature during operation should be
5 dC to 40 dC.
1-2. Power Supply
1-2-1. Power Switch for Service
(Control panel)
w
The power switches for service of the control panels are
placed only in the unit.
When installing the unit, incorporate a readily accessible
disconnect device in the fixed wiring, so that the operator/
engineer power in case a fault should occur.
1-2-2. Power Specifications
Power requirements : 100 to 240 V AC ± 10%
50/60 Hz
Current consumption
DVS-7200A : 7 to 3.5 A
BKDS-7015/7025/7026: 1.0 A (max.)
m
As the inrush current at turn-on is the maximum 35 A, the
capacity of the AC power must be commensurate in it with
the inrush current of the maximum 35 A for the processor
and the control panel respectively. If the capacity of the
AC power is not the adequately large, the breaker of the
AC power at the supply side will operate or the unit will
abnormal operate.
1-2-3. Power Cord
w
The power cords are not supplied with DVS-7200A and
the control panel. Be sure to use the power cords that are
applicable to the places in the world.
To avoid a fire or an electric shock, be sure to use the
designated power cord. And do not damage to the power
cord.
n
The plug holder is not used for the control panels.
n
For the customer outside of the area as shown above,
please consult with local Sony’s sale/service office.
AC inlet
2
1
For the customer in the U.S.A. and Canada
Required Parts
1Power Cord, 125 V 10 A (2.4 m) : 1-557-377-11
2Plug Holder B (Black) : 2-990-242-01
2AC inlet 1
For the customer in the United Kingdom
Required Parts
DK-2401 (EK)
1Power Cord, 250 V 10 A (2.4 m)
2Plug Holder B (Black) : 2-990-242-01
AC inlet
2
1
For the customer in the all European countries
except the United Kingdom
Required Parts
DK-2401 (AE)
1Power Cord, 250 V 10 A (2.4 m)
2Plug Holder B (Black) : 2-990-242-01

1-2 DVS-7200AE IM
1-3. Connectors
When connecting cables to various connectors on the rear
panel at the time of installing, connecting or servicing,
connect the following connectors or their equivalents.
1. DVS-7200A
Connector function name Connector parts No. and
on rear panel name of cable
PANEL 1 D-sub 9-pin, Male
DME 1 to 4 Connector 9-pin, Male
SERIAL TALLY 1-560-651-00(*1)
TERMINAL Junction Shell 9-pin
EDITOR A/REMOTE 1 1-561-749-00
EDITOR B/REMOTE 2
PANEL 2/REMOTE 3
REMOTE 4
GPI D-sub 25-pin, Male
Connector 25-pin, Male
1-560-904-11(*1)
Junction Shell 25-pin
1-563-377-11
PRIMARY INPUTS 1 to 36 BNC Coaxial Connector Plug
DIRECT INPUT
CRK INPUTS 1 to 4
REF INPUT
REF OUTPUT
AUX BUS OUTPUTS 1 to 13
ME-1 to 2 OUTPUTS
DSK PGM OUTPUTS
PGM OUTPUTS 1 to 4
CLEAN OUTPUT
PVW OUTPUT
EDIT PVW OUTPUT
MATRIX(*4)
AC IN Main Power Supply Cable
(For the details of the cable,
refer to Section 1-2-3.)
2. BKDS-7015
Connector function name Connector parts No. and
on rear panel name of cable
SWITCHER(*2) D-sub 9-pin, Male
DME(*2) Connector 9-pin, Male
TERMINAL 1 to 2(*2) 1-560-651-00(*1)
REMOTE 1 to 4(*2) Junction Shell 9-pin
1-561-749-00
OPTION PANEL(*2) BVS Cable
1-574-993-11
AC IN(*2) Main Power Supply Cable
(For the details of the cable,
refer to Section 1-2-3.)
3. BKDS-7025/7026
Connector function name Connector parts No. and
on rear panel name of cable
SWITCHER D-sub 9-pin, Male
DME Connector 9-pin, Male
TERMINAL 1 to 2 1-560-651-00(*1)
REMOTE 1 to 5 Junction Shell 9-pin
1-561-749-00
GPI D-sub 25-pin, Male
Connector 25-pin, Male
1-560-904-11(*1)
Junction Shell 25-pin
1-563-377-11
DISPLAY PANEL BVS Cable(*3)
OPTION PANEL 1-574-993-11
AC IN Main Power Supply Cable
(For the details of the cable,
refer to Section 1-2-3.)
(*1):The following solderless contact must be used for the plug.
AWG #18 to #22:1-566-493-00
AWG #22 to #24:1-564-774-00
AWG #24 to #30:1-564-775-00
(*2):For the customers in europe
When connecting the cables to the following connectors, attach the two
ferrite cores that are packed with each model to the two connectors at
the both sides of the cable.
(*3):A BVS cable is supplied with this unit.
(*4) :Use the 9-pin BNC conversion cable supplied with DVS-7200A.
1-3. Connectors

1-3
DVS-7200AE IM

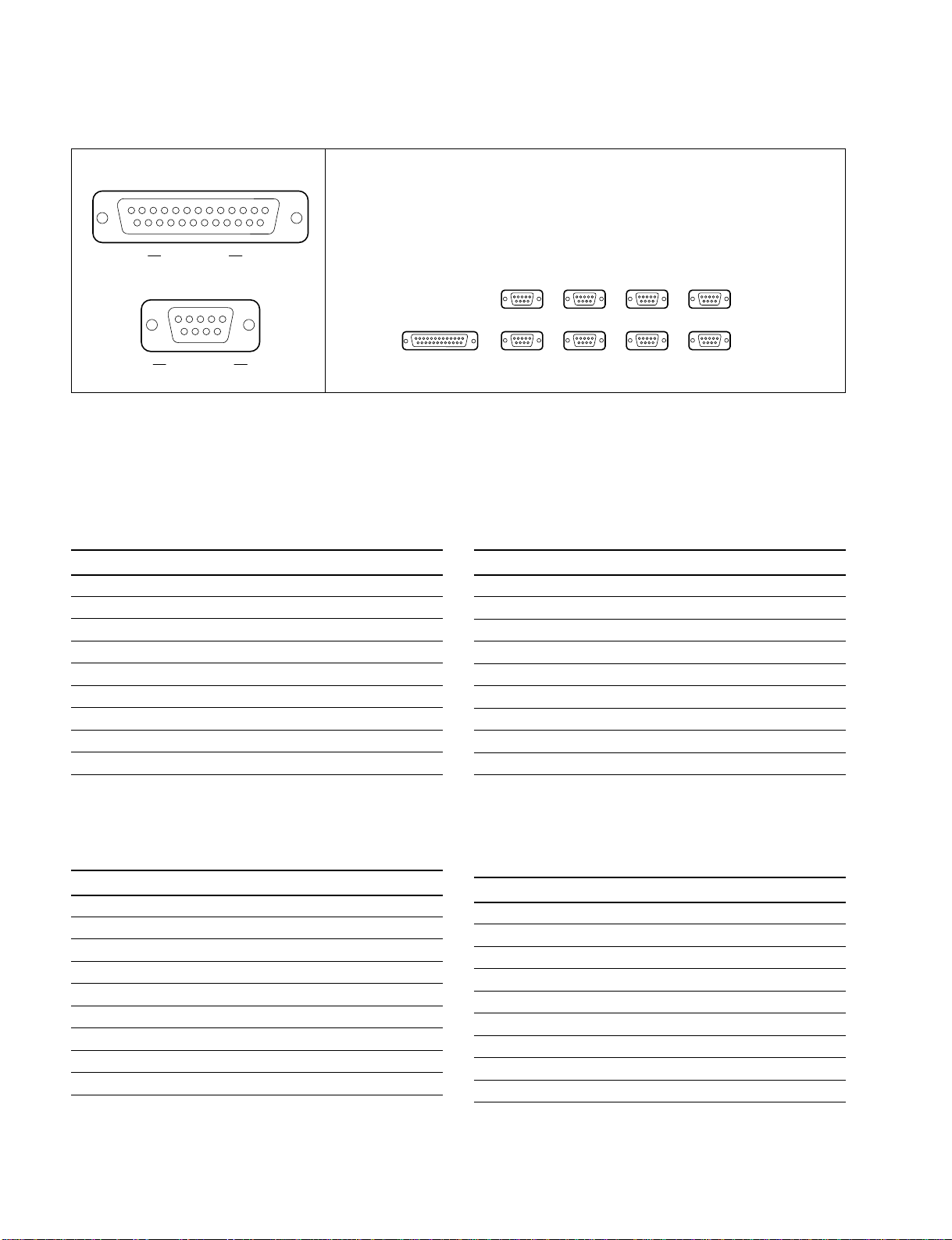

1-4. Input and Output Signals of Connectors
The input and output signals of the connectors on the rear panel are specified in the following table.
And refer to the following illustration for the pin positions of the connectors.
1-4-1. DVS-7200A
PANEL 2/REMOTE 3 : RS-422A (D-sub 9-pin.Female)
<DEVICE>(*2) from Control panel(*3)
Pin No. Signal Name Function
1 GND Frame ground
2 TX-A Transmitted data (_)
3 RX-B Received data (+)
4 GND Common ground
5 VD-B Transmited VD signal (+)
6 GND Common ground
7 TX-B Transmitted data (+)
8 RX-A Received data (_)
9 VD-A Transmited VD signal (_)
(*3):Control Panel BKDS-2010 etc. (PANEL 2)
Keyer Remote Panel BKDS-7060 etc. (REMOTE 3)
1-4. Input and Output Signals of Connectors
EXT VIEW
1
13
14
25
[D-SUB 25 PIN • FEMALE]
Rear panel
[D-SUB 9 PIN • FEMALE]
EXT VIEW
1
5
69
GPI TERMINAL
REMOTE 4
MATRIX
SERIAL
TALLY
DME 2
DME 4
PANEL 1
DME 1
DME 3
PANEL 2
/REMOTE 3 EDITOR B /REMOTE 2 EDITOR A /REMOTE 1
m
(*1) <CONTROLLER>: Controlling device
(*2) <DEVICE> : Controlled device
PANEL 1 : RS-422A (D-sub 9-pin.Female)
<DEVICE>(*2) from Control panel BKDS-7015/7025/7026
Pin No. Signal Name Function
1 GND Frame ground
2 TX-A Transmitted data (_)
3 RX-B Received data (+)
4 GND Common ground
5 FIELD (+) Field signal output (+)
6 GND Common ground
7 TX-B Transmitted data (+)
8 RX-A Received data (_)
9 FIELD (_) Field signal output (_)

1-4 DVS-7200AE IM
SERIAL TALLY : RS-422A (D-sub 9-pin.Female)
<CONTROLLER>(*1)
n
For the SERIAL TALLY connector, refer to the Protocol
Manual of DVS-8000 Series.
Pin No. Signal Name Function
1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5__
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9 FG Frame Ground
DME 1 to 4 : RS-422A (D-sub 9-pin.Female)
<DEVICE>(*2) from Digital multi effects DME-3000/7000
etc.
Pin No. Signal Name Function
1 FG Frame ground
2 TX-A Transmitted data (_)
3 RX-B Received data (+)
4 GND Common ground
5__
6 GND Common ground
7 TX-B Transmitted data (+)
8 RX-A Received data (_)
9 FG Frame Ground
REMOTE 4 : RS-422A (D-sub 9-pin.Female)
<DEVICE>(*2)
Pin No. Signal Name Function
1 FG Frame ground
2 TX-A Transmitted data (_)
3 RX-B Received data (+)
4 GND Common ground from
5__
6 GND Common ground
7 TX-B Transmitted data (+)
8 RX-A Received data (_)
9 FG Frame Ground
MATRIX(*4) : (D-sub 9-pin.Female)
<DEVICE>(*1) to Routing switcher
Pin No. Signal Name Function
1 FG Frame ground
2 GND Ground
3 DATA Data
4 GND Ground
5__
6 GND Ground
7 GND Ground
8 GND Ground
9 FG Frame Ground
(*4):If connecting Sony’s Routing Switcher DVS-V6464B, use the 9-pin
BNC conversion cable supplied with DVS-7200A.
EDITOR A/REMOTE 1 : RS-422A (D-sub 9-pin.Female)
<DEVICE>(*2) from Editor(*5)
Pin No. Signal Name Function
1 FG Frame ground
2 EDT A TX-A Transmitted data (_)
3 EDT A RX-B Received data (+)
4 GND Common ground
5__
6 GND Common ground
7 EDT A TX-B Transmitted data (+)
8 EDT A RX-A Received data (_)
9 FG Frame Ground
(*5):Editing control Unit BVE-9100 etc. (EDITOR A)
EDITOR B/REMOTE 2 : RS-422A (D-sub 9-pin.Female)
<DEVICE>(*2) from Editor(*6)
Pin No. Signal Name Function
1 FG Frame ground
2 TX-A Transmitted data (_)
3 RX-B Received data (+)
4 GND Common ground
5__
6 GND Common ground
7 TX-B Transmitted data (+)
8 RX-A Received data (_)
9 FG Frame Ground
(*6):Editing control Unit BVE-9100 etc. (EDITOR B)
1-4. Input and Output Signals of Connectors

1-5
DVS-7200AE IM

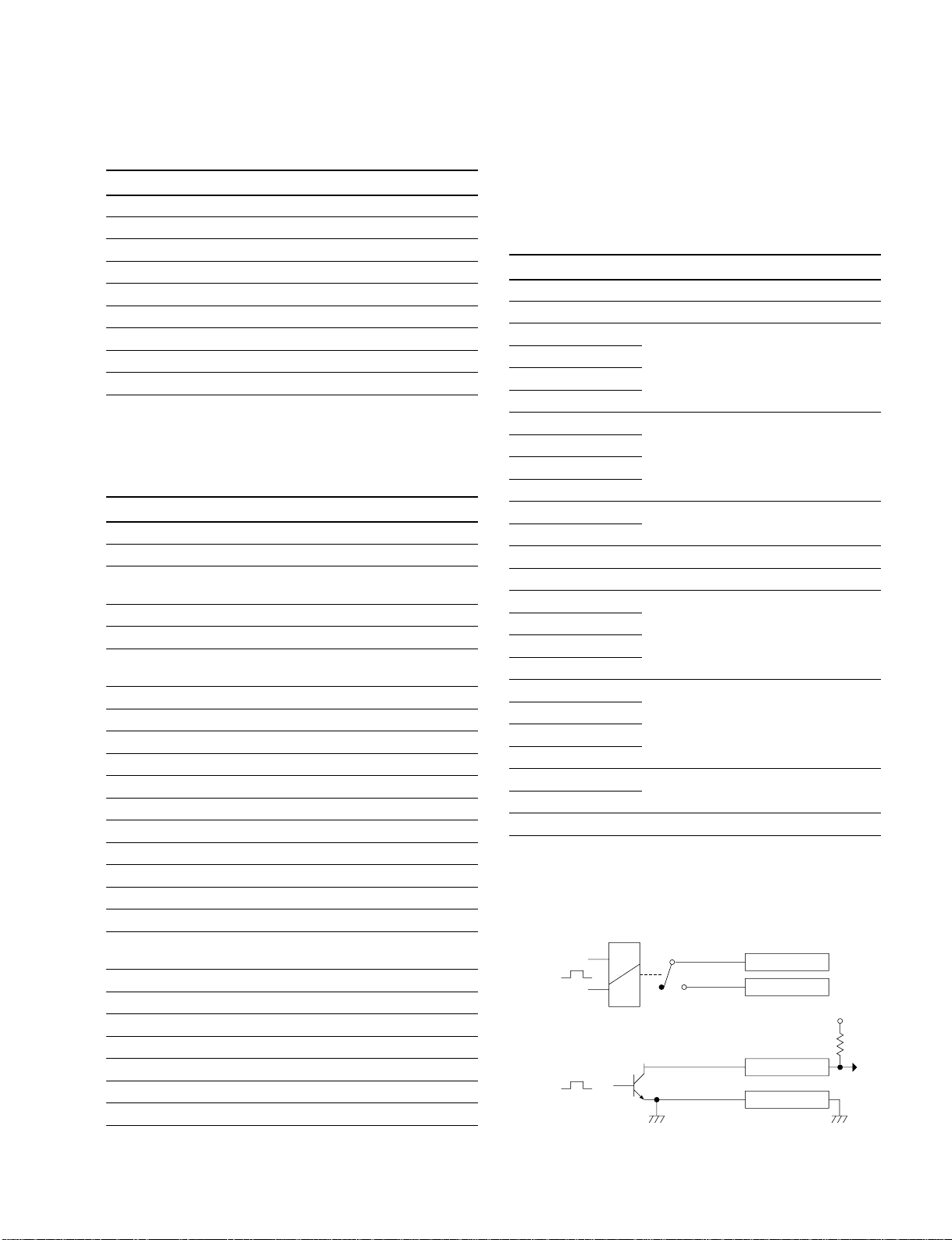

TERMINAL : RS-232C (D-sub 9-pin.Female)
to Terminal
Pin No. Signal Name Function
1 DCD Data Carrier detect(*7)
2 RXD Received data
3 TXD Transmitted data
4 DTR Data terminal ready(*7)
5 GND Ground
6 DSR Data set ready(*7)
7 RTS Request to send
8 CTS Clear to send
9__
(*7):Pins 1, 4 and 6 are short-circuited each other on the CN-1146 board.
GPI : (D-sub 25-pin.Female)
INPUT x 8, TTL
OUTPUT x 4, relay contact 30 V 0.1 A
(resistance load)
OUTPUT x 4, open collector 30 V rated voltage
GPI timing : Refer to User’s Guide
Pin No. Signal Name Function
1 GND Ground
2 GND Ground
3 GPI IN 2
4 GPI IN 4
5 GPI IN 6 General-purpose input
6 GPI IN 8
7 GPI OUT 1B
8 GPI OUT 2B
9 GPI OUT 3B General-purpose relay output (B)
(*8)
10 GPI OUT 4B
11 GPI OUT 6
12 GPI OUT 8 General-purpose open collector output
(*9)
13 GPI OUT COM Ground for open collector output
14 GND Ground
15 GPI IN 1
16 GPI IN 3
17 GPI IN 5 General-purpose input
18 GPI IN 7
19 GPI OUT 1A
20 GPI OUT 2A
21 GPI OUT 3A General-purpose relay output (A)
(*8)
22 GPI OUT 4A
23 GPI OUT 5
24 GPI OUT 7 General-purpose open collector output
(*9)
25 GPI OUT COM Ground for open collector output
n
A and B of same number constitute a pair of relay contacts.
<Relay> GPI OUT x B
GPI OUT 5-8
GPI OUT COM
<Open collector output>
x;1-4 +V
GPI OUT x A
(*8)
(*9)
1-4. Input and Output Signals of Connectors

1-6 DVS-7200AE IM

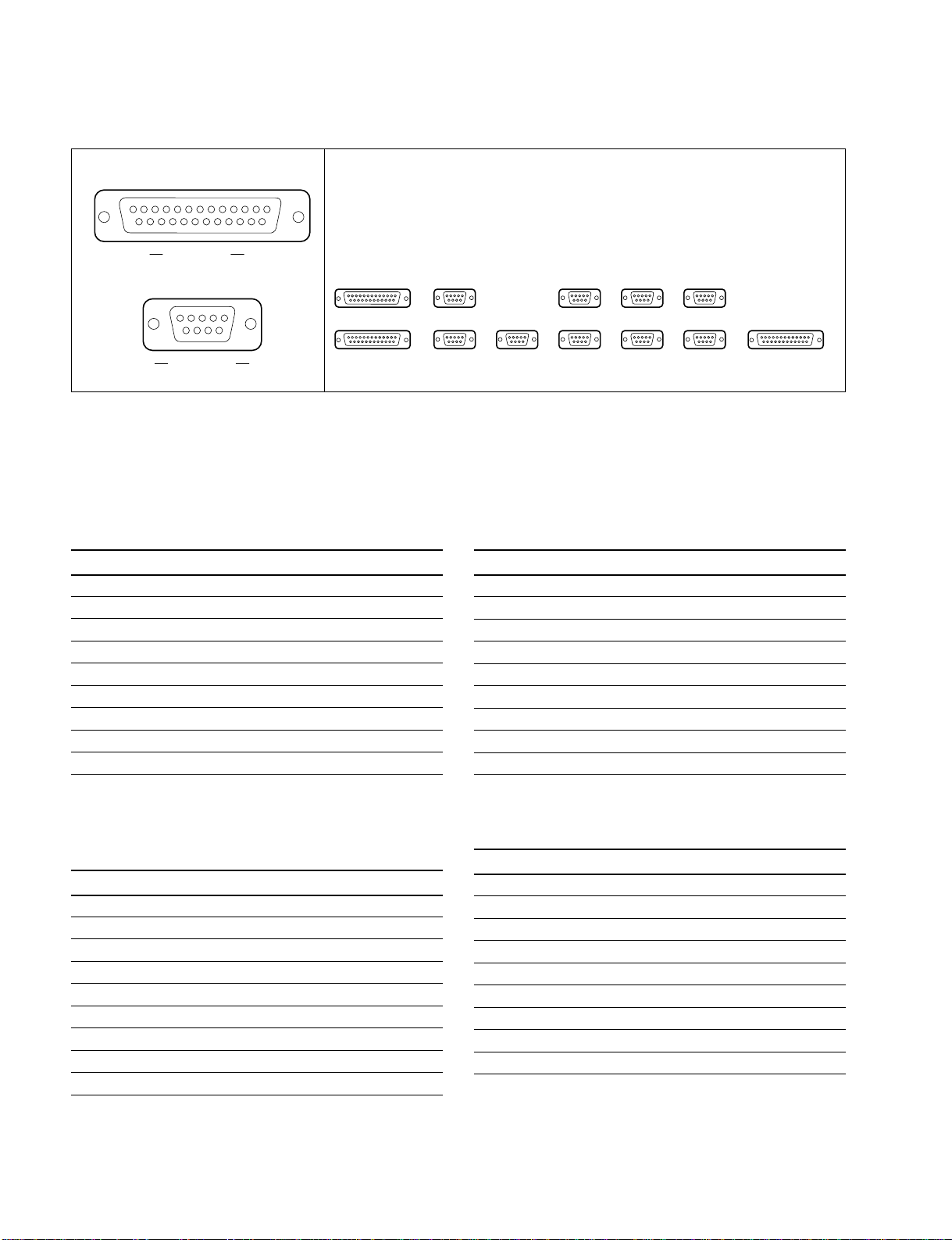

1-4. Input and Output Signals of Connectors
REMOTE 1 to 4(*2) : RS-422A (D-sub 9-pin.Female)
<CONTROLLER>(*1) to External Device
Pin No. Signal Name Function
1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5__
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9__
(*2):BKDS-7001 (Option : IF-523 board) is in need of using the REMOTE
from 1 to 4.
TERMINAL 1, 2 : RS-232C (D-sub 9-pin.Female)
to Terminal
Pin No. Signal Name Function
1 DCD Data carrier detect(*3)
2 RXD Received data
3 TXD Transmitted data
4 DTR Data terminal ready(*3)
5 GND Ground
6 DSR Data set ready(*3)
7 RTS Request to send(*4)
8 CTS Clear to send(*4)
9__
(*3):Pins 1, 4 and 6 are short-circuited each other on the CN-1143 board.
(*4):Pins 7 and 8 are short-circuitede each other on the CN-1143 board.
1-4-2. BKDS-7015
m
<CONTROLLER>(*1) : Controlling device
1. Main Panel
SWITCHER : RS-422A (D-sub 9-pin.Female)
<CONTROLLER>(*1) to Processor DVS-7200A
Pin No. Signal Name Function
1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5 FIELD (+) Field signal input (+)
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9 FIELD (_) Field signal input (_)
DME : RS-422A (D-sub 9-pin.Female)
<CONTROLLER>(*1) to Digital multi effects DME-3000/
7000 etc.
Pin No. Signal Name Function
1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5__
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9__
EXT VIEW
1
13
14
25
[D-SUB 25 PIN •FEMALE]
Rear panel
SWITCHER DME TERMINAL1 TERMINAL2
OPTION PANEL REMOTE1 REMOTE2 REMOTE3 REMOTE4
[D-SUB 9 PIN •FEMALE]
EXT VIEW
1
5
69
1
5
69
1
5
69
1
5
69
1
5
69
1
13
14
25
1
5
69
1
5
69
1
5
69
1
5
69

1-7
DVS-7200AE IM
1-4. Input and Output Signals of Connectors
OPTION PANEL : (D-sub 25-pin.Female)
to Adaptor box (BKDS-7075)
Pin No. Signal Name Function
1 GND Ground
2+12 V Power supply +12 V
3 SCLK Serial clock for switch read and LED
light
4 GND Ground
5 WDT LED light data
6 IWLD Control signal for switch read and LED
light
7 GND Ground
8 TCLK Serial clock for character display
9 TWDT Indicate data for character display
10 GND Ground
11 TBLANK Disable signal for character display
12 GND Ground
13 GND Ground
14 +12 V Power supply +12 V
15 +12 V Power supply +12 V
16 BLANK LED light disable signal
17 GND Ground
18 SEQ Control signal for switch read and LED
light
19 RDT Switch read data
20 GND Ground
21 TSEQ Control signal for character display
22 TQCLK Control signal for character display
23 +12 V Power supply +12 V
24 +12 V Power supply +12 V
25 GND Ground

1-8 DVS-7200AE IM
1-4-3. BKDS-7025/7026
m
<CONTROLLER>(*1) : Controlling device
1. Main Panel
SWITCHER : RS-422A (D-sub 9-pin.Female)
<CONTROLLER>(*1) to Processor DVS-7200A
Pin No. Signal Name Function
1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5 FIELD (+) Field signal input (+)
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9 FIELD (_) Field signal input (_)
DME : RS-422A (D-sub 9-pin.Female)
<CONTROLLER>(*1) to Digital multi effects DME-3000/
7000 etc.
Pin No. Signal Name Function
1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5__
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9__
1-4. Input and Output Signals of Connectors
EXT VIEW
1
13
14
25
1
13
14
25
[D-SUB 25 PIN •FEMALE]
Rear panel
GPI SWITCHER DME TERMINAL1 TERMINAL2
OPTION PANEL REMOTE1 REMOTE2 REMOTE3 REMOTE4 REMOTE5 DISPLAY PANEL
[D-SUB 9 PIN •FEMALE]
EXT VIEW
1
5
69
1
5
69
1
5
69
1
5
69
1
5
69
1
13
14
25
1
13
14
25
1
5
69
1
5
69
1
5
69
1
5
69
1
5
69
REMOTE 1 : RS-422A (D-sub 9-pin.Female)
<CONTROLLER>(*1) to External Device
Pin No. Signal Name Function
1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5__
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9__
REMOTE 2 to 5(*2) : RS-422A (D-sub 9-pin.Female)
<CONTROLLER>(*1) to External Device
Pin No. Signal Name Function
1 FG Frame ground
2 RX-A Received data (_)
3 TX-B Transmitted data (+)
4 GND Common ground
5__
6 GND Common ground
7 RX-B Received data (+)
8 TX-A Transmitted data (_)
9__
(*2):BKDS-7001 (Option : IF-523 board) is in need of using the REMOTE
from 1 to 4.

1-9
DVS-7200AE IM
TERMINAL 1, 2 : RS-232C (D-sub 9-pin.Female)
to Terminal
Pin No. Signal Name Function
1 DCD Data carrier detect(*3)
2 RXD Received data
3 TXD Transmitted data
4 DTR Data terminal ready(*3)
5 GND Ground
6 DSR Data set ready(*3)
7 RTS Request to send(*4)
8 CTS Clear to send(*4)
9__
(*3):Pins 1, 4 and 6 are short-circuited each other on the CN-1143 board.
(*4):Pins 7 and 8 are short-circuitede each other on the CN-1143 board.
DISPLAY PANEL : (D-sub 25-pin.Female)
to Display panel
Pin No. Signal Name Function
1 GND Ground
2+12 V Power supply +12 V
3 SCLK Serial clock for switch read and LED
light
4 GND Ground
5 WDT LED light data
6 IWLD Control signal for switch read and LED
light
7 GND Ground
8 ELCK EL display indicate clock
9 EL DATA 0 EL display indicate data
10 GND Ground
11 ELVD EL display vertical sync signal
12 GND Ground
13 GND Ground
14 +12 V Power supply +12 V
15 +12 V Power supply +12 V
16 BLANK LED light disable signal
17 GND Ground
18 SEQ Control signal for switch read and LED
light
19 RDT Switch read data
20 GND Ground
21 ELHD EL display horizontal sync signal
22 EL DATA 1 EL display indicate data 1
23 +12 V Power supply +12 V
24 +12 V Power supply +12 V
25 GND Ground
1-4. Input and Output Signals of Connectors
GPI : (D-sub 25-pin.Female)
INPUT x 8, TTL
OUTPUT x 4, relay contact 30 V 0.1 A
(resistance load)
OUTPUT x 4, open collector 30 V rated voltage
GPI timing : Refer to User’s Guide
Pin No. Signal Name Function
1 GND Ground
2 GND Ground
3 GPI IN 2
4 GPI IN 4
5 GPI IN 6 General-purpose input
6 GPI IN 8
7 GPI OUT 1B
8 GPI OUT 2B
9 GPI OUT 3B General-purpose relay output (B)(*5)
10 GPI OUT 4B
11 GPI OUT 6
12 GPI OUT 8 General-purpose open collector output(*6)
13 GND Ground
14 GND Ground
15 GPI IN 1
16 GPI IN 3
17 GPI IN 5 General-purpose input
18 GPI IN 7
19 GPI OUT 1A
20 GPI OUT 2A
21 GPI OUT 3A General-purpose relay output (A)(*5)
22 GPI OUT 4A
23 GPI OUT 5
24 GPI OUT 7 General-purpose open collector output(*6)
25 GND Ground
n
A and B of same number constitute a pair of relay contacts.
<Relay> GPI OUT x B
GPI OUT 5-8
GPI OUT COM
<Open collector output>
x;1-4 +V
GPI OUT x A
(*5)
(*6)

1-10 DVS-7200AE IM
1-4. Input and Output Signals of Connectors
OPTION PANEL : (D-sub 25-pin.Female)
to Adaptor box (BKDS-7075)
Pin No. Signal Name Function
1 GND Ground
2+12 V Power supply +12 V
3 SCLK Serial clock for switch read and LED
light
4 GND Ground
5 WDT LED light data
6 IWLD Control signal for switch read and LED
light
7 GND Ground
8 TCLK Serial clock for character display
9 TWDT Indicate data for character display
10 GND Ground
11 TBLANK Disable signal for character display
12 GND Ground
13 GND Ground
14 +12 V Power supply +12 V
15 +12 V Power supply +12 V
16 BLANK LED light disable signal
17 GND Ground
18 SEQ Control signal for switch read and LED
light
19 RDT Switch read data
20 GND Ground
21 TSEQ Control signal for character display
22 TQCLK Control signal for character display
23 +12 V Power supply +12 V
24 +12 V Power supply +12 V
25 GND Ground
n
This port is used for special-use-ready. Only when
connecting the control harness onto the CN8 of the connec-
tor on the CN-1143 board, this port is enable.
2. Display Panel
_: (D-sub 25-pin.Female)
from Main panel
Pin No. Signal Name Function
1 GND Ground
2+12 V Power supply +12 V
3 SCLK Serial colck for switch read and LED
light
4 GND Ground
5 WDT LED light data
6 IWLD Control signal for switch read and LED
light
7 GND Ground
8 ELCK LE display indicate clock
9 EL DATA 0 EL display indicate data 0
10 GND Ground
11 ELVD EL display vertical sync signal
12 GND Ground
13 GND Ground
14 +12 V Power supply +12 V
15 +12 V Power supply +12 V
16 BLANK LED light disable signal
17 GND Ground
18 SEQ Control signal for switch read and LED
light
19 RDT Switch read data
20 GND Ground
21 ELHD EL display horizontal sync signal
22 EL DATA 1 EL display indicate data 1
23 +12 V Power supply +12 V
24 +12 V Power supply +12 V
25 GND Ground
