Sony ST-S9 User manual
SERVICE MANUAL
FM STEREO, FM/AM
SUPERHETERODYNE TUNER
AEP Model
UK Model
E Model
Australian Model
SPECIFICATIONS
ST-S9
Ver 1.0 2001.09
ST-S9 is the tuner section in
MHC-S9D.
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 – 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Pan American model: 530 – 1,710 kHz
(with the interval set at
10 kHz)
531 – 1,710 kHz
(with the interval set at
9 kHz)
European and Middle Eastern models:
531 – 1,602 kHz
(with the interval set at
9 kHz)
Other models: 531 – 1,602 kHz
(with the interval set at
9 kHz)
530 – 1,710 kHz
(with the interval set at
10 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz
Dimensions (w/h/d)
Approx. 280 x 108 x 340 mm
Mass Approx. 2.1 kg
Design and specifications are subject to change
without notice.
9-873-283-01 Sony Corporation
2001I0500-1 Home Audio Company
C2001.9 ShinagawaTec Service Manual Production Group
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2
ST-S9
TABLE OF CONTENTS
1. SERVICING NOTES ................................................ 2
2. GENERAL
Location of Controls ....................................................... 3
Setting the Time .............................................................. 4

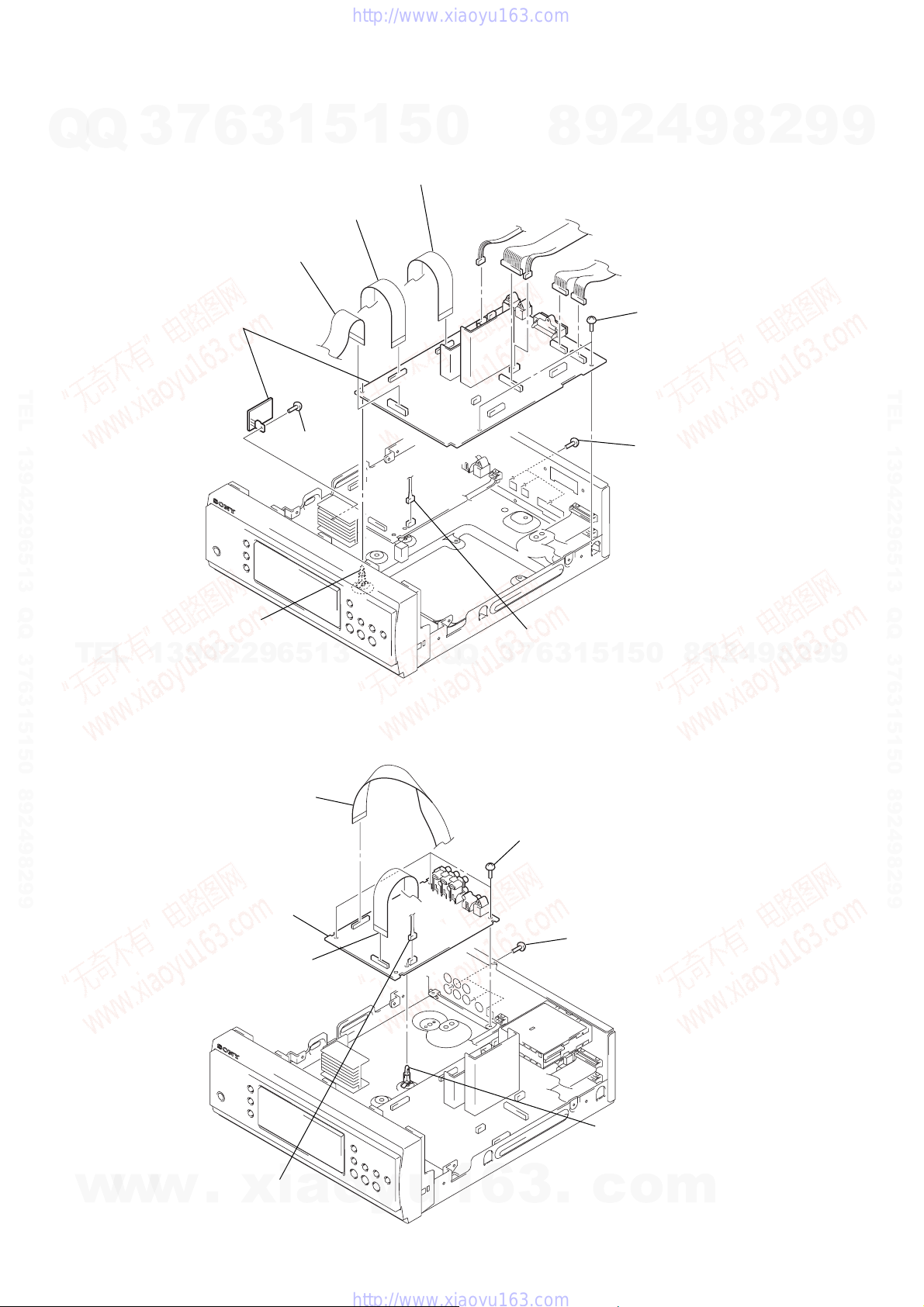

3. DISASSEMBLY
3-1. Disassembly Flow ........................................................... 5
3-2. Case ................................................................................. 6
3-3. Front Panel Section ......................................................... 6
3-4. PANEL Board, SIRCS Board ......................................... 7
3-5. Tuner Pack (FM/AM) ..................................................... 7
3-6. MAIN Board ................................................................... 8
3-7. DSP Board....................................................................... 8
4. TEST MODE.............................................................. 9

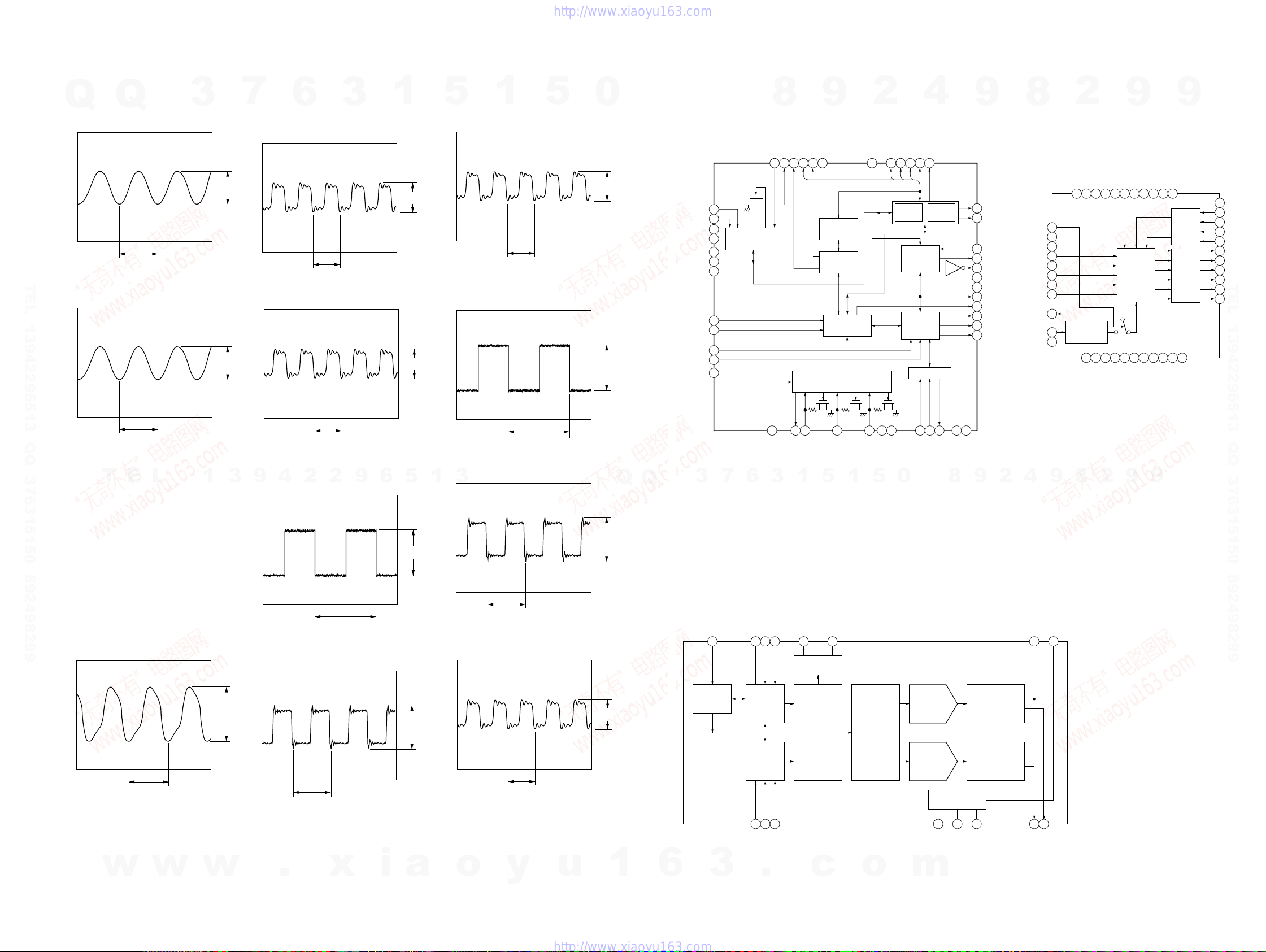

5. DIAGRAMS
5-1. Note for Printed Wiring Boards and
Schematic Diagrams ....................................................... 10

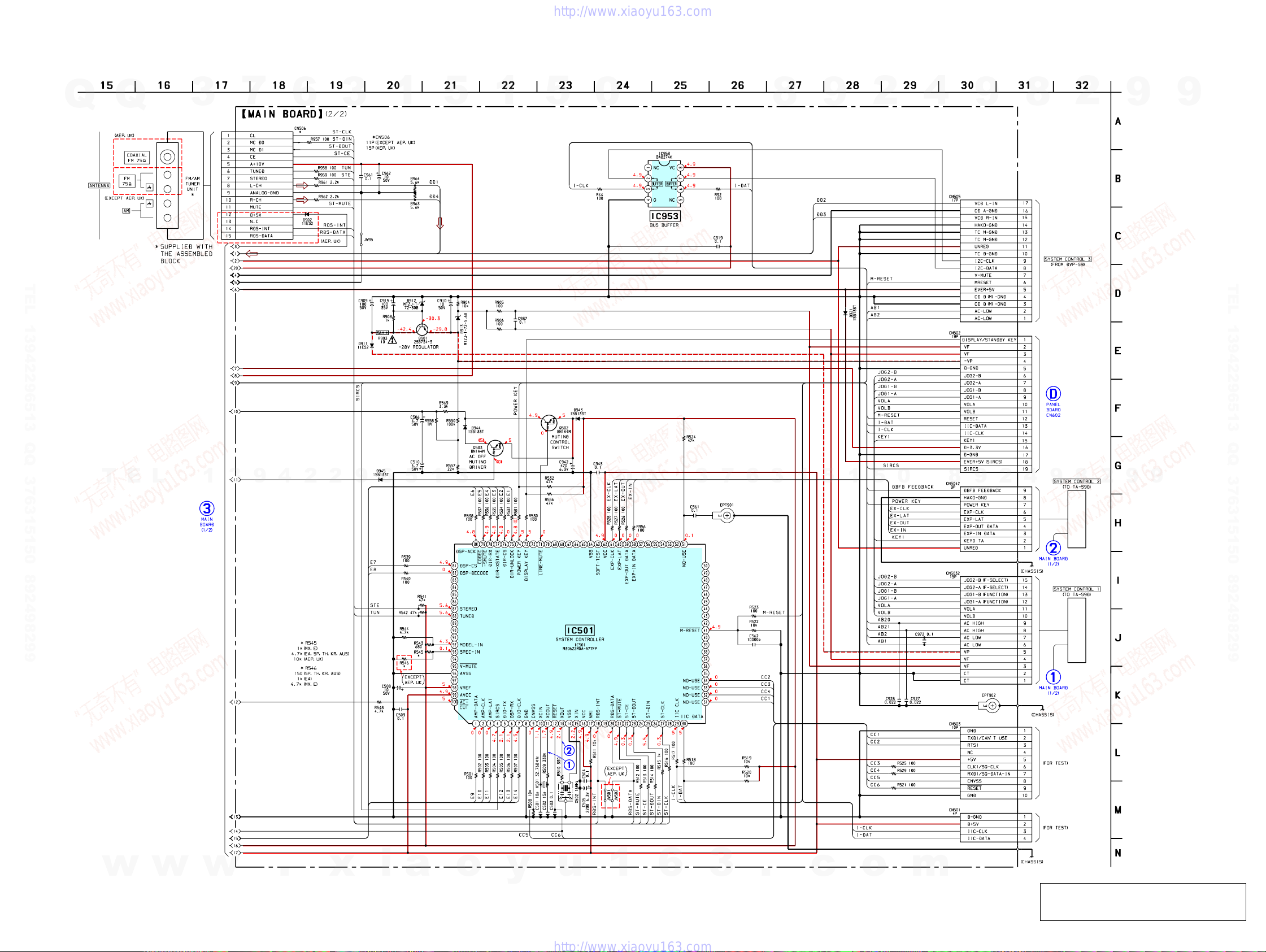

5-2. Schematic Diagram – MAIN Board (1/2) – .................. 12
5-3. Schematic Diagram – MAIN Board (2/2) – .................. 13

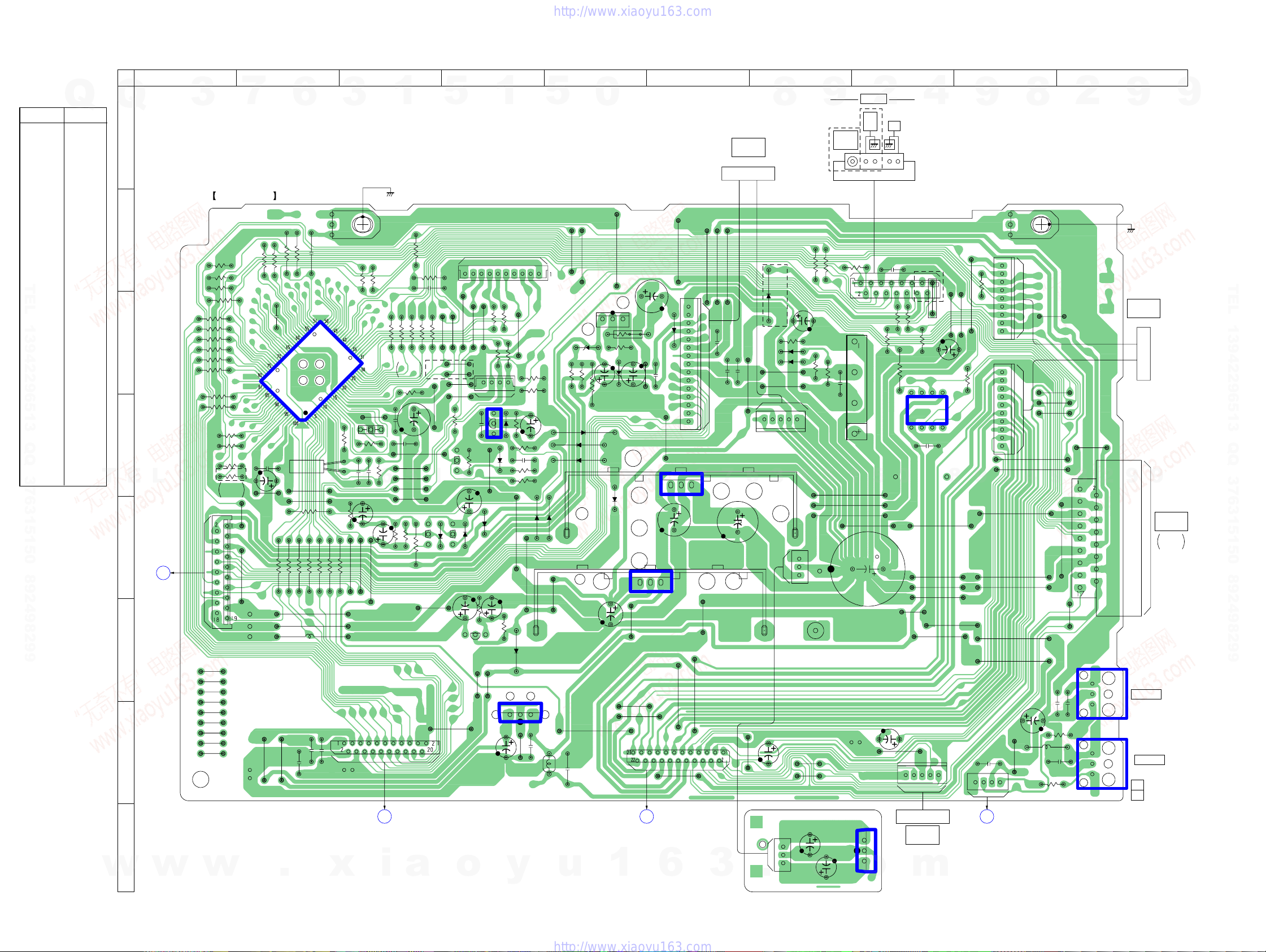

5-4. Printed Wiring Board – MAIN Board – ........................ 14
5-5. Printed Wiring Board – DSP Board –............................ 15

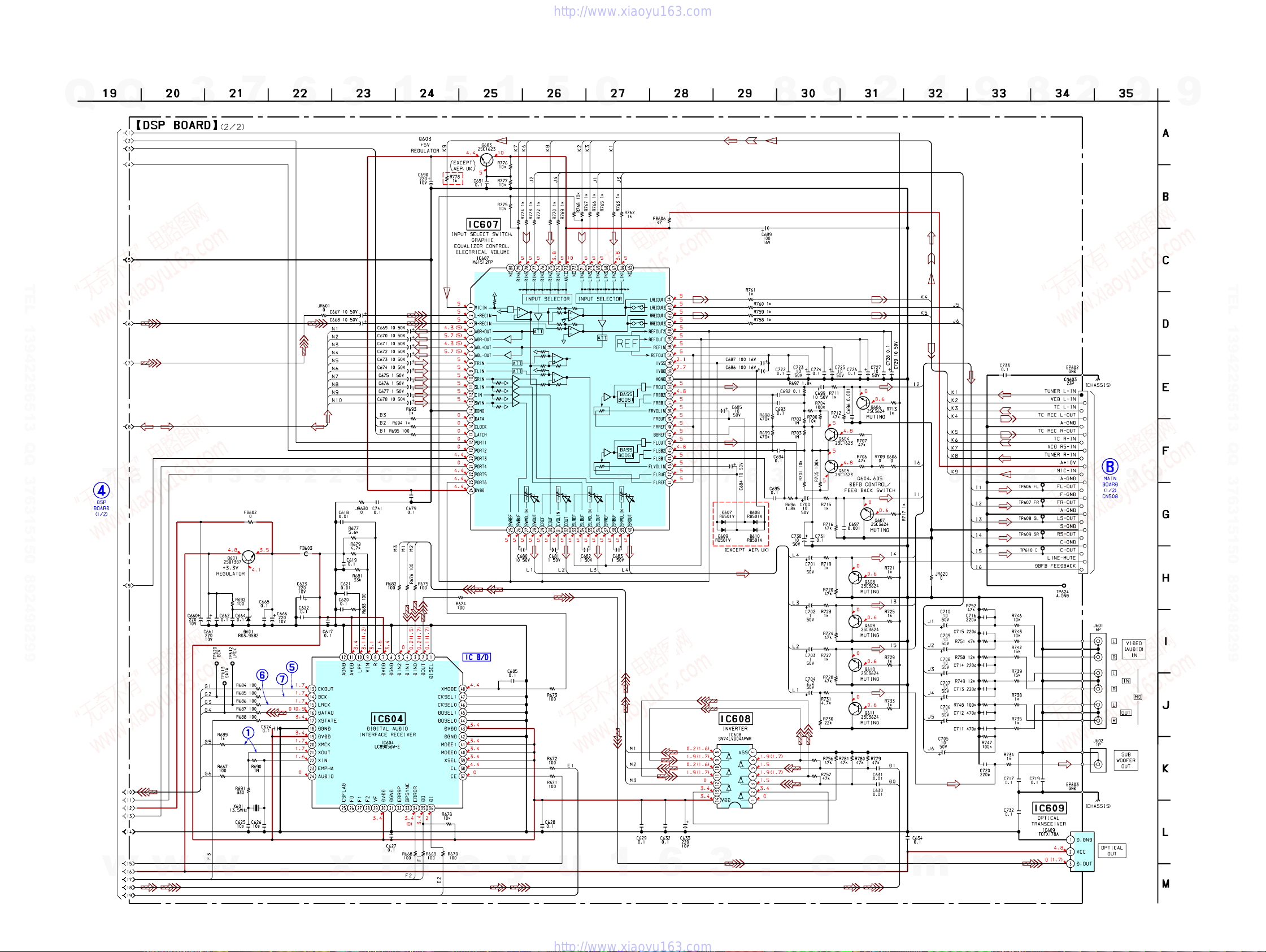

5-6. Schematic Diagram – DSP Board (1/2) – ..................... 16
5-7. Schematic Diagram – DSP Board (2/2) – ..................... 17
5-8. Printed Wiring Boards – PANEL Section – .................. 18
5-9. Schematic Diagram – PANEL Section – ....................... 19
5-10. IC Pin Function Description ........................................... 20
6. EXPLODED VIEWS
6-1. Case, Front Panel Section ............................................... 26
6-2. Chassis Section ............................................................... 27
7. ELECTRICAL PARTS LIST ............................... 28
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED
LINE WITH MARK 0ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
SECTION 1
SERVICING NOTES
This set is a component of the MHC-S9D.
The MHC-S9D system configuration is as shown below, and there-
fore it does not operate normally unless all four components are
connected.
In performing the repair, connect all components with the system
cables.
Note: The precaution to the users is described on the label stuck
on the back panel (DVD/video CD/CD player) and in the trouble-
shooting section in the Operation Manual.
