Sound Sation PAR-10W-5-B/BW User manual

PAR-10W-5-B/BW
Battery Powered Remote
and Wireless 4in1 LED PAR
(5*10W RGBW 4in1 LED)
USER MANUAL
Please read this manual carefully and proper take care of this manual.

Dear customer,
First of all thanks far purchasing a SOUNDSATION®product. Our mission is to
satisfy all possible needs of musical instrument, professional audio and light-
ing users offering a wide range of products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we
are looking for a feedback from you about the operation of the product and
possible improvements to introduce in the next future. Go to our website www.
soundsationmusic.com and send an e-mail with your opinion, this will help
us to build instruments ever closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect
operation can cause damages to you and to the unit. Take care!
The SOUNDSATION Team

3
ENGLISH
PAR-10W-5-B / BW User manual
TABLE OF CONTENTS
1. GETTING STARTED .................................................................................................4
1.1 Important Safety Symbols ....................................................................................4
1.2 Important Safety Instructions ...............................................................................4
1.3 Before You Start ....................................................................................................6
2. PRODUCT OVERVIEW ............................................................................................7
2.1. Front and Rear panels ..........................................................................................7
2.2. Mains Connections ...............................................................................................8
2.3. DMX-512 Connection ............................................................................................9
3. PRODUCT SPECIFICATION ..................................................................................11

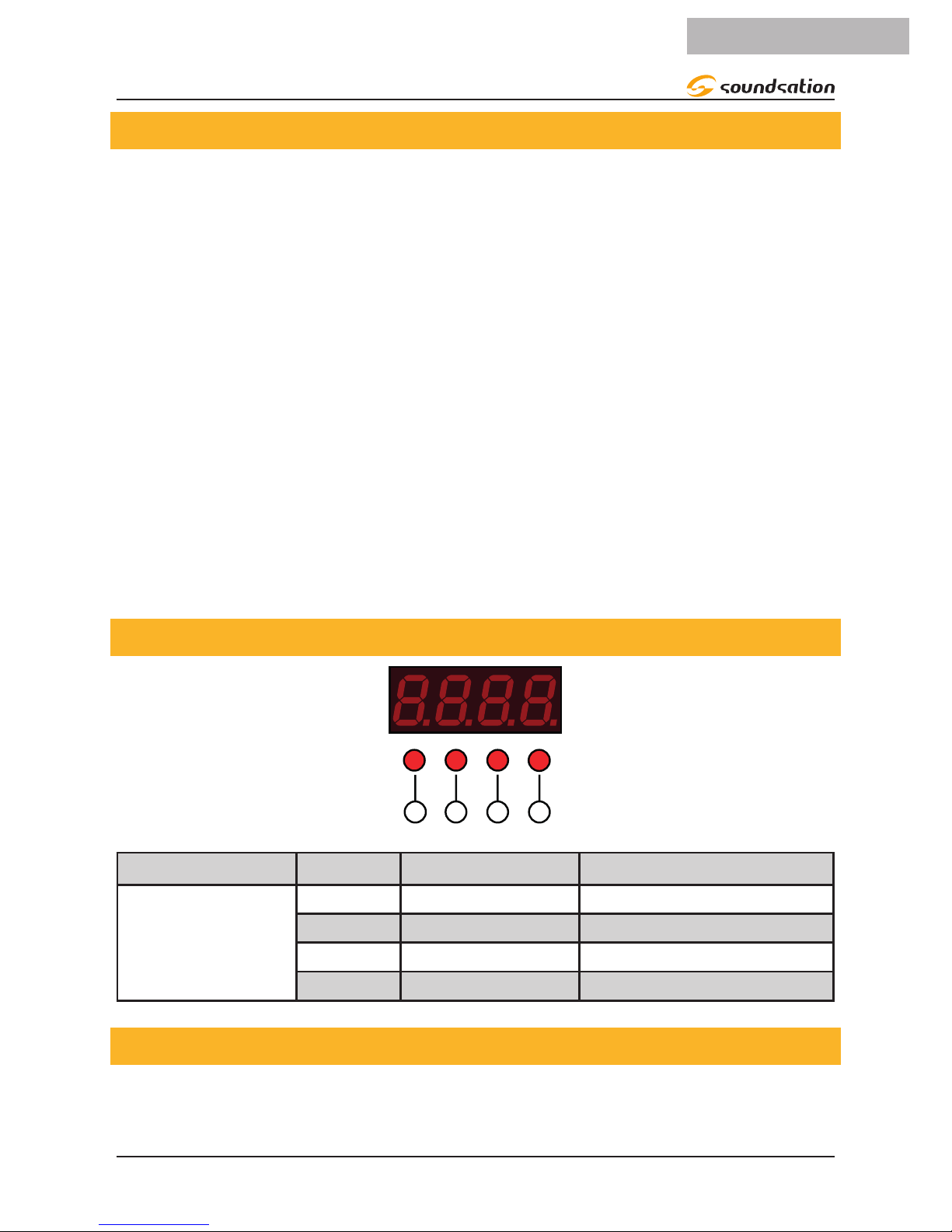

4. LED DISPLAY .........................................................................................................11
4.1 LED display function ...........................................................................................11
5. CHANNEL MODE INSTRUCTION (choose A001 default address code)..............12
6. IR REMOTE AND WIRELESS DMX CONTROL ....................................................14

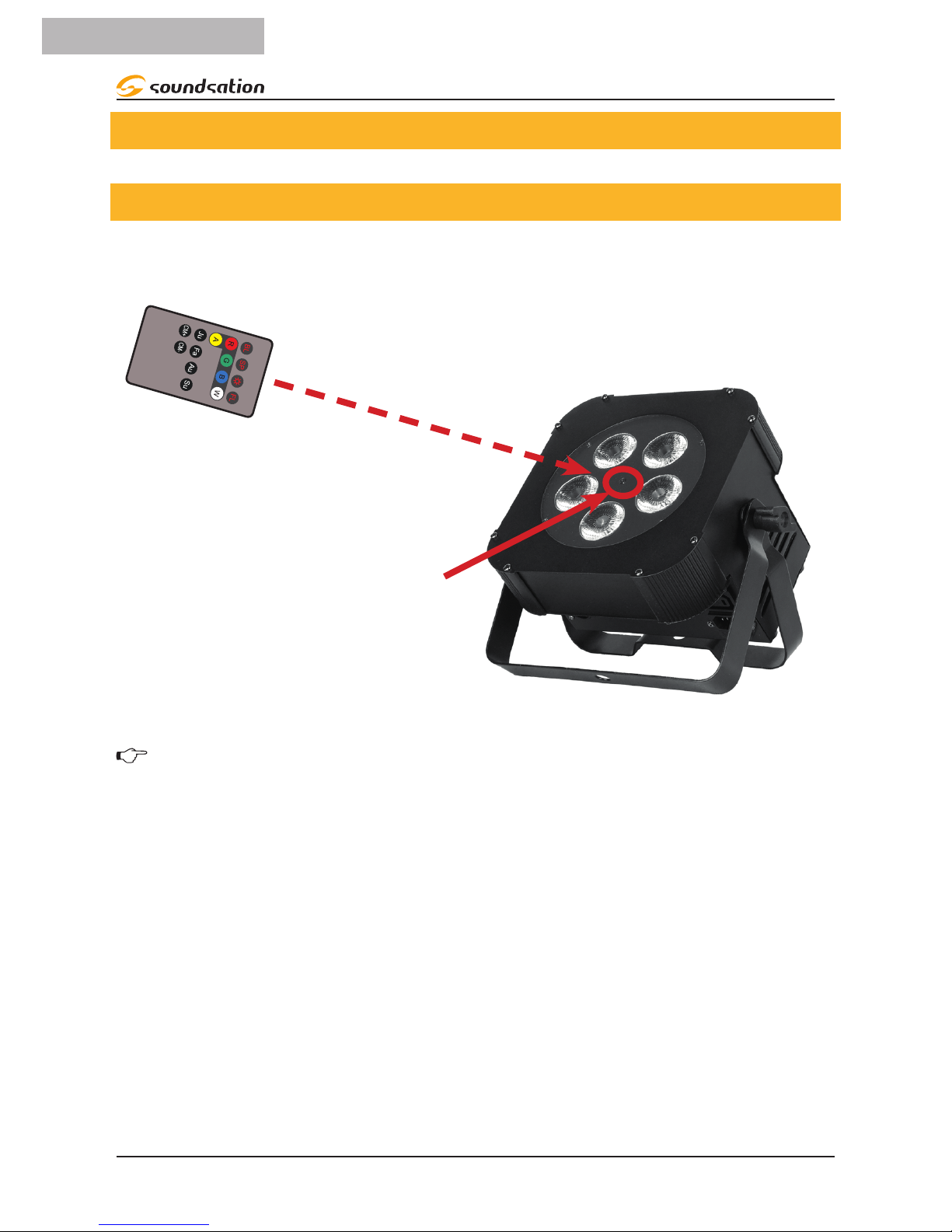

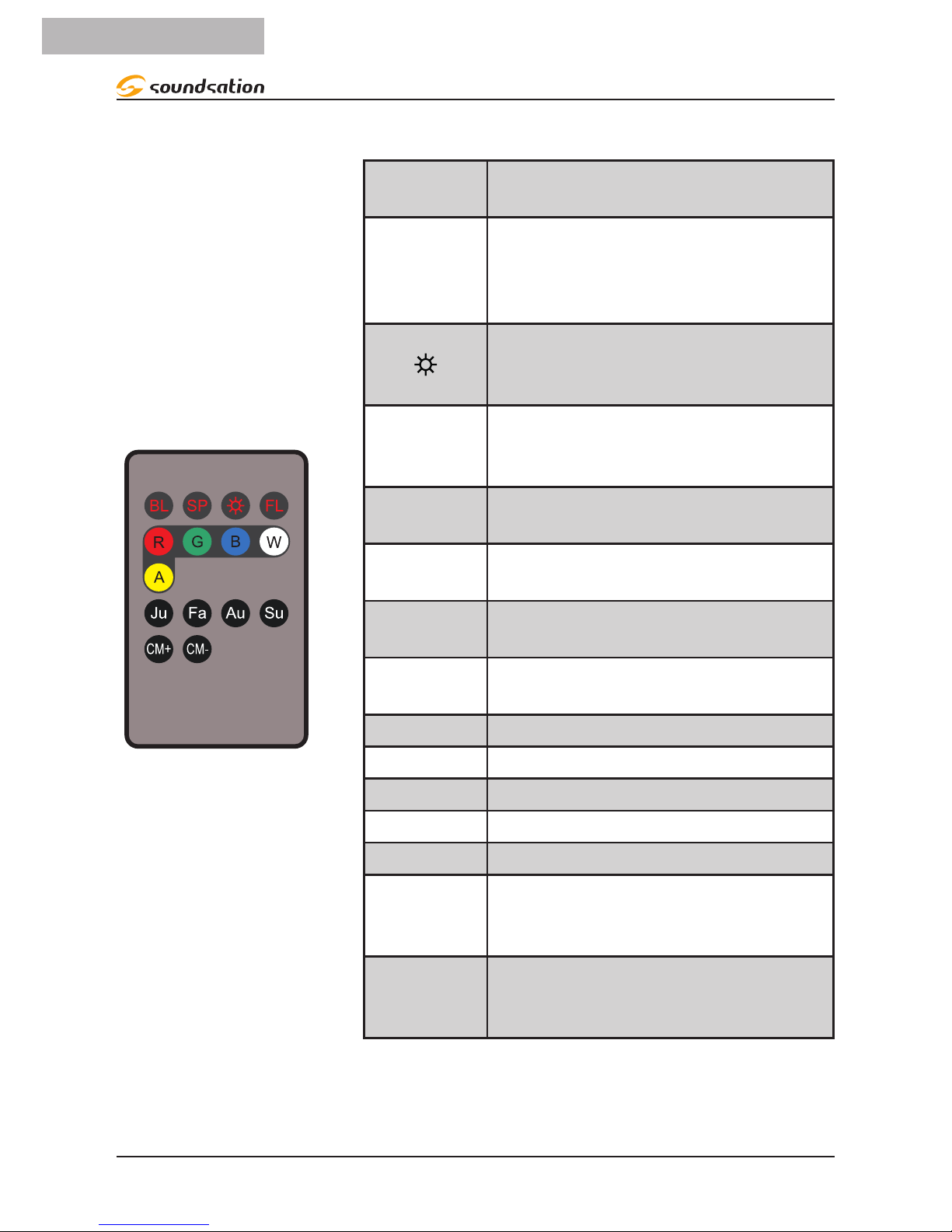

6.1. IR remote control ................................................................................................14
6.2. Wireless DMX512 control (only BW versions) .................................................17
7. RECHARGEABLE BATTERY .................................................................................18
7.1. Battery charging instructions ...........................................................................19
7.2. Battery replacement guide ................................................................................19
7.3. Battery safety and disposal instructions .........................................................20
7. WARRANTY AND SERVICE ..................................................................................22
8. WARNING ..............................................................................................................23

4
ENGLISH
PAR-10W-5-B / BW User manual
1. GETTING STARTED
1.1 Important Safety Symbols
The symbol is used to indicate that some hazardous live termi-
nals are involved within this apparatus, even under the normal
operating conditions, which may be sufcient to constitute the
risk of electric shock or death.
The symbol is used in the service documentation to indicate
that specic component shall be replaced only by the compo-
nent specied in that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
Denotes the apparatus is turned on
Denotes the apparatus is turned off
WARNING: Describes precautions that should be observed to prevent the
danger of injury or death to the operator.
CAUTION: Describes precautions that should be observed to prevent dan-
ger of the apparatus.
1.2 Important Safety Instructions
fRead these instructions
fKeep these instructions
fHeed all warning
fFollow all instructions
1.2.1. Water / Moisture
This lighting is intended to indoor use only. To prevent risk of re or shock,
do not expose xture to rain or moisture. Make sure there are no ammable,
explosive or corrosive materials surrounded in 10 meters while operating.

5
ENGLISH
PAR-10W-5-B / BW User manual
1.2.2. Heat
The apparatus should be located away from heat sources such as radiators,
stoves or other appliances that produce heat. Fixture may carry high heat, do
not aim at objective exceeding 2 minutes.
1.2.3. Ventilation
The unit must be installed in a location with adequate ventilation, at least 5m
away from adjacent surfaces. Be sure that no ventilation slots are blocked.
1.2.4. Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the appara-
tus for safety.
1.2.5. Installation
Always secure xture using a safety chain and carrying handles. Never carry
the xture by its cord.
1.2.6. Power Cord and Plug
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two poles; a grounding-type plug has two poles and a third
grounding terminal. The third prong is provided for your safety. If the provided
plug does not t into your outlet, refer to an electrician for replacement.
1.2.7. Power Supply
Always make sure that you are connecting to the proper voltage and the line
voltage not higher than stated on the decal or rear panel of the xture. Unplug
this apparatus during lightning storms or when unused for long periods of time.
1.2.8. Fuse
To prevent the risk of re and damaging the unit, please use only of the rec-
ommended fuse type as described in the manual. Before replacing the fuse,
make sure the unit turned off and disconnected from the AC outlet.
1.2.9. Electrical Connection
Always disconnect from the power source before servicing or replacing fuse/
lamp and be sure to replace with same fuse/lamp size and type. Cut off power
before moving, repairing and cleaning the machine. Improper electrical wiring
may invalidate the product warranty.
To avoid electric shock, all xtures must be connected to circuits with a suit-
able ground. Do not power on and power off the xture in a short time.
1.2.10. DMX connection
When use DMX controller, please make sure that there is no interference
sources (e.g. intercom, high frequency radio waves and radiation source.

6
ENGLISH
PAR-10W-5-B / BW User manual
1.2.11. Cleaning
Clean only with a dry cloth. Do not use any solvents such as benzol or alcohol.
1.2.12. Servicing
In case of failure or mis-function occurred, stop using the unit immediately.
Never try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized
technical assistance center. Buy the same spare parts/components from man-
ufacturer directly.
Any damage that cased by violating this manual is out of insurance, our com-
pany will not take the responsibility.
1.2.13. Warning
Avoid direct eye exposure to the light source while it is on.
1.3 Before You Start
1.3.1 UNPACKING
Carefully unpack the box and check the contents to ensure that all parts are
present and in good conditions.
1. Battery powered PAR light
2. 1.2m power cable
3. Remote control (battery not included)
4. 2 metal brackets with 2 wing grips and 4 washers
5. User Manual
If anything damaged during transport, notify the shipper immediately and keep
the packing material for inspection. Again, please save the carton and all
packing materials. If the xture must be returned to manufacturer, it is import-
ant that the xture be returned in the original manufacturer box and packing.
1.3.2 Getting started
Make sure there is enough space around the unit for proper ventilation and
prevent overheating; do not place the unit on top of hot devices such as
radiators or power ampliers. The console is connected to mains through the
supplied cable. The product meets the required safety standards. Blown fuses
must be replaced with fuses of the same type and specication.
Make sure that all units must be properly grounded. For your safe-
ty, you should never remove any ground connector from electrical
devices or power cables, or make them inoperative.

7
ENGLISH
PAR-10W-5-B / BW User manual
Our products are subject to a process of continual further development. There-
fore modications to the technical features remain subject to change without
further notice.
2. PRODUCT OVERVIEW
PAR-10W-5-B / BW combine all the benets of LED technology with the
portability of battery power and convenience of wireless DMX connection (BW
model only). They are equipped with 5pieces of high brightness and long-life
10W RGBW 4in1 LEDs.
In addition to wired DMX512 control (through the XLR In / Out connectors) and
wireless DMX512 control (only on BW models), the xture can be also con-
trolled from a handy IR remote control.
The PAR-10W-5-B / BW are thus the perfect answer to all those lighting needs
where you do not always have MAINS and DMX connections at hand or
simply do not have time to prepare them, ensuring an operation by up to 5-8
hours depending on the type of use.
2.1. Front and Rear panels
Front Panel
MENU DOWN UP ENTER
CHARGEB. LOW
BATTERY LEVEL
12
3

8
ENGLISH
PAR-10W-5-B / BW User manual
1. LED Display and control panel: they allow the user to set up the xture
2. Battery charge level: The 7-LED bar indicates the remaining battery
charge
3. The Red LED ashes during battery charge. Once fully charged, it turns
green and stop ashing. Yellow LED ashes to indicate that battery is
running low.
Rear Panel
MIC
DMX IN DMX OUT
POWER OUTPOWER IN
ON
WIRELESS
ID
1
7
42 3
6
8
5
1. DMX512 In/Out connectors
2. Microphone (used in Sound Mode)
3. Power On/Off switch
4. Power IN / Out VDE connectors

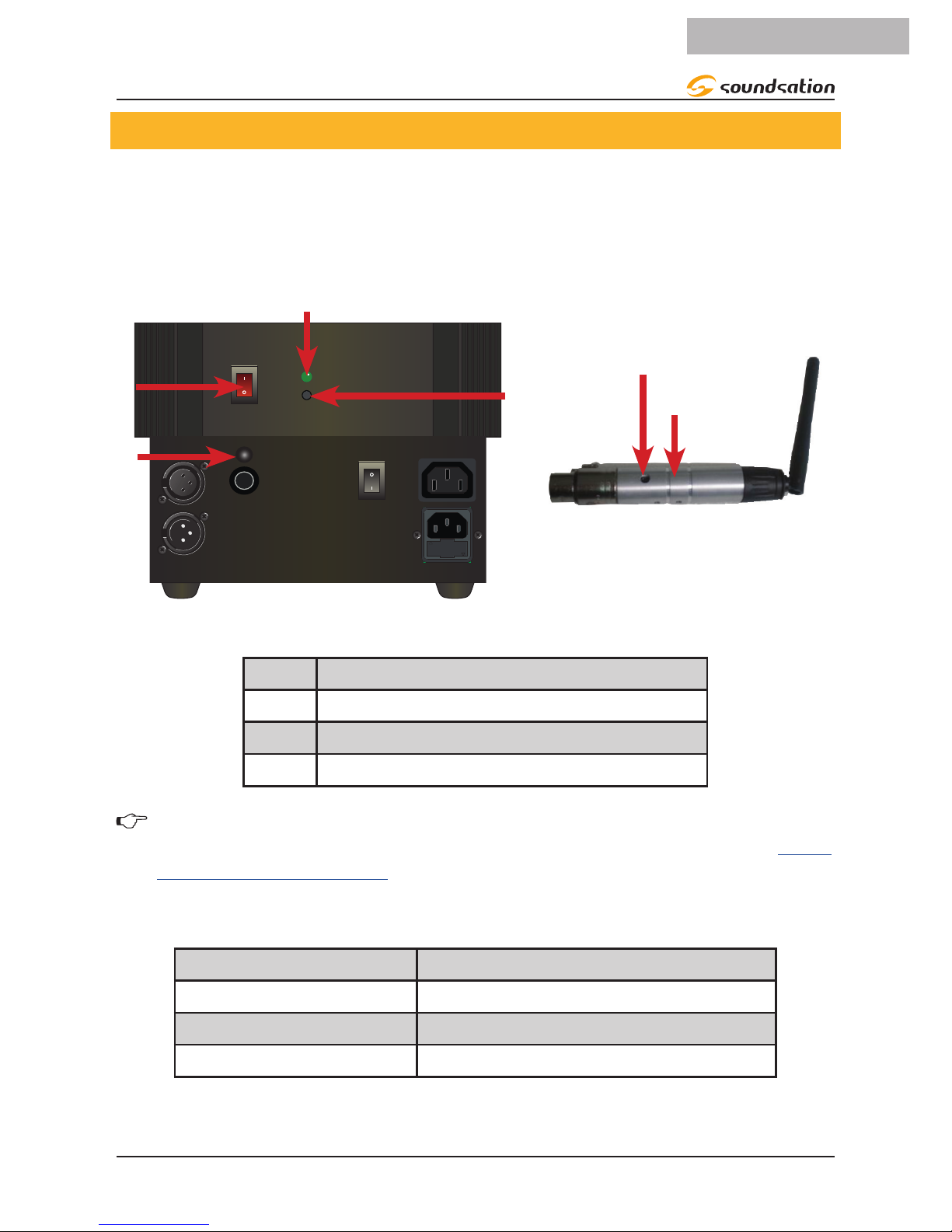

5. Wireless ID switch to set wireless DMX ID number (only BW version)
6. Wireless DMX operation indicator (only BW version)
7. Wireless DMX On/Off switch (only BW version)
8. Wireless DMX antenna (only BW version)
2.2. Mains Connections
Connect the device to the mains with the power-plug. The wire correspon-
dence is as follow:

9
ENGLISH
PAR-10W-5-B / BW User manual
WIRE PIN INTERNATIONAL
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth must to be connected! Pay attention to safety!
Before taking into operation for the rst time, the installation has to be ap-
proved by an expert.
2.3. DMX-512 Connection
The wires must not come into contact with each other; otherwise the xtures
will not work at all, or will not work properly. Only use a DMX cable, 3-pin XLR
plugs and connectors in order to control with the xture or one xture with
another.
DMX use of XLR connectors
1 = Ground / Shield
2 = DMX +
3 = DMX -
INPUT OUTPUT
If you are using the recommended controllers, you can connect the DMX out-
put of the controller directly with the DMX input of the rst xture in the DMX
chain. If you wish to connect DMX controllers with other XLR output, you need
to use adapter-cables.
3.2.3. Building a Serial DMX Chain
DMX 512
DMX Termonator

10
ENGLISH
PAR-10W-5-B / BW User manual
Connect the DMX output of the rst xture in the DMX chain with the DMX
input of the next xture. Always connect one output with the input of the next
xture until all xtures are connected.
A word on termination: DMX is a resilient communication protocol, however
errors still occasionally occur. Termination reduces signal errors, and there-
fore best practices include use of a terminator in all circumstances. If you are
experiencing problems with erratic xture behavior, especially over long signal
cable runs, a terminator may help improve performance.

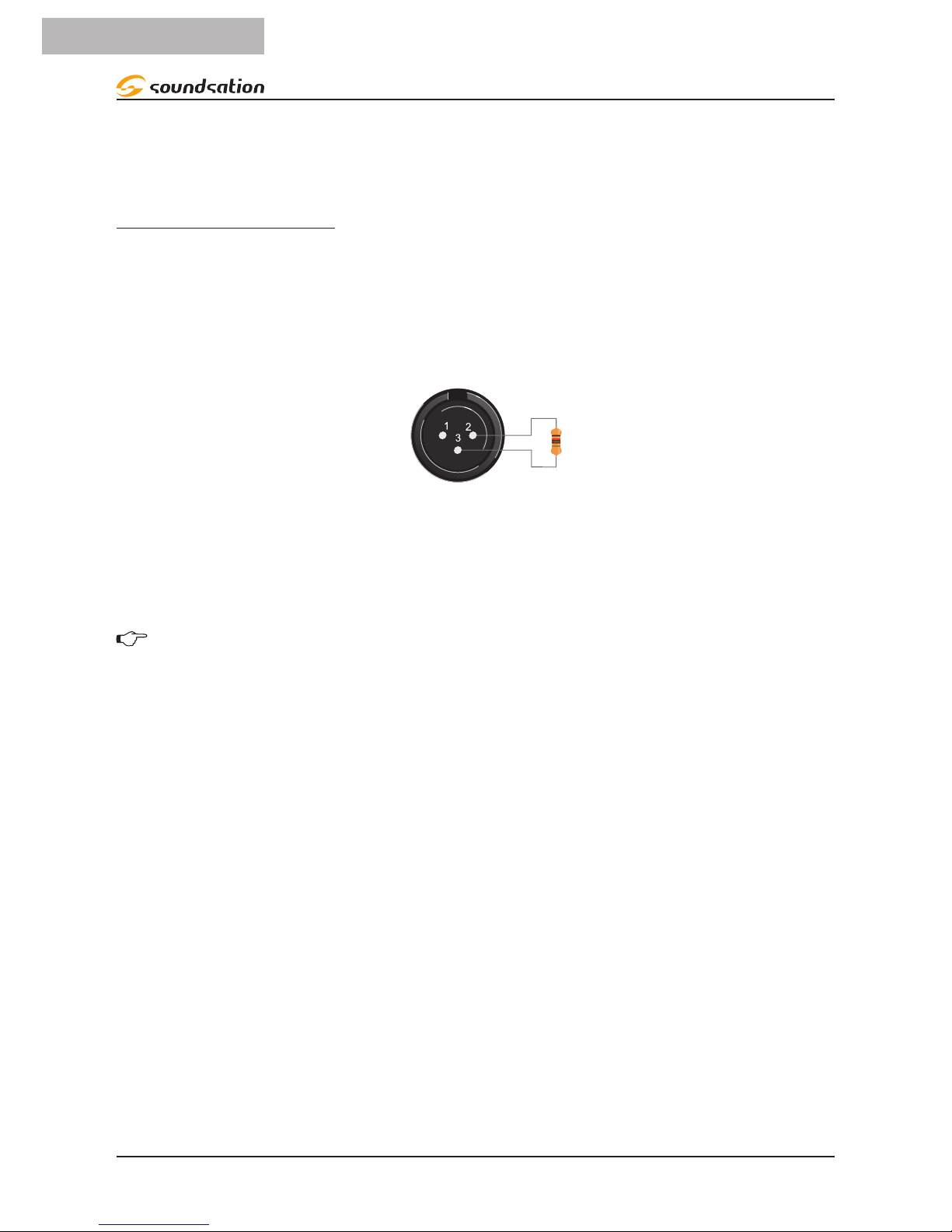

DMX Terminator
120ohm, 1/4W
resistor
To build your own DMX Terminator: Obtain a 120-ohm, 1/4-watt resistor, and
wire it between pins 2&3 of the last xture. They are also readily available
from specialty retailers.
 Complimentarysignalcablecantransmitssignalsto20unitxtures
atmost.Signalamplierisamusttoconnectmorextures.

11
ENGLISH
PAR-10W-5-B / BW User manual
3. PRODUCT SPECIFICATION
fLED source: 5pcs 10W RGBW 4in1 LEDs
fBuilt-in Master-Slave, Sound, Jump, Fade and Auto modes
fBuilt-in various strobe functions
fLED display, easy to control
fSuitable for disco, club, bar, party and DJ shows
fDMX Channel Modes: 2CH, 3CH1, 4CH, 5CH and 7CH
fDMX wireless control (only on BW versions)
fVoltage: AC100-240V 50/60Hz
fPower consumption: 100W
fBuilt-in 22Vcc/4Ah rechargeable battery pack for up to 5-6 hours of use
fLight size: 256 x 233 x 151 mm
fPacking size: 270 x 210 x 270 mm
fGross weight: 3.6kg
fNet weight: 3.0kg
4. LED DISPLAY
1 2 3 4
Item Sq No. Display Function
Button:
1MENU Enter the menu
2 DOWN Next menu
3 UP Previous menu
4ENTER Enter the select function
4.1 LED display function
Press MENU button to choose a function and ENTER button to enter the cho-
sen function; then press UP/DOWN button to select a parameter and ENTER

12
ENGLISH
PAR-10W-5-B / BW User manual
to conrm.
Main operation as follows:
ENTER
UP & DOWN
ENTER DMX Address Code
ENTER
UP
R Dimmer
G Dimmer
B Dimmer
W Dimmer
Strobe
ENTER
UP & DOWN
ENTER LED Static Color Select
ENTER
UP & DOWN
ENTER
ENTER
UP & DOWN
ENTER
ENTER
UP & DOWN
ENTER
ENTER
UP & DOWN
ENTER
Jump Mode
Strobe
Fade Mode
Strobe
ENTER Auto Mode
ENTER Slave Mode
ENTER
UP & DOWN
ENTER Sound Mode and Sensibility
Adjustment
ENTER
UP
UP UP
ENTER
Channel Mode
5. CHANNEL MODE INSTRUCTION (choose A001 de-
fault address code)
2CH/3CH1
2CH 3CH1 Value Function
1 1 000-255 Full Dimmer, 0-100%
2000-255 LED Color Select
2000-255 Strobe,Speed from slow to fast

13
ENGLISH
PAR-10W-5-B / BW User manual
3
000-004 Black out
005-080 LED color select (1-63 types)
081-150 Jump Mode
151-220 Fade Mode
221-255 Sound control mode
4CH
4CH Value Function
1000-255 R Dimmer,0-100%
2000-255 G Dimmer,0-100%
3000-255 B Dimmer,0-100%
4000-255 W Dimmer,0-100%
7CH
7CH Value Function
1000-255 LED full dimmer, 0-100%
2000-255 Strobe, speed from slow to fast
3000-255 R Dimmer, 0-100%
4000-255 G Dimmer, 0-100%
5 000-255 B Dimmer, 0-100%
6000-255 W Dimmer, 0-100%
7
000-004 Remain unchanged
005-080 LED static color select (1 - 15 types)
081-150 Jump mode
151-220 Fade mode
221-255 Sound control mode

14
ENGLISH
PAR-10W-5-B / BW User manual
6. IR REMOTE AND WIRELESS DMX CONTROL
6.1. IR remote control
PAR-10W-5-B and BW use an IR remote to control the light. It operates within
5m from the xture.
IR Signal Receiver
within 5m
Remote control
NOTE: Please notice that the remote needs a CR2025 3V Lithium
battery (not included).
Using the remote control does not require any special settings; the only indi-
cation is that the remote control does not operate when the xture is in DMX
mode (and the display shows an “A” followed by the number of current DMX
channel). It is therefore necessary to switch to any other menus (Color, Static
Color, Jump, Strobe, etc.).

15
ENGLISH
PAR-10W-5-B / BW User manual
6.1.1. Preparing the remote control unit
• Pull the battery sheet out from the remote control unit in the direction of
the arrow.
• Use a commercially available button battery (CR2025). Insert the battery
with the + side facing upward, following the illustration inside the case.
• Keep on sliding (1)
• Pull out (2)
CAUTION: Keep battery out of reach of children and in original pack-
age until ready to use. Dispose of used batteries promptly. If swal-
lowed contact physician immediately.
 Donotleavethebatterynearreorunderdirectsunlight.Are,
explosionorexcessiveheatgenerationmayresult.
Do not set the remote control in hot places such as on the dash-
board.
 TheLithiumbatteryisindangerofexplosionifreplacedincorrectly.
Replace only with the same or equivalent type.

16
ENGLISH
PAR-10W-5-B / BW User manual
6.1.2. Remote control functions
BL Switches blackout function on and
off
SP
By pressing repeatedly, increases/
decreases speed during non-static
functions (Jump, Fade, Auto, etc.).
6 steps available.
By pressing repeatedly, increases/
decreases brightness. 6 steps
available.
FL
By pressing repeatedly, increases/
decreases strobo effect. 6 steps
available.
RAdds/subtracts to nal color 7 levels
red
GAdds/subtracts to nal color 7 levels
green
BAdds/subtracts to nal color 7 levels
blue
WAdds/subtracts to nal color 7 levels
white
ANot active for PAR-10W-5-B / BW
Ju Activates/dis-activates Jump mode
Fa Activates/dis-activates Fade mode
Au Activates/dis-activates Auto mode
Su Activates/dis-activates Sound mode
CM+
Activates Static Color mode. By
pressing repeatedly, increases by 1
among 62 main combinations
CM-
Activates Static Color mode. By
pressing repeatedly, decreases by
1 among 62 main combinations

17
ENGLISH
PAR-10W-5-B / BW User manual
6.2. Wireless DMX512 control (only BW versions)
This xture features a built-in DMX 512 wireless receiver, which operates on
2.4GHz ISM frequencies (2.400 - 2.525GHz) at a maximum distance of 400
meters (without obstacles). It can manage up to 7 IDs with 126 DMX total
channels.
MIC
DMX IN DMX OUT
POWER OUTPOWER IN
ON
WIRELESS
ID
3
4
2
1
SOUNDSATION WDX-100
wireless DMX transmitter
ID switch
LED
1. Antenna
2. DMX Wireless Receiver On/Off switch
3. LED indicator
4. ID setting switch
System works with SOUNDSATION WDX-100 wireless DMX transmit-
ter (optional). Contact your SOUNDSATION local dealer or visit www.
soundsationmusic.com for further information.
Working conditions:
LED constant lite up: no DMX or wireless signal.
Red LED ash: transmitting
Green LED ash: receiving
RF frequency: 2. 400-2. 525 G, total 126 channels

18
ENGLISH
PAR-10W-5-B / BW User manual
6.2.1. ID code and LED color correspondence
DMX data communication occurs only if transmitter an receiver are both under
same ID code. Each ID has a different assigned color as shown in next table.
ID COLOR
1RED
2GREEN
3RED+GREED
4BLUE
5 RED+BLUE
6GREEN+BLUE
7RED+GREED+BLUE
6.2.2. Establishing Communication
1. Power on DMX512 wireless receiver by using switch 2 on PAR-10W-5-BW
2. Power on SOUNDSATION WDX-100 Wireless Transmitter board (or other
compatible transmitters - contact your SOUNDSATION local dealer for
further information)
3. Press “Key” button to set same ID value on transmitter and receiver
(please use different ID values if you need to use more than 1 group wire-
less network at same time in same place)
4. LED on transmitter turns red and ashes when it sends DMX data by no
interfered frequencies
5. If same ID value is set on both devices and there are no interferences,
LED on receiver turns green and ashes. The faster DMX data are, the
faster it ashes
6. Then communication is established correctly
7. RECHARGEABLE BATTERY
PAR-10W-5-B and BW can run either on AC or battery. They embed a re-
chargeable battery pack for up 7-8 hrs in auto mode or single color at 100%
intensity; 5 hrs in full color at 100% intensity.

19
ENGLISH
PAR-10W-5-B / BW User manual
7.1. Battery charging instructions
• Connect the xture with power cord to a proper mains outlet and switch on
the unit
• Red LED above charge level bar ashes until battery is not fully charged
• To fully charge, the battery takes about 8 hours (4 hours at least)
• Once fully charged, the red LED turns green and stop ashing
• Yellow LED indicates that battery is running low.
 Note:Forextendingbatterylife,pleaserechargethebatterywithin6
hours after it has completely run out.
7.2. Battery replacement guide
To remove or replace the battery pack, follow the instructions below:
• Turn off and disconnect the unit from power
• Unscrew the four screws that close the door on the bottom and remove it
Screw
Screw
Screw
Screw
Battery Pack
Power
Connector
• Partially extract the pack and gently disconnect the power connector, pay-
ing attention to not damage its wires.
• Replace the pack with the same size and characteristics specied in this
manual (22Vcc-4Ah)
• Contact SOUNDSATION Customer Support if you have questions
 Note:Ifyou’regoingtopowertheunitonACforalongtime,itisad-
visable to remove the battery pack, in order to avoid it to be charged
beyond its charging time.

20
ENGLISH
PAR-10W-5-B / BW User manual
7.3. Battery safety and disposal instructions
Please follow the instructions below for safe handling of and proper disposal of
user-serviceable batteries.
• Do charge rechargeable batteries with the instructions and correct
charging equipment supplied with your SOUNDSATION product.
• Do store batteries in a cool, dry place at normal room temperature.
Remove batteries from devices that will be stored unused for extended
periods.
• Do dispose of batteries according to the local laws and regulations of your
region. Some batteries may be recycled, and may be accepted for dispos-
al at your local recycling center.
• Do contact SOUNDSATION Customer Support if you have questions
about proper handling of batteries. Batteries may present a risk of re,
explosion, or chemical burn if mistreated.
• Do not disassemble, puncture, modify, drop, throw, or cause other unnec-
essary shocks to batteries.
• Do not dispose of batteries in a re or trash incinerator, or leave batteries
in hot places such as a automobile under direct sunlight.
• Do not store batteries near an oven, stove, or other heat source.
• Do not connect batteries directly to an electrical source, such as a building
outlet or automobile power-point.
• Do not place batteries into a microwave oven, or into any other high-pres-
sure container.
• Do not immerse batteries in water or otherwise get them wet.
• Do not short circuit batteries; for example, do not carry loose batteries in a
pocket or purse with other metal objects, which may inadvertently cause a
battery to short circuit.
• Do not use batteries, or charge rechargeable batteries, that appear to be
leaking, discolored, rusty, deformed; emit an odor; or are otherwise abnor-
mal.
• Do not touch leaking batteries directly; wear protective material to remove
the batteries and dispose of them properly immediately.
• Do not reverse the polarity (positive and negative terminals) of batteries.
• Do not continue to charge batteries beyond the specied time.
• Do not give batteries to young children, or store batteries where children
may access them.
• Do not put batteries in mouth. If swallowed, contact physician or local
poison control center immediately.
